CADILLAC STS 2009 1.G Owners Manual

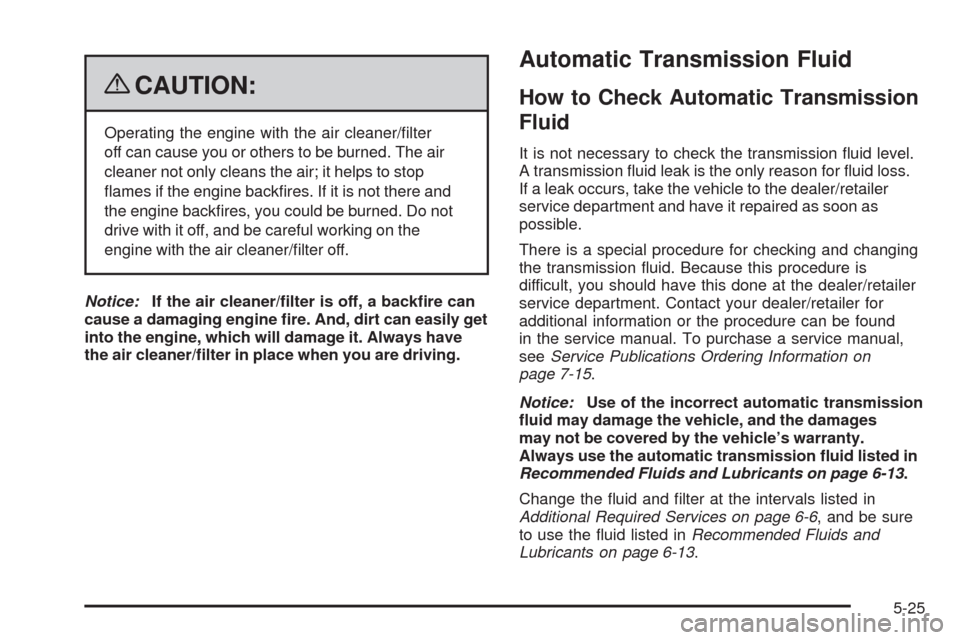

{CAUTION:
Operating the engine with the air cleaner/lter
off can cause you or others to be burned. The air
cleaner not only cleans the air; it helps to stop
ames if the engine backres. If it is not there and
the engine backres, you could be burned. Do not
drive with it off, and be careful working on the
engine with the air cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre can
cause a damaging engine re. And, dirt can easily get
into the engine, which will damage it. Always have
the air cleaner/lter in place when you are driving.
Automatic Transmission Fluid
How to Check Automatic Transmission
Fluid
It is not necessary to check the transmission uid level.
A transmission uid leak is the only reason for uid loss.
If a leak occurs, take the vehicle to the dealer/retailer
service department and have it repaired as soon as
possible.
There is a special procedure for checking and changing
the transmission uid. Because this procedure is
difficult, you should have this done at the dealer/retailer
service department. Contact your dealer/retailer for
additional information or the procedure can be found
in the service manual. To purchase a service manual,
seeService Publications Ordering Information on
page 7-15.
Notice:Use of the incorrect automatic transmission
uid may damage the vehicle, and the damages
may not be covered by the vehicle’s warranty.
Always use the automatic transmission uid listed in
Recommended Fluids and Lubricants on page 6-13.
Change the uid and lter at the intervals listed in
Additional Required Services on page 6-6, and be sure
to use the uid listed inRecommended Fluids and
Lubricants on page 6-13.
5-25

Cooling System
The cooling system allows the engine to maintain the
correct working temperature.
A. Electric Engine Cooling Fan(s) (Out of view)
B. Mechanical Engine Cooling Fan (If equipped)
(Out of view)
C. Coolant Surge Tank and Pressure Cap{CAUTION:
An electric engine cooling fan under the hood can
start up even when the engine is not running and
can cause injury. Keep hands, clothing, and tools
away from any underhood electric fan.
{CAUTION:
Heater and radiator hoses, and other engine parts,
can be very hot. Do not touch them. If you do, you
can be burned.
CAUTION: (Continued)
3.6L V6 Engine shown, 4.6L V8 and
4.4L V8 STS-V Engines similar
5-26

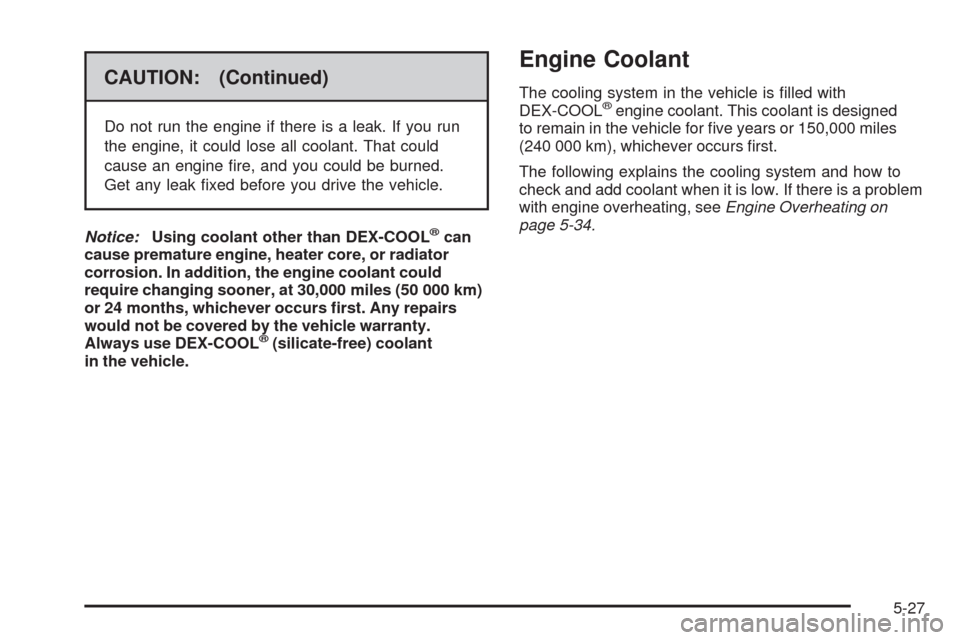

CAUTION: (Continued)
Do not run the engine if there is a leak. If you run
the engine, it could lose all coolant. That could
cause an engine re, and you could be burned.
Get any leak xed before you drive the vehicle.
Notice:Using coolant other than DEX-COOL
®can
cause premature engine, heater core, or radiator
corrosion. In addition, the engine coolant could
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs rst. Any repairs
would not be covered by the vehicle warranty.
Always use DEX-COOL
®(silicate-free) coolant
in the vehicle.
Engine Coolant
The cooling system in the vehicle is lled with
DEX-COOL®engine coolant. This coolant is designed
to remain in the vehicle for ve years or 150,000 miles
(240 000 km), whichever occurs rst.
The following explains the cooling system and how to
check and add coolant when it is low. If there is a problem
with engine overheating, seeEngine Overheating on
page 5-34.
5-27

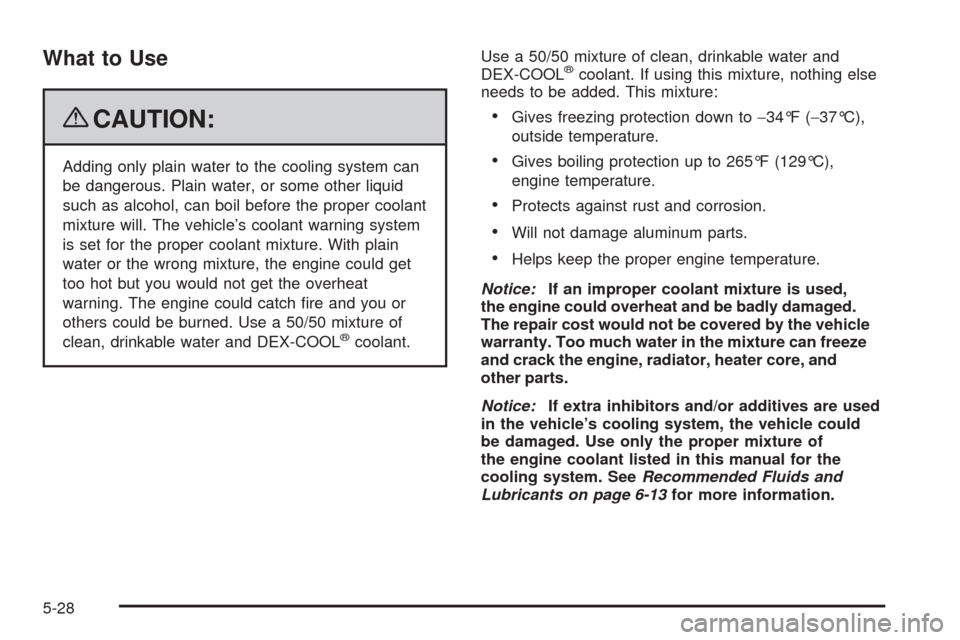

What to Use
{CAUTION:
Adding only plain water to the cooling system can
be dangerous. Plain water, or some other liquid
such as alcohol, can boil before the proper coolant
mixture will. The vehicle’s coolant warning system
is set for the proper coolant mixture. With plain
water or the wrong mixture, the engine could get
too hot but you would not get the overheat
warning. The engine could catch re and you or
others could be burned. Use a 50/50 mixture of
clean, drinkable water and DEX-COOL
®coolant.Use a 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant. If using this mixture, nothing else
needs to be added. This mixture:
Gives freezing protection down to−34°F (−37°C),
outside temperature.
Gives boiling protection up to 265°F (129°C),
engine temperature.
Protects against rust and corrosion.
Will not damage aluminum parts.
Helps keep the proper engine temperature.
Notice:If an improper coolant mixture is used,
the engine could overheat and be badly damaged.
The repair cost would not be covered by the vehicle
warranty. Too much water in the mixture can freeze
and crack the engine, radiator, heater core, and
other parts.
Notice:If extra inhibitors and/or additives are used
in the vehicle’s cooling system, the vehicle could
be damaged. Use only the proper mixture of
the engine coolant listed in this manual for the
cooling system. SeeRecommended Fluids and
Lubricants on page 6-13for more information.
5-28

Checking Coolant
The vehicle must be on a level surface when checking
the coolant level.
The coolant surge tank and pressure cap are located
on the driver’s side of the vehicle, toward the rear of
the engine compartment. SeeEngine Compartment
Overview on page 5-12for more information on location.Check to see if coolant is visible in the coolant surge
tank. If the coolant inside the coolant surge tank is boiling,
do not do anything else until it cools down. If coolant
is visible but the coolant level is not at or above the
FULL COLD/FROID line, add a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant at the coolant
surge tank, but be sure the cooling system is cool before
this is done.
When the engine is cold, the coolant level should be at
or above the FULL COLD/FROID line on the side of the
coolant surge tank. Follow the arrow from the top of the
tank down the side to the horizontal mark. If it is not,
there could be a leak in the cooling system.
If the coolant is low, add the coolant or take the vehicle
to a dealer/retailer for service.
5-29

Checking Intercooler System Coolant
(4.4L V8 STS-V Engine Only)
The vehicle must be on a level surface when checking
the coolant level.
SeeEngine Compartment Overview on page 5-12for
the location of the intercooler system pressure cap.
Turn off the engine. When the engine is cold, the coolant
level should be visible in the intercooler ll neck.
How to Add Coolant to the Surge Tank
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot enough.
Do not spill coolant on a hot engine.
Notice:This vehicle has a specic coolant ll
procedure. Failure to follow this procedure could
cause the engine to overheat and be severely
damaged.
5-30

{CAUTION:
Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They are
under pressure, and if you turn the coolant surge
tank pressure cap — even a little — they can
come out at high speed. Never turn the cap when
the cooling system, including the coolant surge
tank pressure cap, is hot. Wait for the cooling
system and coolant surge tank pressure cap to
cool if you ever have to turn the pressure cap.
{CAUTION:
An electric engine cooling fan under the hood can
start up even when the engine is not running and
can cause injury. Keep hands, clothing, and tools
away from any underhood electric fan.If no coolant is visible in the surge tank, add coolant as
follows:
1. Remove the coolant surge tank pressure cap when
the cooling system, including the coolant surge tank
pressure cap and upper radiator hose, is no longer
hot. Turn the pressure cap slowly counterclockwise
about one-quarter of a turn. If you hear a hiss, wait
for that to stop. A hiss means there is still some
pressure left.
2. Then keep turning the pressure cap slowly, and
remove it.
5-31

3. Fill the coolant surge tank with the proper
DEX-COOL®coolant mixture, to slightly above
the FULL COLD/FROID line on the side of
the coolant surge tank.4. With the coolant surge tank pressure cap off,
start the engine and let it run until you can feel
the upper radiator hose getting hot. The upper
radiator hose is the largest of the hoses which
comes out of the radiator, on the passenger
side of the vehicle. Watch out for the engine
cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower, add
more of the proper mixture to the coolant surge tank
until the level reaches the FULL COLD/FROID
line on the side of the coolant surge tank.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
Start the engine and allow it to warm up.
5-32

How to Add Coolant to the
Intercooler System Fill Neck
(4.4L V8 STS-V Engine Only)
Turn the engine off and allow it to cool down, then
check to see if coolant is visible within the horizontal tube
section of the ll neck. If coolant is not visible, add a
50/50 mixture of clean, drinkable water and DEX-COOL
®
coolant to the ll neck. Be sure the Intercooler System,
including the Intercooler System pressure cap, is cool
before doing so. SeeEngine Coolant on page 5-27for
more information.
{CAUTION:
Turning the Intercooler System pressure cap when
the engine and intercooler are hot can allow steam
and scalding liquids to blow out and burn you badly.
Never turn the Intercooler System pressure cap,
even a little, when the engine and intercooler
are hot.1. Remove the Intercooler System pressure cap
when the Intercooler System, including the upper
intercooler hoses, are no longer hot. Turn the
pressure cap slowly counterclockwise about
one-quarter of a turn. If you hear a hiss, wait for
that to stop. This allows any pressure still left to
be vented.
2. Then keep turning the pressure cap slowly, and
remove it.
5-33

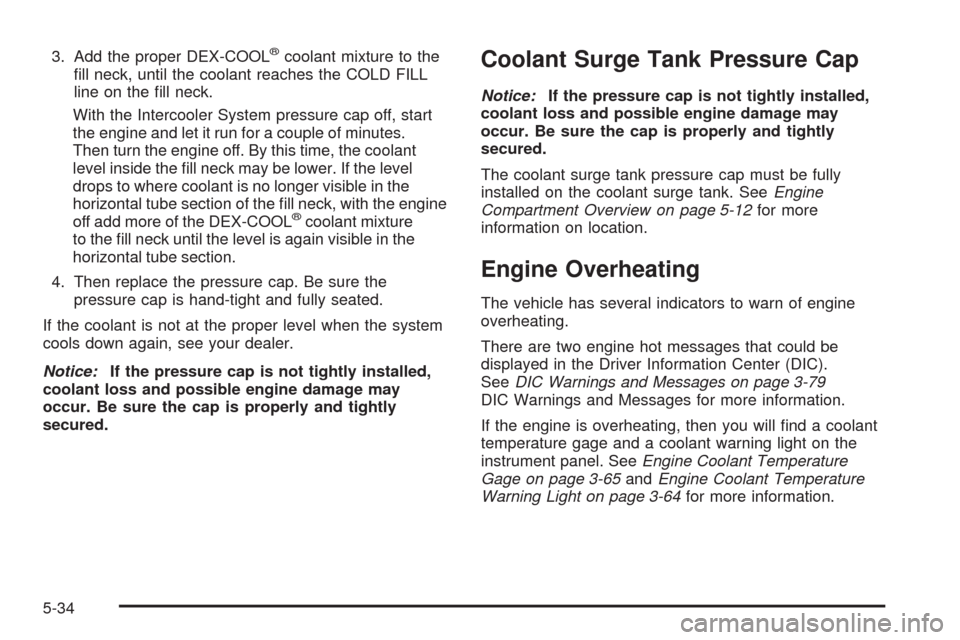

3. Add the proper DEX-COOL®coolant mixture to the
ll neck, until the coolant reaches the COLD FILL
line on the ll neck.
With the Intercooler System pressure cap off, start
the engine and let it run for a couple of minutes.
Then turn the engine off. By this time, the coolant
level inside the ll neck may be lower. If the level
drops to where coolant is no longer visible in the
horizontal tube section of the ll neck, with the engine
off add more of the DEX-COOL
®coolant mixture
to the ll neck until the level is again visible in the
horizontal tube section.
4. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
If the coolant is not at the proper level when the system
cools down again, see your dealer.
Notice:If the pressure cap is not tightly installed,
coolant loss and possible engine damage may
occur. Be sure the cap is properly and tightly
secured.
Coolant Surge Tank Pressure Cap
Notice:If the pressure cap is not tightly installed,
coolant loss and possible engine damage may
occur. Be sure the cap is properly and tightly
secured.
The coolant surge tank pressure cap must be fully
installed on the coolant surge tank. SeeEngine
Compartment Overview on page 5-12for more
information on location.
Engine Overheating
The vehicle has several indicators to warn of engine
overheating.
There are two engine hot messages that could be
displayed in the Driver Information Center (DIC).
SeeDIC Warnings and Messages on page 3-79
DIC Warnings and Messages for more information.
If the engine is overheating, then you will nd a coolant
temperature gage and a coolant warning light on the
instrument panel. SeeEngine Coolant Temperature
Gage on page 3-65andEngine Coolant Temperature
Warning Light on page 3-64for more information.
5-34
