CADILLAC STS V 2007 1.G Owners Manual

Relays Usage
BLOWER
RELAY MINIFront Blower Motor
POWERTRAIN
RELAY MICROEngine Controls
RUN/CRANK
RELAY MICROIgnition 1, Starter, Washer Nozzle,
Air Quality, Anti-lock Brake System,
Climate Control Panel, Transmission
Control Module, Instrument Panel
Cluster, Mass Airow Sensor,
Engine Control Module
LOW SPEED
FAN RELAY
MINICooling Fan Low Speed
ACCESSORY
RELAY MINIIgnition 3, Rain Sensor, Headlamp
Washer, Windshield Wiper/Washer
Module
PARK LAMP
RELAY MICROParking Lamps, Instrument Panel
Dimming, Rear License Plate Lamps
HIGH BEAM
RELAY MICROHeadlamp High-Beam
LOW BEAM
RELAY/HID
MINI-OPTLow-Beam/High Intensity DischargeRelays Usage
HIGH SPEED
FAN RELAY
MINICooling Fan High Speed
S/P FAN
RELAY MINICooling Fan Series/Parallel
HORN RELAY
MICROHorn
SPARE Spare
Circuit
BreakersUsage
HDLP WASH
C/B -OPTHeadlamp Washer (If Equipped)
Harness
ConnectionUsage
ENG W/H Engine Harness Connection
BODY W/H Body Harness Connection
BODY W/H Body Harness Connection
491

Rear Underseat Fuse Block
Removing the Rear Seat Cushion
Notice:If you touch the exposed wires with
the metal on the seat cushion, you could cause
a short that could damage the battery and or
wires. Avoid contact between the rear seat and
the fuse center whenever you remove or
reinstall the rear seat. Do not remove covers
from any of the covered parts, and do not store
anything under the seats.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release
the front hooks.
2. Pull the cushion up and out toward the front
of the vehicle.To reinstall the rear seat cushion, do the following:
492

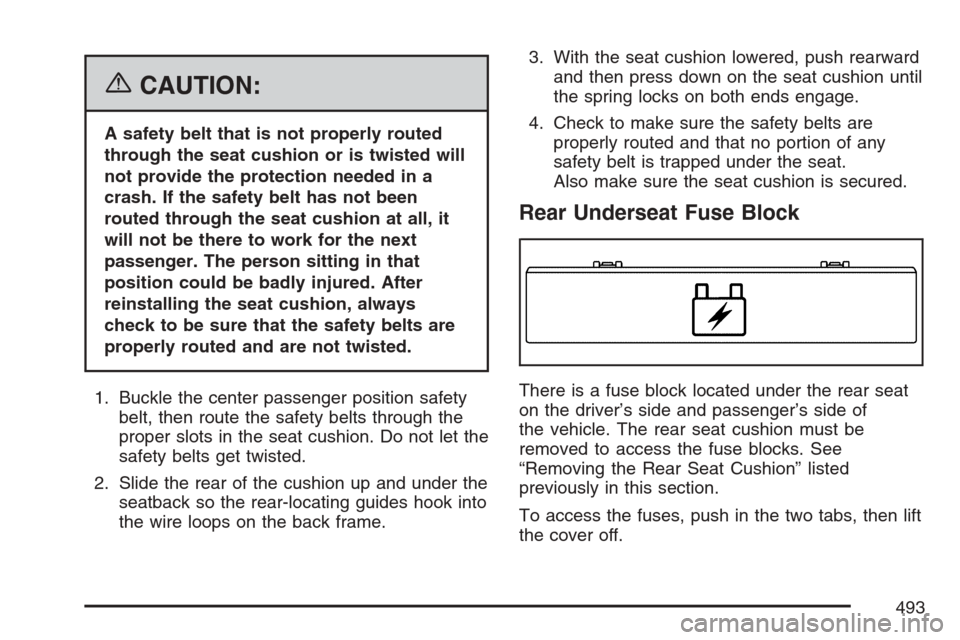

{CAUTION:
A safety belt that is not properly routed
through the seat cushion or is twisted will
not provide the protection needed in a
crash. If the safety belt has not been
routed through the seat cushion at all, it
will not be there to work for the next
passenger. The person sitting in that
position could be badly injured. After
reinstalling the seat cushion, always
check to be sure that the safety belts are
properly routed and are not twisted.
1. Buckle the center passenger position safety
belt, then route the safety belts through the
proper slots in the seat cushion. Do not let the
safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear-locating guides hook into
the wire loops on the back frame.3. With the seat cushion lowered, push rearward
and then press down on the seat cushion until
the spring locks on both ends engage.
4. Check to make sure the safety belts are
properly routed and that no portion of any
safety belt is trapped under the seat.
Also make sure the seat cushion is secured.
Rear Underseat Fuse Block
There is a fuse block located under the rear seat
on the driver’s side and passenger’s side of
the vehicle. The rear seat cushion must be
removed to access the fuse blocks. See
“Removing the Rear Seat Cushion” listed
previously in this section.
To access the fuses, push in the two tabs, then lift
the cover off.
493

Driver’s Side
Your vehicle may not have all the fuses listed below.
Fuses Usage
AMP Amplier
INTERCOOLER
PUMP (OPT)Intercooler Pump (Option)
THEFT/
SHIFTERTheft Sensors, Auto Shifter, Power
Sounder
MR-RTD
MOD (OPT)Magnetic Ride Control Module
(Option)
REAR DR MOD Rear Door Modules
ELC SOL
(OPT)Automatic Level Control, Exhaust
Solenoid (Option)
DRIVER DR
MODDriver Door Module, Front Door
SubWoofers (Option)
TV/VICS Infotainment (Export Only)Fuses Usage
REAR HTD
SEATSRear Heated Seats
SPARE Spare
SPARE Spare
IGN3Front Passenger Heated Seat, Auto
Shifter, Occupant Protection
RR SHLF
SPEAKERRear Shelf Speaker (Option)
DPM Memory Seat, Lumbar
TRUNK DR
VALETTrunk Release, Valet Lockout
Switch
REVERSE
LAMPReverse Lamps, Rear Parking Aid,
Inside Rearview Mirror
494

Fuses Usage
AIR BAG Airbag
POSITION
LAMPS (OPT)Rear Taillamps
ELC RELAY
(OPT)Automatic Level Control (Option)
Relays Usage
INTERCOOLER
PUMP MICRO
(OPT)Intercooler Pump (Option)
ELC RELAY
MINI (OPT)Automatic Level Control Compressor
(Option)
L POSITION
RELAY MICROLeft Rear Taillamp, Position Lamps
(Option)
TRUNK DR
REL RELAY
MICROTrunk Release Motor
REV LAMP
RELAY MICROReverse Lamps, Rear Parking Aid,
Inside Rearview Mirror
Relays Usage
R POSITION
RELAY MICRORight Rear Taillamp, Position Lamps
(Option)
RUN RELAY
MICROIgnition 3
STNDBY LAMP
RLY MICRO
(OPT)Rear Taillamps, Position Lamps
(Option)
Circuit
BreakersUsage
SEATS C/B Power Seat
Diodes Usage
SPARE Spare
Joint
ConnectorUsage
JOINT
CONNECTORSplice Pack (Green)
495

Passenger’s Side
Fuses Usage
SPARE Spare
CANISTER
VENTCanister Vent Solenoid
RT TURN-RIM Right Turn Signal
SUNROOF
(OPT)Sunroof Module (Option)
STOP LAMPS Stoplamps
FUEL PUMP Fuel Pump
RF HTD
ST/S-BANDFront Passenger Heated Seat,
S-Band™ Antenna
RADIO/
ONSTARRadio/OnStar
®
AIR BAG Airbags
Fuses Usage
RIM Battery to Rear Integration Module
RUN/CRANKIgnition 1, Fog Lamps, Compressor
Clutch, Engine Run/Crank Relays
HTD STG/CLMHeated Steering Wheel, Column
Lock Module
REAR DEFOG Rear Defogger
INTERIOR
LAMPInterior Lamps
PSG DR MOD Front Passenger Door Module
LT TURN-RIM Left Turn Signal
REAR FOG
LAMP (OPT)Rear Fog Lamps (Option)
496

Fuses Usage
AFTERBOIL/
DIFF PUMP
(OPT)After Boil, Rear Differential
Cooling Pump
RIM Ignition to Rear Integration Module
Relays Usage
SPARE Spare
REAR DEFOG
RELAY MINIRear Defog
FUEL PUMP
RELAY MICROFuel Pump
REAR FOG
LAMP RLY
MICRO (OPT)Rear Fog Lamps (Option)
STOP LAMP
RELAY MICROStoplamps
INT LAMP
RELAY MICROInterior Lamps
RUN/CRANK
RELAY MICROIgnition 1
AFTERBOIL/
DIFF PUMP
RELAY
MICRO (OPT)After Boil, Rear Differential
Cooling Pump (Option)
Circuit
BreakersUsage
WINDOW
MTRS C/BPower Window Motors
Circuit Breaker
Diodes Usage
TRUNK DIODE Trunk Release
Joint
ConnectorUsage
JOINT
CONNECTORSplice Pack (Blue)
497

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 516for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
3.6L V6 11.7 qt 11.1 L
4.4L V8 (V-Series) 13.4 qt 12.7 L
4.6L V8 12.5 qt 11.8 L
Intercooler System 4.4L Engine 2.6 qt 2.5 L
Brake Fluid Capacities 1.1 qt 1.0 L
Engine Oil with Filter
3.6L V6 6.0 qt 5.7 L
4.4L V8 (V-Series) 9.0 qt 8.5 L
4.6L V8 8.0 qt 7.6 L
Fuel Tank 17.5 gal 66.2 L
498

ApplicationCapacities
English Metric
Transmission (Pan Removal and Filter Replacement)
5-Speed Automatic 7.4 qt 7.0 L
6-Speed Automatic 7.3 qt 6.9 L
6-Speed Automatic (V-Series) 6.5 qt 6.2 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the approximate level as recommended in this
manual. Recheck the uid level after lling.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
3.6L DOHC V6 7 Automatic 0.044 inches (1.11 mm)
4.4L DOHC V8 (V-Series) D Automatic 0.040 inches (1.02 mm)
4.6L DOHC V8 A Automatic 0.050 inches (1.27 mm)
STS-V Engine Data
Engine Horsepower Torque Displacement Compression Ratio
4.4L V8 (V-Series)469hp (350 kW)
@ 6400 rpm439 lb ft (595 Nm)
@ 3800 rpm4.4L 9.0:1
499
