headlamp CADILLAC XLR 2005 1.G Owner's Manual

Notice:Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
4. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being aimed. This should allow only
the beam of light from the headlamp being
aimed to be seen on the at surface.5. Turn the vertical
aiming screw until the
headlamp beam is
aimed to the horizontal
tape line. The top
edge of the cut-off
should be positioned at
the bottom edge of
the horizontal tape line.
6. Repeat Steps 4 and 5 for the opposite headlamp.
Bulb Replacement
It is recommended that all bulbs be replaced by
your dealer.
6-44

Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
If you notice unusual tire wear or your vehicle pulling one
way or the other, the alignment may need to be reset. If
you notice your vehicle vibrating when driving on a
smooth road, your wheels may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire clearance to the
body and chassis.
6-61

Fuses Usage
10 Fuel Pump
11Engine Control Module,
Transmission Control Module
12 Odd Injectors
13 Magnetic Ride Control
14 Emission Controls
15 Air Conditioning Compressor
16 Even Injectors
17 Windshield Washer
18 Headlamp Washer
19 Right Low Beam Headlamp
21 Left Low Beam Headlamp
22 Fog Lamp
23 Right High Beam Headlamp
24 Left High Beam Headlamp
25 Not Used
26 Battery 3
27 Anti-Lock Brakes
28 Climate Controls
29 Battery 2
30 Starter
31 Audio Amplier
32 Cooling Fan
33 Battery 1Fuses Usage
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Not Used
54 Fuse Puller
Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Parking Lamps
38 Fog Lamps
39 High Beam Headlamps
40 Rear Window Defogger
41 Windshield Wiper High/Low
42 Wiper RUN/ACCESSORY Power
43 Starter/Crank
44 Ignition 1
45 Windshield Wiper On/Off
46 Headlamp Washer
47 Low Beam Headlamps
6-84

Audio System(s) (cont.)
Theft-Deterrent Feature................................3-78
Understanding Radio Reception.....................3-80
XM™ Satellite Radio Antenna System............3-81
Automatic Transmission
Fluid..........................................................6-20
Operation...................................................2-25
Avoid Point/Area, Edit......................................4-20
B
Battery..........................................................6-36
Exterior Lighting Battery Saver......................3-32
Run-Down Protection...................................3-33
Before Leaving on a Long Trip.........................5-22
Brake
Anti-Lock Brake System (ABS)........................ 5-6
Emergencies................................................ 5-8
Parking......................................................2-28
System Warning Light..................................3-52
Brakes..........................................................6-33
Braking........................................................... 5-5
Braking in Emergencies..................................... 5-8
Break-In, New Vehicle.....................................2-21
Bulb Replacement...........................................6-44
Headlamp Aiming........................................6-42
Buying New Tires...........................................6-58
C
California Fuel.................................................. 6-5
Canadian Owners................................................ ii
Capacities and Specications............................6-85
Carbon Monoxide...................2-13, 2-32, 5-25, 5-35
Care of
Safety Belts................................................6-73
Your CD Player...........................................3-80
Your CDs ...................................................3-80
CD
Six-Disc Changer.........................................4-61
CD/DVD Player..............................................4-63
Center Console Storage Area...........................2-42
Chains, Tire...................................................6-63
Check
Engine Light...............................................3-55
Checking Things Under the Hood......................6-10
Chemical Paint Spotting...................................6-77
Child Restraints
Child Restraint Systems...............................1-24
Infants and Young Children...........................1-21
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-28
Older Children.............................................1-19
Securing a Child Restraint Designed for the
LATCH System........................................1-30
2

H
Hazard Warning Flashers................................... 3-6
Headlamp
Aiming.......................................................6-42
Vertical Aiming............................................6-43
Headlamps
Bulb Replacement.......................................6-44
Daytime Running Lamps...............................3-30
Flash-to-Pass............................................... 3-9
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-29
Washer......................................................3-12
Wiper Activated...........................................3-29
Head-Up Display (HUD)...................................3-34
Heated Seats................................................... 1-3
Heater...........................................................3-40
Highbeam On Light.........................................3-59
Highway Hypnosis...........................................5-23
Hill and Mountain Roads..................................5-23
HomeLink
®Transmitter....................................2-38
HomeLink®Transmitter, Programming................2-39
Hood
Checking Things Under................................6-10
Release.....................................................6-11
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-10
I
Ignition Positions.............................................2-22
Infants and Young Children, Restraints...............1-21
Ination -- Tire Pressure..................................6-53
Instrument Panel
Brightness..................................................3-32
Cluster.......................................................3-46
Overview..................................................... 3-4
J
Jump Starting.................................................6-37
K
Keyless Access System..................................... 2-4
Keyless Access System, Operation...................... 2-5
Keyless Entry System......................................4-42
Keys............................................................... 2-2
L
Labelling, Tire Sidewall....................................6-47
Lamps
Battery Run-Down Protection.........................3-33
Courtesy....................................................3-33
6

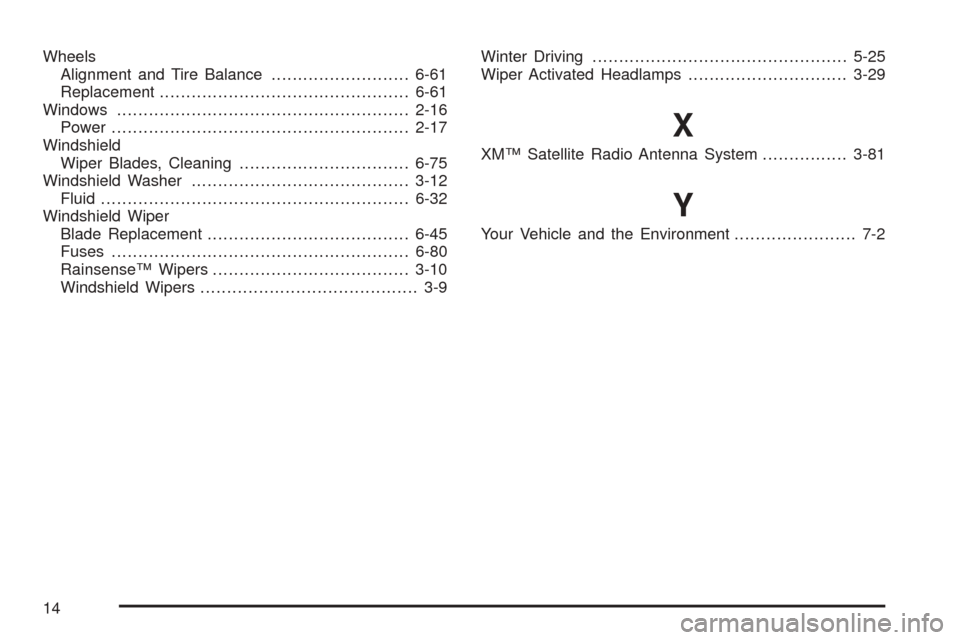

Wheels
Alignment and Tire Balance..........................6-61
Replacement...............................................6-61
Windows.......................................................2-16
Power........................................................2-17
Windshield
Wiper Blades, Cleaning................................6-75
Windshield Washer.........................................3-12
Fluid..........................................................6-32
Windshield Wiper
Blade Replacement......................................6-45
Fuses........................................................6-80
Rainsense™ Wipers.....................................3-10
Windshield Wipers......................................... 3-9Winter Driving................................................5-25
Wiper Activated Headlamps..............................3-29
X
XM™ Satellite Radio Antenna System................3-81
Y
Your Vehicle and the Environment....................... 7-2
14
