How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Litho in U.S.A.
Part No. 05XLR A First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii

Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.
You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or in
different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the following
topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

These are some examples of symbols that may be found on the vehicle:
v

✍NOTES
vi

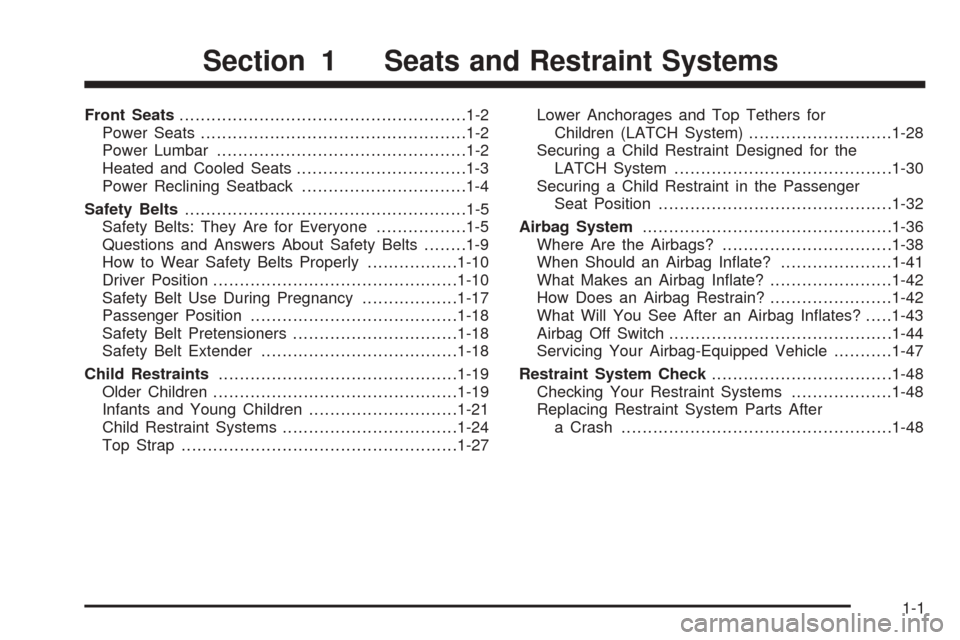

Front Seats......................................................1-2
Power Seats..................................................1-2
Power Lumbar...............................................1-2
Heated and Cooled Seats................................1-3
Power Reclining Seatback...............................1-4
Safety Belts.....................................................1-5
Safety Belts: They Are for Everyone.................1-5
Questions and Answers About Safety Belts........1-9
How to Wear Safety Belts Properly.................1-10
Driver Position..............................................1-10
Safety Belt Use During Pregnancy..................1-17
Passenger Position.......................................1-18
Safety Belt Pretensioners...............................1-18
Safety Belt Extender.....................................1-18
Child Restraints.............................................1-19
Older Children..............................................1-19
Infants and Young Children............................1-21
Child Restraint Systems.................................1-24
Top Strap....................................................1-27Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-28
Securing a Child Restraint Designed for the
LATCH System.........................................1-30
Securing a Child Restraint in the Passenger
Seat Position............................................1-32
Airbag System...............................................1-36
Where Are the Airbags?................................1-38
When Should an Airbag Inate?.....................1-41
What Makes an Airbag Inate?.......................1-42
How Does an Airbag Restrain?.......................1-42
What Will You See After an Airbag Inates?.....1-43
Airbag Off Switch..........................................1-44
Servicing Your Airbag-Equipped Vehicle...........1-47
Restraint System Check..................................1-48
Checking Your Restraint Systems...................1-48
Replacing Restraint System Parts After
a Crash...................................................1-48
Section 1 Seats and Restraint Systems
1-1

Front Seats
Power Seats

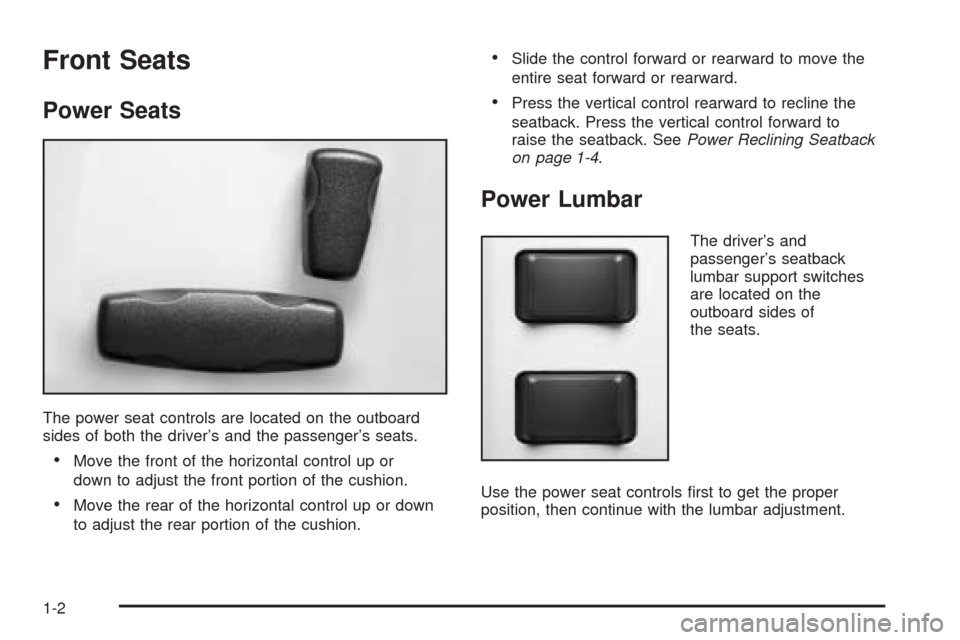

The power seat controls are located on the outboard
sides of both the driver’s and the passenger’s seats.
Move the front of the horizontal control up or
down to adjust the front portion of the cushion.
Move the rear of the horizontal control up or down
to adjust the rear portion of the cushion.
Slide the control forward or rearward to move the
entire seat forward or rearward.
Press the vertical control rearward to recline the
seatback. Press the vertical control forward to
raise the seatback. SeePower Reclining Seatback
on page 1-4.
Power Lumbar
The driver’s and
passenger’s seatback
lumbar support switches
are located on the
outboard sides of
the seats.
Use the power seat controls rst to get the proper
position, then continue with the lumbar adjustment.
1-2

Use the top lumbar switch to adjust support to the
middle seatback and the bottom lumbar switch to adjust
support to the lower seatback. Press the front of the
switch to increase support and the rear of the switch to
decrease support.
Keep in mind that as your seating position changes, as
it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.Heated and Cooled Seats
The buttons for the heated and cooled seats are located
on the climate controls.
((Heated/Cooled Seat):Press this button to turn the
feature on. The button on the left controls the driver’s
seat and the button on the right controls the passenger’s
seat. Each press of the button will take you to a
different setting. The settings available in order are
HI HEAT, LO HEAT, OFF, HI COOL, LO COOL
and OFF. You will be able to feel the temperature
change in a few minutes.
The feature will automatically shut off when the vehicle
is turned off.
1-3

Power Reclining Seatback
The vertical power seat control described earlier allows
the seatback to recline. SeePower Seats on page 1-2
for more information.
But don’t have a seatback reclined if your vehicle is
moving.{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job. In a
crash, you could go into it, receiving neck or
other injuries.
The lap belt can not do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt
properly.
1-4
