washer fluid CADILLAC XLR 2005 1.G Owners Manual

Windshield Washer
K(Washer Fluid):The lever on the right side of the
steering column also controls the windshield washer.
There is a button at the end of the lever. To spray
washer uid on the windshield, press the button and
hold it. The washer will spray until you release the
button. The wipers will continue to clear the window for
about six seconds after the button is released and
then stop or return to your preset speed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
If the uid in the windshield washer uid reservoir is
low, the message LOW WASHER FLUID will appear on
the Driver Information Center (DIC) display. It will
take 60 seconds after the bottle is relled for this
message to turn off. For information on the correct
washer uid mixture to use, seeWindshield Washer
Fluid on page 6-32andRecommended Fluids and
Lubricants on page 7-11.
Headlamp Washer
Every fourth time the windshield washer button is
pressed, washer uid will clean the headlamps.
Cruise Control
Your vehicle is equipped
with cruise control.
9(Off):This position turns the system off.
R(On):This position activates the system.
3-12

LOW OIL PRESSURE:If this message appears while
the engine is running, stop the engine and do not
operate it until the cause of low oil pressure is corrected.
Severe damage to the engine can result. A multiple
chime will sound when this message is displayed.
LOW VOLTAGE:This message will appear when the
electrical system is charging less than 10 volts or if
the battery has been drained. If this message appears
immediately after starting, it is possible that the
generator can still recharge the battery. The battery
should recharge while driving but may take a few hours
to do so. Consider using an auxiliary charger (be
sure to follow the manufacturer’s instructions) to boost
the battery after returning home or to a nal destination.
If this message appears while driving or after starting
your vehicle and stays on, have it checked immediately
by your GM dealer to determine the cause of this
problem. To help the generator recharge the battery
quickly, you can reduce the load on the electrical system
by turning off the accessories. You can monitor battery
voltage on the DIC by pressing the INFO button.
The normal range is 11.5 to 15.5 volts.
LOW WASHER FLUID:This message means that your
vehicle is low on windshield washer uid. See
Windshield Washer Fluid on page 6-32.MAX SPEED XX MPH (XX KM/H):A failure in the
magnetic ride control system has occurred when this
message appears. The Powertrain Control Module
(PCM) determines the speed to which your vehicle is
limited. Have your vehicle serviced by your GM dealer if
this message appears.
NO FOB DETECTED:This message is displayed if the
vehicle does not detect the presence of a keyless
access transmitter when you have attempted to start the
vehicle or a vehicle door has just closed. The following
conditions may cause this message to appear:
Driver-added equipment, such as two-way radios or
power inverters, is causing interference. Try moving
the keyless access transmitter away from these
devices when starting the vehicle.
The vehicle is experiencing Electro-Magnetic
Interference (EMI). Some locations, such as airports
or some gas stations, have EMI elds which may
interfere with your keyless access transmitter. If
moving the transmitter to different locations within the
vehicle does not help, place the transmitter in the
glove box transmitter pocket with the buttons facing
to the right and then press the START button.
3-67

Once you are moving on the freeway, make certain you
allow a reasonable following distance.
Expect to move slightly slower at night.
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your exit, do
not, under any circumstances, stop and back up. Drive
on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted. Reduce your speed
according to your speedometer, not to your sense
of motion. After driving for any distance at higher
speeds, you may tend to think you are going slower
than you actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If you
must start when you are not fresh — such as after
a day’s work — do not plan to make too many miles that
rst part of the journey. Wear comfortable clothing
and shoes you can easily drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it needs
service, have it done before starting out. Of course, you
will nd experienced and able service experts in GM
dealerships all across North America. They will be ready
and willing to help if you need it.Here are some things you can check before a trip:
Windshield Washer Fluid:Is the reservoir full? Are
all windows clean inside and outside?
Wiper Blades:Are they in good shape?
Fuel, Engine Oil, Other Fluids:Have you checked
all levels?
Lamps:Are they all working? Are the lenses clean?
Tires:They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all inated to the
recommended pressure?
Weather Forecasts:What is the weather outlook
along your route? Should you delay your trip a
short time to avoid a major storm system?
Maps:Do you have up-to-date maps?
5-22

Service............................................................6-3
Doing Your Own Service Work.........................6-4
Adding Equipment to the Outside of Your
Vehicle......................................................6-5
Fuel................................................................6-5
Gasoline Octane............................................6-5
Gasoline Specications....................................6-5
California Fuel...............................................6-5
Additives.......................................................6-6
Fuels in Foreign Countries...............................6-6
Filling Your Tank............................................6-7
Filling a Portable Fuel Container.....................6-10
Checking Things Under the Hood....................6-10
Hood Release..............................................6-11
Engine Compartment Overview.......................6-12
Engine Oil...................................................6-13
Engine Oil Life System..................................6-16
Engine Air Cleaner/Filter................................6-18
Automatic Transmission Fluid.........................6-20
Engine Coolant.............................................6-20
Coolant Surge Tank Pressure Cap..................6-23
Engine Overheating.......................................6-23
Overheated Engine Protection
Operating Mode........................................6-25
Cooling System............................................6-26
Power Steering Fluid.....................................6-31Windshield Washer Fluid................................6-32
Brakes........................................................6-33
Battery........................................................6-36
Jump Starting...............................................6-37
Rear Axle.......................................................6-41
Headlamp Aiming...........................................6-42
Headlamp Vertical Aiming..............................6-43
Bulb Replacement..........................................6-44
Windshield Wiper Blade Replacement..............6-45
Tires..............................................................6-46
Tire Sidewall Labelling...................................6-47
Tire Terminology and Denitions.....................6-49
Run-Flat Tires..............................................6-52
Ination - Tire Pressure.................................6-53
Tire Pressure Monitor System.........................6-55
Tire Inspection and Rotation...........................6-57
When It Is Time for New Tires.......................6-58
Buying New Tires.........................................6-58
Uniform Tire Quality Grading..........................6-59
Wheel Alignment and Tire Balance..................6-61
Wheel Replacement......................................6-61
Tire Chains..................................................6-63
Lifting Your Vehicle.......................................6-64
If a Tire Goes Flat........................................6-68
Section 6 Service and Appearance Care
6-1

A. Battery. SeeBattery on page 6-36.
B. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-45.
C. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 6-83.
D. Power Steering Fluid. SeePower Steering Fluid on
page 6-31.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 6-18.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 6-13.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 6-13.
H. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 6-33.
I. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 6-23.
J. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 6-32.Engine Oil
If the LOW OIL LEVEL or LOW OIL PRESSURE
message on the Driver Information Center appears, it
means you need to check your engine oil level right
away. For more information, see LOW OIL LEVEL and
LOW OIL PRESSURE underDIC Warnings and
Messages on page 3-64.
You should check your engine oil level regularly; this is
an added reminder.
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 6-12for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
6-13

Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a uid that has
sufficient protection against freezing.
Adding Washer Fluid
The LOW WASHER FLUID message will be displayed
on the Driver Information Center (DIC) when the
uid is low.
Open the cap with the
washer symbol on it. Add
washer uid until the
tank is full. SeeEngine
Compartment Overview on
page 6-12for reservoir
location.Notice:
When using concentrated washer uid, follow the
manufacturer’s instructions for adding water.
Do not mix water with ready-to-use washer uid.
Water can cause the solution to freeze and
damage your washer uid tank and other parts of
the washer system. Also, water does not clean as
well as washer uid.
Fill your washer uid tank only three-quarters full
when it is very cold. This allows for expansion if
freezing occurs, which could damage the tank if
it is completely full.
Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
6-32

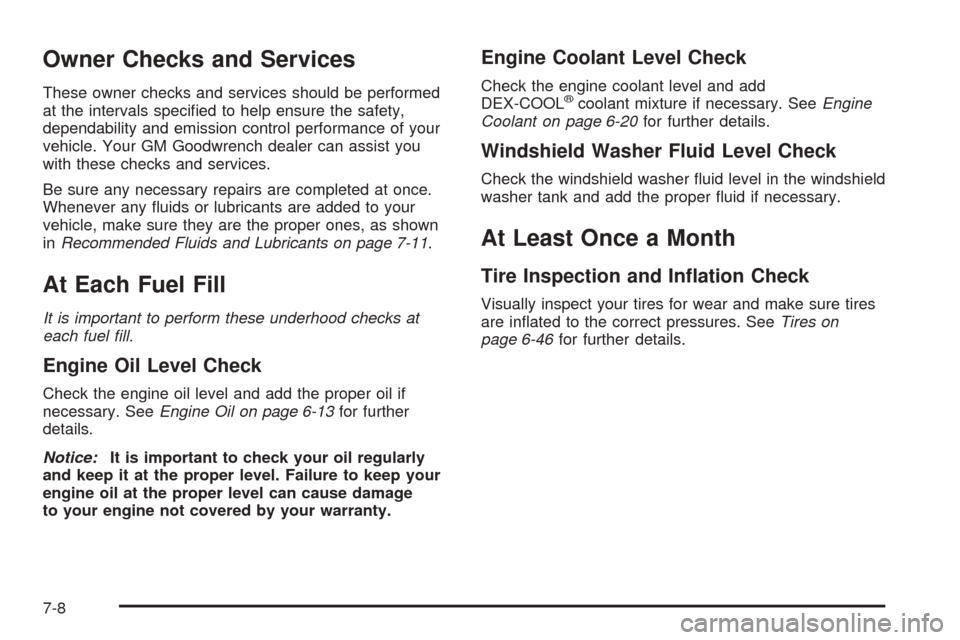

Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench dealer can assist you
with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 7-11.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 6-13for further
details.
Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. SeeEngine
Coolant on page 6-20for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer tank and add the proper uid if necessary.
At Least Once a Month
Tire Inspection and Ination Check
Visually inspect your tires for wear and make sure tires
are inated to the correct pressures. SeeTires on
page 6-46for further details.
7-8

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identied as
synthetic, and should also be
identied with the American
Petroleum Institute Certied for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. You should look
for and use only an oil that meets
GM Standard GM4718M. GM
Goodwrench oil meets all the
requirements for your vehicle. For
the proper viscosity, seeEngine Oil
on page 6-13.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. SeeEngine
Coolant on page 6-20.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid (GM Part
No. U.S. 89021184, in Canada
89021186).
Automatic
TransmissionDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Trunk Key Lock
CylinderMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
7-11

Enter Destination............................................4-21
Entry/Exit Lighting...........................................3-33
Event Data Recorders (EDR)............................. 8-9
Extender, Safety Belt.......................................1-18
Exterior Lamps...............................................3-28
Exterior Lighting Battery Saver..........................3-32
F
Filter
Engine Air Cleaner......................................6-18
Finish Damage...............................................6-77
Flash-to-Pass................................................... 3-9
Flat Tire........................................................6-68
Floor Mats.....................................................2-43
Fluid
Automatic Transmission................................6-20
Power Steering...........................................6-31
Windshield Washer......................................6-32
Fog Lamp Light..............................................3-59
Fog Lamps....................................................3-31
Fuel............................................................... 6-5
Additives...................................................... 6-6
California Fuel.............................................. 6-5
Filling a Portable Fuel Container....................6-10
Filling Your Tank........................................... 6-7
Fuels in Foreign Countries.............................. 6-6
Gage.........................................................3-60Fuel (cont.)
Gasoline Octane........................................... 6-5
Gasoline Specications.................................. 6-5
Fuses
Fuses and Circuit Breakers...........................6-80
Instrument Panel Fuse Block.........................6-81
Underhood Fuse Block.................................6-83
Windshield Wiper.........................................6-80G
Gage
Engine Coolant Temperature.........................3-54
Engine Oil Pressure.....................................3-58
Fuel..........................................................3-60
Speedometer..............................................3-48
Tachometer.................................................3-48
Voltmeter Gage...........................................3-51
Garage Door Opener.......................................2-38
Gasoline
Octane........................................................ 6-5
Specications............................................... 6-5
Getting Started
Getting Started, Navigation............................. 4-4
Global Positioning System (GPS)......................4-42
Glove Box.....................................................2-42
GM Mobility Reimbursement Program.................. 8-5
5

Wheels
Alignment and Tire Balance..........................6-61
Replacement...............................................6-61
Windows.......................................................2-16
Power........................................................2-17
Windshield
Wiper Blades, Cleaning................................6-75
Windshield Washer.........................................3-12
Fluid..........................................................6-32
Windshield Wiper
Blade Replacement......................................6-45
Fuses........................................................6-80
Rainsense™ Wipers.....................................3-10
Windshield Wipers......................................... 3-9Winter Driving................................................5-25
Wiper Activated Headlamps..............................3-29
X
XM™ Satellite Radio Antenna System................3-81
Y
Your Vehicle and the Environment....................... 7-2
14
