Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked it
will not open. You increase the chance of
being thrown out of the vehicle in a crash
if the doors are not locked. So, wear safety
belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.To lock or unlock your vehicle from the outside, use the
keyless access transmitter and press the appropriate
lock or unlock button. You may also unlock and open the
door passively when you squeeze the door handle
sensor, as long as you have your transmitter with you.
Passive entry occurs when the door handle sensor
is pressed and the vehicle recognizes your keyless
access transmitter. When the passenger door is opened
rst, the driver’s door will also become unlocked.
From the inside, use the power door lock buttons located
at the top of the door panel near the window. SeePower
Door Locks on page 2-11for more information.
To open a door from the inside, press the button in front
of the door handle and push the door open.
2-9

If power to the vehicle or the keyless access transmitter
is lost, there are two ways to open the door.
If you are inside the vehicle, use the door release
handle located on the oor next to each seat. Pull the
handle up to unlock and unlatch the door.If you are outside the vehicle, there is a door release tab
in the trunk. The tab is located behind a panel on the
driver’s side of the trunk. Pull the handle to unlock and
unlatch the driver’s door. SeeTrunk on page 2-12for
information on opening the trunk during a loss of power.
2-10

Power Door Locks
The power door lock
switches are located
on the door panels
near the windows.
K(Unlock):Press this portion of the button to
unlock the doors.
Q(Lock):Press this portion of the button to lock
the doors.There is an indicator light on the rear of the door near
the window.
When the lock portion of the button is pressed and the
door is closed, a beep will sound and the light will come
on for a few seconds, then turn off. If the button is
pressed and the door is open, a beep will sound and
the light will stay on continuously.
When the unlock portion of the button is pressed and the
door is closed, a beep will sound and the light will ash
twice. When the button is pressed and the door is open,
a beep will sound and the light will ash.
Automatic Door Lock
Your vehicle is programmed so that, when the doors are
closed, the ignition is on and the shift lever is moved
out of PARK (P), all the doors will lock.
If someone needs to get out while the vehicle is not in
PARK (P), have the person use the power door unlock
switch. When the door is closed again, the doors will lock
either when your foot is removed from the brake or the
vehicle speed becomes faster than 8 mph (13 km/h).
2-11

Programmable Automatic
Door Unlock
Your vehicle is programmed so that, when the shift
lever is moved into PARK (P), both doors will unlock.
With the vehicle in PARK (P) and the engine running,
door unlocking can be programmed through prompts
displayed on the Driver Information Center (DIC).
These prompts allow the driver to choose various unlock
settings. For programming information, seeDIC Vehicle
Personalization on page 3-78.
Lockout Protection
Your vehicle can be programmed to sound the horn three
times and unlock the driver’s door when both doors are
closed and there is a keyless access transmitter inside
the vehicle. When the driver’s door is opened, the key in
reminder chime will sound continuously. The vehicle will
remain locked only when at least one transmitter has
been removed from the vehicle and both doors are
closed. SeeDIC Vehicle Personalization on page 3-78.
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select
the control setting that will force outside
air into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-34.
2-12

Trunk Lock Release
{CAUTION:
Moving parts of the powered trunk lid can be
dangerous. You or others could be injured.
Keep yourself and others away from the trunk
lid and its mechanism while it is closing.
The trunk lock release
button is located to the
left of the steering wheel
on the instrument panel.
Press the button to open the trunk. To use this feature,
your vehicle must be in PARK (P) or NEUTRAL (N)
and the valet lockout switch must be off.
You can also press the button with the trunk symbol on
the keyless access transmitter to open the trunk.To disable this feature, see “Valet Lockout Switch”
underTheft-Deterrent Systems on page 2-18.
You may passively enter the trunk when you squeeze
the trunk release sensor located on the rear of the trunk
lid under the emblem, as long as you have your
transmitter with you. The vehicle must be in PARK (P)
and the valet lockout switch must be off. SeeValet
Lockout Switch on page 2-20.
To close the trunk,
press the button on the
underside of the trunk lid.
To stop the trunk lid while it is closing, do one of the
following:
Press the trunk lock release button located on the
instrument panel.
Use the vehicle key on the rear fascia.
Squeeze the trunk release sensor located on the
rear of the trunk lid.
2-13

Press the button with the trunk symbol on the
keyless access transmitter.
Press the trunk close button on the underside of
the trunk lid.
To begin opening the trunk from the stopped position,
use any of the methods above, except pressing the trunk
close button.
To resume closing the power trunk lid, press the trunk
close button on the underside of the trunk lid.
If the vehicle has lost
battery power, you can
still open the trunk
using the key.
The key cylinder is located behind a cover on the lower
rear fascia on the driver’s side of the vehicle. Use
the key to pry open the door to access the key cylinder.
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
The emergency trunk release handle is only
intended to aid a person trapped in a latched trunk,
enabling them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk release
handle located inside the trunk near the latch. This
handle will glow following exposure to light. Pull
the release handle and push up on the trunk lid to
release the latch from the inside.
2-14

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm
or hot weather.
2-15

Power Windows
The power window
switches are located
on each door near
the armrest.
Press the up or down arrows on the switches to raise
or lower the windows.
Your vehicle has Retained Accessory Power (RAP)
that allows you to use the power windows once
the ignition has been turned off. For more information,
seeRetained Accessory Power (RAP) on page 2-22.
Power Window Initialize
After a power reconnect such as battery replacement,
the express-up and index-up features will not function
until the system is initialized. Once power is restored,
do the following:
1. Close the door.
2. Raise the window by holding the up arrow on the
power window switch.
3. Hold the up arrow for three seconds after the
window is closed. Release the switch. Then hold
the up arrow again for three seconds.
The express-up system must be initialized to operate
the windows with the door open.
2-16

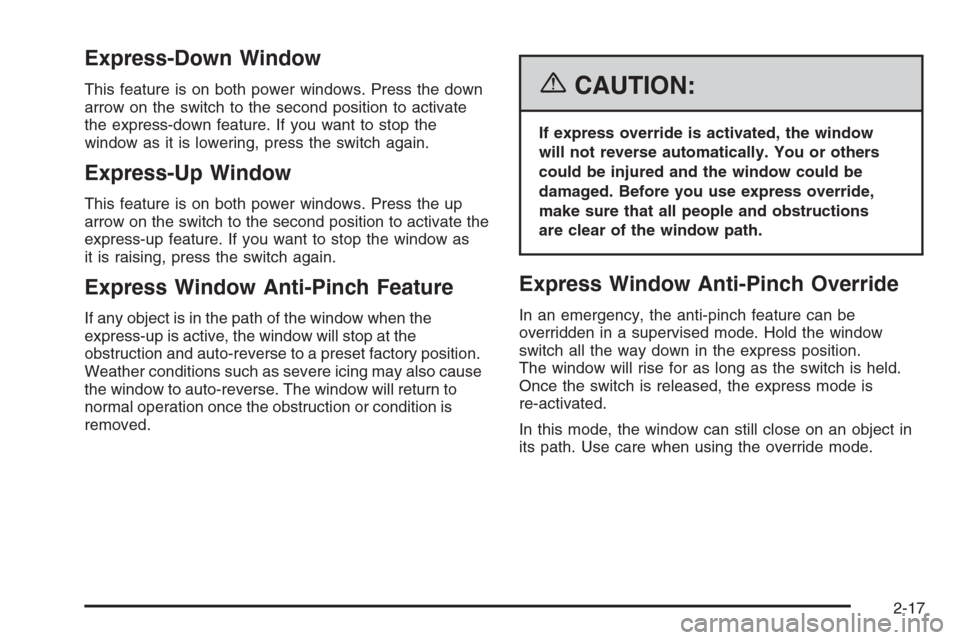

Express-Down Window
This feature is on both power windows. Press the down
arrow on the switch to the second position to activate
the express-down feature. If you want to stop the
window as it is lowering, press the switch again.
Express-Up Window
This feature is on both power windows. Press the up
arrow on the switch to the second position to activate the
express-up feature. If you want to stop the window as
it is raising, press the switch again.
Express Window Anti-Pinch Feature
If any object is in the path of the window when the
express-up is active, the window will stop at the
obstruction and auto-reverse to a preset factory position.
Weather conditions such as severe icing may also cause
the window to auto-reverse. The window will return to
normal operation once the obstruction or condition is
removed.
{CAUTION:
If express override is activated, the window
will not reverse automatically. You or others
could be injured and the window could be
damaged. Before you use express override,
make sure that all people and obstructions
are clear of the window path.
Express Window Anti-Pinch Override
In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way down in the express position.
The window will rise for as long as the switch is held.
Once the switch is released, the express mode is
re-activated.
In this mode, the window can still close on an object in
its path. Use care when using the override mode.
2-17

Window Indexing
This feature automatically lowers the window a small
amount when the door is opened. Then, when the door
is closed, the window will raise to its full up position.
Sun Visors
Notice:Raising or lowering the retractable hardtop
with the visor or the visor vanity mirror cover up,
may cause damage to the visor or mirror cover.
Always return the visor to the center mount or lower
the cover on the visor vanity mirror before raising
or lowering the retractable hardtop.
Swing down the visor to block out glare. It can also be
detached from the center mount and moved to the side.
Lighted Visor Vanity Mirrors
Swing the visor down and lift the cover. The lamp will
automatically come on when the cover is opened.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Theft-Deterrent System
Your vehicle is equipped with a theft-deterrent alarm
system.
With this system, the
security light will ash
when the door is open and
locked with the power
door lock switch.
If this light is on continuously while the engine is
running, your vehicle needs service.
2-18
