tow CADILLAC XLR 2007 1.G Owners Manual

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Safety Belts
............................................ 13
Child Restraints
...................................... 28
Airbag System
........................................ 44
Restraint System Check
......................... 60
Features and Controls
................................ 63
Keys
....................................................... 65
Doors and Locks
.................................... 73
Windows
................................................ 81
Theft-Deterrent Systems
......................... 84
Starting and Operating Your Vehicle
....... 87
Mirrors
.................................................. 104
OnStar
®System
................................... 107
Universal Home Remote System
.......... 110
Storage Areas
...................................... 121
Retractable Hardtop
.............................. 124Instrument Panel
....................................... 135
Instrument Panel Overview
................... 138
Climate Controls
................................... 178
Warning Lights, Gages, and
Indicators
.......................................... 185
Driver Information Center (DIC)
............ 203
Trip Computer
...................................... 224
Audio System(s)
................................... 225
Navigation System
..................................... 231
Overview
.............................................. 232
Features and Controls
.......................... 240
Navigation Audio System
...................... 285
Voice Recognition
................................. 312
Driving Your Vehicle
................................. 321
Your Driving, the Road, and
Your Vehicle
..................................... 322
Towing
................................................. 359
2007 Cadillac XLR/XLR-V Owner ManualM
1

Two personalized exit positions can be set by rst
recalling the driving position (by pressing 1 or 2),
then positioning the steering wheel and seat in the
desired exit positions and then pressing and
holding the exit button until two beeps are heard.
The exit button is located between buttons 1 and 2.
With the vehicle in PARK (P), the exit position
for the previously set driver can be recalled
by pressing the exit button.
When you use the keyless access transmitter to
unlock your vehicle, automatic seat and steering
wheel movement to the exit position may
occur. The numbers on the back of the
transmitter, 1 and 2, corresponds to the numbers
on the memory buttons.
Further programming for automatic seat and mirror
movement can be done using the Driver
Information Center (DIC).
For programming information, seeDIC Vehicle
Personalization on page 220.Power Reclining Seatbacks
Your seats have power
reclining seatbacks.
Use the vertical power seat control located on the
outboard side of the seat to operate them.
To recline the seatback, press the control
toward the rear of the vehicle.
To raise the seatback, press the control
toward the front of the vehicle.
11

Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:Move the child toward the center of the
vehicle, but be sure that the shoulder belt still
is on the child’s shoulder, so that in a crash
the child’s upper body would have the restraint
that belts provide.
{CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is
behind the child. If the child wears the
belt in this way, in a crash the child might
slide under the belt. The belt’s force
would then be applied right on the child’s
abdomen. That could cause serious or
fatal injuries.
The lap portion of the belt should be worn low and
snug on the hips, just touching the child’s thighs.
This applies belt force to the child’s pelvic bones in
a crash.
30

Child Restraint Systems
An infant car bed (A), a special bed made for use
in a motor vehicle, is an infant restraint system
designed to restrain or position a child on a
continuous at surface. Make sure that the infant’s
head rests toward the center of the vehicle.A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the
infant. The harness system holds the infant in
place and, in a crash, acts to keep the infant
positioned in the restraint.
35

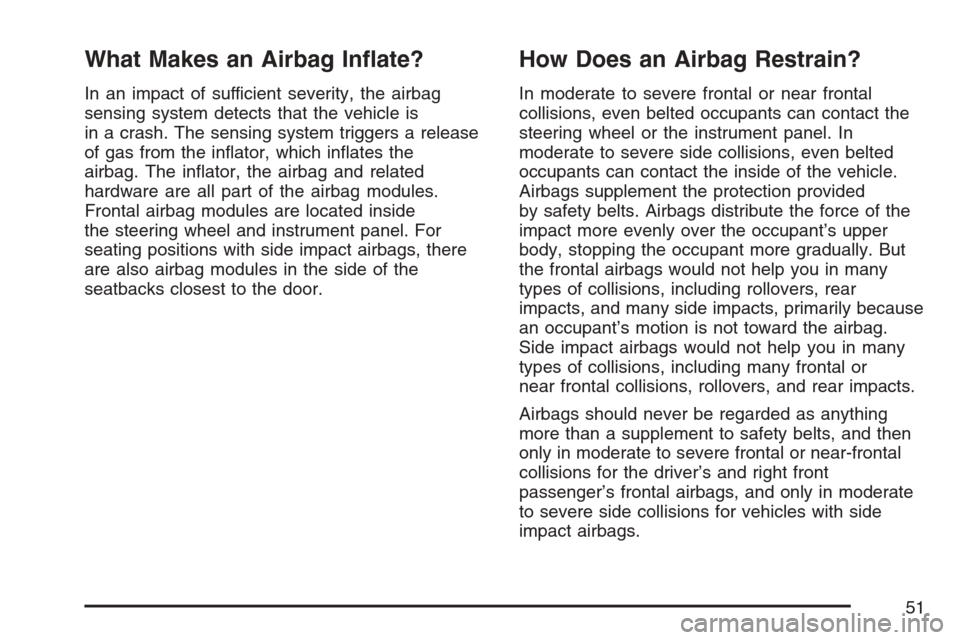

What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the inator, which inates the
airbag. The inator, the airbag and related
hardware are all part of the airbag modules.
Frontal airbag modules are located inside
the steering wheel and instrument panel. For
seating positions with side impact airbags, there
are also airbag modules in the side of the
seatbacks closest to the door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Side impact airbags would not help you in many
types of collisions, including many frontal or
near frontal collisions, rollovers, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions for vehicles with side
impact airbags.
51

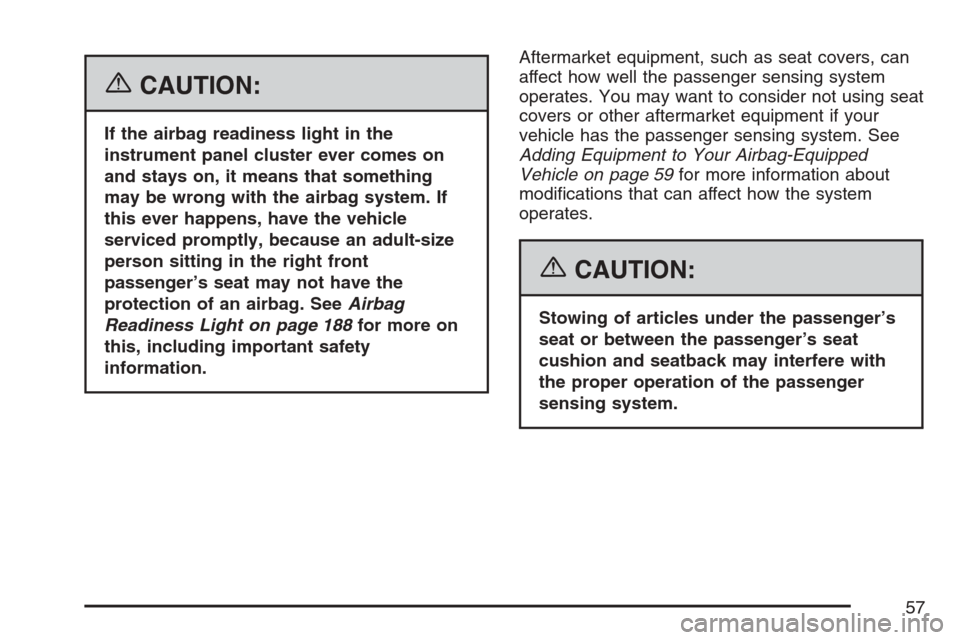

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of an airbag. SeeAirbag
Readiness Light on page 188for more on
this, including important safety
information.Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 59for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
57

Ignition Positions
Your vehicle has an
electronic keyless
ignition with pushbutton
start.
/(START):Press this button while your foot is
on the brake to start the engine. The shifter
must be in PARK (P) or NEUTRAL (N) to start the
engine and the keyless access transmitter must
be in the vehicle for the ignition to work.
9Acc. (OFF/ACCESSORY):When this button
is pressed, the engine will turn off even if the shifter
is not in PARK (P). If the shifter is in PARK (P), the
ignition mode will change to Retained Accessory
Power (RAP), if all doors are closed. The ignition
mode will change to OFF, if a front door is opened.SeeRetained Accessory Power (RAP) on page 89
for more information. If the shifter is not in
PARK (P), the ignition mode will change to Acc.
(Accessory). SeeShifting Into Park (P) on page 99.
When the engine is off, press this button to place
the vehicle in accessory mode. ACCESSORY
MODE ON will display on the Driver Information
Center (DIC). This mode allows you to use things
like the radio and the windshield wipers while the
engine is off. Use accessory mode if you must have
your vehicle in motion while the engine is off, for
example, if your vehicle is being towed. If the door
is open while in accessory mode, the key in
reminder chime will sound continuously.
If the push-button start is not working, your vehicle
may be near a strong radio antenna signal causing
interference to the keyless access system. SeeDIC
Warnings and Messages on page 206for more
information.
After being in Acc. for about 20 minutes, the vehicle
will automatically enter RAP or will turn off,
depending on if the doors are opened or closed.
88

If you cannot shift out of PARK (P), ease pressure
on the shift lever and push the shift lever all the
way into PARK (P) as you maintain brake
application. Then press the shift lever button and
move the shift lever into another gear. See
Shifting Out of Park (P) on page 100.
REVERSE (R):Use this gear to back up.
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage
the transmission. The repairs would not be
covered by your warranty. Shift to
REVERSE (R) only after your vehicle is
stopped.
To rock your vehicle back and forth to get out of
snow, ice, or sand without damaging your
transmission, seeIf Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow on page 353.
NEUTRAL (N):In this position, your engine does
not connect with the wheels. To restart when
you are already moving, use NEUTRAL (N) only.
Also, use NEUTRAL (N) when your vehicle is
being towed. Use Neutral (N) if the vehicle must
be moved with the engine off for short distances.
Please seeTowing Your Vehicle on page 359.
{CAUTION:
Shifting into a drive gear while your
engine is running at high speed is
dangerous. Unless your foot is rmly on
the brake pedal, your vehicle could move
very rapidly. You could lose control and
hit people or objects. Do not shift into a
drive gear while your engine is running at
high speed.
Notice:Shifting out of PARK (P) or
NEUTRAL (N) with the engine running at high
speed may damage the transmission. The
repairs would not be covered by your warranty.
Be sure the engine is not running at high
speed when shifting your vehicle.
93

The Sport Automatic Mode is selected by moving
the shift lever into the DSC area without shifting
towards the +(plus) or−(minus) symbols. While in
the Sport Automatic Mode, the transmission
computer determines when the vehicle is being
driven in a competitive manner. It then selects and
holds the transmission in lower gears giving
more noticeable upshifts for a sportier vehicle
performance. Once you shift to the + (plus)
or−(minus) controls, the driver manual gear
selection is activated. A + (plus) symbol appears
on the shift console above the DRIVE (D) indicator
and minus symbol appears below the indicator.
The Head-Up Display (HUD) also displays
the requested gear, though the actual upshift or
downshift could be delayed until the engine speed
is correct for that gear.The requested gear displays on the HUD until the
next time you upshift or downshift. The gear
selected and shown in the HUD is one of a number
of gears available. The vehicle does not upshift
beyond the chosen gear. The actual gear that the
vehicle shifts to depends on a combination of
the driver-requested gear range, vehicle speed and
throttle position.
Notice:If you drive your vehicle at high
RPMs without upshifting while using Driver
Shift Control (DSC), you could damage
your vehicle. Always upshift when necessary
while using DSC.
If you do not upshift as the engine approaches
the red line on the engine RPM (Revolutions
Per Minute) gage, the engine speed is controlled
to limit the engine RPM.
95

Reach under the driver’s side of the instrument
panel and pull down on the manual release lever,
which is located behind the parking brake
pedal. Pull down on the yellow tab. If the parking
brake does not release, you should have your
vehicle towed to your dealer for service.
Notice:Driving with the parking brake on can
overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
98
