Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
326 SERVICE AND MAINTENANCE
Maintenance Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0257.
Once a Month
. Check the tire inflation pressures.
See Tire Pressure 0288.
. Inspect the tires for wear. See Tire
Inspection 0295.
. Check the windshield washer fluid
level. See Washer Fluid 0266.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the engine
oil life system may not indicate the
need for vehicle service for up to a
year. The engine oil and filter must be
changed at least once a year and the
oil life system must be reset. Your
trained dealer technician can perform
this work. If the engine oil life system is reset accidentally, service the
vehicle within 5 000 km/3,000 mi since
the last service. Reset the oil life
system when the oil is changed. See
Engine Oil Life System
0259.
Air Conditioning Desiccant
(Replace Every Seven Years)
The air conditioning system requires
maintenance every seven years. This
service requires replacement of the
desiccant to help the longevity and
efficient operation of the air
conditioning system. This service can
be complex. See your dealer.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the following
services. See Tire Rotation0295.
. Check engine oil level and oil
life percentage. If needed, change
engine oil and filter, and reset oil
life system. See Engine Oil0257
and Engine Oil Life System 0259. .
Check engine coolant level. See
Cooling System 0262.
. Check windshield washer fluid
level. See Washer Fluid 0266.
. Check tire inflation pressures. See
Tire Pressure 0288.
. Inspect tire wear. See Tire
Inspection 0295.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter 0261.
. Inspect brake system. See Exterior
Care 0315.
. Visually inspect steering,
suspension, and chassis
components for damage, including
cracks or tears in the rubber boots,
loose or missing parts, or signs of
wear at least once a year. See
Exterior Care 0315.
. Inspect power steering for proper
attachment, connections, binding,
leaks, cracks, chafing, etc.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
328 SERVICE AND MAINTENANCE
Maintenance Schedule
Additional Required Services -
Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (4)@@@
Replace spark plugs. Inspect spark plug wires.@ @
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. (7)
Replace windshield wiper blades. (8)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
SERVICE AND MAINTENANCE 329

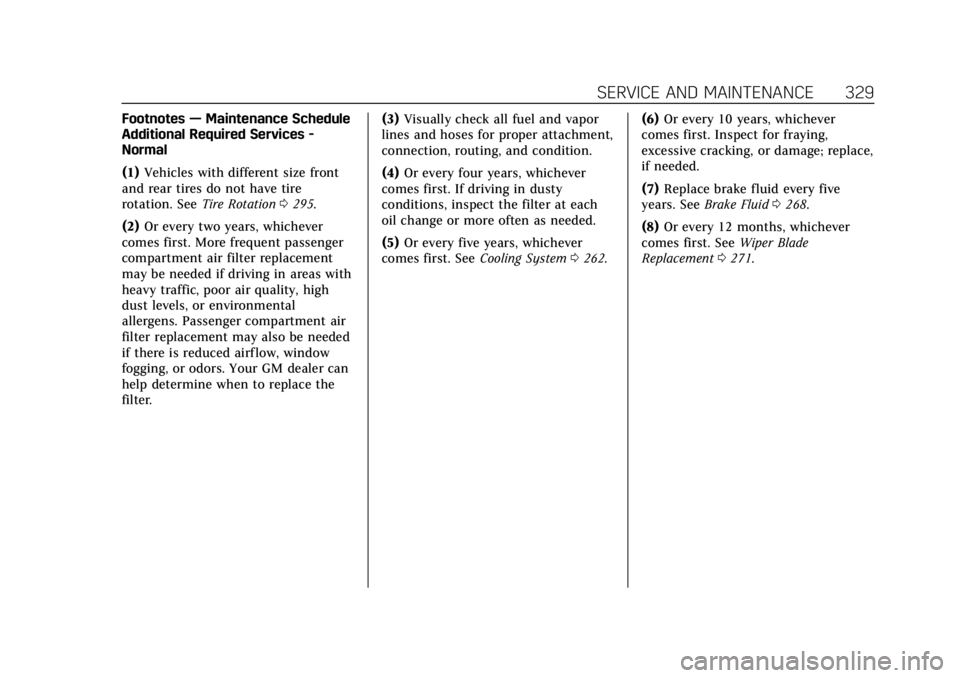

Footnotes—Maintenance Schedule
Additional Required Services -
Normal
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0295.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter. (3)
Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Or every five years, whichever
comes first. See Cooling System0262. (6)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(7) Replace brake fluid every five
years. See Brake Fluid 0268.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0271.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
330 SERVICE AND MAINTENANCE
Maintenance Schedule
Additional Required Services -
Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (4)@@@
Replace spark plugs. Inspect spark plug wires.@ @
Change automatic transmission fluid and filter.@@@
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. (7)
Replace windshield wiper blades. (8)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @
Footnotes—Maintenance Schedule
Additional Required Services -
Severe
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0295. (2)
Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
SERVICE AND MAINTENANCE 331

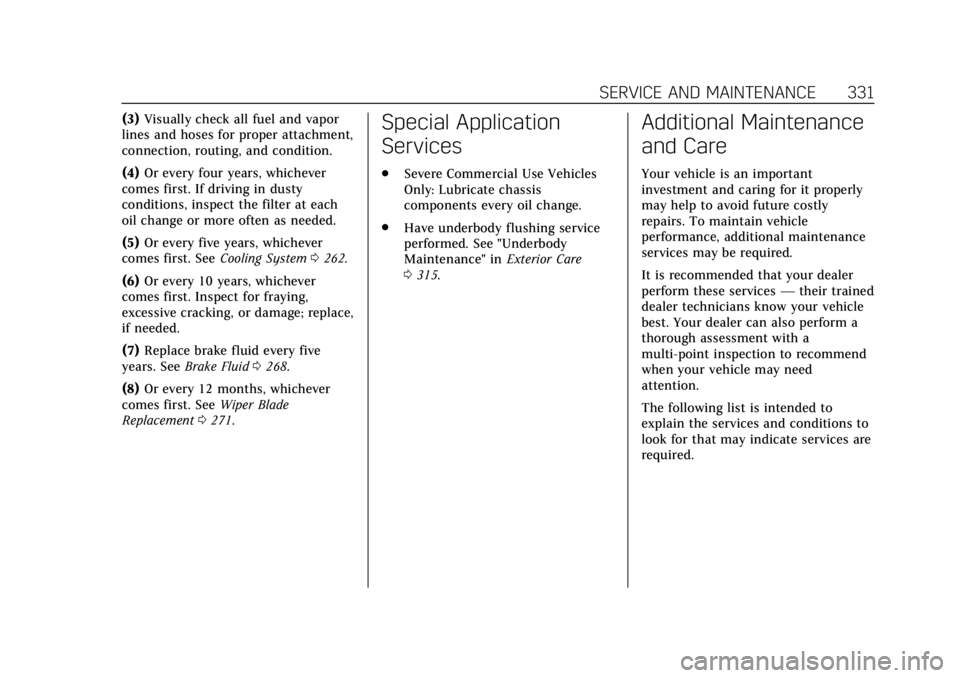

(3)Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Or every five years, whichever
comes first. See Cooling System0262.
(6) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(7) Replace brake fluid every five
years. See Brake Fluid 0268.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0271.Special Application
Services
.
Severe Commercial Use Vehicles
Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 315.
Additional Maintenance
and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional maintenance
services may be required.
It is recommended that your dealer
perform these services —their trained
dealer technicians know your vehicle
best. Your dealer can also perform a
thorough assessment with a
multi-point inspection to recommend
when your vehicle may need
attention.
The following list is intended to
explain the services and conditions to
look for that may indicate services are
required.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
SERVICE AND MAINTENANCE 335
UsageFluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection
requirements.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 23430313 A3210C
Engine Oil Filter 55495105 PF66
Passenger Compartment Air Filter 13508023 CF185
Spark Plugs 55504354 41–103–IP
Wiper Blades Driver Side –60 cm (23.62 in) 84142870 —
Passenger Side –50 cm (19.68 in) 23360287 —
Rear –30 cm (11.81 in) 84215609 —

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
338 TECHNICAL DATA
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 9.4 L 10.0 qt
Engine Oil with Filter 5.0 L 5.3 qt
Fuel Tank FWD 60.2 L 15.9 gal
AWD 61.7 L 16.3 gal
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Turbo Engine (LSY) 4Automatic0.75–0.90 mm (0.030–0.035 in)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
366 INDEX
IndexA
About Driving the Vehicle . . . . . . . . . . . . . 3
Accessories and Modifications . . . . . 254
Accessory Power . . . . . . . . . . . . . . . . . . . . 189
Active Fuel Management . . . . . . . . . . . 192
Adaptive Cruise Control . . . . . . . . . . . . 209
Add-On Electrical Equipment . . . . . . 250
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . 64
Air Cleaner/Filter, Engine . . . . . . . . . . 261
Air Conditioning . . . . . . . . . . . . . . . . . . . . 166
Air Filter
Life System . . . . . . . . . . . . . . . . . . . . . . . . 260
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . . . . . 171
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
How Does an Airbag Restrain? . . . . . 85
Passenger Sensing System . . . . . . . . . 87
What Makes an Airbag Inflate? . . . . 85
What Will You See after anAirbag Inflates? . . . . . . . . . . . . . . . . . . . 85 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Where Are the Airbags? . . . . . . . . . . . . 82
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Passenger Status Indicator . . . . . . . 132
Readiness Light . . . . . . . . . . . . . . . . . . . 131
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
System Check . . . . . . . . . . . . . . . . . . . . . . . 81
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . 50
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . 232
Side Blind Zone (SBZA) . . . . . . . . . . 232
All-Season Tires . . . . . . . . . . . . . . . . . . . . . 282
All-Wheel Drive . . . . . . . . . . . . . . . .200, 270
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Antilock Brake System (ABS) . . . . . . 200 Warning Light . . . . . . . . . . . . . . . . . . . . 136
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Armrest Storage . . . . . . . . . . . . . . . . . . . . . 112
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Assistance Systems for Driving . . . . 226

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
INDEX 369
Driving the Vehicle . . . . . . . . . . . . . . . . . . . . 3
Dual Automatic ClimateControl System . . . . . . . . . . . . . . . . . . . . 166
E
Electric Parking Brake . . . . . . . . . . . . . . 201
Electric Parking Brake Light . . . . . . . 136
Electrical Equipment, Add-On . . . . . 250
Electrical SystemEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Fuses and Circuit Breakers . . . . . . . 275
Instrument Panel Fuse Block . . . . 279
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Engine
Air Cleaner/Filter . . . . . . . . . . . . . . . . . 261
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . . . . . 133
Compartment Overview . . . . . . . . . . 256
Coolant Temperature Gauge . . . . . 130
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . . . . . 139
Cooling System . . . . . . . . . . . . . . . . . . . 262
Drive Belt Routing . . . . . . . . . . . . . . . . 339
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 Engine (cont'd)
Oil Life System . . . . . . . . . . . . . . . . . . . . 259
Oil Pressure Light . . . . . . . . . . . . . . . . . 140
Overheating . . . . . . . . . . . . . . . . . . . . . . . 265
Power Messages . . . . . . . . . . . . . . . . . . 148
Running While Parked . . . . . . . . . . . 194
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Engine Air Filter Life System . . . . . . 260
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 163
Equipment, Towing . . . . . . . . . . . . . . . . . 247
Event Data Recorders . . . . . . . . . . . . . . 352
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 164
Extended Parking . . . . . . . . . . . . . . . . . . . 192
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 79
Exterior Lamp Controls . . . . . . . . . . . . 158
Exterior Lamps Off Reminder . . . . . . 160
Exterior Lighting Battery Saver . . . . 164
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 261
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 160
Flashers, Hazard Warning . . . . . . . . . . 161
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 322 Fluid
Automatic Transmission . . . . . . . . . 260
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 53
Forward Automatic Braking . . . . . . . . 228
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Front Pedestrian Braking (FPB)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Front Seats Heated and Ventilated . . . . . . . . . . . . . 69
Front Storage . . . . . . . . . . . . . . . . . . . . . . . 111
Front Turn Signal Lamps . . . . . . . . . . 273
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Economy Driving . . . . . . . . . . . . . . . . . . . 26
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 239
Filling the Tank . . . . . . . . . . . . . . . . . . . 238
Foreign Countries . . . . . . . . . . . . . . . . . 237
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Low Fuel Warning Light . . . . . . . . . 140
Management, Active . . . . . . . . . . . . . . 192
Prohibited Fuels . . . . . . . . . . . . . . . . . . 237
Recommended . . . . . . . . . . . . . . . . . . . . 237

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
372 INDEX
Maintenance Schedule (cont'd)Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . 334
Malfunction Indicator Lamp . . . . . . . 133
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 198
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Memory Features . . . . . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 66
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . 148
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 149
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 55
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 54
Automatic Dimming Rearview . . . . . 54
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Manual Rearview . . . . . . . . . . . . . . . . . . . 54
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 54
Mirrors, Interior Rearview . . . . . . . . . . . 54
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Driver Control . . . . . . . . . . . . . . . . . . . . . 205
Monitor System, Tire Pressure . . . . . 290N
Navigation Connected Services . . . . . . . . . . . . . . . 362
New Vehicle Break-In . . . . . . . . . . . . . . . 184
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine Oil Life System . . . . . . . . . . . 259
Pressure Light . . . . . . . . . . . . . . . . . . . . . 140
Older Children, Restraints . . . . . . . . . . . 93
Online Owner Center . . . . . . . . . . . . . . . 343
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
OnStar Additional Information . . . . 356
OnStar Emergency . . . . . . . . . . . . . . . . . . 355
OnStar Overview . . . . . . . . . . . . . . . . . . . . 354
OnStar Security . . . . . . . . . . . . . . . . . . . . . 356
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Overheating, Engine . . . . . . . . . . . . . . . . 265
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . . . . 190 Park (cont'd)
Shifting Out of . . . . . . . . . . . . . . . . . . . . 190
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 270
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Over Things That Burn . . . . . . . . . . . 192
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . 219
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Passenger Sensing System . . . . . . . . . . 87
Pedestrian Ahead Indicator . . . . . . . . 137
Perchlorate Materials Requirements, California . . . . . . . . . 254
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Protection, Battery . . . . . . . . . . . . . . . . 164
Retained Accessory (RAP) . . . . . . . . 189
Seat Adjustment . . . . . . . . . . . . . . . . . . . . 64
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
