DRIVING AND OPERATING 205
Caution
Do not repeatedly brake or
accelerate heavily when TCS is off.
The vehicle driveline could be
damaged.
To turn off only TCS, press and
release
g. The Traction Off lighti
displays in the instrument cluster and
a DIC message may display.
To turn TCS on again, press and
release
g. The Traction Off lighti
displayed in the instrument cluster
will turn off and a DIC message may
display.
If TCS is limiting wheel spin when
g
is pressed, the system will not turn off
until the wheels stop spinning.
To turn off both TCS and StabiliTrak/
ESC, press and hold
guntil the
Traction Off light
iand StabiliTrak/
ESC Off light
gcome on and stay on
in the instrument cluster. A DIC
message may display. To turn TCS and StabiliTrak/ESC on
again, press and release
g. The
Traction Off light
iand StabiliTrak/
ESC Off light
gin the instrument
cluster turn off and a DIC message
may display.
Adding accessories can affect vehicle
performance. See Accessories and
Modifications 0254.
Driver Mode Control
If equipped, the Driver Mode Control
has the following modes: Tour, Sport,
All-Wheel Drive (AWD), and Snow/Ice
(Front-Wheel Drive vehicles only).
Press MODE on the center console to
make a mode selection. The first press
of the switch will show the current
mode in the instrument cluster.
Continue pressing through the
available modes. If the vehicle is in Tour or Sport Mode
when the engine is turned off, Driver
Mode Control will come on in Tour
Mode at the next ignition cycle.
If the vehicle is in AWD Mode when
the engine is turned off, Driver Mode
Control will come on in AWD Mode at
the next ignition cycle.
Driver Mode Control Switch
Tour : Tour Mode operates in FWD to
improve fuel economy. Use this mode
during normal driving operations.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18

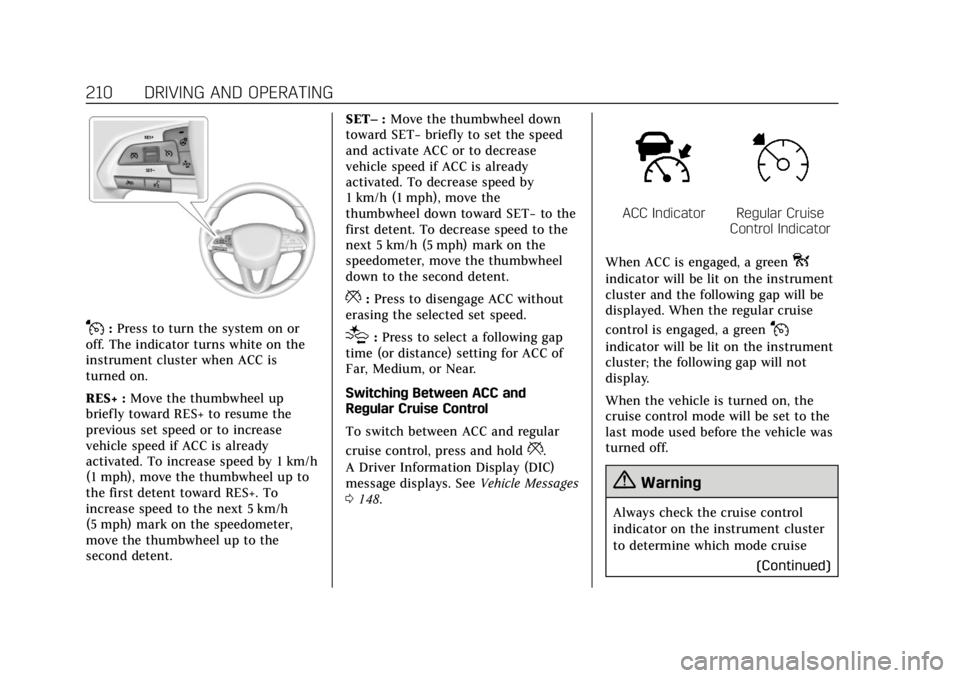

210 DRIVING AND OPERATING
J:Press to turn the system on or
off. The indicator turns white on the
instrument cluster when ACC is
turned on.
RES+ : Move the thumbwheel up
briefly toward RES+ to resume the
previous set speed or to increase
vehicle speed if ACC is already
activated. To increase speed by 1 km/h
(1 mph), move the thumbwheel up to
the first detent toward RES+. To
increase speed to the next 5 km/h
(5 mph) mark on the speedometer,
move the thumbwheel up to the
second detent. SET–
:Move the thumbwheel down
toward SET− briefly to set the speed
and activate ACC or to decrease
vehicle speed if ACC is already
activated. To decrease speed by
1 km/h (1 mph), move the
thumbwheel down toward SET− to the
first detent. To decrease speed to the
next 5 km/h (5 mph) mark on the
speedometer, move the thumbwheel
down to the second detent.
*: Press to disengage ACC without
erasing the selected set speed.
[: Press to select a following gap
time (or distance) setting for ACC of
Far, Medium, or Near.
Switching Between ACC and
Regular Cruise Control
To switch between ACC and regular
cruise control, press and hold
*.
A Driver Information Display (DIC)
message displays. See Vehicle Messages
0 148.
ACC IndicatorRegular Cruise
Control Indicator
When ACC is engaged, a green
o
indicator will be lit on the instrument
cluster and the following gap will be
displayed. When the regular cruise
control is engaged, a green
J
indicator will be lit on the instrument
cluster; the following gap will not
display.
When the vehicle is turned on, the
cruise control mode will be set to the
last mode used before the vehicle was
turned off.
{Warning
Always check the cruise control
indicator on the instrument cluster
to determine which mode cruise (Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
DRIVING AND OPERATING 241
Successful, safe trailering takes correct
equipment, and it has to be used
properly.
The following information has many
time-tested, important trailering tips
and safety rules. Many of these are
important for your safety and that of
your passengers. Read this section
carefully before pulling a trailer.
When towing a trailer:
.Become familiar with and follow
all state and local laws that apply
to trailer towing. These
requirements vary from state to
state.
. State laws may require the use of
extended side view mirrors. Even if
not required, you should install
extended side view mirrors if your
visibility is limited or restricted
while towing.
. Do not tow a trailer during the
first 800 km (500 mi) of vehicle
use to prevent damage to the
engine, axle, or other parts. .
It is recommended to perform the
first oil change before heavy
towing.
. During the first 800 km (500 mi) of
trailer towing, do not drive over
80 km/h (50 mph) and do not
make starts at full throttle.
. Vehicles can tow in D (Drive).
If the transmission downshifts too
often, a lower gear may be
selected using Manual Mode See
Manual Mode 0198.
If equipped, the following driver
assistance features should be turned
off when towing a trailer:
. Adaptive Cruise Control (ACC)
. Super Cruise Control
. Lane Keep Assist (LKA)
. Park Assist
. Automatic Parking Assist (APA)
. Reverse Automatic Braking (RAB) If equipped, the following driver
assistance features should be turned
to alert or off when towing a trailer:
.
Forward Automatic Braking
System (FAB)
. Intelligent Brake Assist (IBA)
. Front Pedestrian Braking (FPB)
If equipped with Lane Change Alert
(LCA), the LCA detection zones that
extend back from the side of the
vehicle do not move further back
when a trailer is towed. Use caution
while changing lanes when towing a
trailer.
If equipped with Rear Cross Traffic
Alert (RCTA), use caution while
backing up when towing a trailer, as
the RCTA detection zones that extend
out from the back of the vehicle do
not move further back when a trailer
is towed.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
VEHICLE CARE 265
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the cap
is properly and tightly secured.
Automatic Coolant Service Fill
Instructions
This feature assists in filling and
removing air from the cooling system
after service of components or when
coolant is added after being too low.
To activate the fill and air removal
process:1. With a cold system, add coolant to the indicated mark on the
surge tank.
2. Replace the cap on the surge tank.
3. Connect the vehicle to a battery charger.
4. Turn the ignition to Service Mode. See Ignition Positions
0 184. 5. Turn off the air conditioning.
6. Set the parking brake.
7. At the same time, press the
accelerator and the brake for
automatic transmission vehicles
for two seconds, then release.
At the end of the cycle, check the
coolant level in the surge tank and
add coolant if it is low. Turn off the
vehicle, allow the Electronic Control
Module (ECM) to go to sleep, about
2 minutes, and repeat Steps 3-7.
Listen for pump activation and
movement of the control valves while
watching the level of the coolant in
the surge tank. If the tank empties,
turn the ignition off, carefully remove
the surge tank cap, refill to the
indicated mark, and repeat Steps 3-6.
The fill and air removal process will
run for approximately 10 minutes.
Engine Overheating
The vehicle has several indicators to
warn of the engine overheating. There is an engine coolant
temperature gauge on the instrument
cluster. See
Engine Coolant Temperature
Gauge 0130. The vehicle may also
display a message on the Driver
Information Center (DIC).
If the decision is made not to lift the
hood when this warning appears, get
service help right away. See Roadside
Service 0344.
If the decision is made to lift the
hood, make sure the vehicle is parked
on a level surface. Then check to see if
the engine cooling fan is running.
If the engine is overheating, the fan
should be running. If it is not, do not
continue to run the engine. Have the
vehicle serviced.
Caution
Do not run the engine if there is a
leak in the engine cooling system.
This can cause a loss of all coolant
and can damage the system and
vehicle. Have any leaks fixed
right away.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
CUSTOMER INFORMATION 349
Gather the following information:
.Driver name, address, and
telephone number
. Driver license number
. Owner name, address, and
telephone number
. Vehicle license plate number
. Vehicle make, model, and
model year
. Vehicle Identification
Number (VIN)
. Insurance company and policy
number
. General description of the damage
to the other vehicle
Choose a reputable repair facility that
uses quality replacement parts. See
“Collision Parts ”earlier in this section.
If the airbag has inflated, see What
Will You See after an Airbag Inf lates?
0 85.Managing the Vehicle Damage
Repair Process
In the event that the vehicle requires
damage repairs, GM recommends that
you take an active role in its repair.
If you have a pre-determined repair
facility of choice, take the vehicle
there, or have it towed there. Specify
to the facility that any required
replacement collision parts be original
equipment parts, either new Genuine
GM parts or recycled original GM
parts. Remember, recycled parts will
not be covered by the GM vehicle
warranty.
Insurance pays the bill for the repair,
but you must live with the repair.
Depending on your policy limits, your
insurance company may initially value
the repair using aftermarket parts.
Discuss this with the repair
professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have
the vehicle repaired with Genuine GM
parts, even if your insurance coverage
does not pay the full cost. If another party's insurance company
is paying for the repairs, you are not
obligated to accept a repair valuation
based on that insurance company's
collision policy repair limits, as you
have no contractual limits with that
company. In such cases, you can have
control of the repair and parts choices
as long as the cost stays within
reasonable limits.
Publication Ordering
Information
Service Manuals
Service manuals have the diagnosis
and repair information on the engine,
transmission, axle, suspension, brakes,
electrical system, steering system,
body, etc.
Customer Literature
Owner’s manuals are written
specifically for owners and are
intended to provide basic operational
information about the vehicle. The
owner’s manual includes the
Maintenance Schedule for all models.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
350 CUSTOMER INFORMATION
Customer literature publications
available for purchase include owner’s
manuals, warranty manuals,
infotainment manuals, and portfolios.
Portfolios include an owner’s manual,
warranty manual, infotainment
manual, if applicable, and zip lock bag
or pouch.
Current and Past Models
Service manuals and customer
literature are available for many
current and past model year GM
vehicles.
To order, call 1-800-551-4123
Monday–Friday, 8:00 a.m.–6:00 p.m.
eastern time
For credit card orders only (VISA,
MasterCard, or Discover), see Helm,
Inc. at: www.helminc.com.
To order by mail, write to:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
Make checks payable in U.S. funds.
Radio Frequency
Statement
This vehicle has systems that operate
on a radio frequency that complies
with Part 15/Part 18 of the Federal
Communications Commission (FCC)
rules and with Innovation, Science
and Economic Development (ISED)
Canada's RSP-100 / license-exempt
RSS's / ICES-001.
Operation is subject to the following
two conditions:1. The device may not cause harmful interference.
2. The device must accept any interference received, including
interference that may cause
undesired operation of the
device.
Changes or modifications to any of
these systems by other than an
authorized service facility could void
authorization to use this equipment.
Reporting Safety
Defects
Reporting Safety Defects
to the United States
Government
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
General Motors.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or General
Motors.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
368 INDEX
Compact Spare Tire . . . . . . . . . . . . . . . . . 308
CompartmentsStorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . 363
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 365
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 362
Connections Connected Services . . . . . . . . . . . . . . . 363
Control
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Control of a Vehicle . . . . . . . . . . . . . . . . 175
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 52
Coolant Engine Temperature Gauge . . . . . . 130
Engine Temperature WarningLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Cooling System . . . . . . . . . . . . . . . . . . . . . 262
Cornering Lamps . . . . . . . . . . . . . . . . . . . 162
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . 162
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 206 Cruise Control (cont'd)
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Cruise Control, Adaptive . . . . . . . . . . . 209
Customer Assistance . . . . . . . . . . . . . . . 343 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Text Telephone (TTY) Users . . . . . 343
Customer Information Publications OrderingInformation . . . . . . . . . . . . . . . . . . . . . . 349
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 340
D
Damage Repair, Collision . . . . . . . . . . . 347
Danger, Warning, and Caution . . . . . . . . 3
Data CollectionInfotainment System . . . . . . . . . . . . . 353
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Data Recorders, Event . . . . . . . . . . . . . . 352
Daytime Running Lamps (DRL) . . . 160
Defensive Driving . . . . . . . . . . . . . . . . . . . 174
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 40
Diagnostics Connected Services . . . . . . . . . . . . . . . 365
Distracted Driving . . . . . . . . . . . . . . . . . . 174
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 162
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 142 Door (cont'd)
Delayed Locking . . . . . . . . . . . . . . . . . . . . 40
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . 40
Drive Belt Routing, Engine . . . . . . . . . 339
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . 200, 270
Driver Assistance Systems . . . . . . . . . 217
Driver Behavior . . . . . . . . . . . . . . . . . . . . . 173
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 142
Driver Mode Control . . . . . . . . . . . . . . . . 205
Driver Mode Control Light . . . . . . . . . 139
Driving Assistance Systems . . . . . . . . . . . . . . . 226
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . . . . . 240
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Environment . . . . . . . . . . . . . . . . . . . . . . 173
For Better Fuel Economy . . . . . . . . . . . 26
Hill and Mountain Roads . . . . . . . . 178
If the Vehicle is Stuck . . . . . . . . . . . . 179
Loss of Control . . . . . . . . . . . . . . . . . . . . 176
Off-Road Recovery . . . . . . . . . . . . . . . . 176
Vehicle Load Limits . . . . . . . . . . . . . . 180
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 177
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
INDEX 371
L
Labeling, Tire Sidewall . . . . . . . . . . . . . 283
LampsCornering . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Daytime Running (DRL) . . . . . . . . . . 160
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Exterior Controls . . . . . . . . . . . . . . . . . . 158
Exterior Lamps Off Reminder . . . . 160
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Front Turn Signal . . . . . . . . . . . . . . . . . 273
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . 133
On Reminder . . . . . . . . . . . . . . . . . . . . . . 141
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Lane Change Alert (LCA) . . . . . . . . . . . 232
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . . . . 234
Lane Keep Assist (LKA) . . . . . . . . . . . . 234
Lane Keep Assist Light . . . . . . . . . . . . . 137
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . 76
LATCH System Replacing Parts after a Crash . . . . 106
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . 99
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . 273
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Lighter, Cigarette . . . . . . . . . . . . . . . . . . . 124
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Illumination Control . . . . . . . . . . . . . . 162
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Lights
Airbag Readiness . . . . . . . . . . . . . . . . . 131
All-Wheel Drive . . . . . . . . . . . . . . . . . . . 137
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . 136
Brake System Warning . . . . . . . . . . . 135
Charging System . . . . . . . . . . . . . . . . . . 133
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 133
Cruise Control . . . . . . . . . . . . . . . . . . . . . 141
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Driver Mode Control . . . . . . . . . . . . . . 139
Electric Parking Brake . . . . . . . . . . . . 136
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . 139
Engine Oil Pressure . . . . . . . . . . . . . . . 140
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 160
High-Beam On . . . . . . . . . . . . . . . . . . . . 141
High/Low Beam Changer . . . . . . . . . 160
Lane Keep Assist . . . . . . . . . . . . . . . . . . 137
Low Fuel Warning . . . . . . . . . . . . . . . . 140
Seat Belt Reminders . . . . . . . . . . . . . . 131 Lights (cont'd)
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Service Electric Parking Brake . . . 136
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . 138
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 139
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . 138
Traction Off . . . . . . . . . . . . . . . . . . . . . . . 138
Locks
Automatic Door . . . . . . . . . . . . . . . . . . . . . 40
Delayed Locking . . . . . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Lockout Protection . . . . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . . . . . . 176
Low Fuel Warning Light . . . . . . . . . . . 140
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . 99
Lumbar Adjustment . . . . . . . . . . . . . . . . . 64 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 64
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . 331
Maintenance Schedule . . . . . . . . . . . . . 326

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
372 INDEX
Maintenance Schedule (cont'd)Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . 334
Malfunction Indicator Lamp . . . . . . . 133
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 198
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Memory Features . . . . . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 66
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . 148
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 149
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 55
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 54
Automatic Dimming Rearview . . . . . 54
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Manual Rearview . . . . . . . . . . . . . . . . . . . 54
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 54
Mirrors, Interior Rearview . . . . . . . . . . . 54
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Driver Control . . . . . . . . . . . . . . . . . . . . . 205
Monitor System, Tire Pressure . . . . . 290N
Navigation Connected Services . . . . . . . . . . . . . . . 362
New Vehicle Break-In . . . . . . . . . . . . . . . 184
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine Oil Life System . . . . . . . . . . . 259
Pressure Light . . . . . . . . . . . . . . . . . . . . . 140
Older Children, Restraints . . . . . . . . . . . 93
Online Owner Center . . . . . . . . . . . . . . . 343
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
OnStar Additional Information . . . . 356
OnStar Emergency . . . . . . . . . . . . . . . . . . 355
OnStar Overview . . . . . . . . . . . . . . . . . . . . 354
OnStar Security . . . . . . . . . . . . . . . . . . . . . 356
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Overheating, Engine . . . . . . . . . . . . . . . . 265
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . . . . 190 Park (cont'd)
Shifting Out of . . . . . . . . . . . . . . . . . . . . 190
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 270
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Over Things That Burn . . . . . . . . . . . 192
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . 219
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Passenger Sensing System . . . . . . . . . . 87
Pedestrian Ahead Indicator . . . . . . . . 137
Perchlorate Materials Requirements, California . . . . . . . . . 254
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Protection, Battery . . . . . . . . . . . . . . . . 164
Retained Accessory (RAP) . . . . . . . . 189
Seat Adjustment . . . . . . . . . . . . . . . . . . . . 64
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
