VEHICLE CARE 309
{Warning
Installation or use of fuses that do
not meet GM’s original fuse
specifications is dangerous. The
fuses could fail, and result in a fire.
You or others could be injured or
killed, and the vehicle could be
damaged.
See Accessories and Modifications
0 286 and
General Information 0286.
To check or replace a blown fuse, see
Electrical System Overload 0307.
Engine Compartment Fuse
Block
The underhood fuse block is in the
engine compartment, on the driver
side of the vehicle.
Caution
Do not pull the engine
compartment fuse block lever, since
it is intended only for service
purposes. If pulled, vehicle
malfunction may occur.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.
To remove the fuse block cover, press
the clips on the cover and lift it
straight up.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 313
FusesUsage
84 PT ON ENG –
Canister Purge
Solenoid/Step Cam
Exhaust Solenoid
Cylinder 2 and 3/
Step Cam Intake
Cylinder Solenoids/
Turbo Bypass
Solenoid/Oxygen
Sensor (Pre)/O2
Heater/Oxygen
Heated Sensor/Mass
Airflow/Inlet Air
Temperature/Throttle
Inlet Absolute
Pressure/Coolant Flow
Control Valve
85 Shunt
86 Shunt
87 DIESEL FUEL HTR 1 –
Not Used
88 AERO SH –
Aeroshutter
–
89 SCR MODULE –
Not Used Fuses
Usage
92 TRLR ST/TRN RT –
Spare
93 AHL/CVS –Canister
Vent Solenoid
95 SMART SENSORS –
Not Used
96 DIESEL FUEL HTR 2 –
Not Used
99 –
Relays Usage
20 REAR DEFOG –Rear
Defogger/Outside Rear
View Mirrors Defogger
25 FRT WPR CNTRL –
Front Wiper Control
31 RUN/CRNK –Run/
Crank
37 FRT WPR SPD –
Front Wiper Speed
42 –
64 STRTR MTR –Starter
Motor Relays
Usage
66 PWRTRN –
Powertrain
71 TRLR PRK LAMP –
Trailer Park Lamps
–
73 A/C CNTRL –Air
Conditioning Controls
80 STRTR PINION –
Starter Pinion
90 PWRTRN SNSR –
Not Used
94 DEFC –Not Used
98 DIESEL FUEL HTR –
Not Used

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
314 VEHICLE CARE
Instrument Panel Fuse
Block
The instrument panel fuse block is on
the driver side of the instrument
panel, between the steering wheel and
the door. To access the fuses, remove
the panel, starting at the top. Once
clips are disengaged, the tabs along
the bottom of the door can be
disengaged from the instrument panel
to remove the door.To reinstall the door, place the bottom
tabs into the slots, and rotate the door
into position, engaging the clips.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21

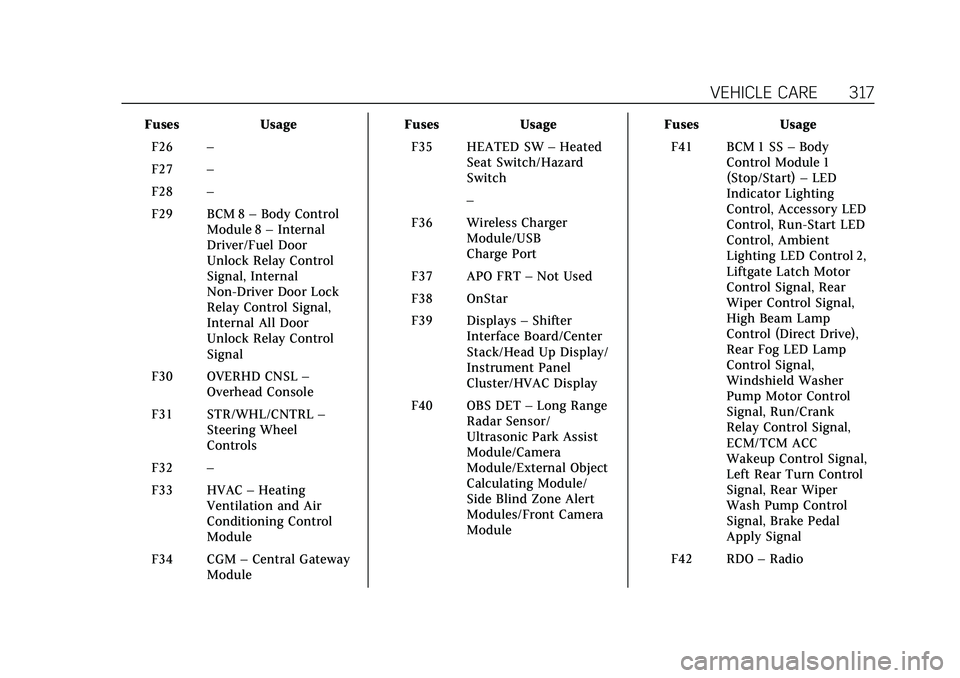

VEHICLE CARE 317
FusesUsage
F26 –
F27 –
F28 –
F29 BCM 8 –Body Control
Module 8 –Internal
Driver/Fuel Door
Unlock Relay Control
Signal, Internal
Non-Driver Door Lock
Relay Control Signal,
Internal All Door
Unlock Relay Control
Signal
F30 OVERHD CNSL –
Overhead Console
F31 STR/WHL/CNTRL –
Steering Wheel
Controls
F32 –
F33 HVAC –Heating
Ventilation and Air
Conditioning Control
Module
F34 CGM –Central Gateway
Module Fuses
Usage
F35 HEATED SW –Heated
Seat Switch/Hazard
Switch
–
F36 Wireless Charger Module/USB
Charge Port
F37 APO FRT –Not Used
F38 OnStar
F39 Displays –Shifter
Interface Board/Center
Stack/Head Up Display/
Instrument Panel
Cluster/HVAC Display
F40 OBS DET –Long Range
Radar Sensor/
Ultrasonic Park Assist
Module/Camera
Module/External Object
Calculating Module/
Side Blind Zone Alert
Modules/Front Camera
Module Fuses
Usage
F41 BCM 1 SS –Body
Control Module 1
(Stop/Start) –LED
Indicator Lighting
Control, Accessory LED
Control, Run-Start LED
Control, Ambient
Lighting LED Control 2,
Liftgate Latch Motor
Control Signal, Rear
Wiper Control Signal,
High Beam Lamp
Control (Direct Drive),
Rear Fog LED Lamp
Control Signal,
Windshield Washer
Pump Motor Control
Signal, Run/Crank
Relay Control Signal,
ECM/TCM ACC
Wakeup Control Signal,
Left Rear Turn Control
Signal, Rear Wiper
Wash Pump Control
Signal, Brake Pedal
Apply Signal
F42 RDO –Radio

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
318 VEHICLE CARE
FusesUsage
F43 APO CNSL –Console
Auxiliary Power Outlet
(Circuit Breaker)
–
F44 APO CNSL –Front
Console Auxiliary
Power Outlet
–
Relay Usage
K1 –
K2 RAP/ACCY
–Retained
Accessory Power
K3 Content Theft
–
Not Used
K4 –
K5 –Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See the
warranty manual for information
regarding the tire warranty and
where to get service. For
additional information refer to the
tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a result
of too much flexing. There
could be a blowout and a
serious crash. See Vehicle
Load Limits 0214.
.Underinflated tires pose the
same danger as overloaded
tires. The resulting crash
(Continued)
Warning (Continued)
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure should
be checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden
impact —such as when
hitting a pothole. Keep tires
at the recommended pressure.
.Worn or old tires can cause a
crash. If the tread is badly
worn, replace them.
.Replace any tires that have
been damaged by impacts
with potholes, curbs, etc.
.Improperly repaired tires can
cause a crash. Only your
dealer or an authorized tire
(Continued)
