Driving and Operating 307

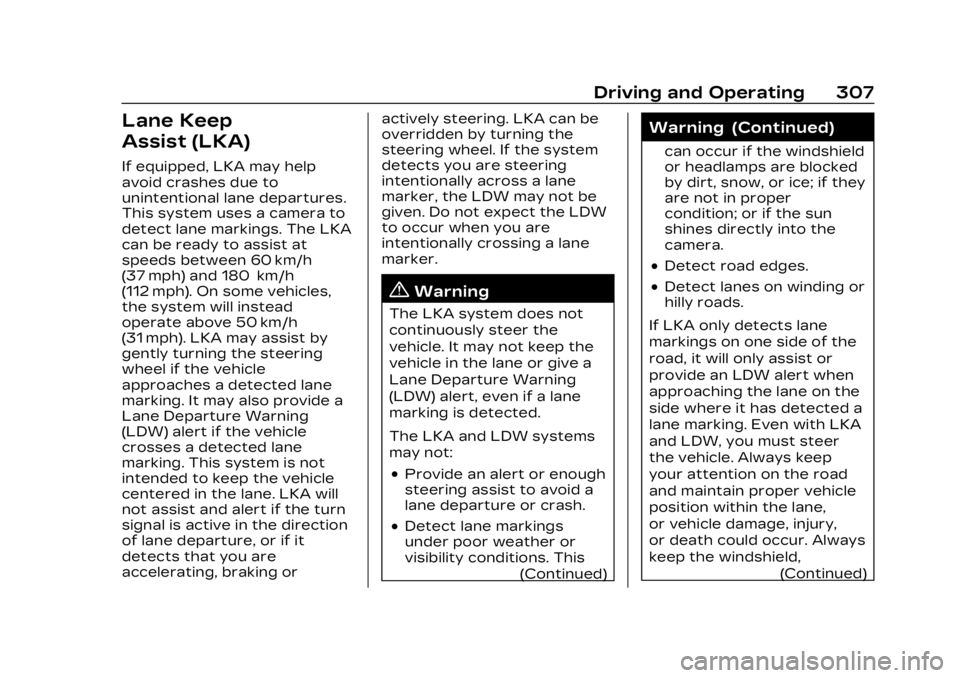

Lane Keep
Assist (LKA)
If equipped, LKA may help
avoid crashes due to
unintentional lane departures.
This system uses a camera to
detect lane markings. The LKA
can be ready to assist at
speeds between 60 km/h
(37 mph) and 180 km/h
(112 mph). On some vehicles,
the system will instead
operate above 50 km/h
(31 mph). LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking. It may also provide a
Lane Departure Warning
(LDW) alert if the vehicle
crosses a detected lane
marking. This system is not
intended to keep the vehicle
centered in the lane. LKA will
not assist and alert if the turn
signal is active in the direction
of lane departure, or if it
detects that you are
accelerating, braking oractively steering. LKA can be
overridden by turning the
steering wheel. If the system
detects you are steering
intentionally across a lane
marker, the LDW may not be
given. Do not expect the LDW
to occur when you are
intentionally crossing a lane
marker.
{Warning
The LKA system does not
continuously steer the
vehicle. It may not keep the
vehicle in the lane or give a
Lane Departure Warning
(LDW) alert, even if a lane
marking is detected.
The LKA and LDW systems
may not:
.Provide an alert or enough
steering assist to avoid a
lane departure or crash.
.Detect lane markings
under poor weather or
visibility conditions. This
(Continued)
Warning (Continued)
can occur if the windshield
or headlamps are blocked
by dirt, snow, or ice; if they
are not in proper
condition; or if the sun
shines directly into the
camera.
.Detect road edges.
.Detect lanes on winding or
hilly roads.
If LKA only detects lane
markings on one side of the
road, it will only assist or
provide an LDW alert when
approaching the lane on the
side where it has detected a
lane marking. Even with LKA
and LDW, you must steer
the vehicle. Always keep
your attention on the road
and maintain proper vehicle
position within the lane,
or vehicle damage, injury,
or death could occur. Always
keep the windshield, (Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
308 Driving and Operating
Warning (Continued)
headlamps, and camera
sensors clean and in good
repair. Do not use LKA in
bad weather conditions or
on roads with unclear lane
markings, such as
construction zones.
{Warning
Using LKA on slippery roads
could cause loss of control
of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver
if a towed trailer crosses
into an adjacent lane of
travel. Serious injury or
property damage may occur
if the trailer moves into
another lane. Always
monitor the trailer position(Continued)
Warning (Continued)
while towing to make sure it
is within the same lane as
the tow vehicle.
How the System Works
LKA uses a camera sensor
installed on the windshield
ahead of the rearview mirror
to detect lane markings. It may
provide brief steering assist if
it detects an unintended lane
departure. It may further
provide an audible alert or the
driver seat may pulse
indicating that a lane marking
has been crossed. The system
does not provide a Lane
Departure Warning (LDW)
when intentionally steering
across a lane marker.
To turn LKA on and off, press
Aon the center stack.
If equipped, the indicator light
on the button comes on when LKA is on and turns off when
LKA is disabled. In some
vehicles a long press of over
three seconds is required to
turn LKA off.
When on,
Ais white,
if equipped, indicating that the
system is not ready to assist.
Ais green if LKA is ready to
assist. LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking.
Ais amber when
assisting. It may also provide a
Lane Departure Warning
(LDW) alert by flashing
A
amber if the vehicle crosses a
detected lane marking.
Additionally, there may be
three beeps, or the driver seat
may pulse three times, on the
right or left, depending on the
lane departure direction.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
326 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . 327
California PerchlorateMaterials
Requirements . . . . . . . . . . . . . 327
Accessories and Modifications . . . . . . . . . . . . . . 327
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . 328
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 331
Engine Oil . . . . . . . . . . . . . . . . . . . . 332
Engine Oil Life System . . . 335
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . 336
Engine Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . 336
Engine Air Cleaner/ Filter . . . . . . . . . . . . . . . . . . . . . . . . . 337
Cooling System . . . . . . . . . . . . 338
Engine Overheating . . . . . . 342
Washer Fluid . . . . . . . . . . . . . . . . 343
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 344
Brake Fluid . . . . . . . . . . . . . . . . . . 345 Battery - North
America . . . . . . . . . . . . . . . . . . . . . 346
All-Wheel Drive . . . . . . . . . . . . . 347
Park Brake and P (Park) Mechanism Check . . . . . . . 347
Wiper Blade Replacement . . . . . . . . . . . . . . 347
Windshield Replacement . . . . . . . . . . . . . . 349
Gas Strut(s) . . . . . . . . . . . . . . . . . 349Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 350
Bulb Replacement
Bulb Replacement . . . . . . . . 350
LED Lighting . . . . . . . . . . . . . . . . 350
Front Turn SignalLamps . . . . . . . . . . . . . . . . . . . . . . . 350
Back-Up Lamps . . . . . . . . . . . . . 351
Electrical System
Electrical System Overload . . . . . . . . . . . . . . . . . . . . 352
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . 353
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . 354
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 360
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
All-Season Tires . . . . . . . . . . . 365
Winter Tires . . . . . . . . . . . . . . . . 366
Summer Tires . . . . . . . . . . . . . . 366
Tire Sidewall Labeling . . . . 367
Tire Designations . . . . . . . . . . 369
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . 370
Tire Pressure . . . . . . . . . . . . . . . 372
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . 374
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 375
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . 376
Tire Inspection . . . . . . . . . . . . . 380
Tire Rotation . . . . . . . . . . . . . . . . 381
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . 382
Buying New Tires . . . . . . . . . 383
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 385
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 385
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 387
Wheel Replacement . . . . . . 387
Tire Chains . . . . . . . . . . . . . . . . . . 388

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
350 Vehicle Care
Hood
Trunk
Liftgate
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.
Bulb Replacement
For the proper type of
replacement bulbs, or any bulb
changing procedure not listed
in this section, contact your
dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
LED Lighting
This vehicle has several LED
lamps. For replacement of any
LED lighting assembly, contact
your dealer.
Front Turn Signal
Lamps
Uplevel
See your dealer for turn signal
replacement.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 353
2. Locate the fuse puller inthe engine compartment
fuse block.3. Use the fuse puller toremove the fuse from the
top or side, as shown
above.
4. If the fuse must be replaced immediately,
borrow a replacement fuse
with the same amperage
from the fuse block.
Choose a vehicle feature
that is not needed to
safely operate the vehicle.
Repeat Steps 2-3.
5. Insert the replacement fuse into the empty slot of
the blown fuse.
At the next opportunity, see
your dealer to replace the
blown fuse.
Headlamp Wiring
An electrical overload may
cause the lamps to go on and
off, or in some cases to remain
off. Have the headlamp wiring
checked right away if the
lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats
due to heavy snow or ice, the
windshield wipers will stop
until the motor cools and will
then restart.
Although the circuit is
protected from electrical
overload, overload due to
heavy snow or ice may cause
wiper linkage damage. Always
clear ice and heavy snow from
the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not
snow or ice, be sure to get it
fixed.
Fuses and Circuit
Breakers
The wiring circuits in the
vehicle are protected from
short circuits by a combination
of fuses and circuit breakers.
This greatly reduces the
chance of damage caused by
electrical problems.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
358 Vehicle Care
Fuses Usage51 Spare
54 Spare
55 Spare
56 STARTER MOTOR –Starter
Motor
57 –
58 –
59 HDLP HI BEAM LT/RT–High
Beam Headlamps
60 –
61 Spare
62 Spare
63 Spare
65 A/C CONTROL –
Air Conditioning
Compressor
Clutch Fuses Usage
67 Spare
68 Spare
69 –
70 TRLR PRK LAMP –TRAILER PARK
LAMPS
–
72 STRTR PINION –
STARTER
PINION
74 –
75 ECM PWRTRN IGN 2–Engine
Control Module
Power Train
Ignition 2
76 ECM PWRTRN IGN 1–Engine
Control Module
Power Train
Ignition 1 Fuses Usage
78 Horn
79 WASH PUMPS –
Front and Rear
Washer Pumps
81 ECM –Engine
Control Module
Battery/Spare
82 –
83 IGNITION COILS –Ignition Coils

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 361
Fuses UsageF1 WNDW LT –Left
Power Window
F2 WNDW RT –Right
Power Window
F3 –
F4 DC-DC BAT 2/1 –
Direct Current to
Direct Current
Converter 2 Fuses Usage
F5 APO CARGO –
Auxiliary Power
Outlet –Cargo
F6 HTD SEAT BATT 1 –
Heated Seat
Battery 1
– Fuses Usage
F7 HTD SEAT RR 2 –
Not Used
–
F8 BCM 3 –Body
Control Module 3 –
LED Headlamp Low
Beam Right Control
Signal, Right Front
Turn Lamp Control
Signal, Left Front
Side Marker and
Auxiliary Park, Left
Rear Tail/Side Marker
Control Signal, Left
Daytime Running
Lamps Control Signal
F9 ELEC PRK/BRK –
Electric Park Brake

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
362 Vehicle Care
Fuses UsageF10 BCM 2 SS –Body
Control Module 2
(Stop/Start) –Interior
Lamps Control Signal,
Door Handle Puddle
Lamp (LED), Left
Cornering Lamp,
Right Cornering
Lamp, Interior Lamps
Control Signal,
Backup Lamp Supply
Voltage, License
Plate Lamp Control
Signal, Rear Closure
Cargo Lamp Control
Signal, Center High
Mounted Stop Lamp
LED Lamp Control
Signal
F11 –
F12 –
F13 –
F14 –
F15 TCM SS –
Transmission Control
Module (Stop/Start) Fuses Usage
F16 AMP –Amplifier
F17 –
F18 VPM –Video
Processing Module
–
F19 PWR STR COL –
Power Steering
Column
–
F20 BCM 6 –Body
Control Module 6 –
LED Backlight
Control, Interior
Lighting Inadvertent
Load Control Signal,
Fuel Door Lock
Control Signal, LED
Backlight Control
Signal Fuses Usage
F21 BCM 4 –Body
Control Module 4 –
LED Headlamp Low
Beam Left Control
Signal, Right Front
Side Marker and
Auxiliary Park, Right
Rear Tail/Side Marker
Control Signal, Left
Rear Stop Lamp
Control Signal, Left
Rear Stop/Turn Lamp
Control Signal, Right
DRL Control Signal
F22 BCM 7 –Body
Control Module 7 –
Right Rear Stop
Lamp Control Signal,
Right Rear Stop/Turn
Lamp Control Signal,
Left Front Turn Lamp
Control Signal, Right
Rear Turn Control
Signal
F23 –
F24 Airbag

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
388 Vehicle Care
Warning (Continued)
it has been driven may be
unknown. It could fail
suddenly and cause a crash.
When replacing wheels, use
a new GM original
equipment wheel.
Caution
The wrong wheel can also
cause problems with bearing
life, brake cooling,
speedometer or odometer
calibration, headlamp aim,
bumper height, vehicle
ground clearance, and tire or
tire chain clearance to the
body and chassis.
Tire Chains
{Warning
If the vehicle has 235/60R18
or 245/45R20 size tires, do
not use tire chains. There is(Continued)
Warning (Continued)
not enough clearance. Tire
chains used on a vehicle
without the proper amount
of clearance can cause
damage to the brakes,
suspension, or other vehicle
parts. The area damaged by
the tire chains could cause
loss of control and a crash.
Use another type of traction
device only if its
manufacturer recommends
it for the vehicle's tire size
combination and road
conditions. Follow that
manufacturer's instructions.
To avoid vehicle damage,
drive slow and readjust or
remove the traction device if
it contacts the vehicle. Do
not spin the wheels. If
traction devices are used,
install them on the front
tires.
Caution
If the vehicle is equipped
with a tire size other than
235/60R18 or 245/45R20,
use tire chains only where
legal and only when
necessary. Use low profile
chains that add no more
than 12 mm thickness to the
tire tread and inner sidewall.
Use chains that are the
proper size for the tires.
Install them on the tires of
the front axle. Do not use
chains on the tires of the
rear axle. Tighten them as
tightly as possible with the
ends securely fastened.
Drive slowly and follow the
chain manufacturer's
instructions. If the chains
contact the vehicle, stop and
retighten them. If the
contact continues, slow
down until it stops. Driving(Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
462 INDEX
AlertLane Change . . . . . . . . . . . . . . . 304
Rear Cross Traffic . . . . . . . . . 297
Rear Pedestrian . . . . . . . . . . . 296
Side Blind
Zone (SBZA) . . . . . . . . . . . . . . . 304
All-Season Tires . . . . . . . . . . . . . 365
All-Wheel Drive . . . . . . . . .263, 347
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
AM-FM Radio . . . . . . . . . . . . . . . . . . 163
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 168
Antilock Brake System (ABS) . . . . . . . . . . . . . . . 264
Warning Light . . . . . . . . . . . . . . . 129
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . 412
Interior . . . . . . . . . . . . . . . . . . . . . . . . . 417
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . 201
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . 439
Assistance Systems Driving . . . . . . . . . . . . . . . . . . . . . . . . . 297
Parking and Backing . . . . . . 286
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 172 Automatic
Dimming Mirrors . . . . . . . . . . . . . 36
Door Locks . . . . . . . . . . . . . . . . . . . . 23
Emergency
Braking (AEB) . . . . . . . . . . . . . 300
Headlamp System . . . . . . . . . . 151
Parking Assist (APA) . . . . . . 291
Transmission . . . . . . . . . . . . . . . . 257
Transmission Fluid . . . . . . . . 336
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . 262
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . 169
B
BatteryExterior Lighting
Battery Saver . . . . . . . . . . . . . . 155
Power Protection . . . . . . . . . . 155
Battery - North America . . . . . . . . . . . . . . . . 346, 404
Blade Replacement, Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Overview . . . . . . . . . . . . . . . . 195, 196
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 345 Brake (cont'd)
System Warning Light . . . . 128
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 344 Antilock . . . . . . . . . . . . . . . . . . . . . . . 264
Brake Assist . . . . . . . . . . . . . . . . 266
Electric Brake Boost . . . . . 264
Electric Parking Brake . . . 264
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . 231 AutomaticEmergency (AEB) . . . . . . . . 300
Reverse Automatic . . . . . . . 294
Braking System
FrontPedestrian (FPB) . . . . . . . . . 302
Break-In, New Vehicle . . . . . . 246
Bulb Replacement . . . . . . . . . . . 350 Back-up Lamps . . . . . . . . . . . . . 351
Front Turn SignalLamps . . . . . . . . . . . . . . . . . . . . . . . 350
Headlamp Aiming . . . . . . . . . . 350
Buying New Tires . . . . . . . . . . . . 383
C
Calibration
Compass . . . . . . . . . . . . . . . . . . . . . . 114
