Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
306 Driving and Operating
light up if a moving vehicle is
detected in the next lane over
in that blind zone or rapidly
approaching that zone. If the
turn signal is activated in the
same direction as a detected
vehicle, this display will flash
as an extra warning not to
change lanes.
LCA can be disabled through
vehicle settings. When you
disable LCA, SBZA is also
disabled. To view available
settings from the infotainment
screen, touch Settings >
Vehicle > Collision/Detection
Systems. If LCA is disabled by
the driver, the LCA mirror
displays will not light up.
When the System Does
Not Seem to Work
Properly
The LCA system requires
some driving for the system to
calibrate to maximum
performance. This calibration
may occur more quickly if the
vehicle is driving on a straighthighway road with traffic and
roadside objects (e.g.,
guardrails, barriers).
LCA displays may not come on
when passing a vehicle quickly,
for a stopped vehicle, or when
towing a trailer. The LCA
detection zones that extend
back from the side of the
vehicle do not move further
back when a trailer is towed.
Use caution while changing
lanes when towing a trailer.
LCA may alert to objects
attached to the vehicle, such
as a trailer, bicycle, or object
extending out to either side of
the vehicle. Attached objects
may also interfere with the
detection of vehicles. This is
normal system operation; the
vehicle does not need service.
LCA may not always alert the
driver to vehicles in the next
lane over, especially in wet
conditions or when driving on
sharp curves. The system
does not need to be serviced.
The system may light up dueto guardrails, signs, trees,
shrubs, and other non-moving
objects. This is normal system
operation; the vehicle does not
need service.
LCA may not operate when
the LCA sensors in the left or
right corners of the rear
bumper are covered with mud,
dirt, snow, ice, or slush, or in
heavy rainstorms. For cleaning
instructions, see "Washing the
Vehicle" under Exterior Care
0
412. If the DIC still displays
the system unavailable
message after cleaning both
sides of the vehicle toward the
rear corners of the vehicle,
see your dealer.
If the LCA displays do not light
up when moving vehicles are
in the side blind zone or are
rapidly approaching this zone
and the system is clean, the
system may need service.
Take the vehicle to your
dealer.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 319
See“Weight-Distributing Hitch
Adjustment” under Towing
Equipment 0322 to determine
if equalizer bars are required
to obtain the maximum trailer
weight rating.
See “Trailer Brakes” under
Towing Equipment 0322 to
determine if brakes are
required based on the trailer
weight.
The only way to be sure the
weight is not exceeding any of
these ratings is to weigh the
tow vehicle and trailer
combination, fully loaded for
the trip, getting individual
weights for each of these
items.
{Warning
You and others could be
seriously injured or killed if
the trailer is too heavy or
the trailer brakes are
inadequate for the load. The
vehicle may be damaged,
(Continued)
Warning (Continued)
and the repairs would not be
covered by the vehicle
warranty.
Only tow a trailer if all the
steps in this section have
been followed. Ask your
dealer for advice and
information about towing a
trailer.
Gross Combined Weight
Rating (GCWR)
GCWR is the total allowable
weight of the completely
loaded vehicle and trailer
including any fuel, passengers,
cargo, equipment, and
accessories. Do not exceed
the GCWR for your vehicle.
The GCWR for the vehicle is
on the Tow Rating Chart
following.
Gross Vehicle Weight
Rating (GVWR)
For information about the
vehicle's maximum load
capacity, see Vehicle Load
Limits0242. When calculating
the GVWR with a trailer
attached, the trailer tongue
weight must be included as
part of the weight the vehicle
is carrying.
Maximum Trailer Weight
The maximum trailer weight
rating is calculated assuming
the tow vehicle has a driver, a
front seat passenger, and all
required trailering equipment.
This value represents the
heaviest trailer the vehicle can
tow, but it may be necessary
to reduce the trailer weight to
stay within the GCW, GVWR,
maximum trailer tongue load,
or GAWR-RR for the vehicle.
Use the tow rating chart to
determine how much the
trailer can weigh, based on the
vehicle model and options.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 321

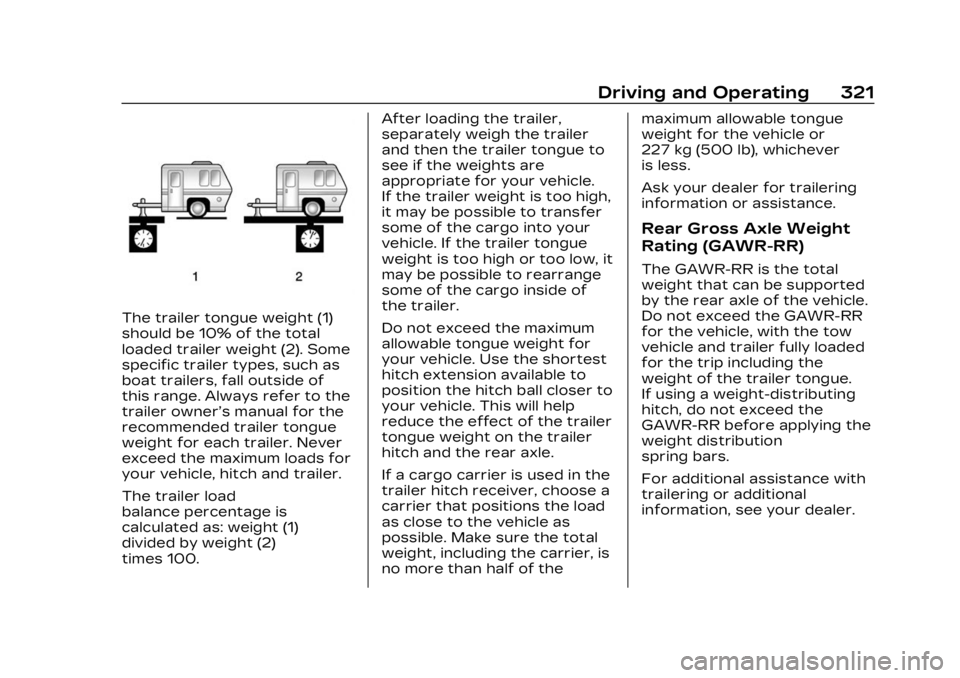

The trailer tongue weight (1)
should be 10% of the total
loaded trailer weight (2). Some
specific trailer types, such as
boat trailers, fall outside of
this range. Always refer to the
trailer owner’s manual for the
recommended trailer tongue
weight for each trailer. Never
exceed the maximum loads for
your vehicle, hitch and trailer.
The trailer load
balance percentage is
calculated as: weight (1)
divided by weight (2)
times 100.After loading the trailer,
separately weigh the trailer
and then the trailer tongue to
see if the weights are
appropriate for your vehicle.
If the trailer weight is too high,
it may be possible to transfer
some of the cargo into your
vehicle. If the trailer tongue
weight is too high or too low, it
may be possible to rearrange
some of the cargo inside of
the trailer.
Do not exceed the maximum
allowable tongue weight for
your vehicle. Use the shortest
hitch extension available to
position the hitch ball closer to
your vehicle. This will help
reduce the effect of the trailer
tongue weight on the trailer
hitch and the rear axle.
If a cargo carrier is used in the
trailer hitch receiver, choose a
carrier that positions the load
as close to the vehicle as
possible. Make sure the total
weight, including the carrier, is
no more than half of themaximum allowable tongue
weight for the vehicle or
227 kg (500 lb), whichever
is less.
Ask your dealer for trailering
information or assistance.
Rear Gross Axle Weight
Rating (GAWR-RR)
The GAWR-RR is the total
weight that can be supported
by the rear axle of the vehicle.
Do not exceed the GAWR-RR
for the vehicle, with the tow
vehicle and trailer fully loaded
for the trip including the
weight of the trailer tongue.
If using a weight-distributing
hitch, do not exceed the
GAWR-RR before applying the
weight distribution
spring bars.
For additional assistance with
trailering or additional
information, see your dealer.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
322 Driving and Operating
Towing Equipment
Hitches
Always use the correct hitch
equipment for your vehicle.
Crosswinds, large trucks going
by, and rough roads can affect
the trailer and the hitch.
Proper hitch equipment for
your vehicle helps maintain
control of the vehicle-trailer
combination. Many trailers can
be towed using a
weight-carrying hitch which
has a coupler latched to the
hitch ball, or a tow eye latched
to a pintle hook. Other trailers
may require a
weight-distributing hitch that
uses spring bars to distribute
the trailer tongue weight
between your vehicle and
trailer axles. See“Maximum
Trailer Tongue Weight” under
Trailer Towing 0318 for
weight limits with various hitch
types. Never attach rental hitches or
other bumper-type hitches.
Only use frame-mounted
hitches that do not attach to
the bumper.
Hitch Cover
To remove hitch cover,
if equipped:
1. Remove the two fasteners on the lower tabs.
2. Pull the lower edge of the cover to about a 45 degree
angle.
3. Pull the cover downward to disengage the upper
attachments. To reinstall the hitch cover:
1. Hold cover at a 45 degree angle to the vehicle and
push the upper tabs into
the slots in the bumper.
2. Push the bottom of the cover forward until the
lower tabs line up with the
lower slots.
3. Snap the hitch cover into place by pushing the upper
corners forward.
4. Reinstall the two fasteners on the lower tabs.
Consider using mechanical
sway controls with any trailer.
Ask a trailering professional
about sway controls or refer
to the trailer manufacturer's
recommendations and
instructions.
Tires
.Do not tow a trailer while
using a compact spare tire
on the vehicle.
