fuse CADILLAC XT4 2024 User Guide

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
284 Vehicle Care
FusesUsage
57 RDCM BATT 1 –Rear Drive
Control Module Battery 1
58 Driver Power Seat
59 EBCM –Electronic Brake
Control Module
60 Horn 61 Rear Defog
62 Front Wiper
63 Power Tailgate
64 MTR WDW LIFTER RT –
Motor Window Lifter
Right
65 –
66 Sunroof 67 Trailer Run
68 Spare
69 Spare 70 –
71 –
72 FTZM –Fuel Tank Zone
Module Fuses
Usage
73 Handsfree Closure
74 –
75 Spare
76 Spare 77 Spare
78 Trailer Stop/Turn Left and Right
79 TCM (DC to DC) –
Transmission Control
Module
80 –
81 SADS –Semi Active
Dampening Suspension
82 –
83 Washer PumpInstrument Panel Fuse Block
The instrument panel fuse block is on the
driver side of the instrument panel, between
the steering wheel and the door. To access
the fuses, remove the panel, starting at the
top. Once clips are disengaged, the tabs
along the bottom of the door can be
disengaged from the instrument panel to
remove the door.
To reinstall the door, place the bottom tabs
into the slots, and rotate the door into
position, engaging the clips.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
Vehicle Care 285
FusesUsage
F1 Blower Motor Fuses
Usage
F2 ELM 1 –Exterior Lighting
Module 1
F3 Column Lock
F4 ELM 2 –Exterior Lighting
Module 2
F5 BCM 2 –Body Control
Module 2
F6 Amplifier F7 Clock Spring
F8 DLC –Data Link Connector
F9 BCM 1 –Body Control
Module 1/SIB –Shifter
Interface Board
F10 Headliner/Auxiliary Switch F11 Display and HVAC
F12 Steering Column Lock
F13 Video Driving Monitoring System (DMS)/Safety 2
F14 RC MISC 3/ECM –Ride
Control Miscellaneous 3/
Electronic Control Module
F15 Rear Wiper

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
286 Vehicle Care
FusesUsage

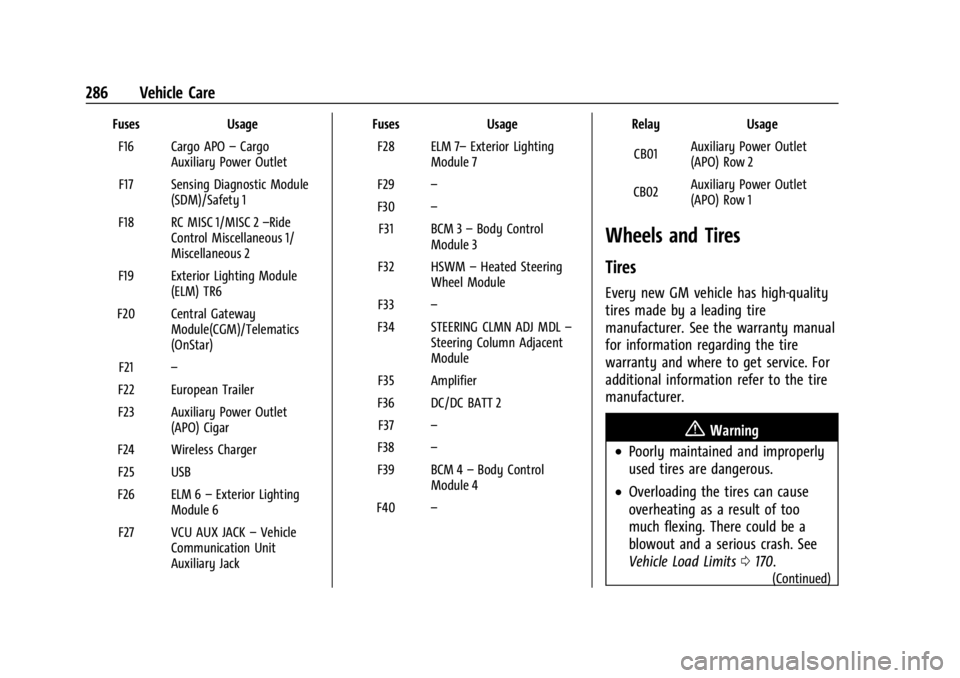

F16 Cargo APO –Cargo
Auxiliary Power Outlet
F17 Sensing Diagnostic Module (SDM)/Safety 1
F18 RC MISC 1/MISC 2 –Ride
Control Miscellaneous 1/
Miscellaneous 2
F19 Exterior Lighting Module (ELM) TR6
F20 Central Gateway Module(CGM)/Telematics
(OnStar)
F21 –
F22 European Trailer
F23 Auxiliary Power Outlet (APO) Cigar
F24 Wireless Charger F25 USB
F26 ELM 6 –Exterior Lighting
Module 6
F27 VCU AUX JACK –Vehicle
Communication Unit
Auxiliary Jack Fuses
Usage
F28 ELM 7– Exterior Lighting
Module 7
F29 –
F30 –
F31 BCM 3 –Body Control
Module 3
F32 HSWM –Heated Steering
Wheel Module
F33 –
F34 STEERING CLMN ADJ MDL –
Steering Column Adjacent
Module
F35 Amplifier
F36 DC/DC BATT 2 F37 –
F38 –
F39 BCM 4 –Body Control
Module 4
F40 – Relay
Usage
CB01 Auxiliary Power Outlet
(APO) Row 2
CB02 Auxiliary Power Outlet
(APO) Row 1
Wheels and Tires
Tires
Every new GM vehicle has high-quality
tires made by a leading tire
manufacturer. See the warranty manual
for information regarding the tire
warranty and where to get service. For
additional information refer to the tire
manufacturer.
{Warning
.Poorly maintained and improperly
used tires are dangerous.
.Overloading the tires can cause
overheating as a result of too
much flexing. There could be a
blowout and a serious crash. See
Vehicle Load Limits
0170.
