Page 262 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
262 Vehicle Care
back on, continue to drive normally
and have the cooling system
checked for proper fill and function.
If the warning continues, pull over,
stop, and park the vehicle
right away.
If there is no sign of steam, idle the
engine for three minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down.
Washer Fluid
What to Use
When adding windshield washer
fluid to the vehicle, be sure to read
the manufacturer instructions before
use. If you will be operating your
vehicle in an area where the
temperature may fall below freezing,
use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid
The appropriate message will
appear on the Driver Information
Center (DIC) when the fluid level is
low. SeeWasher Fluid
Messages 0151.
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. See Engine
Compartment Overview 0252 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
(Continued)
Caution (Continued)
.Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
. When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
for fluid expansion if
freezing occurs, which could
damage the tank if it is
completely full.
Page 307 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Vehicle Care 307
Caution
Machine compounding or
aggressive polishing on a
basecoat/clearcoat paint finish
may damage it. Use only
non-abrasive waxes and polishes
that are made for a basecoat/
clearcoat paint finish on the
vehicle.
To keep the paint finish looking new,
keep the vehicle garaged or
covered whenever possible.
Protecting Exterior Bright Metal
Moldings
Caution
Failure to clean and protect the
bright metal moldings can result
in a hazy white finish or pitting.
This damage would not be
covered by the vehicle warranty. The bright metal moldings on the
vehicle are aluminum, chrome,
or stainless steel. To prevent
damage always follow these
cleaning instructions:
.
Be sure the molding is cool to
the touch before applying any
cleaning solution.
. Use only approved cleaning
solutions for aluminum, chrome,
or stainless steel. Some
cleaners are highly acidic or
contain alkaline substances and
can damage the moldings.
. Always dilute a concentrated
cleaner according to the
manufacturer ’s instructions.
. Do not use cleaners that are not
intended for automotive use.
. Use a nonabrasive wax on the
vehicle after washing to protect
and extend the molding finish.
Cleaning Exterior Lamps/
Lenses, Emblems, Decals, and
Stripes
Use only lukewarm or cold water, a
soft cloth, and a car washing soap
to clean exterior lamps, lenses,
emblems, decals, and stripes.
Follow instructions under "Washing
the Vehicle" previously in this
section.
Lamp covers are made of plastic,
and some have a UV protective
coating. Do not clean or wipe them
when dry.
Do not use any of the following on
lamp covers:
.
Abrasive or caustic agents.
. Washer fluids and other cleaning
agents in higher concentrations
than suggested by the
manufacturer.
. Solvents, alcohols, fuels,
or other harsh cleaners.
. Ice scrapers or other hard items.
Page 308 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16

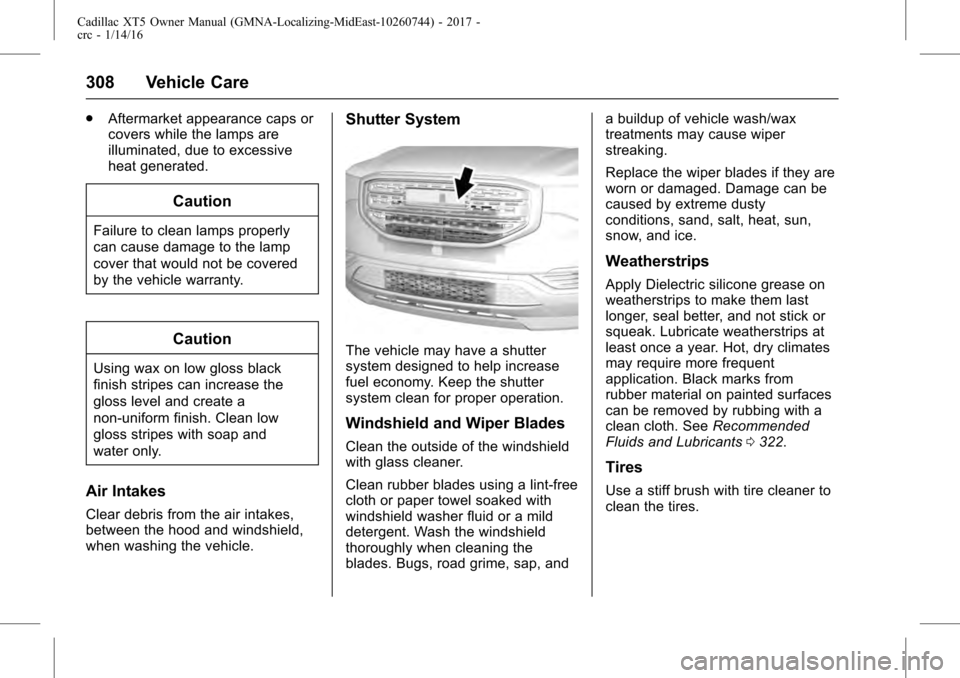

308 Vehicle Care
.Aftermarket appearance caps or
covers while the lamps are
illuminated, due to excessive
heat generated.
Caution
Failure to clean lamps properly
can cause damage to the lamp
cover that would not be covered
by the vehicle warranty.
Caution
Using wax on low gloss black
finish stripes can increase the
gloss level and create a
non-uniform finish. Clean low
gloss stripes with soap and
water only.
Air Intakes
Clear debris from the air intakes,
between the hood and windshield,
when washing the vehicle.
Shutter System
The vehicle may have a shutter
system designed to help increase
fuel economy. Keep the shutter
system clean for proper operation.
Windshield and Wiper Blades
Clean the outside of the windshield
with glass cleaner.
Clean rubber blades using a lint-free
cloth or paper towel soaked with
windshield washer fluid or a mild
detergent. Wash the windshield
thoroughly when cleaning the
blades. Bugs, road grime, sap, and a buildup of vehicle wash/wax
treatments may cause wiper
streaking.
Replace the wiper blades if they are
worn or damaged. Damage can be
caused by extreme dusty
conditions, sand, salt, heat, sun,
snow, and ice.
Weatherstrips
Apply Dielectric silicone grease on
weatherstrips to make them last
longer, seal better, and not stick or
squeak. Lubricate weatherstrips at
least once a year. Hot, dry climates
may require more frequent
application. Black marks from
rubber material on painted surfaces
can be removed by rubbing with a
clean cloth. See
Recommended
Fluids and Lubricants 0322.
Tires
Use a stiff brush with tire cleaner to
clean the tires.
Page 316 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
316 Service and Maintenance
frequent checks and services. The
Additional Required Services -
Normal are for vehicles that:
.Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See Vehicle Load
Limits 0187.
. Are driven on reasonable road
surfaces within legal driving
limits.
. Use the recommended fuel. See
Fuel 0237.
Refer to the information in the
Maintenance Schedule Additional
Required Services - Normal chart.
The Additional Required Services -
Severe are for vehicles that are:
. Mainly driven in heavy city traffic
in hot weather.
. Mainly driven in hilly or
mountainous terrain.
. Frequently towing a trailer.
. Used for high speed or
competitive driving. .
Used for taxi, police, or delivery
service.
Refer to the information in the
Maintenance Schedule Additional
Required Services - Severe chart.
{Warning
Performing maintenance work can
be dangerous and can cause
serious injury. Perform
maintenance work only if the
required information, proper tools,
and equipment are available.
If they are not, see your dealer to
have a trained technician do the
work. See Doing Your Own
Service Work 0250.
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.
Check the engine oil level. See
Engine Oil 0253.
Once a Month
. Check the tire inflation
pressures. See Tire
Pressure 0282.
. Inspect the tires for wear. See
Tire Inspection 0287.
. Check the windshield washer
fluid level. See Washer
Fluid 0262.
Engine Oil Change
Change the engine oil and filter
when the CHANGE ENGINE OIL
SOON message displays,
12 000 km/7,500 mi, or at one year,
whichever comes first. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
Page 317 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Service and Maintenance 317
filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0255.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0288.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system. See Engine
Oil 0253 andEngine Oil Life
System 0255.
. Check engine coolant level. See
Engine Coolant 0258.
. Check windshield washer fluid
level. See Washer Fluid 0262. .
Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0305. Replace worn or
damaged wiper blades. See
Wiper Blade
Replacement 0266.
. Check tire inflation pressures.
See Tire Pressure 0282.
. Inspect tire wear. See Tire
Inspection 0287.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/
Filter 0256.
. Inspect brake system. See
Exterior Care 0305.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0305.
. Check restraint system
components. See Safety System
Check 070.
. Visually inspect fuel system for
damage or leaks. .
Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0305.
. Check starter switch. See Starter
Switch Check 0266.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism
Check 0266.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. See your
dealer if service is required.
. Inspect sunroof track and seal,
if equipped. See Sunroof050.
Page 323 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Service and Maintenance 323
UsageFluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770) or Dielectric Silicone Grease (GM Part No. 12345579).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 3.6L V6 Engine 20857930 A3178C
Engine Oil Filter
3.6L V6 Engine 19330000 PF63E
Passenger Compartment Air Filter 13508023 CF185
Spark Plugs 3.6L V6 Engine 12646780 41-130
Wiper Blades Driver Side –60 cm (23.6 in) 23372088 —
Passenger Side –50 cm (19.7 in) 23360287 —
Rear –30 cm (11.8 in) 23308226 —
Page 333 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Index 333
Engine (cont'd)Oil Life System . . . . . . . . . . . . . . . 255
Oil Messages . . . . . . . . . . . . . . . . . 143
Oil Pressure Gauge . . . . . . . . . . 122
Oil Pressure Light . . . . . . . . . . . . 133
Overheating . . . . . . . . . . . . . . . . . . 260
Power Messages . . . . . . . . . . . . . 143
Running While Parked . . . . . . . . 197
Starting . . . . . . . . . . . . . . . . . . . . . . . 193
Entry Lighting . . . . . . . . . . . . . . . . . . . 169
Equipment, Towing . . . . . . . . . . . . . 245
Event Data Recorders . . . . . . . . . . 328
Exit Lighting . . . . . . . . . . . . . . . . . . . . 169
Extended Parking . . . . . . . . . . . . . . . 196
Exterior Lamp Controls . . . . . . . . . 163
Exterior Lamps Off Reminder . . . 165
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 169
F
Features
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 256
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 165
Flashers, Hazard Warning . . . . . . 166
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 293 Changing . . . . . . . . . . . . . . . . . . . . . 294
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 313 Fluid
Automatic Transmission . . . . . . 256
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 263
Washer . . . . . . . . . . . . . . . . . . . . . . . 262
Folding Mirrors . . . . . . . . . . . . . . . . . . 44
Forward Automatic Braking . . . . . 229
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 226
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 230
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 55
Heated and Ventilated . . . . . . . . . . 59
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 Additives . . . . . . . . . . . . . . . . . . . . . 237
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 239
Filling the Tank . . . . . . . . . . . . . . . 237
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 121
Low Fuel Warning Light . . . . . . . 133
System Messages . . . . . . . . . . . . 144
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 272
Fuses and Circuit Breakers . . . 271
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 275 Fuses (cont'd)
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 277
G
Garage Door OpenerProgramming . . . . . . . . . . . . . . . . . 159
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 123
Engine Oil Pressure . . . . . . . . . . 122
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Odometer . . . . . . . . . . . . . . . . . . . . . 121
Speedometer . . . . . . . . . . . . . . . . . 121
Tachometer . . . . . . . . . . . . . . . . . . . 121
Trip Odometer . . . . . . . . . . . . . . . . 121
Voltmeter . . . . . . . . . . . . . . . . . . . . . 124
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .116
General Information Service and Maintenance . . . . . 315
Towing . . . . . . . . . . . . . . . . . . . . . . . . 239
Vehicle Care . . . . . . . . . . . . . . . . . . 250
Glove Box . . . . . . . . . . . . . . . . . . . . . . 101
Page 335 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Index 335
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Lighter, Cigarette . . . . . . . . . . . . . . . 115
LightingEntry . . . . . . . . . . . . . . . . . . . . . . . . . 169
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Illumination Control . . . . . . . . . . . 167
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 Airbag Readiness . . . . . . . . . . . . . 125
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 130
Brake System Warning . . . . . . . 129
Charging System . . . . . . . . . . . . . 126
Cruise Control . . . . . . . . . . . . . . . . 134
Door Ajar . . . . . . . . . . . . . . . . . . . . . 135
Electric Parking Brake . . . . . . . . 129
Engine Coolant Temperature Warning . . . . . . . 132
Engine Oil Pressure . . . . . . . . . . 133
Flash-to-Pass . . . . . . . . . . . . . . . . . 165
High-Beam On . . . . . . . . . . . . . . . . 134
High/Low Beam Changer . . . . . 165
Low Fuel Warning . . . . . . . . . . . . 133
Safety Belt Reminders . . . . . . . . 125
Security . . . . . . . . . . . . . . . . . . . . . . 134
Service Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . . . 129
StabiliTrak
®OFF . . . . . . . . . . . . . 131 Lights (cont'd)
Tire Pressure . . . . . . . . . . . . . . . . . 132
Traction Control System
(TCS)/StabiliTrak
®. . . . . . . . . . 132
Traction Off . . . . . . . . . . . . . . . . . . . 131
Locks Automatic Door . . . . . . . . . . . . . . . . . 34
Delayed Locking . . . . . . . . . . . . . . . . 34
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Lockout Protection . . . . . . . . . . . . . . 35
Power Door . . . . . . . . . . . . . . . . . . . . . 34
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Loss of Control . . . . . . . . . . . . . . . . . 183
Low Fuel Warning Light . . . . . . . . . 133
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 90
Lumbar Adjustment . . . . . . . . . . . . . . 56
Front Seats . . . . . . . . . . . . . . . . . . . . . 56
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 324
Maintenance Schedule . . . . . . . . . 316
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 322
Malfunction Indicator Lamp . . . . . 127
Manual Mode . . . . . . . . . . . . . . . . . . . 201
Memory Features . . . . . . . . . . . . . . . . 11 Memory Seats . . . . . . . . . . . . . . . . . . . 57
Messages
Airbag System . . . . . . . . . . . . . . . . 148
Battery Voltage andCharging . . . . . . . . . . . . . . . . . . . . 141
Brake System . . . . . . . . . . . . . . . . 141
Door Ajar . . . . . . . . . . . . . . . . . . . . . 142
Engine Cooling System . . . . . . . 142
Engine Oil . . . . . . . . . . . . . . . . . . . . 143
Engine Power . . . . . . . . . . . . . . . . 143
Fuel System . . . . . . . . . . . . . . . . . . 144
Key and Lock . . . . . . . . . . . . . . . . . 144
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 144
Object Detection System . . . . . 145
Ride Control System . . . . . . . . . . 147
Safety Belt . . . . . . . . . . . . . . . . . . . . 148
Security . . . . . . . . . . . . . . . . . . . . . . 148
Service Vehicle . . . . . . . . . . . . . . . 148
Starting the Vehicle . . . . . . . . . . . 149
Steering System . . . . . . . . . . . . . . 149
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Transmission . . . . . . . . . . . . . . . . . 150
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 140
Vehicle Reminder . . . . . . . . . . . . . 150
Vehicle Speed . . . . . . . . . . . . . . . . 151
Washer Fluid . . . . . . . . . . . . . . . . . 151
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . 46
Page 336 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
336 Index
MirrorsAutomatic Dimming . . . . . . . . . . . . . 45
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 46
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 44
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 44
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 45
Manual Rearview . . . . . . . . . . . . . . . 46
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tilt in Reverse . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . 46
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Driver Control . . . . . . . . . . . . . . . . . 208
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 283
N
Net, Convenience . . . . . . . . . . . . . . 105
New Vehicle Break-In . . . . . . . . . . . 191
O
Object Detection SystemMessages . . . . . . . . . . . . . . . . . . . . . 145
Odometer . . . . . . . . . . . . . . . . . . . . . . . 121 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 183
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 253 Oil (cont'd)
Engine Oil Life System . . . . . . . 255
Engine Oil Pressure Gauge . . . 122
Messages . . . . . . . . . . . . . . . . . . . . 143
Pressure Light . . . . . . . . . . . . . . . . 133
Older Children, Restraints . . . . . . . 83
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . .114
Overheating, Engine . . . . . . . . . . . . 260
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . 195
Shifting Out of . . . . . . . . . . . . . . . . 195
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . 266
Extended . . . . . . . . . . . . . . . . . . . . . 196
Over Things That Burn . . . . . . . 196
Parking Assist . . . . . . . . . . . . . . . . . . 220
Parking or Backing Assistance Systems . . . . . . . . . . 220
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 126
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Passenger Sensing System . . . . . 77
Pedestrian Ahead Indicator . . . . . 131 Personalization
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 151
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 34
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Outlets . . . . . . . . . . . . . . . . . . . . . . . .114
Protection, Battery . . . . . . . . . . . . 169
Retained Accessory (RAP) . . . 195
Windows . . . . . . . . . . . . . . . . . . . . . . . 48
Pregnancy, Using Safety Belts . . . 70
Privacy Vehicle Data Recording . . . . . . . 328
R
Reading Lamps . . . . . . . . . . . . . . . . . 168
Rear Camera Mirror . . . . . . . . . . . . . 46
Rear Climate Control System . . . 176
Rear Seat Armrest . . . . . . . . . . . . . . . 62
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 60Heated . . . . . . . . . . . . . . . . . . . . . . . . . 63
Rear Storage . . . . . . . . . . . . . . . . . . . 102
Rear Vision Camera (RVC) . . . . . 220
Rear Window Washer/Wiper . . . . 112
Rearview Mirrors . . . . . . . . . . . . . . . . 46
Automatic Dimming . . . . . . . . . . . . . 46
Reclining Seatbacks . . . . . . . . . . . . . 56
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 322
Page 339 of 339
Cadillac XT5 Owner Manual (GMNA-Localizing-MidEast-10260744) - 2017 -
crc - 1/14/16
Index 339
Transmission (cont'd)Messages . . . . . . . . . . . . . . . . . . . . 150
Trip Odometer . . . . . . . . . . . . . . . . . . 121
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 167
U
Universal Remote SystemOperation . . . . . . . . . . . . . . . . . . . . . 162
Programming . . . . . . . . . . . . . . . . . 159
V
VehicleAlarm System . . . . . . . . . . . . . . . . . . 41
Control . . . . . . . . . . . . . . . . . . . . . . . 182
Identification Number (VIN) . . . 325
Load Limits . . . . . . . . . . . . . . . . . . . 187
Messages . . . . . . . . . . . . . . . . . . . . 140
Personalization . . . . . . . . . . . . . . . 151
Reminder Messages . . . . . . . . . . 150
Remote Start . . . . . . . . . . . . . . . . . . . 31
Security . . . . . . . . . . . . . . . . . . . . . . . . 41
Speed Messages . . . . . . . . . . . . . 151
Towing . . . . . . . . . . . . . . . . . . . . . . . . 303
Vehicle Ahead Indicator . . . . . . . . 131
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 282
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 328 Ventilation, Air . . . . . . . . . . . . . . . . . . 178
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Voltmeter Gauge . . . . . . . . . . . . . . . 124
W
Warning
Brake System Light . . . . . . . . . . . 129
Caution and Danger . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . 235
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 116
Warnings
Hazard Flashers . . . . . . . . . . . . . . 166
Washer Fluid . . . . . . . . . . . . . . . . . . . 262 Messages . . . . . . . . . . . . . . . . . . . . 151
Wheels Alignment and Tire Balance . . 291
Different Size . . . . . . . . . . . . . . . . . 291
Replacement . . . . . . . . . . . . . . . . . 291
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Where to Put the Restraint . . . . . . 89
Windows . . . . . . . . . . . . . . . . . . . . . . . . 48 Power . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Windshield Replacement . . . . . . . . . . . . . . . . . 268
Wiper/Washer . . . . . . . . . . . . . . . . .110
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 185 Winter Tires . . . . . . . . . . . . . . . . . . . . 281
Wiper Blade Replacement . . . . . . 266
Wipers
Rear Washer . . . . . . . . . . . . . . . . . .112
Wireless Charging . . . . . . . . . . . . . . 114
