Page 175 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
174 CLIMATE CONTROLS

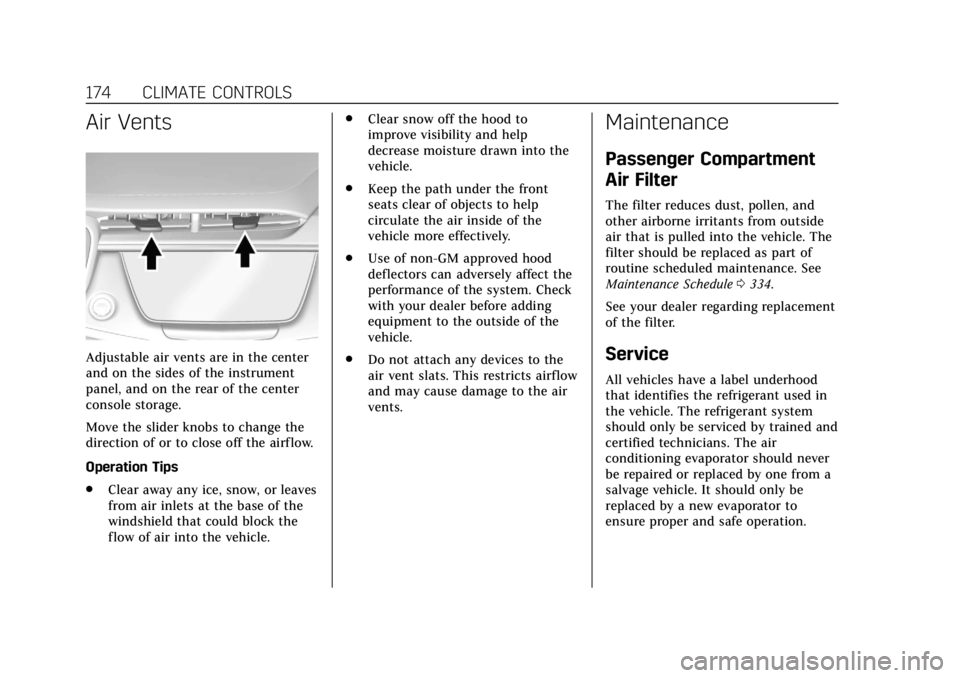

Air Vents
Adjustable air vents are in the center
and on the sides of the instrument
panel, and on the rear of the center
console storage.
Move the slider knobs to change the
direction of or to close off the airf low.
Operation Tips
.Clear away any ice, snow, or leaves
from air inlets at the base of the
windshield that could block the
flow of air into the vehicle. .
Clear snow off the hood to
improve visibility and help
decrease moisture drawn into the
vehicle.
. Keep the path under the front
seats clear of objects to help
circulate the air inside of the
vehicle more effectively.
. Use of non-GM approved hood
deflectors can adversely affect the
performance of the system. Check
with your dealer before adding
equipment to the outside of the
vehicle.
. Do not attach any devices to the
air vent slats. This restricts airflow
and may cause damage to the air
vents.
Maintenance
Passenger Compartment
Air Filter
The filter reduces dust, pollen, and
other airborne irritants from outside
air that is pulled into the vehicle. The
filter should be replaced as part of
routine scheduled maintenance. See
Maintenance Schedule 0334.
See your dealer regarding replacement
of the filter.
Service
All vehicles have a label underhood
that identifies the refrigerant used in
the vehicle. The refrigerant system
should only be serviced by trained and
certified technicians. The air
conditioning evaporator should never
be repaired or replaced by one from a
salvage vehicle. It should only be
replaced by a new evaporator to
ensure proper and safe operation.
Page 176 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
CLIMATE CONTROLS 175

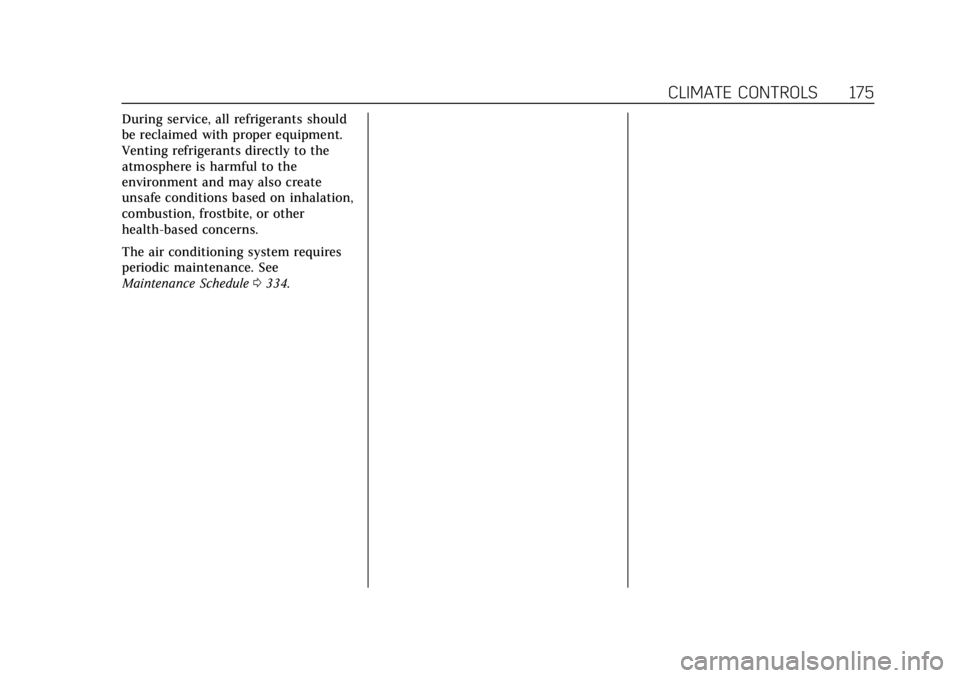

During service, all refrigerants should
be reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to the
environment and may also create
unsafe conditions based on inhalation,
combustion, frostbite, or other
health-based concerns.
The air conditioning system requires
periodic maintenance. See
Maintenance Schedule0334.
Page 178 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
DRIVING AND OPERATING 177
Trailer Towing
General Towing Information . . . . 240
Driving Characteristics andTowing Tips . . . . . . . . . . . . . . . . . . . . . 240
Trailer Towing . . . . . . . . . . . . . . . . . . . . 244
Towing Equipment . . . . . . . . . . . . . . . 247
Trailer Sway Control (TSC) . . . . . . 250
Conversions and Add-Ons
Add-On Electrical Equipment . . . 252
Driving Information
Distracted Driving
Distraction comes in many forms and
can take your focus from the task of
driving. Exercise good judgment and
do not let other activities divert your
attention away from the road. Many
local governments have enacted laws
regarding driver distraction. Become
familiar with the local laws in
your area.
To avoid distracted driving, keep your
eyes on the road, keep your hands on
the steering wheel, and focus your
attention on driving.
. Do not use a phone in demanding
driving situations. Use a
hands-free method to place or
receive necessary phone calls.
. Watch the road. Do not read, take
notes, or look up information on
phones or other electronic devices.
. Designate a front seat passenger
to handle potential distractions. .
Become familiar with vehicle
features before driving, such as
programming favorite radio
stations and adjusting climate
control and seat settings. Program
all trip information into any
navigation device prior to driving.
. Wait until the vehicle is parked to
retrieve items that have fallen to
the floor.
. Stop or park the vehicle to tend to
children.
. Keep pets in an appropriate carrier
or restraint.
. Avoid stressful conversations
while driving, whether with a
passenger or on a cell phone.
{Warning
Taking your eyes off the road too
long or too often could cause a
crash resulting in injury or death.
Focus your attention on driving.
Page 183 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
182 DRIVING AND OPERATING
.Turn on Traction Control. See
Traction Control/Electronic Stability
Control 0205.
. Antilock Brake System (ABS)
improves vehicle stability during
hard stops, but the brakes should
be applied sooner than when on
dry pavement. See Antilock Brake
System (ABS) 0202.
. Allow greater following distance
and watch for slippery spots. Icy
patches can occur on otherwise
clear roads in shaded areas. The
surface of a curve or an overpass
can remain icy when the
surrounding roads are clear. Avoid
sudden steering maneuvers and
braking while on ice.
. Turn off cruise control.
. Select All-Wheel Drive (AWD)
mode.
See Driver Mode Control 0207 and
All-Wheel Drive 0201.
Blizzard Conditions
Stop the vehicle in a safe place and
signal for help. Stay with the vehicle
unless there is help nearby. If possible, use Roadside Service. See
Roadside
Service 0354. To get help and keep
everyone in the vehicle safe:
. Turn on the hazard warning
flashers.
. Tie a red cloth to an outside
mirror.
{Warning
Snow can trap engine exhaust
under the vehicle. This may cause
exhaust gases to get inside. Engine
exhaust contains carbon monoxide
(CO), which cannot be seen or
smelled. It can cause
unconsciousness and even death.
If the vehicle is stuck in snow:
. Clear snow from the base of
the vehicle, especially any
blocking the exhaust pipe.
. Open a window about 5 cm
(2 in) on the vehicle side that
is away from the wind, to
bring in fresh air.
(Continued)
Warning (Continued)
.Fully open the air outlets on
or under the instrument
panel.
. Adjust the climate control
system to circulate the air
inside the vehicle and set the
fan speed to the highest
setting. See “Climate Control
Systems.”
For more information about CO, see
Engine Exhaust 0194.
To save fuel, run the engine for short
periods to warm the vehicle and then
shut the engine off and partially close
the window. Moving about to keep
warm also helps.
If it takes time for help to arrive,
when running the engine, push the
accelerator pedal slightly so the
engine runs faster than the idle speed.
This keeps the battery charged to
restart the vehicle and to signal for
help with the headlamps. Do this as
little as possible, to save fuel.
Page 191 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
190 DRIVING AND OPERATING
transmission gently until the oil
warms up and lubricates all
moving parts.
Stop/Start System
If equipped, the Stop/Start system will
shut off the engine to help conserve
fuel. It has components designed for
the increased number of starts.
{Warning
The automatic engine Stop/Start
feature causes the engine to shut
off while the vehicle is still on. Do
not exit the vehicle before shifting
to P (Park). The vehicle may restart
and move unexpectedly. Always
shift to P (Park), and then turn the
ignition off before exiting the
vehicle.
Auto Engine Stop/Start
When the brakes are applied and the
vehicle is at a complete stop, the
engine may turn off. When stopped,
the tachometer displays AUTO STOP.
See Tachometer 0126. When the brake pedal is released or the accelerator
pedal is pressed, the engine will
restart.
To maintain vehicle performance,
other conditions may cause the engine
to automatically restart before the
brake pedal is released.
Auto Stops may not occur and/or auto
restarts may occur because:
.
The climate control settings
require the engine to be running
to cool or heat the vehicle interior.
. The vehicle battery charge is low.
. The vehicle battery has recently
been disconnected.
. Minimum vehicle speed has not
been reached since the last
Auto Stop
. The accelerator pedal is pressed.
. The engine or transmission is not
at the required operating
temperature.
. The outside temperature is not in
the required operating range.
. The vehicle is in any gear other
than D (Drive). .
Tow/Haul Mode or other driver
modes have been selected.
. The vehicle is on a steep hill or
grade.
. The driver door has been opened
or driver seat belt has been
unbuckled.
. The hood has been opened.
. The Auto Stop has reached the
maximum allowed time.Engine Heater
The engine heater, if available, can
help in cold weather conditions at or
below −18 °C (0 °F) for easier starting
and better fuel economy during
engine warm-up. Plug in the engine
heater at least four hours before
starting the vehicle. An internal
thermostat in the plug end of the cord
will prevent engine heater operation
at temperatures above −18 °C (0 °F).
Page 243 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
242 DRIVING AND OPERATING
Warning (Continued)
.Adjust the climate control
system to a setting that
brings in only outside air. See
“Climate Control Systems” in
the Index.
For more information about carbon
monoxide, see Engine Exhaust
0 194.
Towing a trailer requires experience.
The combination of the vehicle and
trailer is longer and not as responsive
as the vehicle itself. Get used to the
handling and braking of the
combination by driving on a level road
surface before driving on public roads.
The trailer structure, the tires, and the
brakes must be all be rated to carry
the intended cargo. Inadequate trailer
equipment can cause the combination
to operate in an unexpected or unsafe
manner. Before driving, inspect all
trailer hitch parts and attachments,
safety chains, electrical connectors,
lamps, tires, and mirrors. See Towing
Equipment 0247. If the trailer has electric brakes, start the combination
moving and then manually apply the
trailer brake controller to check the
trailer brakes work. During the trip,
occasionally check that the cargo and
trailer are secure and that the lamps
and any trailer brakes are working.
Towing with a Stability Control
System
When towing, the stability control
system might be heard. The system
reacts to vehicle movement caused by
the trailer, which mainly occurs
during cornering. This is normal when
towing heavier trailers.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving without a trailer. This can help
to avoid heavy braking and sudden
turns.
Passing
More passing distance is needed when
towing a trailer. The combination will
not accelerate as quickly and is much
longer so it is necessary to go much
farther beyond the passed vehicle before returning to the lane. Pass on
level roadways. Avoid passing on hills
if possible.
Backing Up
Hold the bottom of the steering wheel
with one hand. To move the trailer to
the left, move that hand to the left. To
move the trailer to the right, move
that hand to the right. Always back up
slowly and, if possible, have someone
guide you.
Making Turns
Caution
Turn more slowly and make wider
arcs when towing a trailer to
prevent damage to your vehicle.
Making very sharp turns could
cause the trailer to contact the
vehicle.
Make wider turns than normal when
towing, so trailer will not go over soft
shoulders, over curbs, or strike road
Page 303 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
302 VEHICLE CARE
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires Must
Conform to Federal Safety
Requirements In Addition To
These Grades.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded
150 would wear one and one-half
(1½) times as well on the
government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of
their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences
in road characteristics and
climate.Traction
The traction grades, from highest
to lowest, are AA, A, B, and C.
Those grades represent the tire's
ability to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance. Warning: The
traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not
include acceleration, cornering,
hydroplaning, or peak traction
characteristics.
Temperature
The temperature grades are A (the
highest), B, and C, representing
the tire's resistance to the
generation of heat and its ability
to dissipate heat when tested
under controlled conditions on a
specified indoor laboratory test
wheel. Sustained high temperaturecan cause the material of the tire
to degenerate and reduce tire life,
and excessive temperature can
lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Safety Standard
No. 109. Grades B and A represent
higher levels of performance on
the laboratory test wheel than the
minimum required by law.
Warning: The temperature grade
for this tire is established for a tire
that is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
Page 378 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
INDEX 377
Auto StopStop/Start System . . . . . . . . . . . . . . . . 190
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . . 49
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Forward Braking . . . . . . . . . . . . . . . . . . 229
Headlamp System . . . . . . . . . . . . . . . . 161
Transmission . . . . . . . . . . . . . . . . . . . . . . 195
Transmission Fluid . . . . . . . . . . . . . . . 261
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . 199
B
Battery
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Power Protection . . . . . . . . . . . . . . . . . . 165
Battery - North America . . . . . .269, 319
Blade Replacement, Wiper . . . . . . . . . 271
Brake Parking, Electric . . . . . . . . . . . . . . . . . . 202
System Warning Light . . . . . . . . . . . . 134
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 Automatic Forward . . . . . . . . . . . . . . . 229 Braking System
Front Pedestrian (FPB) . . . . . . . . . . . 230
Break-In, New Vehicle . . . . . . . . . . . . . . 187
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . . . . . 274
Headlamp Aiming . . . . . . . . . . . . . . . . 273
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . 274
Headlamps and Front TurnSignal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Buying New Tires . . . . . . . . . . . . . . . . . . . 299
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 116
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 255
California Proposition
65 Warning . . . . . . . . . . . . .254, 269, 319, Back Cover
Canadian Vehicle Owners . . . . . . . . . . . . . 2
Capacities and Specifications . . . . . . 347
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . 194
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Winter Driving . . . . . . . . . . . . . . . . . . . . 181
Cargo
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Management System . . . . . . . . . . . . . 109 Cargo (cont'd)
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . 109
Caution, Danger, and Warning . . . . . . . . 3
Center Console Storage . . . . . . . . . . . . . 107
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . 304
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Charging System Light . . . . . . . . . . . . . 132
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . . . . . 132
Child Restraints Infants and Young Children . . . . . . . . 90
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Older Children . . . . . . . . . . . . . . . . . . . . . . 88
Securing . . . . . . . . . . . . . . . . . . . . . . 100, 102
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cigarette Lighter . . . . . . . . . . . . . . . . . . . . 120
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 275
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . 324
Interior Care . . . . . . . . . . . . . . . . . . . . . . 329
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . . . . . 167
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Cluster, Instrument . . . . . . . . . . . .122, 124
Page 380 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
INDEX 379
Dual Automatic ClimateControl System . . . . . . . . . . . . . . . . . . . . 167
E
Electric Parking Brake . . . . . . . . . . . . . . 202
Electric Parking Brake Light . . . . . . . 135
Electrical Equipment, Add-On . . . . . 252
Electrical System
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Fuses and Circuit Breakers . . . . . . . 275
Instrument Panel Fuse Block . . . . 279
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 262
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . . . . . 132
Compartment Overview . . . . . . . . . . 257
Coolant Temperature Gauge . . . . . 128
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . . 137
Cooling System . . . . . . . . . . . . . . . . . . . 262
Drive Belt Routing . . . . . . . . . . . . . . . . 349
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Engine (cont'd)
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Oil Life System . . . . . . . . . . . . . . . . . . . . 260
Oil Pressure Gauge . . . . . . . . . . . . . . . . 127
Oil Pressure Light . . . . . . . . . . . . . . . . . 138
Overheating . . . . . . . . . . . . . . . . . . . . . . . 265
Power Messages . . . . . . . . . . . . . . . . . . 147
Running While Parked . . . . . . . . . . . 195
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 164
Equipment, Towing . . . . . . . . . . . . . . . . . 247
Event Data Recorders . . . . . . . . . . . . . . 361
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 165
Extended Parking . . . . . . . . . . . . . . . . . . . 194
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 75
Exterior Lamp Controls . . . . . . . . . . . . 159
Exterior Lamps Off Reminder . . . . . . 161
Exterior Lighting Battery Saver . . . . 165
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 262
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 161
Flashers, Hazard Warning . . . . . . . . . . 162
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 313 Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Fluid
Automatic Transmission . . . . . . . . . 261
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 48
Forward Automatic Braking . . . . . . . . 229
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Heated and Ventilated . . . . . . . . . . . . . 63
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Economy Driving . . . . . . . . . . . . . . . . . . . 25
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 239
Filling the Tank . . . . . . . . . . . . . . . . . . . 238
Foreign Countries . . . . . . . . . . . . . . . . . 238
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Low Fuel Warning Light . . . . . . . . . 139
Management, Active . . . . . . . . . . . . . . 193
Prohibited Fuels . . . . . . . . . . . . . . . . . . 237
Recommended . . . . . . . . . . . . . . . . . . . . 237
Page 384 of 388

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
INDEX 383
Power (cont'd)Protection, Battery . . . . . . . . . . . . . . . . 165
Retained Accessory (RAP) . . . . . . . . 192
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Pregnancy, Using Seat Belts . . . . . . . . . 74
Privacy Vehicle Data Recording . . . . . . . . . . 361
Program Courtesy Transportation . . . . . . . . . 356
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . 237
Proposition 65 Warning,
California . . . . . . . . . . . . . . .254, 269, 319, Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 359
R
Radio Frequency Statement . . . . . . . . 359
Reading Lamps . . . . . . . . . . . . . . . . . . . . . 164
Rear Camera Mirror . . . . . . . . . . . . . . . . . 50
Rear Climate Control System . . . . . . 172
Rear Seat Armrest . . . . . . . . . . . . . . . . . . . 67
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . 107
Rear Vision Camera (RVC) . . . . . . . . . 220
Rear Window Washer/Wiper . . . . . . . 116 Rearview Mirrors . . . . . . . . . . . . . . . . . . . . 50
Automatic Dimming . . . . . . . . . . . . . . . . 50
Reclining Seatbacks . . . . . . . . . . . . . . . . . 60
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . 343
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . 345
Recreational Vehicle Towing . . . . . . . 322
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Remote Vehicle Start . . . . . . . . . . . . . . . . 33
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Maintenance . . . . . . . . . . . . . . . . . . . . . . 344
Replacing Airbag System . . . . . . . . . . . . 88
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . 100
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . . . . . 76
Reporting Safety Defects Canadian Government . . . . . . . . . . . . 360
General Motors . . . . . . . . . . . . . . . . . . . 361
U.S. Government . . . . . . . . . . . . . . . . . . 360 Restraints
Where to Put . . . . . . . . . . . . . . . . . . . . . . . . 94
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . . . . . . 192
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . 49
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . 180
Roadside Service . . . . . . . . . . . . . . . . . . . . 354
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Roof Rack System . . . . . . . . . . . . . . . . . . 111
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . 298
Routing, Engine Drive Belt . . . . . . . . . 349
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
S
Safety Defects ReportingCanadian Government . . . . . . . . . . . . 360
General Motors . . . . . . . . . . . . . . . . . . . 361
U.S. Government . . . . . . . . . . . . . . . . . . 360
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety System Check . . . . . . . . . . . . . . . . 75
Scheduling Appointments . . . . . . . . . . 356
Sealant Kit, Tire . . . . . . . . . . . . . . . . . . . . . 306
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
