odometer CADILLAC XT5 2019 Owner's Manual

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
112 INSTRUMENTS AND CONTROLS
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . . 113
Steering Wheel Controls . . . . . . . . . 113
Heated Steering Wheel . . . . . . . . . . 113
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Windshield Wiper/Washer . . . . . . . 113
Rear Window Wiper/Washer . . . . 116
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Power Outlets . . . . . . . . . . . . . . . . . . . . . 118
Wireless Charging . . . . . . . . . . . . . . . . 118
Cigarette Lighter . . . . . . . . . . . . . . . . . . 120
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . 121
Instrument Cluster (Base Level Cluster) . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Instrument Cluster (Uplevel Cluster) . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Speedometer . . . . . . . . . . . . . . . . . . . . . . 126
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 126
Trip Odometer . . . . . . . . . . . . . . . . . . . . 126 Tachometer . . . . . . . . . . . . . . . . . . . . . . . 126
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 126
Engine Oil Pressure Gauge
(Uplevel Cluster) . . . . . . . . . . . . . . . . 127
Engine Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Voltmeter Gauge (Uplevel Cluster) . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Seat Belt Reminders . . . . . . . . . . . . . . 130
Airbag Readiness Light . . . . . . . . . . 131
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 131
Charging System Light . . . . . . . . . . . 132
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . 132
Brake System Warning Light . . . . 134
Electric Parking Brake Light . . . . . 135
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . . . 135
Lane Keep Assist (LKA) Light . . . 136
Vehicle Ahead Indicator . . . . . . . . . 136
Pedestrian Ahead Indicator . . . . . . 136
Traction Off Light . . . . . . . . . . . . . . . . 136
StabiliTrak OFF Light . . . . . . . . . . . . 137
Traction Control System (TCS)/ StabiliTrak Light . . . . . . . . . . . . . . . . 137
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . 137 Tire Pressure Light . . . . . . . . . . . . . . . 138
Engine Oil Pressure Light . . . . . . . . 138
Low Fuel Warning Light . . . . . . . . . 139
Security Light . . . . . . . . . . . . . . . . . . . . . 139
High-Beam On Light . . . . . . . . . . . . . 139
Lamps On Reminder . . . . . . . . . . . . . 139
Cruise Control Light . . . . . . . . . . . . . . 140
Door Ajar Light . . . . . . . . . . . . . . . . . . . 140
Information Displays
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . 140
Head-Up Display (HUD) . . . . . . . . . 143
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . 146
Engine Power Messages . . . . . . . . . . 147
Vehicle Speed Messages . . . . . . . . . 147
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . 147
Universal Remote System
Universal Remote System . . . . . . . . 156
Universal Remote System Programming . . . . . . . . . . . . . . . . . . . 156
Universal Remote System Operation . . . . . . . . . . . . . . . . . . . . . . . . 158

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
126 INSTRUMENTS AND CONTROLS
Open Source Software :Press SEL
while Open Source Software is
highlighted to display open source
software information.
Speedometer
The speedometer shows the vehicle's
speed in either kilometers per hour
(km/h) or miles per hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and
reset through the Driver Information
Center (DIC). See Driver Information
Center (DIC) 0140.
Tachometer
The tachometer displays the engine
speed in revolutions per minute (rpm).
For vehicles with the Stop/Start
system, when the ignition is on, the
tachometer indicates the vehicle
status. When pointing to AUTO STOP,
the engine is off but the vehicle is on
and can move. The engine could auto
start at any time. When the indicator
points to OFF, the vehicle is off.
When the engine is on, the
tachometer will indicate the engine’s
revolutions per minute (rpm). The
tachometer may vary by several
hundred rpm’s, during Auto Stop
mode, when the engine is shutting off
and restarting.
Fuel Gauge
Base Level

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
INSTRUMENTS AND CONTROLS 141
SEL :Press to open a menu or select a
menu item. Press and hold to reset
values on certain screens.
DIC Information Display Options
The info displays on the DIC can be
turned on or off through the
Options menu.
1. Press SEL while viewing the Options page in one of the
interactive display zones on the
cluster.
2. Scroll to Info Pages and press
T.
3. Press
yorzto move through
the list of possible info displays.
4. Press SEL while an item is highlighted to select or deselect
that item.
DIC Information Displays
The following is the list of all possible
DIC information displays. Some of the
information displays may not be
available for your particular vehicle.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph). Trip 1 or Trip 2 :
The Trip display
shows the current distance traveled, in
either kilometers (km) or miles (mi),
since the trip odometer was last reset.
The trip odometer can be reset by
pressing and holding SEL while this
display is active.
Fuel Range : Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Average Fuel Economy : Shows the
approximate average liters per
100 kilometers (L/100 km) or miles
per gallon (mpg). This number is
calculated based on the number of
L/100 km (mpg) recorded since the
last time this menu item was reset.
This number reflects only the
approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions change. The Average Fuel Economy
can be reset by pressing and holding
SEL while this display is active.
Instantaneous Fuel Economy :
Shows
the current fuel economy in either
liters per 100 kilometers (L/100 km) or
miles per gallon (mpg). This number
reflects only the approximate fuel
economy that the vehicle has right
now and changes frequently as driving
conditions change.
Average Speed : Shows the average
speed of the vehicle in kilometers per
hour (km/h) or miles per hour (mph).
This average is calculated based on
the various vehicle speeds recorded
since the last reset of this value. The
average speed can be reset by pressing
and holding SEL while this display is
active.
Timer : This display can be used as a
timer. To start the timer, press SEL
while this display is active. The
display will show the amount of time
that has passed since the timer was
last reset. To stop the timer, press SEL
briefly while this display is active and

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
VEHICLE CARE 303
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts
should be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
SERVICE AND MAINTENANCE 345

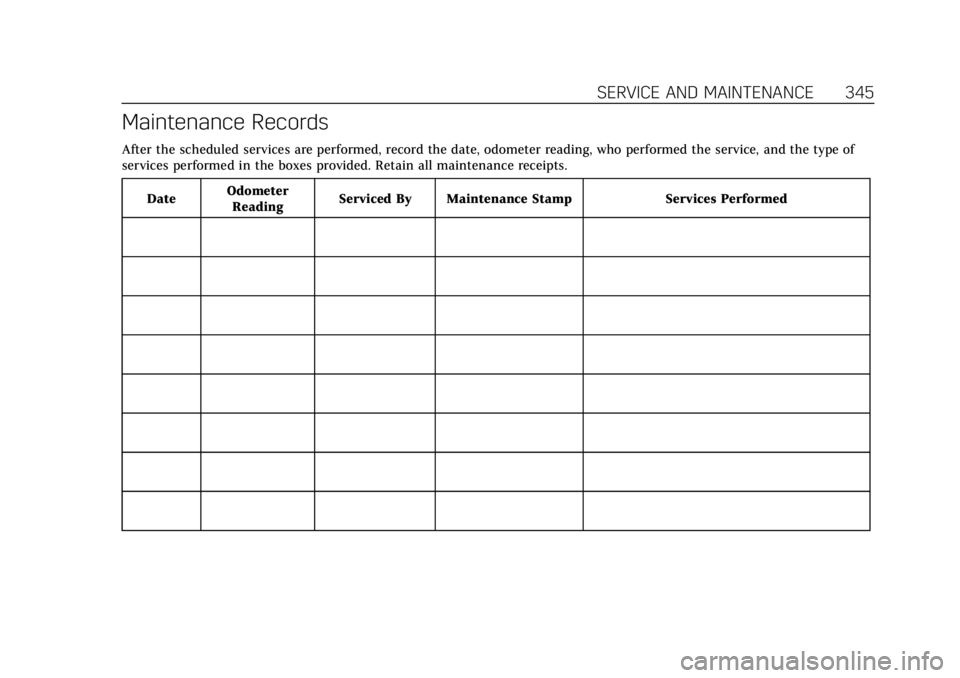

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of
services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
354 CUSTOMER INFORMATION
General Motors of Canada also has a
Mobility program. See www.gm.ca or
call 1-800-GM-DRIVE (800-463-7483)
for details. TTY users call
1-800-263-3830.
Roadside Service
U.S.: 1-800-224-1400.
Canada: 1-800-882-1112.
Text Telephone (TTY) Users (U.S.
Only): 1-888-889-2438.
Service is available 24 hours a day,
365 days a year.
Calling for Service
When calling Roadside Service, have
the following information ready:
.Your name, home address, and
home telephone number
. Telephone number of your
location
. Location of the vehicle
. Model, year, color, and license
plate number of the vehicle .
Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
. Description of the problem
Coverage
Services are provided for the duration
of the vehicle’s powertrain warranty.
In the U.S., anyone driving the vehicle
is covered. In Canada, a person driving
the vehicle without permission from
the owner is not covered.
Roadside Service is not a part of the
New Vehicle Limited Warranty.
General Motors North America and
Cadillac reserve the right to make any
changes or discontinue the Roadside
Service program at any time without
notification.
General Motors North America and
Cadillac reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Cadillac Owner Privileges ™
.
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification before
this service is given.
. Emergency Tow from a Public
Road or Highway: Tow to the
nearest Cadillac dealer for
warranty service, or if the vehicle
was in a crash and cannot be
driven. Assistance is not given
when the vehicle is stuck in the
sand, mud, or snow.
. Flat Tire Change: Service to
change a flat tire with a spare tire.
The spare tire, if equipped, must
be in good condition and properly
inflated. It is your responsibility
for the repair or replacement of
the tire if it is not covered by the
warranty.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
380 INDEX
Fuel (cont'd)Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Fuses Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Fuses and Circuit Breakers . . . . . . . 275
Instrument Panel Fuse Block . . . . 279
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
G
Garage Door Opener . . . . . . . . . . . . . . . . 156
Programming . . . . . . . . . . . . . . . . . . . . . . 156
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 272
Gauges
Engine Coolant Temperature . . . . 128
Engine Oil Pressure . . . . . . . . . . . . . . . 127
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Speedometer . . . . . . . . . . . . . . . . . . . . . . 126
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 126
Trip Odometer . . . . . . . . . . . . . . . . . . . . 126
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 121
General Information Service and Maintenance . . . . . . . . 333
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 General Information (cont'd)
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 254
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . 274
Hazard Warning Flashers . . . . . . . . . . 162
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 57
Head-up Display . . . . . . . . . . . . . . . . . . . . 143
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 161
Bulb Replacement . . . . . . . . . . . . . . . . 274
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . . 161
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 161
High-Beam On Light . . . . . . . . . . . . . . 139
High/Low Beam Changer . . . . . . . . . 161
Lamps On Reminder . . . . . . . . . . . . . . 139
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Steering Wheel . . . . . . . . . . . . . . . . . . . . 113
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 49 Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Heating . . . . . . . . . . . . . . . . . . . . . . . . .167, 172
High-Beam On Light . . . . . . . . . . . . . . . . 139
High-Speed Operation . . . . . . . . . . . . . . 292
Hill and Mountain Roads . . . . . . . . . . 181
Hill Start Assist (HSA) . . . . . . . . . . . . . 204
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
How to Wear Seat Belts Properly . . . 69
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .167, 172
I
Ignition Positions . . . . . . . . . . . . . . . . . . . 187
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Indicator Pedestrian Ahead . . . . . . . . . . . . . . . . . 136
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 136
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Information
Publication Ordering . . . . . . . . . . . . . 359
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . 166
Infotainment System . . . . . . . . . . . . . . . 363
Instrument Cluster . . . . . . . . . . . .122, 124
Instrument Panel Overview . . . . . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . . . 50
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
382 INDEX
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . 340
Maintenance Schedule . . . . . . . . . . . . . 334 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . 343
Malfunction Indicator Lamp . . . . . . . 132
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 199
Memory Features . . . . . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 61
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . 147
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 147
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 50
Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . 49
Automatic Dimming Rearview . . . . . 50
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Manual Rearview . . . . . . . . . . . . . . . . . . . 50
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 49
Mirrors, Interior Rearview . . . . . . . . . . . 50 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Driver Control . . . . . . . . . . . . . . . . . . . . . 207
Monitor System, Tire Pressure . . . . . 293
N
Navigation Connected Services . . . . . . . . . . . . . . . 372
Net, Convenience . . . . . . . . . . . . . . . . . . . 110
New Vehicle Break-In . . . . . . . . . . . . . . . 187
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Engine Oil Life System . . . . . . . . . . . 260
Engine Oil Pressure Gauge . . . . . . . 127
Pressure Light . . . . . . . . . . . . . . . . . . . . . 138
Older Children, Restraints . . . . . . . . . . . 88
Online Owner Center . . . . . . . . . . . . . . . 353
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
OnStar Additional Information . . . . 366
OnStar Emergency . . . . . . . . . . . . . . . . . . 365
OnStar Overview . . . . . . . . . . . . . . . . . . . . 364
OnStar Security . . . . . . . . . . . . . . . . . . . . . 366
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Overheating, Engine . . . . . . . . . . . . . . . . 265
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . . . . 192
Shifting Out of . . . . . . . . . . . . . . . . . . . . 193
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Parking
Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 270
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Over Things That Burn . . . . . . . . . . . 193
Parking or Backing Assistance Systems . . . . . . . . . . . . . . . 220
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Passenger Sensing System . . . . . . . . . . 82
Pedestrian Ahead Indicator . . . . . . . . 136
Perchlorate Materials Requirements, California . . . . . . . . . 255
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146119) - 2019 - crc - 7/27/18
INDEX 385
System (cont'd)Infotainment . . . . . . . . . . . . . . . . . 166, 363
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . 111
Systems
Driver Assistance . . . . . . . . . . . . . . . . . 219
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 126
Text Telephone (TTY) Users . . . . . . . 352
Theft-Deterrent Systems . . . . . . . . . . . . 47Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 46
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 285
Buying New Tires . . . . . . . . . . . . . . . . . 299
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Compact Spare . . . . . . . . . . . . . . . . . . . . 318
Designations . . . . . . . . . . . . . . . . . . . . . . 288
Different Size . . . . . . . . . . . . . . . . . . . . . . 301
If a Tire Goes Flat . . . . . . . . . . . . . . . . 304
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 297
Pressure . . . . . . . . . . . . . . . . . . . . . . 291, 292
Pressure Light . . . . . . . . . . . . . . . . . . . . . 138
Pressure Monitor Operation . . . . . . 294
Pressure Monitor System . . . . . . . . 293
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Sealant and Compressor Kit . . . . . 306 Tires (cont'd)
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Sidewall Labeling . . . . . . . . . . . . . . . . . 286
Terminology and Definitions . . . . 288
Uniform Tire Quality Grading . . . . 301
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Wheel Replacement . . . . . . . . . . . . . . 303
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . 237
Towing Driving Characteristics . . . . . . . . . . . 240
Equipment . . . . . . . . . . . . . . . . . . . . . . . . 247
General Information . . . . . . . . . . . . . . 240
Recreational Vehicle . . . . . . . . . . . . . . 322
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Trailer Sway Control (TSC) . . . . . . . 250
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Traction Control System
(TCS)/StabiliTrak Light . . . . . . . . . 137
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . 205 Trailer
Sway Control (TSC) . . . . . . . . . . . . . . . 250
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 195
Fluid, Automatic . . . . . . . . . . . . . . . . . . 261
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 126
Turn and Lane-Change Signals . . . . 162
U
Uniform Tire Quality Grading . . . . . . 301
Universal Remote System . . . . . . . . . . 156 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Programming . . . . . . . . . . . . . . . . . . . . . . 156
Using This Manual . . . . . . . . . . . . . . . . . . . . 2
V
Vehicle
Alarm System . . . . . . . . . . . . . . . . . . . . . . . 45
Canadian Owners . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Identification Number (VIN) . . . . . 346
Load Limits . . . . . . . . . . . . . . . . . . . . . . . 183
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Personalization . . . . . . . . . . . . . . . . . . . 147
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . 33
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
