CADILLAC XT6 2023 Owners Manual

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
460 Service and Maintenance
PartGM Part NumberACDelco
Part Number
Spark Plugs
I2.0L L4 Engine 55504354
41-130-IP
I3.6L V6 Engine 12646780
41-130
Wiper Blades IDriver Side –60 cm (23.6 in) 23372088
—
IPassenger Side –50 cm (19.7 in) 23360287
—
IRear –30 cm (11.8 in) 84215609
—

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Service and Maintenance 461

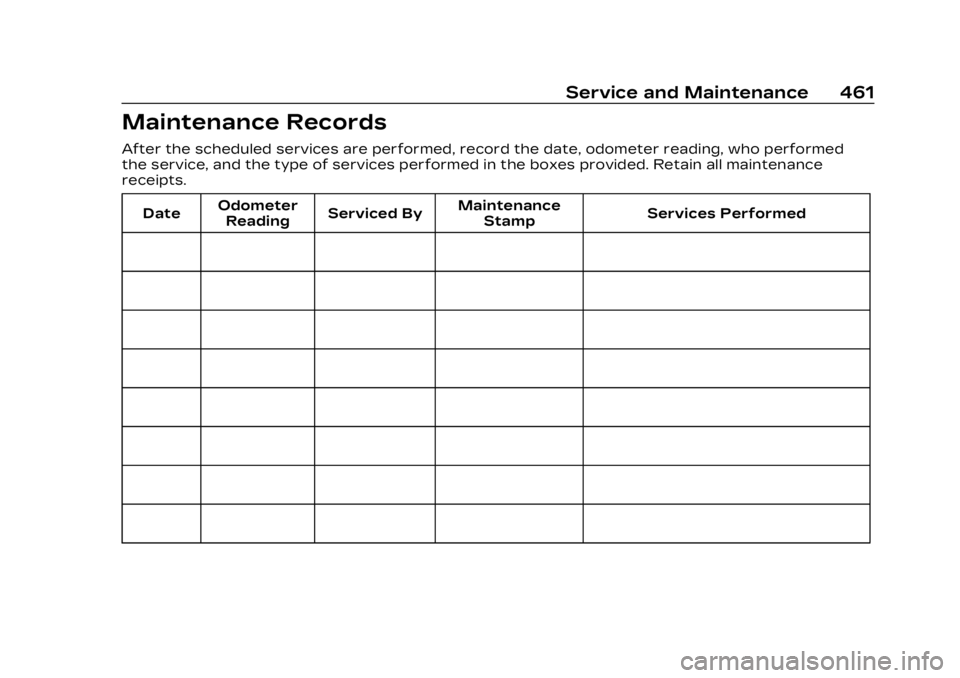

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed
the service, and the type of services performed in the boxes provided. Retain all maintenance
receipts.Date Odometer
Reading Serviced By Maintenance
Stamp Services Performed

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
462 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 462
Service Parts Identification . . . . . . . . . . . . . . 462
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . 463
Engine Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 465
Vehicle
Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the
front corner of the instrument
panel, on the driver side of the
vehicle. It can be seen through
the windshield from outside.
The Vehicle Identification
Number (VIN) also appears on
the Vehicle Certification label
and certificates of title and
registration.
Engine Identification
The eighth character in the
VIN is the engine code. This
code identifies the vehicle's
engine, specifications, and
replacement parts. See “Engine Specifications”
under
Capacities and Specifications
0 463 for the vehicle's
engine code.
Service Parts
Identification
There may be a large barcode
on the certification label on
the center pillar that you can
scan for the following
information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode
on this label, then the same
information may be found on a
label under the cargo floor in
the rear compartment.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Technical Data 463
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. See
Recommended Fluids and Lubricants0458 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the
refrigerant label under the hood. See your dealer for more information.
Engine Cooling System*
I2.0L L4 Engine 10.6 L 11.2 qt
I3.6L V6 Engine 12.9 L 13.6 qt
Engine Oil with Filter I2.0L L4 Engine 5.0 L 5.3 qt
I3.6L V6 Engine 5.7 L 6.0 qt

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
464 Technical Data
ApplicationCapacities
Metric English
Fuel Tank
IFront-Wheel Drive 73.4 L
19.4 gal
IAll-Wheel Drive 82.1 L
21.7 gal
Wheel Nut Torque 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as
recommended in this manual. Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its
components.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Engine (LSY) 4Automatic 0.65–0.75 mm (0.026–
0.030 in)
3.6L V6 Engine (LGX) SAutomatic 0.80–0.90 mm (0.031–
0.035 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended
and can damage the spark plug.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Technical Data 465
Engine Drive Belt
Routing
2.0L L4 Engine
3.6L V6 Engine

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
466 Customer Information
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . 466
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . 468
Customer Assistance for Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . . 469
Online Account . . . . . . . . . . . . . 469
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . 470
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 470
Scheduling Service Appointments . . . . . . . . . . . . . 472
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 473
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . 474
Publication Ordering Information . . . . . . . . . . . . . . . . 476
Radio Frequency Statement . . . . . . . . . . . . . . . . . . 477
Reporting Safety Defects
Reporting Safety Defectsto the United States
Government . . . . . . . . . . . . . . . 478
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . 478
Reporting Safety Defects to General Motors . . . . . . . 478
Vehicle Data Recording
and Privacy
Vehicle Data Recordingand Privacy . . . . . . . . . . . . . . . . 479
Cybersecurity . . . . . . . . . . . . . . 479
Event Data Recorders . . . 480
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 481
Infotainment System . . . . . . 481
Customer
Information
Customer
Satisfaction
Procedure
Your satisfaction and goodwill
are important to your dealer
and to Cadillac. Normally, any
concerns with the sales
transaction or the operation
of the vehicle will be resolved
by your dealer's sales or
service departments.
Sometimes, however, despite
the best intentions of all
concerned, misunderstandings
can occur. If your concern has
not been resolved to your
satisfaction, the following
steps should be taken:
STEP ONE : Discuss your
concern with a member of
dealership management.
Normally, concerns can be
quickly resolved at that level.
If the matter has already been
reviewed with the sales,

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Customer Information 467
service or parts manager,
contact the owner of your
dealership or the general
manager.
STEP TWO :If after
contacting a member of
dealership management, it
appears your concern cannot
be resolved by your dealership
without further help, in the
U.S., call the Cadillac Customer
Assistance Center at
1-800–458–8006. In Canada,
call the Canadian Cadillac
Customer Care Centre at
1-888-446-2000.
We encourage you to call the
toll-free number in order to
give your inquiry prompt
attention. Have the following
information available to give
the Customer Assistance
representative:
.Vehicle Identification
Number (VIN). This is
available from the vehicle
registration or title, or the plate at the top left of the
instrument panel and visible
through the windshield.
.Dealership name and
location.
.Vehicle delivery date and
present mileage.
When contacting Cadillac,
remember that your concern
will likely be resolved at a
dealer's facility. That is why we
suggest following Step One
first.
STEP THREE —U.S.
Owners : Both General
Motors and your dealer are
committed to making sure you
are completely satisfied with
the new vehicle. However,
if you continue to remain
unsatisfied after following the
procedure outlined in
Steps One and Two, you can
file with the Better Business
Bureau (BBB) AUTO LINE
Program to enforce your
rights. The BBB AUTO LINE Program
is an out-of-court program
administered by BBB National
Programs, Inc. to settle
automotive disputes regarding
vehicle repairs or the
interpretation of the New
Vehicle Limited Warranty.
Although you may be required
to resort to this informal
dispute resolution program
prior to filing a court action,
use of the program is free of
charge and your case will
generally be heard within
40 days. If you do not agree
with the decision given in your
case, you may reject it and
proceed with any other venue
for relief available to you.
You may contact the BBB
AUTO LINE Program using the
toll-free telephone number or
write them at the following
address:

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
468 Customer Information
BBB AUTO LINE a Division of
BBB National Programs, Inc.
1676 International Drive
Suite 550
McLean, VA 22102
Telephone: 1-800-955-5100
www.bbbautoline.org
This program is available in all
50 states and the District of
Columbia. Eligibility is limited
by vehicle age, mileage, and
other factors. General Motors
reserves the right to change
eligibility limitations and/or
discontinue its participation in
this program.
STEP THREE—Canadian
Owners : In the event that you
do not feel your concerns
have been addressed after
following the procedure
outlined in Steps One and
Two, General Motors of
Canada Company wants you
to be aware of its participation
in a no-charge mediation/
arbitration program. General
Motors of Canada Company
has committed to binding arbitration of owner disputes
involving factory-related
vehicle service claims. The
program provides for the
review of the facts involved by
an impartial third party arbiter,
and may include an informal
hearing before the arbiter. The
program is designed so that
the entire dispute settlement
process, from the time you file
your complaint to the final
decision, should be completed
in about 70 days. We believe
our impartial program offers
advantages over courts in
most jurisdictions because it is
informal, quick, and free of
charge.
For further information
concerning eligibility in the
Canadian Motor Vehicle
Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685,
or call the Cadillac Customer
Care Centre, 1-888-446-2000,
or write to:
General Motors Cadillac
Customer Care Centre
General Motors of Canada
Company
500 Wentworth Street W
Oshawa, ON L1J 0C5
The inquiry should be
accompanied by the Vehicle
Identification Number (VIN).
Customer Assistance
Offices
Cadillac is committed to
assisting customers. Visit us
online at www.cadillac.com/
support (U.S.) or
www.my.cadillac.ca (Canada)
to chat with us or find
answers to commonly asked
questions, tips, vehicle how-to
instructions, and available
support services.
Need more help? Use the
phone numbers or mailing
addresses below for additional
assistance.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Customer Information 469
United States and
Puerto Rico
Cadillac Customer Assistance
Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
1-800-458-8006
1-800-833-2622 (For Text
Telephone devices (TTYs))
Roadside Assistance:
1-800-224-1400
From U.S. Virgin Islands:
1-800-496-9994
Canada
Cadillac Customer Care
Centre
General Motors of Canada
Company
500 Wentworth Street W
Oshawa, ON L1J 0C5
1-888-446-2000 (English/
French)
Cadillac Roadside Assistance:
1-800-882-1112
Overseas
Contact the local General
Motors Business Unit.
Customer Assistance
for Text Telephone
(TTY) Users
To assist customers who are
deaf, hard of hearing,
or speech-impaired and who
use Text Telephones (TTYs),
Cadillac has TTY equipment
available at its Customer
Assistance Center. Any TTY
user can communicate with
Cadillac by dialing:
1-800-833-2622. TTY users in
Canada can dial
1-800-263-3830.
Online Account
Create a Cadillac Account
(U.S.) at cadillac.com
Learn more about your vehicle
features, shop for and manage
your connected services andOnStar plans, and access
diagnostic information specific
to your vehicle.
Membership Benefits
E:
Download owner’s
manuals and view
vehicle-specific how-to videos.
G: View maintenance
schedules, alerts, and Vehicle
Diagnostic Information.
Schedule service
appointments.
I: View service records from
your dealership and add
your own.
D: Select a dealer and view
locations, maps, phone
numbers, and hours.
r: Track your vehicle’s
warranty information.
J: View active recalls or
search by Vehicle
Identification Number (VIN).
See Vehicle Identification
Number (VIN) 0462.
