Storage 113
4. Remove the cargo coverfrom the vehicle.
5. Fold the cargo cover completely and it roll tight.
6. Place the cargo cover in the storage bag.
7. Lift the load floor.
8. Place the cargo cover in the storage bin.
9. After storing the cargo cover, make sure to
properly secure the load
floor.
10. Remove the seat belt from the clips on both sides.

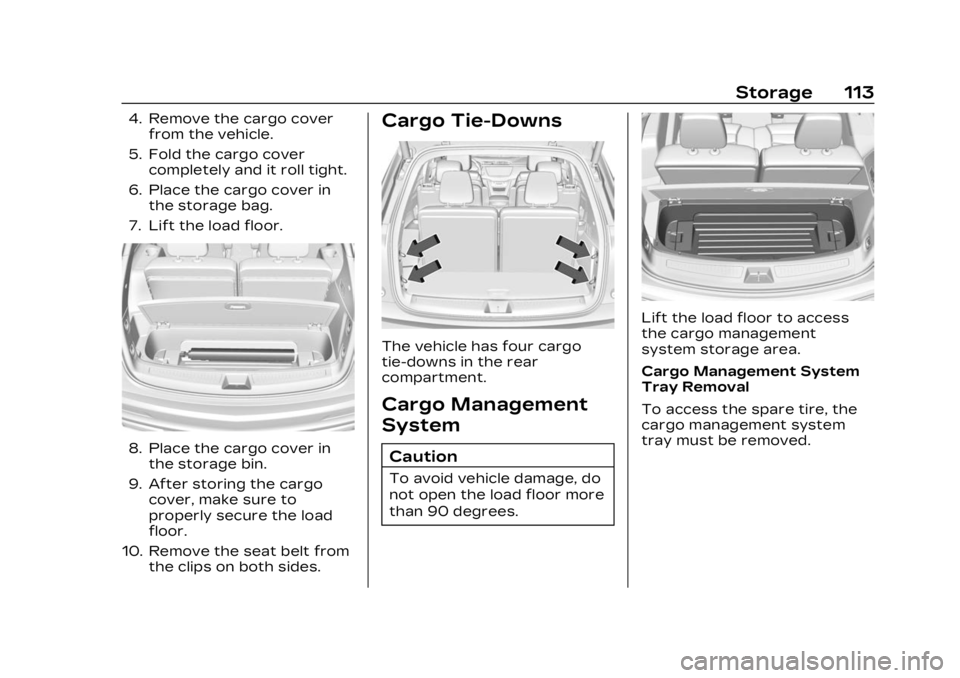

Cargo Tie-Downs
The vehicle has four cargo
tie-downs in the rear
compartment.
Cargo Management
System
Caution
To avoid vehicle damage, do
not open the load floor more
than 90 degrees.
Lift the load floor to access
the cargo management
system storage area.
Cargo Management System
Tray Removal
To access the spare tire, the
cargo management system
tray must be removed.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
244 Driving and Operating
reducing vehicle speed by
shifting to a lower gear. Any
sudden changes could cause
the tires to slide.
Remember: Antilock brakes
help avoid only the
braking skid.
Off-Road Driving
All-Wheel Drive vehicles can
be used for off-road driving.
Vehicles without All-Wheel
Drive and vehicles not
equipped with All Terrain (AT)
or On-Off Road (OOR) tires
must not be driven off-road
except on a level, solid
surface. To contact the tire
manufacturer for more
information about the original
equipment tires, see the
Limited Warranty and Owner
Assistance Information
manual.
Controlling the vehicle is the
key to successful off-road
driving. One of the best ways
to control the vehicle is to
control the speed.
{Warning
When driving off-road,
bouncing and quick changes
in direction can easily throw
you out of position. This
could cause you to lose
control and crash. You and
your passengers should
always wear seat belts.
Before Driving Off-Road
.Have all necessary
maintenance and service
work completed.
.Fuel the vehicle, fill fluid
levels, and check inflation
pressure in all tires, including
the spare, if equipped.
.Read all the information
about All-Wheel Drive
vehicles in this manual.
.Make sure all underbody
shields, if equipped, are
properly attached.
.Know the local laws that
apply to off-road driving. To gain more ground
clearance if needed, it may be
necessary to remove the front
fascia lower air dam. However,
driving without the air dam
reduces fuel economy.
Caution
Operating the vehicle for
extended periods without
the front fascia lower air
dam installed can cause
improper airflow to the
engine. Reattach the front
fascia air dam after off-road
driving.
Loading the Vehicle for
Off-Road Driving
{Warning
.Unsecured cargo on the
load floor can be tossed
about when driving over
rough terrain. You or your
passengers can be struck
by flying objects. Secure
the cargo properly.
(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Driving and Operating 357
When using a
weight-distributing hitch,
measure the front fender
height above the front axle
distance (2) before and after
connecting the trailer. Adjust
the spring bars until the front
fender height distance (2) is
approximately halfway
between the first and second
measurements.
Tires
.Do not tow a trailer while
using a compact spare tire
on the vehicle.
.Tires must be properly
inflated to support loads
while towing a trailer. See
Tires0400 for instructions
on proper tire inflation.
Safety Chains
Always attach chains between
the vehicle and the trailer, and
attach the chains to the holes
on the trailer hitch platform.
Instructions about safety chains may be provided by the
hitch manufacturer or by the
trailer manufacturer.
Cross the safety chains under
the tongue of the trailer to
help prevent the tongue from
contacting the road if it
becomes separated from the
hitch. Always leave just
enough slack so the
combination can turn. Never
allow safety chains to drag on
the ground.
Trailer Brakes
Loaded trailers over 450 kg
(1,000 lb) must be equipped
with brake systems and with
brakes for each axle. Trailer
braking equipment conforming
to Canadian Standards
Association (CSA) requirement
CAN3-D313, or its equivalent,
is recommended.
State or local regulations may
require trailers to have their
own braking system if the
loaded weight of the trailerexceeds certain minimums
that can vary from state to
state.
Read and follow the
instructions for the trailer
brakes so they are installed,
adjusted, and maintained
properly.
{Warning
Never attempt to tamper
with the hydraulic brake
system for your trailer
brakes. Do not connect a
trailer's hydraulic brake
system directly to your
vehicle's hydraulic brake
system. If you do, both the
vehicle antilock brakes and
the trailer brakes may not
function, which could result
in a crash.
Trailer Wiring Harness
lf equipped, the trailer wiring
harness, with a 7-pin
connector is mounted on the
trailer hitch.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
362 Vehicle Care

Vehicle Care
General Information
General Information . . . . . . 363
California PerchlorateMaterials
Requirements . . . . . . . . . . . . . 363
Accessories and Modifications . . . . . . . . . . . . . 363
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . 364
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . 367
Engine Oil . . . . . . . . . . . . . . . . . . . . 370
Engine Oil Life System . . . 373
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Engine Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . 374
Engine Air Cleaner/ Filter . . . . . . . . . . . . . . . . . . . . . . . . . 375
Cooling System . . . . . . . . . . . . 376
Engine Overheating . . . . . . . 381
Washer Fluid . . . . . . . . . . . . . . . . 382
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 383
Brake Fluid . . . . . . . . . . . . . . . . . . 384 Battery - North
America . . . . . . . . . . . . . . . . . . . . . 385
Park Brake and P (Park) Mechanism Check . . . . . . . 386
Wiper Blade
Replacement . . . . . . . . . . . . . . 386
Windshield Replacement . . . . . . . . . . . . . . 388
Gas Strut(s) . . . . . . . . . . . . . . . . . 388
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 389
Bulb Replacement
LED Lighting . . . . . . . . . . . . . . . . 390
Electrical System
Electrical SystemOverload . . . . . . . . . . . . . . . . . . . 390
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . 391
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . 392
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . 396
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . 398
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 400
All-Season Tires . . . . . . . . . . . . 401 Winter Tires . . . . . . . . . . . . . . . . 402
Tire Sidewall Labeling . . . 402
Tire Designations . . . . . . . . . 405
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . 405
Tire Pressure . . . . . . . . . . . . . . . 408
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 410
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . . 411
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 412
Tire Inspection . . . . . . . . . . . . . . 416
Tire Rotation . . . . . . . . . . . . . . . . 417
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 418
Buying New Tires . . . . . . . . . . 419
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 421
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . . 421
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 423
Wheel Replacement . . . . . . 423
Tire Chains . . . . . . . . . . . . . . . . . . 424
If a Tire Goes Flat . . . . . . . . . 425
Tire Changing . . . . . . . . . . . . . . 426
Compact Spare Tire . . . . . . 433

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
398 Vehicle Care
Fuses UsageF35 Battery IEC 1 Feed
F36 Electric Power Steering
F37 Rear Seat entertainment/
USB Charge/
Wireless
Charging
Module/
Auxiliary Power
Outlet/Lighter
F38 Body Control Module 8
F39 Steering Wheel Adjustment
Controls/
Lightbar
Circuit
Breakers/ Minifuses Usage
F40 –
F41 – Circuit
Breakers/ Minifuses Usage
F42 Auxiliary Power Outlet (CB)/
Lighter
(mini-fuse)
Rear Compartment
Fuse Block
The rear compartment fuse
block is in the cargo area, on
the driver side of the vehicle
behind the lower trim panel. To access the fuses in the
Rear Electrical Center, remove
the center cargo bin, then
small side bin. See Rear
Storage
0109. See your dealer
if additional assistance is
needed.
The label for this fuse block is
in the spare tire area, on the
foam under the cargo floor.
The vehicle may not be
equipped with all of the fuses,
relays, and features shown.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
402 Vehicle Care
a TPC specification code
molded onto the sidewall.
Original equipment all-season
tires can be identified by the
last two characters of this
TPC code, which will be“MS.”
Consider installing winter tires
on the vehicle if frequent
driving on snow or ice-covered
roads is expected. All-season
tires provide adequate
performance for most winter
driving conditions, but they
may not offer the same level
of traction or performance as
winter tires on snow or
ice-covered roads. See Winter
Tires 0402.
Winter Tires
This vehicle was not originally
equipped with winter tires.
Winter tires are designed for
increased traction on snow
and ice-covered roads.
Consider installing winter tires
on the vehicle if frequent
driving on ice or snow covered
roads is expected. See your
dealer for details regarding winter tire availability and
proper tire selection. Also, see
Buying New Tires
0419.
With winter tires, there may
be decreased dry road
traction, increased road noise,
and shorter tread life. After
changing to winter tires, be
alert for changes in vehicle
handling and braking.
If using winter tires:
.Use tires of the same brand
and tread type on all four
wheel positions.
.Use only radial ply tires of
the same size, load range,
and speed rating as the
original equipment tires.
Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y, and ZR
speed rated tires. If winter
tires with a lower speed rating
are chosen, never exceed the
tire's maximum speed
capability.
Tire Sidewall Labeling
Useful information about a
tire is molded into its
sidewall. The examples
show a typical passenger
vehicle tire and a compact
spare tire sidewall.
Passenger Tire Example
(1) Tire Size:The tire size
is a combination of letters
and numbers used to
define a particular tire's
width, height, aspect ratio,
construction type, and

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
404 Vehicle Care
Compact Spare Tire Example
(1) Tire Ply Material:The
type of cord and number of
plies in the sidewall and
under the tread.
(2) Temporary Use Only
:
The compact spare tire or
temporary use tire should
not be driven at speeds
over 80 km/h (50 mph). The
compact spare tire is for
emergency use when a
regular road tire has lost
air and gone flat. If the
vehicle has a compact spare tire, see Compact
Spare Tire
0433 and
If a Tire Goes Flat 0425.
(3) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT (Department of
Transportation) code are
the Tire Identification
Number (TIN). The TIN
shows the manufacturer
and plant code, tire size,
and date the tire was
manufactured. The TIN is
molded onto both sides of
the tire, although only one
side may have the date of
manufacture.
(4) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load. (5) Tire Inflation
:The
temporary use tire or
compact spare tire should
be inflated to 420 kPa
(60 psi). For more
information on tire
pressure and inflation see
Tire Pressure 0408.
(6) Tire Size
:A
combination of letters and
numbers define a tire's
width, height, aspect ratio,
construction type, and
service description. The
letter “T”as the first
character in the tire size
means the tire is for
temporary use only.
(7) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Vehicle Care 409
Warning (Continued)
Overinflated tires, or tires
that have too much air,
can result in:
.Unusual wear
.Poor handling
.Rough ride
.Needless damage from
road hazards
The Tire and Loading
Information label on the
vehicle indicates the
original equipment tires
and the correct cold tire
inflation pressures. The
recommended pressure is
the minimum air pressure
needed to support the
vehicle's maximum load
carrying capacity. See
Vehicle Load Limits 0252. How the vehicle is loaded
affects vehicle handling
and ride comfort. Never
load the vehicle with more
weight than it was
designed to carry.
When to Check
Check the pressure of the
tires once a month or more.
Do not forget the spare,
if the vehicle has one. The
compact spare cold tire
pressure should be at
420 kPa (60 psi). See
Compact Spare Tire
0433.
How to Check
Use a good quality
pocket-type gauge to
check tire pressure. Proper
tire inflation cannot be
determined by looking at
the tire. Check the tire
inflation pressure when the
tires are cold, meaning the vehicle has not been driven
for at least three hours or
no more than 1.6 km (1 mi).
Remove the valve cap from
the tire valve stem. Press
the tire gauge firmly onto
the valve to get a pressure
measurement. If the cold
tire inflation pressure
matches the recommended
pressure on the Tire and
Loading Information label,
no further adjustment is
necessary. If the inflation
pressure is low, add air
until the recommended
pressure is reached. If the
inflation pressure is high,
press on the metal stem in
the center of the tire valve
to release air.
Recheck the tire pressure
with the tire gauge.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Vehicle Care 411
High Speed Operation Inflation Pressures
Tire Size Cold Inflation Pressure kPa (psi)
235/65R18 300 kPa (44 psi)
235/55R20 300 kPa (44 psi) 265/45R21 300 kPa (44 psi)
Return the tires to the
recommended cold tire
inflation pressure when
high-speed driving has ended.
See Vehicle Load Limits 0252
and Tire Pressure 0408.
Tire Pressure Monitor
System
The Tire Pressure Monitor
System (TPMS) uses radio and
sensor technology to check
tire pressure levels. The TPMS
sensors monitor the air
pressure in your tires and
transmit tire pressure
readings to a receiver located
in the vehicle. Each tire, including the spare
(if provided), should be
checked monthly when cold
and inflated to the inflation
pressure recommended by the
vehicle manufacturer on the
vehicle placard or tire inflation
pressure label. (If your vehicle
has tires of a different size
than the size indicated on the
vehicle placard or tire inflation
pressure label, you should
determine the proper tire
inflation pressure for those
tires.)
As an added safety feature,
your vehicle has been
equipped with a tire pressure
monitoring system (TPMS)
that illuminates a low tirepressure telltale when one or
more of your tires is
significantly under-inflated.
Accordingly, when the low tire
pressure telltale illuminates,
you should stop and check
your tires as soon as possible,
and inflate them to the proper
pressure. Driving on a
significantly under-inflated tire
causes the tire to overheat
and can lead to tire failure.
Under-inflation also reduces
energy efficiency and tire
tread life, and may affect the
vehicle's handling and
stopping ability.
Please note that the TPMS is
not a substitute for proper tire
maintenance, and it is the

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
412 Vehicle Care
driver's responsibility to
maintain correct tire pressure,
even if under-inflation has not
reached the level to trigger
illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been
equipped with a TPMS
malfunction indicator to
indicate when the system is
not operating properly. The
TPMS malfunction indicator is
combined with the low tire
pressure telltale. When the
system detects a malfunction,
the telltale will flash for
approximately one minute and
then remain continuously
illuminated. This sequence will
continue upon subsequent
vehicle start-ups as long as
the malfunction exists.
When the malfunction
indicator is illuminated, the
system may not be able to
detect or signal low tire
pressure as intended. TPMS
malfunctions may occur for a
variety of reasons, includingthe installation of replacement
or alternate tires or wheels on
the vehicle that prevent the
TPMS from functioning
properly. Always check the
TPMS malfunction telltale
after replacing one or more
tires or wheels on your vehicle
to ensure that the
replacement or alternate tires
and wheels allow the TPMS to
continue to function properly.
See Tire Pressure Monitor
Operation
0412.
See Radio Frequency
Statement 0477.
Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System
(TPMS). The TPMS is designed
to warn the driver when a low
tire pressure condition exists.
TPMS sensors are mounted
onto each tire and wheel
assembly, excluding the spare
tire and wheel assembly. The
TPMS sensors monitor the air pressure in the tires and
transmit the tire pressure
readings to a receiver located
in the vehicle.
When a low tire pressure
condition is detected, the
TPMS illuminates the low tire
pressure warning light on the
instrument cluster. If the
warning light comes on, stop
as soon as possible and inflate
the tires to the recommended
pressure shown on the Tire
and Loading Information label.
See Vehicle Load Limits
0252.
A message to check the
pressure in a specific tire
displays in the Driver
Information Center (DIC). The
low tire pressure warning light
and the DIC warning message
come on at each ignition cycle
until the tires are inflated to
