In Brief 1-5
Canceling a Remote Start
To cancel a remote start, do any of
the following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑9.
Door Locks
To lock or unlock a door manually:
.From the outside, if the vehicle
is equipped with keyless access,
press the button on the door
handle and pull the handle when
the Remote Keyless Entry (RKE)
transmitter is within range. See
Remote Keyless Entry (RKE)
System Operation on page 2‑3.
.Use the key in the driver door.
The key cylinder is covered by a
cap. See Door Locks on
page 2‑10.
.From the inside, to lock a door
push down on the door lock
knob on top of the door. To
unlock a door, pull once on the
door handle to unlock it, and
again to open it.
Power Door Locks
.From the inside, pressQorK.
See Power Door Locks on
page 2‑12.
.From the outside, pressQorK
on the RKE transmitter. See
Remote Keyless Entry (RKE)
System Operation on page 2‑3.
Trunk
To open the trunk, pressVfrom
inside the vehicle or on the Remote
Keyless Entry (RKE) transmitter,
or push the touch pad located on
the rear of the trunk above the
license plate. See Remote Keyless
Entry (RKE) System Operation on
page 2‑3 andTrunk on page 2‑14.

Black plate (6,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
1-6 In Brief
Windows
The power windows only operate
with the ignition in ACC/
ACCESSORY or ON/RUN/START,
or when Retained Accessory Power
(RAP) is active. SeeRetained
Accessory Power (RAP) on
page 9‑19.
The power window switches on the
driver door control all the windows.
Each passenger door has a switch
that controls only that window. Press the switch to lower the
window. Pull the switch up to
raise it.
See
Power Windows on page 2‑21.
Seat Adjustment
Power Seats
To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the seat by
moving the rear of the control up
or down.
See Power Seat Adjustment on
page 3‑4.
Lumbar Adjustment
To adjust the lumbar support:
.Press and hold the control
forward to increase or rearward
to decrease lumbar support.

Black plate (7,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
In Brief 1-7
.Press and hold the control
upward to raise or downward to
lower the height of the lumbar
support.
See Lumbar Adjustment on
page 3‑5.
Reclining Seatbacks
To adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise. See
Reclining Seatbacks on
page 3‑6.
Memory Features
If available, the "1," "2," SET, andB(Exit) buttons on the driver door
are used to manually save and
recall memory settings for the driver
seat, outside mirrors, and power tilt
and telescoping steering column.
These manually stored positions are
referred to as Button Memory
positions. The vehicle will also automatically
save driver seat, outside mirror, and
power tilt and telescoping steering
column positions to the current
driver Remote Keyless Entry (RKE)
transmitter when the ignition is
placed in OFF/LOCK. These
automatically stored positions are
referred to as RKE Memory
positions.
See
Memory Seats on page 3‑7 and
Vehicle Personalization on
page 5‑44.
Second Row Seats
The rear seatbacks can be folded
down to increase cargo space.
See Rear Seats on page 3‑11.

Black plate (8,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
1-8 In Brief
Heated and Ventilated
Seats
Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If equipped, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN/START.
Press
M/JorL/zto heat the
driver or passenger seat cushion
and seatback. Press
Cor{to ventilate the driver
or passenger seat.
Press the button once for the
highest setting. With each press of
the button, the seat will change to
the next lower setting, and then to
the off setting. The indicator lights
next to the buttons indicate three for
the highest setting and one for the
lowest. If the front heated seats are
on high, the level may automatically
be lowered after approximately
30 minutes.
See Heated and Ventilated Front
Seats on page 3‑9.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary while keeping the seat and the head
restraint height in the proper
position.
See
Head Restraints on page 3‑2
and Power Seat Adjustment on
page 3‑4.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3‑14.

Black plate (9,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
In Brief 1-9
.How to Wear Safety Belts
Properly on page 3‑15.
.Lap-Shoulder Belt on page 3‑16.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑48.

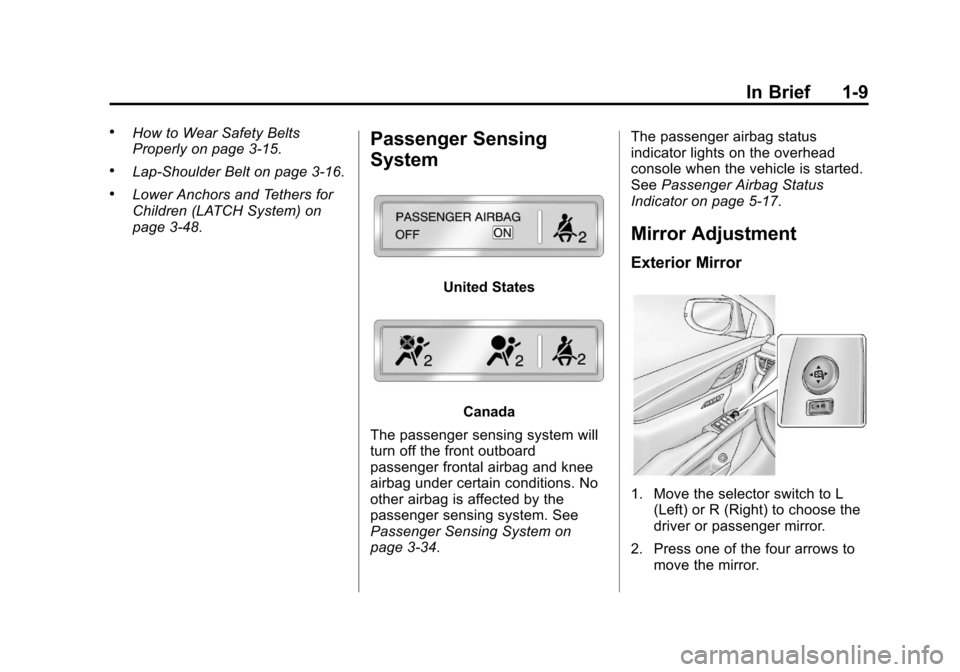

Passenger Sensing
System
United States
Canada
The passenger sensing system will
turn off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No
other airbag is affected by the
passenger sensing system. See
Passenger Sensing System on
page 3‑34. The passenger airbag status
indicator lights on the overhead
console when the vehicle is started.
See
Passenger Airbag Status
Indicator on page 5‑17.
Mirror Adjustment
Exterior Mirror
1. Move the selector switch to L (Left) or R (Right) to choose the
driver or passenger mirror.
2. Press one of the four arrows to move the mirror.

Black plate (10,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
1-10 In Brief
3. Move the selector switch to)to
deselect the mirror.
The vehicle has manual folding
mirrors. See Folding Mirrors on
page 2‑19.
Interior Mirror
Adjustment
Hold the rearview mirror in the
center and move it to view the area
behind the vehicle.
Automatic Dimming Rearview
Mirror
The vehicle has an automatic
dimming rearview mirror. The mirror
will automatically reduce the glare
from the headlamps from behind.
The dimming feature comes on
when the vehicle is started. See
Automatic Dimming Rearview Mirror
on page 2‑20.
Steering Wheel
Adjustment
Press the control to move the tilt
and telescoping steering wheel up
and down or forward and rearward.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamp
The dome lamp is located in the
overhead console.
To change the dome lamp settings,
press the following:
OFF: Turns the lamp off, even
when a door is open.
DOOR: The lamp comes on
automatically when a door is
opened.
ON: Turns the dome lamp on.

Black plate (11,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
In Brief 1-11
Reading Lamps
There are reading lamps located on
the overhead console and over the
rear passenger doors. These lamps
come on automatically when any
door is opened. To manually turn
the reading lamps on or off:
Pressmornnext to each
overhead console reading lamp.
Press the button near the rear
passenger reading lamps.
For more information on interior
lighting, see Instrument Panel
Illumination Control on page 6‑6.
Exterior Lighting
The exterior lamp control is on the
turn signal/lane change lever.
Turn the control to the following
positions:
O: Turns off the exterior lamps.
The knob returns to the AUTO
position after it is released. Turn to
Oagain to reactivate the
AUTO mode.
AUTO: Automatically turns the
exterior lamps on and off,
depending on outside lighting.

Black plate (12,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
1-12 In Brief
;:Turns on the parking lamps,
together with the sidemarker lamps,
taillamps, license plate lamps, and
instrument panel lights.
5: Turns on the headlamps,
together with the parking lamps,
sidemarker lamps, taillamps, license
plate lamps, and instrument panel
lights.
See:
.Exterior Lamp Controls on
page 6‑1.
.Turn and Lane-Change Signals
on page 6‑5.
.Headlamp High/Low-Beam
Changer on page 6‑3.
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN/START,
move the lever to select the wiper
speed.
HI: Use for fast wipes.
LO: Use for slow wipes.
INT: Move the lever up to INT for
intermittent wipes, then turn the
x
INT band up for more frequent
wipes or down for less frequent
wipes.
OFF: Use to turn the wipers off.
8:For a single wipe, briefly move
the lever down. For several wipes,
hold the lever down.
n L: Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/Washer on
page 5‑3.

Black plate (13,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
In Brief 1-13

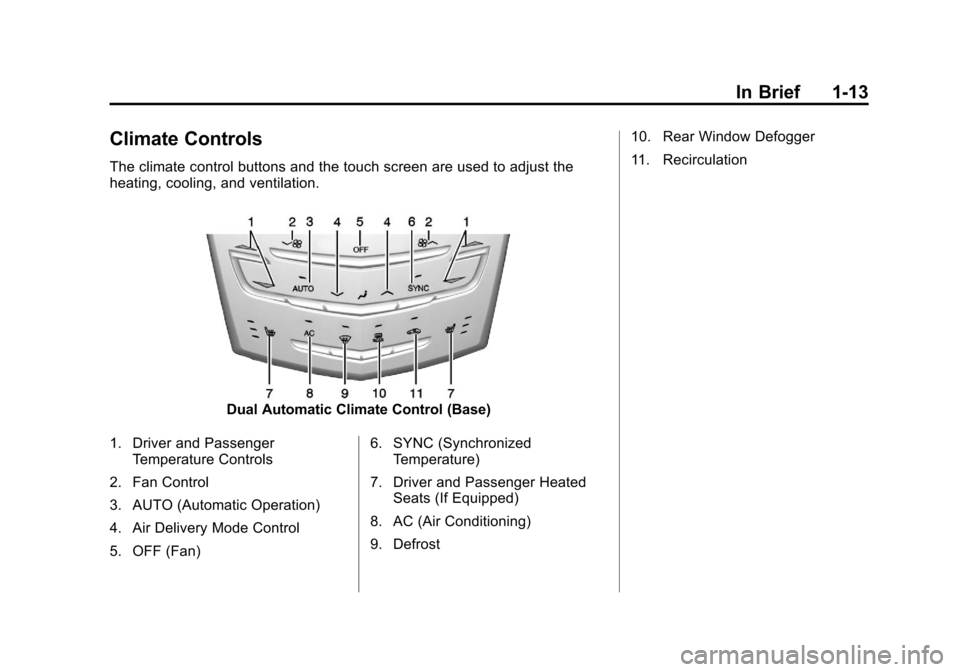

Climate Controls
The climate control buttons and the touch screen are used to adjust the
heating, cooling, and ventilation.
Dual Automatic Climate Control (Base)
1. Driver and Passenger Temperature Controls
2. Fan Control
3. AUTO (Automatic Operation)
4. Air Delivery Mode Control
5. OFF (Fan) 6. SYNC (Synchronized
Temperature)
7. Driver and Passenger Heated Seats (If Equipped)
8. AC (Air Conditioning)
9. Defrost 10. Rear Window Defogger
11. Recirculation

Black plate (14,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
1-14 In Brief

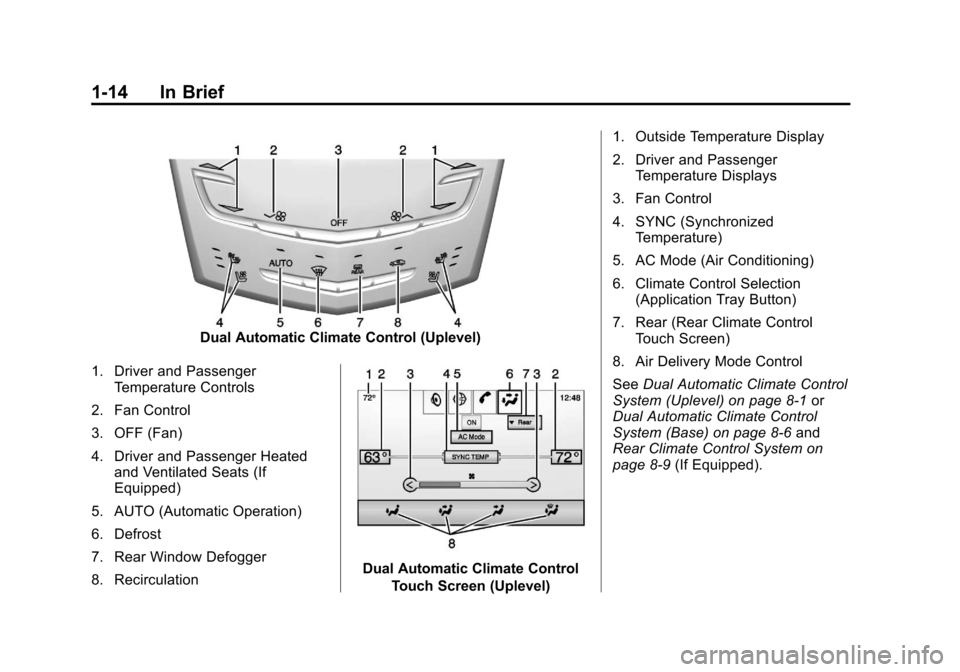

Dual Automatic Climate Control (Uplevel)
1. Driver and Passenger Temperature Controls
2. Fan Control
3. OFF (Fan)
4. Driver and Passenger Heated and Ventilated Seats (If
Equipped)
5. AUTO (Automatic Operation)
6. Defrost
7. Rear Window Defogger
8. Recirculation
Dual Automatic Climate Control Touch Screen (Uplevel) 1. Outside Temperature Display
2. Driver and Passenger
Temperature Displays
3. Fan Control
4. SYNC (Synchronized Temperature)
5. AC Mode (Air Conditioning)
6. Climate Control Selection (Application Tray Button)
7. Rear (Rear Climate Control Touch Screen)
8. Air Delivery Mode Control
See Dual Automatic Climate Control
System (Uplevel) on page 8‑1 or
Dual Automatic Climate Control
System (Base) on page 8‑6 and
Rear Climate Control System on
page 8‑9 (If Equipped).
