headlamp CADILLAC XTS 2017 1.G Owner's Manual

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 221
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 222
Accessories andModifications . . . . . . . . . . . . . . . . . . . 222
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 223
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine Cover . . . . . . . . . . . . . . . . . . . . . . 227
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 228
Engine Oil Life System . . . . . . . . . . . 230
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Engine Air Cleaner/Filter . . . . . . . . . 231
Cooling System . . . . . . . . . . . . . . . . . . . 233
Engine Coolant . . . . . . . . . . . . . . . . . . . 234
Engine Overheating . . . . . . . . . . . . . . 237
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . . . . . 238
Power Steering Fluid . . . . . . . . . . . . . 238
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 239
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 241
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
All-Wheel Drive . . . . . . . . . . . . . . . . . . 242 Starter Switch Check . . . . . . . . . . . . . 243
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . 243
Wiper Blade Replacement . . . . . . . 244
Windshield Replacement . . . . . . . . 244Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . . . . . 245
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 245
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 245
LED Lighting . . . . . . . . . . . . . . . . . . . . . 245
Back-Up Lamps . . . . . . . . . . . . . . . . . . . 245
License Plate Lamp . . . . . . . . . . . . . . 246
Replacement Bulbs . . . . . . . . . . . . . . . 247
Electrical System
Electrical System Overload . . . . . . 247
Fuses and Circuit Breakers . . . . . . 248
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Instrument Panel Fuse Block . . . . 251
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254 All-Season Tires . . . . . . . . . . . . . . . . . . 255
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 255
Low-Profile Tires . . . . . . . . . . . . . . . . . 256
Summer Tires . . . . . . . . . . . . . . . . . . . . 256
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 256
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . . . . . . 257
Tire Pressure Monitor System . . . 258
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 259
Tire Inspection . . . . . . . . . . . . . . . . . . . 262
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 262
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Buying New Tires . . . . . . . . . . . . . . . . 264
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Wheel Replacement . . . . . . . . . . . . . . 266
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 266
If a Tire Goes Flat . . . . . . . . . . . . . . . . 267
Tire Changing . . . . . . . . . . . . . . . . . . . . . 268
Compact Spare Tire . . . . . . . . . . . . . . 272
Jump Starting
Jump Starting . . . . . . . . . . . . . . . . . . . . . 273
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . . . . . 276
Recreational Vehicle Towing . . . . 276

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 245
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs 0247.
For any bulb-changing procedure not
listed in this section, contact your
dealer.
High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge (HID)
lighting system operates at a very
high voltage. If you try to service
any of the system components, you
could be seriously injured. Have
your dealer or a qualified technician
service them.
After an HID headlamp bulb has been
replaced, the beam might be a slightly
different shade than it was originally.
This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Back-Up Lamps
1. Back-Up Bulb Socket
2. Back-Up Lamp Assembly
To replace one of these bulbs: 1. Reach under the rear fascia and locate the back-up lamp
assembly.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16

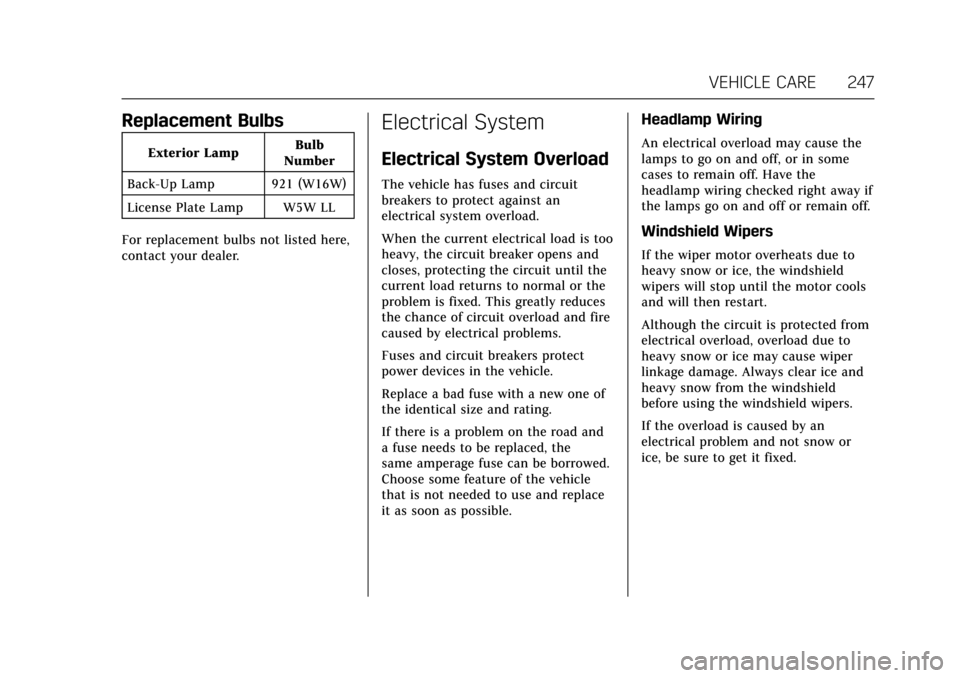

VEHICLE CARE 247
Replacement Bulbs
Exterior LampBulb
Number
Back-Up Lamp 921 (W16W)
License Plate Lamp W5W LL
For replacement bulbs not listed here,
contact your dealer.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is too
heavy, the circuit breaker opens and
closes, protecting the circuit until the
current load returns to normal or the
problem is fixed. This greatly reduces
the chance of circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one of
the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be borrowed.
Choose some feature of the vehicle
that is not needed to use and replace
it as soon as possible.
Headlamp Wiring
An electrical overload may cause the
lamps to go on and off, or in some
cases to remain off. Have the
headlamp wiring checked right away if
the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected from
electrical overload, overload due to
heavy snow or ice may cause wiper
linkage damage. Always clear ice and
heavy snow from the windshield
before using the windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
250 VEHICLE CARE
FusesUsage
24 Front power windows
25 Retained accessory power
26 ABS pump
27 Electric parking brake
28 Rear window defogger
29 Passive entry/Passive start
30 AWD module
31 Left front heated seat
32 Body control module 6
33 Right front heated seat
34 ABS valves
35 Amplifier
37 Right high-beam headlamp
38 Left high-beam headlamp
41 Brake vacuum assist pump Fuses
Usage
42 Cooling fan K2
44 Headlamp washer
45 Cooling fan K1
46 Cooling fan relay
47 Pre-catalytic converter O2 sensor
heater (V6 engine)/
Canister purge
solenoid
48 Coolant pump
49 Right HID headlamp
50 Left HID headlamp
51 Horn
52 Run/Crank
53 Interior rearview mirror/Run/Crank/
Rear vision camera
54 Run/Crank/HVAC
55 Exterior rearview mirror/Front window
switches
56 Windshield washer
57 Steering column lock Fuses
Usage
60 Heated mirror
62 Massage memory bolster
64 Adaptive forward lighting module
66 Trunk release
67 Chassis control module
69 Regulated voltage control sensor
70 Vent canister solenoid
71 Memory module
Relays Usage
1 A/C clutch
2 Starter
4 Wiper speed
5 Wiper control
7 Engine control module
8 –
9 Cooling fan

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 251
RelaysUsage
10 Cooling fan
11 Headlamp washer
13 Cooling fan
14 Low-beam headlamps
15 Run/Crank
17 Rear window defogger
Instrument Panel Fuse
Block
The instrument panel fuse block is in
the instrument panel, on the driver
side of the vehicle. To access the
fuses, open the fuse panel door by
pulling down at the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release it
from the hinge.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown. Fuses Usage
1 Wireless charger module Fuses Usage
2 Body control module 7
3 Body control module 5
4 Radio
5 Infotainment center stack displays/
Head-up display/
Instrument cluster/
Rear seat
entertainment
6 Power outlet 1
7 Power outlet 2
8 Body control module 1
9 Body control module 4
10 Body control module 8
11 Front HVAC blower
12 Passenger Seat
13 Driver seat

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
266 VEHICLE CARE
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts
should be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used
on a vehicle without the proper
amount of clearance can cause
damage to the brakes, suspension,
or other vehicle parts. The area
damaged by the tire chains could
cause loss of control and a crash.
Use another type of traction device
only if its manufacturer
recommends it for the vehicle's tire(Continued)

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
INDEX 305
Automatic (cont'd)Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Forward Braking . . . . . . . . . . . . . . . . . . 208
Headlamp System . . . . . . . . . . . . . . . . 153
Level Control . . . . . . . . . . . . . . . . . . . . . . 191
Transmission . . . . . . . . . . . . . . . . . . . . . . 183
Transmission Fluid . . . . . . . . . . . . . . . 231
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . 184
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Jump Starting . . . . . . . . . . . . . . . . . . . . . 273
Power Protection . . . . . . . . . . . . . . . . . . 157
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . . . . . . 134
Blade Replacement, Wiper . . . . . . . . . 244
Brake Parking, Electric . . . . . . . . . . . . . . . . . . 186
System Warning Light . . . . . . . . . . . . 122
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
System Messages . . . . . . . . . . . . . . . . . 135 Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Automatic Forward . . . . . . . . . . . . . . . 208
Break-In, New Vehicle . . . . . . . . . . . . . . 177
Bulb Replacement . . . . . . . . . . . . . . . . . . 247 Back-up Lamps . . . . . . . . . . . . . . . . . . . 245
Headlamp Aiming . . . . . . . . . . . . . . . . 245
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . 245
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . . . . . 245
License Plate Lamps . . . . . . . . . . . . . . 246
Buying New Tires . . . . . . . . . . . . . . . . . . . 264
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Capacities and Specifications . . . . . . 299
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . 182
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Winter Driving . . . . . . . . . . . . . . . . . . . . 172
Cargo Management System . . . . . . . . . . . . . 102
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . 101
Caution, Danger, and Warning . . . . . . . . 2
Center Console Storage . . . . . . . . . . . . . 100
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . 266
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Charging System Light . . . . . . . . . . . . . 120 Check
Malfunction Indicator Engine
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Child Restraints Infants and Young Children . . . . . . . . 82
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Older Children . . . . . . . . . . . . . . . . . . . . . . 81
Securing . . . . . . . . . . . . . . . . . . . . . . . . .94, 95
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cigarette Lighter . . . . . . . . . . . . . . . . . . . . 110
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 248
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 278
Interior Care . . . . . . . . . . . . . . . . . . . . . . 282
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . . . . . 159
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cluster, Instrument . . . . . . . . . . . . . . . . . 112
Compact Spare Tire . . . . . . . . . . . . . . . . . 272
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
INDEX 307
Engine (cont'd)Oil Pressure Light . . . . . . . . . . . . . . . . . 126
Overheated Protection
Operating Mode . . . . . . . . . . . . . . . . . 238
Overheating . . . . . . . . . . . . . . . . . . . . . . . 237
Power Messages . . . . . . . . . . . . . . . . . . 137
Running While Parked . . . . . . . . . . . 182
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 156
Equipment, Towing . . . . . . . . . . . . . . . . . 219
Event Data Recorders . . . . . . . . . . . . . . 302
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 157
Exterior Lamp Controls . . . . . . . . . . . . 151
Exterior Lamps Off Reminder . . . . . . 152
Exterior Lighting Battery Saver . . . . 157
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 231
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 153
Flashers, Hazard Warning . . . . . . . . . . 154
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Fluid Automatic Transmission . . . . . . . . . 231
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241 Fluid (cont'd)
Power Steering . . . . . . . . . . . . . . . . . . . . 238
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 42
Forward Automatic Braking . . . . . . . . 208
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Front Seats Heated and Ventilated . . . . . . . . . . . . . 58
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Economy Driving . . . . . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 215
Filling the Tank . . . . . . . . . . . . . . . . . . . 213
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Low Fuel Warning Light . . . . . . . . . 126
System Messages . . . . . . . . . . . . . . . . . 137
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Fuses and Circuit Breakers . . . . . . . 248
Instrument Panel Fuse Block . . . . 251
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
G
GaugesEngine Coolant Temperature . . . . 117
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Speedometer . . . . . . . . . . . . . . . . . . . . . . 115
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 116
Trip Odometer . . . . . . . . . . . . . . . . . . . . 116
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 111
General Information Service and Maintenance . . . . . . . . 287
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 222
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
H
Hazard Warning Flashers . . . . . . . . . . 154
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 50
Head-up Display . . . . . . . . . . . . . . . . . . . . 131
Headlamps Adaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . . . . . 154
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 153
Bulb Replacement . . . . . . . . . . . . . . . . 245
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 153
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 153

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
308 INDEX
Headlamps (cont'd)High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . . . . . 245
High-Beam On Light . . . . . . . . . . . . . . 127
High/Low Beam Changer . . . . . . . . . 152
Lamps On Reminder . . . . . . . . . . . . . . 127
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Steering Wheel . . . . . . . . . . . . . . . . . . . . 104
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 42
Heating . . . . . . . . . . . . . . . . . . . . . . . . .159, 163
High-Beam On Light . . . . . . . . . . . . . . . . 127
High-Speed Operation . . . . . . . . . . . . . . 257
Hill and Mountain Roads . . . . . . . . . . 171
Hill Start Assist (HSA) . . . . . . . . . . . . . 188
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .159, 163
I
Ignition Positions . . . . . . . . . . . . . . . . . . . 177
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 124
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Infotainment . . . . . . . . . . . . . . . . . . . . . . . . 158
Infotainment System . . . . . . . . . . . . . . . 303
Instrument Cluster . . . . . . . . . . . . . . . . . 112
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . . . . . . . . 99
Instrument Panel Overview . . . . . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . . . 43
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . 273
K
Key and Lock Messages . . . . . . . . . . . . 137
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . 27
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
L
Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Daytime Running (DRL) . . . . . . . . . . 153
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Exterior Controls . . . . . . . . . . . . . . . . . . 151
Exterior Lamps Off Reminder . . . . 152
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
License Plate . . . . . . . . . . . . . . . . . . . . . . 246
Malfunction Indicator . . . . . . . . . . . . 120
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Lamps (cont'd)
On Reminder . . . . . . . . . . . . . . . . . . . . . . 127
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . . . . 211
Lane Departure Warning Light . . . . 123
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . 65
LATCH System Replacing Parts after a Crash . . . . . . 93
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . 87
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . 245
Level Control Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 191
Light Adaptive Forward Lighting(AFL) Light . . . . . . . . . . . . . . . . . . . . . . 127
Lighter, Cigarette . . . . . . . . . . . . . . . . . . . 110
Lighting
Adaptive Forward . . . . . . . . . . . . . . . . . 154
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Illumination Control . . . . . . . . . . . . . . 155
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Airbag Readiness . . . . . . . . . . . . . . . . . 119
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . 123
