230 DRIVING AND OPERATING
.The rear bumper on the vehicle is
not intended for hitches. Do not
attach rental hitches or other
bumper-type hitches to it. Use
only a frame-mounted hitch that
does not attach to the bumper.
. Will any holes be made in the
body of the vehicle when the
trailer hitch is installed? If so, seal
the holes when the hitch is
removed. If the holes are not
sealed, dirt, water, and deadly
carbon monoxide (CO) from the
exhaust can get into the vehicle.
See Engine Exhaust 0187.
Safety Chains
Always attach chains between the
vehicle and the trailer. Cross the safety
chains under the tongue of the trailer
to help prevent the tongue from
contacting the road if it becomes
separated from the hitch. Leave
enough slack so the rig can turn.
Never allow safety chains to drag on
the ground.
Trailer Brakes
Does the trailer have its own brakes?
State and local regulations may
require the trailer to have its own
braking system if loaded above a
certain threshold. Trailer brake
requirements vary from state to state.
Be sure to read and follow the
instructions for the trailer brakes so
they are installed, adjusted, and
maintained properly.
Because the vehicle has antilock
brakes, do not tap into the vehicle's
brake system. If this is done, both
brake systems will not work well or
at all
Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service and
Emission Inspection/Maintenance
testing. See Malfunction Indicator
Lamp (Check Engine Light) 0128.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle systems.
This could affect vehicle operation
and cause a crash. Such devices
may also access information stored
in the vehicle’s systems.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
DRIVING AND OPERATING 231
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and would
not be covered by the vehicle
warranty. Always check with your
dealer before adding electrical
equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see Servicing
the Airbag-Equipped Vehicle 085 and
Adding Equipment to the
Airbag-Equipped Vehicle 085.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
232 VEHICLE CARE
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 233
California Proposition65 Warning . . . . . . . . . . . . . . . . . . . . . 233
California Perchlorate Materials Requirements . . . . . . . . . . . . . . . . . . . 234
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 234
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 234
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 236
Engine Cover . . . . . . . . . . . . . . . . . . . . . . 239
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 240
Engine Oil Life System . . . . . . . . . . . 242
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Engine Air Cleaner/Filter . . . . . . . . . 243
Cooling System . . . . . . . . . . . . . . . . . . . 245
Engine Overheating . . . . . . . . . . . . . . 249
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . . . . . 250
Power Steering Fluid (LFX with FWD) . . . . . . . . . . . . . . . . . . . . . . 250 Power Steering Fluid (LF3 and
LFX with AWD) . . . . . . . . . . . . . . . . . 250
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 251
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 253
Battery - North America . . . . . . . . . 254
All-Wheel Drive . . . . . . . . . . . . . . . . . . 254
Starter Switch Check . . . . . . . . . . . . . 254
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Park Brake and P (Park) Mechanism Check . . . . . . . . . . . . . . 255
Wiper Blade Replacement . . . . . . . 255
Windshield Replacement . . . . . . . . 256
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 256
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . . . . . 258
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 258
LED Lighting . . . . . . . . . . . . . . . . . . . . . 258
Back-Up Lamps . . . . . . . . . . . . . . . . . . . 258
License Plate Lamp . . . . . . . . . . . . . . 259
Electrical System
Electrical System Overload . . . . . . 259
Fuses and Circuit Breakers . . . . . . 260
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 Instrument Panel Fuse Block . . . . 263
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
All-Season Tires . . . . . . . . . . . . . . . . . . 268
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 268
Low-Profile Tires . . . . . . . . . . . . . . . . . 268
Summer Tires . . . . . . . . . . . . . . . . . . . . 269
Tire Sidewall Labeling . . . . . . . . . . . 269
Tire Designations . . . . . . . . . . . . . . . . . 271
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . . . . . 272
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 274
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 276
Tire Pressure Monitor System . . . 276
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 277
Tire Inspection . . . . . . . . . . . . . . . . . . . 280
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 280
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Buying New Tires . . . . . . . . . . . . . . . . 282
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Uniform Tire Quality Grading . . . 284
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Wheel Replacement . . . . . . . . . . . . . . 285

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 233
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 286
If a Tire Goes Flat . . . . . . . . . . . . . . . . 286
Tire Sealant andCompressor Kit . . . . . . . . . . . . . . . . . 288
Storing the Tire Sealant and
Compressor Kit . . . . . . . . . . . . . . . . . 295
Tire Changing . . . . . . . . . . . . . . . . . . . . . 295
Compact Spare Tire . . . . . . . . . . . . . . 299
Full-Size Spare Tire . . . . . . . . . . . . . . 300
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . . . 301
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . . . . . 304
Recreational Vehicle Towing . . . . 304
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 307
Interior Care . . . . . . . . . . . . . . . . . . . . . . 311
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . 314
General Information
For service and parts needs, visit your
dealer. You will receive genuine GM
parts and GM-trained and supported
service people.
Genuine GM parts have one of these
marks:
California Proposition
65 Warning
{Warning
Most motor vehicles, including this
one, as well as many of its service
parts and fluids, contain and/or
emit chemicals known to the State
of California to cause cancer and
birth defects or other reproductive
harm. Engine exhaust, many parts
and systems, many fluids, and
some component wear by-products
contain and/or emit these
chemicals. For more information go
to www.P65Warnings.ca.gov/
passenger-vehicle.
See Battery - North America 0254 and
Jump Starting - North America 0301
and the back cover.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
234 VEHICLE CARE
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag initiators,
seat belt pretensioners, and lithium
batteries contained in Remote Keyless
Entry transmitters, may contain
perchlorate materials. Special
handling may be necessary. For
additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered by
the vehicle warranty.Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM certified
parts, including control module or
software modifications, is not covered
under the terms of the vehicle
warranty and may affect remaining
warranty coverage for affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle using
genuine GM Accessories installed by a
dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 085.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have the
proper knowledge, service manual,
tools, or parts. Always follow
owner’s manual procedures and
consult the service manual for your
vehicle before doing any
service work.
If doing some of your own service
work, use the proper service manual.
It tells you much more about how to
service the vehicle than this manual
can. To order the proper service
manual, see Service Publications
Ordering Information 0343.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 085.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 235
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records0329.
Caution
Even small amounts of
contamination can cause damage to
vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood

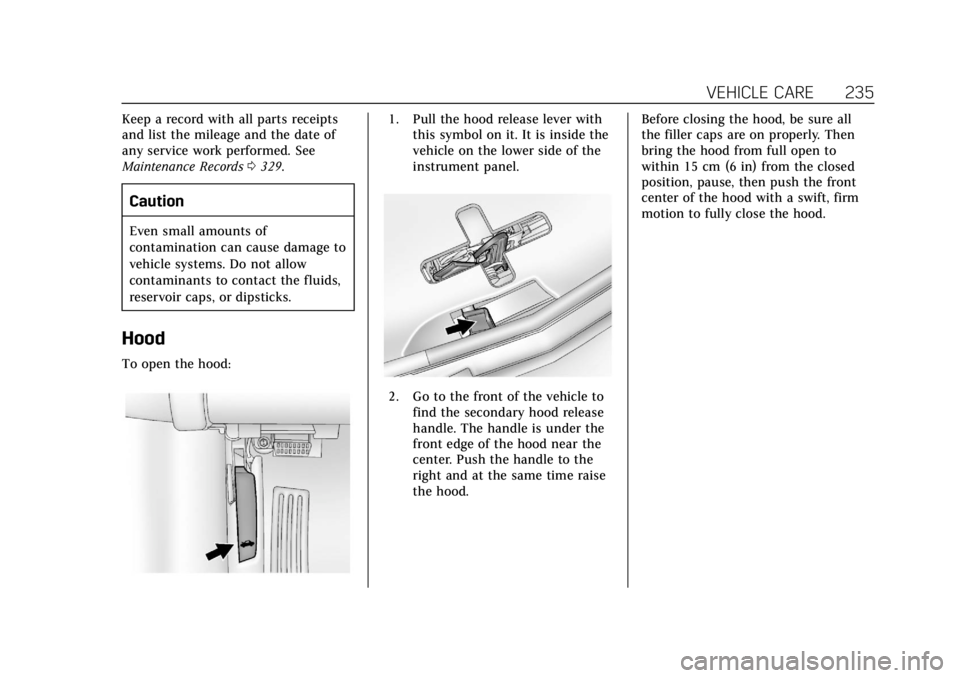

To open the hood:
1. Pull the hood release lever with
this symbol on it. It is inside the
vehicle on the lower side of the
instrument panel.
2. Go to the front of the vehicle to
find the secondary hood release
handle. The handle is under the
front edge of the hood near the
center. Push the handle to the
right and at the same time raise
the hood. Before closing the hood, be sure all
the filler caps are on properly. Then
bring the hood from full open to
within 15 cm (6 in) from the closed
position, pause, then push the front
center of the hood with a swift, firm
motion to fully close the hood.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
236 VEHICLE CARE

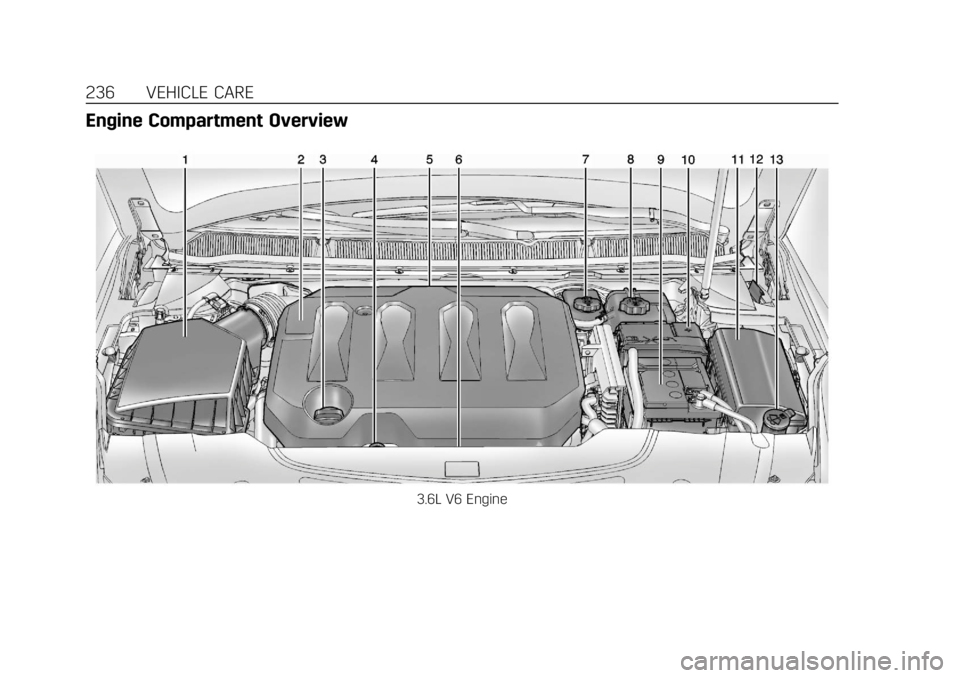

Engine Compartment Overview
3.6L V6 Engine

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 237
1.Engine Air Cleaner/Filter 0243.
2. Power Steering Fluid Reservoir (Under Engine Cover) (If
Equipped).
See Power Steering Fluid (LFX with
FWD) 0250 orPower Steering
Fluid (LF3 and LFX with AWD)
0 250.
3. Engine Oil Fill Cap. See Engine Oil
0 240.
4. Engine Oil Dipstick (Out of View). See Engine Oil0240.
5. Engine Cover 0239.
6. Engine Cooling Fans (Out of View). See Cooling System 0245.
7. Brake Fluid Reservoir. See Brake
Fluid 0253.
8. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 245.
9. Battery - North America 0254
(Battery Cover not Shown).
10. Remote Positive (+) Terminal (Battery Cover not Shown). See
Jump Starting - North America
0301. 11.
Engine Compartment Fuse Block
0260.
12. Remote Negative (−) Terminal (Out of View). See Jump Starting -
North America 0301.
13. Windshield Washer Fluid Reservoir. See Washer Fluid
0 251.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
238 VEHICLE CARE

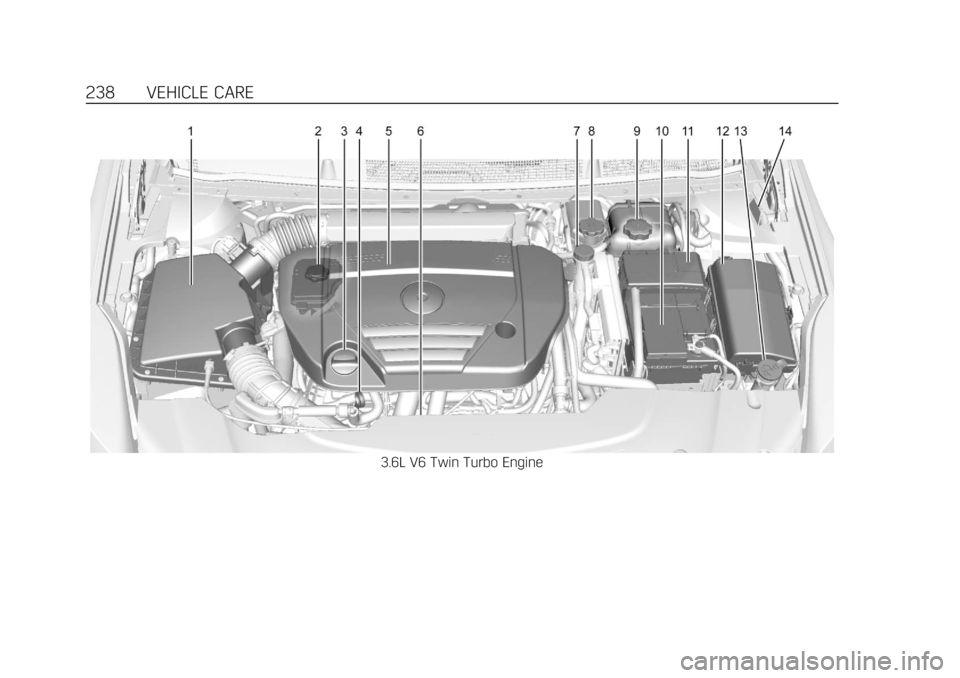

3.6L V6 Twin Turbo Engine

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 239
1.Engine Air Cleaner/Filter 0243.
2. Power Steering Fluid Reservoir (Under Engine Cover).
See Power Steering Fluid (LFX with
FWD) 0250 orPower Steering
Fluid (LF3 and LFX with AWD)
0 250.
3. Engine Oil Fill Cap. See Engine Oil
0 240.
4. Engine Oil Dipstick. See Engine
Oil 0240.
5. Engine Cover 0239.
6. Engine Cooling Fans (Out of View). See Cooling System 0245.
7. Charged Air Coolant Bottle and Pressure Cap. See Cooling System
0 245.
8. Brake Fluid Reservoir. See Brake
Fluid 0253.
9. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 245.
10. Battery - North America 0254
(Battery Cover not Shown). 11. Remote Positive (+) Terminal
(Battery Cover not Shown). See
Jump Starting - North America
0301.
12. Engine Compartment Fuse Block
0260.
13. Windshield Washer Fluid Reservoir. See Washer Fluid
0 251.
14. Remote Negative (−) Terminal (Out of View). See Jump Starting -
North America 0301.Engine Cover

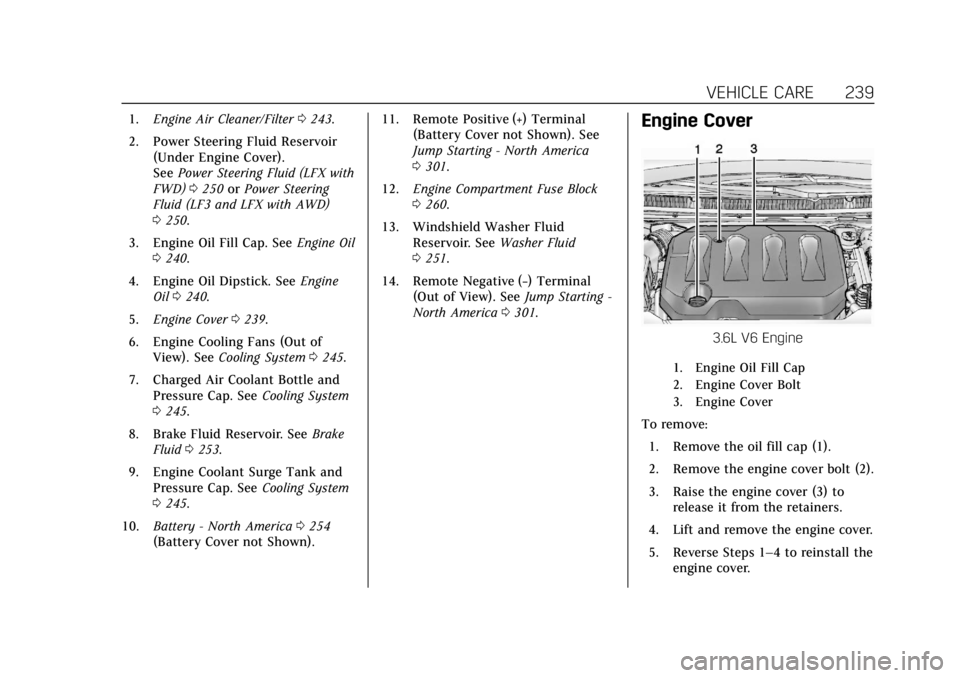

3.6L V6 Engine
1. Engine Oil Fill Cap
2. Engine Cover Bolt
3. Engine Cover
To remove:
1. Remove the oil fill cap (1).
2. Remove the engine cover bolt (2).
3. Raise the engine cover (3) to release it from the retainers.
4. Lift and remove the engine cover.
5. Reverse Steps 1–4 to reinstall the engine cover.
