3-4 Seats and Restraints

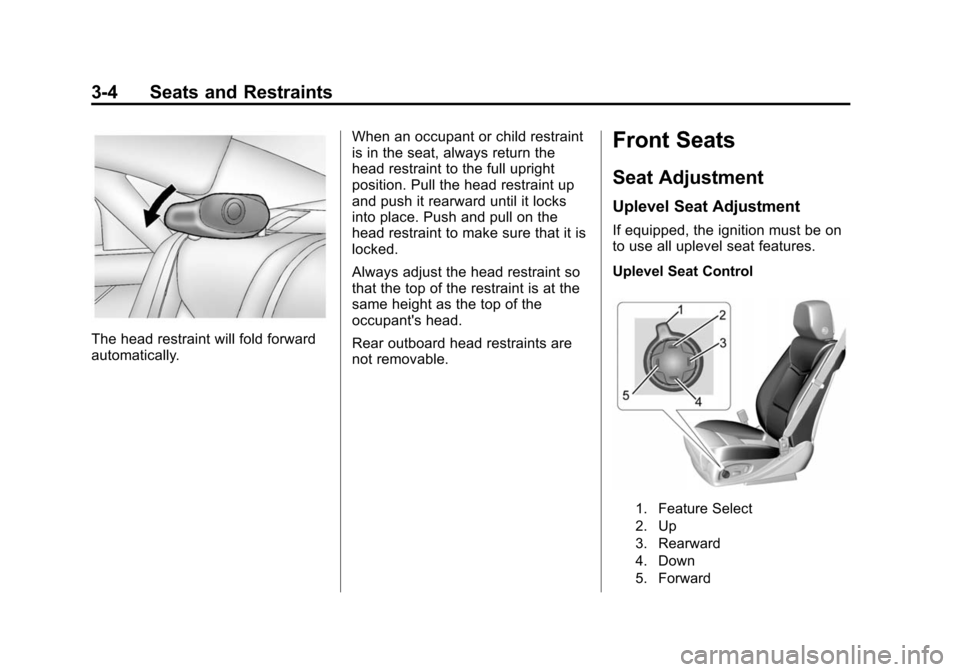

The head restraint will fold forward
automatically.When an occupant or child restraint
is in the seat, always return the
head restraint to the full upright
position. Pull the head restraint up
and push it rearward until it locks
into place. Push and pull on the
head restraint to make sure that it is
locked.
Always adjust the head restraint so
that the top of the restraint is at the
same height as the top of the
occupant's head.
Rear outboard head restraints are
not removable.
Front Seats
Seat Adjustment
Uplevel Seat Adjustment
If equipped, the ignition must be on
to use all uplevel seat features.
Uplevel Seat Control
1. Feature Select
2. Up
3. Rearward
4. Down
5. Forward

Black plate (5,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
Seats and Restraints 3-5
.Move Feature Select (1) to
display seat adjustments on the
center stack. Press and release
or hold to scroll through
features.
.Press Up (2) to make upward
adjustments of the selected
feature.
.Press Rearward (3) to make
rearward adjustments of the
selected feature.
.Press Down (4) to make
downward adjustments of the
selected feature.
.Press Forward (5) to make
forward adjustments of the

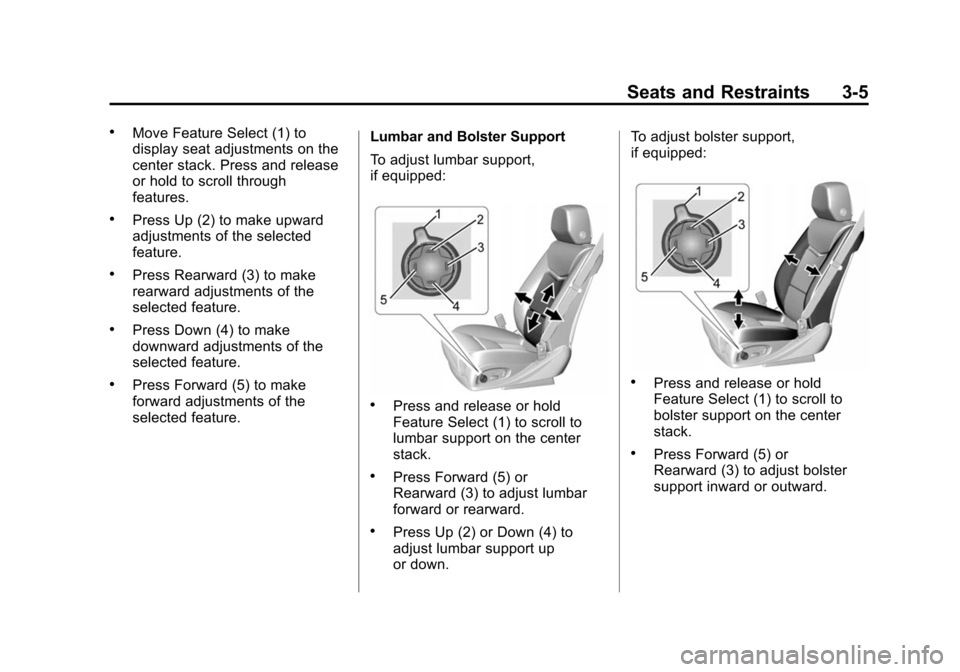

selected feature.Lumbar and Bolster Support
To adjust lumbar support,
if equipped:
.Press and release or hold
Feature Select (1) to scroll to
lumbar support on the center
stack.
.Press Forward (5) or
Rearward (3) to adjust lumbar
forward or rearward.
.Press Up (2) or Down (4) to
adjust lumbar support up
or down.To adjust bolster support,
if equipped:
.Press and release or hold
Feature Select (1) to scroll to
bolster support on the center
stack.
.Press Forward (5) or
Rearward (3) to adjust bolster
support inward or outward.

Black plate (6,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
3-6 Seats and Restraints
Upper Shoulder Support
To adjust upper shoulder support,
if equipped:
.Press and release or hold
Feature Select (1) to scroll to
upper shoulder support on the
center stack.
.Press Forward (5) or
Rearward (3) to adjust shoulder
support forward or rearward.
Power Seat Adjustment
{Warning
You can lose control of the
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
Base Shown, Uplevel SimilarTo adjust:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the seat by
moving the rear of the control up
or down.
To adjust the seatback, see
Reclining Seatbacks on page 3-7.
To adjust the lumbar support, see
Lumbar Adjustment on page 3-7.
Some vehicles are equipped with a
feature that activates a vibrating
pulse alert in the driver seat to help
avoid crashes. See Driver
Assistance Systems on page 9-43.

Black plate (7,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
Seats and Restraints 3-7
Lumbar Adjustment
Base
To adjust:
.Press and hold the control
forward to increase or rearward
to decrease support.
.Press and hold the control
upward to raise or downward to
lower the height of the support.
See Seat Adjustment on page 3-4
for uplevel lumbar seat adjustment.
Thigh Support
Adjustment
If equipped, pull up on the lever.
Then pull or push on the support to
lengthen or shorten. Release the
lever to lock in place.
Reclining Seatbacks
Base Shown, Uplevel Similar
To adjust:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.

Black plate (8,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
3-8 Seats and Restraints
{Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
Do not have a seatback reclined if
the vehicle is moving.
Memory Seats
Driver Buttons Shown, PassengerButtons Similar
If equipped, the SET, "1," "2," and
B(Exit) buttons on the driver door
and front passenger door are used
to manually save and recall memory
settings for the driver and
passenger seats. The driver
memory buttons also store outside
mirror, power tilt and telescoping
steering column positions, and
massage intensity (if equipped).

Black plate (9,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
Seats and Restraints 3-9
Storing Memory Positions
To save positions to the“1”and “2”
buttons:
1. Adjust the driver or passenger seat to the desired position.
If storing a driver position, also
adjust the outside mirrors and
the power tilt and telescoping
steering column and massage
intensity (if equipped).
2. Press and release SET. A beep will sound.
3. Immediately press and hold “1”
until two beeps sound.
4. Repeat Steps 1 and 2 for a second driver using “2.”
To save positions to the
B(Exit)
button and easy exit features:
1. Adjust the driver or passenger seat to the desired position for
getting out of the vehicle. If storing a driver exit position,
also adjust the power tilt and
telescoping steering column and
the outside mirrors on some
vehicles.
2. Press and release SET. A beep will sound.
3. Immediately press and hold
B
until two beeps sound.
Manually Recalling Memory
Positions
If the vehicle is OFF or not in
P (Park), press and hold "1," "2," or
Bto manually recall the previously
stored memory positions. Releasing
"1,” "2," or
Bbefore the stored
positions are reached stops the
recall.
If the vehicle is ON and in P (Park),
press and release “1,” “2,”or
Bto
manually recall the previously
stored memory positions. Placing
the ignition in OFF/LOCK before the
stored positions are reached stops
the recall. If the massage feature is off when
the memory recall is performed, the
previously stored type and intensity
will be recalled, but it will remain off
until activated with the On/Off
control.
Automatically Recalling Memory
Positions (Auto Memory Recall)
(Driver Only)
The Auto (Automatic) Memory
Recall feature automatically recalls
the current driver
’s previously stored
“1” or“2” position when entering the
vehicle.
Depending upon the Auto Memory
Recall feature enabled in the vehicle
personalization menu, memory “1”
or “2” positions are recalled in the
following ways:
To activate the recall when On -
Driver Door Open is selected in the
personalization menu, do one of the
following:
.PressKon the RKE transmitter
and open the driver door.

Black plate (10,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
3-10 Seats and Restraints
.PressKon the RKE transmitter
when the driver door is
already open.
.Press the lock/unlock button on
the outside driver door handle
and open the driver door. The
RKE transmitter must be present
for the recall to activate.
To activate the recall when On - At
Ignition On is selected in the vehicle
personalization menu:
.Place the ignition in ON/RUN/
START.
See Vehicle Personalization on
page 5-47.
To stop recall movement, press one
of the memory, power mirror,
or power seat controls; or press the
power tilt and telescoping steering
column control. If On - At Ignition
On is selected in the vehicle
personalization menu, placing the
ignition in OFF/LOCK also stops the
recall. RKE transmitters are not labeled
with a number. If your memory seat
position is stored to "1" or "2" but
this position is not automatically
recalling, then change the stored
position or switch RKE transmitters
with the other driver.
Easy Exit Recall (Driver Only)
If programmed on in the vehicle
personalization menu, the easy exit
feature automatically moves the
driver seat, power tilt and
telescoping steering column, and
outside mirrors on some vehicles to
the memory positions and settings
saved to the
B(Exit) button. See
“Storing Memory Positions” listed
previously. See also Vehicle
Personalization on page 5-47.
Easy exit recall automatically
activates when one of the following
occurs:
.The vehicle is turned off and the
driver door is opened within a
short time.
.The vehicle is turned off with the
driver door open.
Obstructions
If something has blocked the driver
seat while recalling a memory
position, the recall may stop.
Remove the obstruction. Then do
one of the following:
.If automatically or manually
recalling the stored memory
position, press and hold the
appropriate manual control for
two seconds. Try recalling again
by pressing the appropriate
memory button. If automatically
recalling the position, try
recalling again by opening the
driver door and pressing
Kon
the RKE transmitter.
.If recalling the exit position,
press and hold the appropriate
manual control for the exit
feature not recalling for
two seconds. Then try recalling
the exit position again.

Black plate (11,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
Seats and Restraints 3-11
If the memory position is still not
recalling, see your dealer for
service.
Heated and Ventilated
Front Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This may
cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
If available, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN/START.
Press
Jorzto heat the driver or
passenger seat cushion and
seatback.
Press
Cor{to ventilate the driver
or passenger seat.
When this feature is off, the heated
and ventilated seat symbols on the
buttons are white. A ventilated seat
has a fan that pulls or pushes air
through the seat. The air is not cooled. When a heated seat is
turned on, the symbol turns red.
When a ventilated seat is turned on,
the symbol turns blue.
Press the button once for the
highest setting. With each press of
the button, the seat will change to
the next lower setting, and then to
the off setting. The indicator lights
next to the buttons indicate three for
the highest setting and one for the
lowest. If the heated seats are on
high, the level may automatically be
lowered after approximately
30 minutes.
The passenger seat may take
longer to heat up.
Remote Start Heated and
Ventilated Seats
During a remote start, the heated or
ventilated seats, if equipped, can be
turned on automatically. When it is
cold outside, the heated seats turn
on, and when it is hot outside the
ventilated seats turn on. The heated
or ventilated seats are canceled
when the ignition is turned on.

Black plate (12,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
3-12 Seats and Restraints
Press the heated or ventilated seat
button to use the heated or
ventilated seats after the vehicle is
started.
The heated or ventilated seat
indicator lights do not turn on during
a remote start.
The temperature performance of an
unoccupied seat may be reduced.
This is normal.
The heated or ventilated seats may
be enabled or disabled in the
vehicle personalization menu. See
Remote Vehicle Start on page 2-9
andVehicle Personalization on

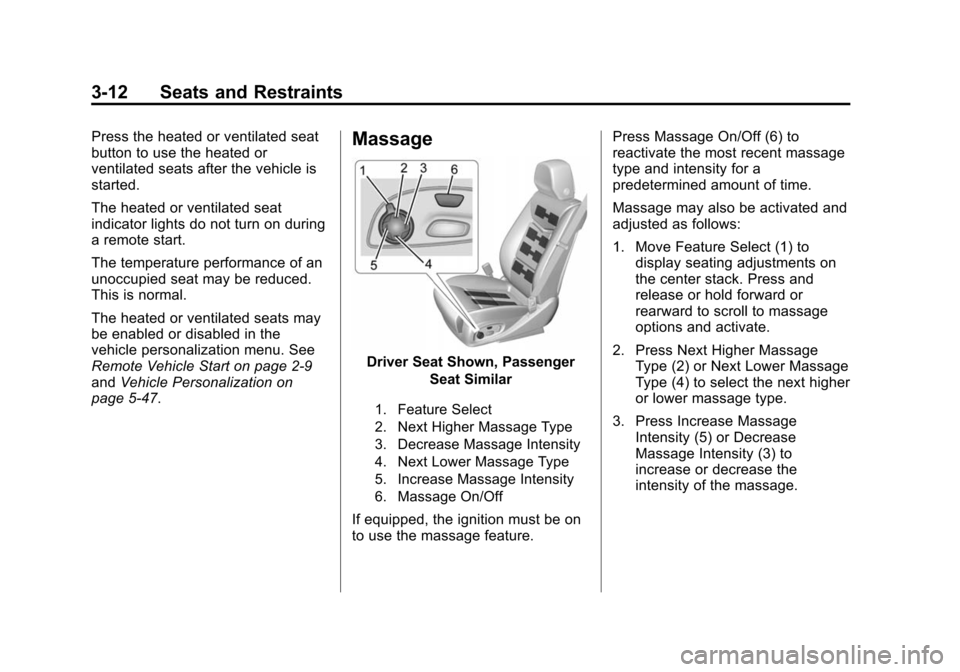

page 5-47.Massage
Driver Seat Shown, Passenger
Seat Similar
1. Feature Select
2. Next Higher Massage Type
3. Decrease Massage Intensity
4. Next Lower Massage Type
5. Increase Massage Intensity
6. Massage On/Off
If equipped, the ignition must be on
to use the massage feature. Press Massage On/Off (6) to
reactivate the most recent massage
type and intensity for a
predetermined amount of time.
Massage may also be activated and
adjusted as follows:
1. Move Feature Select (1) to
display seating adjustments on
the center stack. Press and
release or hold forward or
rearward to scroll to massage
options and activate.
2. Press Next Higher Massage Type (2) or Next Lower Massage
Type (4) to select the next higher
or lower massage type.
3. Press Increase Massage Intensity (5) or Decrease
Massage Intensity (3) to
increase or decrease the
intensity of the massage.

Black plate (13,1)Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-7707485) -
2015 - CRC - 10/31/14
Seats and Restraints 3-13
Rear Seats
Folding the Seatback
On some vehicles, either side of the
seatback can be folded for more
cargo space. Fold a seatback only
when the vehicle is not moving.
{Caution
Folding a rear seat with the safety
belts still fastened may cause
damage to the seat or the safety
belts. Always unbuckle the safety
belts and return them to their
normal stowed position before
folding a rear seat.To fold the seatback:
1. Pull the lever on top of the
seatback to unlock it.
A red tab near the seatback
lever raises when the seatback
is unlocked.
2. Fold the seatback forward. Repeat the steps to fold the
other seatback, if desired.
Raising the Seatback
{Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
{Warning
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
