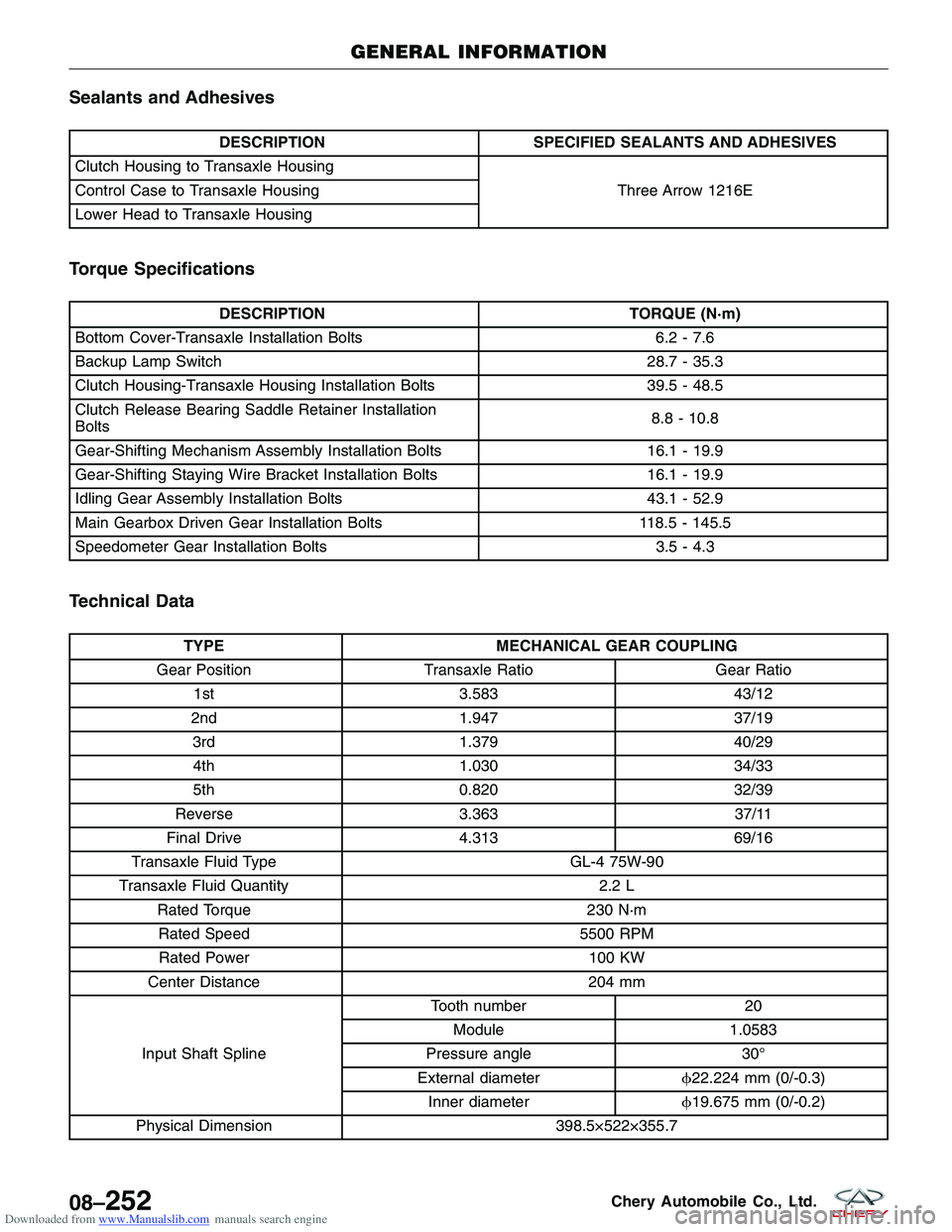

Downloaded from www.Manualslib.com manuals search engine Sealants and Adhesives
DESCRIPTIONSPECIFIED SEALANTS AND ADHESIVES
Clutch Housing to Transaxle Housing Three Arrow 1216E
Control Case to Transaxle Housing
Lower Head to Transaxle Housing
Torque Specifications
DESCRIPTION TORQUE (N·m)
Bottom Cover-Transaxle Installation Bolts 6.2 - 7.6
Backup Lamp Switch 28.7 - 35.3
Clutch Housing-Transaxle Housing Installation Bolts 39.5 - 48.5
Clutch Release Bearing Saddle Retainer Installation
Bolts 8.8 - 10.8
Gear-Shifting Mechanism Assembly Installation Bolts 16.1 - 19.9
Gear-Shifting Staying Wire Bracket Installation Bolts 16.1 - 19.9
Idling Gear Assembly Installation Bolts 43.1 - 52.9
Main Gearbox Driven Gear Installation Bolts 118.5 - 145.5
Speedometer Gear Installation Bolts 3.5 - 4.3
Technical Data
TYPEMECHANICAL GEAR COUPLING
Gear Position Transaxle Ratio Gear Ratio
1st 3.583 43/12
2nd 1.947 37/19
3rd 1.379 40/29
4th 1.030 34/33
5th 0.820 32/39
Reverse 3.36337/11
Final Drive 4.31369/16
Transaxle Fluid Type GL-4 75W-90
Transaxle Fluid Quantity 2.2 L
Rated Torque 230 N·m
Rated Speed 5500 RPM
Rated Power 100 KW
Center Distance 204 mm
Input Shaft Spline Tooth number
20
Module 1.0583
Pressure angle 30°
External diameter 22.224 mm (0/-0.3)
Inner diameter 19.675 mm (0/-0.2)
Physical Dimension 398.5×522×355.7
GENERAL INFORMATION
08–252Chery Automobile Co., Ltd.
