Page 35 of 1903
Downloaded from www.Manualslib.com manuals search engine DESCRIPTIONTORQUE (N·m)
Crankshaft Timing Belt Pulley Bolt 1st Step: Tighten the bolt to 130 N·m
2nd Step: Tighten the bolt an additional 65°
Crankshaft Vibration Damper Bolts 25
Cylinder Head Cover Bolts 11
Cylinder Head Bolts 1st Step: Tighten the bolt to 40 ± 5 N·m
2nd Step: Tighten the bolt an additional 90 ± 5° 3rd Step: Tighten the bolt an additional 90 ± 5°
Dipstick Bracket Bolts 11
Drive Plate Bolts (automatic transaxle) 75
Engine Left Mount Bolt 70
Engine Right Mount Bolt 70
Engine Front Mount Bolt 60
Engine Rear Mount Bolt 60
Engine To Transaxle Bolts 80
Exhaust Manifold Nuts 25
Exhaust Manifold Heat Shield Bolts 15
Exhaust Camshaft Timing Belt Pulley Bolt 120
Flywheel Bolts (manual transaxle) 75
Fuel Rail Bracket Bolts 11
Idler Pulley Bolt 40
Intake Camshaft Timing Belt Pulley Bolt 120
Intake Manifold Bolts 10
Intake Manifold Nuts 11
Intake Manifold Bracket Bolts 25
Lower Idler Pulley Bolt 45
Lower Cylinder Block Bolts 23
Oil Filter 25
Oil Pan Bolts 18
Oil Drain Plug 40
Oil Strainer Bolts 18
Oil Pump Bolts 11
(Apply with Loctite 5910 Thread-Locker)
Rear Timing Cover Bolts 7
Timing Belt Upper Cover Bolts 11
Timing Belt Lower Cover Bolts 11
Timing Belt Tensioner Assembly 27
Timing Belt Tensioner Pulley Bolt 30
Throttle Body Bolts 11
Upper Idler Pulley Bolt 45
GENERAL INFORMATION
02–6Chery Automobile Co., Ltd.

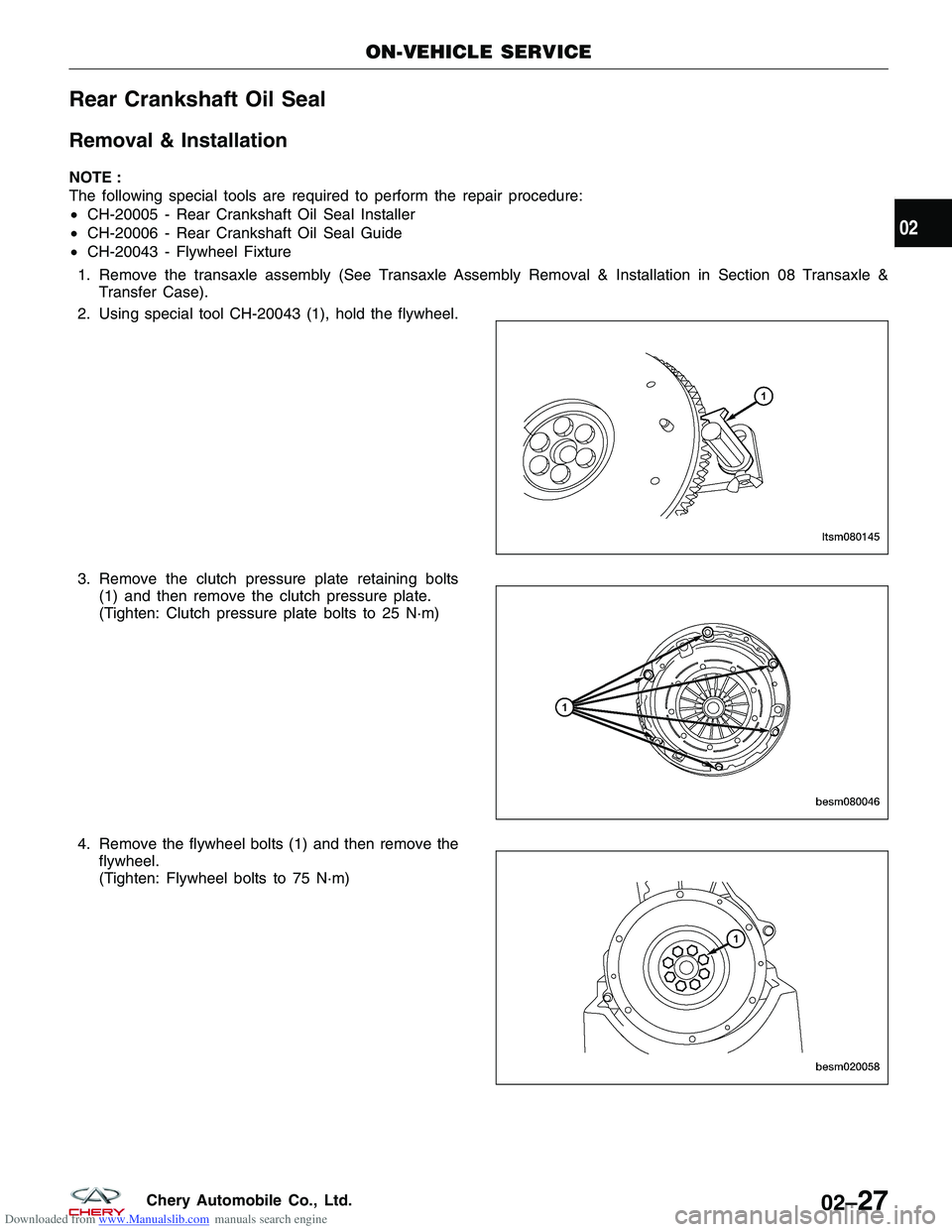

Page 56 of 1903
Downloaded from www.Manualslib.com manuals search engine Rear Crankshaft Oil Seal
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
•CH-20005 - Rear Crankshaft Oil Seal Installer
• CH-20006 - Rear Crankshaft Oil Seal Guide
• CH-20043 - Flywheel Fixture
1. Remove the transaxle assembly (See Transaxle Assembly Removal & Installation in Section 08 Transaxle & Transfer Case).
2. Using special tool CH-20043 (1), hold the flywheel.
3. Remove the clutch pressure plate retaining bolts (1) and then remove the clutch pressure plate.
(Tighten: Clutch pressure plate bolts to 25 N·m)
4. Remove the flywheel bolts (1) and then remove the flywheel.
(Tighten: Flywheel bolts to 75 N·m)
ON-VEHICLE SERVICE
LTSM080145
BESM080046
BESM020058
02
02–27Chery Automobile Co., Ltd.

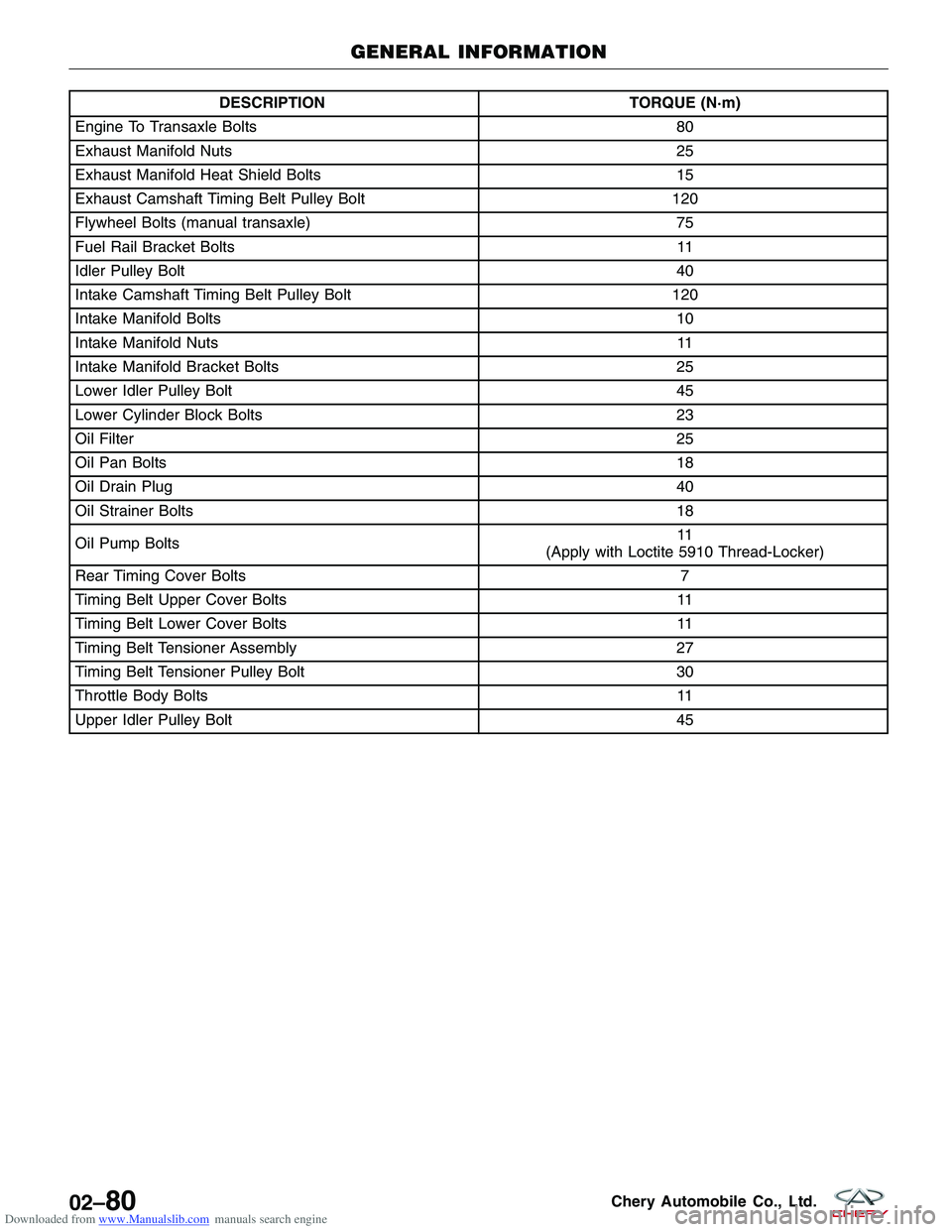

Page 109 of 1903
Downloaded from www.Manualslib.com manuals search engine DESCRIPTIONTORQUE (N·m)
Engine To Transaxle Bolts 80
Exhaust Manifold Nuts 25
Exhaust Manifold Heat Shield Bolts 15
Exhaust Camshaft Timing Belt Pulley Bolt 120
Flywheel Bolts (manual transaxle) 75
Fuel Rail Bracket Bolts 11
Idler Pulley Bolt 40
Intake Camshaft Timing Belt Pulley Bolt 120
Intake Manifold Bolts 10
Intake Manifold Nuts 11
Intake Manifold Bracket Bolts 25
Lower Idler Pulley Bolt 45
Lower Cylinder Block Bolts 23
Oil Filter 25
Oil Pan Bolts 18
Oil Drain Plug 40
Oil Strainer Bolts 18
Oil Pump Bolts 11
(Apply with Loctite 5910 Thread-Locker)
Rear Timing Cover Bolts 7
Timing Belt Upper Cover Bolts 11
Timing Belt Lower Cover Bolts 11
Timing Belt Tensioner Assembly 27
Timing Belt Tensioner Pulley Bolt 30
Throttle Body Bolts 11
Upper Idler Pulley Bolt 45
GENERAL INFORMATION
02–80Chery Automobile Co., Ltd.

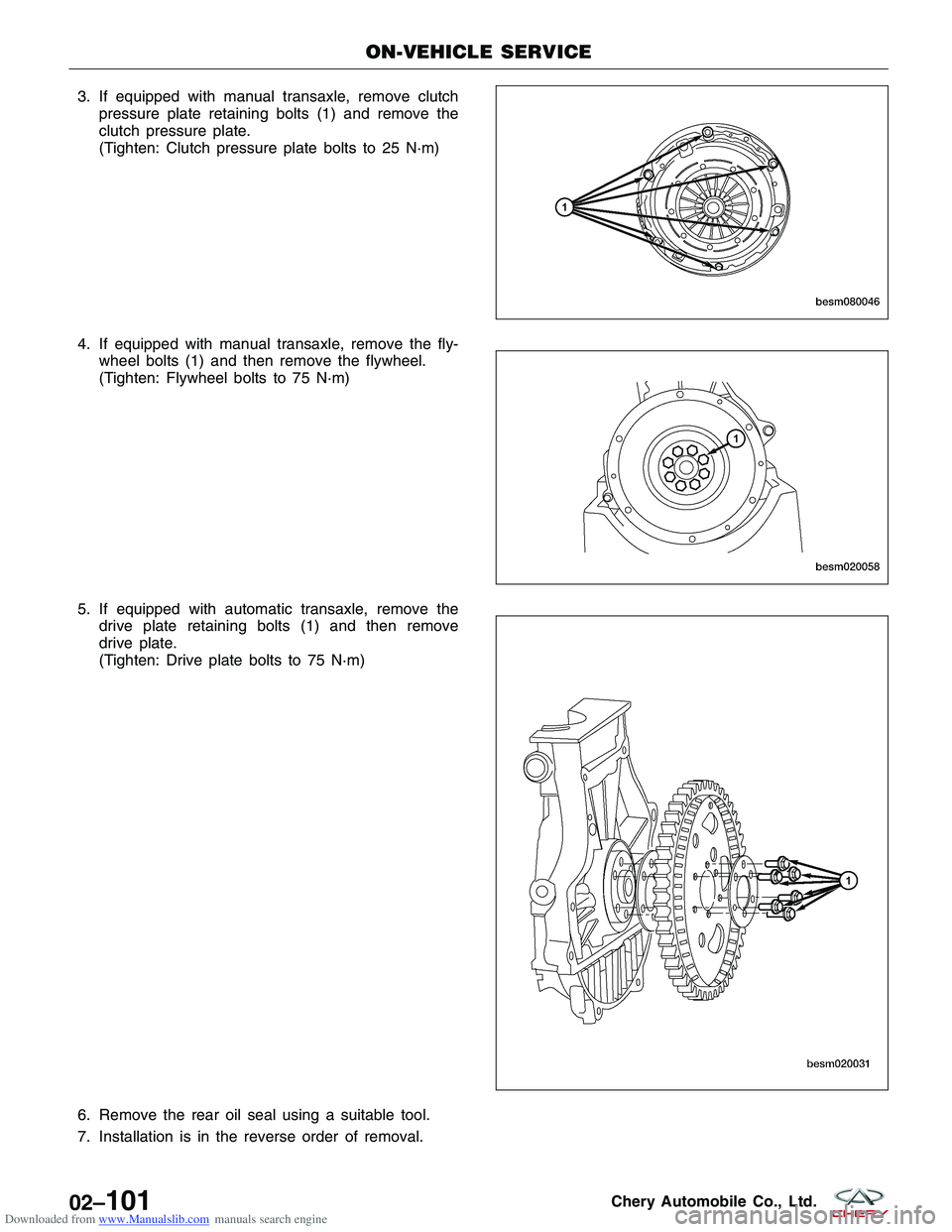

Page 130 of 1903
Downloaded from www.Manualslib.com manuals search engine 3. If equipped with manual transaxle, remove clutchpressure plate retaining bolts (1) and remove the
clutch pressure plate.
(Tighten: Clutch pressure plate bolts to 25 N·m)
4. If equipped with manual transaxle, remove the fly- wheel bolts (1) and then remove the flywheel.
(Tighten: Flywheel bolts to 75 N·m)
5. If equipped with automatic transaxle, remove the drive plate retaining bolts (1) and then remove
drive plate.
(Tighten: Drive plate bolts to 75 N·m)
6. Remove the rear oil seal using a suitable tool.
7. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
BESM080046
BESM020058
BESM020031
02–101Chery Automobile Co., Ltd.

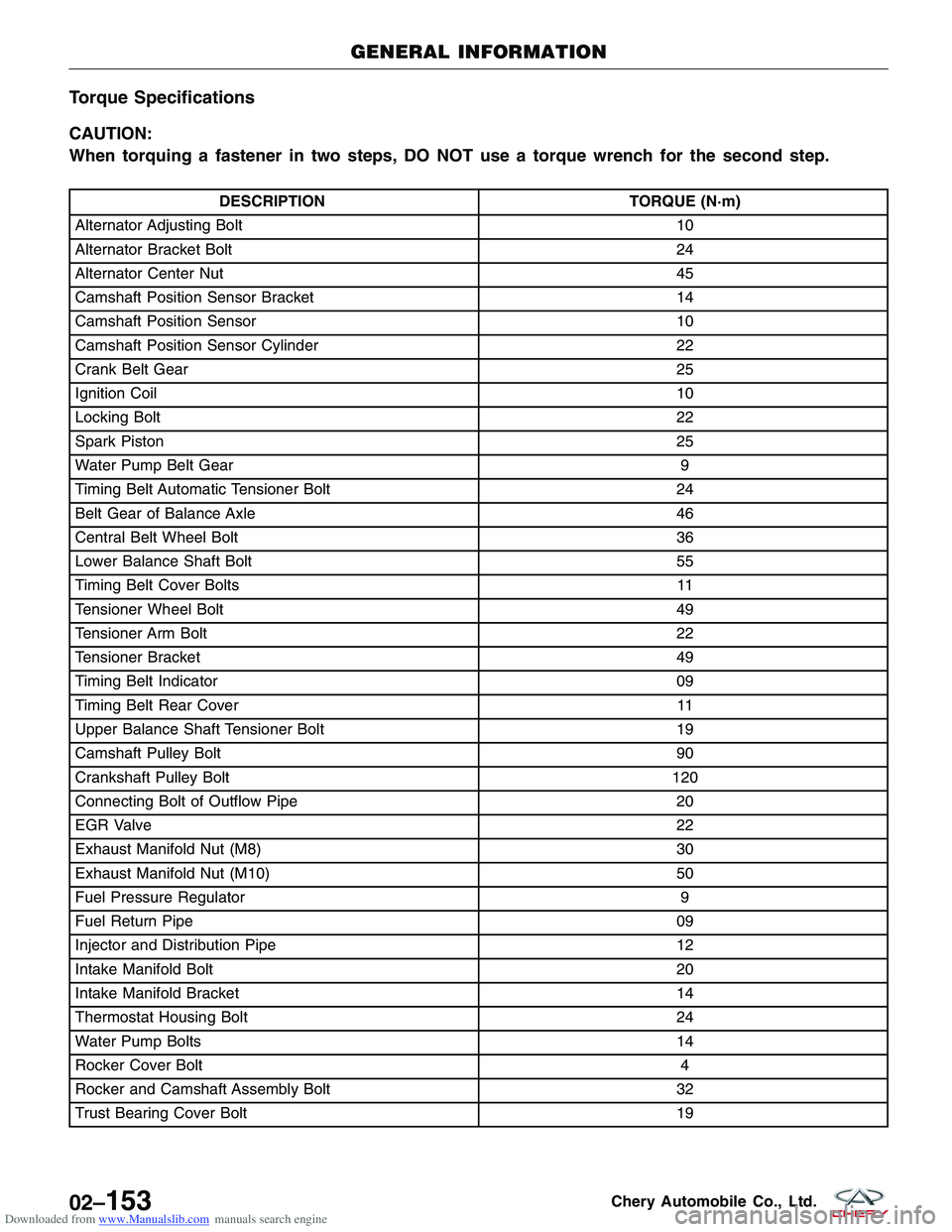

Page 182 of 1903
Downloaded from www.Manualslib.com manuals search engine Torque Specifications
CAUTION:
When torquing a fastener in two steps, DO NOT use a torque wrench for the second step.
DESCRIPTIONTORQUE (N·m)
Alternator Adjusting Bolt 10
Alternator Bracket Bolt 24
Alternator Center Nut 45
Camshaft Position Sensor Bracket 14
Camshaft Position Sensor 10
Camshaft Position Sensor Cylinder 22
Crank Belt Gear 25
Ignition Coil 10
Locking Bolt 22
Spark Piston 25
Water Pump Belt Gear 9
Timing Belt Automatic Tensioner Bolt 24
Belt Gear of Balance Axle 46
Central Belt Wheel Bolt 36
Lower Balance Shaft Bolt 55
Timing Belt Cover Bolts 11
Tensioner Wheel Bolt 49
Tensioner Arm Bolt 22
Tensioner Bracket 49
Timing Belt Indicator 09
Timing Belt Rear Cover 11
Upper Balance Shaft Tensioner Bolt 19
Camshaft Pulley Bolt 90
Crankshaft Pulley Bolt 120
Connecting Bolt of Outflow Pipe 20
EGR Valve 22
Exhaust Manifold Nut (M8) 30
Exhaust Manifold Nut (M10) 50
Fuel Pressure Regulator 9
Fuel Return Pipe 09
Injector and Distribution Pipe 12
Intake Manifold Bolt 20
Intake Manifold Bracket 14
Thermostat Housing Bolt 24
Water Pump Bolts 14
Rocker Cover Bolt 4
Rocker and Camshaft Assembly Bolt 32
Trust Bearing Cover Bolt 19
GENERAL INFORMATION
02–153Chery Automobile Co., Ltd.

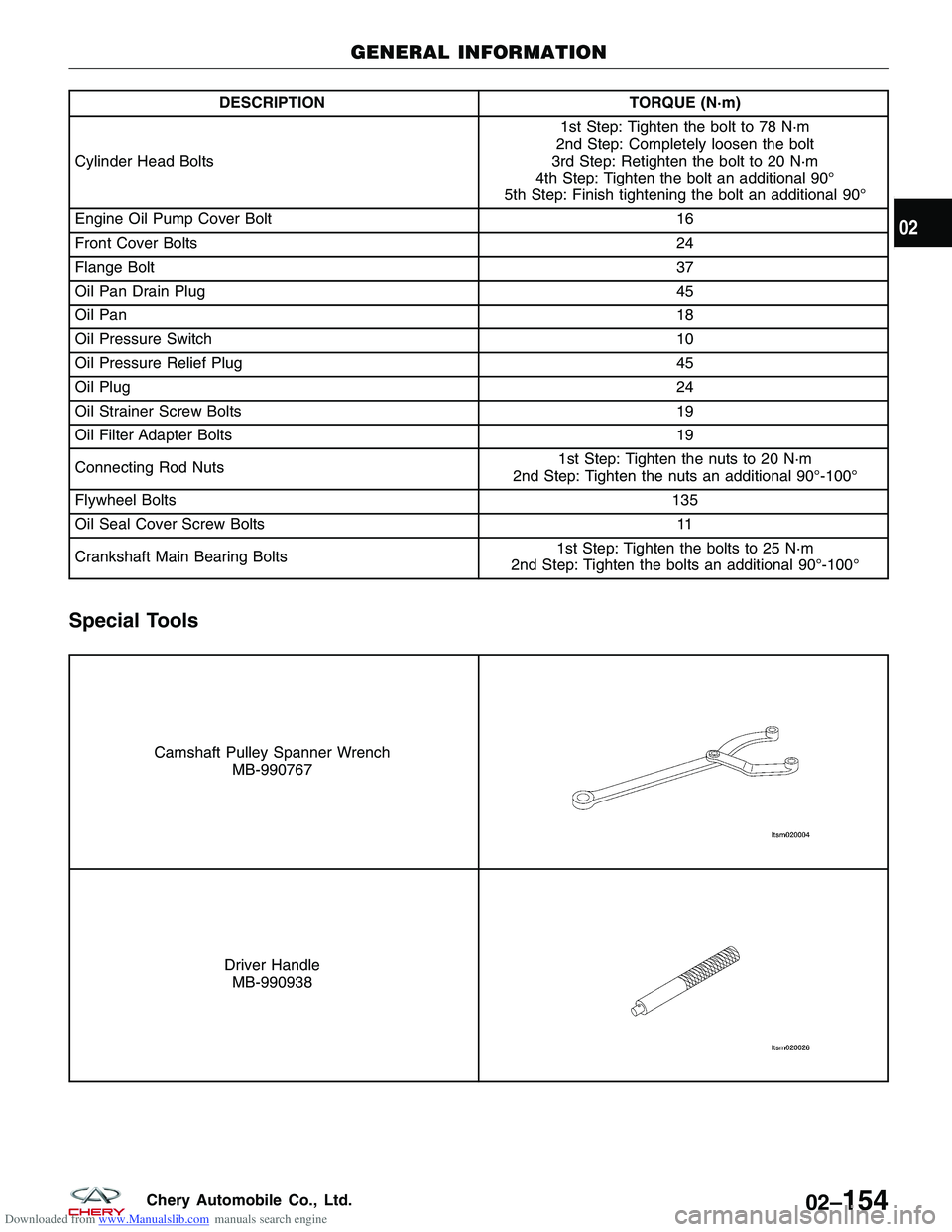

Page 183 of 1903
Downloaded from www.Manualslib.com manuals search engine DESCRIPTIONTORQUE (N·m)
Cylinder Head Bolts 1st Step: Tighten the bolt to 78 N·m
2nd Step: Completely loosen the bolt
3rd Step: Retighten the bolt to 20 N·m
4th Step: Tighten the bolt an additional 90°
5th Step: Finish tightening the bolt an additional 90°
Engine Oil Pump Cover Bolt 16
Front Cover Bolts 24
Flange Bolt 37
Oil Pan Drain Plug 45
Oil Pan 18
Oil Pressure Switch 10
Oil Pressure Relief Plug 45
Oil Plug 24
Oil Strainer Screw Bolts 19
Oil Filter Adapter Bolts 19
Connecting Rod Nuts 1st Step: Tighten the nuts to 20 N·m
2nd Step: Tighten the nuts an additional 90°-100°
Flywheel Bolts 135
Oil Seal Cover Screw Bolts 11
Crankshaft Main Bearing Bolts 1st Step: Tighten the bolts to 25 N·m
2nd Step: Tighten the bolts an additional 90°-100°
Special Tools
Camshaft Pulley Spanner Wrench MB-990767
Driver HandleMB-990938
GENERAL INFORMATION
02
02–154Chery Automobile Co., Ltd.

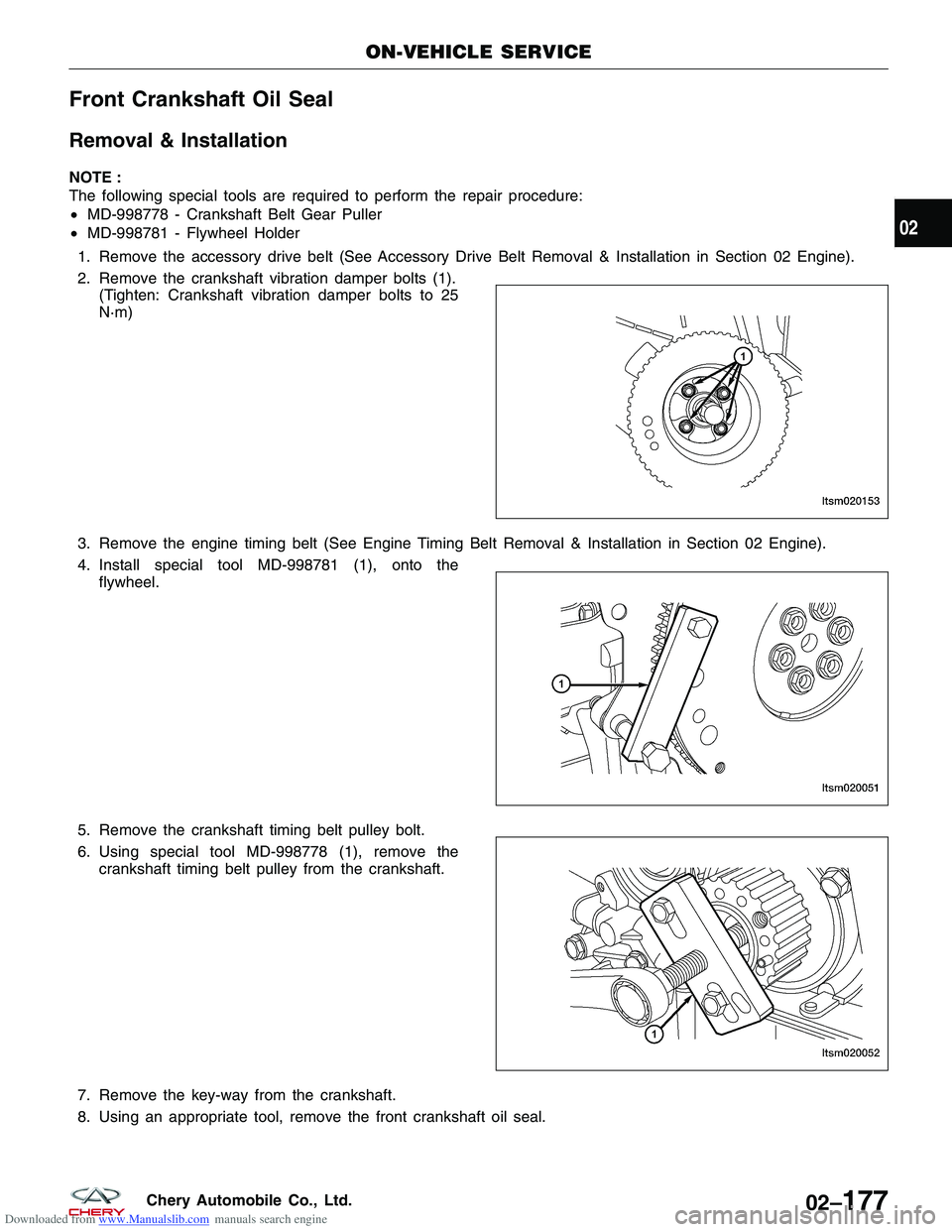

Page 206 of 1903
Downloaded from www.Manualslib.com manuals search engine Front Crankshaft Oil Seal
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
•MD-998778 - Crankshaft Belt Gear Puller
• MD-998781 - Flywheel Holder
1. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02 Engine).
2. Remove the crankshaft vibration damper bolts (1). (Tighten: Crankshaft vibration damper bolts to 25
N·m)
3. Remove the engine timing belt (See Engine Timing Belt Removal & Installation in Section 02 Engine).
4. Install special tool MD-998781 (1), onto the flywheel.
5. Remove the crankshaft timing belt pulley bolt.
6. Using special tool MD-998778 (1), remove the crankshaft timing belt pulley from the crankshaft.
7. Remove the key-way from the crankshaft.
8. Using an appropriate tool, remove the front crankshaft oil seal.
ON-VEHICLE SERVICE
LTSM020153
LTSM020051 LTSM020052
02
02–177Chery Automobile Co., Ltd.

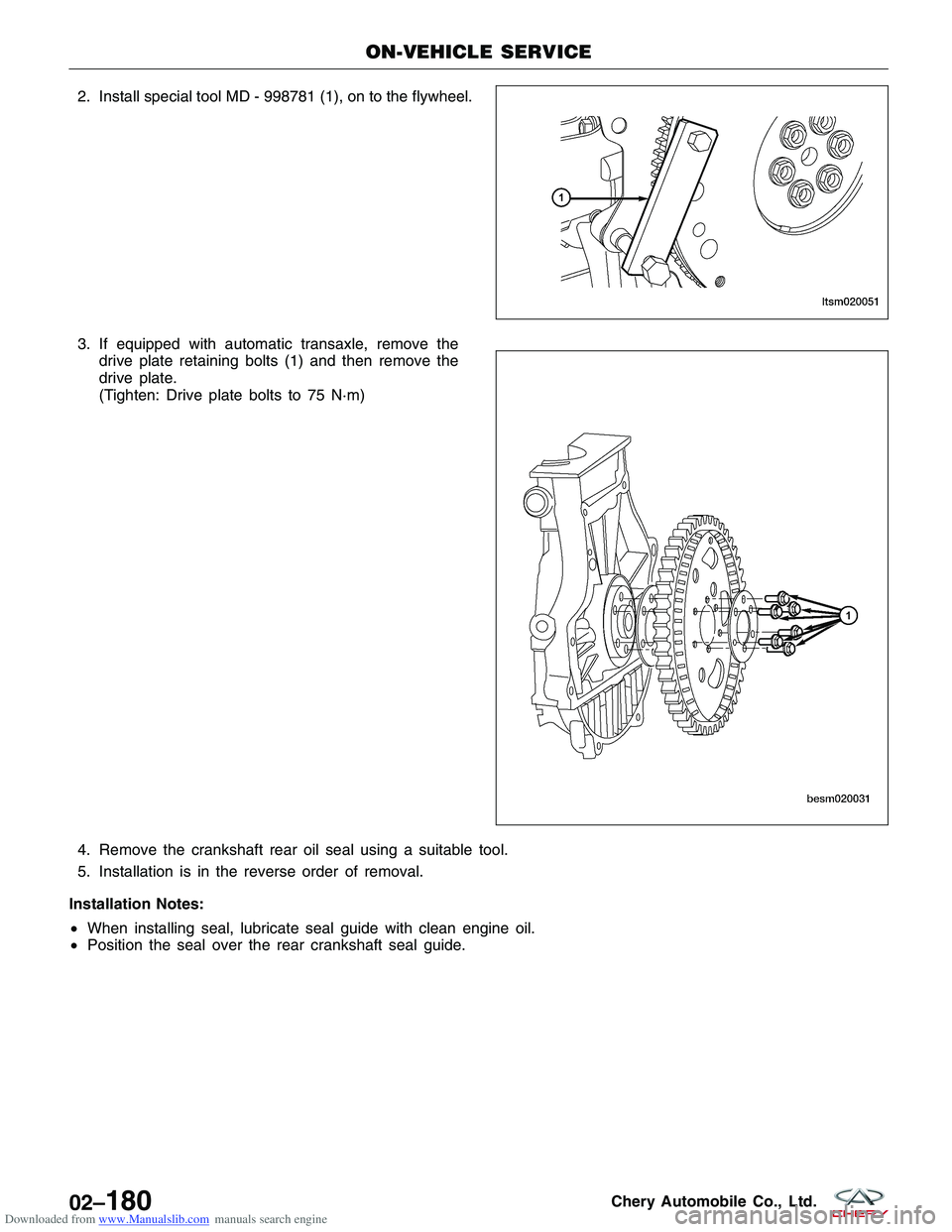

Page 209 of 1903
Downloaded from www.Manualslib.com manuals search engine 2. Install special tool MD - 998781 (1), on to the flywheel.flywheel.
3. If equipped with automatic transaxle, remove the drive plate retaining bolts (1) and then remove the
drive plate.
(Tighten: Drive plate bolts to 75 N·m)
4. Remove the crankshaft rear oil seal using a suitable tool.
5. Installation is in the reverse order of removal.
Installation Notes:
• When installing seal, lubricate seal guide with clean engine oil.
• Position the seal over the rear crankshaft seal guide.
ON-VEHICLE SERVICE
LTSM020051
BESM020031
02–180Chery Automobile Co., Ltd.
Page 826 of 1903
Downloaded from www.Manualslib.com manuals search engine Crankshaft Position (CKP) Sensor
Description
The Crankshaft Position (CKP) sensor is located on the flywheel shell facing the gear teeth of the signal plate. It
detects the fluctuation of the engine revolution. The sensor consists of a permanent magnet and Induction coil.
Operation
When the engine is running, the high and low parts of the teeth cause the gap with the sensor to change. The
changing gap cause the magnetic field near the sensor to change. Due to the changing magnetic field, the voltage
from the sensor changes. The Engine Control Module (ECM) receives the voltage signal and detects the fluctuation
of the engine revolution.
Removal & Installation
1. Disconnect the negative battery cable.
2. Disconnect the crankshaft position sensor electricalconnector from the crankshaft position sensor.
3. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02
Engine).
4. Remove the crankshaft pulley (See Crankshaft Pul- ley Removal & Installation in Section 02 Engine).
5. Remove the timing belt lower cover (See Timing Belt Lower Cover Removal & Installation in Section
02 Engine).
6. Remove the crankshaft position sensor retaining bolts (1).
(Tighten: Crankshaft position sensor retaining bolt
to 20 N·m)
7. Installation is in the order of removal.
ON-VEHICLE SERVICE
LTSM030012
03–542Chery Automobile Co., Ltd.

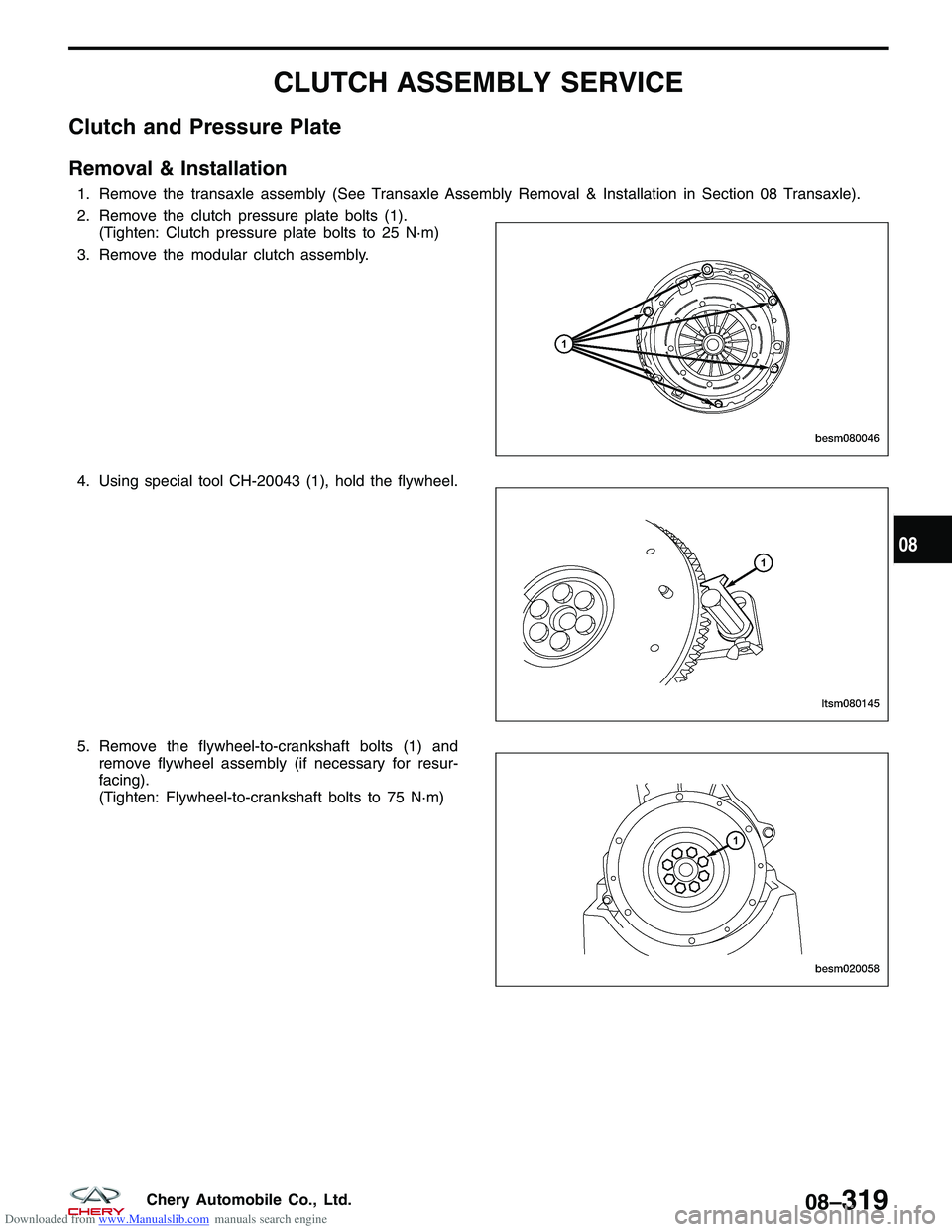

Page 1262 of 1903
Downloaded from www.Manualslib.com manuals search engine CLUTCH ASSEMBLY SERVICE
Clutch and Pressure Plate
Removal & Installation
1. Remove the transaxle assembly (See Transaxle Assembly Removal & Installation in Section 08 Transaxle).
2. Remove the clutch pressure plate bolts (1).(Tighten: Clutch pressure plate bolts to 25 N·m)
3. Remove the modular clutch assembly.
4. Using special tool CH-20043 (1), hold the flywheel.
5. Remove the flywheel-to-crankshaft bolts (1) and remove flywheel assembly (if necessary for resur-
facing).
(Tighten: Flywheel-to-crankshaft bolts to 75 N·m)
BESM080046
LTSM080145
BESM020058
08
08–319Chery Automobile Co., Ltd.
