CHEVROLET ASTRO 1996 Owners Manual

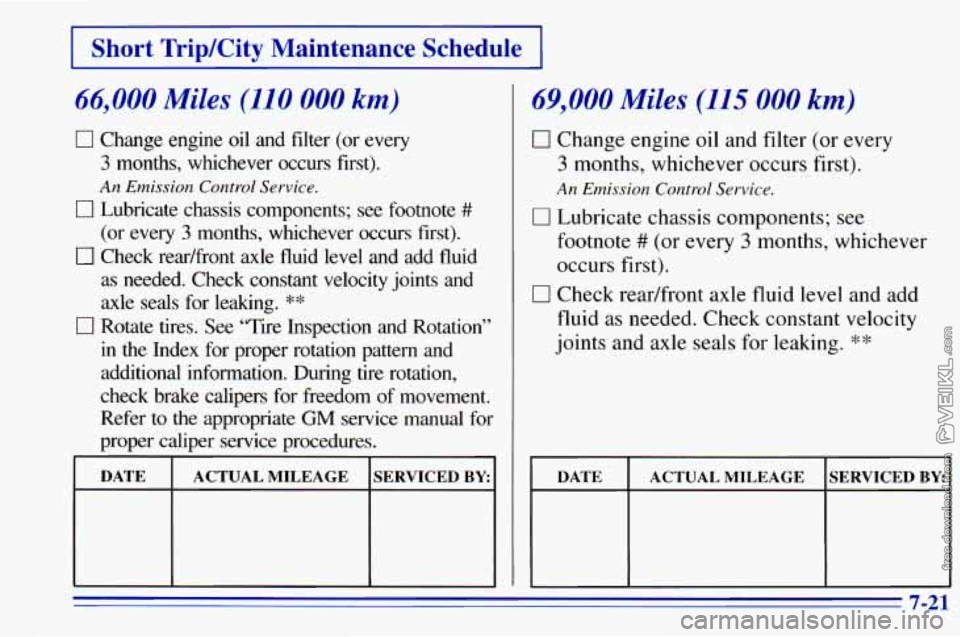

I Short TripKity Maintenance Schedule I
66,000 Miles (110 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking. **
0 Rotate tires. See “Tire Inspection and Rotation’’
in the Index for proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom
of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE ACTUAL MILEAGE SERVICED BY:
69,000 Miles (115 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate chassis components; see
An Emission Control Service.
footnote # (or every 3 months, whichever
occurs
first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
DATE
SERVICED BY ACTUAL MILEAGE
7-21

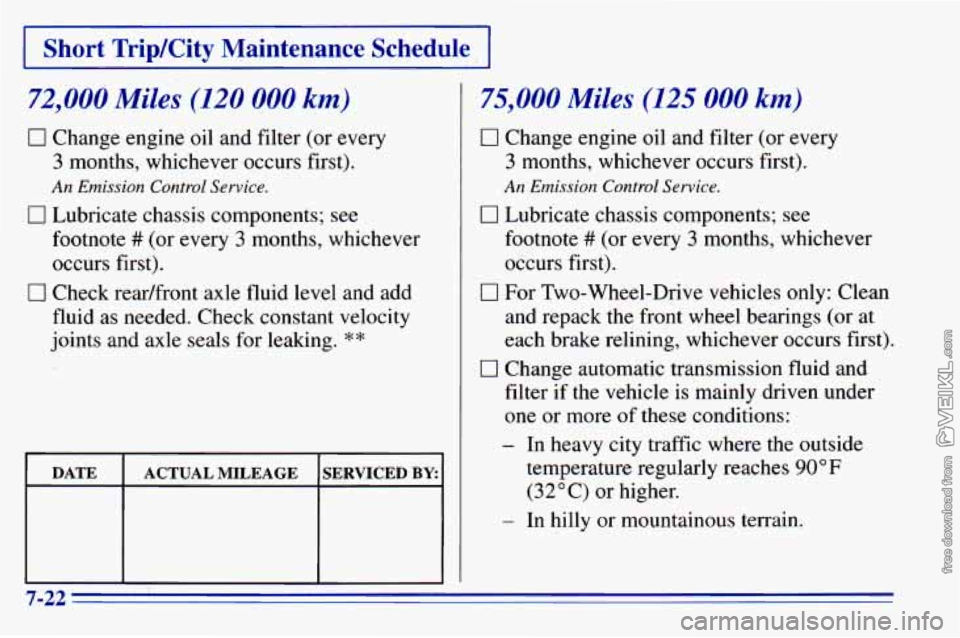

Short TripKity Maintenance Schedule
72,000 Miles (120 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
footnote
# (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I DATE I ACTUAL MILEAGE SERVICED BYI
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
footnote
## (or every 3 months, whichever
occurs first).
0 For Two-Wheel-Drive vehicles only: Clean
and repack
the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 O F
(32 O C) or higher.
- In hilly or mountainous terrain.
7-22

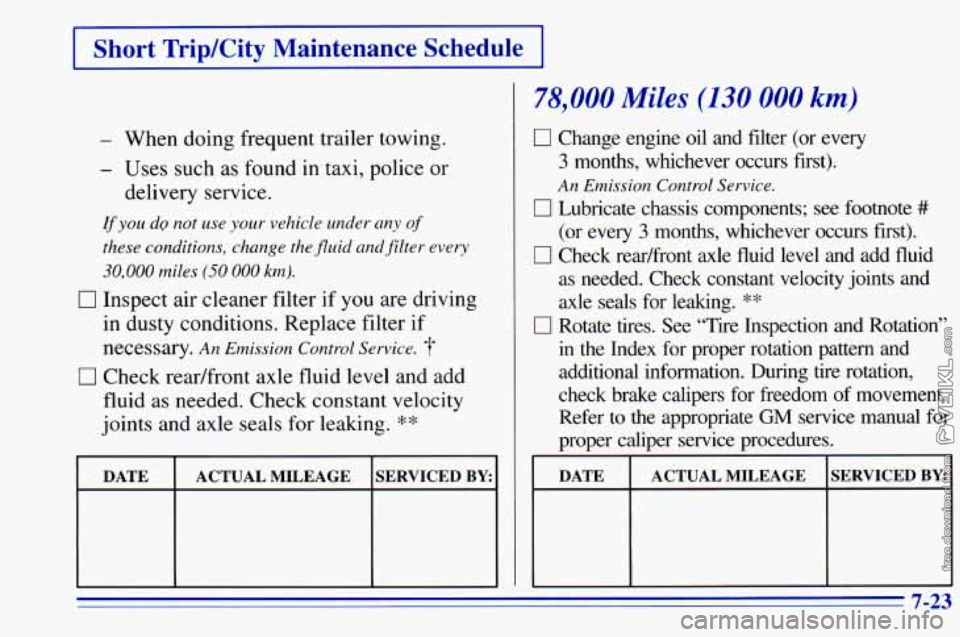

I Short TripKity Maintenance Schedule I
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you d9 not use your vehicle under any of
these conditions, change the fluid and filter every
30,000 miles (50 000 knz).
in dusty conditions. Replace filter if
necessary.
An Emission Control Service. -f-
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
c] Inspect air cleaner filter if you are driving
I DATE I ACTUAL MILEAGE I SERVICED BY I
78,000 Miles (130 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking.
**
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE SERVICED BY: ACTUAL MILEAGE
:
7-23

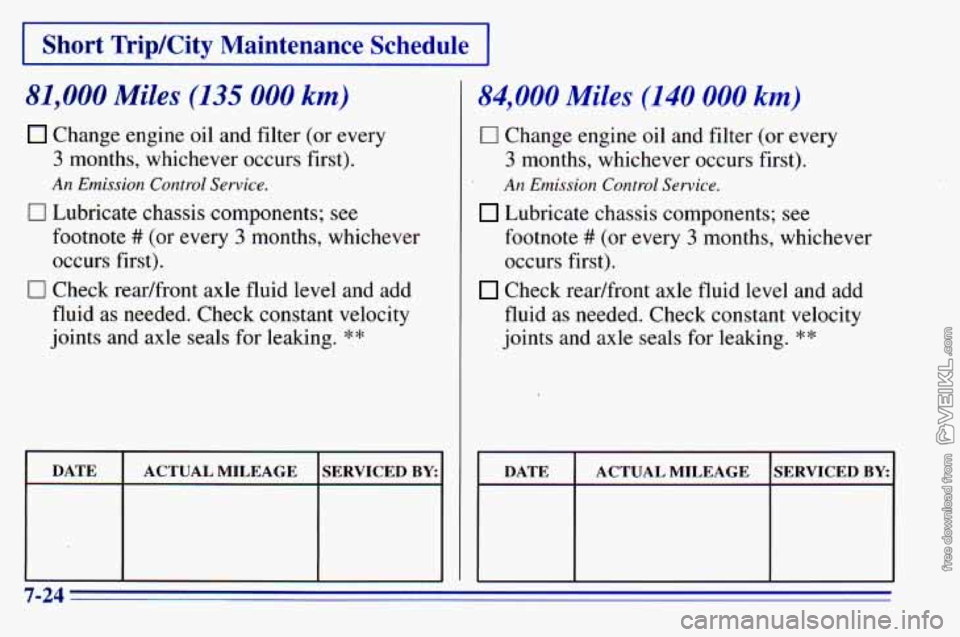

I Short TripKity Maintenance Schedule I
81,000 Miles (135 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
footnote
# (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I DATE ACTUAL MILEAGE SERVICED BY
84,000 Miles (140 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
Lubricate chassis components; see
’ An Emission Control Service.
footnote # (or every 3 months, whichever
occurs first).
Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
7-24

1
w

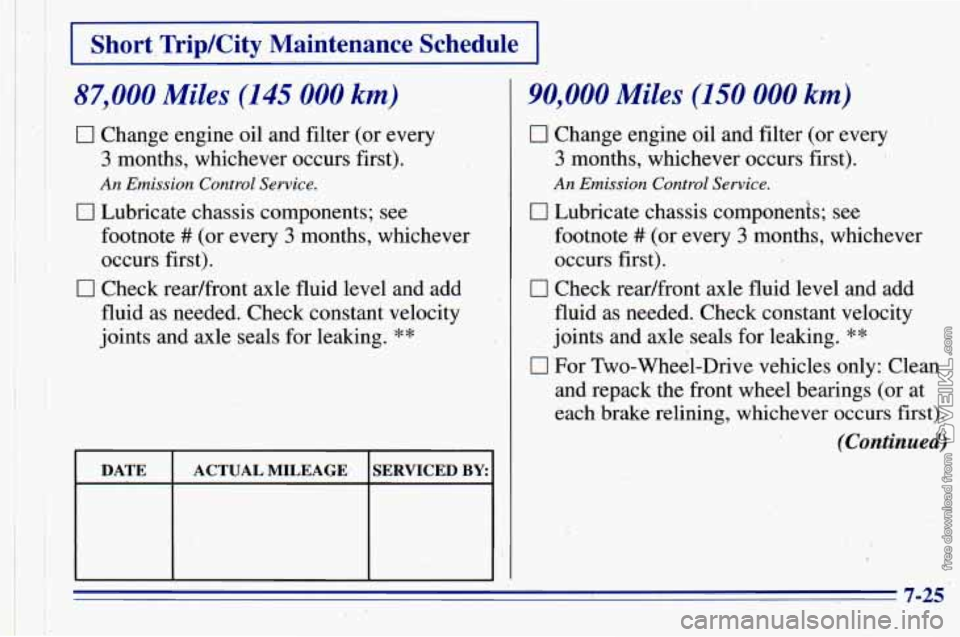

Short. TripKity Maintenance Schedule
87,000 Miles (145 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
footnote
## (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
6
ACTUAL MILEAGE SERVICED BY:
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first). 8,
An Emission Control Sewice.
0 Lubricate chassis componenis; see
footnote
## (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaki,ng.
**
0 For Two-Wheel-Drive vehicles only: Clean
and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
(Continued)
7-25
6'
'i

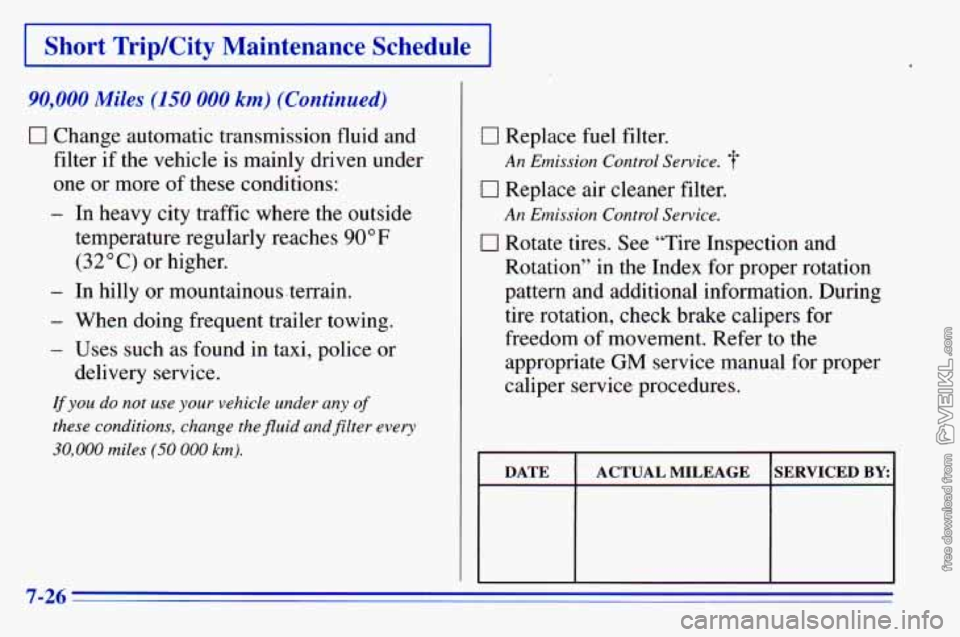

I Short Trip/City Maintenance Schedule I
90,000 Miles (150 000 km) (Continued)
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one or more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90” F
(32°C) or higher.
- In hilly or mountainous. terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of
these conditions, change the fluid and filter every
30,000 miles (50 000 km).
0 Replace fuel filter.
0 Replace air cleaner filter.
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
An Emission Control Service.
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
I I I
DATE ACTUAL MILEAGE SERVICED BY
7-26

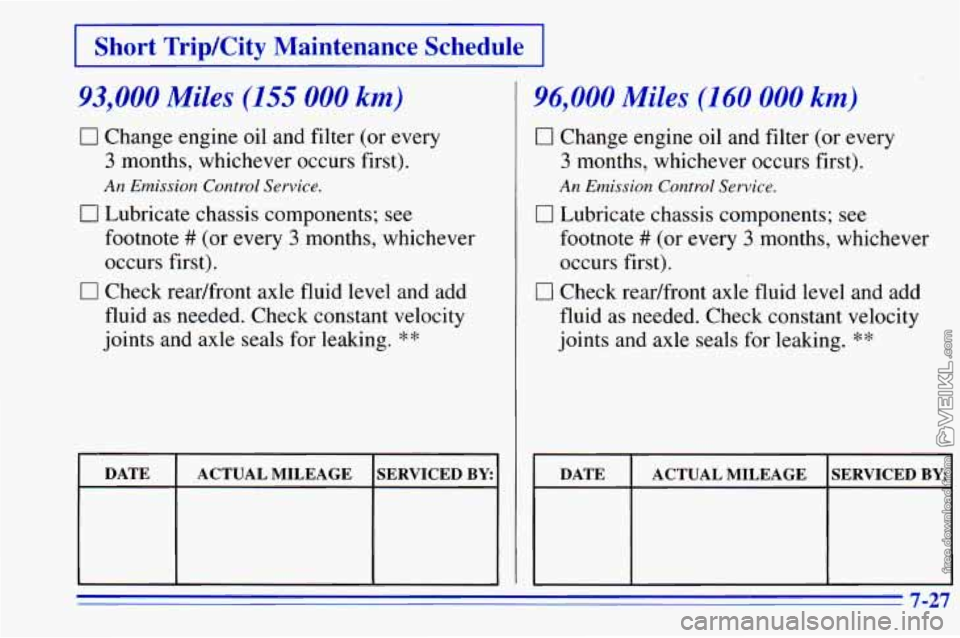

1 Short Trip/City Maintenance Schedule I
93,000 Miles (155 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate chassis components; see
An Emission Control Service.
footnote # (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I I I 3
DATE
SERVICED BY: ACTUAL MILEAGE
96,000 Miles (160 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate chassis components; see
An Emission Control Service.
footnote # (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
DATE
SERVICED BY: ACTUAL MILEAGE
7-27

100,000 Miles (1 66 000 km)
0 Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant”
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test
cooling system and pressure cap.
An Emission Control Service.
0 Inspect spark plug wires.
Cl Replace spark plugs.
An Emission Control Service.
0 Inspect Positive Crankcase Ventilation
(Pcv) valve.
An Emission Control Service.
An Emission Control Service.
I DATE SERVICED BY ACTUAL MILEAGE

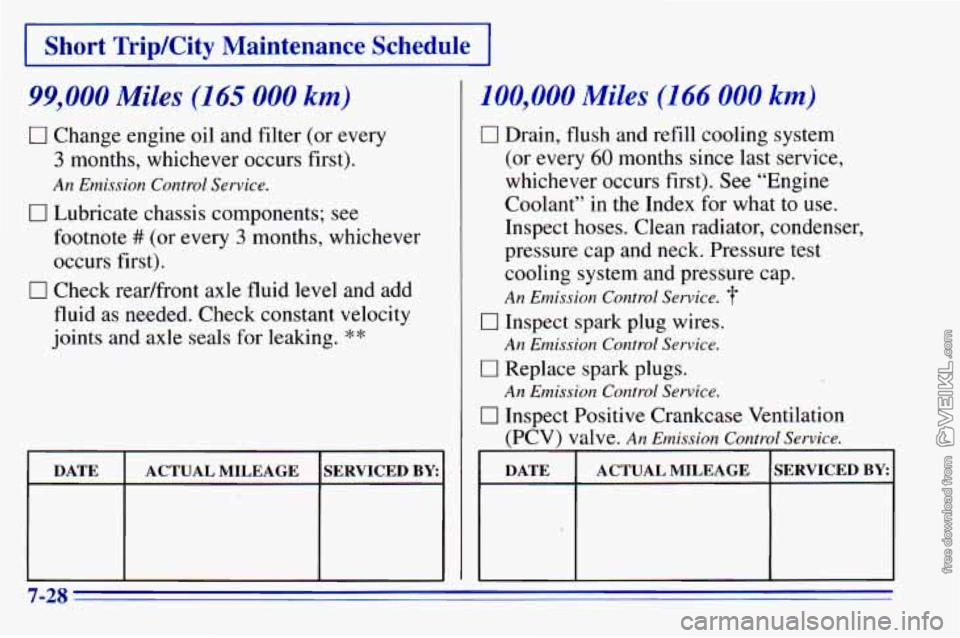

Short
TripKity Maintenance Schedule
99,000 Miles (165 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
footnote
# (or every 3 months, whichever
occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals
for leaking. **
DATE
SERVICED BY: ACTUAL MILEAGE
7-28

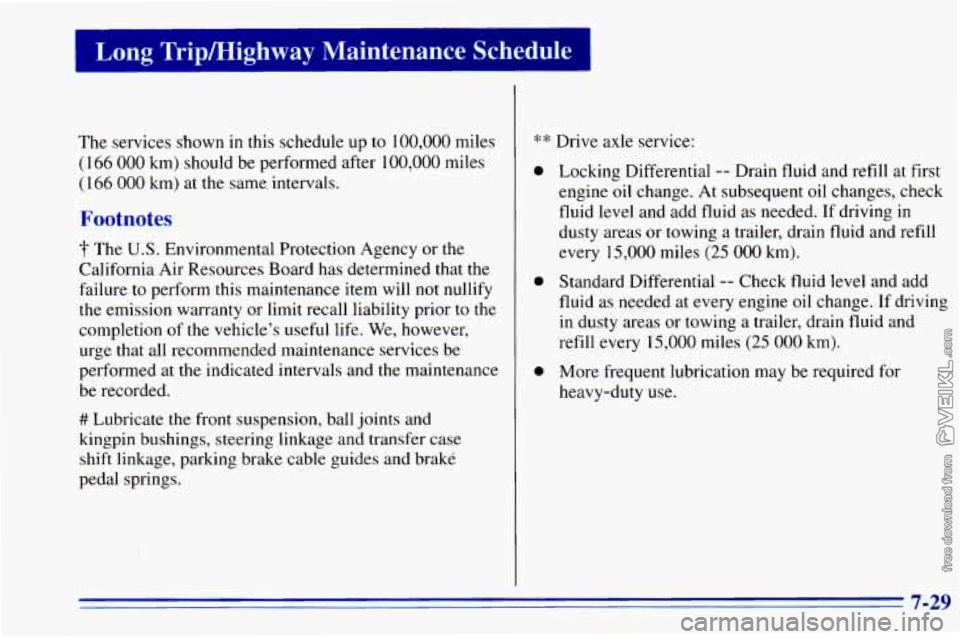

Long Tripmighway Maintenance Schedule
The services sbown in this schedule up to 100,000 miles
(166
000 km) should be performed after 100,000 miles
(166 000 km) at the same, intervals.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not
nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate the front suspension, ball joints and
kingpin bushings, steering linkage and transfer case
shift linkage, parking brake cable guides and brake
pedal springs.
** Drive axle service:
0
0
0
Locking Differential -- Drain fluid and refill at first
engine
oil change. At subsequent oil changes, check
fluid level and add fluid as needed. If driving in
dusty areas or towing a trailer, drain fluid and refill
every
15,000 miles (25 000 km).
Standard Differential
-- Check fluid level and add
fluid as needed at every engine
oil change. If driving
in dusty areas or towing a trailer, drain fluid and
refill every 15,000 miles
(25 000 km).
More frequent lubrication may be required for
heavy-duty use.
7-29

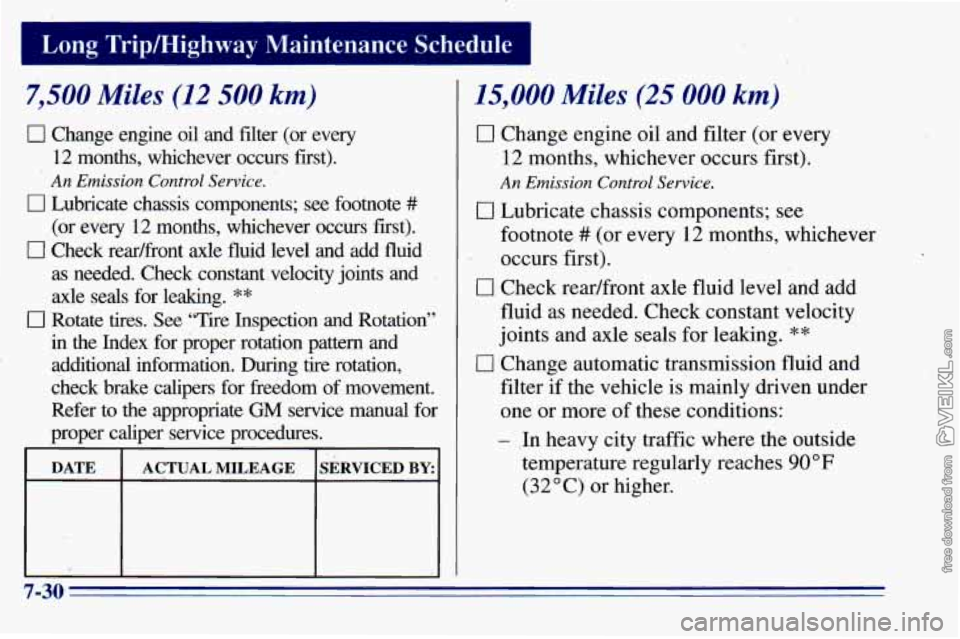

7,500 Miles (12 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check constant .velocity joints
and
axle seals for leaking. **
0 Rotate tires. See “Tire Inspection and Rotation’’
in the Index for proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom
of movement.
Refer to the appropriate
GM service manual for
DroDer calker service txocedures.
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see
1 occurs first).
0 Check readfront axle fluid level-and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one
or more of these conditions:
- :In heavy city traffic where the outside
temperature regularly reaches
90°F
(32 O C) or higher.
footnote
# (or every 12 months, whichever
7-30.
