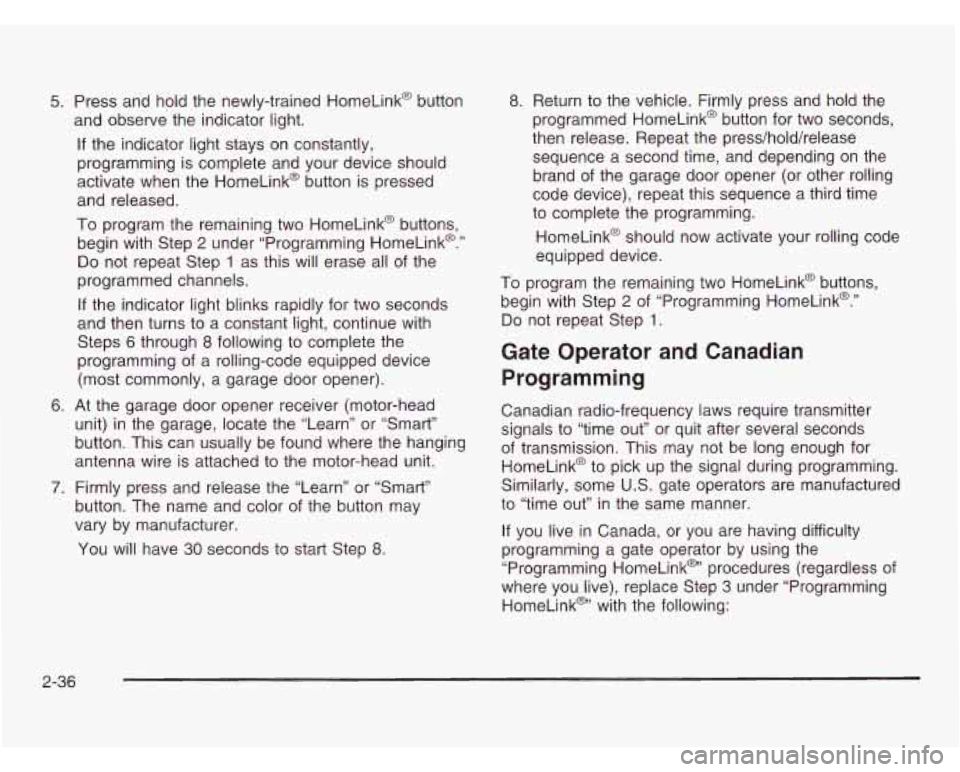

5. Press and hold the newly-trained HomeLink@ button
and observe the indicator light.
If the indicator light stays on constantly,
programming is complete and your device should
activate when the HomeLink@ button
is pressed
and released.
To program the remaining two HomeLink@ buttons,
begin with Step
2 under “Programming HomeLink@.”
Do not repeat Step 1 as this will erase all of the
programmed channels.
If the indicator light blinks rapidly for two seconds
and then turns to a constant light, continue with
Steps
6 through 8 following to complete the
programming of a rolling-code equipped device
(most commonly, a garage door opener).
6. At the garage door opener receiver (motor-head
unit) in the garage, locate the “Learn” or “Smart”
button. This can usually be found where the hanging
antenna wire is attached to the motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color
of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8. 8.
Return to the
vehicle. Firmly press and hold the
programmed HomeLink@ button for two seconds,
then release. Repeat the press/hold/release
sequence a second time, and depending
on the
brand of the garage door opener (or other rolling
code device), repeat this sequence a third time
to complete the programming.
HomeLink@ should now activate your rolling code
equipped device.
To program the remaining two HomeLink@ buttons,
begin with Step
2 of “Programming HomeLink@.”
Do not repeat Step 1.
Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds
of transmission. This may not be long enough for
HomeLink@ to pick up the signal during programming.
Similarly, some
U.S. gate operators are manufactured
to “time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the
“Programming HomeLink@’ procedures (regardless
of
where you live), replace Step 3 under “Programming
HomeLink@’ with the following:
2-36

Section 3 Instrument Panel
Instrument Panel Overview ............................... 3.2
Hazard Warning Flashers
................................ 3-4
Other Warning Devices
................................... 3-5
Horn
............................................................. 3-5
Tilt Wheel
..................................................... 3-5
Turn SignaVMultifunction Lever
......................... 3.6
Exterior Lamps
.......................................... 3.12
Interior Lamps
................................ ....... 3.15
Accessory Power Outlets
............................... 3.16
Ashtrays and Cigarette Lighter
........................ 3.17
Climate Controls ............................................ 3.18
Climate Control System
................................. 3.18
Rear Heating System
................................... -3-1 9
Rear Air Conditioning System ......................... 3.20
Rear Climate Control System
......................... 3.21
Warning Lights, Gages and Indicators ............. 3.23
Instrument Panel Cluster
................................ 3.24
Speedometer and Odometer
........................... 3.25
Safety Belt Reminder Light
............................. 3.26
Air Bag Readiness Light
................................ 3-26
Charging System Light
.................................. 3.27
Voltmeter Gage
........................................... -3-28
Brake System Warning Light
.......................... 3.28 Anti-Lock
Brake System Warning Light
............. 3.29
Engine Coolant Temperature Gage
= = =. ~ = = ~ ~ ~ = i. 3-39
Malfunction Indicator Lamp
............................. 3.30
Oil Pressure Gage
........................................ 3.34
Security Light
.............................................. -3-35
Service All-Wheel Drive Light
......................... 3.35
Tow/Haul Mode Light
......... ................... 3.36
Fuel Gage
................................................... 3.36
Low Fuel Warning Light
................................. 3.37
Audio System@) ............................................. 3.38
Setting the Time for Radios with
the Set Button
.......................................... 3-38
Setting the Time for Radios with
HR and MN Buttons .................................. 3-38
AM-FM Radio
............................................... 3.39
Radio with CD
.............................................. 3-41
Theft-Deterrent Feature
........... ................ 3.47
Understanding Radio Reception
................... 3.50
Care of Your CDs
......................................... 3-50
Care of Your CD Player
................................ 3-50
Fixed Mast Antenna
...................................... 3.50
Check Gages Warning
Light
........................... 3-36
Rear Seat Audio (RSA)
. . .... ............ 3.46
3-
1

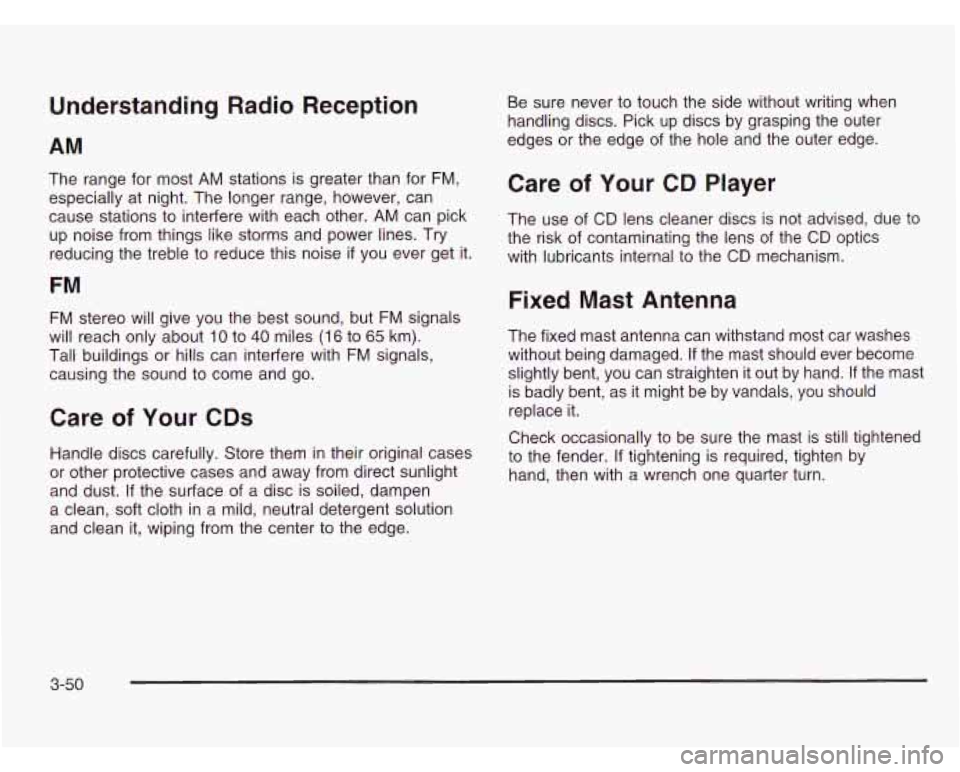

Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise
if you ever get it.
FM
FM stereo will give you the best sound, but FM signals
will reach only about
10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere with FM signals,
causing the sound to come and go.
Care of Your CDs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen
a clean, soft cloth in a mild, neutral detergent solution
and clean it, wiping from the center to the edge. Be
sure never to touch the side without writing when
handling discs. Pick up discs by grasping the outer
edges or the edge of the hole and the outer edge.
Care of Your CD Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics
with lubricants internal to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged.
If the mast should ever become
slightly bent, you can straighten it out by hand. If the mast
is badly bent, as it might be by vandals, you should
replace it.
Check occasionally to be sure the mast is still tightened
to the fender.
If tightening is required, tighten by
hand, then with a wrench one quarter turn.
3-50

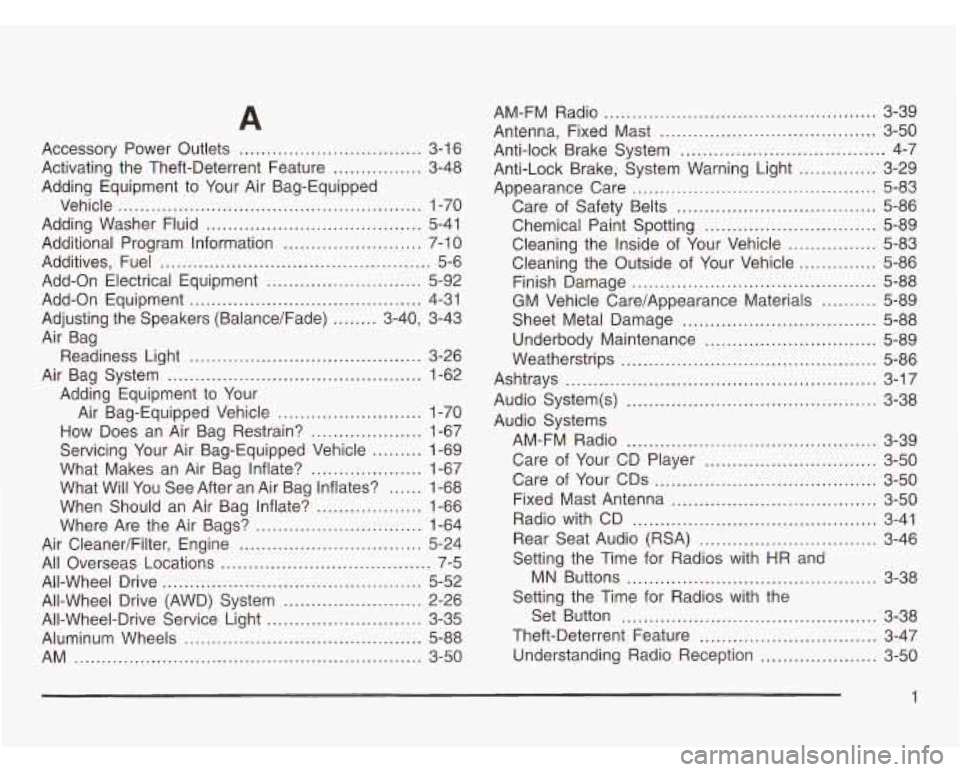

Accessory Power Outlets ................................. 3-16
Activating the Theft-Deterrent Feature
................ 3-48
Adding Equipment to Your Air Bag-Equipped
Vehicle
....................................................... 1-70
Adding Washer Fluid
....................................... 5-41
Additional Program Information
......................... 7-1 0
Additives, Fuel ................................................. 5-6
Add-On Electrical Equipment
............................ 5-92
Add-on Equipment
.......................................... 4-31
Adjusting the Speakers (Balance/Fade)
........ 3-40, 3-43
Air Bag
Readiness Light
.......................................... 3-26
Air Bag System
.............................................. 1-62
Adding Equipment to Your
Air Bag-Equipped Vehicle
...................... 1-70
How Does an Air Bag Restrain?
.................... 1-67
Servicing Your Air Bag-Equipped Vehicle
......... 1-69
What Will You See After an Air Bag inflates?
...... 1-68
When Should an Air Bag Inflate?
................... 1-66
Where Are the Air Bags?
.............................. 1-64
All Overseas Locations
...................................... 7-5
All-Wheel Drive
............................................... 5-52
All-Wheel Drive (AWD) System
......................... 2-26
All-Wheel-Drive Service Light
............................ 3-35
Aluminum Wheels
........................................... 5-88
What
Makes an Air Bag Inflate?
.................... 1-67
Air CleanedFiIter, Engine
... ...................... 5-24
AM
............................................................... 3-50 AM-FM Radio
...................... ................ 3-39
Antenna, Fixed Mast
....................................... 3-50
Anti-lock Brake System
..................................... 4-7
Anti-Lock Brake, System Warning Light
.............. 3-29
Appearance Care
............................................ 5-83
Care of Safety Belts
.................................... 5-86
Chemical Paint Spotting
............................... 5-89
Cleaning the Inside of Your Vehicle
................ 5-83
Finish Damage
............................................ 5-88
Sheet Metal Damage
................................... 5-88
Underbody Maintenance
............................... 5-89
Weatherstrips
.............................................. 5-86
Ashtrays
........................................................ 3-17
Audio System(s)
............................................. 3-38
Audio Systems
AM-FM Radio
............................................. 3-39
Care of Your CD Player
............................... 3-50
Care of Your CDs
........................................ 3-50
Fixed Mast Antenna
..................................... 3-50
Radio with CQ
............................................ 3-41
Rear Seat Audio (RSA)
................................ 3-46
Setting the Time for Radios with HR and
MN Buttons
............................................. 3-38
Setting the Time for Radios with the
Set Button
.............................................. 3-38
Theft-Deterrent Feature
................................ 3-47
Understanding Radio Reception
..................... 3-50
Cleaning
the Outside of Your Vehicle
.............. 5-86
GM Vehicle Care/Appearance Materials
.......... 5-89
