Remote Keyless Entry System
Operation
If your vehicle has this feature, you can lock and
unlock your doors from about 3 feet (1 m) up to
30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
UNLOCK:Press UNLOCK
once for the driver’s door to
unlock, the parking lamps
to ash and the interior
lights to go on.
If you press UNLOCK again within three seconds,
all doors will unlock.LOCK:Press LOCK to lock all the doors. Press LOCK
again within three seconds and the horn will chirp.
REAR 2X:Press the REAR button twice within
three seconds to unlock the rear hatch or cargo doors.
The parking lamps will ash and the interior lights
will go on. If the engine is running, the automatic
transmission must be in PARK (P) or NEUTRAL (N)
for the REAR 2X button to operate.
L(Panic Alarm):Press this button for the horn to
sound and the headlamps and taillamps to ash for up
to 30 seconds. This can be turned off by pressing
the panic button again, waiting for 30 seconds, or
starting the vehicle.
2-5

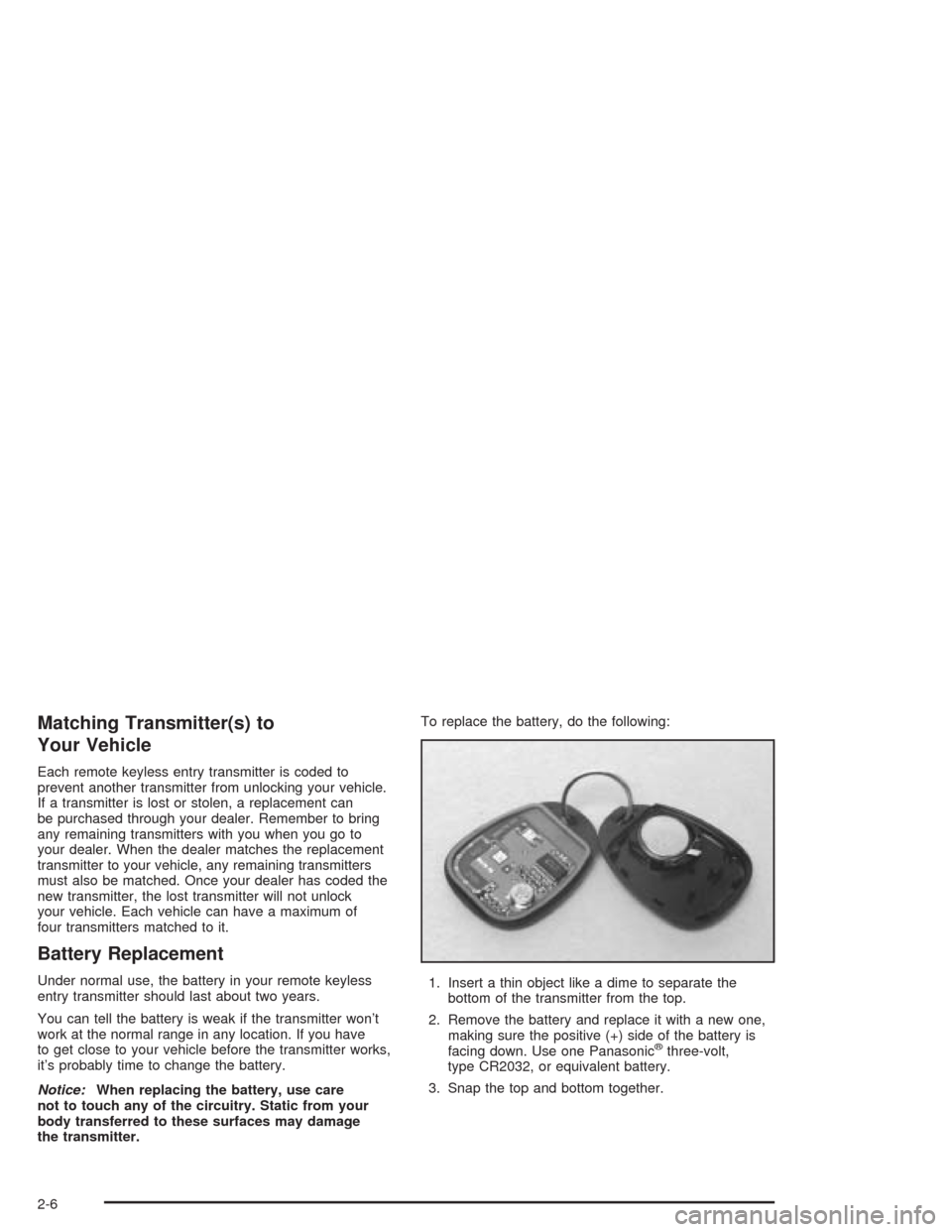

Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.To replace the battery, do the following:
1. Insert a thin object like a dime to separate the
bottom of the transmitter from the top.
2. Remove the battery and replace it with a new one,
making sure the positive (+) side of the battery is
facing down. Use one Panasonic
®three-volt,
type CR2032, or equivalent battery.
3. Snap the top and bottom together.
2-6

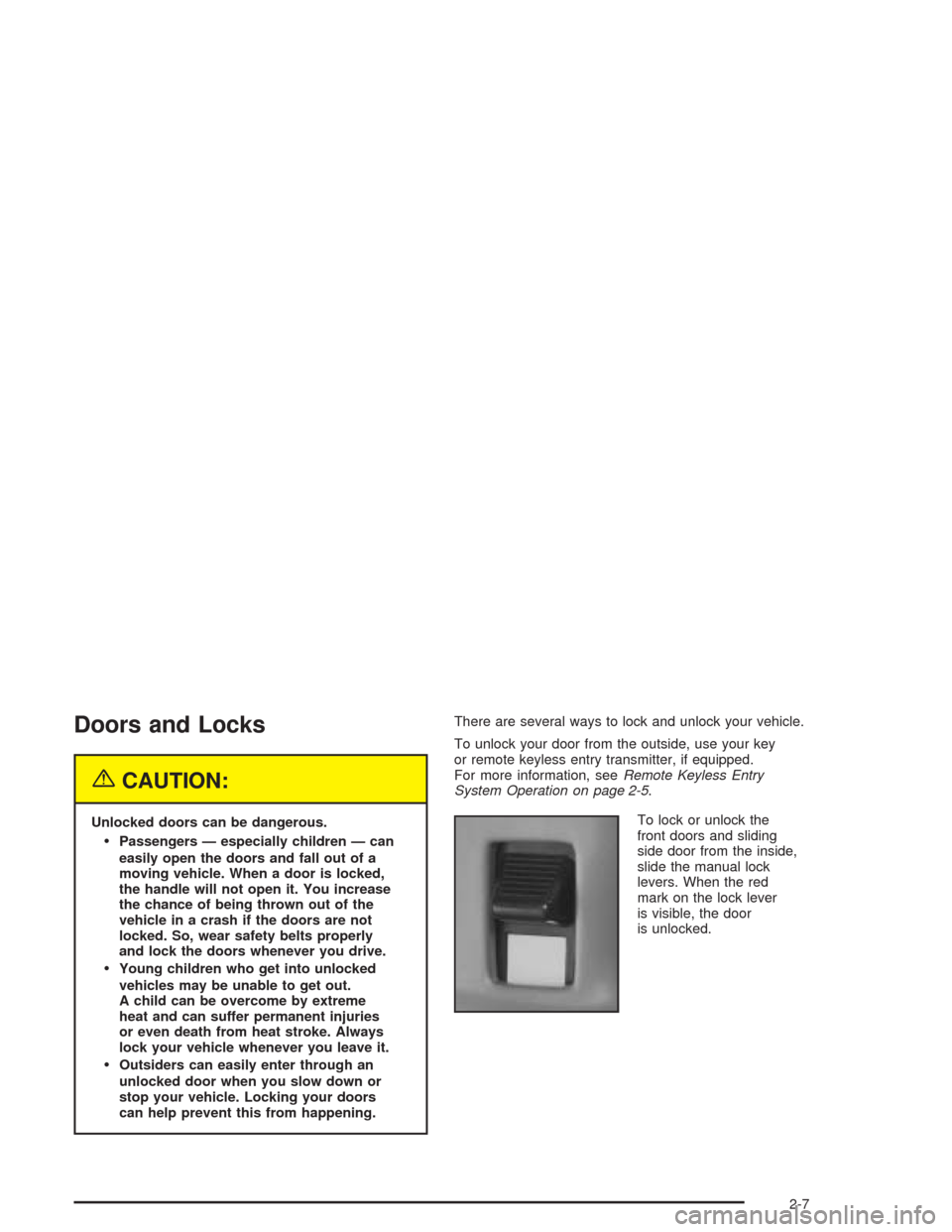

Doors and Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle will not open it. You increase
the chance of being thrown out of the
vehicle in a crash if the doors are not
locked. So, wear safety belts properly
and lock the doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke. Always
lock your vehicle whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.There are several ways to lock and unlock your vehicle.
To unlock your door from the outside, use your key
or remote keyless entry transmitter, if equipped.
For more information, seeRemote Keyless Entry
System Operation on page 2-5.
To lock or unlock the
front doors and sliding
side door from the inside,
slide the manual lock
levers. When the red
mark on the lock lever
is visible, the door
is unlocked.
2-7

Power Door Locks
If your vehicle has power
door locks, press the
power door lock switch
located on the door panel
to lock or unlock all the
doors at once.
The power door lock switch will lock or unlock the rear
hatch and Dutch doors. See “Hatch Release” in
Rear Doors on page 2-12.
When a door is locked, the inside door handle will not
open the door. This will help stop a door from being
accidentally opened.
If the sliding door is open and you press the power door
lock switch, the sliding door will not lock immediately.
After you close the door, the system comes on and locks
the sliding door in about ve seconds.
When the key is in the ignition and the power door lock
switch is pressed with a door open, all doors are
locked while the driver’s side door remains unlocked.
Programmable Automatic
Door Locks
Your vehicle is equipped with an auto lock/unlock feature
which enables you to program your power door locks.
Your vehicle left the factory programmed to have all the
doors lock automatically when the shift lever is moved out
of PARK (P). All of the doors will unlock when the shift
lever is moved back into PARK (P). The following
instructions detail how to program your door locks.
To enter the program mode you need to do the following:
1. Begin with the ignition in OFF. Then, pull back on the
turn signal/multifunction lever all the way toward you
and hold it while you perform the next step.
2. Turn your key to RUN and OFF twice. Then, with
the key in OFF, release the turn signal/multifunction
lever. Once you do this, you will hear the lock
switch lock and unlock.
You are now ready to program the automatic door locks.
Select one of the following four programming options and
follow the instructions. You will have thirty seconds to
begin programming. If you exceed the thirty second limit,
the locks will automatically lock and unlock to indicate
that you have left the program mode. If this occurs, repeat
the procedure beginning with Step 1. You can exit the
program mode any time by turning the ignition to RUN.
2-8

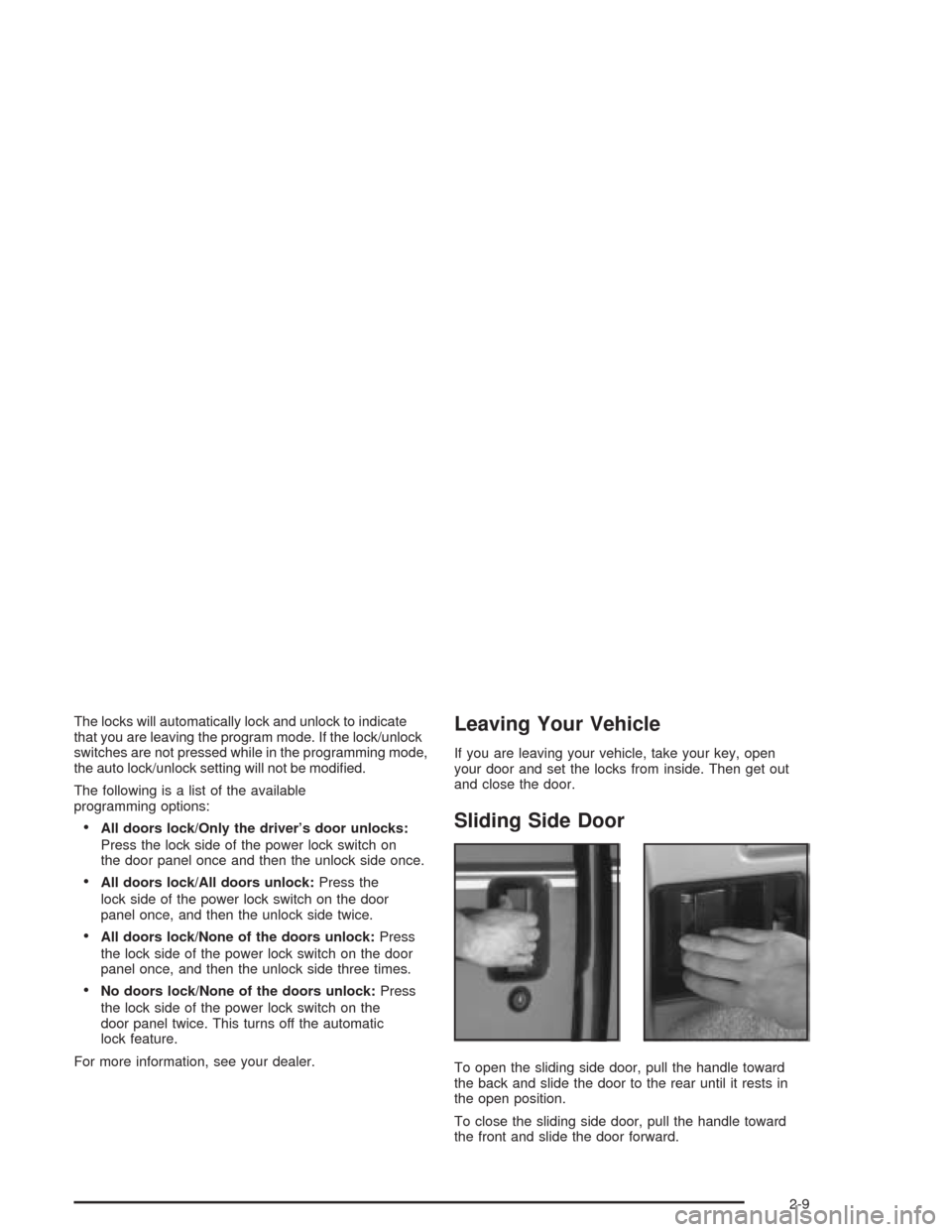

The locks will automatically lock and unlock to indicate
that you are leaving the program mode. If the lock/unlock
switches are not pressed while in the programming mode,
the auto lock/unlock setting will not be modied.
The following is a list of the available
programming options:
All doors lock/Only the driver’s door unlocks:
Press the lock side of the power lock switch on
the door panel once and then the unlock side once.
All doors lock/All doors unlock:Press the
lock side of the power lock switch on the door
panel once, and then the unlock side twice.
All doors lock/None of the doors unlock:Press
the lock side of the power lock switch on the door
panel once, and then the unlock side three times.
No doors lock/None of the doors unlock:Press
the lock side of the power lock switch on the
door panel twice. This turns off the automatic
lock feature.
For more information, see your dealer.
Leaving Your Vehicle
If you are leaving your vehicle, take your key, open
your door and set the locks from inside. Then get out
and close the door.
Sliding Side Door
To open the sliding side door, pull the handle toward
the back and slide the door to the rear until it rests in
the open position.
To close the sliding side door, pull the handle toward
the front and slide the door forward.
2-9

Sliding Door Security Lock
Your vehicle may have
this feature. A sliding
door security lock helps
to prevent young children
or other passengers
from opening the sliding
door using the inside
door handle.
The security door lock is located near the front of the
sliding door.There are two labels on your vehicle to remind you
that you have this feature. One can be seen from the
outside on your sliding door. It is located near the bottom
of the door glass, toward the front of the door. The
other label is located on the front of the sliding door,
near the security door lock.
This feature prevents passengers from opening the
sliding side door from the inside.
To use this feature, do the following:
1. Move the lever all the way up.
2. Close the door.
To open the sliding side door while the security lock is
engaged, unlock the door and open it from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the sliding door from the inside. You should let adults
and older children know how the security door lock
works, and how to cancel the lock.
2-10

Canceling the Sliding Door
Security Lock
To cancel the security lock, do the following:
1. Unlock the door and open it from the outside.
2. Move the lever all the way down.
{CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly
injuring someone. To make sure the door does
not slam shut be sure to hold it open until
everyone is clear of the door, and only then
allow it to slowly close.
2-11

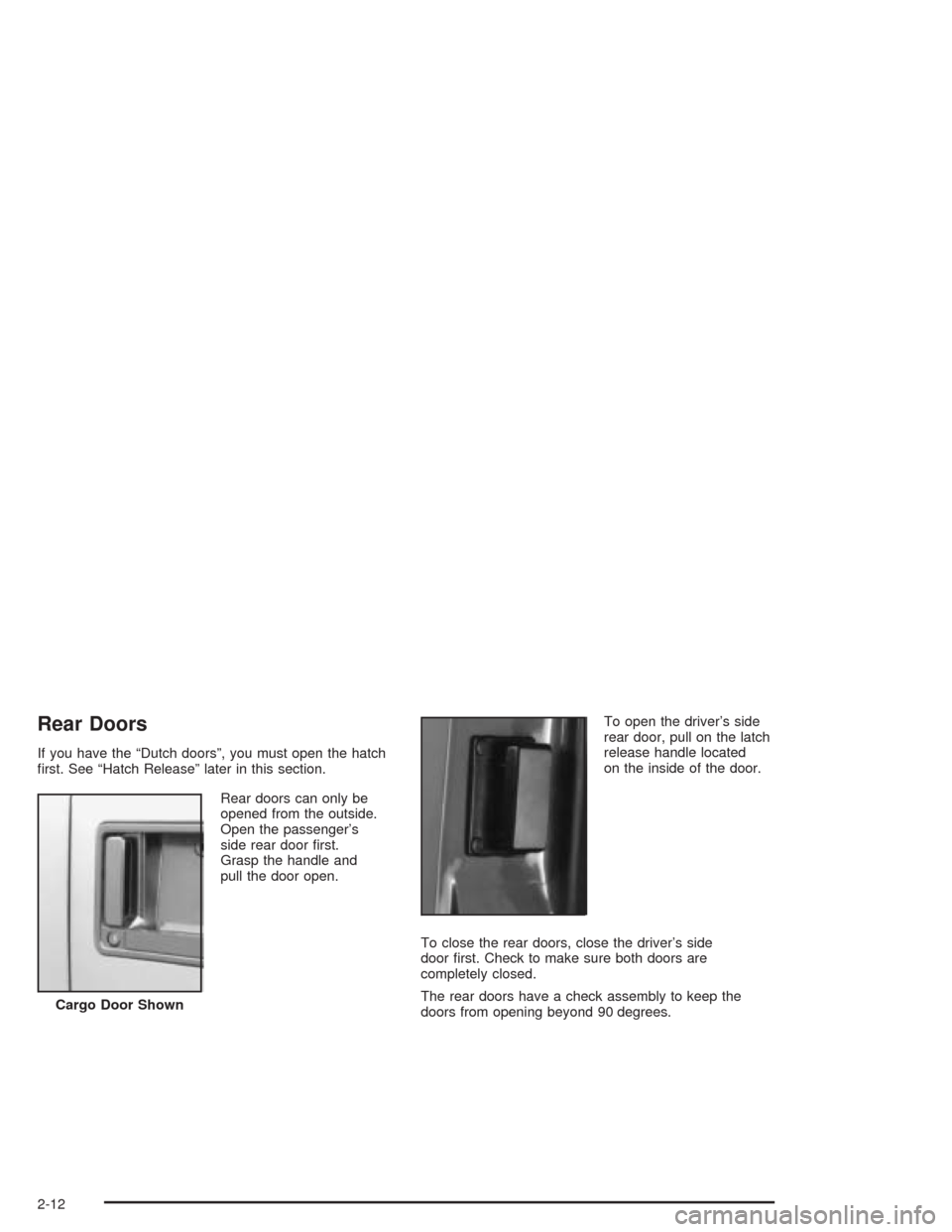

Rear Doors
If you have the “Dutch doors”, you must open the hatch
rst. See “Hatch Release” later in this section.
Rear doors can only be
opened from the outside.
Open the passenger’s
side rear door rst.
Grasp the handle and
pull the door open.To open the driver’s side
rear door, pull on the latch
release handle located
on the inside of the door.
To close the rear doors, close the driver’s side
door rst. Check to make sure both doors are
completely closed.
The rear doors have a check assembly to keep the
doors from opening beyond 90 degrees. Cargo Door Shown
2-12

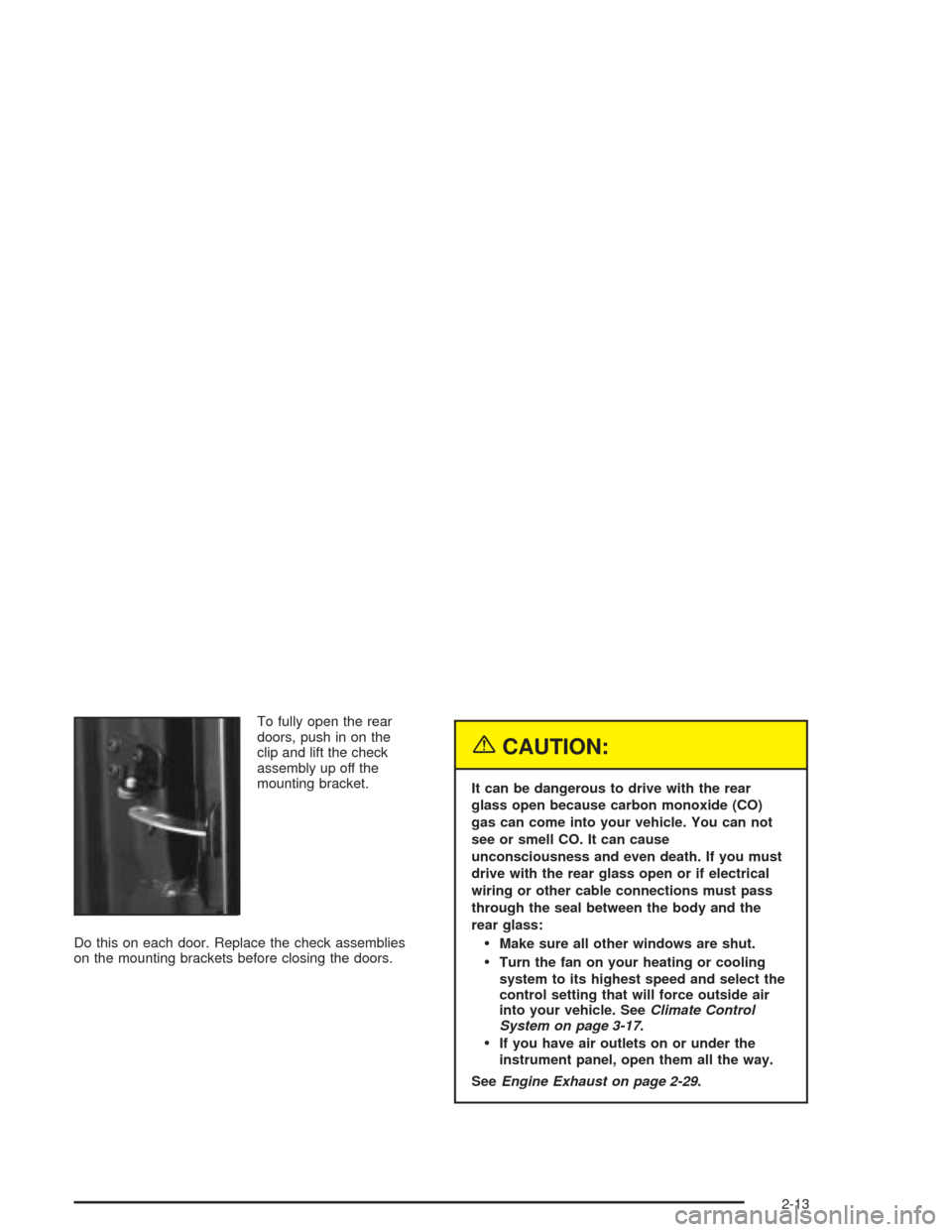

To fully open the rear
doors, push in on the
clip and lift the check
assembly up off the
mounting bracket.
Do this on each door. Replace the check assemblies
on the mounting brackets before closing the doors.
{CAUTION:
It can be dangerous to drive with the rear
glass open because carbon monoxide (CO)
gas can come into your vehicle. You can not
see or smell CO. It can cause
unconsciousness and even death. If you must
drive with the rear glass open or if electrical
wiring or other cable connections must pass
through the seal between the body and the
rear glass:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. SeeClimate Control
System on page 3-17.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-29.
2-13

Hatch Release
You can use your key to unlock the hatch and all of
the other doors from the outside. Insert the key into
the hatch release button and turn it counterclockwise.
All of the doors will unlock.
You may also use the keyless entry system
described earlier.
The hatch can be opened or closed without a key
if the door lock system is unlocked.
To open the hatch, unlock it, then press the button and
lift the handle located in the center of the door.
To lock the power lock system from the outside, insert
the key in the hatch release button and turn it clockwise.
All doors will lock.
