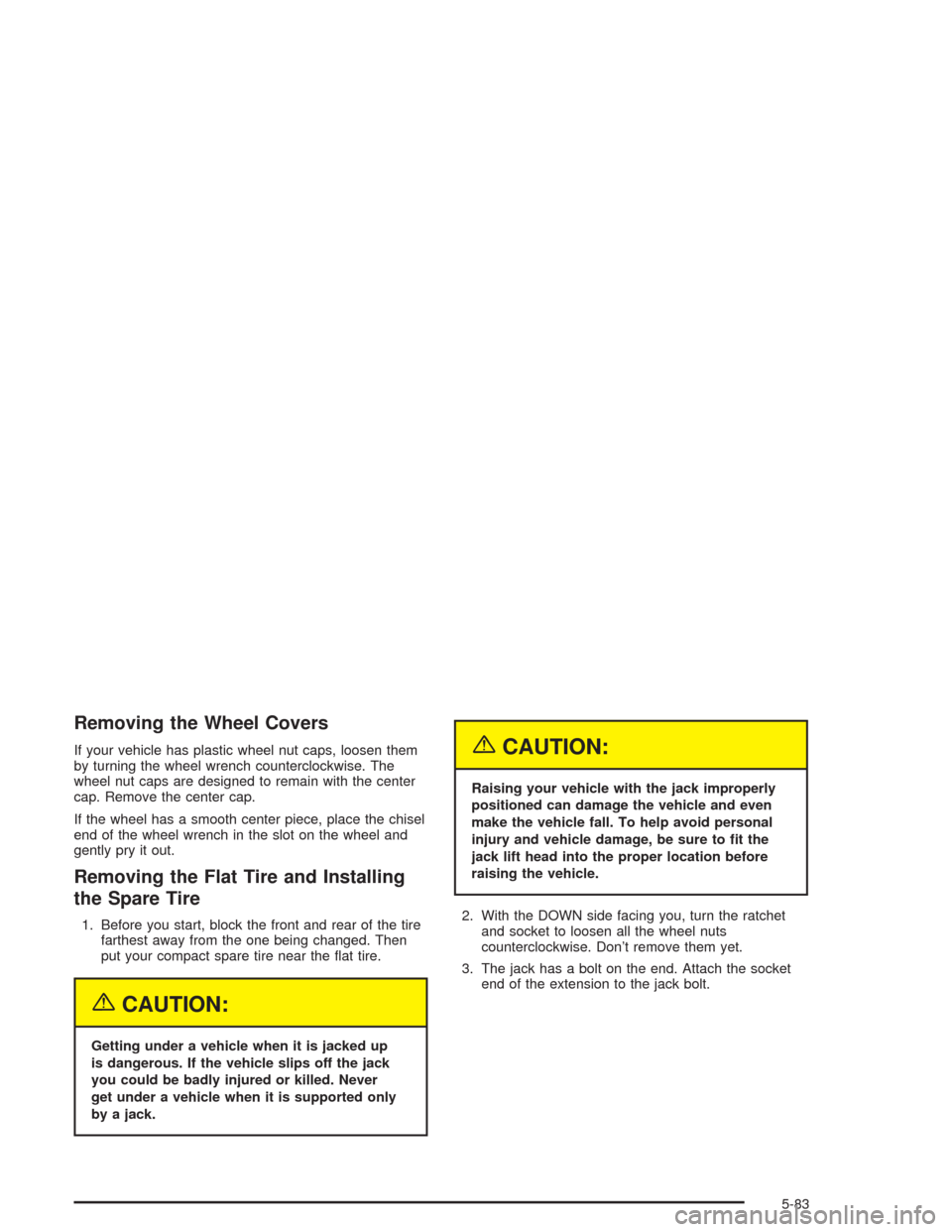

Page 297 of 386
Removing the Wheel Covers
If your vehicle has plastic wheel nut caps, loosen them
by turning the wheel wrench counterclockwise. The
wheel nut caps are designed to remain with the center
cap. Remove the center cap.
If the wheel has a smooth center piece, place the chisel
end of the wheel wrench in the slot on the wheel and
gently pry it out.
Removing the Flat Tire and Installing
the Spare Tire
1. Before you start, block the front and rear of the tire
farthest away from the one being changed. Then
put your compact spare tire near the at tire.
{CAUTION:
Getting under a vehicle when it is jacked up
is dangerous. If the vehicle slips off the jack
you could be badly injured or killed. Never
get under a vehicle when it is supported only
by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.
2. With the DOWN side facing you, turn the ratchet
and socket to loosen all the wheel nuts
counterclockwise. Don’t remove them yet.
3. The jack has a bolt on the end. Attach the socket
end of the extension to the jack bolt.
5-83
Page 304 of 386
5. Make sure the tire is stored securely. Push, pull,
and then try to rotate or turn the tire. If the tire
moves, use the ratchet/wheel wrench to tighten
the cable.
Return the jacking equipment to its proper location.
Compact Spare Tire
Although the compact spare tire was fully in ated
when your vehicle was new, it can lose air after a time.
Check the in ation pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your
spare tire is correctly in ated. The compact spare is
made to perform well at speeds up to 65 mph (105 km/h)
for distances up to 3,000 miles (5 000 km), so you can
nish your trip and have your full-size tire repaired or
replaced where you want. Of course, it’s best to replace
your spare with a full-size tire as soon as you can. Your
spare will last longer and be in good shape in case you
need it again.
Notice:When the compact spare is installed, don’t
take your vehicle through an automatic car wash
with guide rails. The compact spare can get caught
on the rails. That can damage the tire and wheel,
and maybe other parts of your vehicle.
5-90

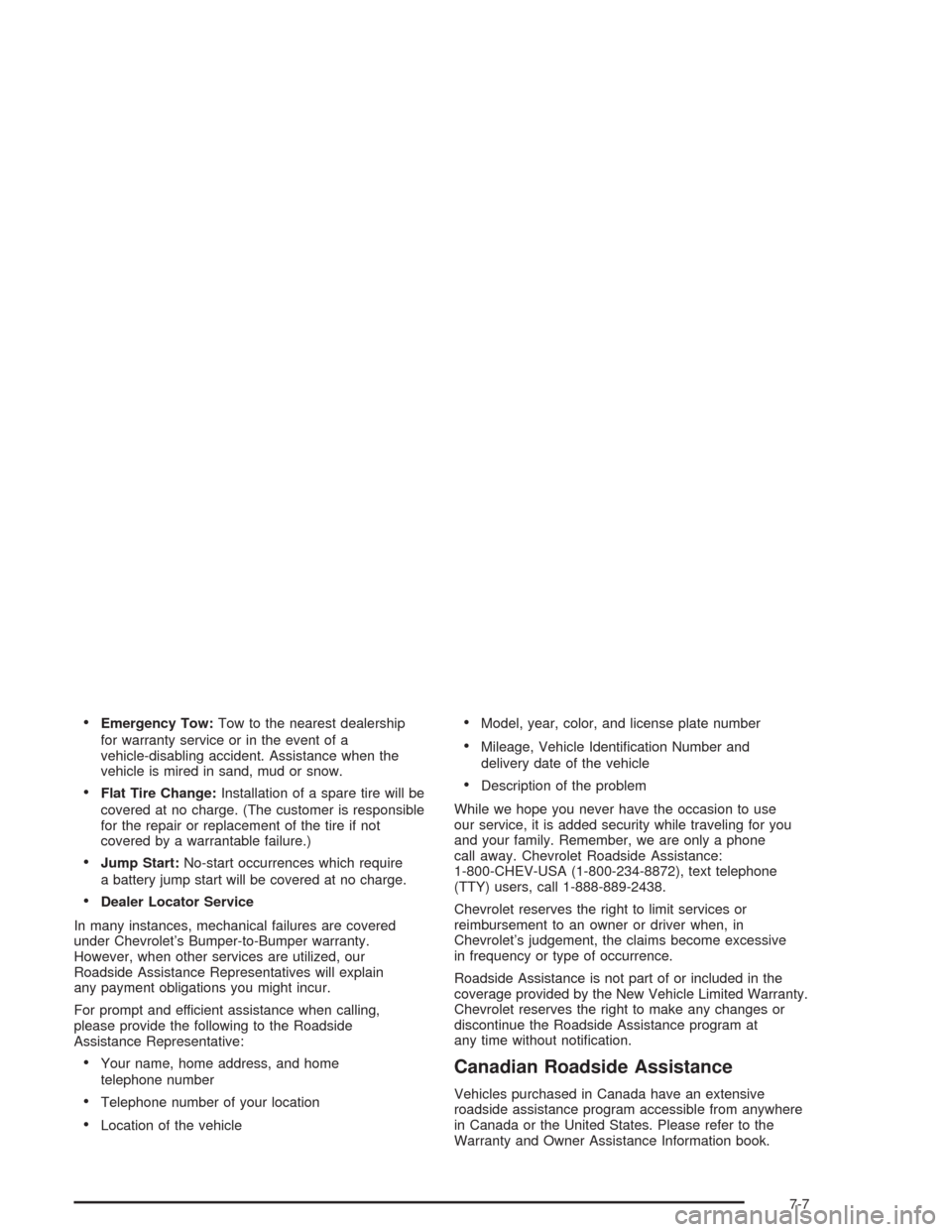

Page 363 of 386
Emergency Tow:Tow to the nearest dealership
for warranty service or in the event of a
vehicle-disabling accident. Assistance when the
vehicle is mired in sand, mud or snow.
Flat Tire Change:Installation of a spare tire will be
covered at no charge. (The customer is responsible
for the repair or replacement of the tire if not
covered by a warrantable failure.)
Jump Start:No-start occurrences which require
a battery jump start will be covered at no charge.
Dealer Locator Service
In many instances, mechanical failures are covered
under Chevrolet’s Bumper-to-Bumper warranty.
However, when other services are utilized, our
Roadside Assistance Representatives will explain
any payment obligations you might incur.
For prompt and efficient assistance when calling,
please provide the following to the Roadside
Assistance Representative:
Your name, home address, and home
telephone number
Telephone number of your location
Location of the vehicle
Model, year, color, and license plate number
Mileage, Vehicle Identi cation Number and
delivery date of the vehicle
Description of the problem
While we hope you never have the occasion to use
our service, it is added security while traveling for you
and your family. Remember, we are only a phone
call away. Chevrolet Roadside Assistance:
1-800-CHEV-USA (1-800-234-8872), text telephone
(TTY) users, call 1-888-889-2438.
Chevrolet reserves the right to limit services or
reimbursement to an owner or driver when, in
Chevrolet’s judgement, the claims become excessive
in frequency or type of occurrence.
Roadside Assistance is not part of or included in the
coverage provided by the New Vehicle Limited Warranty.
Chevrolet reserves the right to make any changes or
discontinue the Roadside Assistance program at
any time without noti cation.
Canadian Roadside Assistance
Vehicles purchased in Canada have an extensive
roadside assistance program accessible from anywhere
in Canada or the United States. Please refer to the
Warranty and Owner Assistance Information book.
7-7

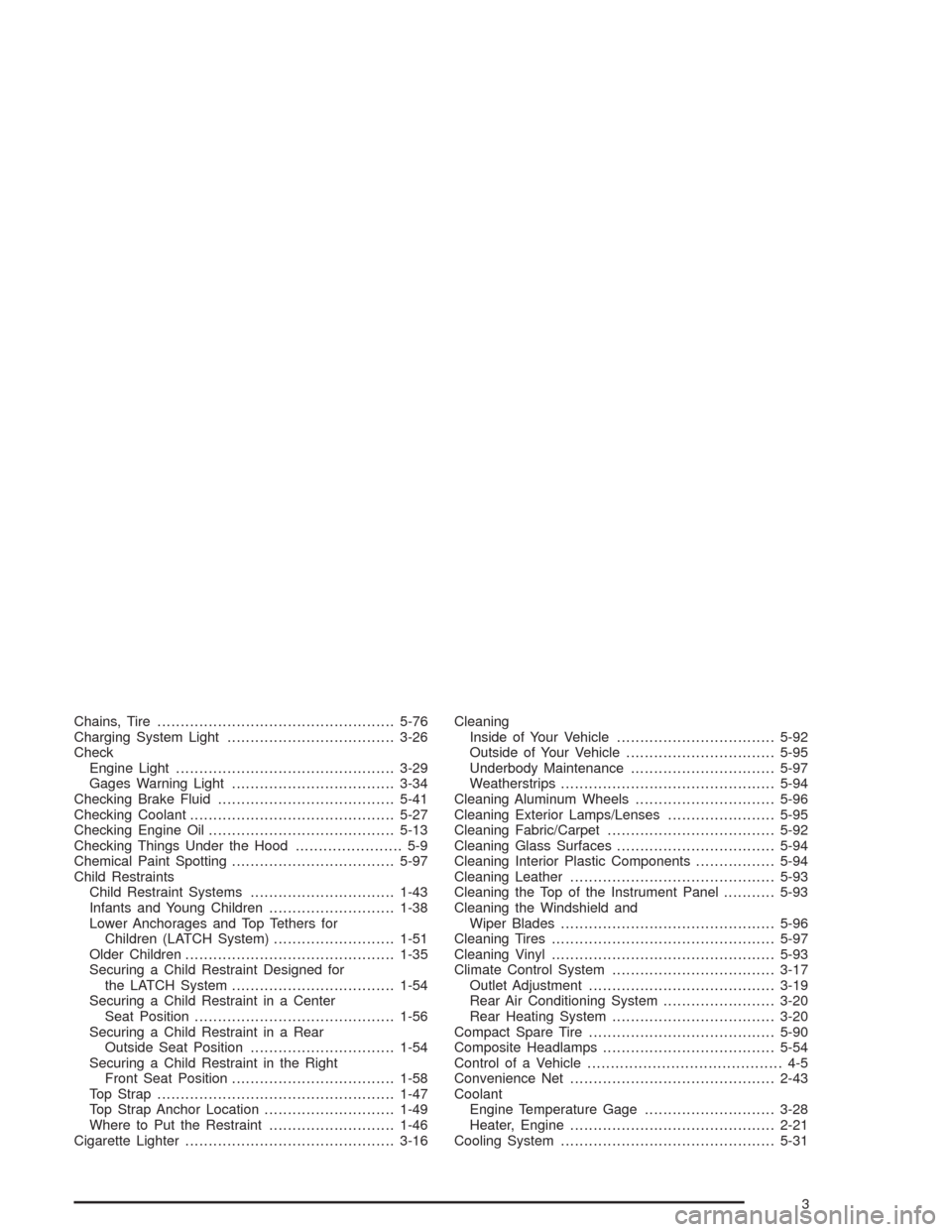

Page 373 of 386
Chains, Tire...................................................5-76
Charging System Light....................................3-26
Check
Engine Light...............................................3-29
Gages Warning Light...................................3-34
Checking Brake Fluid......................................5-41
Checking Coolant............................................5-27
Checking Engine Oil........................................5-13
Checking Things Under the Hood....................... 5-9
Chemical Paint Spotting...................................5-97
Child Restraints
Child Restraint Systems...............................1-43
Infants and Young Children...........................1-38
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-51
Older Children.............................................1-35
Securing a Child Restraint Designed for
the LATCH System...................................1-54
Securing a Child Restraint in a Center
Seat Position...........................................1-56
Securing a Child Restraint in a Rear
Outside Seat Position...............................1-54
Securing a Child Restraint in the Right
Front Seat Position...................................1-58
Top Strap...................................................1-47
Top Strap Anchor Location............................1-49
Where to Put the Restraint...........................1-46
Cigarette Lighter.............................................3-16Cleaning
Inside of Your Vehicle..................................5-92
Outside of Your Vehicle................................5-95
Underbody Maintenance...............................5-97
Weatherstrips..............................................5-94
Cleaning Aluminum Wheels..............................5-96
Cleaning Exterior Lamps/Lenses.......................5-95
Cleaning Fabric/Carpet....................................5-92
Cleaning Glass Surfaces..................................5-94
Cleaning Interior Plastic Components.................5-94
Cleaning Leather............................................5-93
Cleaning the Top of the Instrument Panel...........5-93
Cleaning the Windshield and
Wiper Blades..............................................5-96
Cleaning Tires................................................5-97
Cleaning Vinyl................................................5-93
Climate Control System...................................3-17
Outlet Adjustment........................................3-19
Rear Air Conditioning System........................3-20
Rear Heating System...................................3-20
Compact Spare Tire........................................5-90
Composite Headlamps.....................................5-54
Control of a Vehicle.......................................... 4-5
Convenience Net............................................2-43
Coolant
Engine Temperature Gage............................3-28
Heater, Engine............................................2-21
Cooling System..............................................5-31
3
Page 384 of 386
Storage Areas................................................2-36
Convenience Net.........................................2-43
Luggage Carrier..........................................2-43
Overhead Console.......................................2-38
Storing a Flat or Spare Tire and Tools...............5-89
Stuck in Sand, Mud, Ice or Snow......................4-28
Sun Visors.....................................................2-16
Sunglasses Storage Compartment.....................2-42
T
Taillamps.......................................................5-57
Theft-Deterrent, Radio.....................................3-44
Theft-Deterrent Systems...................................2-17
Passlock
®...................................................2-17
Throttle System Inspection...............................6-27
Tilt Wheel........................................................ 3-5
Tire In ation Check.........................................6-22
Tire Sidewall Labeling......................................5-61
Tire Size.......................................................5-66
Tire Terminology and De nitions........................5-68
Tires.............................................................5-60
Buying New Tires........................................5-73
Chains.......................................................5-76
Changing a Flat Tire....................................5-78
Compact Spare Tire.....................................5-90
If a Tire Goes Flat.......................................5-77Tires (cont.)
In ation - Tire Pressure................................5-70
Inspection and Rotation................................5-71
Uniform Tire Quality Grading.........................5-74
Wheel Alignment and Tire Balance.................5-75
Wheel Replacement.....................................5-75
When It Is Time for New Tires......................5-72
To Use the Engine Coolant Heater....................2-21
Top Strap......................................................1-47
Top Strap Anchor Location...............................1-49
Torque Lock...................................................2-28
Total Weight on Your Vehicle’s Tires..................4-38
Tow/Haul Mode...............................................4-36
Tow/Haul Mode Button.....................................2-24
Tow/Haul Mode Light.......................................3-34
Towing
Recreational Vehicle.....................................4-29
Towing a Trailer..........................................4-35
Your Vehicle...............................................4-29
Trailer Brakes.................................................4-40
Trailer Wiring Harness.....................................4-45
Trailering Package..........................................4-34
Transfer Case................................................5-50
Transmission
Fluid, Automatic...........................................5-23
Transmission Operation, Automatic....................2-22
Transmission, Transaxle, Transfer Case
Unit Repair Manual......................................7-12
14
