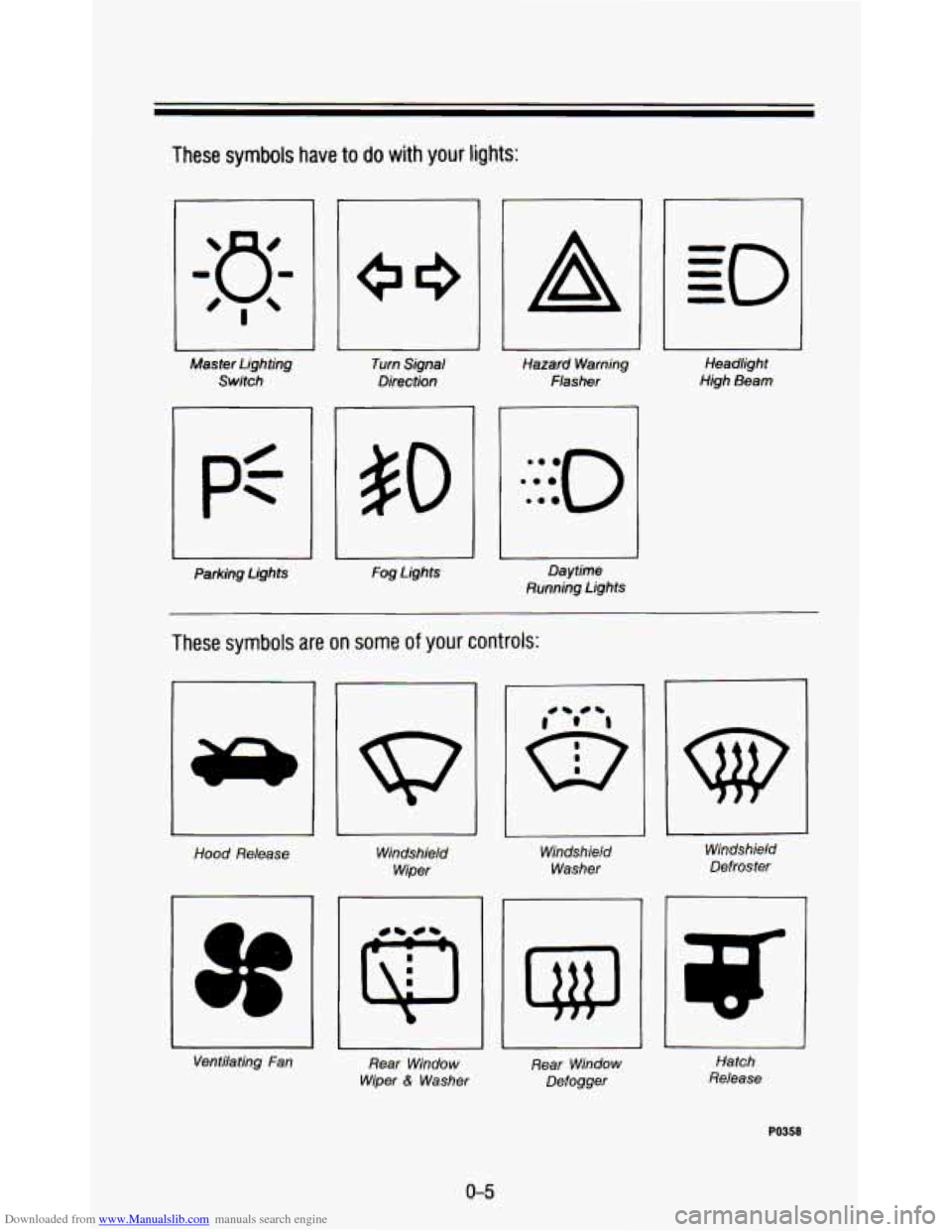

Downloaded from www.Manualslib.com manuals search engine These symbols have to do with your lights:
0
Master Lighting
Switch Turn
Signal
Direction
Parking Lights
Fog Lights
A
Hazard Warning
Flasher
Daytime
Running Lights Headlight
High Beam
~
These symbols are on some of your controls:
Hood Release Windshield
Wper
Ventilating Fan Windshield
Washer Windshield
Defroster
Rear Window
Wiper
L? Washer Rear Window
Defogger Hatch
Release
PO358
0-5
Page 12 of 345
Downloaded from www.Manualslib.com manuals search engine These symbols are used on warning and indicator lights:
Engine Coolant
Temperature
BRAKE
Brake
(Standard Cluster) mrtery
Charging
System
I
ANTI-
LOCK
Four- Wheel
Anti-lock Brakes
Fuse Fuel
1
Engine Oil
Pressure
Here are some
other symbols you may see:
Lighter Horn Speaker
PO359
Page 13 of 345
Downloaded from www.Manualslib.com manuals search engine Here you’ll find information about the seats in your vehicle and how to use
your safety belts properly
. You can also learn about some things you should
not do with safety belts .
Seats and Seat Controls ........................................................................\
.............. 1-2
Front Seats
........................................................................\
................................ 1-2
Rear Seats
........................................................................\
................................. 1-5
Head Restraints
........................................................................\
....................... 1-11
Safety Belts: They’re For Everyone
................................................................... 1-12
Why Safety Belts Work
........................................................................\
........... 1-13
Questions People
Ask ........................................................................\
............. 1-16
Safety Belt Reminder Light
........................................................................\
..... 1-17
How To Wear Safety Belts Properly ................................................................. 1-18
Driver Position ........................................................................\
.......................... 1-18
Lap-Shoulder Belt
........................................................................\
................. 1-19
Safety Belt Use During Pregnancy
................................................................ 1-25
Right Front Passenger Position
...................................................................... 1-26
Rear Seat Outside Passenger Positions
....................................................... 1-27
Center Passenger Positions
........................................................................\
.... 1-30
Children
........................................................................\
........................................ 1-31
Smaller Children and Babies
........................................................................\
.. 1-32
Child Restraints
........................................................................\
........................ 1-33
Larger Children
........................................................................\
........................ 1-40
Safety Belt Extender
........................................................................\
................... 1-42
Checking Your Restraint Systems
...................................................................... 1-43
Replacing Safety Belts After a Crash
............................................................... 1-43
Adults
........................................................................\
........................................... 1-18
1-1
Page 14 of 345
Downloaded from www.Manualslib.com manuals search engine Seats and Safety Belts
Seats and Seat Controls
This section tells you about the seats-how to adjust them, tak\
e them out
and put them back in. It also tells you about bucket and ben\
ch seats, power
seats, and head restraints.
Front Seats
Manual Seats
bnu I IWI
A You can lose control of the vehicle if you try to adjust a manual
2 driver’s seat while the vehicle is moving. The sudden moveme\
nt
could startle and confuse
you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when the ve\
hicle is not
moving.
I
d
I I PO414
The bucket seats can be adjusted forward or rearward by the l\
ever at the
front
of the seat.
Slide the lever at the front
of the seat to the left to unlock it. Slide the seat
to where you want it. Then release the lever and try to move the seat with
your body, to make sure the seat is locked into place.
1 -2
Page 15 of 345
Downloaded from www.Manualslib.com manuals search engine ..
PO41 0
You can adjust the seat before entering the vehicle.
The front control makes the front of the seat go up and down.
The rear control makes the rear of the seat go up and down.
The center control makes the whole seat go up and down or forward and
rearward.
Reclining Bucket Seatbacks
I
PO409
If you have this feature, you can adjust the seatback by rotating the knob. It
is easier to recline the seat if you do not lean against it while turning the
knob.
1-3
Page 16 of 345
Downloaded from www.Manualslib.com manuals search engine Don’t have a seatback reclined if your vehicle is moving.
AM101010
1 CAUTION
*
4 dangerous. Even if you buckle up, your safety belts can’t do their job
Sitting
in a reclined position when your vehicle
is in motion can be
when you’re reclined like this.
The shoulder belt can’t
do its job because it won’t be against your
body. Instead,
it will be in front of you. In a crash you could go into
it, receiving neck or other injuries.
The lap belt can’t
do its job either. In a crash the belt could go up
over your abdomen. The belt forces would be there, not at you\
r pelvic bones. This could cause serious internal injuries.
For proper protection when the vehicle is in motion, have the
seatback upright. Then sit well back
in the seat and wear your safety
I belt properly.
Page 17 of 345
Downloaded from www.Manualslib.com manuals search engine Rear Seats
Bucket Seats
If you have rear bucket seats in your vehicle, they will recline and adjust the
same way
as the front manual bucket seats. See "Front Seats" earlier in this
section or
in the Index.
Bench Seats
If you have bench seats in your vehicle, each seat can carry up to three
passengers. They can also be removed to increase storage space.
:..,:.;..*i -.
K3203
The center and rear bench seats can be adjusted forward or rearward by the
lever at the front
of the seat. Slide the lever at the front of the seat to the
right to unlock it. Slide the seat
to where you want it. Then release the lever
and try to move the seat with your body, to make sure the seat is locked
into place.
. 1-5
Page 18 of 345
Downloaded from www.Manualslib.com manuals search engine Seatls and Safe#y Belts
The non-touring center bench seat has a pivoting right armrest.\
The left armrest can also be
used as a storage compartment,
The storage compartment and beverage cooler can also be used as rear seat
armrests. See "Storage CornpartmenVBeverage Cooler" in the Index.
The optional touring bench seats come with moveable armrests, i\
ndividual reclining seatbacks, adjustable headrests and a fold down center console.
.:
PO461
To adjust your seatback, pull up on the lever on the lower outsi\
de of the
seat.
The center bench seatbacks will recline further back than the \
rear bench
seatbacks.
1-6
Page 19 of 345
Downloaded from www.Manualslib.com manuals search engine K3106
To fold your non-touring seatback forward, pull up on the latch release lever
while pulling the seatback toward you. The lever is
on the right rear of your
seat. After the latch has been released, push the seatback dow\
n until it locks
in place.
To raise the seatback, unlock the seat by pushing forward on the \
lever. Make sure the seatback is locked when it is put back in the upright
position.
1 -7
Page 20 of 345
Downloaded from www.Manualslib.com manuals search engine Seats and Safety Belts

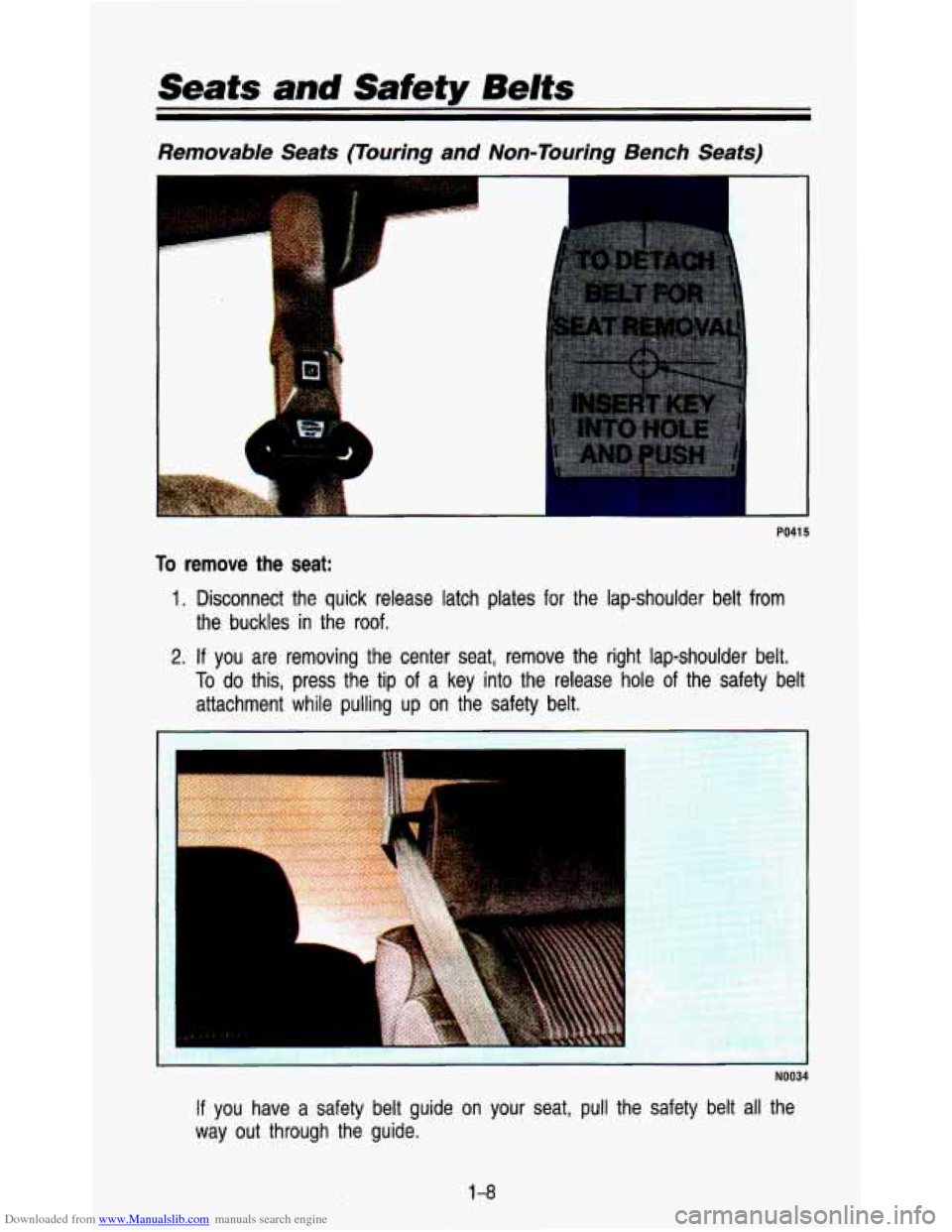

Removable Seats (Touring and Non-Touring Bench Seats)
PO41 5
To remove the seat:
1. Disconnect the quick release latch plates for the lap-shoulder \
belt from
the buckles in the roof.
2. If you are removing the center seat, remove the right lap-shoulder\
belt.
To do this, press the tip of a key into the release hole of the safety belt
attachment while pulling up on the safety belt.
1
I
NO034
If you have a safety belt guide on your seat, pull the safety belt all the
way out through the guide.
1-8
