Page 225 of 340

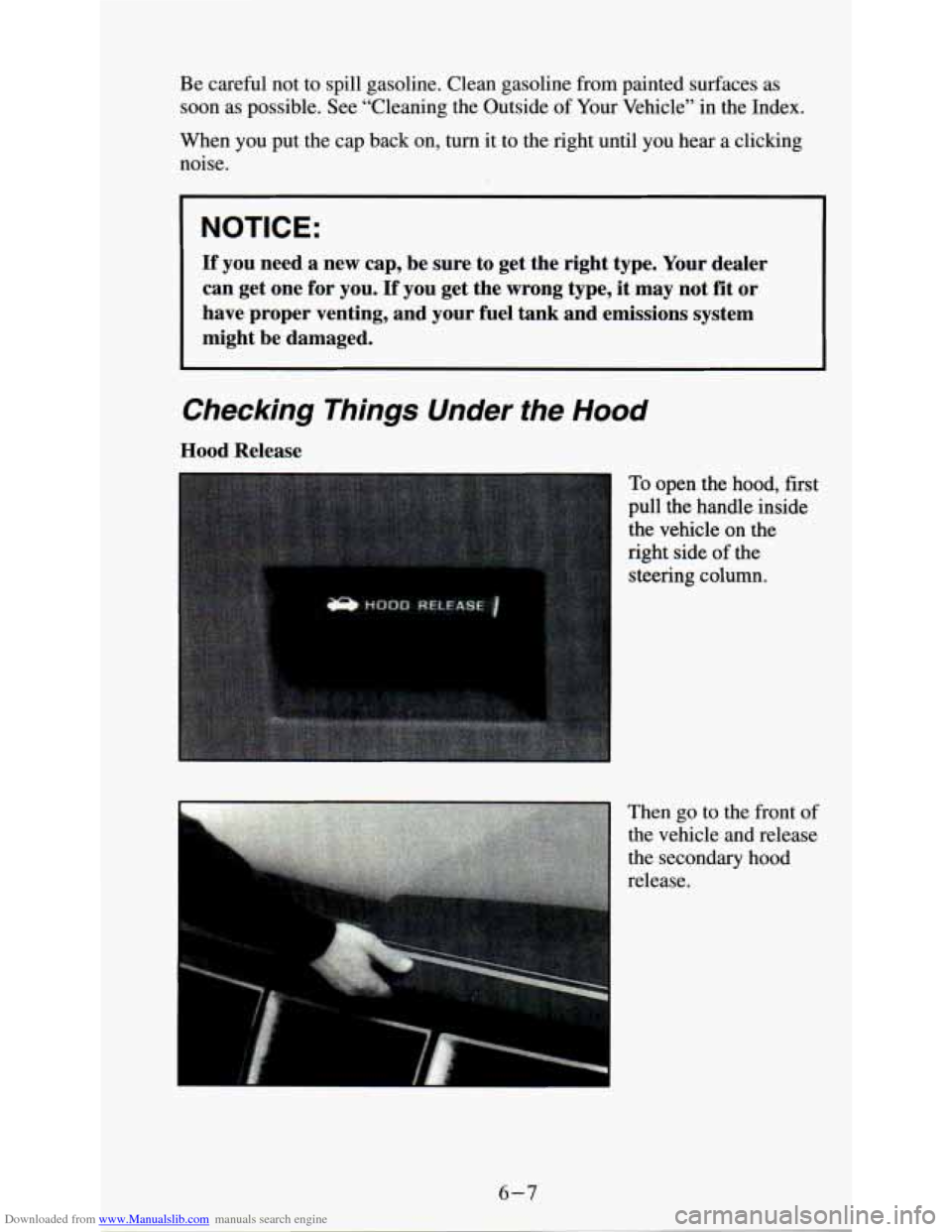

Downloaded from www.Manualslib.com manuals search engine Be careful not to spill gasoline. Clean gasoline from painted surfaces as
soon as possible. See “Cleaning the Outside
of Your Vehicle” in the Index.
When you put the cap back on, turn it to the right until you hear a clicking
noise.
I NOTICE:
If you need a new cap, be sure to get the right type. Your \
dealer
can get one for you.
If you get the wrong type, it may not fit or
have proper venting, and your fuel tank and emissions system
might be damaged.
Checking Things Under the Hood
Hood Release
To open the hood, first
pull the handle inside
the vehicle
on the
right side
of the
steering column.
Then go to the front
of
the vehicle and release
the secondary hood
release.
6-7
Page 261 of 340

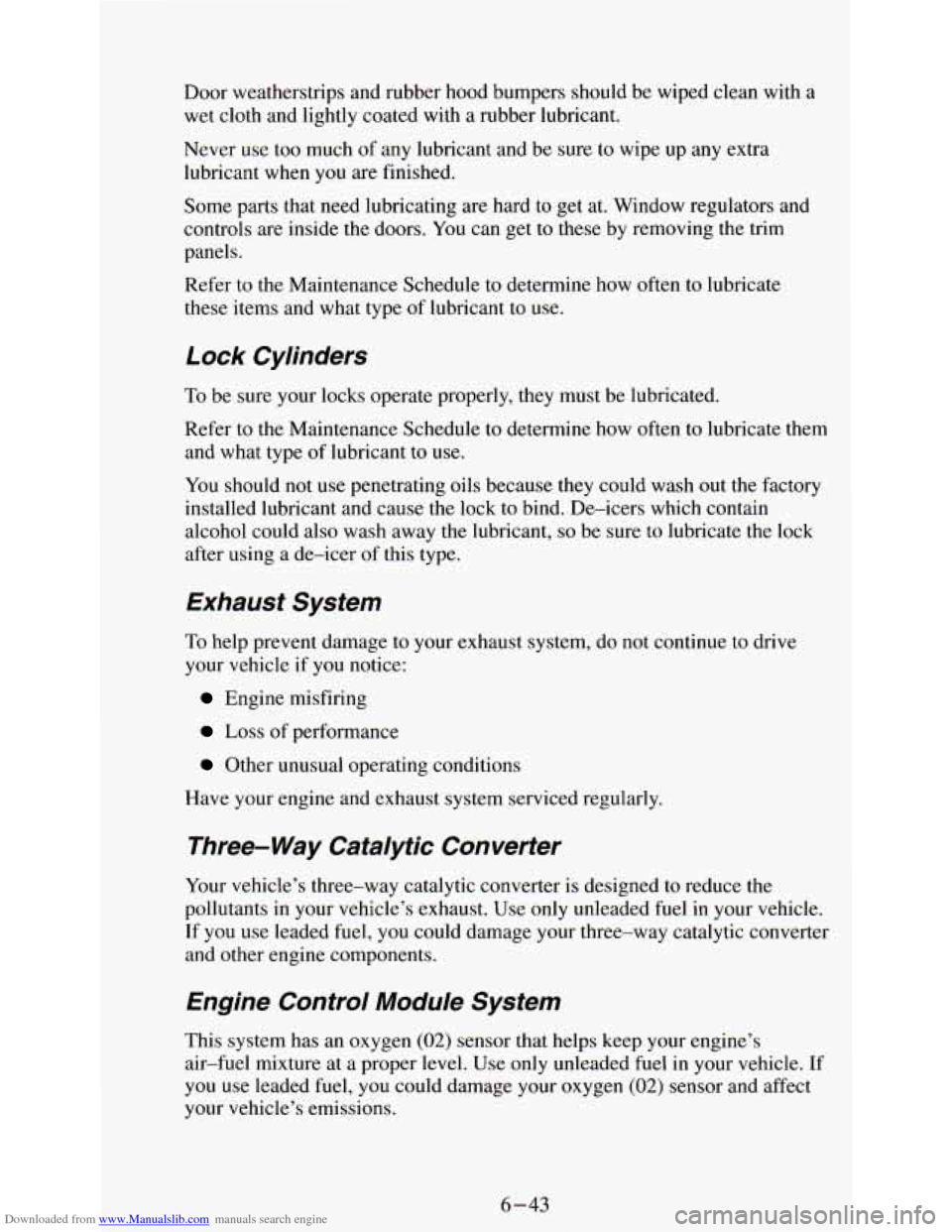

Downloaded from www.Manualslib.com manuals search engine Door weatherstrips and rubber hood bumpers should be wiped clean with a
wet cloth and lightly coated with a rubber lubricant.
Never use too much of any lubricant and be sure
to wipe up any extra
lubricant when you are finished.
Some parts
that need lubricating are hard to get at. Window regulators and
controls are inside the doors. You can get to these by removing
the trim
panels.
Refer to the Maintenance Schedule to determine how often to lubricate
these items and what type
of lubricant to use.
Lock Cylinders
To be sure your locks operate properly, they must be lubricated.
Refer to the Maintenance Schedule to determine how often to lubricate them
and what type of lubricant to use.
You should not use penetrating oils because they could wash out
the factory
installed lubricant and cause the lock to bind. De-icers which contain
alcohol could also
wash away the lubricant, so be sure to lubricate the lock
after using a de-icer of this type.
Exhaust System
To help prevent damage to your exhaust system, do not continue to drive
your vehicle if you notice:
Engine misfiring
Loss of performance
Other unusual operating conditions
Have your engine and exhaust system serviced regularly.
Three- Way Catalytic Converter
Your vehicle’s three-way catalytic converter is designed to reduce the
pollutants in your vehicle’s exhaust. Use only unleaded fuel in your vehicle.
If you use leaded fuel, you could damage your three-way catalytic converter
and other engine components.
Engine Control Module System
This system has an oxygen (02) sensor that helps keep your engine’s
air-fuel mixture at a proper level. Use only unleaded fuel in your vehicle.
If
you use leaded fuel, you could damage your oxygen (02) sensor and affect
your vehicle’s emissions.
6-43
Page 266 of 340
Downloaded from www.Manualslib.com manuals search engine Inflation - Tire Pressure
The Certificatioflire label which is on the rear edge of the driver’s door,
shows the correct inflation pressures for your tires, when they’re cold.
“Cold” means your vehicle has been sitting for at least three hours or driven
no more than a mile.
NOTICE:
Don’t let anyone tell you that underinflation or overinflation is
all right.
It’s not. If your tires don’t have enough air
(underinflation) you can get:
0 Too much flexing
Too much heat
Tire overloading
0 Bad wear
0 Bad handling
0 Bad fuel economy.
If your tires have too much air (overinflation), you can get:
@ Unusual wear
0 Bad handling
6 Rough ride
6 Needless damage from road hazards.
When to Check
Check your tires once a month or more.
Don’t forget your compact spare tire. It should be at
60 psi (420 kPa).
How to Check
Use a good quality pocket-type gage to check tire pressure. Simply looking
at the tires will not tell you the pressure, especially if you have radial tires
- which may look properly inflated even if they’re underinflate\
d.
If your tires have valve caps, be sure to put them back
on. They help prevent
leaks by keeping out dirt and moisture.
Page 286 of 340

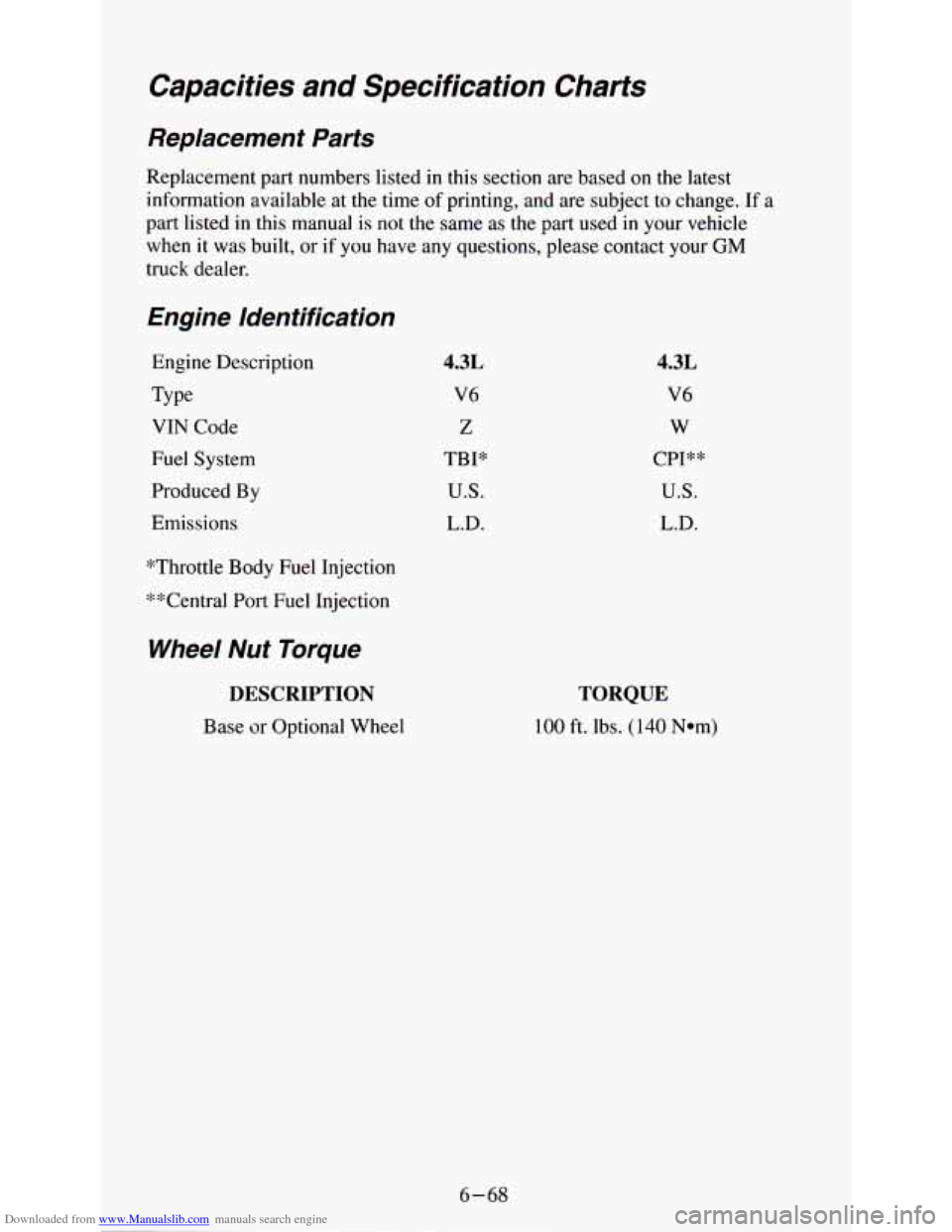

Downloaded from www.Manualslib.com manuals search engine Capacities and Specification Charts
Replacement Parts
Replacement part numbers listed in this section are based on the latest
information available at the time of printing, and are subject to change. If a
part listed in this manual is not the same as the part used in your vehicle
when
it was built, or if you have any questions, please contact your GM
truck dealer.
Engine Identification
Engine Description
Type VIN Code
Fuel System
Produced By
Emissions
*Throttle Body Fuel Injection
**Central
Port Fuel Injection
Wheel Nut Torque
DESCRIPTION
Base or Optional Wheel
4.3L
V6
Z
TBI*
U.S.
L.D.
6-68
4.3L
V6
W
CPI* *
U.S.
L.D.
TORQUE
100 ft. lbs. (140 Nom)
Page 287 of 340
Downloaded from www.Manualslib.com manuals search engine Cooling System Capacity
ENGINE
4.3L
4.3L
VIN CODE
Z
w
QUANTITY* Without Rear
Heater
13.5 Quarts
( 12.8 Liters)
13.5 Quarts
(12.8 Liters)
QUANTITY*
With Rear Heater
16.5 Quarts
( 15.5 Liters)
16.5 Quarts
( 15.5 Liters)
*All quantities are approximate. After refill,
the level MUST be checked.
Crankcase Capacity
ENGINE
4.3L
4.3L
VIN CODE
Z
w
QUANTITY*
Without Filter
4 Quarts
(3.8 Liters)
4 Quarts
(3.8 Liters)
QUANTITY*
With Filter
4.5 Quarts
(4.3 Liters)
4.5 Quarts
(4.3 Liters)
*All quantities are approximate. After refill, the level MUST be checked.
Do not overfill.
Fuel Tank Capacity
TYPE
Standard Tank
*All quantities are approximate.
QUANTITY*
27 Gallons (102 Liters)
6-69
Page 292 of 340

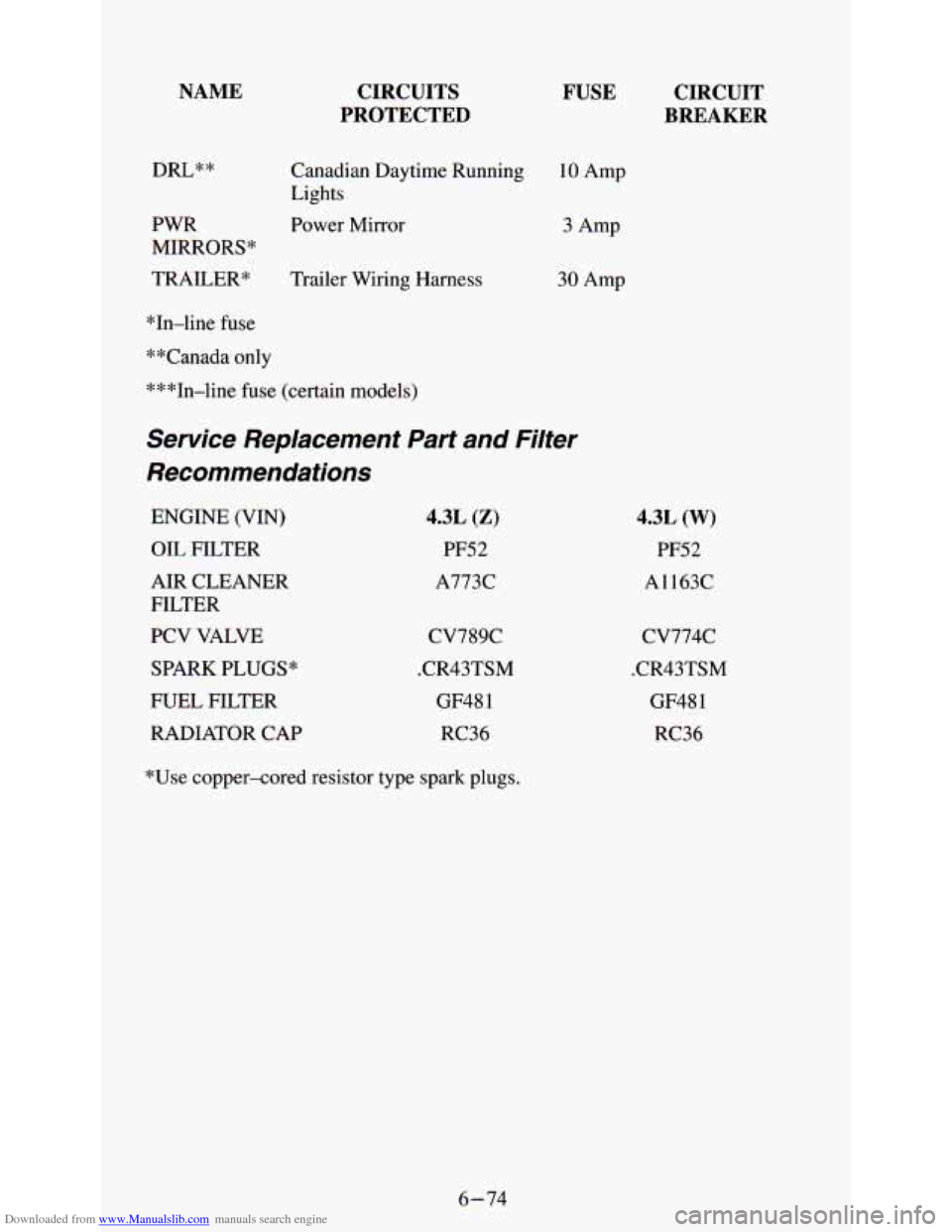

Downloaded from www.Manualslib.com manuals search engine NAME
DRL**
PWR
MIRRORS*
TRAILER*
CIRCUITS
PROTECTED
Canadian Daytime Running
Lights
Power Mirror
Trailer Wiring Harness
FUSE
10 Amp
3 Amp
30 Amp
*In-line fuse
**Canada only
***In-line fuse (certain models)
Service Replacement Part and Filter
Recommendations
ENGINE (VIN)
OIL FILTER
AIR CLEANER FILTER
PCV VALVE
SPARK PLUGS*
FUEL FILTER
RADIATOR CAP 4.3L (2)
PF52
A773C
CV789C
.CR43TSM
GF48
1
RC36
*Use copper-cored resistor type spark plugs.
CIRCUIT
BREAKER
4.3L
(W)
PF52
A1163C
cv774c
.CR43TSM GF48
1
RC36
6-74
Page 302 of 340

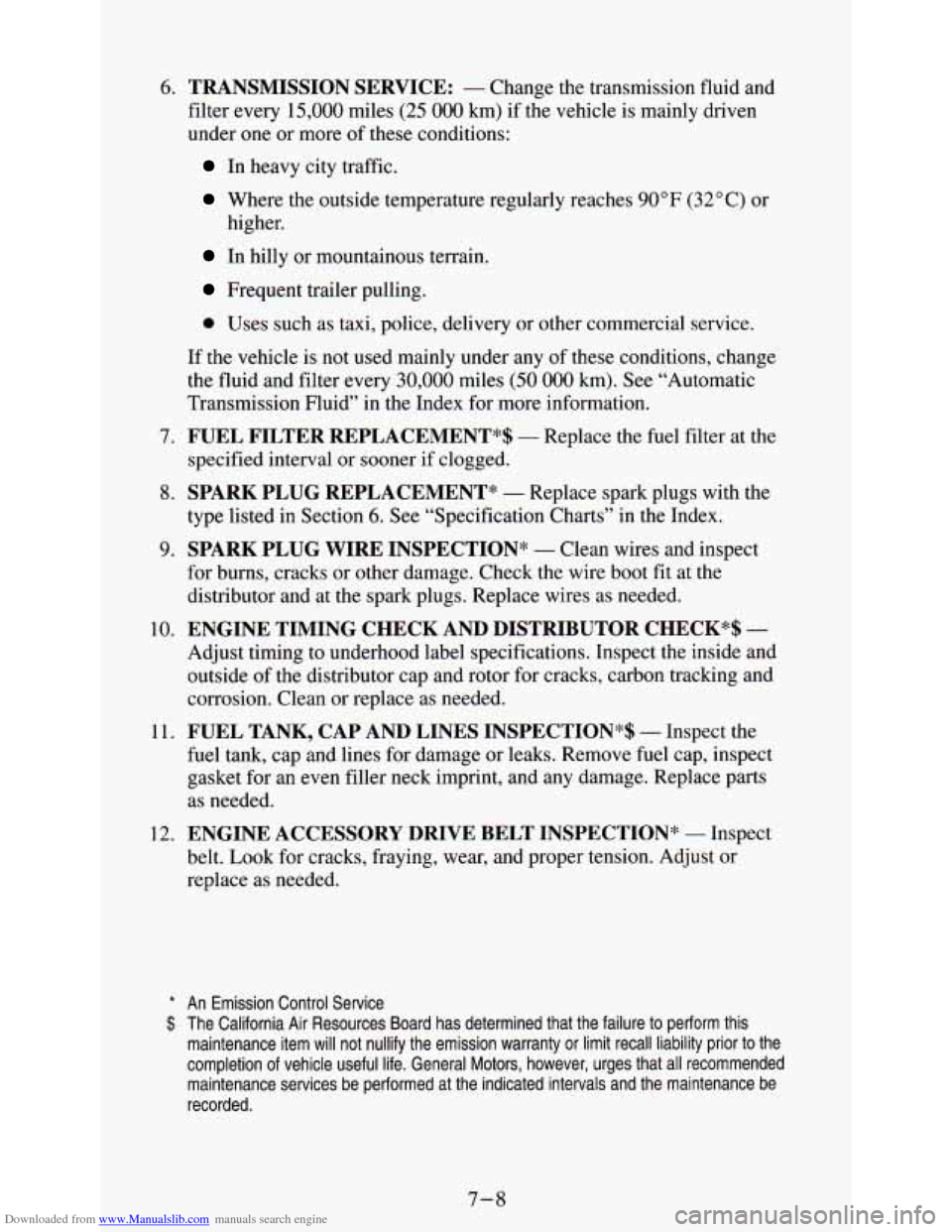

Downloaded from www.Manualslib.com manuals search engine 6. TRANSMISSION SERVICE: - Change the transmission fluid and
filter every
15,000 miles (25 000 km) if the vehicle is mainly driven
under
one or more of these conditions:
In heavy city traffic.
Where the outside temperature regularly reaches 90 “F (32” C) or
In hilly or mountainous terrain.
higher.
Frequent trailer pulling.
0 Uses
such as taxi, police, delivery or other commercial service.
If the vehicle
is not used mainly under any of these conditions, change
the fluid and filter every
30,000 miles (50 000 km). See “Automatic
Transmission Fluid” in the Index for more information.
7. FUEL FILTER REPLACEMENT*$ - Replace the fuel filter at the
specified interval or sooner if clogged.
8. SPARK PLUG REPLACEMENT* - Replace spark plugs with the
type listed in Section
6. See “Specification Charts” in the Index.
9. SPARK PLUG WIRE INSPECTION* - Clean wires and inspect
for bums, cracks or other damage. Check the wire boot fit at the
distributor and at the spark plugs. Replace wires as needed.
Adjust timing to underhood label specifications. Inspect the inside and
outside
of the distributor cap and rotor for cracks, carbon tracking and
corrosion. Clean or replace as needed.
10. ENGINE TIMING CHECK AND DISTRIBUTOR CHECK*$ -
11. FUEL TANK, CAP AND LINES INSPECTION*$ - Inspect the
fuel tank, cap and lines for damage or leaks. Remove fuel cap, inspect
gasket for an even filler neck imprint, and any damage. Replace parts
as needed.
12. ENGINE ACCESSORY DRIVE BELT INSPECTION* - Inspect
belt.
Look for cracks, fraying, wear, and proper tension. Adjust or
replace as needed.
* An Emission Control Service
$ The California Air Resources Board has determined that the failure to perform \
this
maintenance item will not nullify the emission warranty or limit recall liability prior to the
completion of vehicle useful life. General Motors, however, urges that all re\
commended
maintenance services be performed at the indicated intervals and\
the maintenance be
recorded.
7-8
