CHEVROLET AVALANCHE 2007 2.G Owners Manual

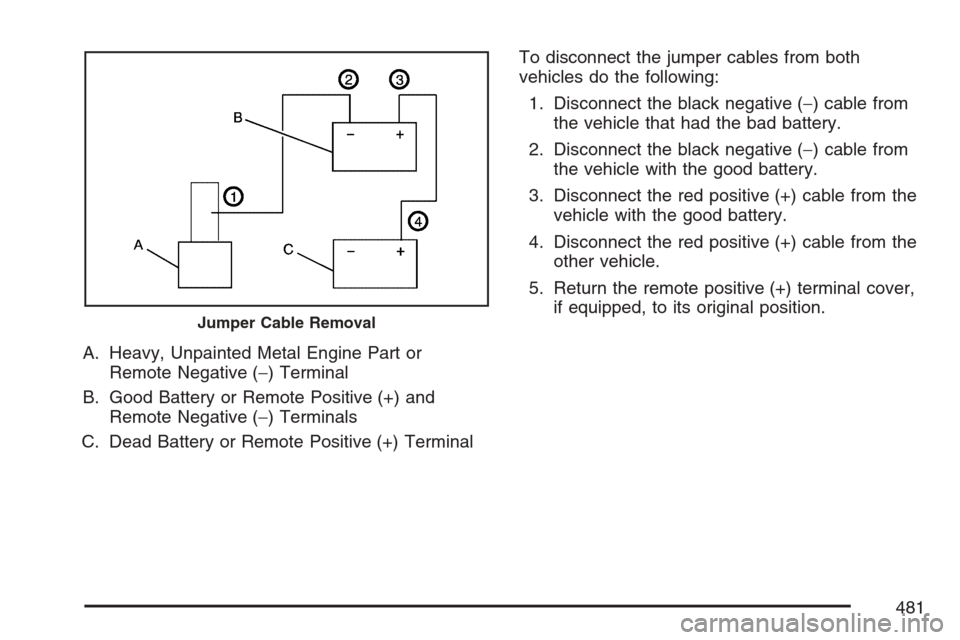

A. Heavy, Unpainted Metal Engine Part or
Remote Negative (−) Terminal
B. Good Battery or Remote Positive (+) and
Remote Negative (−) Terminals
C. Dead Battery or Remote Positive (+) TerminalTo disconnect the jumper cables from both
vehicles do the following:
1. Disconnect the black negative (−) cable from
the vehicle that had the bad battery.
2. Disconnect the black negative (−) cable from
the vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
5. Return the remote positive (+) terminal cover,
if equipped, to its original position.
Jumper Cable Removal
481

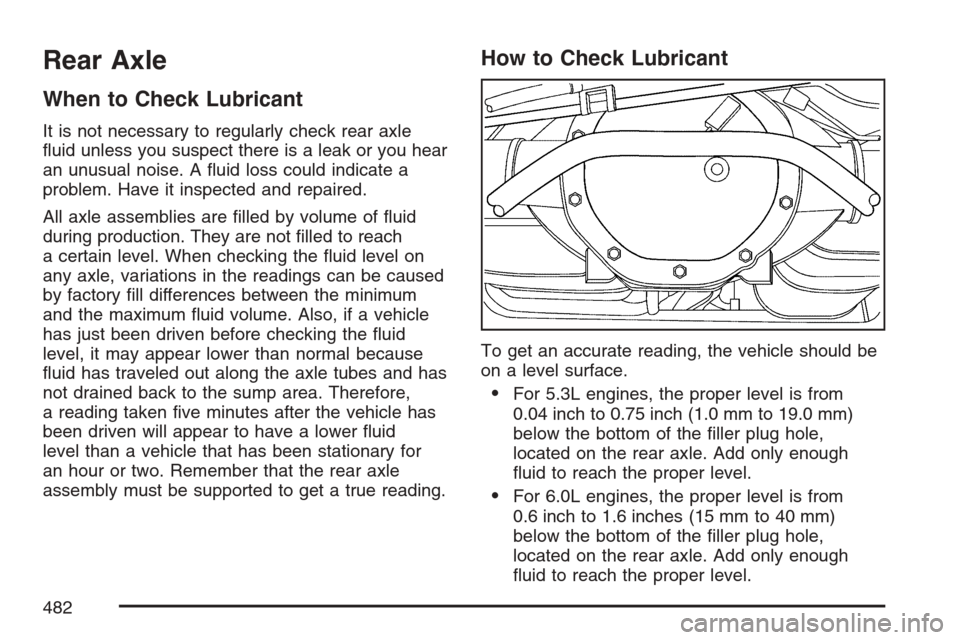

Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
All axle assemblies are lled by volume of uid
during production. They are not lled to reach
a certain level. When checking the uid level on
any axle, variations in the readings can be caused
by factory ll differences between the minimum
and the maximum uid volume. Also, if a vehicle
has just been driven before checking the uid
level, it may appear lower than normal because
uid has traveled out along the axle tubes and has
not drained back to the sump area. Therefore,
a reading taken ve minutes after the vehicle has
been driven will appear to have a lower uid
level than a vehicle that has been stationary for
an hour or two. Remember that the rear axle
assembly must be supported to get a true reading.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.
For 5.3L engines, the proper level is from
0.04 inch to 0.75 inch (1.0 mm to 19.0 mm)
below the bottom of the ller plug hole,
located on the rear axle. Add only enough
uid to reach the proper level.
For 6.0L engines, the proper level is from
0.6 inch to 1.6 inches (15 mm to 40 mm)
below the bottom of the ller plug hole,
located on the rear axle. Add only enough
uid to reach the proper level.
482

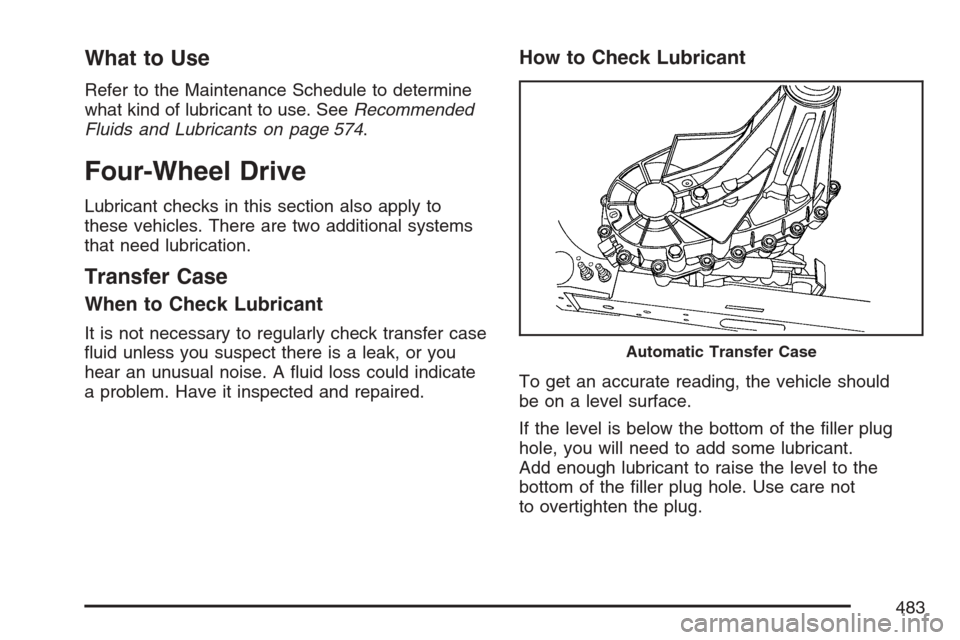

What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 574.
Four-Wheel Drive
Lubricant checks in this section also apply to
these vehicles. There are two additional systems
that need lubrication.
Transfer Case
When to Check Lubricant
It is not necessary to regularly check transfer case
uid unless you suspect there is a leak, or you
hear an unusual noise. A uid loss could indicate
a problem. Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should
be on a level surface.
If the level is below the bottom of the ller plug
hole, you will need to add some lubricant.
Add enough lubricant to raise the level to the
bottom of the ller plug hole. Use care not
to overtighten the plug.
Automatic Transfer Case
483

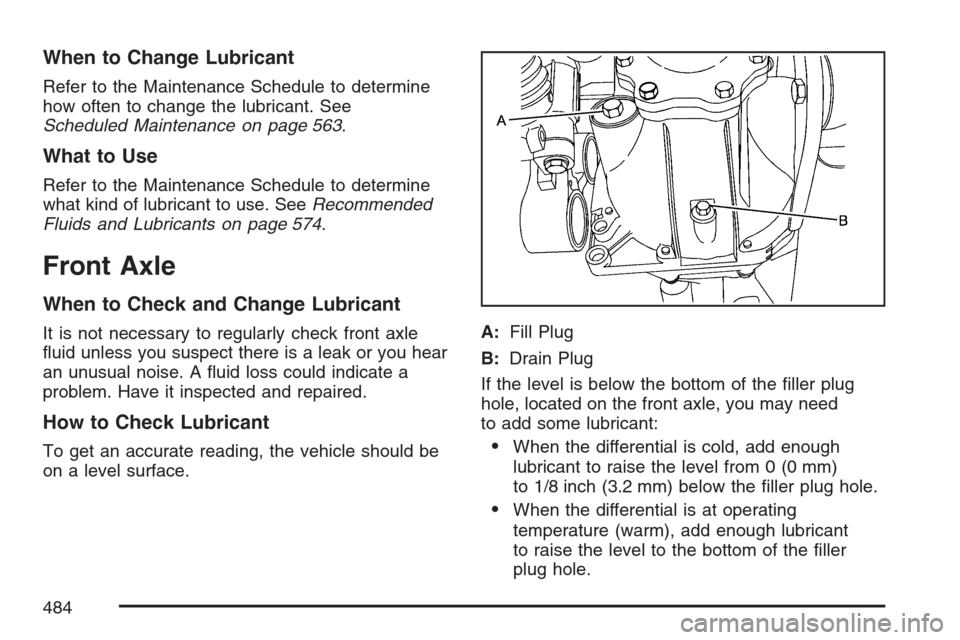

When to Change Lubricant
Refer to the Maintenance Schedule to determine
how often to change the lubricant. See
Scheduled Maintenance on page 563.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 574.
Front Axle
When to Check and Change Lubricant
It is not necessary to regularly check front axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.A:Fill Plug
B:Drain Plug
If the level is below the bottom of the ller plug
hole, located on the front axle, you may need
to add some lubricant:When the differential is cold, add enough
lubricant to raise the level from 0 (0 mm)
to 1/8 inch (3.2 mm) below the ller plug hole.
When the differential is at operating
temperature (warm), add enough lubricant
to raise the level to the bottom of the ller
plug hole.
484

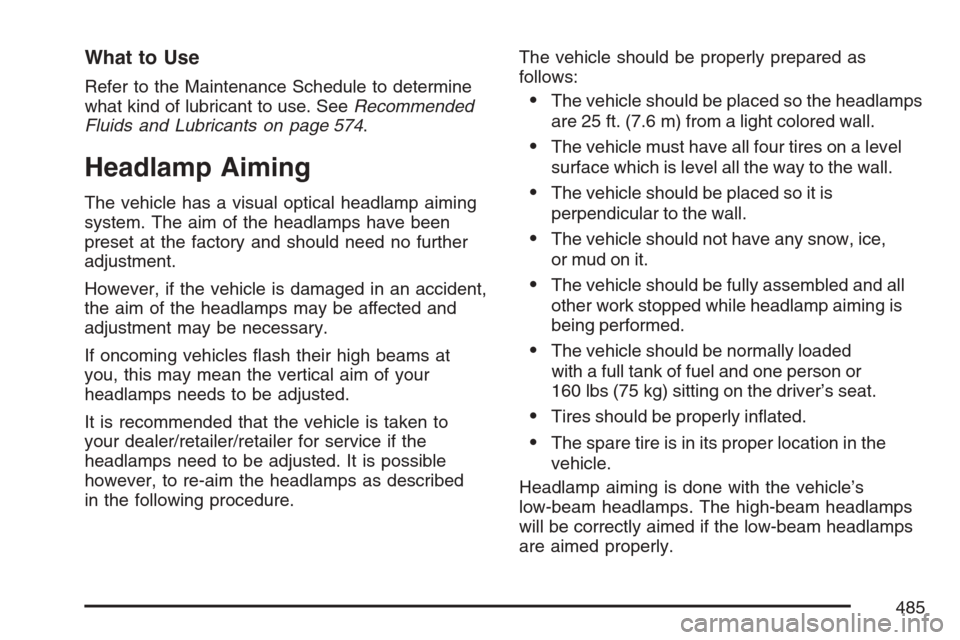

What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 574.
Headlamp Aiming
The vehicle has a visual optical headlamp aiming
system. The aim of the headlamps have been
preset at the factory and should need no further
adjustment.
However, if the vehicle is damaged in an accident,
the aim of the headlamps may be affected and
adjustment may be necessary.
If oncoming vehicles ash their high beams at
you, this may mean the vertical aim of your
headlamps needs to be adjusted.
It is recommended that the vehicle is taken to
your dealer/retailer/retailer for service if the
headlamps need to be adjusted. It is possible
however, to re-aim the headlamps as described
in the following procedure.The vehicle should be properly prepared as
follows:
The vehicle should be placed so the headlamps
are 25 ft. (7.6 m) from a light colored wall.
The vehicle must have all four tires on a level
surface which is level all the way to the wall.
The vehicle should be placed so it is
perpendicular to the wall.
The vehicle should not have any snow, ice,
or mud on it.
The vehicle should be fully assembled and all
other work stopped while headlamp aiming is
being performed.
The vehicle should be normally loaded
with a full tank of fuel and one person or
160 lbs (75 kg) sitting on the driver’s seat.
Tires should be properly inated.
The spare tire is in its proper location in the
vehicle.
Headlamp aiming is done with the vehicle’s
low-beam headlamps. The high-beam headlamps
will be correctly aimed if the low-beam headlamps
are aimed properly.
485

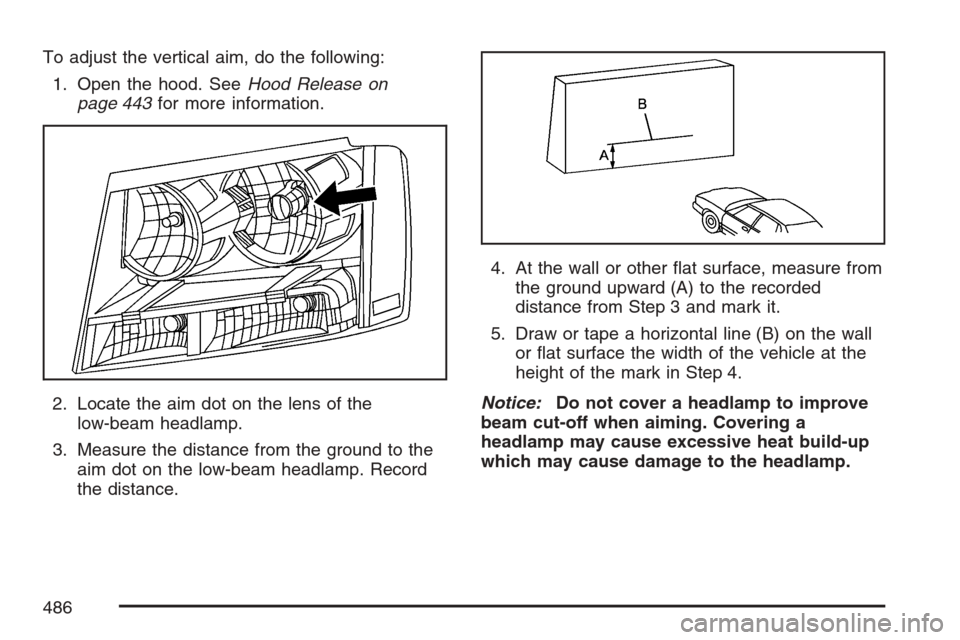

To adjust the vertical aim, do the following:
1. Open the hood. SeeHood Release on
page 443for more information.
2. Locate the aim dot on the lens of the
low-beam headlamp.
3. Measure the distance from the ground to the
aim dot on the low-beam headlamp. Record
the distance.4. At the wall or other at surface, measure from
the ground upward (A) to the recorded
distance from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall
or at surface the width of the vehicle at the
height of the mark in Step 4.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
486

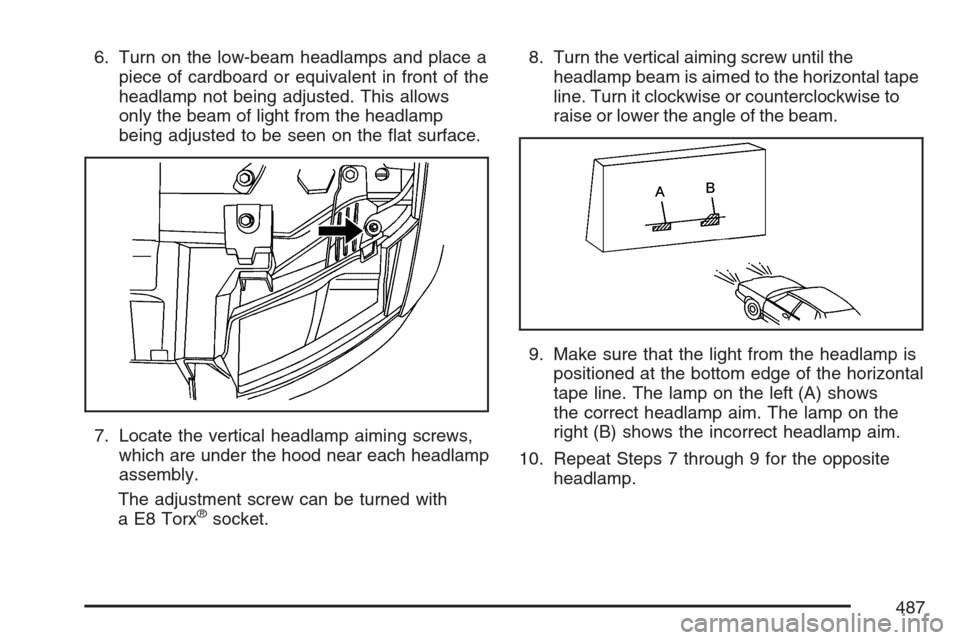

6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. This allows
only the beam of light from the headlamp
being adjusted to be seen on the at surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with
a E8 Torx
®socket.8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows
the correct headlamp aim. The lamp on the
right (B) shows the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
487

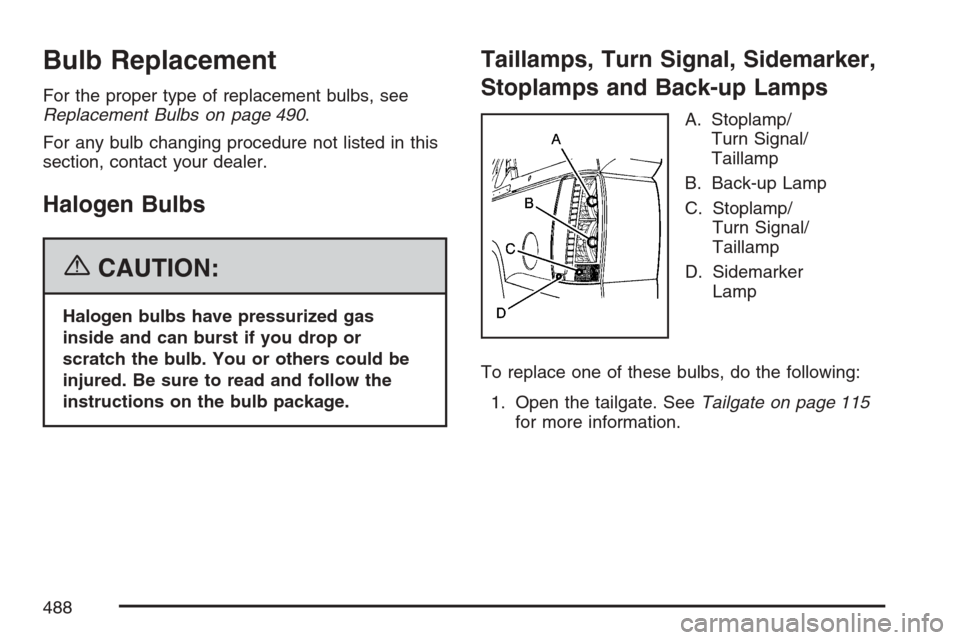

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 490.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps
A. Stoplamp/
Turn Signal/
Taillamp
B. Back-up Lamp
C. Stoplamp/
Turn Signal/
Taillamp
D. Sidemarker
Lamp
To replace one of these bulbs, do the following:
1. Open the tailgate. SeeTailgate on page 115
for more information.
488

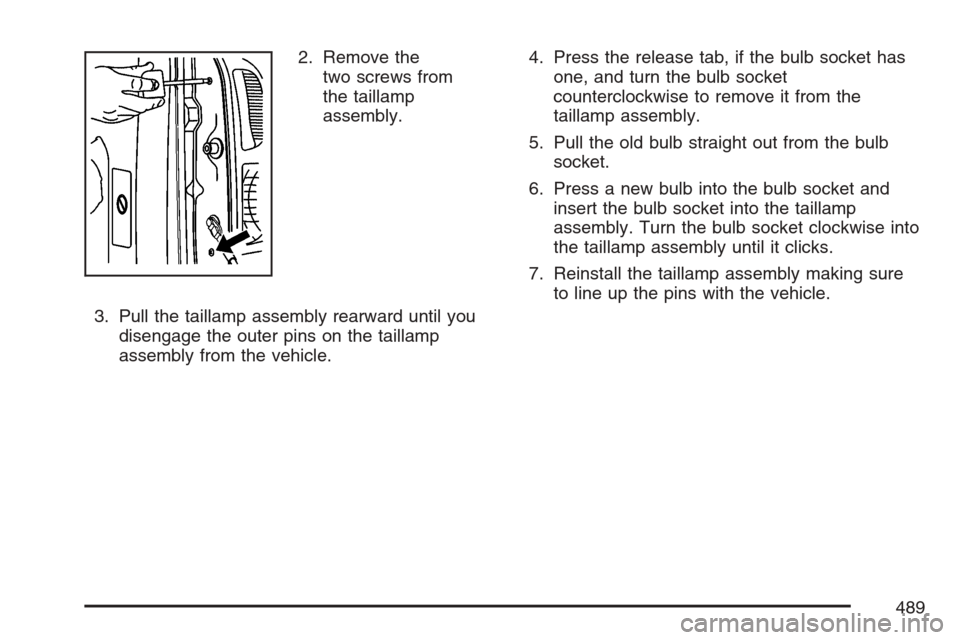

2. Remove the
two screws from
the taillamp
assembly.
3. Pull the taillamp assembly rearward until you
disengage the outer pins on the taillamp
assembly from the vehicle.4. Press the release tab, if the bulb socket has
one, and turn the bulb socket
counterclockwise to remove it from the
taillamp assembly.
5. Pull the old bulb straight out from the bulb
socket.
6. Press a new bulb into the bulb socket and
insert the bulb socket into the taillamp
assembly. Turn the bulb socket clockwise into
the taillamp assembly until it clicks.
7. Reinstall the taillamp assembly making sure
to line up the pins with the vehicle.
489

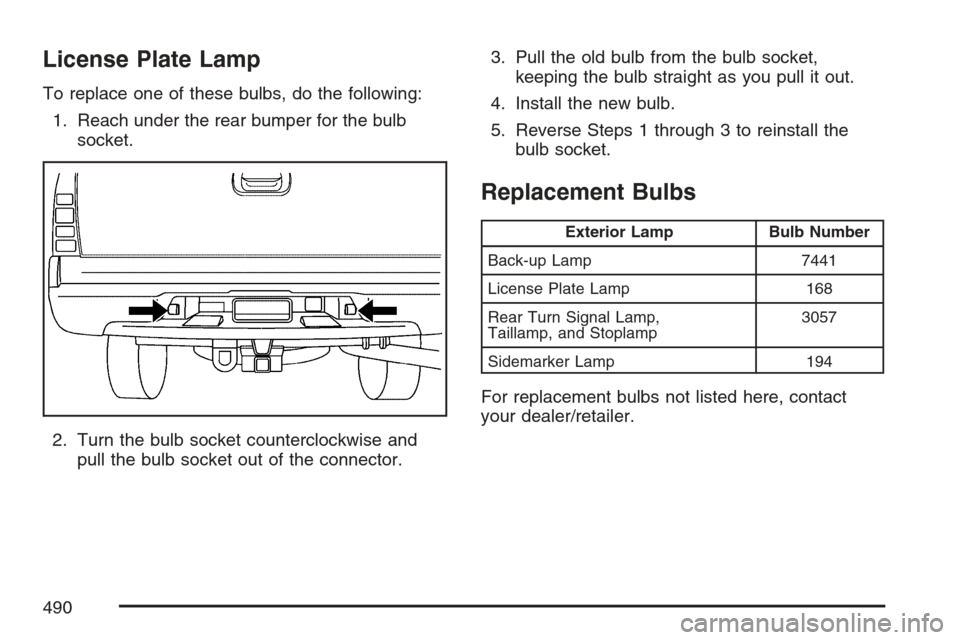

License Plate Lamp
To replace one of these bulbs, do the following:
1. Reach under the rear bumper for the bulb
socket.
2. Turn the bulb socket counterclockwise and
pull the bulb socket out of the connector.3. Pull the old bulb from the bulb socket,
keeping the bulb straight as you pull it out.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the
bulb socket.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up Lamp 7441
License Plate Lamp 168
Rear Turn Signal Lamp,
Taillamp, and Stoplamp3057
Sidemarker Lamp 194
For replacement bulbs not listed here, contact
your dealer/retailer.
490
