Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 19
Safety Belts
............................................ 21
Child Restraints
...................................... 45
Airbag System
........................................ 72
Restraint System Check
......................... 88
Features and Controls
................................ 91
Keys
....................................................... 93
Doors and Locks
.................................. 102
Windows
............................................... 116
Theft-Deterrent Systems
....................... 118
Starting and Operating Your Vehicle
....... 122
Mirrors
.................................................. 145
OnStar
®System
................................... 156Universal Home Remote System
.......... 159
Storage Areas
...................................... 170
Sunroof
................................................ 199
Instrument Panel
....................................... 201
Instrument Panel Overview
................... 204
Climate Controls
................................... 227
Warning Lights, Gages, and
Indicators
.......................................... 239
Driver Information Center (DIC)
............ 257
Audio System(s)
................................... 286
Driving Your Vehicle
................................. 351
Your Driving, the Road, and
Your Vehicle
..................................... 352
Towing
................................................. 408
2007 Chevrolet Avalanche Owner ManualM
1

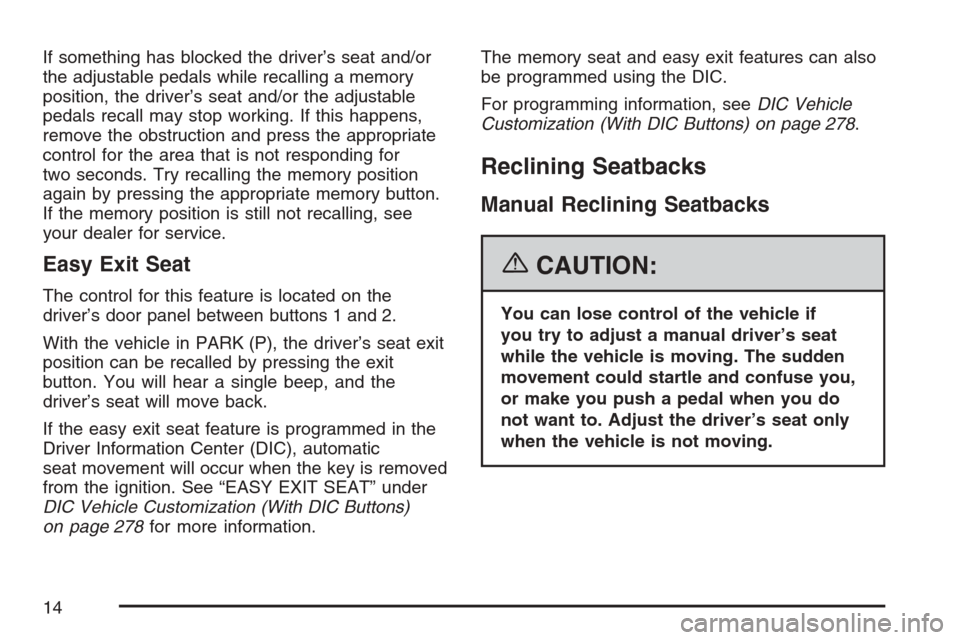

If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
remove the obstruction and press the appropriate
control for the area that is not responding for
two seconds. Try recalling the memory position
again by pressing the appropriate memory button.
If the memory position is still not recalling, see
your dealer for service.
Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the driver’s seat exit
position can be recalled by pressing the exit
button. You will hear a single beep, and the
driver’s seat will move back.
If the easy exit seat feature is programmed in the
Driver Information Center (DIC), automatic
seat movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 278for more information.The memory seat and easy exit features can also
be programmed using the DIC.
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 278.
Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
14

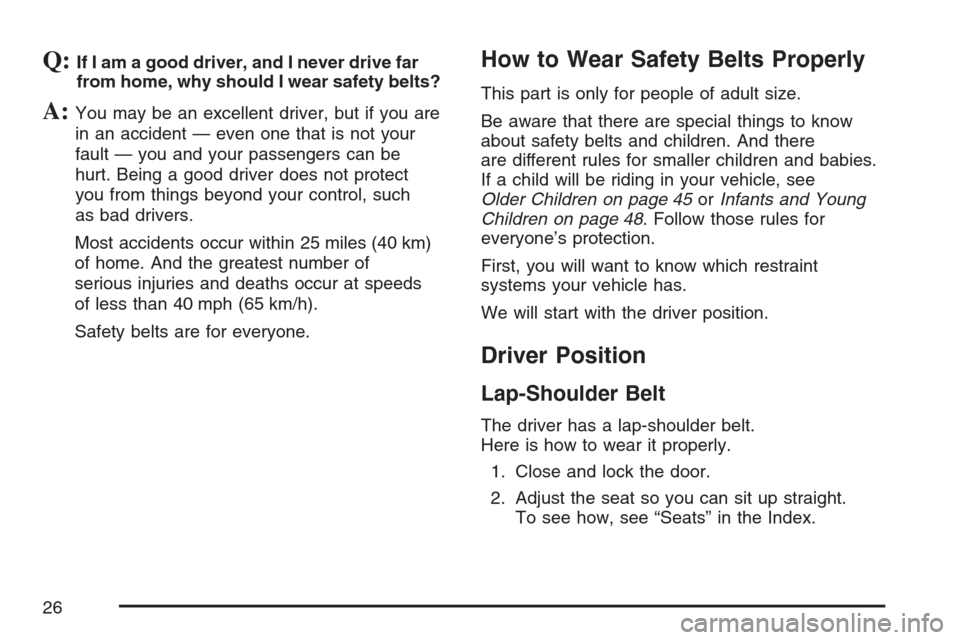

Q:If I am a good driver, and I never drive far
from home, why should I wear safety belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be
hurt. Being a good driver does not protect
you from things beyond your control, such
as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds
of less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 45orInfants and Young
Children on page 48. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt.
Here is how to wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
26

To unlatch the belt, push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is
out of the way. If you slam the door on it, you
can damage both the belt and your vehicle.
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for you.
Adjust the height so that the shoulder portion
of the belt is centered on your shoulder. The belt
should be away from your face and neck, but
not falling off your shoulder. Improper shoulder belt
height adjustment could reduce the effectiveness
of the safety belt in a crash.
To move it down,
squeeze the buttons (A)
on the sides of the
height adjuster
and move the height
adjuster to the desired
position.
You can move the adjuster up just by pushing up
on the shoulder belt guide.
After you move the adjuster to where you want
it, try to move it down without squeezing the
buttons to make sure it has locked into position.
34

{CAUTION:
If something is between an occupant
and an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag
must be kept clear. Do not put anything
between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted side impact airbags,
never secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening.
If you do, the path of an inating side
impact airbag will be blocked. The path
of an inating airbag must be kept clear.
When Should an Airbag Inate?
The driver’s and right front passenger’s frontal
airbags are designed to inate in moderate
to severe frontal or near-frontal crashes. But they
are designed to inate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and
are used to predict how severe a crash is likely
to be in time for the airbags to inate and
help restrain the occupants. Whether your frontal
airbags will or should deploy is not based on
how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the impact,
and how quickly your vehicle slows down.
In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors, which help the sensing system
distinguish between a moderate frontal impact
and a more severe frontal impact. For moderate
frontal impacts, these airbags inate at a level
less than full deployment. For more severe frontal
impacts, full deployment occurs.
77

Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and
ash the hazard warning ashers when the airbags
inate. You can lock the doors again, turn the
interior lamps off, and turn off the hazard warning
ashers by using the controls for those features.
In many crashes severe enough to inate the
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger airbag.
Airbags are designed to inate only once.
After an airbag inates, you will need some new
parts for your airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system
will include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection
and Event Data Recorders on page 594.
Let only qualied technicians work on the
airbag system. Improper service can mean
that an airbag system will not work properly.
See your dealer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator on the
overhead console will be visible when you turn
your ignition key to RUN or START.
The words ON and OFF or the symbol for on
and off, will be visible during the system check.
When the system check is complete, either
the word ON or the word OFF, or the symbol for
on or the symbol for off will be visible. See
Passenger Airbag Status Indicator on page 243.
United StatesCanada
81

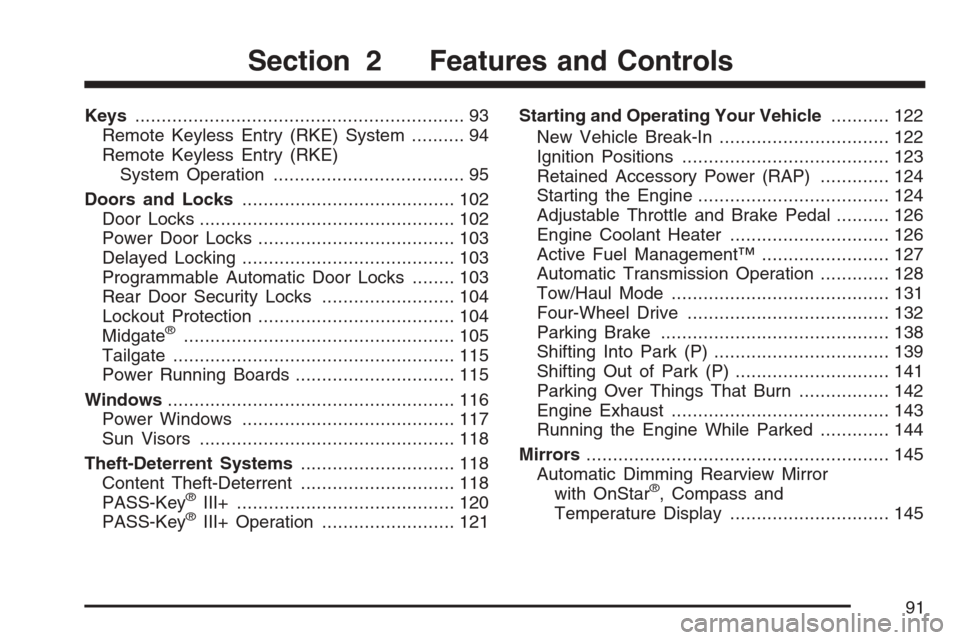

Keys.............................................................. 93
Remote Keyless Entry (RKE) System.......... 94
Remote Keyless Entry (RKE)
System Operation.................................... 95
Doors and Locks........................................ 102
Door Locks................................................ 102
Power Door Locks..................................... 103
Delayed Locking........................................ 103
Programmable Automatic Door Locks........ 103
Rear Door Security Locks......................... 104
Lockout Protection..................................... 104
Midgate
®................................................... 105
Tailgate..................................................... 115
Power Running Boards.............................. 115
Windows...................................................... 116
Power Windows........................................ 117
Sun Visors................................................ 118
Theft-Deterrent Systems............................. 118
Content Theft-Deterrent............................. 118
PASS-Key
®III+......................................... 120
PASS-Key®III+ Operation......................... 121Starting and Operating Your Vehicle........... 122
New Vehicle Break-In................................ 122
Ignition Positions....................................... 123
Retained Accessory Power (RAP)............. 124
Starting the Engine.................................... 124
Adjustable Throttle and Brake Pedal.......... 126
Engine Coolant Heater.............................. 126
Active Fuel Management™........................ 127
Automatic Transmission Operation............. 128
Tow/Haul Mode......................................... 131
Four-Wheel Drive...................................... 132
Parking Brake........................................... 138
Shifting Into Park (P) ................................. 139
Shifting Out of Park (P)............................. 141
Parking Over Things That Burn................. 142
Engine Exhaust......................................... 143
Running the Engine While Parked............. 144
Mirrors......................................................... 145
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 145
Section 2 Features and Controls
91

Your vehicle has
one double-sided key
for the ignition, all
door locks, tailgate,
and side storage boxes.
If you ever lose your keys, your dealer will be
able to assist you with obtaining replacements.
In an emergency contact roadside assistance.
SeeRoadside Assistance Program on page 588
for more information.Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system
operates on a radio frequency subject to
Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by
other than an authorized service facility could
void authorization to use this equipment.
94

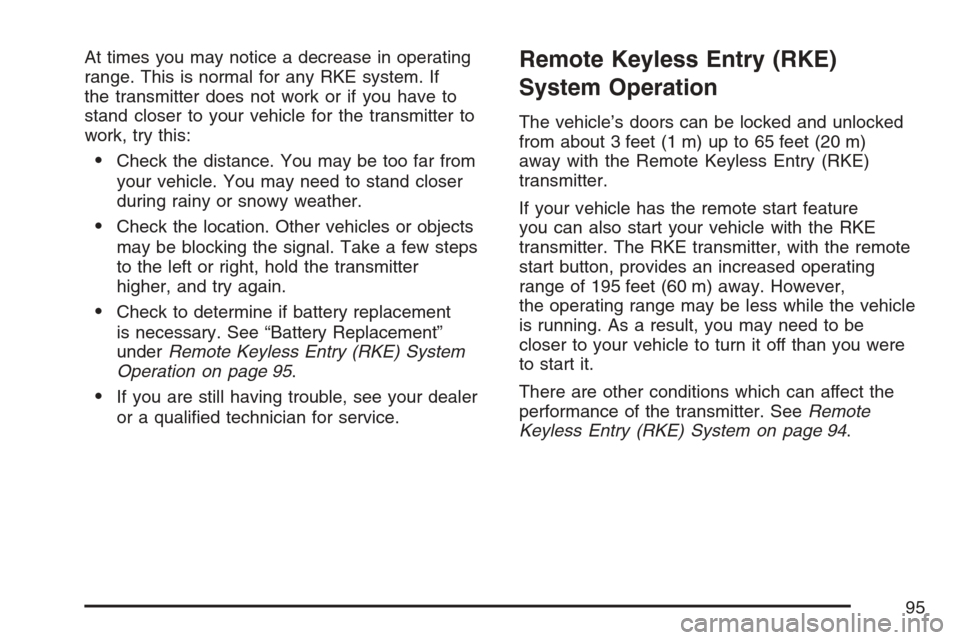

At times you may notice a decrease in operating
range. This is normal for any RKE system. If
the transmitter does not work or if you have to
stand closer to your vehicle for the transmitter to
work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement
is necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 95.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors can be locked and unlocked
from about 3 feet (1 m) up to 65 feet (20 m)
away with the Remote Keyless Entry (RKE)
transmitter.
If your vehicle has the remote start feature
you can also start your vehicle with the RKE
transmitter. The RKE transmitter, with the remote
start button, provides an increased operating
range of 195 feet (60 m) away. However,
the operating range may be less while the vehicle
is running. As a result, you may need to be
closer to your vehicle to turn it off than you were
to start it.
There are other conditions which can affect the
performance of the transmitter. SeeRemote
Keyless Entry (RKE) System on page 94.
95

The following functions
may be available if your
vehicle has the remote
keyless entry system:
/(Remote Vehicle Start):If your vehicle
has this feature, it may be started from outside
the vehicle using the RKE transmitter. See
“Remote Vehicle Start” following for more
detailed information.
Q(Lock):Press the lock button to lock all the
doors, including the tailgate. If enabled through
the Driver Information Center (DIC), the parking
lamps will ash once to indicate locking has
occurred. If enabled through the DIC, the horn
will chirp when the lock button is pressed
again within ve seconds of the previous press of
the lock button. SeeDIC Vehicle Customization
(With DIC Buttons) on page 278for additional
information. Pressing the lock button may arm
the content theft-deterrent system. SeeContent
Theft-Deterrent on page 118.
"(Unlock):Press the unlock button to unlock
the driver’s door. If the button is pressed
again within ve seconds, all remaining doors,
including the tailgate, will unlock. The interior
lamps will come on and stay on for 20 seconds or
until the ignition is turned on. If enabled through
the DIC, the parking lamps will ash once to
indicate unlocking has occurred. SeeDIC Vehicle
Customization (With DIC Buttons) on page 278.
Pressing the unlock button on the RKE transmitter
will disarm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 118.With Remote Start
(Without Remote
Start Similar)
96
