CHEVROLET AVALANCHE 2009 2.G Owners Manual

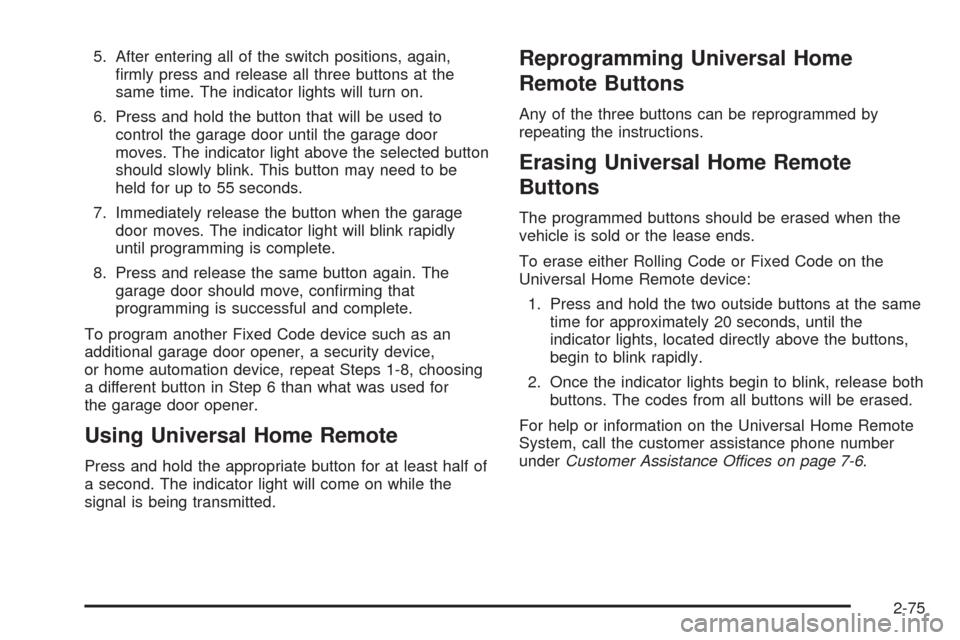

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button that will be used to
control the garage door until the garage door
moves. The indicator light above the selected button
should slowly blink. This button may need to be
held for up to 55 seconds.
7. Immediately release the button when the garage
door moves. The indicator light will blink rapidly
until programming is complete.
8. Press and release the same button again. The
garage door should move, conrming that
programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1-8, choosing
a different button in Step 6 than what was used for
the garage door opener.
Using Universal Home Remote
Press and hold the appropriate button for at least half of
a second. The indicator light will come on while the
signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
Any of the three buttons can be reprogrammed by
repeating the instructions.
Erasing Universal Home Remote
Buttons
The programmed buttons should be erased when the
vehicle is sold or the lease ends.
To erase either Rolling Code or Fixed Code on the
Universal Home Remote device:
1. Press and hold the two outside buttons at the same
time for approximately 20 seconds, until the
indicator lights, located directly above the buttons,
begin to blink rapidly.
2. Once the indicator lights begin to blink, release both
buttons. The codes from all buttons will be erased.
For help or information on the Universal Home Remote
System, call the customer assistance phone number
underCustomer Assistance Offices on page 7-6.
2-75

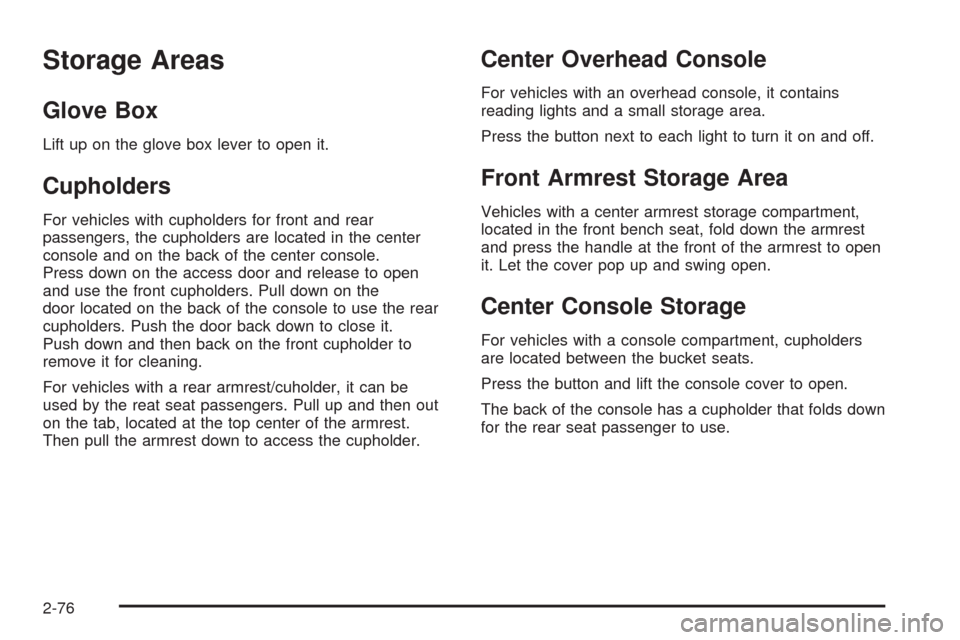

Storage Areas
Glove Box
Lift up on the glove box lever to open it.
Cupholders
For vehicles with cupholders for front and rear
passengers, the cupholders are located in the center
console and on the back of the center console.
Press down on the access door and release to open
and use the front cupholders. Pull down on the
door located on the back of the console to use the rear
cupholders. Push the door back down to close it.
Push down and then back on the front cupholder to
remove it for cleaning.
For vehicles with a rear armrest/cuholder, it can be
used by the reat seat passengers. Pull up and then out
on the tab, located at the top center of the armrest.
Then pull the armrest down to access the cupholder.
Center Overhead Console
For vehicles with an overhead console, it contains
reading lights and a small storage area.
Press the button next to each light to turn it on and off.
Front Armrest Storage Area
Vehicles with a center armrest storage compartment,
located in the front bench seat, fold down the armrest
and press the handle at the front of the armrest to open
it. Let the cover pop up and swing open.
Center Console Storage
For vehicles with a console compartment, cupholders
are located between the bucket seats.
Press the button and lift the console cover to open.
The back of the console has a cupholder that folds down
for the rear seat passenger to use.
2-76

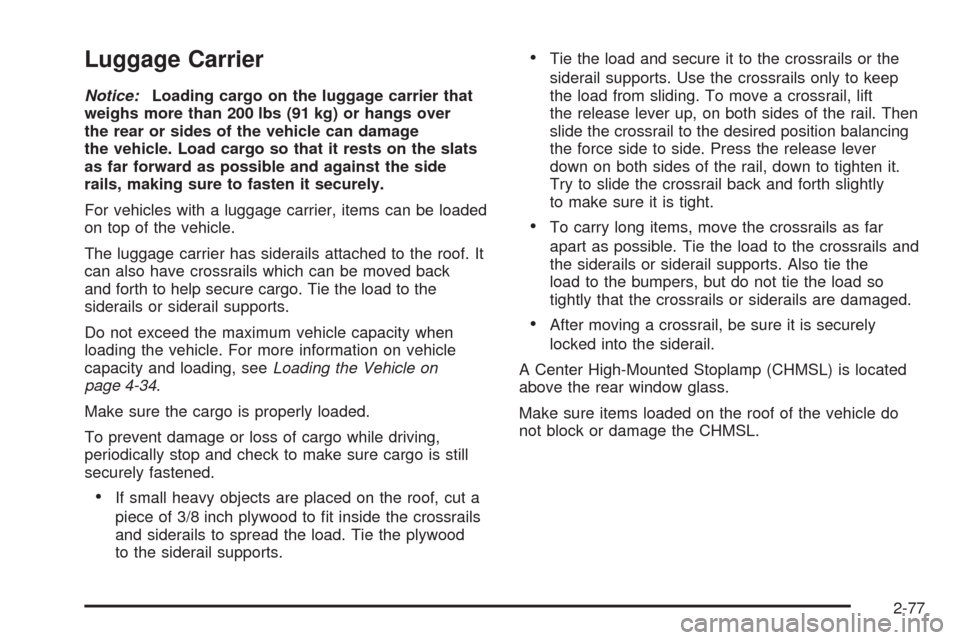

Luggage Carrier
Notice:Loading cargo on the luggage carrier that
weighs more than 200 lbs (91 kg) or hangs over
the rear or sides of the vehicle can damage
the vehicle. Load cargo so that it rests on the slats
as far forward as possible and against the side
rails, making sure to fasten it securely.
For vehicles with a luggage carrier, items can be loaded
on top of the vehicle.
The luggage carrier has siderails attached to the roof. It
can also have crossrails which can be moved back
and forth to help secure cargo. Tie the load to the
siderails or siderail supports.
Do not exceed the maximum vehicle capacity when
loading the vehicle. For more information on vehicle
capacity and loading, seeLoading the Vehicle on
page 4-34.
Make sure the cargo is properly loaded.
To prevent damage or loss of cargo while driving,
periodically stop and check to make sure cargo is still
securely fastened.
If small heavy objects are placed on the roof, cut a
piece of 3/8 inch plywood to t inside the crossrails
and siderails to spread the load. Tie the plywood
to the siderail supports.
Tie the load and secure it to the crossrails or the
siderail supports. Use the crossrails only to keep
the load from sliding. To move a crossrail, lift
the release lever up, on both sides of the rail. Then
slide the crossrail to the desired position balancing
the force side to side. Press the release lever
down on both sides of the rail, down to tighten it.
Try to slide the crossrail back and forth slightly
to make sure it is tight.
To carry long items, move the crossrails as far
apart as possible. Tie the load to the crossrails and
the siderails or siderail supports. Also tie the
load to the bumpers, but do not tie the load so
tightly that the crossrails or siderails are damaged.
After moving a crossrail, be sure it is securely
locked into the siderail.
A Center High-Mounted Stoplamp (CHMSL) is located
above the rear window glass.
Make sure items loaded on the roof of the vehicle do
not block or damage the CHMSL.
2-77

Cargo Cover Panels
For vehicles with a three-piece cargo cover system, the
cargo panels can be removed and stored in the cargo
area of the vehicle.
{CAUTION:
Improperly stored cargo cover panels could be
thrown about the vehicle during a collision or
sudden maneuver. Someone could be injured. If a
panel is removed, always store it in the proper
storage location. When putting it back, always
make sure that it is securely reattached.
Notice:Exceeding the weight limit of 250 lbs
(113 kg) can damage the cargo covers, and the
repairs would not be covered by the vehicle
warranty. Do not put anything on top of the cargo
covers over the weight limit.To remove a cargo panel(s):
1. Lower the tailgate. SeeTailgate on page 2-23for
more information on the tailgate.
The panels are embossed on the upper center
portion with the numbers 1, 2 and 3. There are also
numbered labels on the bottom of the panels.
The numbers on the top and bottom of the panels
will be used as reference when removing, storing
and reinstalling the panels.
2-78

2. Unlock the cargo panel 3 by pulling forward on the
driver side and passenger side cargo panel latches,
located on the bottom of each cargo panel.3. Remove cargo panel 2 in the same way and set it
aside. Remove as many cargo panels as needed.
4. To remove cargo panel 1, unlock the two rear
latches, lift the cover slightly and pull rearward.
After each cargo panel has been removed, store them
within the cargo storage area using the cargo panel
storage system.
2-79

Cargo Panel Storage System
The three cargo panels can be stored in the cargo area
using the storage strap system. Always use the
storage strap system to store the cargo panels while
driving.To store the panels:
1. Secure the storage
strap system in the
cargo storage area by
attaching the six
clips included on the
cargo strap system
to the tie down
locations on either side
of the storage area.
Before storing the cargo panels, make sure that the
latches on the cargo panels are in the locked
position. The latches are locked when they are
parallel to the front and back edge of the panel.
2-80

Use the following instructions for the proper storage
sequence and location for each panel:
A. Secure clip A on the storage strap.
B. Secure clip B on the storage strap.
C. Place the remaining primary straps on top of the
lid and tray at the top of the cargo area.2. Starting with cargo panel 1, load the cargo panel
with the latches facing up toward the side of the
cargo box.
Do the same for cargo panel 2 then panel 3.
Make sure to store panel 2 with the latches facing
down and panel 3 with latches facing up toward the
side of the cargo box.
2-81

3. Place the primary straps over the three cargo
covers (A). Fasten the four strap clips (B).4. Tighten all straps by pulling on the free end of each
strap.
2-82

5. Close both cross locks at the center of the strap
system to tightly secure.
Panels 3, 2, 1 Loaded
2-83

Reinstalling the Cargo Cover Panels
The strap system can remain attached to the side of the
cargo area while it is not in use, or it can be stored
inside the top box storage compartment. SeeTop-Box
Storage on page 2-92for more information.
To reinstall a cargo panel:
1. Starting with cargo panel 1, place the latches in the
unlocked position. Place cargo panel 1 on the cargo
area rails while holding the back of the cargo
panel up.Place the cover on the cargo box within 4 inches of
the Midgate
®and lower the rear of the panel
within 2 to 3 inches from the top of the cargo box.
Push the cover forward making sure that the
guide block engages the retainer bracket opening.
Continue to push forward until the panel is fully
seated against the Midgate. Then lower the rear of
the cover to engage the striker pegs (A) to align
with the striker assembly (B).
Driver Side Shown, Passenger Side Similar
2-84
