Black plate (67,1)Chevrolet Avalanche Owner Manual - 2011
Seats and Restraints 3-67

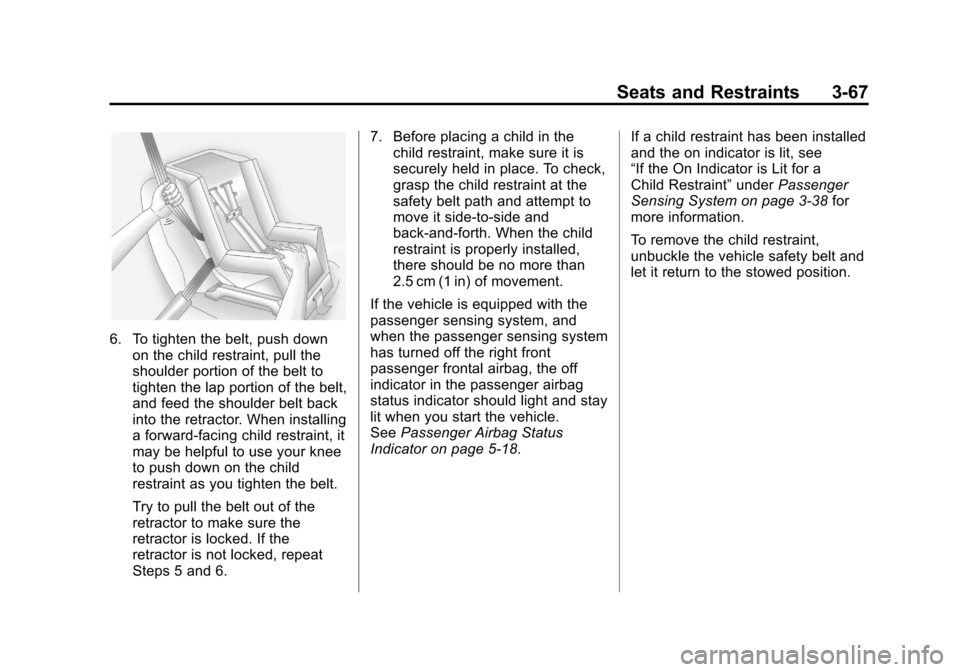

6. To tighten the belt, push downon the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt,
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee
to push down on the child
restraint as you tighten the belt.
Try to pull the belt out of the
retractor to make sure the
retractor is locked. If the
retractor is not locked, repeat
Steps 5 and 6. 7. Before placing a child in the
child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
safety belt path and attempt to
move it side‐to‐side and
back‐and‐forth. When the child
restraint is properly installed,
there should be no more than
2.5 cm (1 in) of movement.
If the vehicle is equipped with the
passenger sensing system, and
when the passenger sensing system
has turned off the right front
passenger frontal airbag, the off
indicator in the passenger airbag
status indicator should light and stay
lit when you start the vehicle.
See Passenger Airbag Status
Indicator on page 5‑18. If a child restraint has been installed
and the on indicator is lit, see
“If the On Indicator is Lit for a
Child Restraint”
underPassenger
Sensing System on page 3‑38 for
more information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.

Black plate (68,1)Chevrolet Avalanche Owner Manual - 2011
3-68 Seats and Restraints
2NOTES

Black plate (1,1)Chevrolet Avalanche Owner Manual - 2011
Storage 4-1
Storage
Storage Compartments
Glove Box . . . . . . . . . . . . . . . . . . . . 4-1
Cupholders . . . . . . . . . . . . . . . . . . . 4-1
Overhead Console . . . . . . . . . . . . 4-1
Armrest Storage . . . . . . . . . . . . . . 4-2
Center Console Storage . . . . . . 4-2
Top-Box Storage . . . . . . . . . . . . . . 4-2
Luggage/Load Locations
Cargo Area . . . . . . . . . . . . . . . . . . . 4-2
Additional Storage Features
Cargo Cover Panels . . . . . . . . . . 4-6
Cargo Tie Downs . . . . . . . . . . . . 4-13
Roof Rack System
Roof Rack System . . . . . . . . . . . 4-13
Storage
Compartments
Glove Box
Lift up on the glove box lever to
open it.
Cupholders
For vehicles with cupholders for
front and rear passengers, the
cupholders are located in the center
console and on the back of the
center console.
Press down and release the access
door to open and use the front
cupholders.
Pull down on the door located on
the back of the console to use the
rear cupholders. Push on the door
to close it.Push down and then back to
remove the front cupholder for
cleaning.
For vehicles with a rear armrest/
cupholder, pull up and out on the
tab on the top center of the armrest.
Pull the armrest down to access the
cupholder.Overhead Console
For vehicles with an overhead
console, it contains reading lights
and a small storage area.
Press the button next to each light
to turn it on and off.

Black plate (2,1)Chevrolet Avalanche Owner Manual - 2011
4-2 Storage

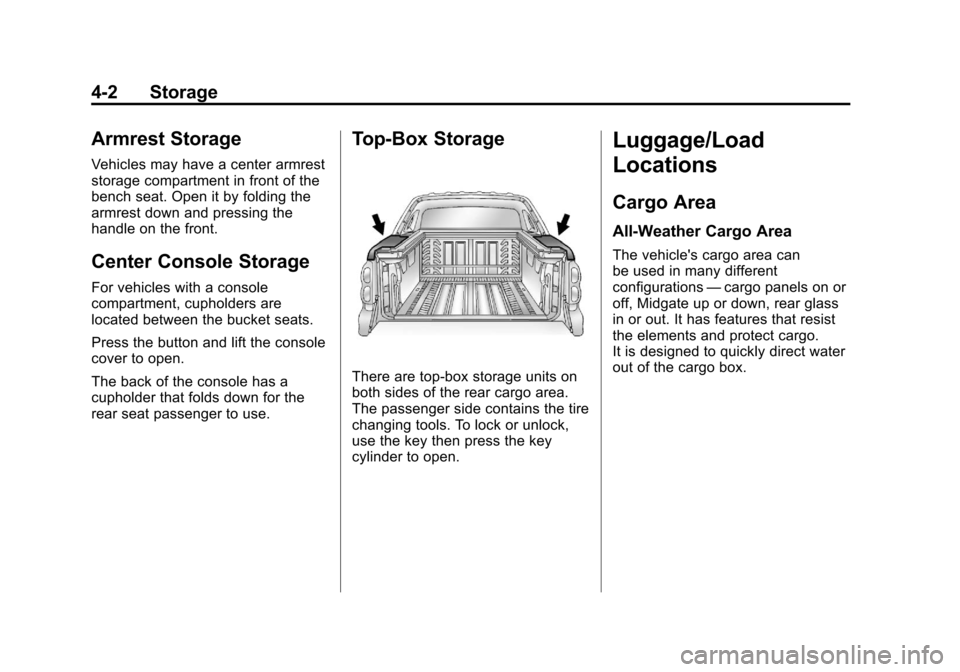

Armrest Storage
Vehicles may have a center armrest
storage compartment in front of the
bench seat. Open it by folding the
armrest down and pressing the
handle on the front.
Center Console Storage
For vehicles with a console
compartment, cupholders are
located between the bucket seats.
Press the button and lift the console
cover to open.
The back of the console has a
cupholder that folds down for the
rear seat passenger to use.
Top-Box Storage
There are top-box storage units on
both sides of the rear cargo area.
The passenger side contains the tire
changing tools. To lock or unlock,
use the key then press the key
cylinder to open.
Luggage/Load
Locations
Cargo Area
All-Weather Cargo Area
The vehicle's cargo area can
be used in many different
configurations—cargo panels on or
off, Midgate up or down, rear glass
in or out. It has features that resist
the elements and protect cargo.
It is designed to quickly direct water
out of the cargo box.

Black plate (3,1)Chevrolet Avalanche Owner Manual - 2011
Storage 4-3

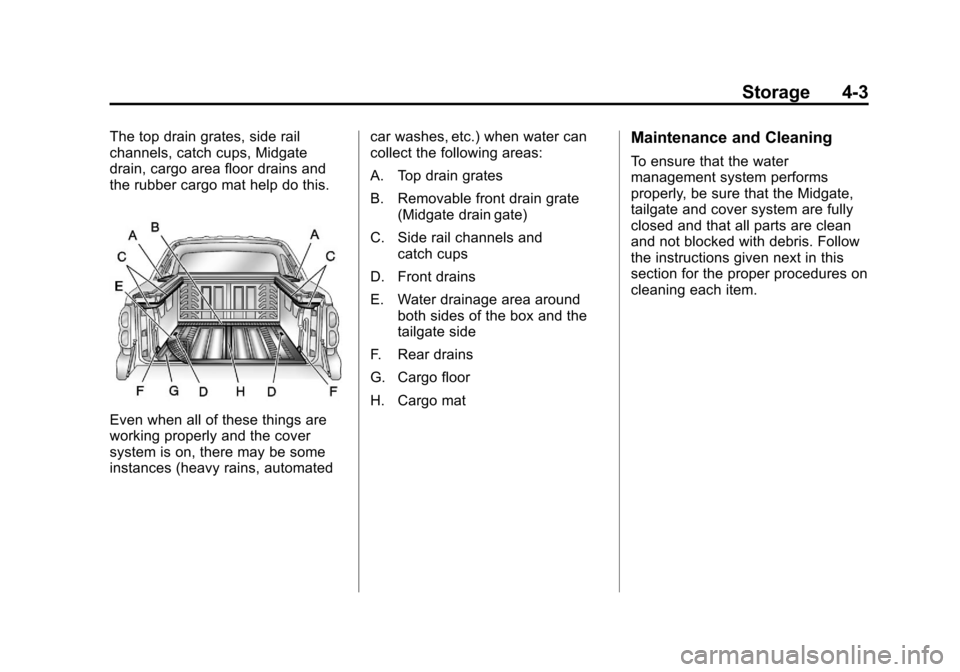

The top drain grates, side rail
channels, catch cups, Midgate
drain, cargo area floor drains and
the rubber cargo mat help do this.
Even when all of these things are
working properly and the cover
system is on, there may be some
instances (heavy rains, automatedcar washes, etc.) when water can
collect the following areas:
A. Top drain grates
B. Removable front drain grate
(Midgate drain gate)
C. Side rail channels and catch cups
D. Front drains
E. Water drainage area around both sides of the box and the
tailgate side
F. Rear drains
G. Cargo floor
H. Cargo mat
Maintenance and Cleaning
To ensure that the water
management system performs
properly, be sure that the Midgate,
tailgate and cover system are fully
closed and that all parts are clean
and not blocked with debris. Follow
the instructions given next in this
section for the proper procedures on
cleaning each item.

Black plate (4,1)Chevrolet Avalanche Owner Manual - 2011
4-4 Storage

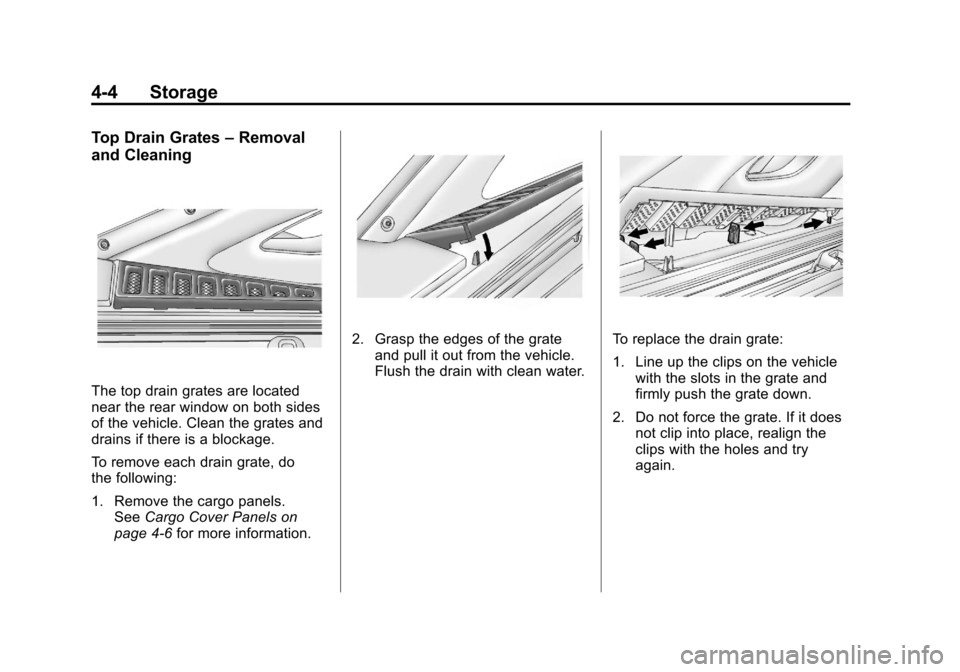

Top Drain Grates–Removal
and Cleaning
The top drain grates are located
near the rear window on both sides
of the vehicle. Clean the grates and
drains if there is a blockage.
To remove each drain grate, do
the following:
1. Remove the cargo panels.
See Cargo Cover Panels on
page 4‑6 for more information.
2. Grasp the edges of the grate
and pull it out from the vehicle.
Flush the drain with clean water.To replace the drain grate:
1. Line up the clips on the vehiclewith the slots in the grate and
firmly push the grate down.
2. Do not force the grate. If it does not clip into place, realign the
clips with the holes and try
again.

Black plate (5,1)Chevrolet Avalanche Owner Manual - 2011
Storage 4-5

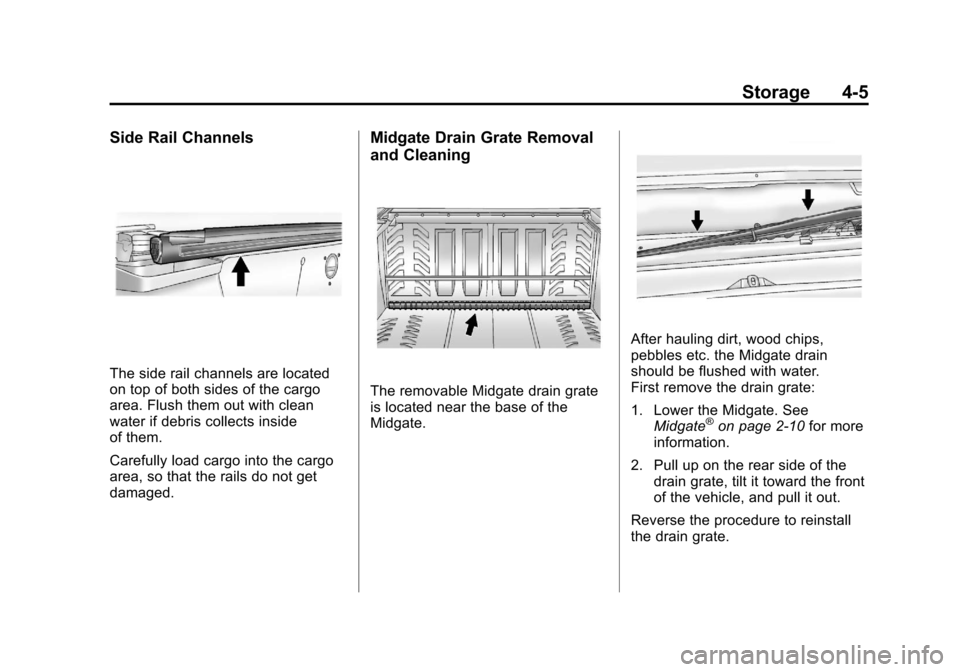

Side Rail Channels
The side rail channels are located
on top of both sides of the cargo
area. Flush them out with clean
water if debris collects inside
of them.
Carefully load cargo into the cargo
area, so that the rails do not get
damaged.
Midgate Drain Grate Removal
and Cleaning
The removable Midgate drain grate
is located near the base of the
Midgate.
After hauling dirt, wood chips,
pebbles etc. the Midgate drain
should be flushed with water.
First remove the drain grate:
1. Lower the Midgate. SeeMidgate
®on page 2‑10 for more
information.
2. Pull up on the rear side of the drain grate, tilt it toward the front
of the vehicle, and pull it out.
Reverse the procedure to reinstall
the drain grate.

Black plate (6,1)Chevrolet Avalanche Owner Manual - 2011
4-6 Storage

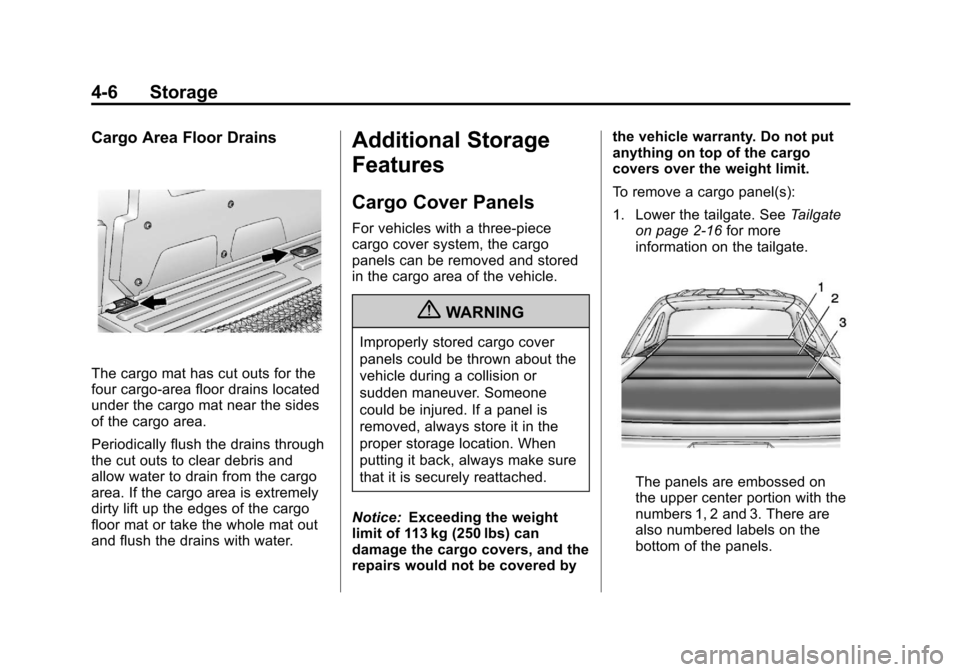

Cargo Area Floor Drains
The cargo mat has cut outs for the
four cargo-area floor drains located
under the cargo mat near the sides
of the cargo area.
Periodically flush the drains through
the cut outs to clear debris and
allow water to drain from the cargo
area. If the cargo area is extremely
dirty lift up the edges of the cargo
floor mat or take the whole mat out
and flush the drains with water.
Additional Storage
Features
Cargo Cover Panels
For vehicles with a three-piece
cargo cover system, the cargo
panels can be removed and stored
in the cargo area of the vehicle.
{WARNING
Improperly stored cargo cover
panels could be thrown about the
vehicle during a collision or
sudden maneuver. Someone
could be injured. If a panel is
removed, always store it in the
proper storage location. When
putting it back, always make sure
that it is securely reattached.
Notice: Exceeding the weight
limit of 113 kg (250 lbs) can
damage the cargo covers, and the
repairs would not be covered by the vehicle warranty. Do not put
anything on top of the cargo
covers over the weight limit.
To remove a cargo panel(s):
1. Lower the tailgate. See
Tailgate
on page 2‑16 for more
information on the tailgate.
The panels are embossed on
the upper center portion with the
numbers 1, 2 and 3. There are
also numbered labels on the
bottom of the panels.

Black plate (7,1)Chevrolet Avalanche Owner Manual - 2011
Storage 4-7
The numbers on the top and
bottom of the panels will be used
as reference when removing,
storing and reinstalling the
panels.

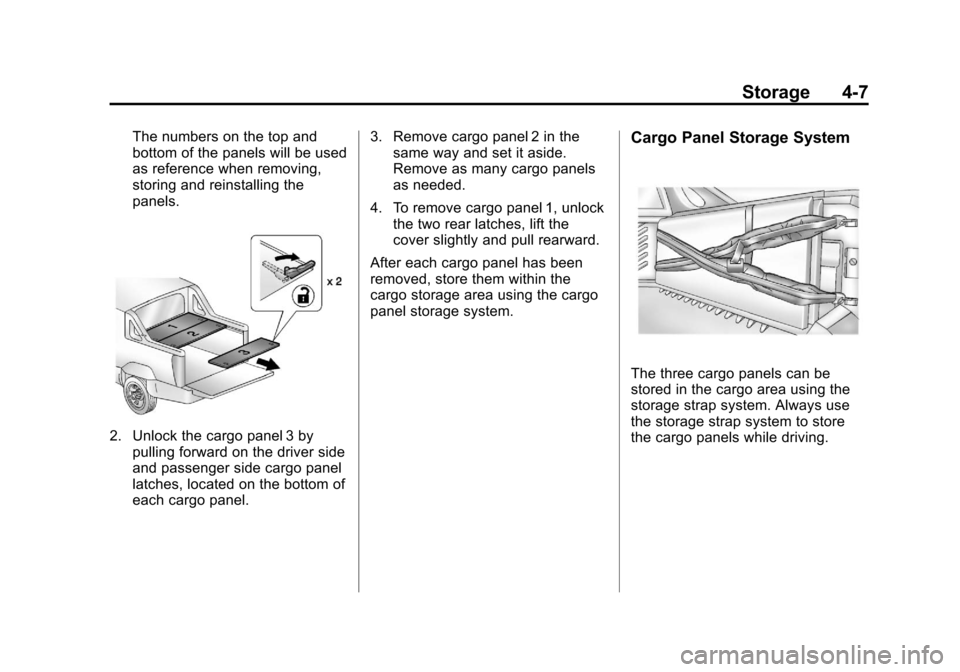

2. Unlock the cargo panel 3 bypulling forward on the driver side
and passenger side cargo panel
latches, located on the bottom of
each cargo panel. 3. Remove cargo panel 2 in the
same way and set it aside.
Remove as many cargo panels
as needed.
4. To remove cargo panel 1, unlock the two rear latches, lift the
cover slightly and pull rearward.
After each cargo panel has been
removed, store them within the
cargo storage area using the cargo
panel storage system.
Cargo Panel Storage System
The three cargo panels can be
stored in the cargo area using the
storage strap system. Always use
the storage strap system to store
the cargo panels while driving.

Black plate (8,1)Chevrolet Avalanche Owner Manual - 2011
4-8 Storage

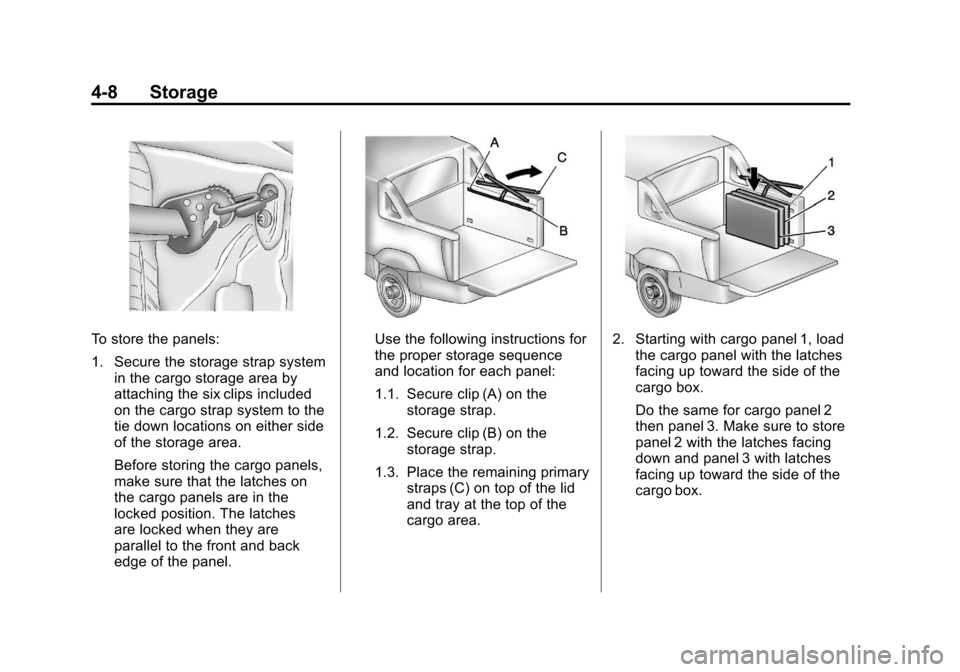

To store the panels:
1. Secure the storage strap systemin the cargo storage area by
attaching the six clips included
on the cargo strap system to the
tie down locations on either side
of the storage area.
Before storing the cargo panels,
make sure that the latches on
the cargo panels are in the
locked position. The latches
are locked when they are
parallel to the front and back
edge of the panel.Use the following instructions for
the proper storage sequence
and location for each panel:
1.1. Secure clip (A) on the
storage strap.
1.2. Secure clip (B) on the storage strap.
1.3. Place the remaining primary straps (C) on top of the lid
and tray at the top of the
cargo area.2. Starting with cargo panel 1, loadthe cargo panel with the latches
facing up toward the side of the
cargo box.
Do the same for cargo panel 2
then panel 3. Make sure to store
panel 2 with the latches facing
down and panel 3 with latches
facing up toward the side of the
cargo box.
