Engine Compartment Fuse Block
The engine compartment fuse block is located on
the driver’s side of the vehicle, near the battery.
SeeEngine Compartment Overview on page 276
for more information on location.
To access the fuses, pull out the top and bottom
flaps to release the cover. To reinstall the
cover, push the cover until it is secure.
Hatchback
Sedan
361

Fuses Usage
HI BEAM RT Passenger’s Side Headlamp High
DIODE (FOG) Fog Lamp DiodeFuses Usage
HI BEAM LT Driver’s Side Headlamp High
BLANK Not Used Hatchback
362

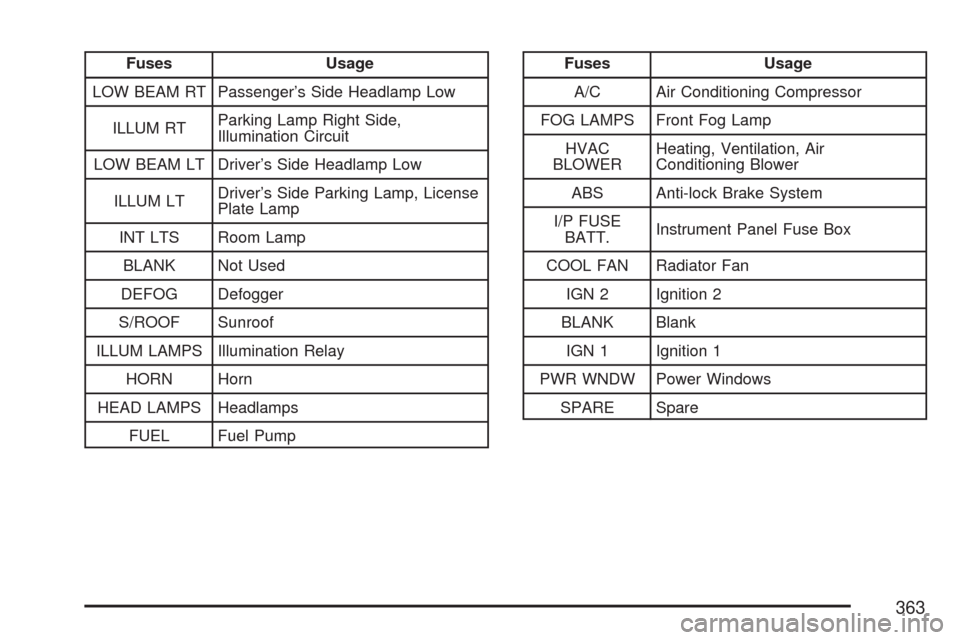

Fuses Usage
LOW BEAM RT Passenger’s Side Headlamp Low
ILLUM RTParking Lamp Right Side,
Illumination Circuit
LOW BEAM LT Driver’s Side Headlamp Low
ILLUM LTDriver’s Side Parking Lamp, License
Plate Lamp
INT LTS Room Lamp
BLANK Not Used
DEFOG Defogger
S/ROOF Sunroof
ILLUM LAMPS Illumination Relay
HORN Horn
HEAD LAMPS Headlamps
FUEL Fuel PumpFuses Usage
A/C Air Conditioning Compressor
FOG LAMPS Front Fog Lamp
HVAC
BLOWERHeating, Ventilation, Air
Conditioning Blower
ABS Anti-lock Brake System
I/P FUSE
BATT.Instrument Panel Fuse Box
COOL FAN Radiator Fan
IGN 2 Ignition 2
BLANK Blank
IGN 1 Ignition 1
PWR WNDW Power Windows
SPARE Spare
363

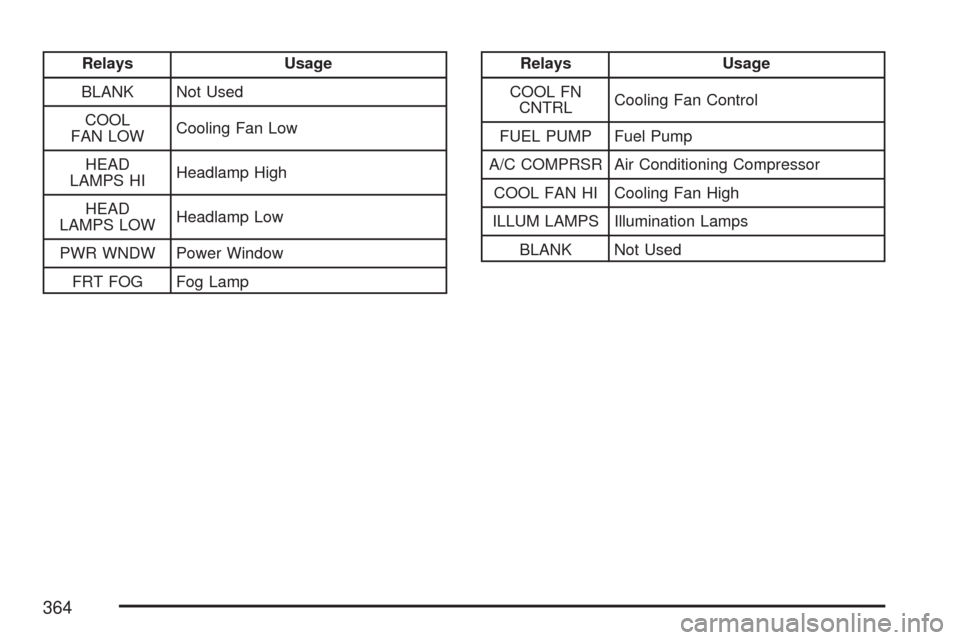

Relays Usage
BLANK Not Used
COOL
FAN LOWCooling Fan Low
HEAD
LAMPS HIHeadlamp High
HEAD
LAMPS LOWHeadlamp Low
PWR WNDW Power Window
FRT FOG Fog LampRelays Usage
COOL FN
CNTRLCooling Fan Control
FUEL PUMP Fuel Pump
A/C COMPRSR Air Conditioning Compressor
COOL FAN HI Cooling Fan High
ILLUM LAMPS Illumination Lamps
BLANK Not Used
364

Fuses Usage
BATT Instrument Panel Fuse Block
PK/LP LHDriver’s Side Parking
Lamp, TaillampFuses Usage
PK/LP RHPassenger’s Side Parking
Lamp, Taillamp
IGN2/ST Ignition Switch Sedan
365

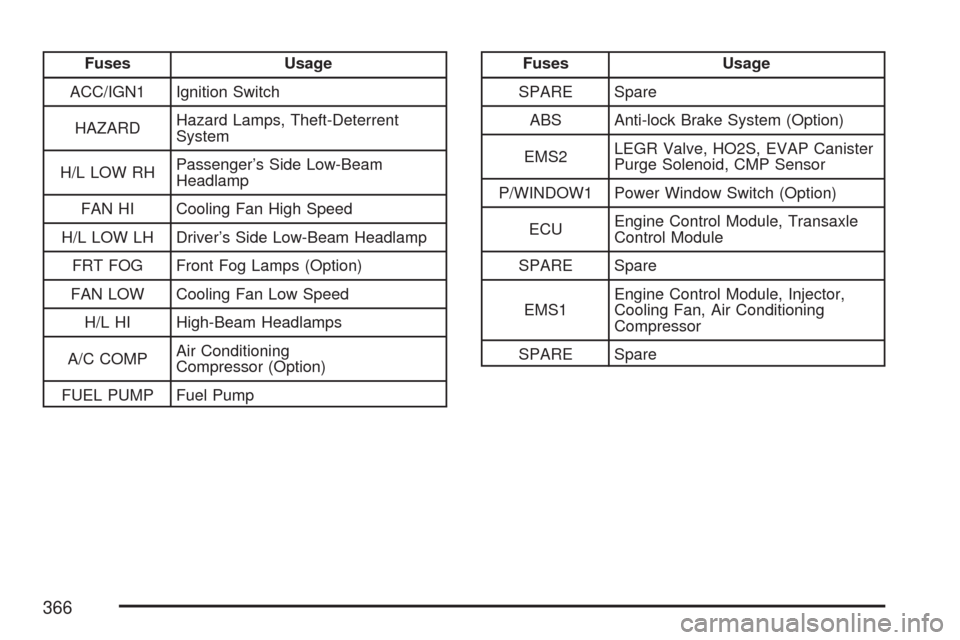

Fuses Usage
ACC/IGN1 Ignition Switch
HAZARDHazard Lamps, Theft-Deterrent
System
H/L LOW RHPassenger’s Side Low-Beam
Headlamp
FAN HI Cooling Fan High Speed
H/L LOW LH Driver’s Side Low-Beam Headlamp
FRT FOG Front Fog Lamps (Option)
FAN LOW Cooling Fan Low Speed
H/L HI High-Beam Headlamps
A/C COMPAir Conditioning
Compressor (Option)
FUEL PUMP Fuel PumpFuses Usage
SPARE Spare
ABS Anti-lock Brake System (Option)
EMS2LEGR Valve, HO2S, EVAP Canister
Purge Solenoid, CMP Sensor
P/WINDOW1 Power Window Switch (Option)
ECUEngine Control Module, Transaxle
Control Module
SPARE Spare
EMS1Engine Control Module, Injector,
Cooling Fan, Air Conditioning
Compressor
SPARE Spare
366

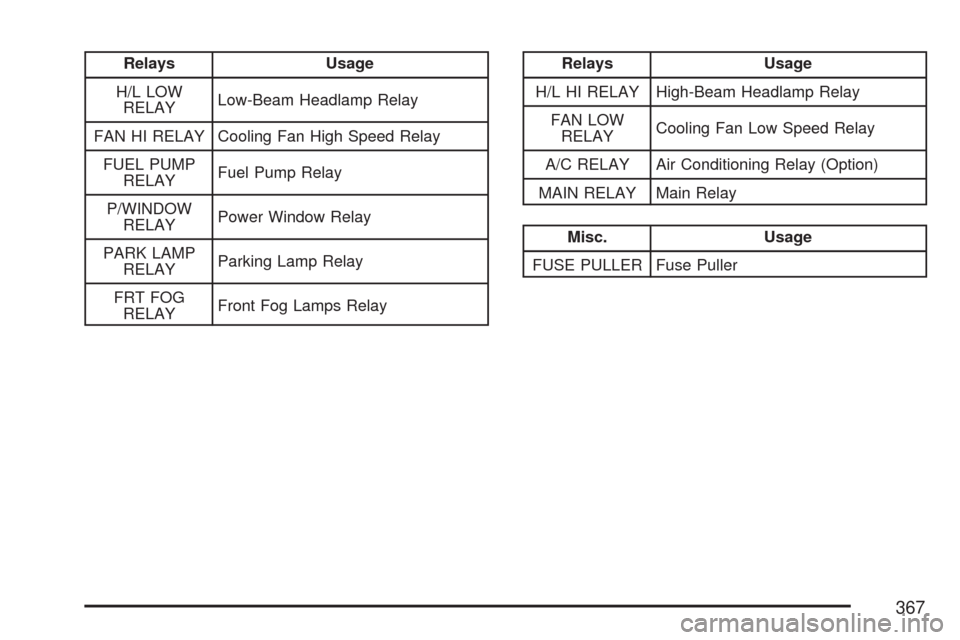

Relays Usage
H/L LOW
RELAYLow-Beam Headlamp Relay
FAN HI RELAY Cooling Fan High Speed Relay
FUEL PUMP
RELAYFuel Pump Relay
P/WINDOW
RELAYPower Window Relay
PARK LAMP
RELAYParking Lamp Relay
FRT FOG
RELAYFront Fog Lamps RelayRelays Usage
H/L HI RELAY High-Beam Headlamp Relay
FAN LOW
RELAYCooling Fan Low Speed Relay
A/C RELAY Air Conditioning Relay (Option)
MAIN RELAY Main Relay
Misc. Usage
FUSE PULLER Fuse Puller
367

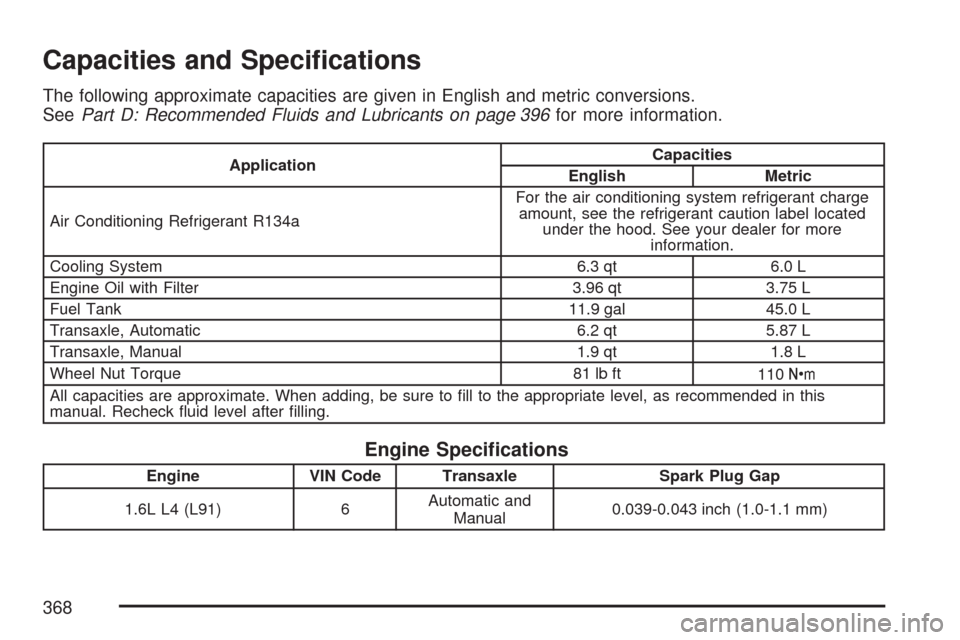

Capacities and Specications
The following approximate capacities are given in English and metric conversions.
SeePart D: Recommended Fluids and Lubricants on page 396for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System 6.3 qt 6.0 L
Engine Oil with Filter 3.96 qt 3.75 L
Fuel Tank 11.9 gal 45.0 L
Transaxle, Automatic 6.2 qt 5.87 L
Transaxle, Manual 1.9 qt 1.8 L
Wheel Nut Torque 81 lb ft
110Y
All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
1.6L L4 (L91) 6Automatic and
Manual0.039-0.043 inch (1.0-1.1 mm)
368

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from
your dealer.

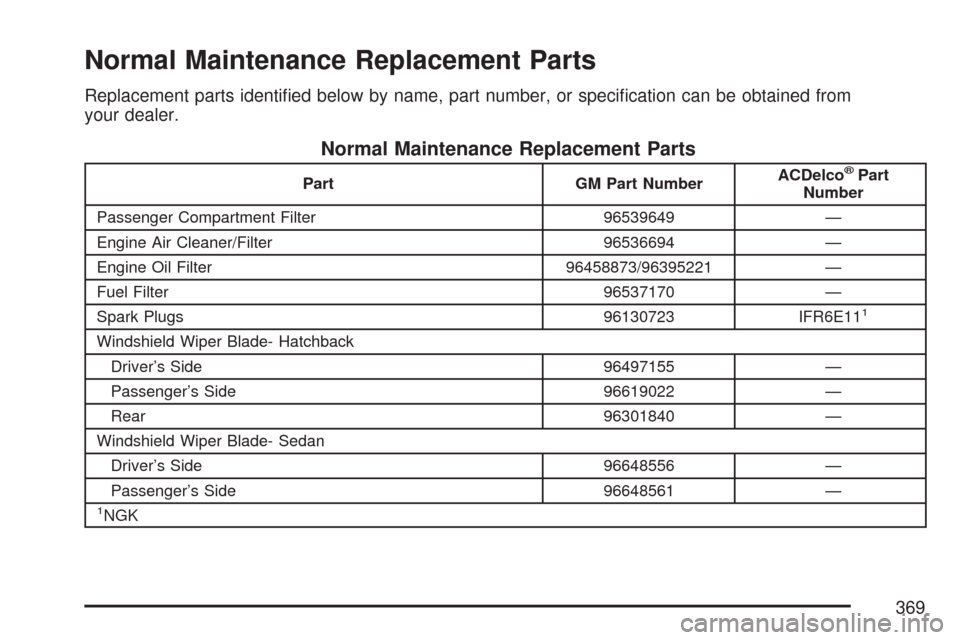

Normal Maintenance Replacement Parts
Part GM Part NumberACDelco®Part
Number
Passenger Compartment Filter 96539649 —
Engine Air Cleaner/Filter 96536694 —
Engine Oil Filter 96458873/96395221 —
Fuel Filter 96537170 —
Spark Plugs 96130723 IFR6E11
1
Windshield Wiper Blade- Hatchback
Driver’s Side 96497155 —
Passenger’s Side 96619022 —
Rear 96301840 —
Windshield Wiper Blade- Sedan
Driver’s Side 96648556 —
Passenger’s Side 96648561 —
1NGK
369

Engine Drive Belt Routing
