CHEVROLET AVEO 2008 1.G User Guide
Manufacturer: CHEVROLET, Model Year: 2008, Model line: AVEO, Model: CHEVROLET AVEO 2008 1.GPages: 384, PDF Size: 6.67 MB
Page 11 of 384
Rear Seats
Rear Seat Operation (Sedan)
Folding the Seatback
The rear seatbacks can be folded down to increase
cargo space.
To fold down the seatback:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Remove the safety belt strap from the safety belt
guide by pulling it through the slot.
2. Push the head restraints all the way down.
3. Unlatch the center safety belt by pressing the
red button on the buckle.
1-7
Page 12 of 384
4. Detach the center safety belt from the mini buckle
by inserting the key into the slot in the mini buckle,
pressing the release button, and allowing it to
retract.5. Pull up the release knob located on top of the
rear seatback.
6. Fold the rear seatback forward and down.
To return the seatback to the upright position:
1. Hook the safety belts into the safety belt guide.
2. Lift the seatback up and push it to its original
position.
1-8
Page 13 of 384

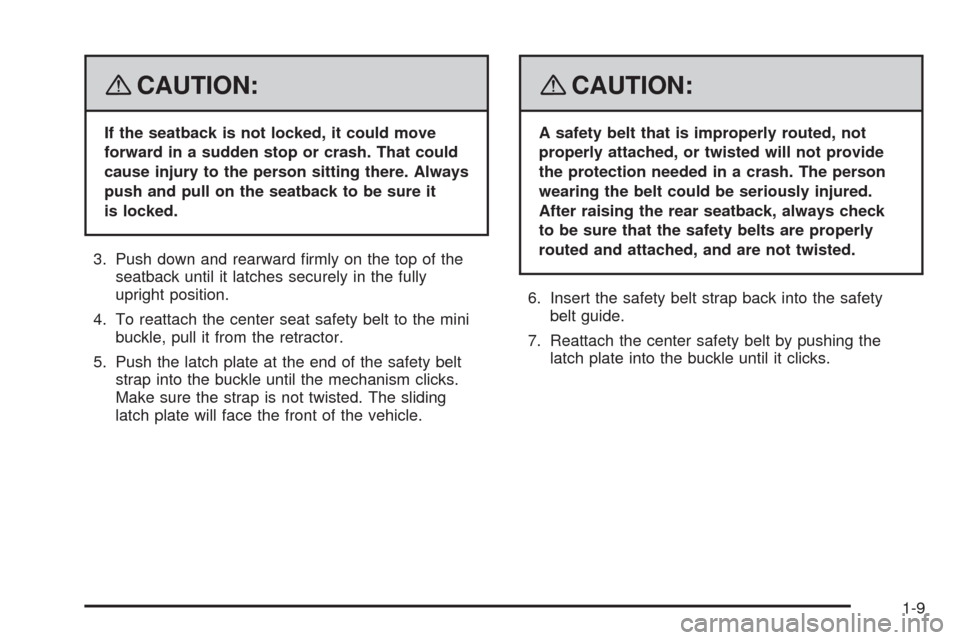

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
3. Push down and rearward firmly on the top of the
seatback until it latches securely in the fully
upright position.
4. To reattach the center seat safety belt to the mini
buckle, pull it from the retractor.
5. Push the latch plate at the end of the safety belt
strap into the buckle until the mechanism clicks.
Make sure the strap is not twisted. The sliding
latch plate will face the front of the vehicle.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
6. Insert the safety belt strap back into the safety
belt guide.
7. Reattach the center safety belt by pushing the
latch plate into the buckle until it clicks.
1-9
Page 14 of 384
Rear Seat Operation (Hatchback)
Folding the Rear Seats
The rear seats can be folded to increase cargo space.
To fold the rear seats:
1. Lower the head restraints completely.
2. Unlatch the center safety belt by pressing the
red button on the buckle.
3. Detach the center safety belt from the mini buckle
by inserting the key into the slot in the mini buckle,
pressing the release button, and allowing it to retract.4. Pull up the release knob, located on the top of the
seatback, and fold the seatback forward and down.
Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding
a rear seat.
5. Move the safety belt buckles and safety belt in the
center seating position out of the space between
the seatback and the seat cushion so they are not
in the way as the seat is being folded.
1-10
Page 15 of 384

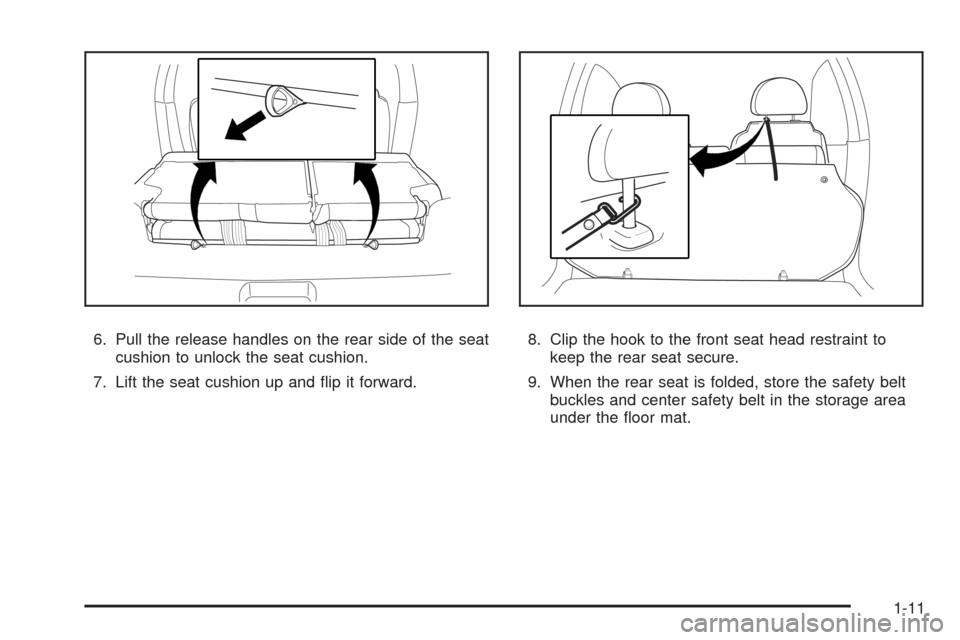

6. Pull the release handles on the rear side of the seat
cushion to unlock the seat cushion.
7. Lift the seat cushion up and flip it forward.8. Clip the hook to the front seat head restraint to
keep the rear seat secure.
9. When the rear seat is folded, store the safety belt
buckles and center safety belt in the storage area
under the floor mat.
1-11
Page 16 of 384
Unfolding the Seats
To return the rear seats to the normal seating position:
1. Unclip the hook from the front seat head restraint.
2. Remove the safety belt buckles and center
seat safety belt from the storage area.
Notice:Damage to the safety belt buckle or rear
seat locking mechanism can occur if the safety belt
and buckles are pinched under the rear seat
cushion. Do not place the safety belt and buckles
on the oor under the rear seat cushion when
the rear seat is put back to the sitting position.
3. Push the seat cushion down to its original position
until it latches securely. Try to pull up on the seat
to make sure it is locked in place.
4. Hook the safety belts in the outboard seating
positions into the retaining clips.
1-12
Page 17 of 384

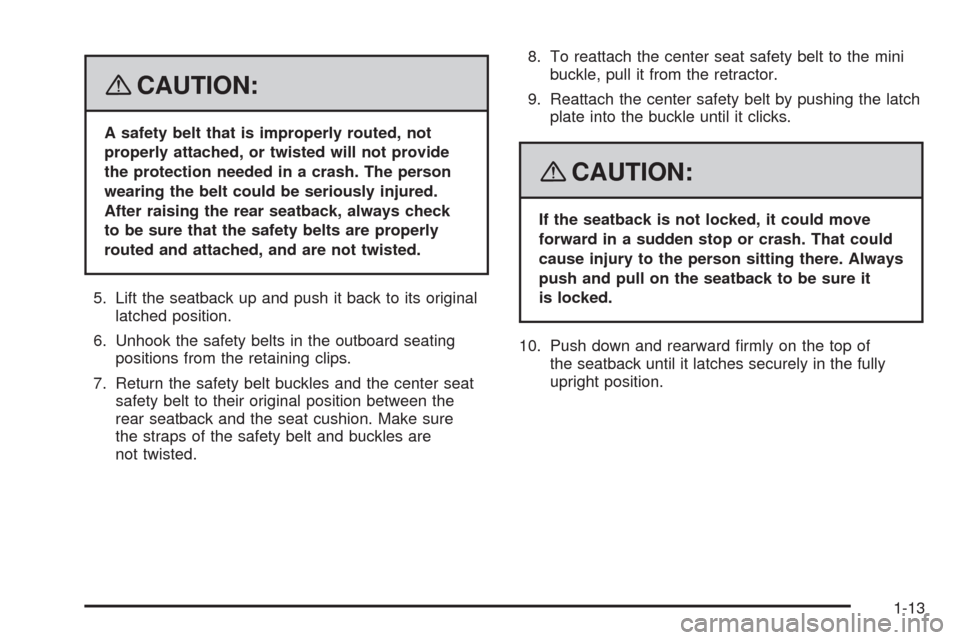

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
5. Lift the seatback up and push it back to its original
latched position.
6. Unhook the safety belts in the outboard seating
positions from the retaining clips.
7. Return the safety belt buckles and the center seat
safety belt to their original position between the
rear seatback and the seat cushion. Make sure
the straps of the safety belt and buckles are
not twisted.8. To reattach the center seat safety belt to the mini
buckle, pull it from the retractor.
9. Reattach the center safety belt by pushing the latch
plate into the buckle until it clicks.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
10. Push down and rearward firmly on the top of
the seatback until it latches securely in the fully
upright position.
1-13
Page 18 of 384
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle harder or be ejected
from it and be seriously injured or killed.
In the same crash, you might not be, if you
are buckled up. Always fasten your safety
belt, and check that your passenger(s) are
restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in
a seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-30.
In most states and in all Canadian provinces, the
law requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
1-14
Page 19 of 384

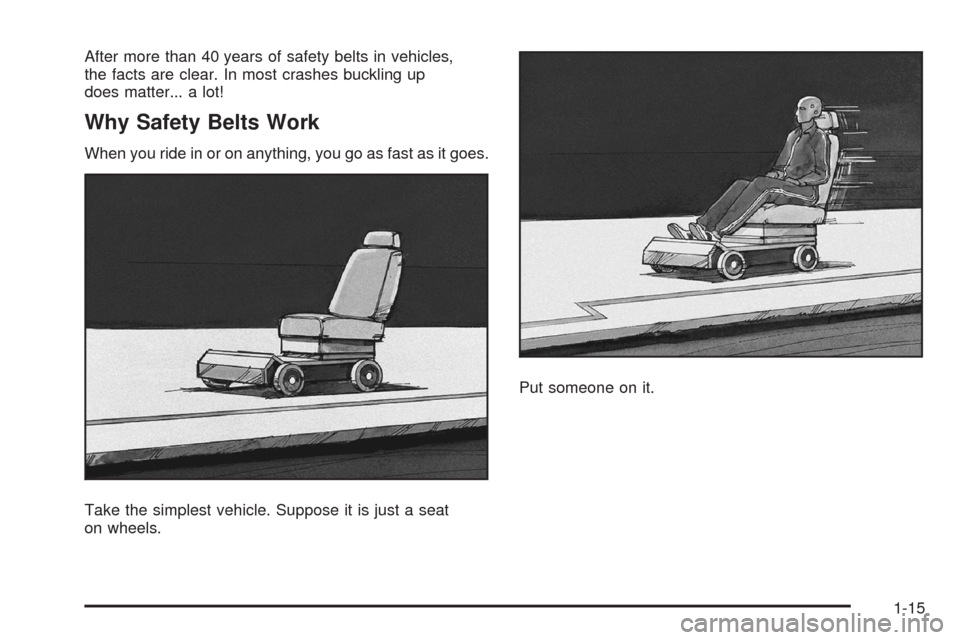

After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.Put someone on it.
1-15
Page 20 of 384

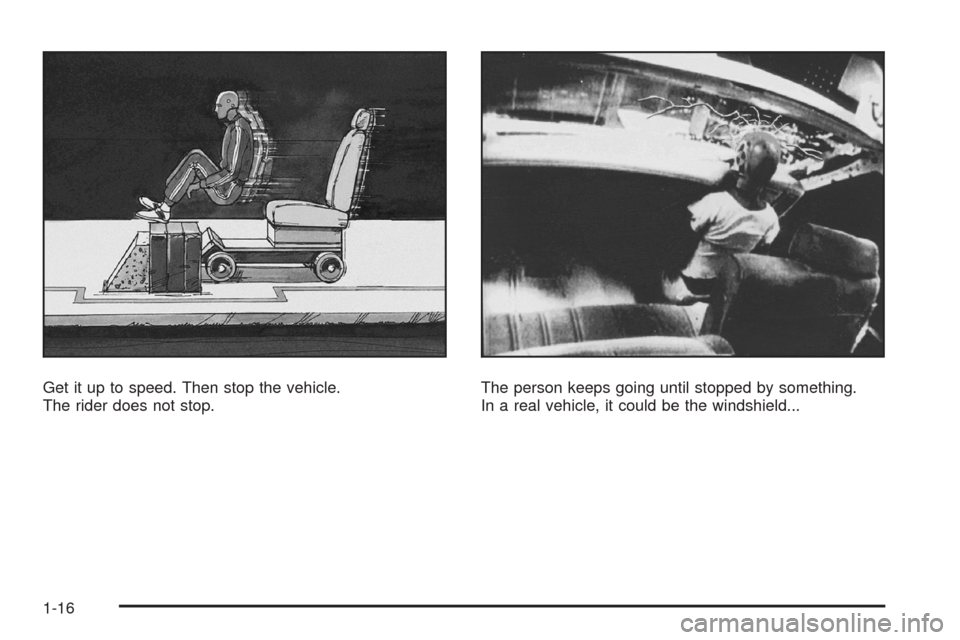

Get it up to speed. Then stop the vehicle.
The rider does not stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-16
