The main components of the instrument panel are the following:
A.Outlet Adjustment on page 3-21.
B.Instrument Panel Cluster on page 3-24.
C.Clock on page 3-17.
D.Hood Release on page 5-12.
E.Horn on page 3-6.
F.Audio System(s) on page 3-40.
G.Climate Control System on page 3-18.H. Ashtray. SeeAshtray(s) and Cigarette Lighter on
page 3-17.
I.Cupholders on page 2-39.
J. Cigarette Lighter. SeeAshtray(s) and Cigarette
Lighter on page 3-17.
K.Hazard Warning Flashers on page 3-6.
L.Glove Box on page 2-39.
3-5

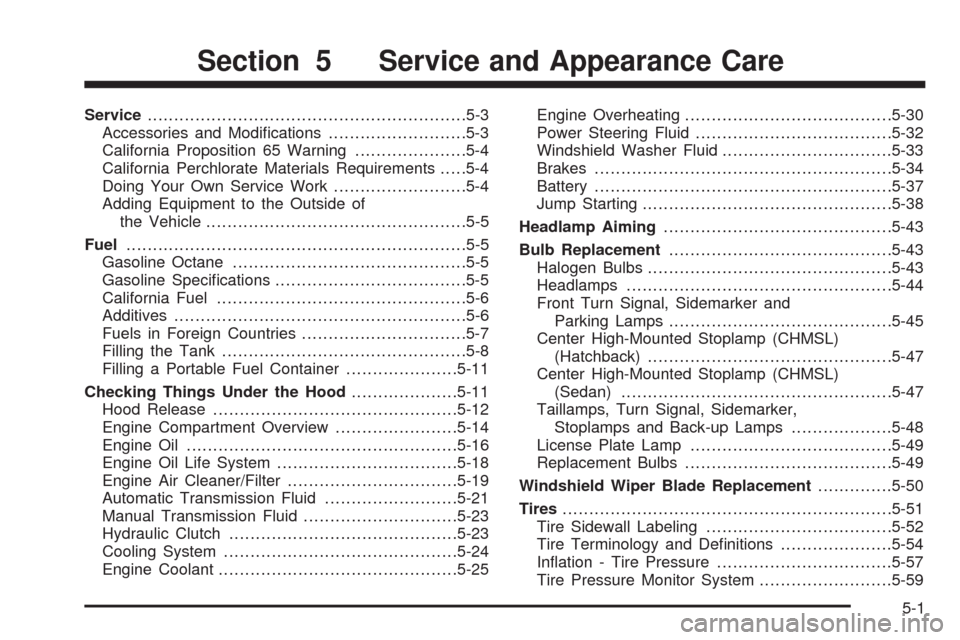

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
the Vehicle.................................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-11
Checking Things Under the Hood....................5-11
Hood Release..............................................5-12
Engine Compartment Overview.......................5-14
Engine Oil...................................................5-16
Engine Oil Life System..................................5-18
Engine Air Cleaner/Filter................................5-19
Automatic Transmission Fluid.........................5-21
Manual Transmission Fluid.............................5-23
Hydraulic Clutch...........................................5-23
Cooling System............................................5-24
Engine Coolant.............................................5-25Engine Overheating.......................................5-30
Power Steering Fluid.....................................5-32
Windshield Washer Fluid................................5-33
Brakes........................................................5-34
Battery........................................................5-37
Jump Starting...............................................5-38
Headlamp Aiming...........................................5-43
Bulb Replacement..........................................5-43
Halogen Bulbs
..............................................5-43
Headlamps..................................................5-44
Front Turn Signal, Sidemarker and
Parking Lamps..........................................5-45
Center High-Mounted Stoplamp (CHMSL)
(Hatchback)..............................................5-47
Center High-Mounted Stoplamp (CHMSL)
(Sedan)...................................................5-47
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps...................5-48
License Plate Lamp......................................5-49
Replacement Bulbs.......................................5-49
Windshield Wiper Blade Replacement..............5-50
Tires..............................................................5-51
Tire Sidewall Labeling...................................5-52
Tire Terminology and Denitions.....................5-54
Ination - Tire Pressure.................................5-57
Tire Pressure Monitor System.........................5-59
Section 5 Service and Appearance Care
5-1

Hood Release
To open the hood:
1. Pull the hood release
handle inside the
vehicle. It is located on
the lower left side of
the instrument panel.
2. Then go to the front of the vehicle and lift up on the
secondary hood release lever, located under the
front center of the hood.
3. Lift the hood and release the hood prop from its
retainer located on the underside of the hood.
5-12

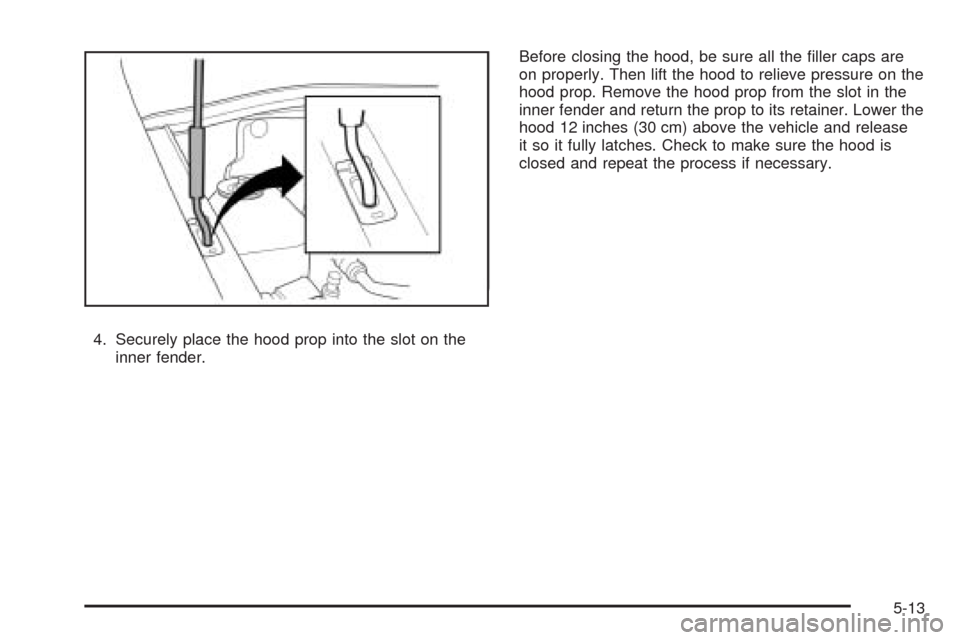

4. Securely place the hood prop into the slot on the
inner fender.Before closing the hood, be sure all the ller caps are
on properly. Then lift the hood to relieve pressure on the
hood prop. Remove the hood prop from the slot in the
inner fender and return the prop to its retainer. Lower the
hood 12 inches (30 cm) above the vehicle and release
it so it fully latches. Check to make sure the hood is
closed and repeat the process if necessary.
5-13

Headlamps
To replace a headlamp bulb:
1. Open the hood. SeeHood Release on page 5-12.
2. Remove the three bolts to remove the headlamp
assembly.
3. Disconnect the wiring harness connector from the
rear of the bulb.4. Remove the headlamp cap.
5. Release the spring that retains the bulb by
loosening the screw.
6. Remove the old bulb and install the new bulb.
7. Install the bulb retaining spring and tighten
the screw.
8. Reinstall the headlamp cap.
9. Reconnect the wiring harness at the rear of
the bulb.
5-44

10. Reinstall the headlamp assembly using the
three bolts.
Front Turn Signal, Sidemarker and
Parking Lamps
To replace a front turn signal or parking lamp bulb:
1. Open the hood. SeeHood Release on page 5-12
for more information.
2. Remove the three bolts to remove the headlamp
assembly.
3. Disconnect the wiring harness connector from the
rear of the bulb.
5-45

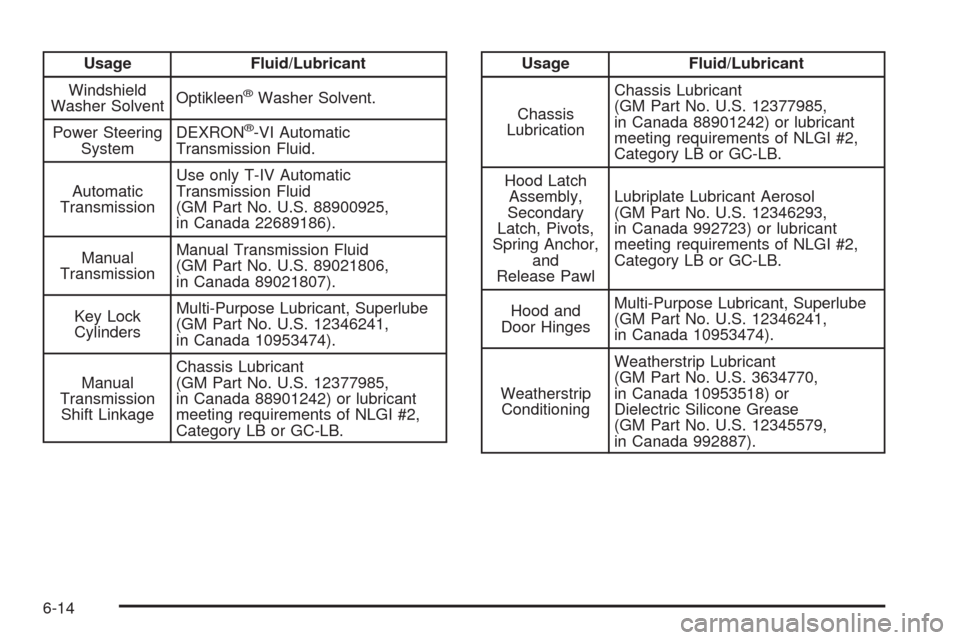

Usage Fluid/Lubricant
Windshield
Washer SolventOptikleen
®Washer Solvent.
Power Steering
SystemDEXRON
®-VI Automatic
Transmission Fluid.
Automatic
TransmissionUse only T-IV Automatic
Transmission Fluid
(GM Part No. U.S. 88900925,
in Canada 22689186).
Manual
TransmissionManual Transmission Fluid
(GM Part No. U.S. 89021806,
in Canada 89021807).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Manual
Transmission
Shift LinkageChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Usage Fluid/Lubricant
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-14

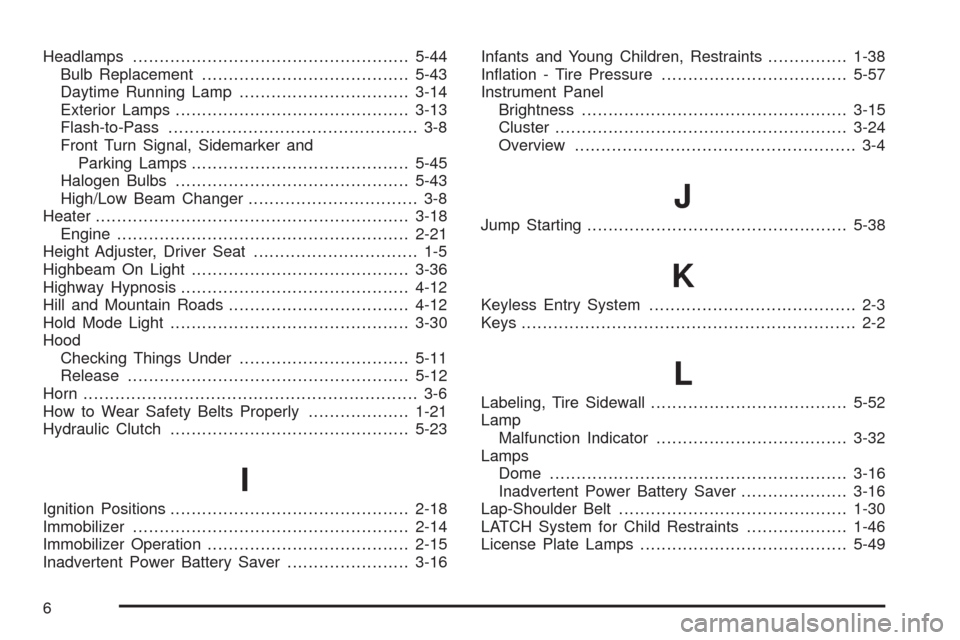

Headlamps....................................................5-44
Bulb Replacement.......................................5-43
Daytime Running Lamp................................3-14
Exterior Lamps............................................3-13
Flash-to-Pass............................................... 3-8
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-45
Halogen Bulbs............................................5-43
High/Low Beam Changer................................ 3-8
Heater...........................................................3-18
Engine.......................................................2-21
Height Adjuster, Driver Seat............................... 1-5
Highbeam On Light.........................................3-36
Highway Hypnosis...........................................4-12
Hill and Mountain Roads..................................4-12
Hold Mode Light.............................................3-30
Hood
Checking Things Under................................5-11
Release.....................................................5-12
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-21
Hydraulic Clutch.............................................5-23
I
Ignition Positions.............................................2-18
Immobilizer....................................................2-14
Immobilizer Operation......................................2-15
Inadvertent Power Battery Saver.......................3-16Infants and Young Children, Restraints...............1-38
Ination - Tire Pressure...................................5-57
Instrument Panel
Brightness..................................................3-15
Cluster.......................................................3-24
Overview..................................................... 3-4
J
Jump Starting.................................................5-38
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labeling, Tire Sidewall.....................................5-52
Lamp
Malfunction Indicator....................................3-32
Lamps
Dome ........................................................3-16
Inadvertent Power Battery Saver....................3-16
Lap-Shoulder Belt...........................................1-30
LATCH System for Child Restraints...................1-46
License Plate Lamps.......................................5-49
