CHEVROLET BLAZER 1993 Owner's Manual

Seats & Safety Belts
Rear Seats

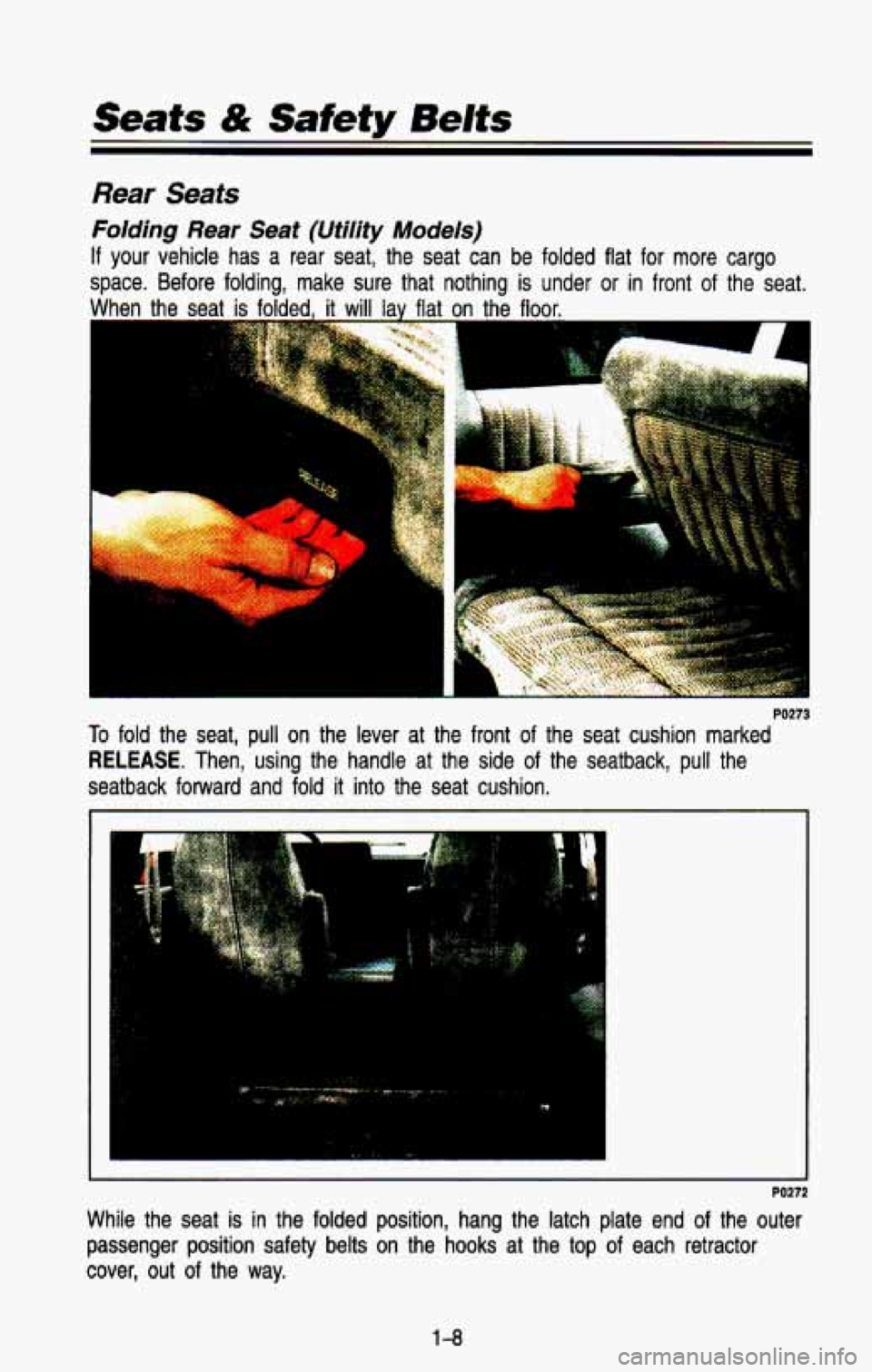

Folcihg Rear Seat (Utility Models)
If your vehicle has a rear seat, the seat can be folded flat for mor\
e cargo
space. Before folding, make sure that nothing is under or in front of the seat.
Whnn +ha @sat is folded. it will lav flat on the floor.
I
i-
PO273
To fold the seat, pull on the lever at the front of the seat cushion marked
RELEASE. Then, using the handle at the side of the seatback, pull the \
seatback forward and fold it into the seat cushion.
1
n
..I
PO272
While the seat is in the folded position, hang the latch plate end of the outer
passenger position safety belts on the hooks
at the top of each retractor
cover, out of the way.
1-8

To return the seat to the passenger position, just lift up on the seatback and
push it rearward until it latches.
After returning the seat
to the passenger position, pull forward on the
seatback
to make sure it is locked in place.

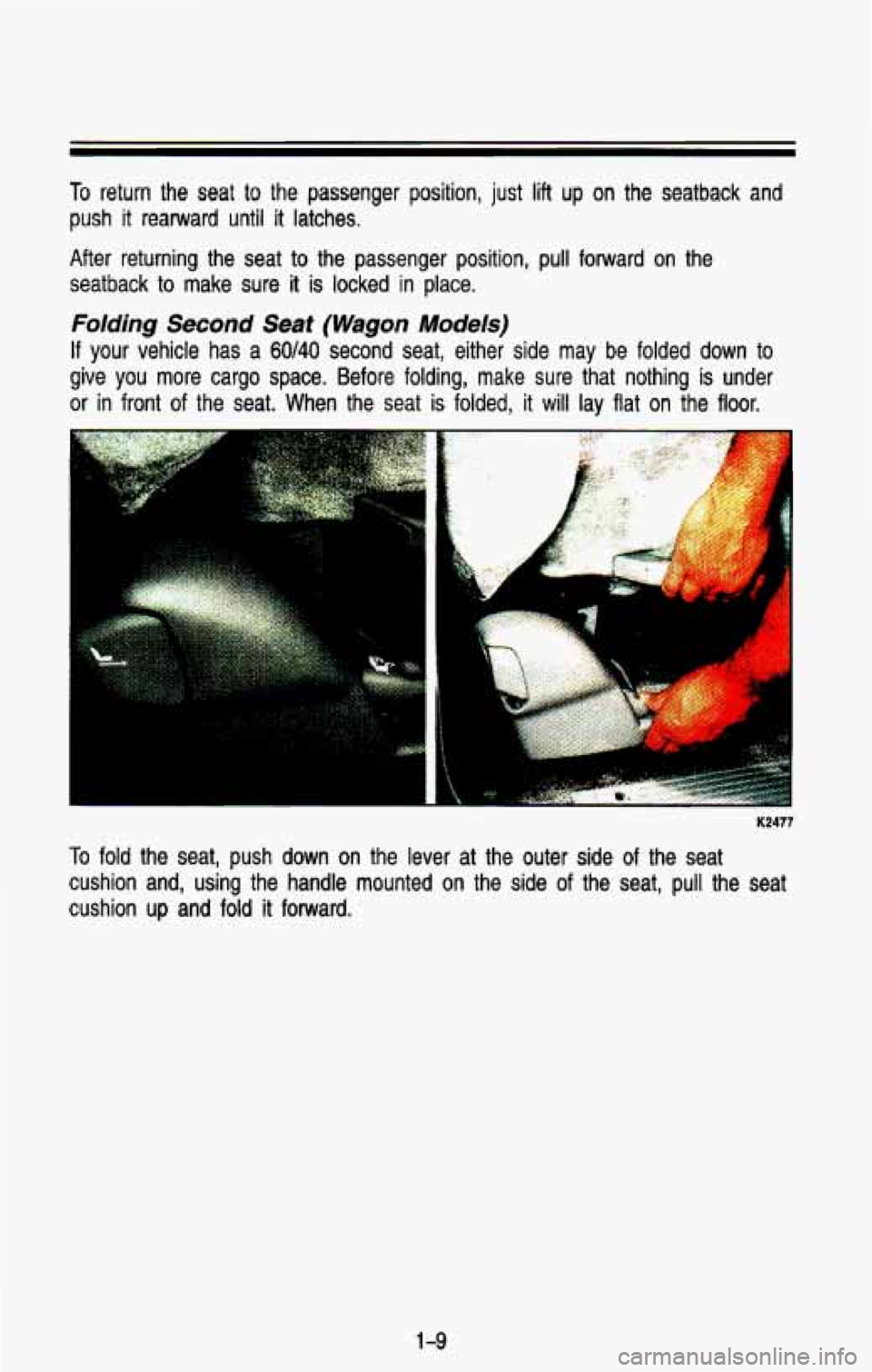

Folding Second Seat (Wagon Models)
If your vehicle has a 60140 second seat, either side may be folded down to
give you more cargo space. Before folding, make sure that noth\
ing is under
or in front of the seat. When the seat is folded, it will lay flat on the floor.
i
K2477
To fold the seat, push down on the lever at the outer side of the seat
cushion and, using the handle mounted on the side of the seat, pull the seat
cushion
up and fold it forward.
1 -9

Seats & Safety Belts
PO507

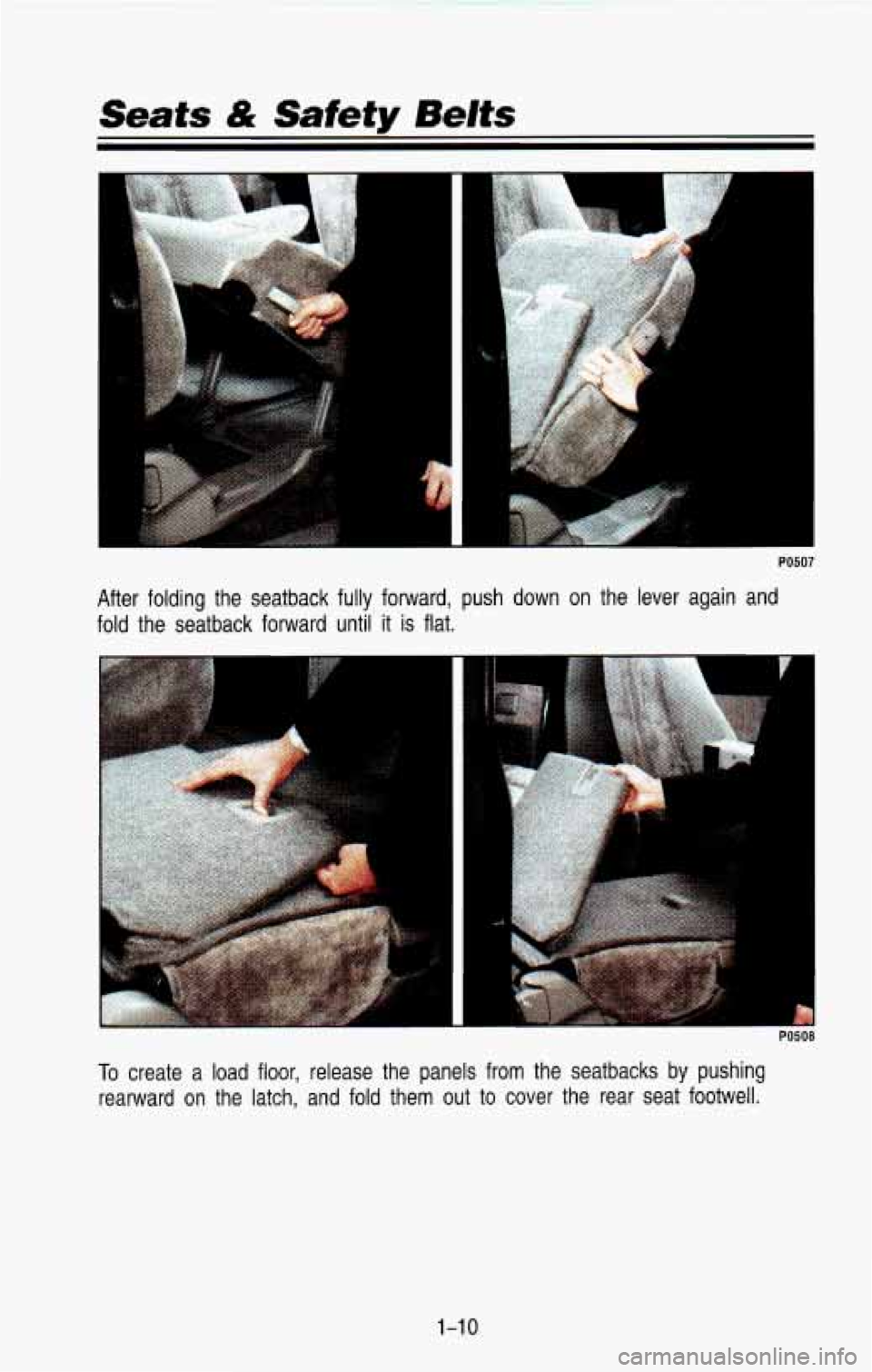

After folding the seatback fully forward, push down on the lev\
er again and
fold the seatback forward until
it is flat.
To create a load floor, release the panels from the seatbacks by \
pushing
rearward on the latch, and fold them out to cover the rear s\
eat footwell.
1-1 0

PO509

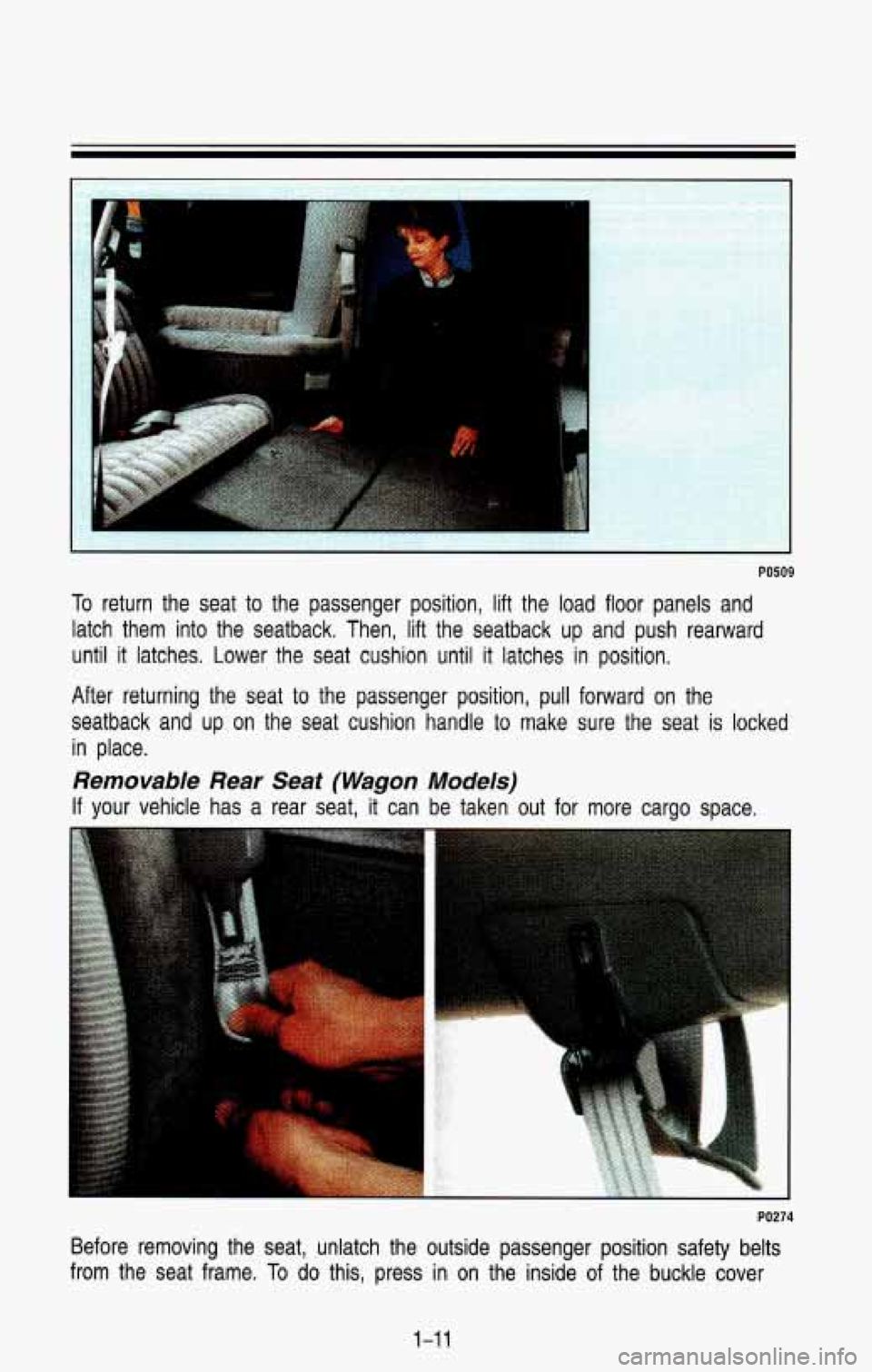

To return the seat to the passenger position, lift the load floor\
panels and
latch them into the seatback. Then, lift the seatback up and \
push rearward
until
it latches. Lower the seat cushion until it latches in position,
After returning the seat to the passenger position, pull forward on the
the seat cushion handle
to make sure the seat is locked
seatback
and up on
in place.
Removable Rear
If your vehicle has a
Seat (Wagon Models)
rear seat, it can be taken out for more cargo space.
PO274
Before removing the seat, unlatch the outside passenger position\
safety belts
from the seat frame. To
do this, press in on the inside of the buckle cover
1-1 1

Seats & Safety Belts
sleeve and pull the latch plate out of buckle. Then hang the latch plate end
of the belt on the hook at the top of the retractor cover, out of the way.
PO51 0
To remove the seat, fully open the rear load doors and enter the back of the
vehicle. Move the seatback release lever at the right rear
of the seat toward
the center
of the vehicle, and fold the seatback forward into the seat cushion.
K2356
To unlatch the seat from the floor, pull up on the center release handle at
the rear of the seat and lift the rear of the seat up, out of the floor. Turn the
seat sideways
and take it out of the vehicle.
1-1 2

To put the seat back in, hold it sideways and put it into the vehicle. Turn the
seat to the forward position and set it down, with the latches at the\
bottom of
the seat over the hooks in the floor. Pull up on the center release handle
and let the seat drop into place. Release the handle to let the seat latch
close and make sure it locks into place. Then, move the seatback release
lever at the right rear
of the seat toward the center of the vehicle and raise
the seatback.
After returning the seat back
to the upright position, push the seatback
fonvard
to make sure it is locked in place.
Then, return the outside passenger position safety belts
to the seat frame
buckles.
A A safety belt that is twisted or not properly attached won’t provide I
1 the protection needed in a crash. The person wearing the belt could
be seriously injured. After installing the seat, always check to be sure
that the safety belts are not twisted and are properly attached.
Safety Belts: They’re For Everyone
This part of the manual tells you how to use safety belts properly. It also tells
you some things you should not
do with safety belts.
Don’t let anyone ride where they can’t wear a safety belt properly.
If
you are in a crash and you’re not wearing a safety belt, your injuries
can be
much worse. You can hit things inside the vehicle or be
.-.> ejected from it. You can be seriously injured or killed. In the same
y% , &: crash, you might not be if you are buckled up. Always fasten your
ik:: safety belt, and check that your passengers’ belts are faste\
ned
properly too.
1-1 3

Seats & Safety Belts
1
I I
1
AM110001

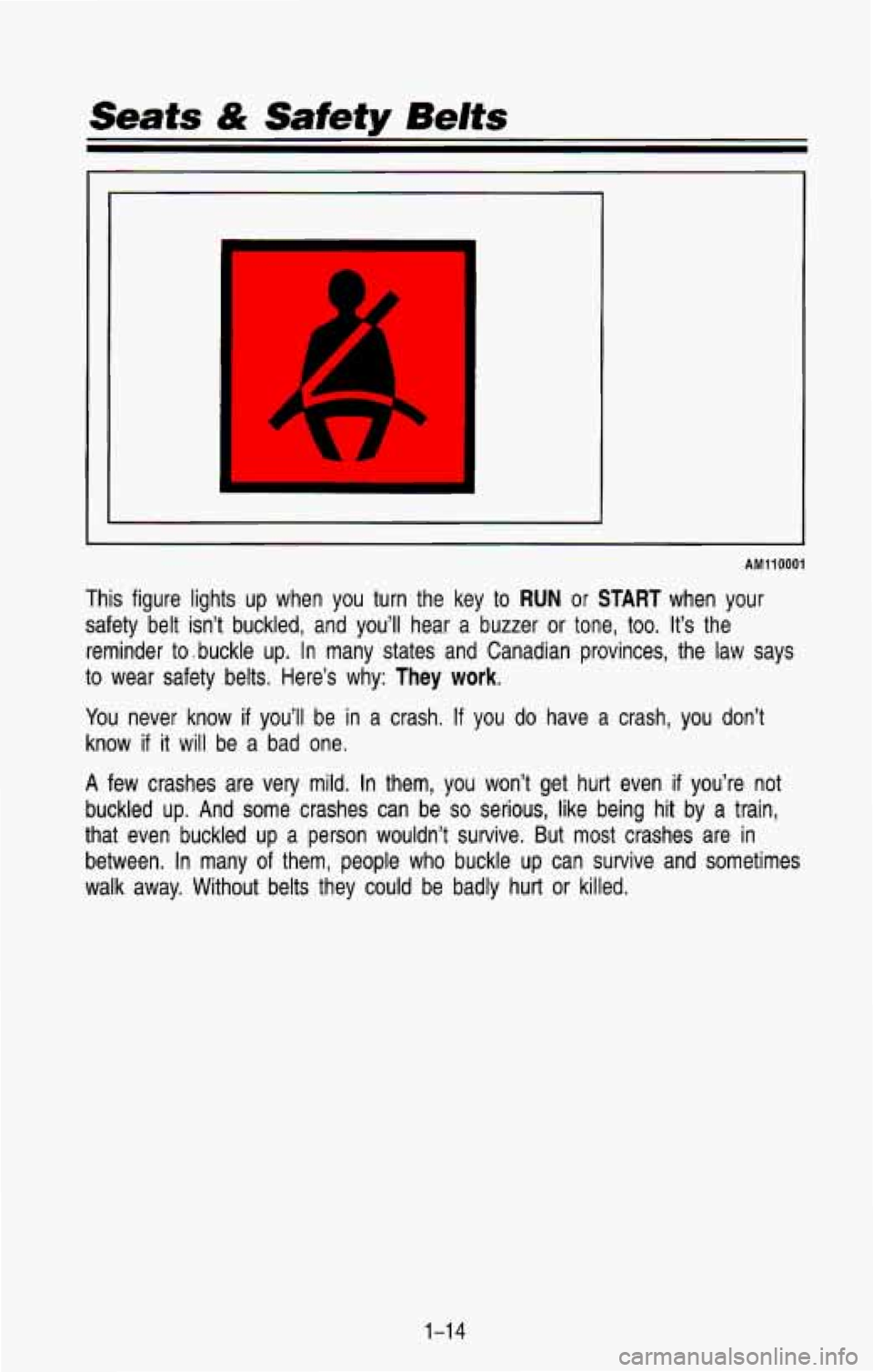

This figure lights up when you turn the key to RUN or START when your
safety belt isn’t buckled, and you’ll hear a buzzer or tone,
too. It’s the
reminder to .buckle
up. In many states and Canadian provinces, the law says
to wear safety belts. Here’s why: They work.
You never know if you’ll be in a crash. If you do have a crash, you don’t
know
if it will be a bad one.
A few crashes are very mild. In them, you won’t get hurt even if you’re not
buckled up. And
some crashes can be so serious, like being hit by a train,
that even buckled up a person wouldn’t survive.
But most crashes are in
between. In many of them, people who buckle up can survive an\
d sometimes
walk away. Without belts they could be badly hurt
or killed.
1-1 4

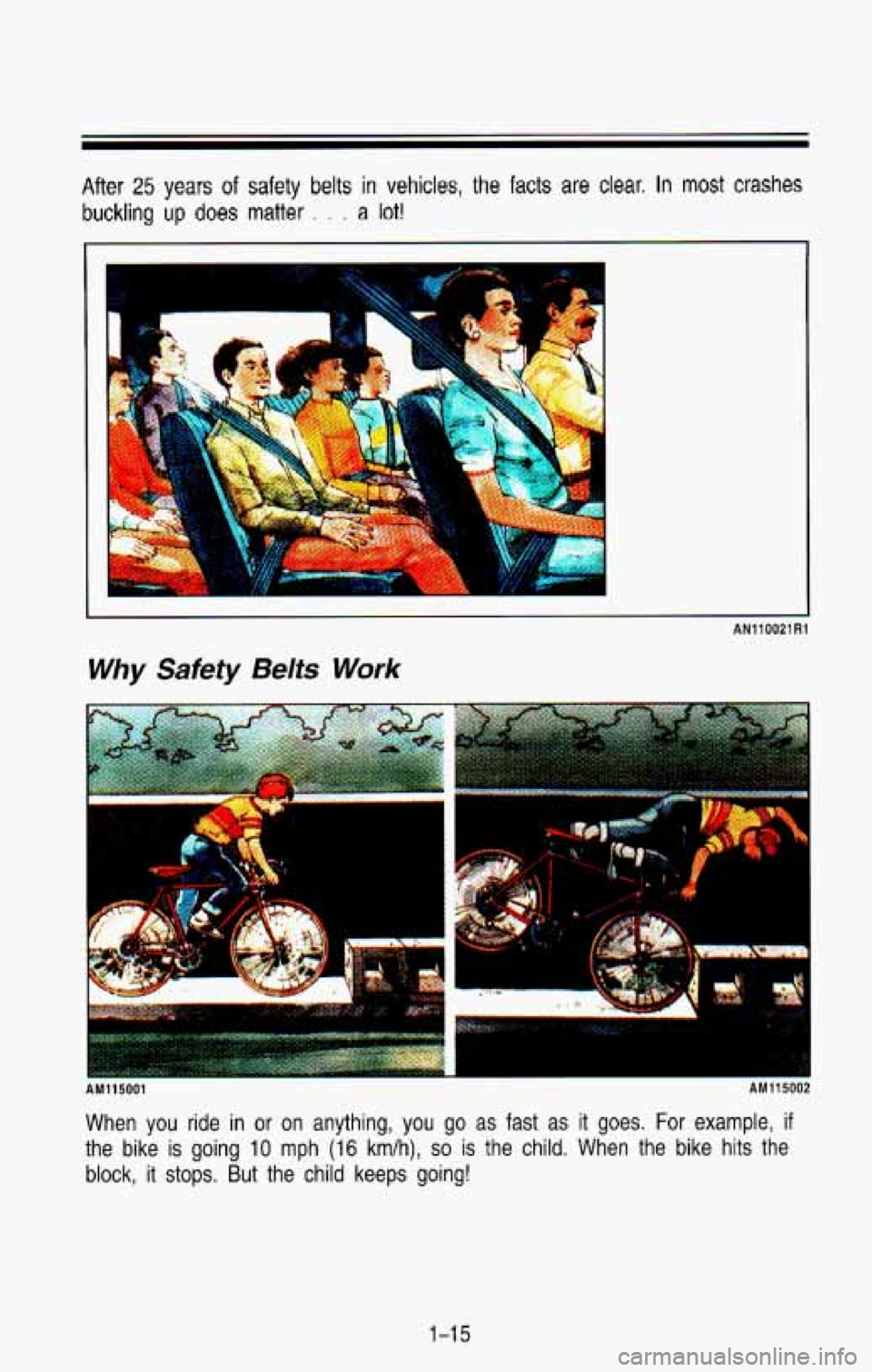

After 25 years of safety belts in vehicles, the facts are clear. In most crashes
buckling up does matter . . . a lot!
I
I AN110021R1
Why Safety Belts Work
AM115001 AMllbUd2
When you ride in or on anything, you go as fast as it goes. For example, if
the bike is going 10 mph (16 km/h), so is the child. When the bike hits the
block, it stops.
But the child keeps going!
1-15

Seats & Safety Belts
b
AM1 15003 AM115004

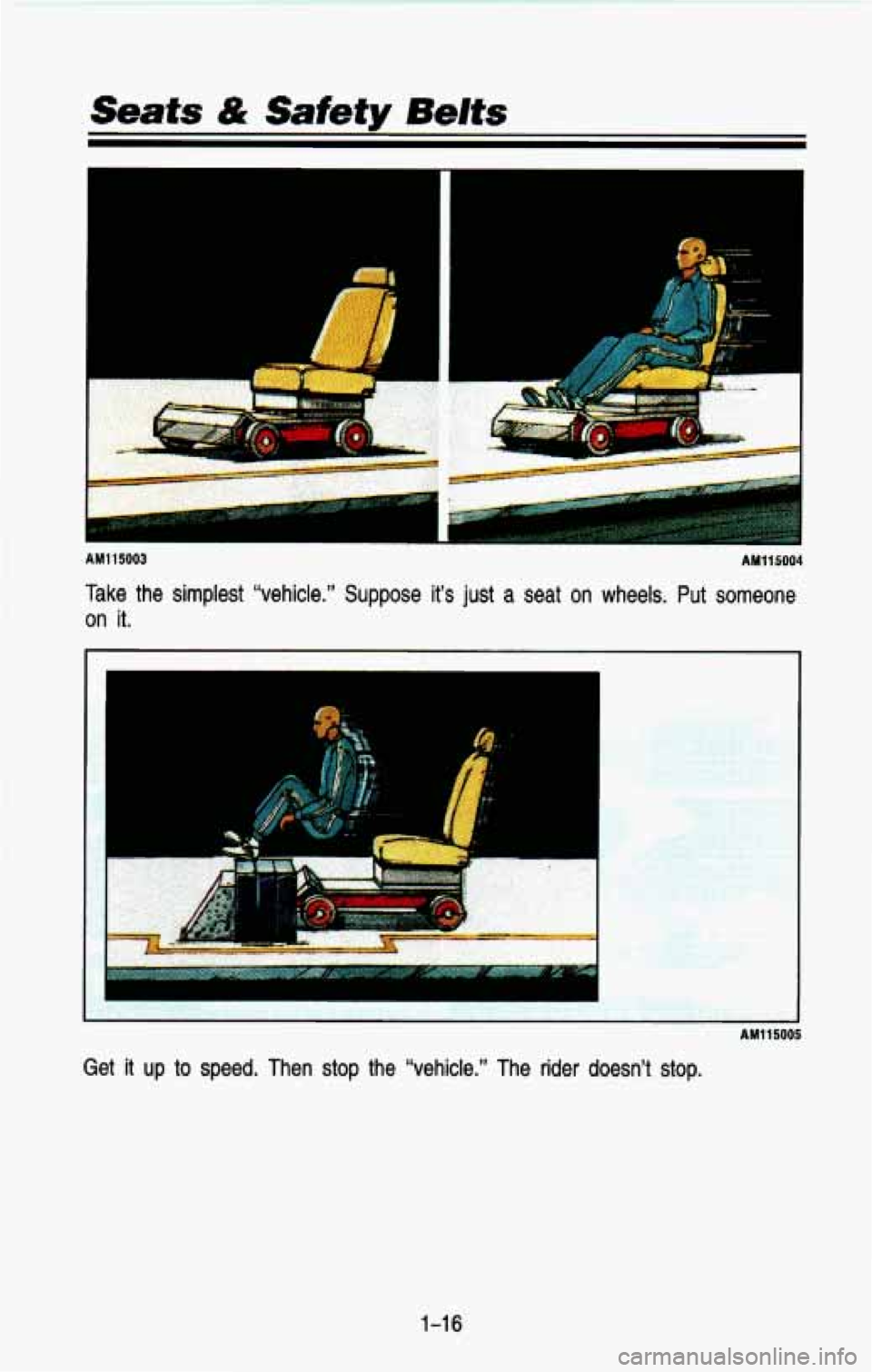

Take the simplest “vehicle.” Suppose it’s just a seat on wheels. Put someone
on it.
I
AM115005
Get it up to speed. Then stop the “vehicle.” The rider doesn’t stop.\

1-1 6

AM115006

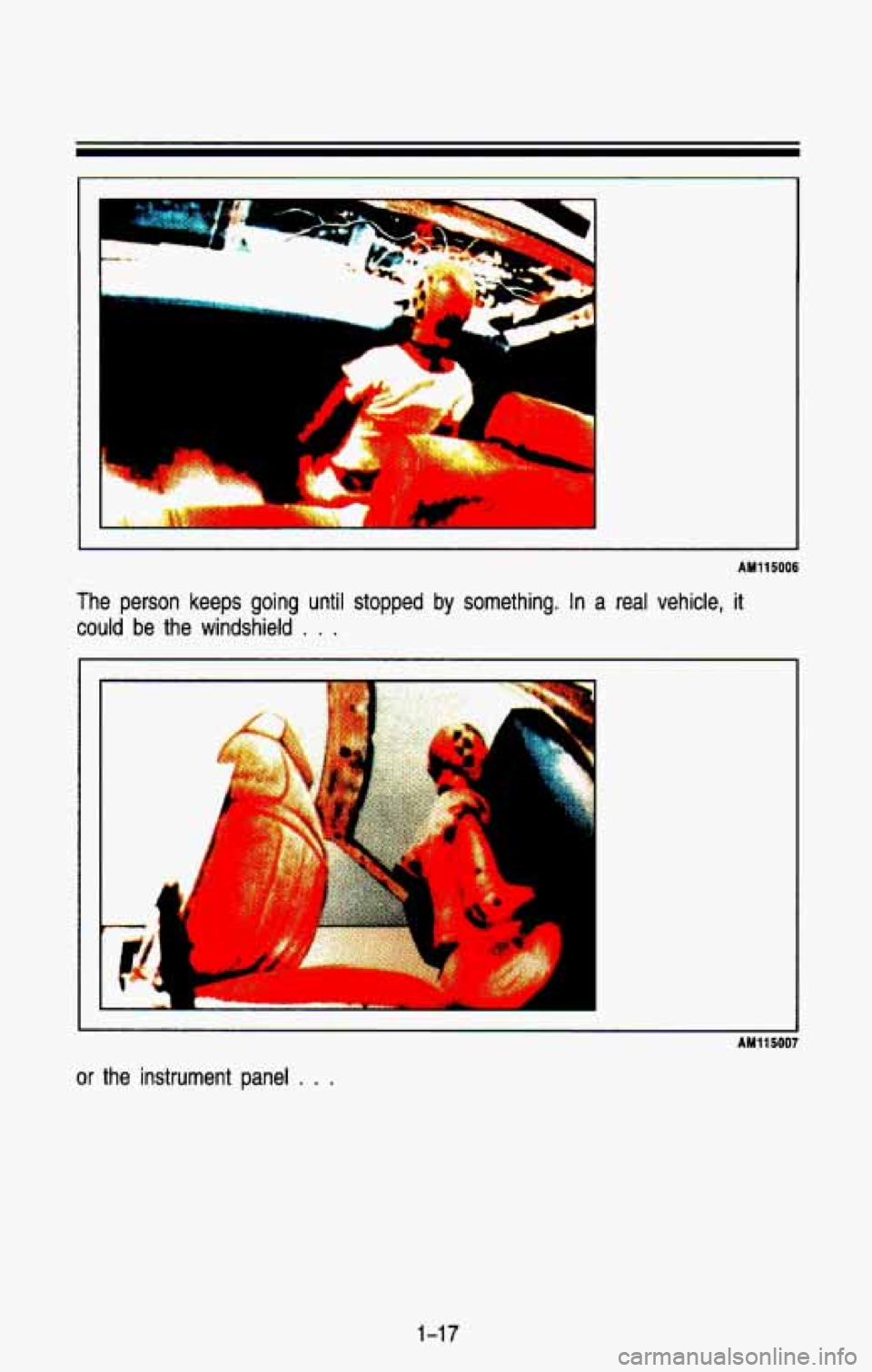

The person keeps going until stopped by something. In a real vehicle, it
could be the windshield . . .
L
i
or the instrument panel . . .
AM115007
1-17
