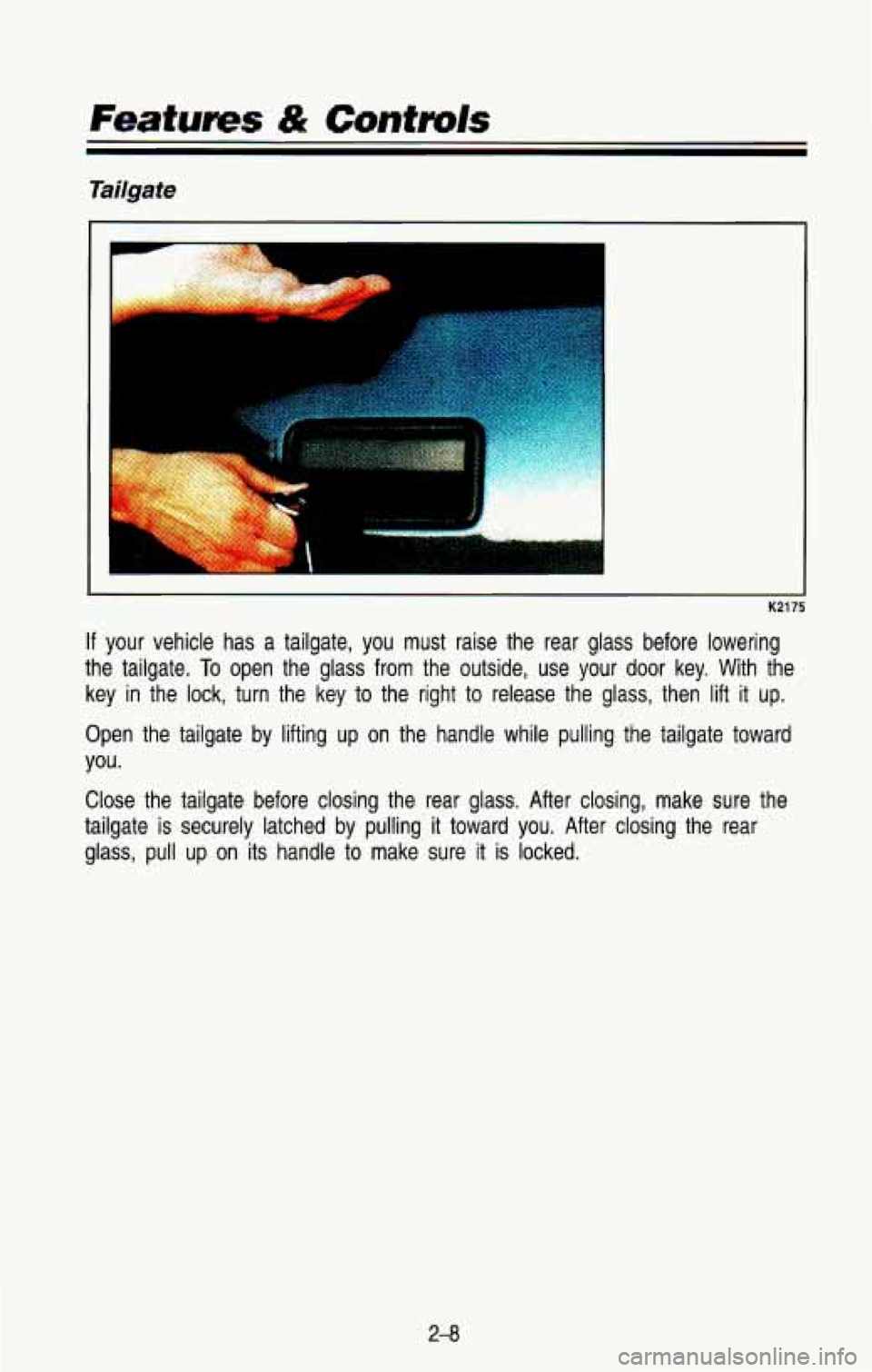

Tailgate
.I K2175
If your vehicle has a tailgate, you must raise the rear glass be\
fore lowering
the tailgate.
To open the glass from the outside, use your door key. With the
key
in the lock, turn the key to the right to release the glass, then lift it up.
Open the tailgate by lifting up on the handle while pulling the tailgate toward
you.
Close the tailgate before closing the rear glass. After closing\
, make sure the
tailgate is securely latched by pulling
it toward you. After closing the rear
glass, pull up
on its handle to make sure it is locked.
2-8

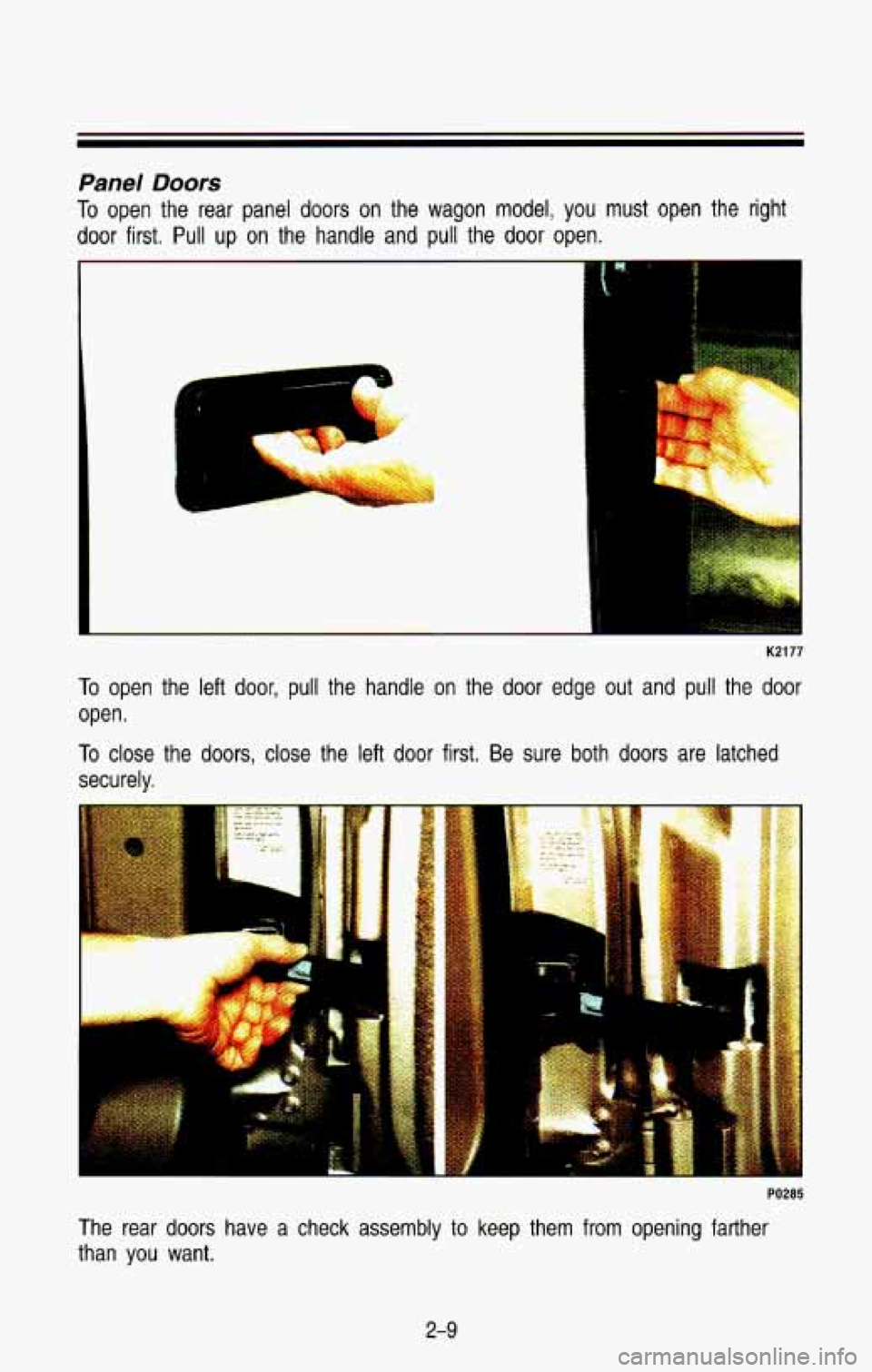

Panel Doors
To open the rear panel doors on the wagon model, you must open the right
door first.
Pull up on the handle and pull the door open.
t" -:
g P p
K2177
To open the left door, pull the handle on the door edge out and pull the door
open.
To close me doors, close the left door first. Be sure both doors are latc\
hed
securely.
PO285
The rear doors have a check assembly to keep them from opening farther
than
you want.
2-9

Features & Contmls

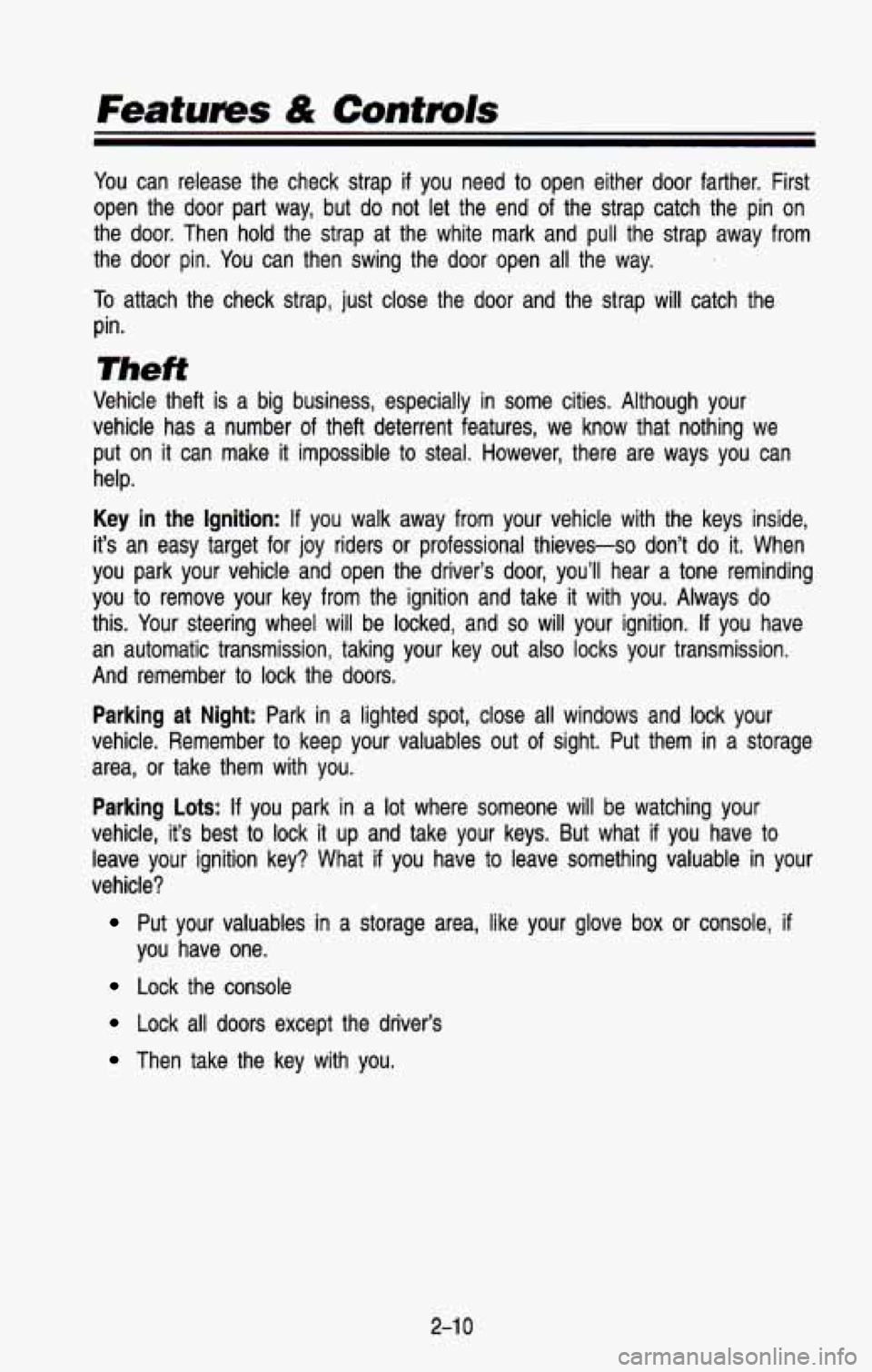

You can release the check strap if you need to open either door farther. First
open the door part way, but do not let the end of the strap catch the pin on
the
door. Then hold the strap at the white mark and pull the strap away from
the door pin. You can then swing the door open all the way.
To attach the check strap, just close the door and the strap wil\
l catch the
pin.
Theft
Vehicle theft is a big business, especially in some cities. Although your
vehicle has a number of theft deterrent features, we know that nothing we
put on it can make
it impossible to steal. However, there are ways you can
help.
Key in the Ignition: If you walk away from your vehicle with the keys inside,
it’s an easy target for joy riders or professional thieves-so don’t do it. When
you park
your vehicle and open the driver‘s door, you’ll hear a tone r\
eminding
you to remove your key from the ignition and take it with you. Always do
this. Your steering wheel will be locked, and
so will your ignition. If you have
an automatic transmission, taking your key out also locks your transmission.
And remember to lock the doors.
Parking at Night: Park in a lighted spot, close all windows and lock your
vehicle, Remember to keep your valuables out of sight. Put them
in a storage
area, or take them with you.
Parking Lots: If you park in a lot where someone will be watching your
vehicle, it’s best to lock it up and take your keys. But what
if you have to
leave your ignition key? What
if you have to leave something valuable in your
vehicle?
Put your valuables in a storage area, like your glove box or console, if
you have one.
Lock the console
Lock all doors except the driver’s
Then take the key with you.
2-1 0

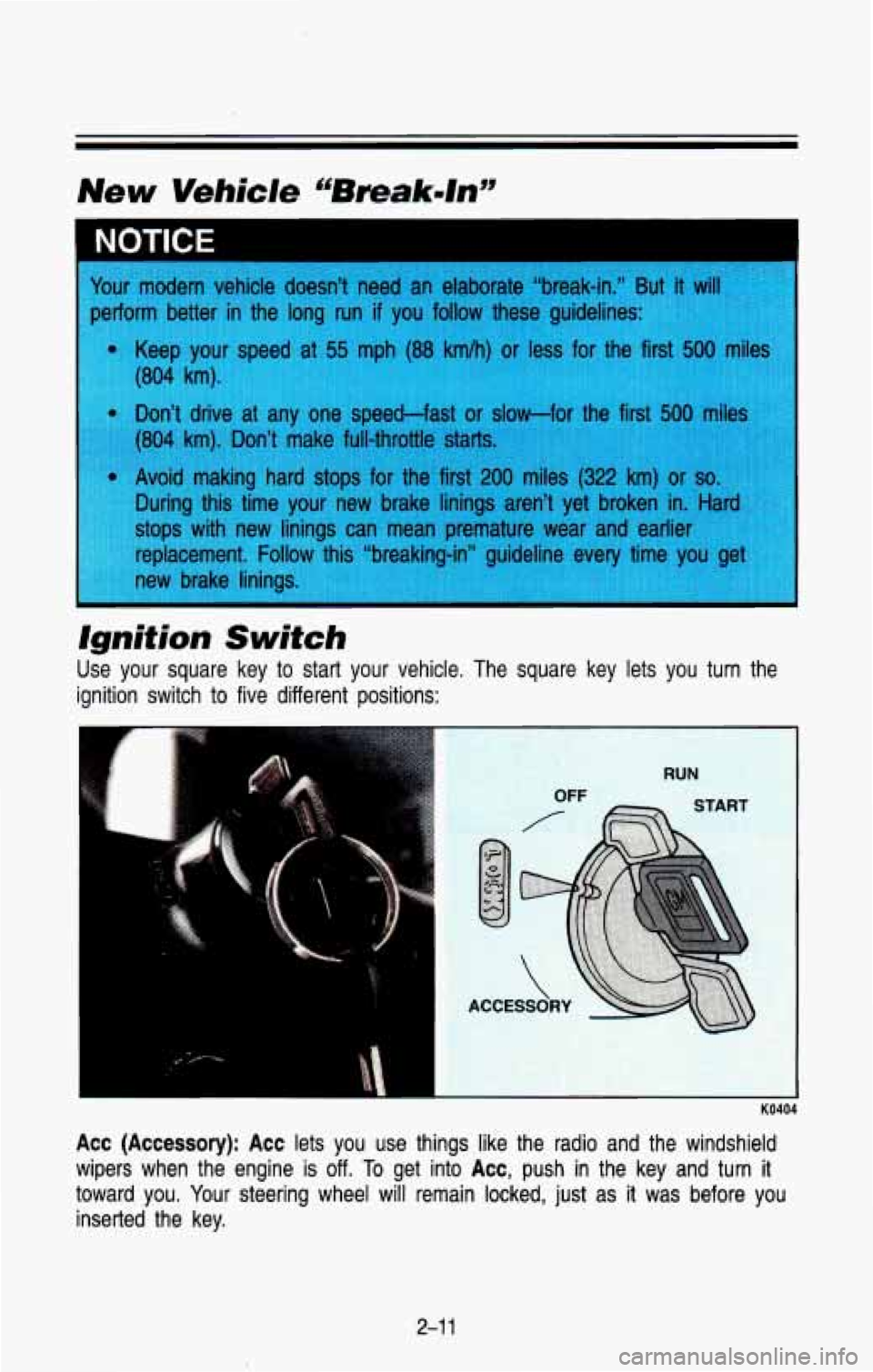

Ignition Switch
Use your square key to start your vehicle. The square key lets you turn the
ignition switch to five different positions:
Acc (Accessory): Acc lets you use things like the radio and the windshield
wipers when the engine is off.
To get into Acc, push in the key and turn it
toward you.
Your steering wheel will remain locked, just as it was before you
inserted the key.
2-1 1

Features & Controls

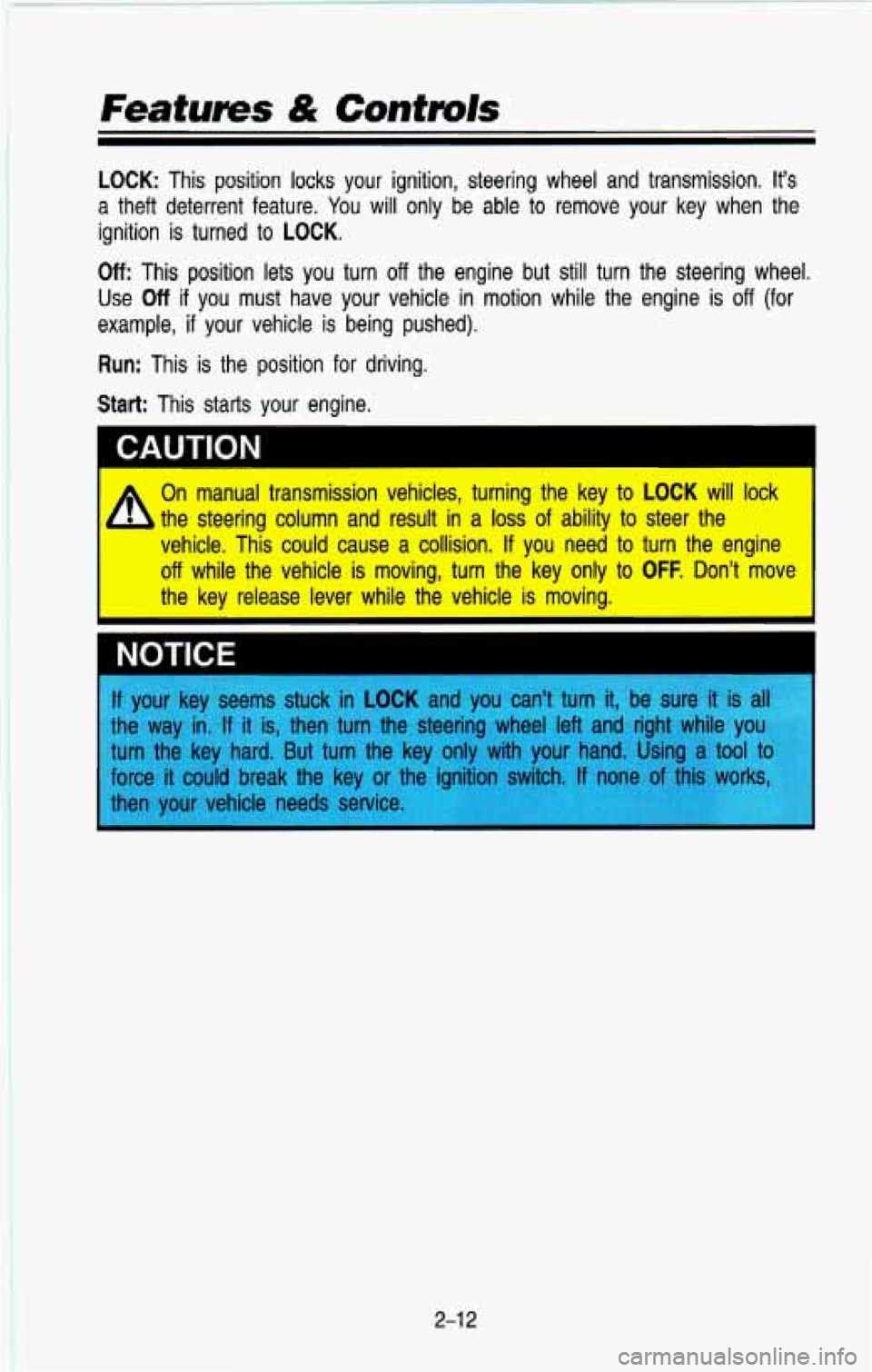

LOCK: This position locks your ignition, steering wheel and transmission. it's
we your key when the a theft deterrent feature. You will only be able to rem(
ignition is turned to
LOCK.
Off: This position lets you turn off the engine but still
Use
Off if you must have your vehicle in motion while
example,
if your vehicle is being pushed).
Run: This is the position for driving.
Start: This starts your engine. turn the steering wheel.
1 the engine
is off (for
'a
On manual transmission vehicles, turning the key to LOCK will lock
the steering column and result in a
loss of ability to steer the
vehicle. This could cause a collision.
If you need to turn the engine
off while the vehicle is moving, turn the key only to OFF. Don't move
the key release lever while the vehicle
is moving.
I
I
NOTICE
2-1 2

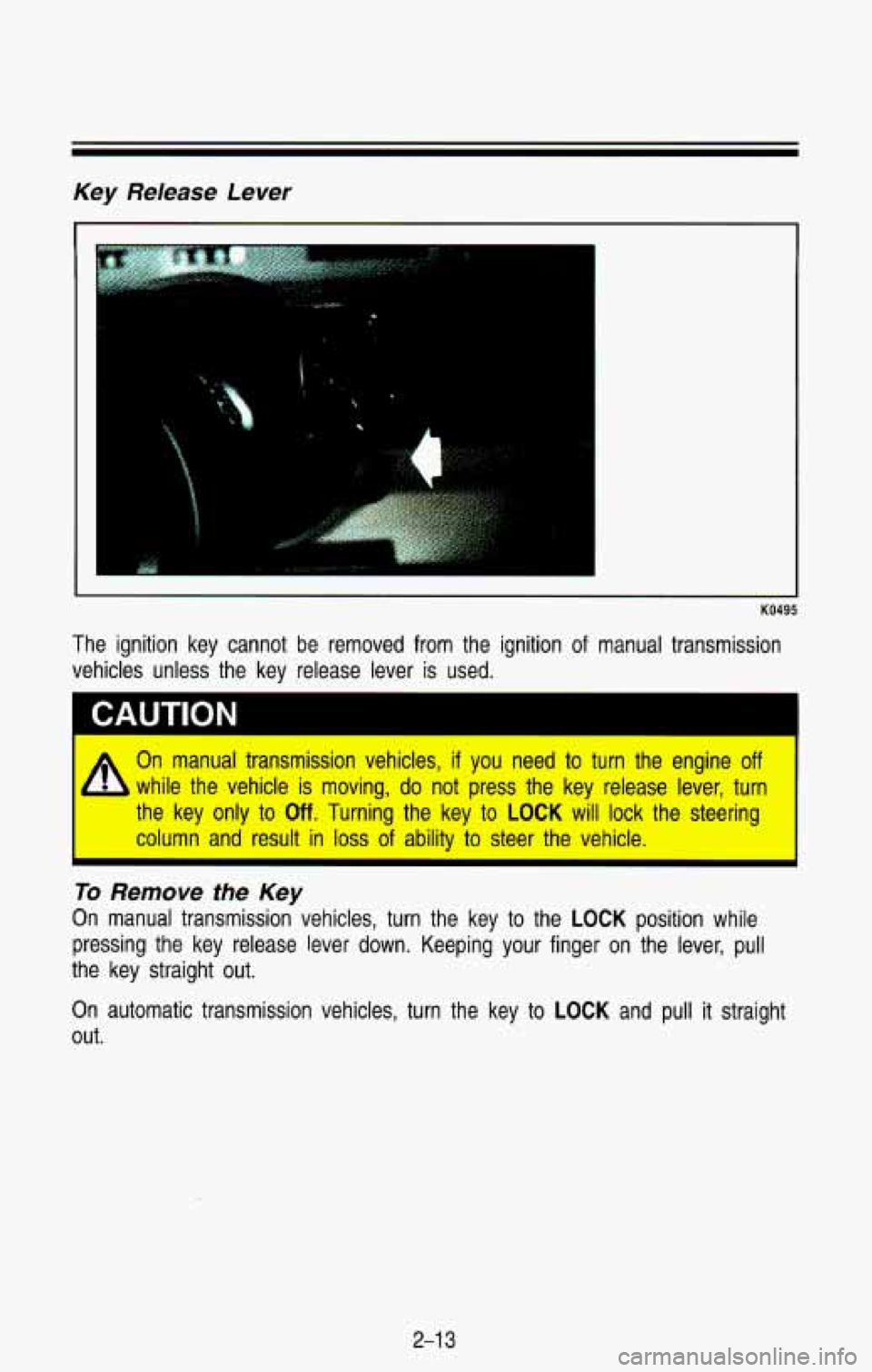

Key Release Lever
I
KO495
The ignition key cannot be removed from the ignition of manual transmission
vehicles unless the key release lever is used.
I
A
On manual transmission vehicles, if you need to turn the engine off
while the vehicle is moving, do not press the key release lever, turn
the key only to
Off. Turning the key to LOCK will lock the steering
column and result in
loss of ability to steer the vehicle. I
I
To Remove the Key
On manual transmission vehicles, turn the key to the LOCK position while
pressing the key release lever down. Keeping your finger on th\
e lever, pull
the key straight out.
On automatic transmission vehicles, turn the key to
LOCK and pull it straight
out.
2-1 3

Features & Controls

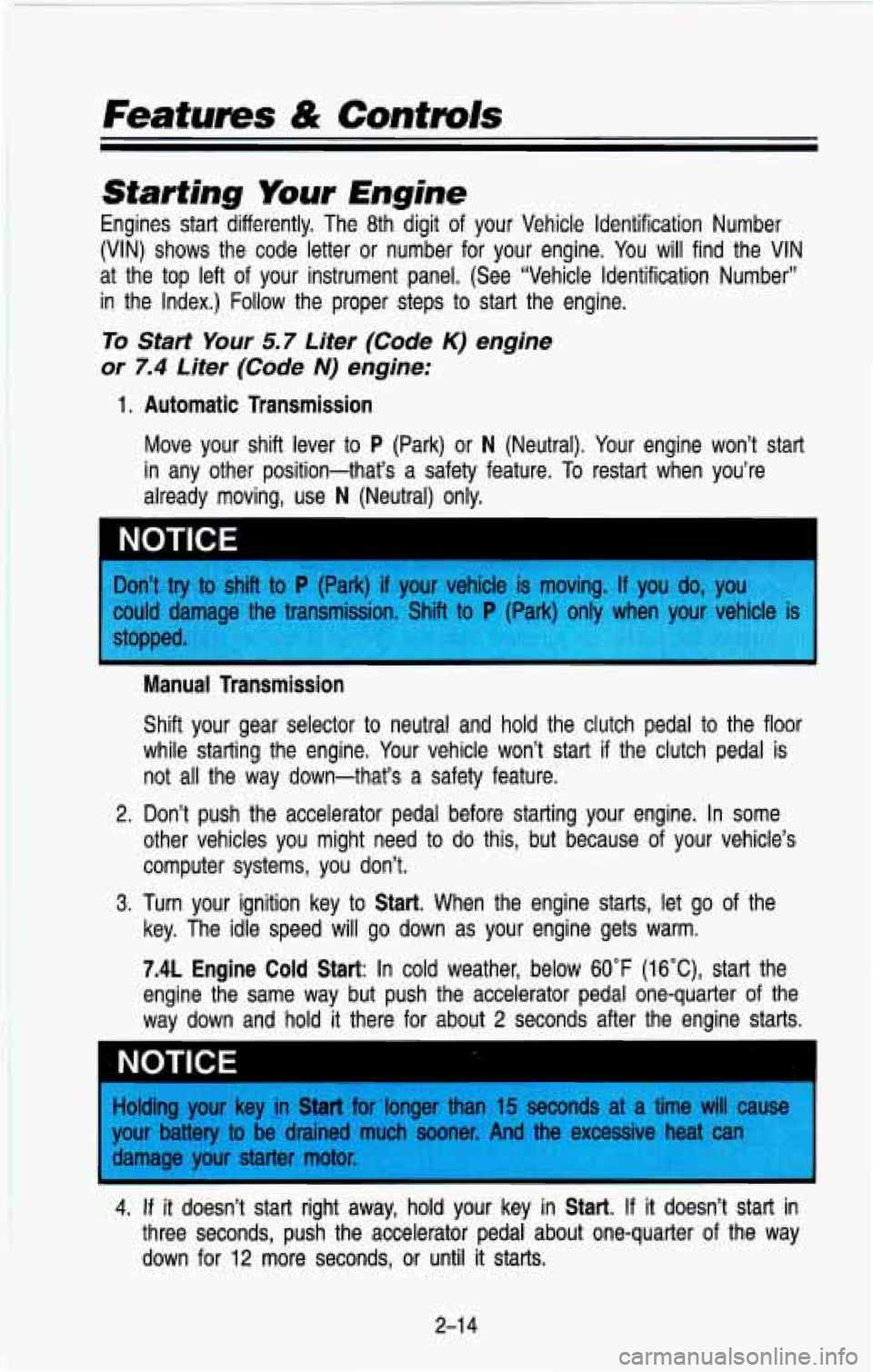

kmrting Your Engine
Engines start differently. The 8th digit of your Vehicle Identification Number
(VIN) shows the code letter or number for your engine. You
will find the VIN
at the top left of your instrument panel. (See “Vehicle Identification Number\
”
in the Index.) Follow the proper steps to start the engine.
To Start Your 5.7 Liter (Code K) engine
or
7.4 Liter (Code N) engine:
1. Automatic Transmission
Move your shift lever to P (Park) or N (Neutral). Your engine won’t start
in any other position-that’s a safety feature. To restart when you’re
already moving, use
N (Neutral) only.
NOTICE I
Don’t try to shift to P (Park) if your vehicle is moving. If you do, you^^^^
p~&w$gp!
could damaa our P . icle is
stormed
Manual Transmission
Shift your gear selector to neutral and hold the clutch pedal \
to the floor
while starting the engine, Your vehicle won’t start if the clutch pedal is
not
all the way down-that’s a safety feature.
2. Don’t push the accelerator pedal before starting your engine.\
In some
other vehicles you might need to do this, but because of your vehicle’s
computer systems, you don’t.
key. The idle speed will go down as your engine gets warm.
7.4L Engine Cold Start: In cold weather, below 60°F (16°C)’ start the
engine the same way but push the accelerator pedal one-quarter \
of the
way down and hold it there for about 2 seconds after the engine starts.
3. Turn your ignition key to Start. When the engine starts, let go of the
Holding your key in
Start for ‘longer than 15 seconds at a time will cause
your battery to be drained much sooner. And the excessive he
damage
your starter motor.
4. If it doesn’t start right away, hold your key in Start. If it doesn’t start in
three seconds, push the accelerator pedal about one-quarter of the way
down for 12 more seconds,
or until it starts.
2-1
4

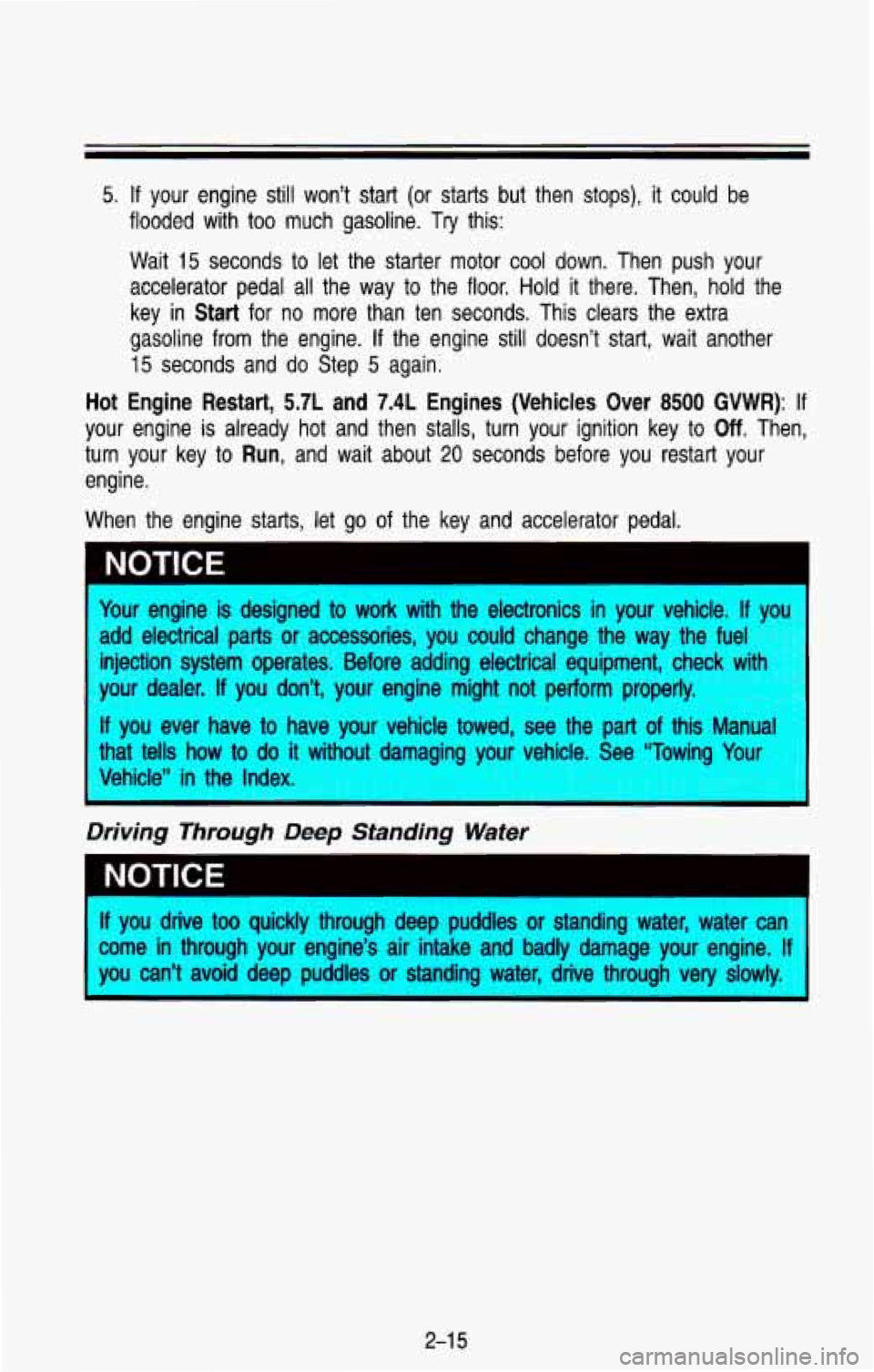

5. If your engine still won’t start (or starts but then stops), it could be
flooded with too much gasoline.
Try this:
Wait
15 seconds to let the starter motor cool down. Then push your
accelerator pedal all the way to the floor. Hold it there. Th\
en,
hold the
key in
Start for no more than ten seconds. This clears the extra
gasoline from the engine.
If the engine still doesn’t start, wait another
15 seconds and do Step 5 again.
Hot Engine Restart, 5.7L and 7.4L Engines (Vehicles Over 8500 GVWR): If
your engine is already hot and then stalls, turn your ignition\
key to Off. Then,
turn your key
to Run, and wait about 20 seconds before you restart your
engine.
When the engine starts, let go of the key and accelerator ped\
al.
rn rn I NOTICE 1
four engine is designed to work with the electronics in your vehicle. If you
1 electrical parts or accessories, you could change the way the fuel
tction system operates. Before adding electrical equipment, check\
with
hr dealer. If you don’t, your engine might not perform properly.
I you ever have to have your vehicle towed, see the part of this Man,,l
:hat tells how to do it without damaging your vehicle. See “Towing Your
Jehicle”
in the Index.
Driving Through Deep Standing Water
f you drive too quickly through deep puddles or standing water, water can I
:me in through your engine’s air intake and badly damage your engine. If
IOU can’t avoid deen ouddles or standino water, drive through very slowly.
-
2-1 5

Features & Controls

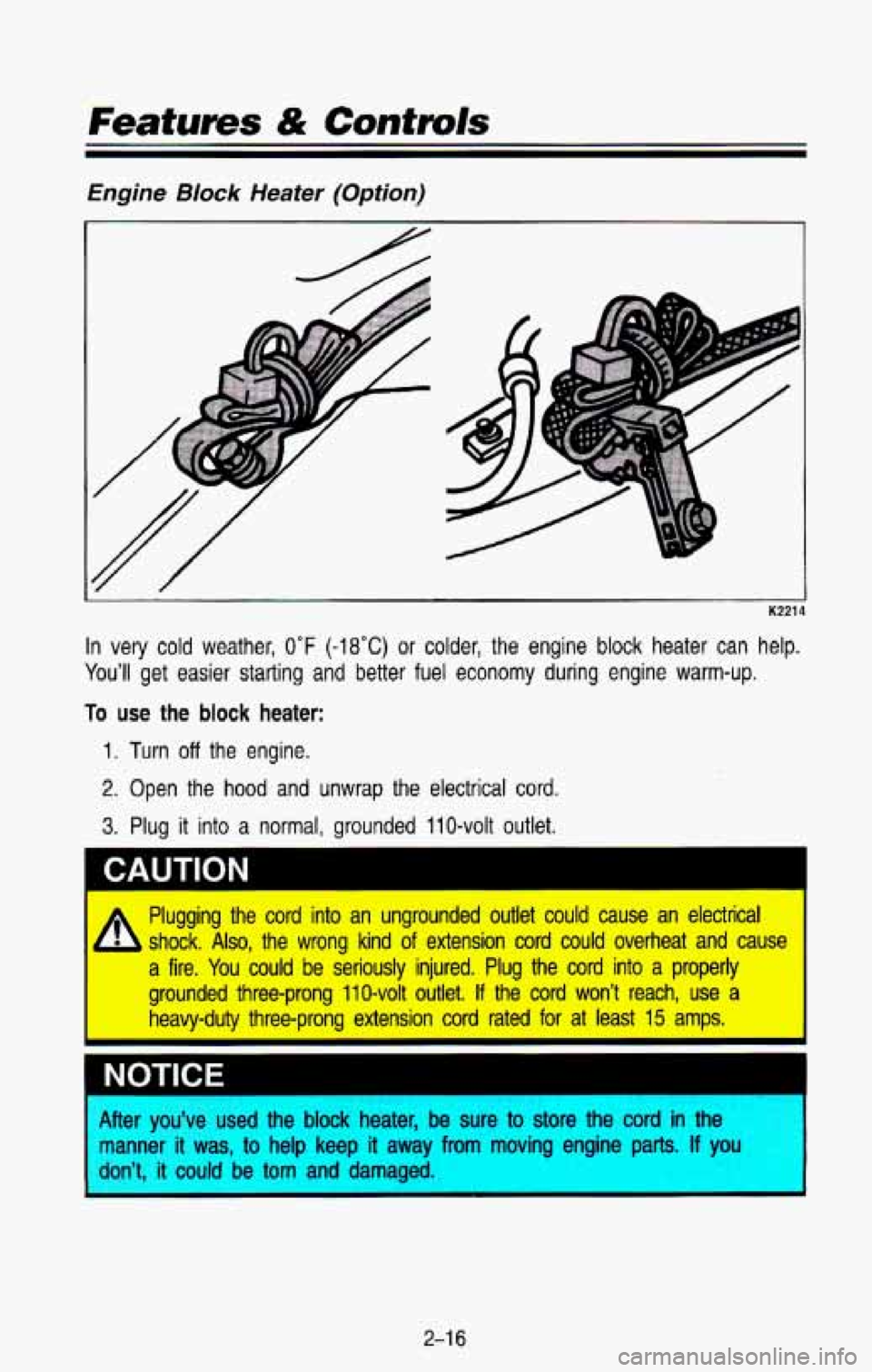

Engine BIock Heater (Option)
i K221
In very cold weather, 0°F (-18°C) or colder, the engine block heater can help.
You’ll get easier
starting and better fuel economy during engine warm-up.
To use the block heater:
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
3. Plug it into a normal, grounded 110-volt outlet.
I 4
1
Plugging the cord into an ungrounded outlet muld cause an electrical
L shock, Also, the wrong kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the cord into a properly
grounded threeprong 110-volt outlet. If the cord won’t reach, use a
heavy-duty threepmng extension cord rated for at least 15 amps.
I
I NOTICE
ter you’ve used the block heater, be sure to store the cord in the
nanner
it was, to help keep it away from moving engine parts. If you
lon’t, it could be tom and damaged.
2-1 6

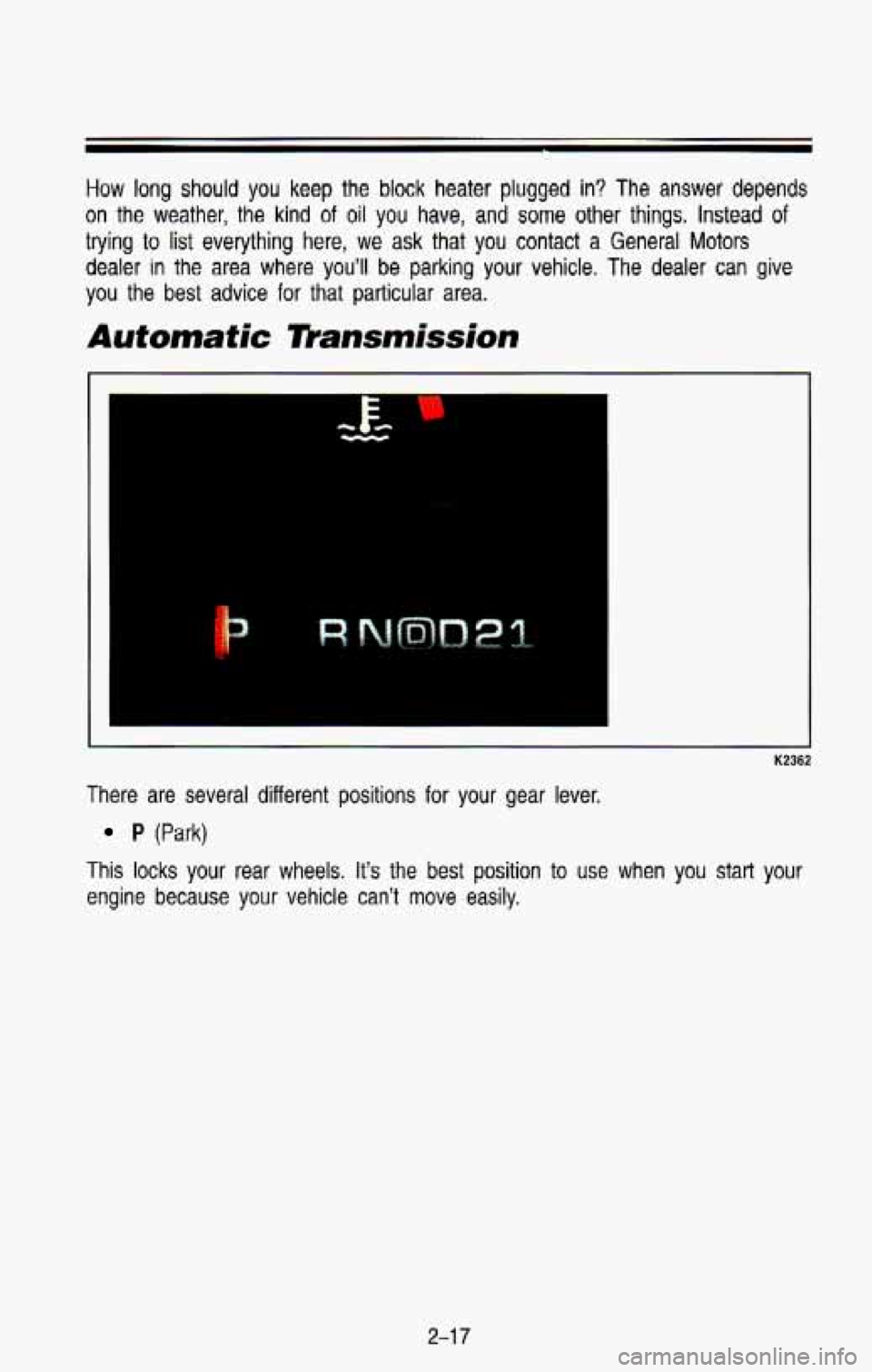

How long should you keep the block heater plugged in? The answer depends
on the weather, the kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact a General Motors
dealer
in the area where you’ll be parking your vehicle. The dealer can give
you the best advice
for that particular area.
Automatic 7Pansmission
K2362
There are several different positions for your gear lever.
P (Park)
This locks your rear wheels. It’s the best position to use when you start your
enaine because
your vehicle can’t move easily.
2-1 7
