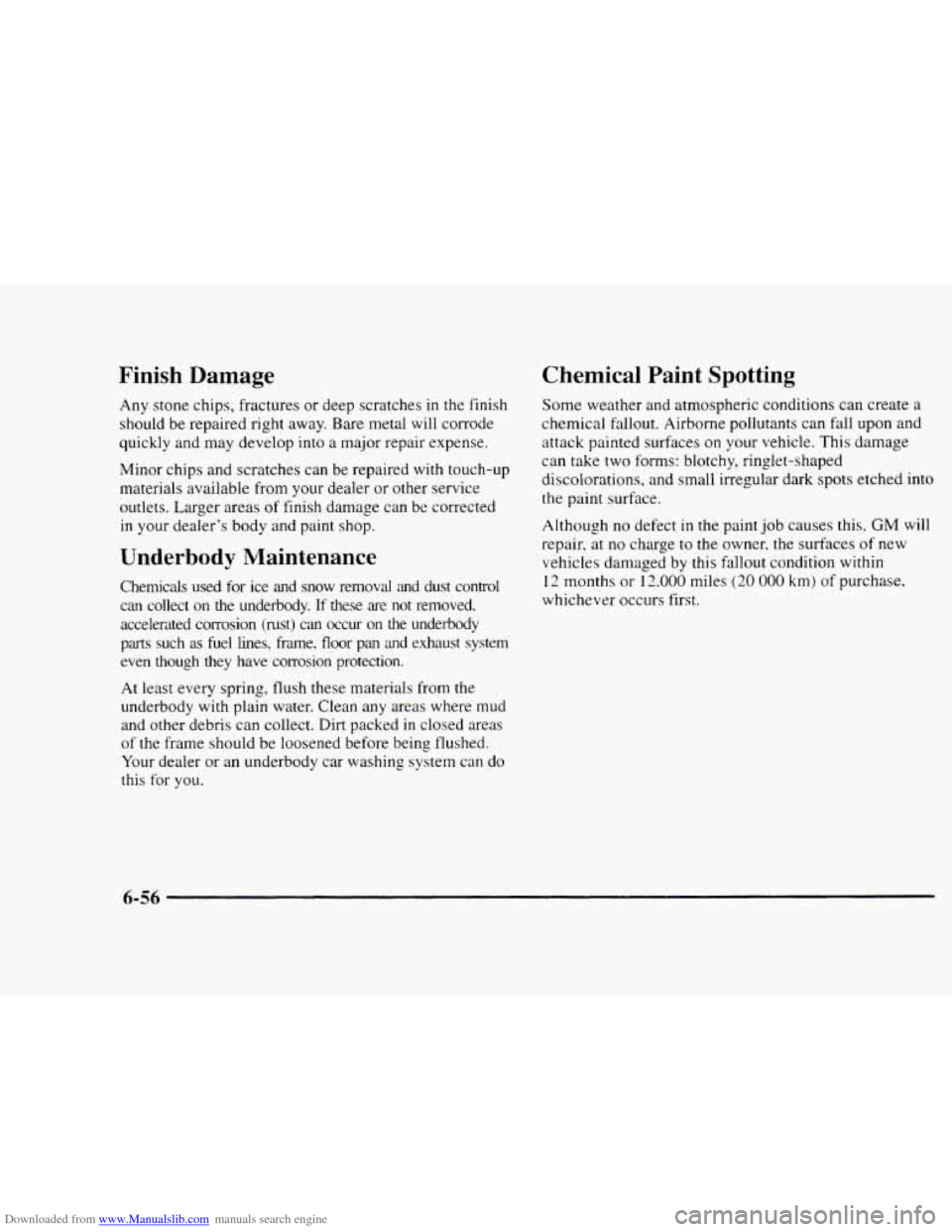

Downloaded from www.Manualslib.com manuals search engine Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right
away. Bare metal will corrode
quickly and may develop into
a major repair expense.
Minor chips and scratches can be repaired
with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust control
can collect on the underbody.
If these are not removed.
accelerated corrosion (rust) can occur
on the underbody
parts such
as fuel lines, frame. floor pan and exhaust system
even though they have corrosion protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed
in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces
on your vehicle. This damage
can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into
the paint surface.
Although no defect
in the paint job causes this. GM will
repair, at no charge to the owner, the surfaces of new
vehicles damaged by
this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase.
whichever occurs first.
6-56

Downloaded from www.Manualslib.com manuals search engine Appearance Care Materials Chart

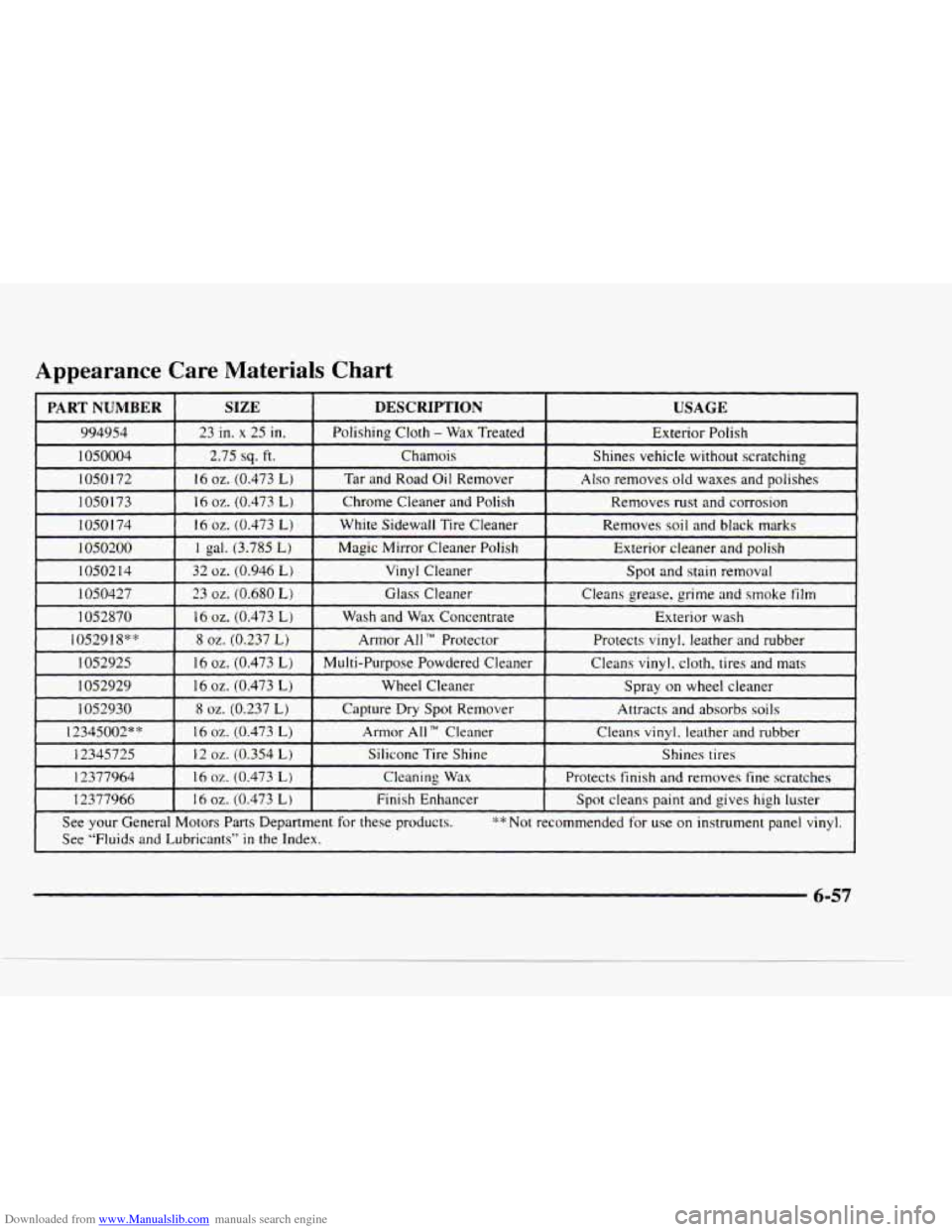

2377964 16 oz. (0.473 L) Cleaning Wax Protects finish and removes fine scratches
12377966 16
oz. (0.473 L) Finish Enhancer Spot cleans paint and gives high luster
See your General Motors Parts Department
for these products. **Not recommended for use on instrument panel vinyl.
See ‘‘Fluids and Lubricants” in the Index.
6-57

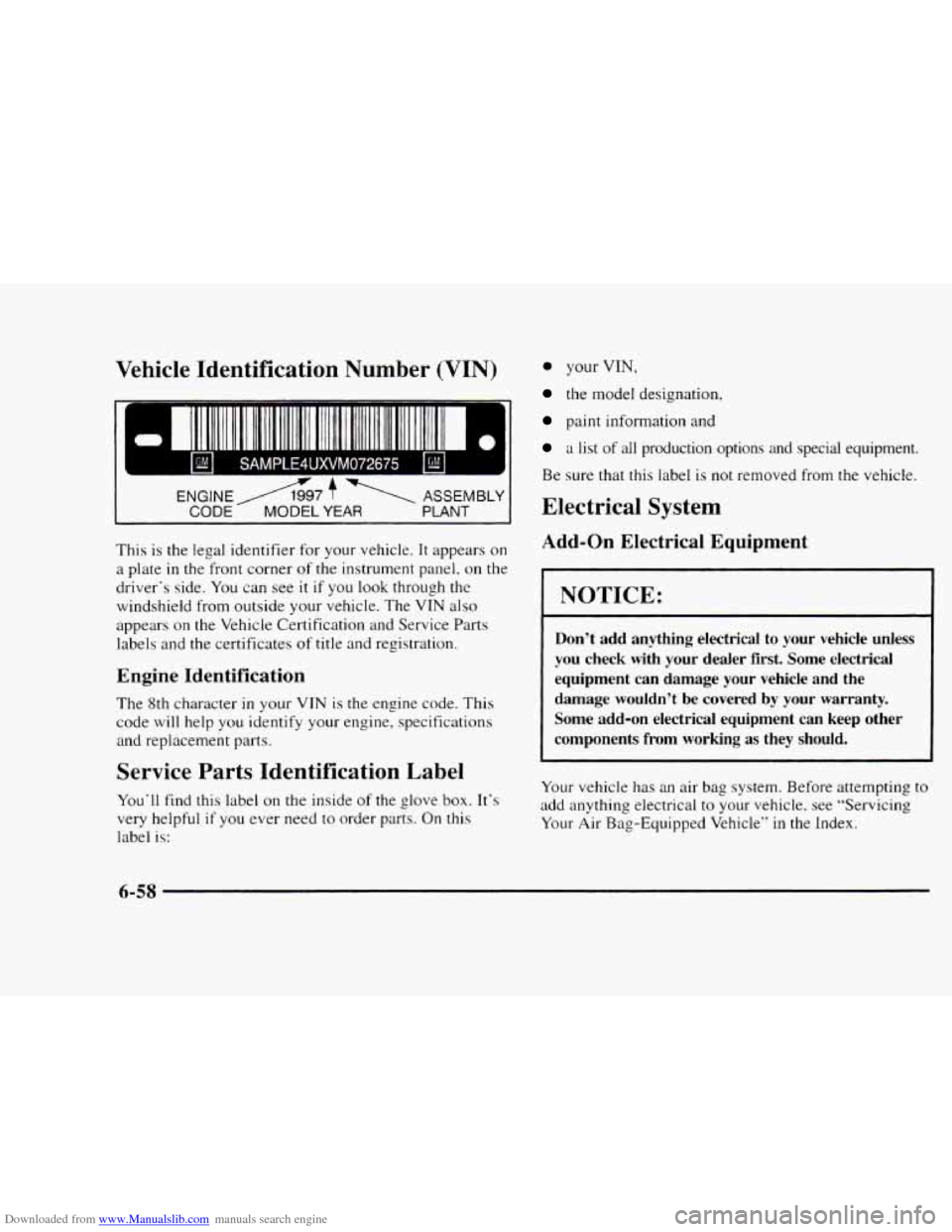

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
I GM I SAMPLE4UXVM072675 I E‘ I
I
ENGINE/1997 T ASSEMBLY
CODE MODEL YEAR PLANT I
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel. on the
driver’s side. You can see it
if you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels
and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine. specifications
and replacement parts.
0 your VIN,
the model designation,
paint information and
a list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
Electrical System
Add-on Electrical Equipment
Don’t add anything electrical to your vehicle unless
you check with your dealer first. Some electrical
equipment can damage your vehicle and the
damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Service Parts Identification Label
You‘ll find this label on the inside of the glove box. It’s
very helpful if you ever need to order parts. On this
label is: Your
vehicle
has an air bag system. Before attempting to
add anything electrical to your vehicle. see ”Servicing
Your
Air Bag-Equipped Vehicle’’ in the Index.
6-58

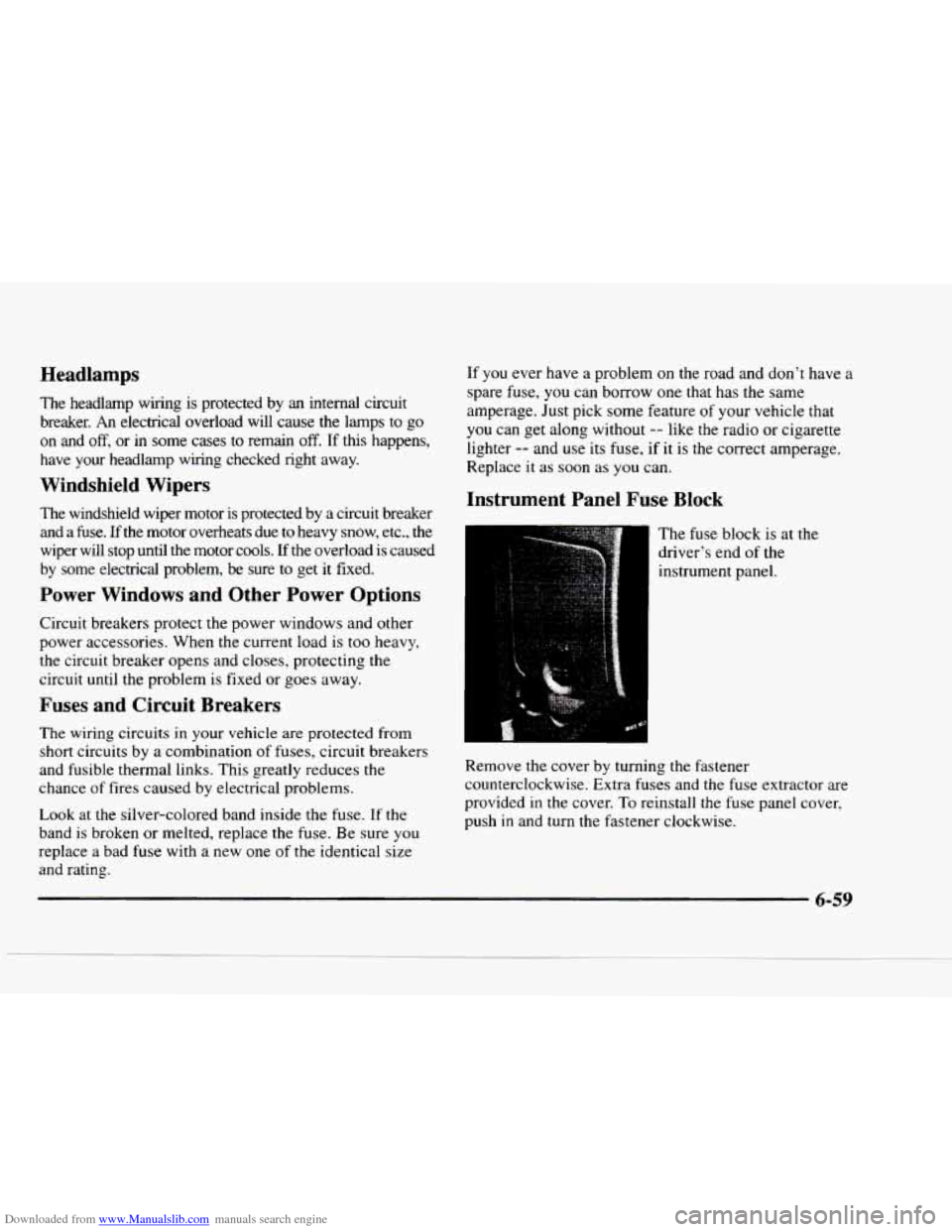

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker
and a fuse.
If the motor overheats due to heavy snow, etc., the
wiper will stop until the motor cools.
If the overload is caused
by some electrical problem, be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When
the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance
of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating. If you
ever have a problem on the road and don't have
a
spare fuse, you can borrow one that has the same
amperage. Just pick some feature
of your vehicle that
you
can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as
you can.
Instrument Panel Fuse Block
The fuse block is at the
driver's end
of the
instrument panel.
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor
are
provided in the cover. To reinstall the fuse panel cover,
push
in and turn the fastener clockwise.

Downloaded from www.Manualslib.com manuals search engine rnrl WOO ACCY d co A w

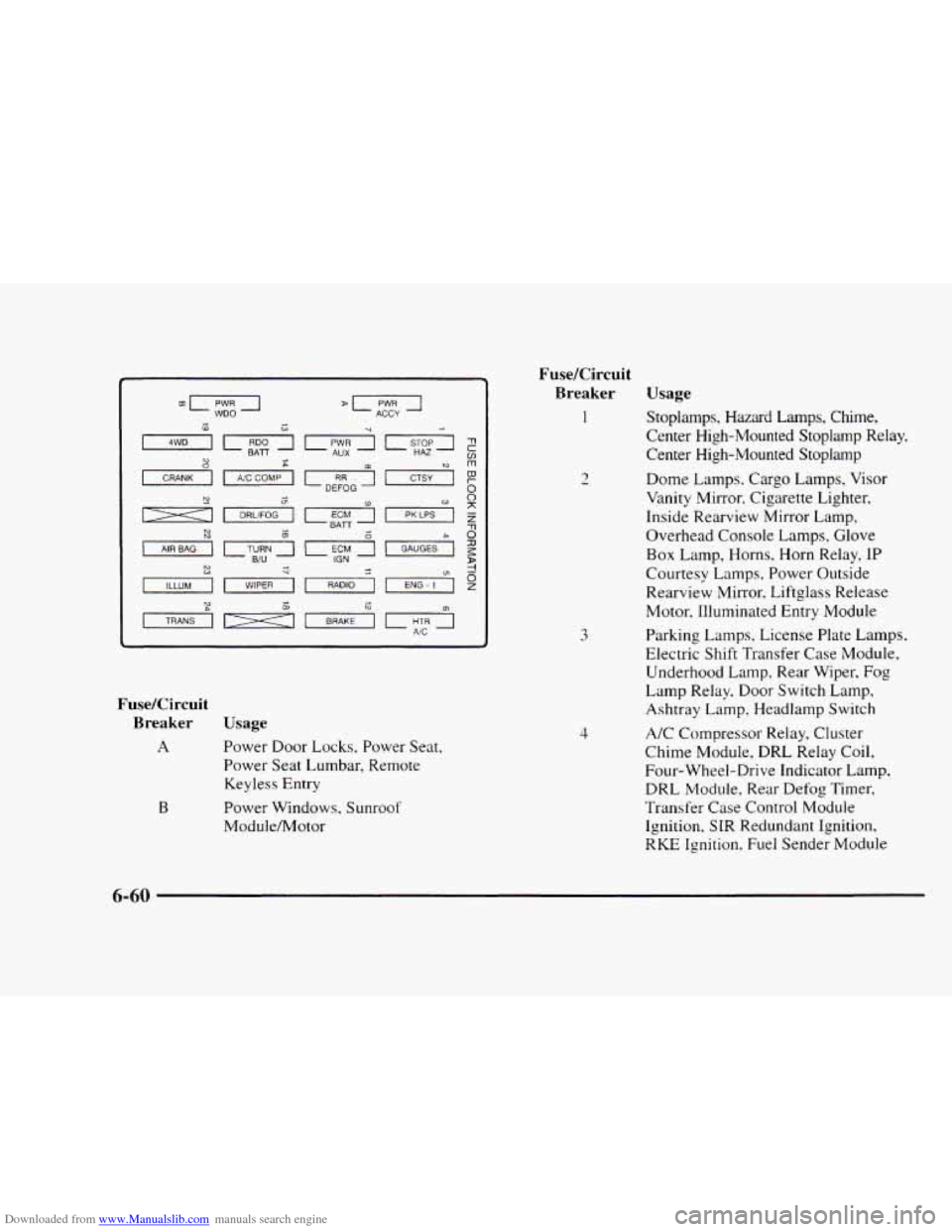

FuseKircuit Breaker
A
B
Usage
Power Door Locks, Power Seat,
Power Seat Lumbar, Remote
Keyless Entry
Power Windows, Sunroof
Module/Motor
FuseKircuit
Breaker Usage
1
2
3
4
Stoplamps, Hazard Lamps, Chime,
Center High-Mounted Stoplamp Relay,
Center High-Mounted Stoplamp
Dome Lamps. Cargo Lamps, Visor
Vanity Mirror, Cigarette Lighter,
Inside Rearview Mirror Lamp,
Overhead Console Lamps, Glove
Box Lamp, Horns, Horn Relay, IP
Courtesy Lamps, Power Outside
Rearview Mirror, Liftglass Release
Motor, Illuminated Entry Module
Parking
Lamps, License Plate Lamps.
Electric Shift Transfer Case Module,
Underhood Lamp, Rear Wiper. Fog
Lamp Relay, Door Switch Lamp,
Ashtray Lamp, Headlamp Switch
A/C Compressor Relay, Cluster
Chime Module, DRL Relay Coil,
Four-Wheel-Drive Indicator Lamp,
DRL Module, Rear Defog Timer,
Transfer Case Control Module
Ignition, SIR Redundant Ignition,
RKE Ignition. Fuel Sender Module
6-60

Downloaded from www.Manualslib.com manuals search engine FuseKircuit Breaker Usage

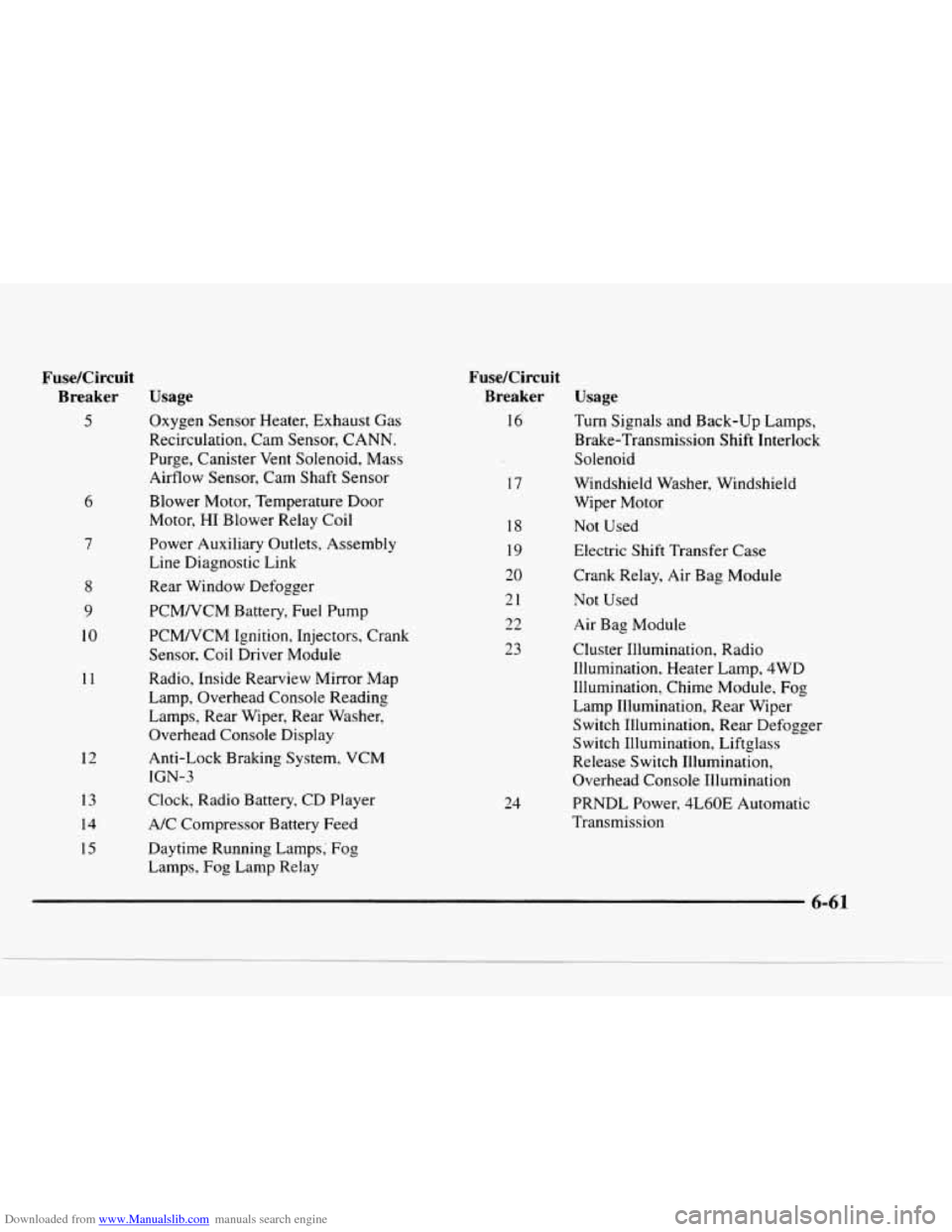

5
6
7
8
9
10
11
12
13
14
15
Oxygen Sensor Heater, Exhaust Gas
Recirculation, Cam Sensor,
CANN.
Purge, Canister Vent Solenoid, Mass
Airflow Sensor, Cam Shaft Sensor
Blower Motor, Temperature
Door
Motor, HI Blower Relay Coil
Power Auxiliary Outlets, Assembly
Line Diagnostic Link
Rear Window Defogger
PCMNCM Battery,
Fuel Pump
PCM/VCM Ignition, Injectors, Crank
Sensor, Coil Driver Module
Radio, Inside Rearview Mirror Map
Lamp, Overhead Console Reading
Lamps, Rear Wiper, Rear Washer,
Overhead Console Display
Anti-Lock Braking System, VCM
Clock, Radio Battery, CD Player
A/C Compressor Battery Feed
Daytime Running Lamps;
Fog
Lamps, Fog Lamp Relay
IGN-3
FuseKircuit
Breaker
Usage
16
17
18
19
20
21
22
23
24
Turn Signals and Back-up Lamps,
Brake-Transmission Shift Interlock
Solenoid
Windshield Washer, Windshield
Wiper Motor
Not Used
Electric Shift Transfer Case
Crank Relay, Air Bag Module
Not Used
Air Bag Module
Cluster Illumination, Radio
Illumination, Heater Lamp,
4WD
Illumination, Chime Module, Fog
Lamp Illumination, Rear Wiper
Switch Illumination, Rear Defogger
Switch Illumination, Liftglass
Release Switch Illumination,
Overhead Console Illumination
PRNDL Power, 4L6OE Automatic
Transmission
6-61

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs

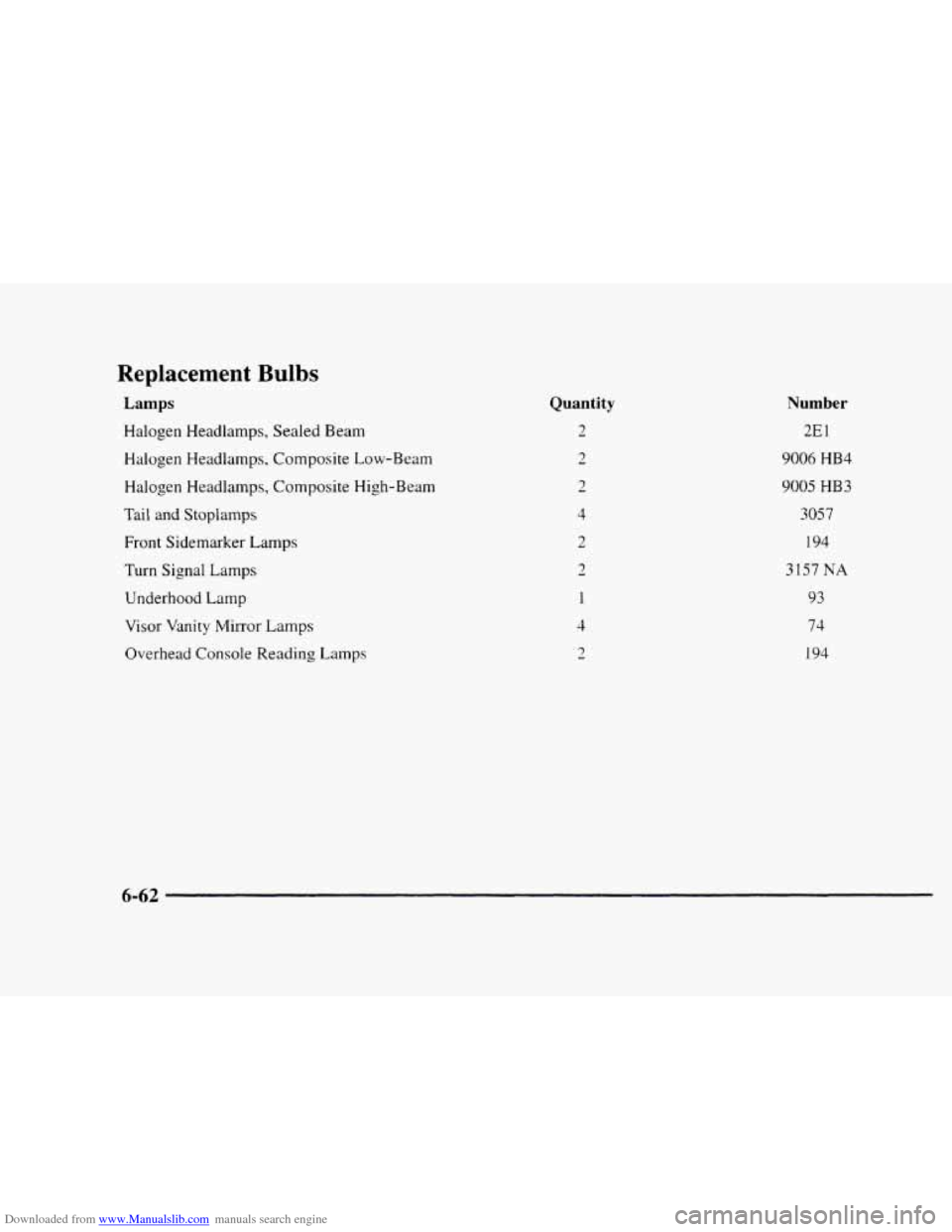

Lamps
Halogen Headlamps, Sealed Beam
Halogen Headlamps, Composite Low-Beam
Halogen Headlamps, Composite High-Beam
Tail and
Stoplamps
Front Sidemarker Lamps
Turn Signal Lamps
Underhood Lamp
Visor Vanity Mirror Lamps
Overhead Console Reading Lamps
Quantity
2
3
2
4
2
- 3
1
4
- 3
Number
2E
1
9006 HB4
9005 HB3
3057
194
3157 NA
93
74
194
6-62

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications

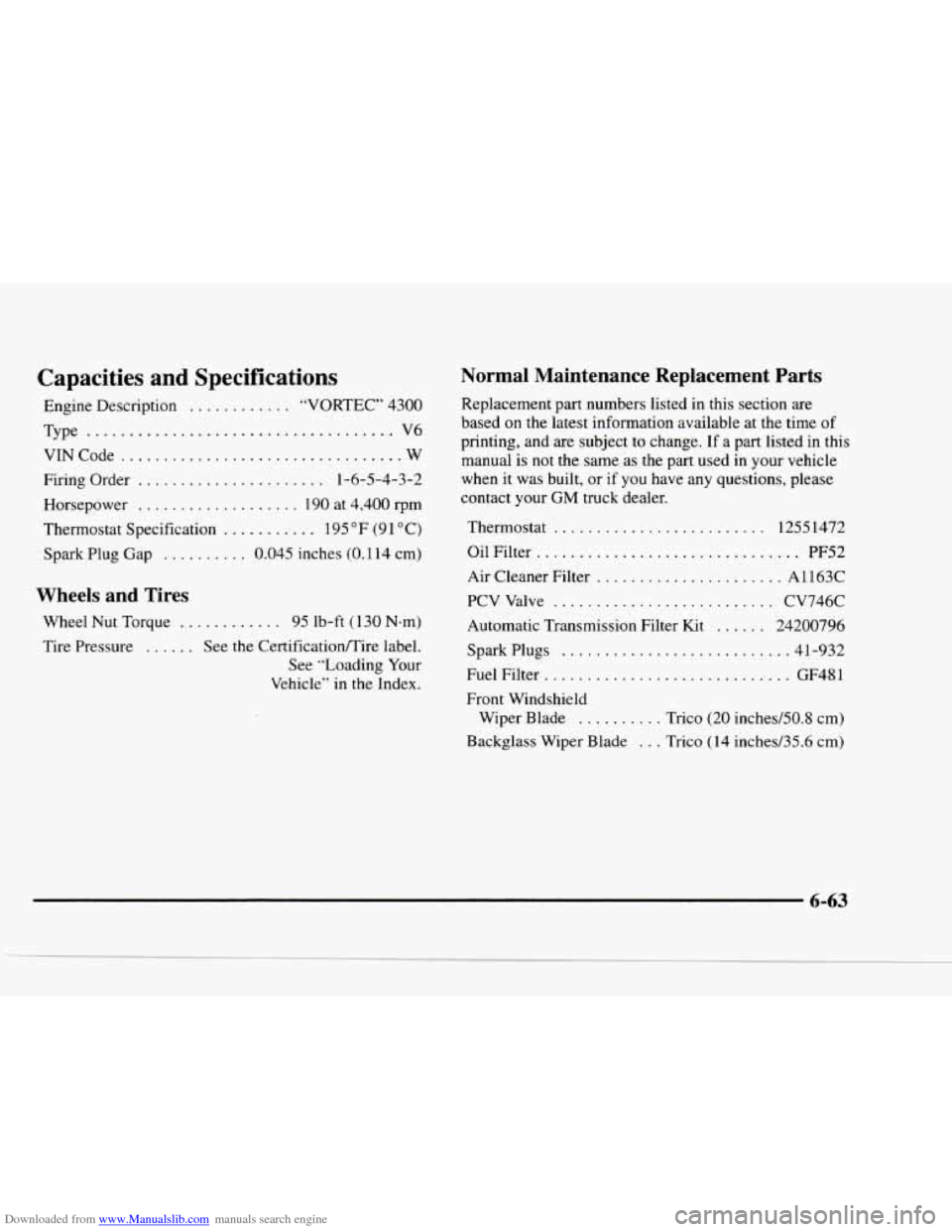

Engine Description ............ “VORTEC” 4300
Type .................................... V6
VINCode
................................. W
Firing Order ...................... 1-6-5-4-3-2
Horsepower ................... 190 at 4,400 rpm
Thermostat Specification
........... 195°F (91°C)
Spark Plug Gap
.......... 0.045 inches (0.114 cm)
Wheels and Tires
Wheel Nut Torque ............ 95 Ib-ft (130 N-m)
Tire Pressure
...... See the Certificationflire label. See “Loading Your
Vehicle” in
the Index.
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time
of
printing, and are subject to change. If a part listed in this
manual is not
the same as the part used in your vehicle
when it was built, or if
you have any questions, please
contact your
GM truck dealer.
Thermostat
......................... 12551472
Oil Filter
............................... PF52
Air Cleaner Filter
...................... A1 163C
PCV Valve
.......................... CV746C
Automatic Transmission Filter Kit
...... 24200796
Spark Plugs .......................... .4 1-932
Fuel Filter
............................. GF48 1
Front Windshield Wiper Blade
.......... Trico (20 inches/50.8 cm)
Backglass Wiper Blade
... Trico (14 inched35.6 cm)
6-63

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate)

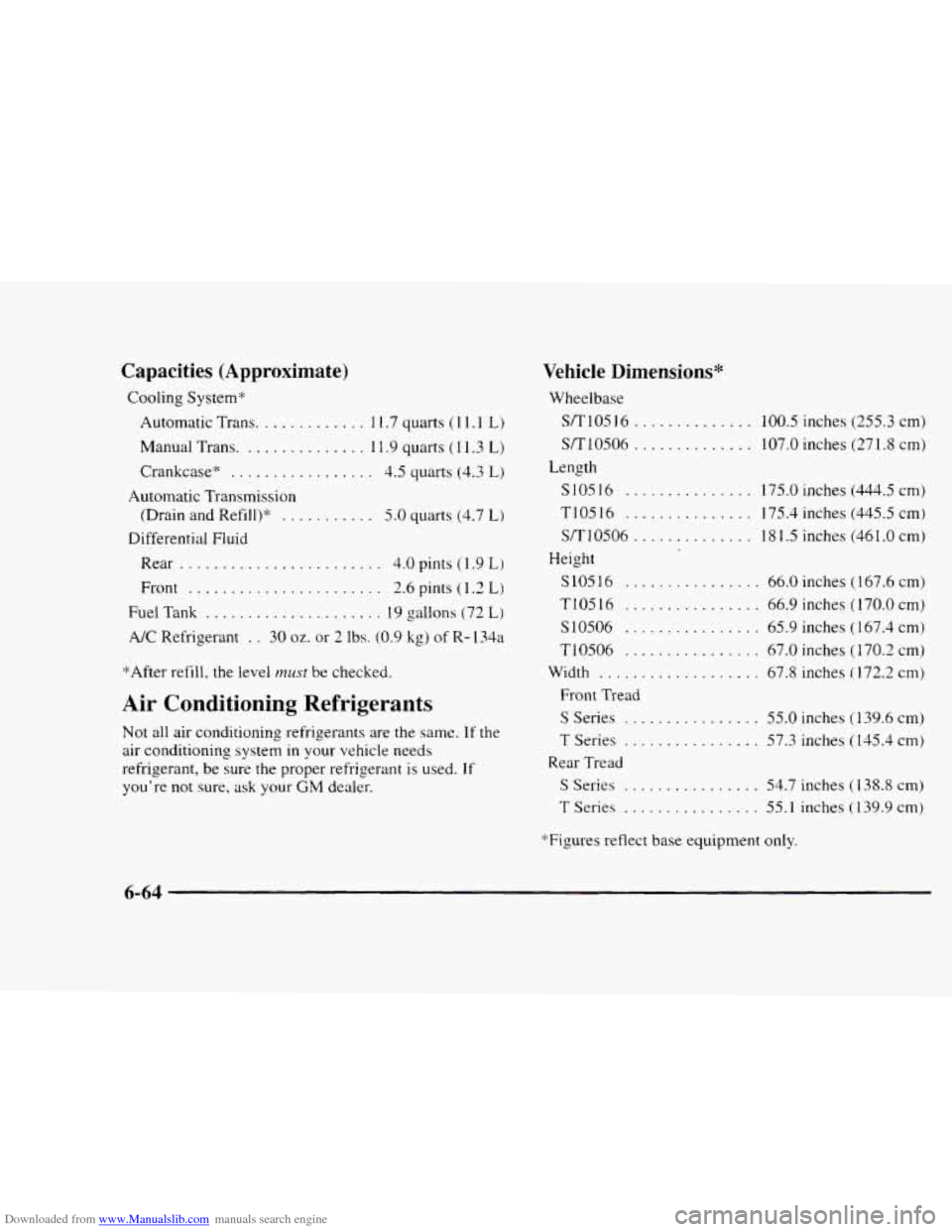

Cooling System* Automatic Trans.
............ 1 1.7 quarts ( 1 I. 1 L)
Manual Trans. .............. 1 1.9 quarts ( 1 1.3 L)
Crankcase* ................. 4.5 quarts (4.3 L)
Automatic Transmission
(Drain and Refill)"
........... 5.0 quarts (4.7 L)
Differential Fluid
Rear
........................ 4.0 pints (1.9 L)
Front ....................... 2.6 pints (1.2 L)
Fuel Tank ..................... 19 gallons (72 L)
A/C Refrigerant . . 30 oz. or 2 lbs. (0.9 kg) of R- 134a
*After refill, the level
must be checked.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used. If
you're not sure, ask your GM dealer.
Vehicle Dimensions*
Wheelbase
S/T10516 .............. 100.5 inches (255.3 cm)
1 S/T10506 .............. 107.0 .
Length
S10516 ............... 175.0
T10516 ............... 175.4 nches
(27 I .8 cm)
nches (444.5 cm)
nches (445.5 cm)
S/T 10506 .............. 18 I .5 inches (46 I .O cm)
Height
S10516 ................ 66.0 inches (167.6 cm)
T10516
................ 66.9 inches (170.0cm)
S10506
................ 65.9 inches (167.4 cm)
T10506
................ 67.0 inches (170.2 cm)
Width
....... .......... 67.8 inches ( 172.2 cm)
Front Tread
S Series ................ 55.0 inches (139.6 cm)
T Series ................ 57.3 inches (145.4 cm)
S Series ................ 54.7 inches (138.8 cm)
T Series ................ 55.1 inches ( 139.9 cm)
Rear Tread
*Figures reflect base equipment only.
6-64

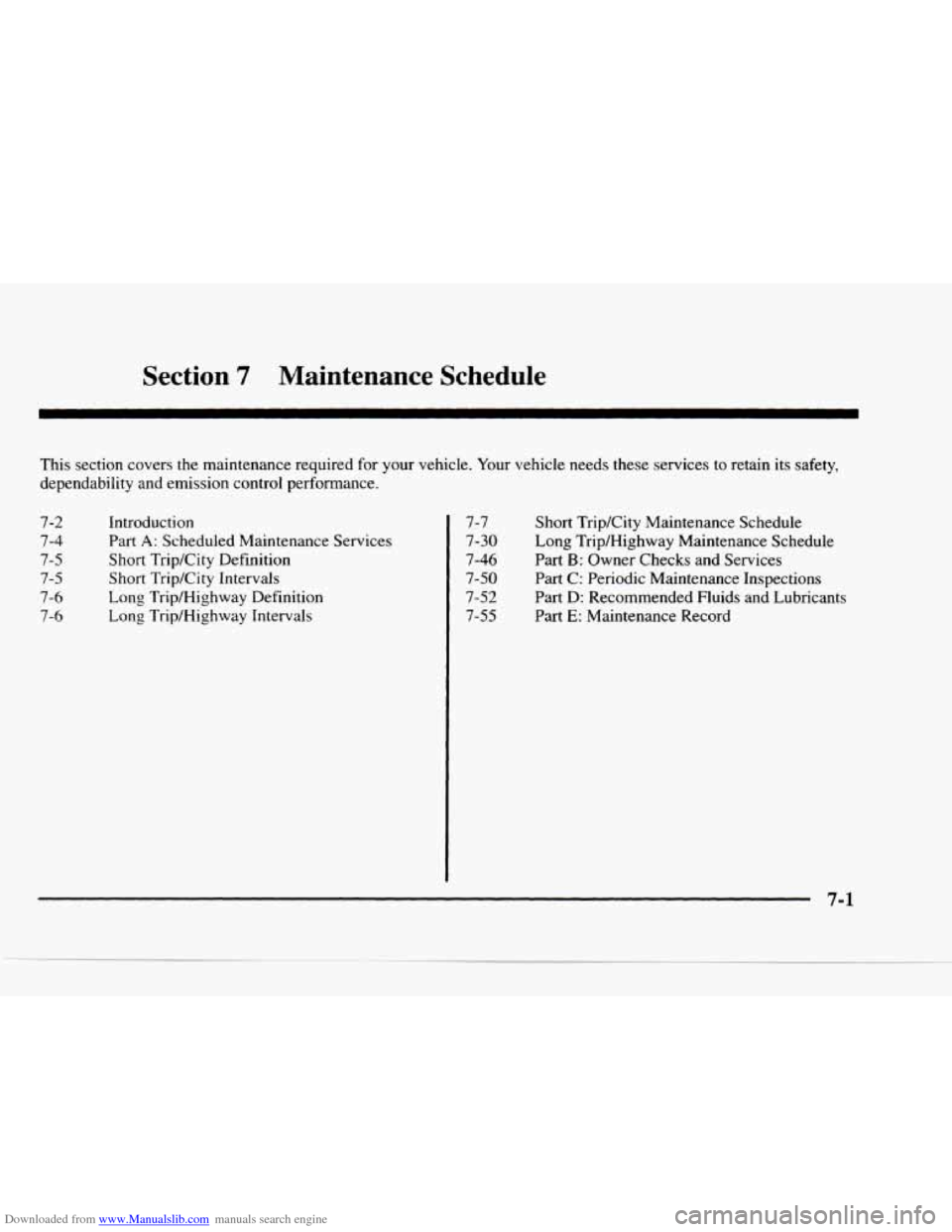

Downloaded from www.Manualslib.com manuals search engine Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-4
7-5
7-5
7-6
7-6
Introduction
Part
A: Scheduled Maintenance Services
Short Trip/City Definition
Short TripKity Intervals
Long Trip/Highway Definition
Long Trip/Highway Intervals
7-7 Short Trip/City Maintenance Schedule
7-30 Long Trip/Highway Maintenance Schedule
7-46 Part B: Owner Checks and Services
7-50 Part C: Periodic Maintenance Inspections
7-52 Part D: Recommended Fluids and Lubricants
7-55 Part E: Maintenance Record
