CHEVROLET BLAZER 2002 2.G Owners Manual

3-4 Heating
The heater works best if you keep your windows closed
while using it. On cold days, use floor mode with the
temperature knob turned clockwise. Blend mode is
useful in cool weather when you have fog or ice on the
windshield or side windows.
If you use the optional engine coolant heater before
starting your engine, your heating system will produce
warmer air faster to heat the passenger compartment in
cold weather. See ªEngine Coolant Heaterº in the Index.
Defogging and Defrosting
On cool, humid days, use blend mode to keep the
windshield and side windows clear.
Use defrost mode to remove fog or ice from the
windshield quickly in extreme humid or cold conditions.
Turn the temperature knob clockwise and move the fan
knob toward high.
Rear Window Defogger (If Equipped)
If your vehicle has this
feature, the rear window
will have lines that warm
the glass.
For best results, clear the window of as much snow or
ice as possible before using the rear window defogger.
To turn on the rear window defogger, find the button
marked REAR with the defog symbol on the lower right
corner of your climate control system. Press the button
until the light in the button comes on, then release it. It
will only work if the ignition switch is turned to RUN.
Pressing the REAR button on your climate control
system will also activate your heated outside mirrors
(if equipped). This will help to keep ice and snow from
collecting on your mirror surfaces.

3-5
The rear window defogger will stay on for five to seven
minutes, then turn off. If you need additional warming
time, turn it on again. You can turn the defogger off at
any time by pressing the button.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use vent mode to direct outside air
through your vehicle. Airflow is through the instrument
panel outlets.
Your vehicle's ventilation system supplies outside air to
the inside of your vehicle when it is moving. When the
vehicle is not moving, you can get outside air to flow
through by selecting any mode except max A/C and any
fan speed.

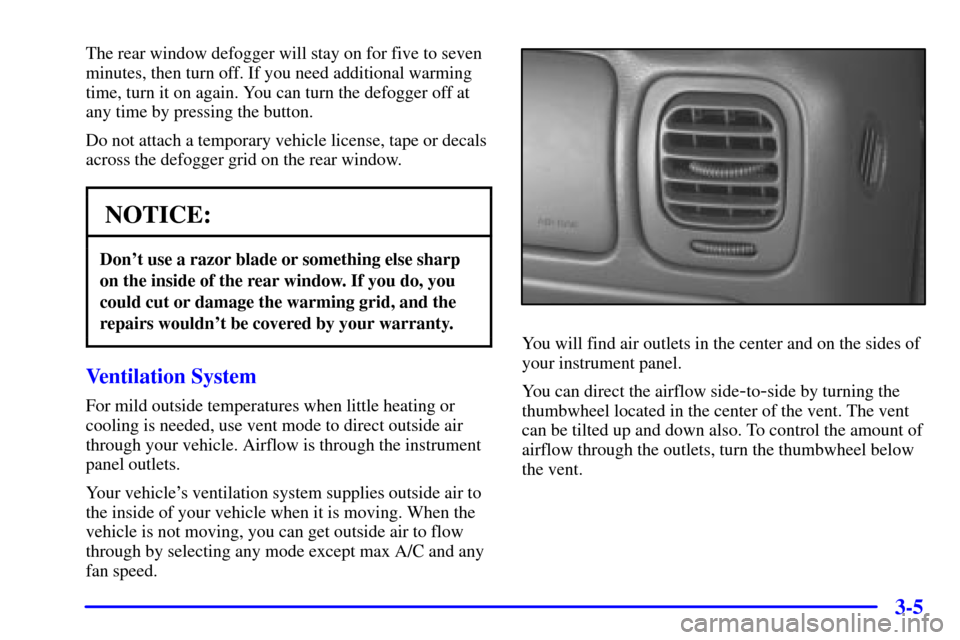

You will find air outlets in the center and on the sides of
your instrument panel.
You can direct the airflow side
-to-side by turning the
thumbwheel located in the center of the vent. The vent
can be tilted up and down also. To control the amount of
airflow through the outlets, turn the thumbwheel below
the vent.

3-6
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, move the
fan knob to high for a few moments before driving
off. This helps clear the intake ducts of snow and
moisture, and reduces the chance of fogging the
inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all of its controls to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock for Systems with the
Set Button
Press SET. Within five seconds, press and hold the right
SEEK arrow until the correct minute appears on the
display. Press and hold the left SEEK arrow until the
correct hour appears on the display.
Setting the Clock for Systems with HR and
MN Buttons
Press and hold HR until the correct hour appears on the
display. Press and hold MN until the correct minute
appears on the display. To display the clock with the
ignition off, press RECALL or HR/MN and the time
will be displayed for a few seconds. There is an initial
two
-second delay before the clock goes into the
time
-set mode.

3-7 Setting the Clock for Systems with Radio
Data System
Your radio may have a button marked with an H or
HR to represent hours and an M, MN or MIN to
represent minutes.
Press and hold the hour button until the correct hour
appears. AM or PM will appear on the display for
morning hours. Press and hold the minute button until
the correct minute appears. The clock may be set with
the ignition on or off.
To set the clock to the time of an FM station
broadcasting Radio Data System (RDS) information,
press and hold the hour and minute buttons at the same
time for two seconds until UPDATED and the clock
symbol appears on the display. If the time is not
available from the station, NO UPDAT will appear on
the display instead.
RDS clock time is broadcast once a minute. Once you
have tuned to an RDS broadcast station, it may take a
few minutes for your clock time to update.
AM-FM Stereo
Playing the Radio
Power: Turn the VOLUME knob clockwise to turn the
system on and counterclockwise to turn the system off.
VOLUME: Turn this knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RECALL: Pressing this knob will display the station
being played or it will display the clock. Clock display
is available with the ignition turned off.

3-8
Finding a Station
AM
-FM: Press this knob to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to tune in radio stations.
SEEK : Press the right or left arrow to seek to the
next or previous station and stay there.
SCAN : Press both SCAN arrows. SCAN will
appear on the display. The radio will scan to the next
station, play for a few seconds, then scan to the next
station. Press the RECALL knob or both SCAN arrows
to stop scanning.
Setting Preset Stations
The four numbered pushbuttons let you return to
your favorite stations. You can set up to 21 stations
(seven AM, seven FM1 and seven FM2) by performing
the following steps:
1. Turn the radio on.
2. Press AM
-FM to select AM, FM1 or FM2.3. Tune in the desired station.
4. Press SET. SET will appear on the display.
5. Press one of the four pushbuttons within five
seconds. Whenever you press that numbered
pushbutton, the station you set will return.
6. Repeat the steps for each pushbutton.
In addition to the four stations already set, up to three
more stations may be preset on each band by pressing
two adjoining pushbuttons at the same time and by
performing the following steps:
1. Tune in the desired station.
2. Press SET. SET will appear on the display.
3. Press two adjoining pushbuttons at the same time,
within five seconds. Whenever you press the same
two pushbuttons, the station you set will return.
4. Repeat the steps for each pair of pushbuttons.

3-9
Setting the Tone (Bass/Treble)
BASS: Slide this lever up or down to increase or
decrease bass.
TREB (Treble): Slide this lever up or down to increase
or decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Adjusting the Speakers (Balance/Fade)
BAL (Balance): Turn the control ring behind the upper
knob to move the sound to the left or right speakers. The
middle position balances the sound between the
speakers.
FADE: Turn the control ring behind the lower knob to
move the sound to the front or rear speakers. The middle
position balances the sound between the speakers.AM-FM Stereo
Playing the Radio
PWR (Power): Press this knob to turn the system
on and off.
VOL (Volume): Turn the knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RCL (Recall): Pressing this knob will display the
station being played or it will display the clock. Clock
display is available with the ignition turned off.

3-10
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to tune in radio stations.
SEEK SEEK : Press the right or left arrow to
seek to the next or previous station and stay there. The
radio will seek to stations with a strong signal only.
To scan stations, press and hold one of the SEEK arrows
for two seconds until you hear a beep. The radio will go
to a station, play for a few seconds and flash the station
frequency, then go on to the next station. Press one of
the SEEK arrows again to stop scanning. The radio will
scan to stations with a strong signal only.
To scan preset stations, press and hold one of the SEEK
arrows for more than four seconds until you hear two
beeps. The radio will go to the first preset station stored
on your pushbuttons, play for a few seconds and flash
the station frequency, then go on to the next preset
station. This feature will only scan the six presets that
are in the selected band. Press one of the SEEK arrows
again to stop scanning presets. The channel number
(P1
-P6) will appear momentarily just before the
frequency is displayed. The radio will scan preset
stations with a strong signal only.Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM FM to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons until
you hear a beep. Whenever you press that numbered
pushbutton, the station you set will return.
5. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
AUDIO: To adjust the bass, press and release AUDIO
repeatedly until BAS appears on the display. Then press
and hold the up arrow to increase bass. B and a positive
number will appear on the display. Press and hold the
down arrow to decrease bass. B and a negative number
will appear on the display. B and a zero will appear on
the display when the bass level is adjusted to the middle
position. Release the up or down arrow when you find
the bass level you want or when the maximum or
minimum level is reached.

3-11
To adjust the treble, press and release AUDIO until TRE
appears on the display. Then press and hold the up arrow
to increase treble. T and a positive number will appear
on the display. Press and hold the down arrow to
decrease treble. T and a negative number will appear on
the display. T and a zero will appear on the display when
the treble level is adjusted to the middle position.
Release the up or down arrow when you find the treble
level you want or when the maximum or minimum level
is reached. If a station is weak or noisy, you may want to
decrease the treble.
To adjust bass or treble to the middle position, select
BAS or TRE. Then press and hold AUDIO for more
than two seconds until you hear a beep. B and a zero or
T and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance between the right and
left speakers, press and release AUDIO until BAL
appears on the display. Then press and hold the up arrow
to move the sound to the right speakers or the down
arrow to move the sound to the left speakers. R and a
number will appear on the display when the sound is
balanced toward the right speakers. L and a number will
appear on the display when the sound is balanced
toward the left speakers. L and a zero will appear on the
display when the sound is balanced between the
speakers. Release the up or down arrow when you find
the speaker balance you want or when the maximum or
minimum level is reached.
To adjust the fade between the front and rear speakers,
press and release AUDIO until FAD appears on the
display. Then press and hold the up arrow to move the
sound to the front speakers or the down arrow to move
the sound to the rear speakers. F and a number will
appear on the display when the sound is balanced
toward the front speakers. R and a number will appear
on the display when the sound is balanced toward the
rear speakers. F and a zero will appear on the display
when the sound is balanced between the speakers.
Release the up or down arrow when you find the speaker
balance you want or when the maximum or minimum
level is reached.

3-12
To adjust balance or fade to the middle position, select
BAL or FAD. Then press and hold AUDIO for more
than two seconds until you hear a beep. L and a zero or
F and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.
Radio Messages
CAL (Calibrated): Your audio system has been
calibrated for your vehicle from the factory. If CAL
appears on the display it means that your radio has not
been configured properly for your vehicle and must be
returned to the dealership for service.
LOC (Locked): This message is displayed when the
Theftlock

system has locked up. Your vehicle must be
returned to the dealership for service.
AM-FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
Power: Turn the VOLUME knob to turn the system on
and off.
VOLUME: Turn this knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RECALL: Press this knob to display the station being
played or to display the clock. Clock display is available
with the ignition turned off.

3-13
Finding a Station
AM
-FM: Press this knob to switch between AM, FM1
and FM2.
TUNE: Turn this knob to tune in radio stations.
 SEEK
: Press the right or left arrow to seek to the
next or previous station and stay there.
To scan preset stations, press both SEEK buttons. The
radio will go to the first preset station stored on the
pushbutton, play for a few seconds, then go on to the
next preset station. Press either SEEK button or
RECALL to stop scanning through the preset stations.
Setting Preset Stations
The four numbered pushbuttons let you return to your
favorite stations. You can set up to 21 stations (seven
AM, seven FM1 and seven FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM
-FM to select AM, FM1 or FM2.
3. Tune in the desired station.4. Press SET. SET will appear on the display.
5. Press one of the four pushbuttons within
five seconds. Whenever you press that numbered
pushbutton, the station you set will return.
6. Repeat the steps for each pushbutton.
In addition to the four stations already set, up to three
more stations may be preset on each band by pressing
two adjoining pushbuttons at the same time and by
performing the following steps:
1. Turn the radio on.
2. Press AM
-FM to select the band.
3. Tune in the desired station.
4. Press SET. SET will appear on the display.
5. Press two adjoining pushbuttons at the same time,
within five seconds. Whenever you press the same
two pushbuttons, the station you set will return.
6. Repeat the steps for each adjoining pushbuttons.
