engine CHEVROLET C/K 2003 Owners Manual

6-40
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer's instructions before use. If you will be
operating your vehicle in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid
Your vehicle has a low
washer fluid light that lets
you know when to add
washer fluid.
The windshield washer
reservoir is located in the
engine compartment on the
driver's side of the vehicle.
Open the cap with the washer symbol on it. Add washer
fluid until the tank is full.

6-41
NOTICE:

When using concentrated washer fluid,
follow the manufacturer's instructions for
adding water.

Don't mix water with ready
-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn't clean as well as washer fluid.

Fill your washer fluid tank only
three
-quarters full when it's very cold.
This allows for expansion if freezing occurs,
which could damage the tank if it is
completely full.

Don't use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
Brakes
Brake Fluid
If your vehicle has hydraulic brakes, there's a brake
master cylinder. Refer to the Maintenance Schedule to
determine when to check your brake fluid.
CAUTION:
Don't add brake fluid before you check the level.
If you do, you could get too much brake fluid.
Brake fluid could spill on the hot engine and it
can catch fire. You could be burned and your
vehicle could be damaged. See ªChecking Brake
Fluidº in this section.

6-42
Checking Brake Fluid (Hydro Max System)
Apply the brake pedal several times with the ignition
off. Then clean one of the reservoir caps and the area
around the cap, and remove it. The fluid level should be
even with the bottom ring of the filler opening.
The Hydro Max
brake fluid reservoir
is located in the
engine compartment
on the driver's side
of the vehicle.
If it's low, add enough fluid to fill the reservoir to the
proper level.Checking Brake Fluid (Hydro Boost System)
Apply the brake pedal several times with the ignition
off. Clean the cover and the side of the reservoir.
Check to see if the fluid level inside the reservoir falls
within the MIN/MAX level indicator on the side of
the reservoir.
The Hydro Boost
brake fluid reservoir
is located in the
engine compartment
on the driver's side
of the vehicle.
If it's low, add enough fluid to fill the reservoir to the
proper level.

6-43
What to Add
Use the proper fluid listed in your Maintenance
Schedule. Use new brake fluid from a sealed
container only.
Always clean the brake fluid reservoir cap/cover and the
area around the cap/cover before removing it. This will
help keep dirt from entering the reservoir.

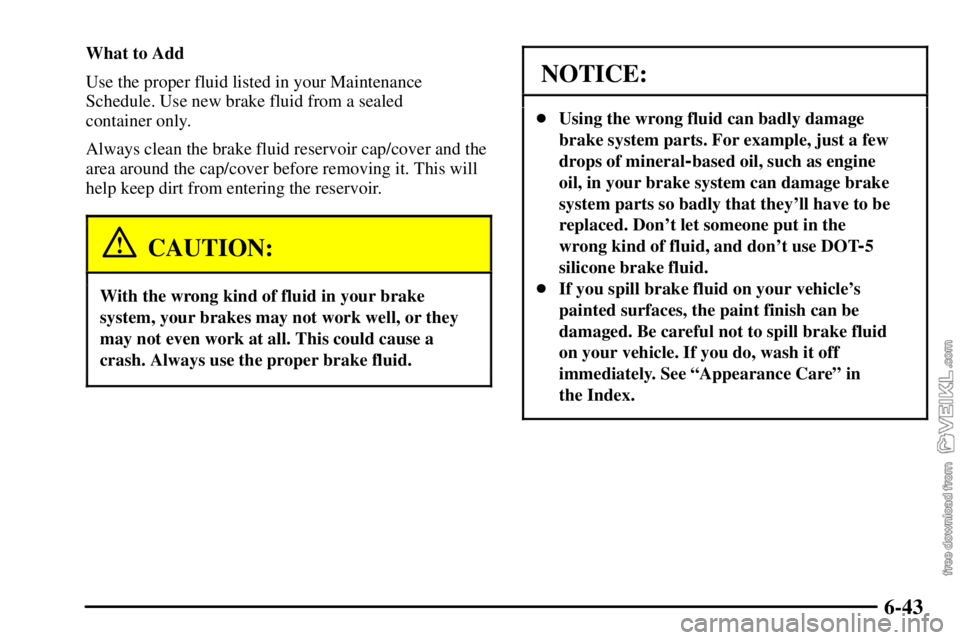

CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to be
replaced. Don't let someone put in the
wrong kind of fluid, and don't use DOT
-5
silicone brake fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.

6-49
ITEM NO. ITEM REMARKS
1
Brake Camshaft
One fitting each (apply sparingly).
2 Steering Column Slip Joint* One fitting.
3 Steering Drag Link Ends One fitting at each end.
4 Pivot Points and Hinges Apply chassis lubricant
5 Pivot Points and Hinges Apply chassis lubricant.
6
Slack Adjuster
One fitting.
7 Brake Cam Roller Pins at
interface of pin and shoe
Apply engine oil.
8 Front Steering Knuckles
One fitting each side, lower bushing (hand
-operated
grease gun only). Hand
-pack upper bearing.
9 Front Wheel Bearings
Hand
-pack or lubricate.
10 Steering Tie Rod Ends One fitting each end.
11 Spring Slip Pads*
(Multi
-Leaf Only)Apply chassis lubricant.

6-51
Tandem Axle Models
ITEM
NO. ITEM REMARKS
1 Brake Camshafts One fitting each.
2
Propshaft U
-JointOne fitting each joint.
Lubricate with
GM Part No. 1051344,
Wheel Bearing Lubricant.
4 Brake Shoe
Roller PinsApply engine oil at pin
to shoe joint only.
5 Rear Spring Pin One fitting each side.
6 Rear Axles Fill to level of filler plug.

6-52
Battery
Your new vehicle comes with one or more maintenance
free ACDelco
batteries. When it's time for a new
battery, be sure it has the replacement number shown
on the original battery's label. We recommend an
ACDelco battery.
WARNING: Battery posts, terminals and related
accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, remove the black, negative (
-) cable from the
battery. This will help keep your battery from running
down. (If your vehicle has more than one battery, be
sure to remove the negative (
-) battery cable from
each battery.)

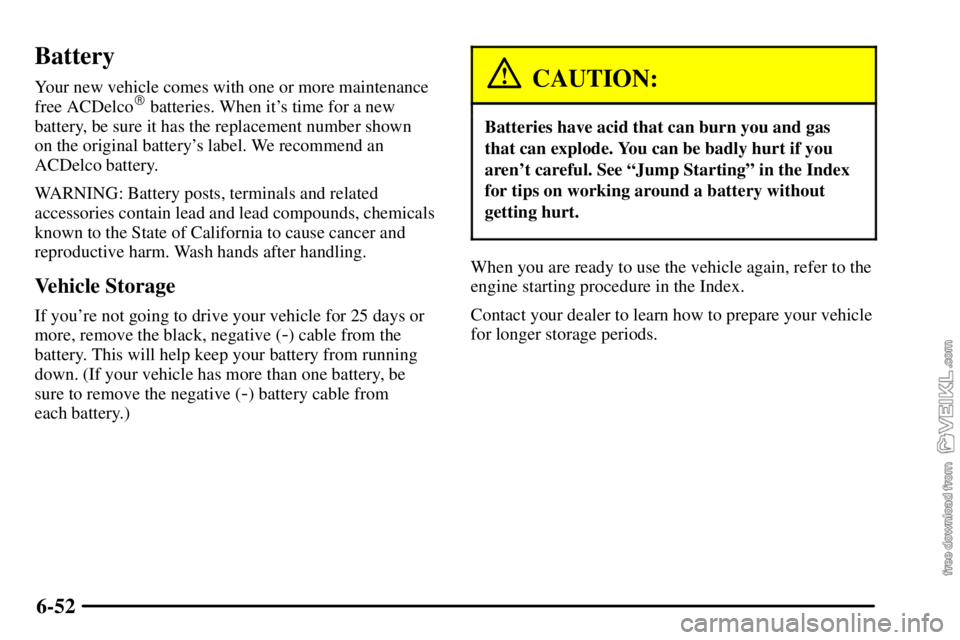

CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
When you are ready to use the vehicle again, refer to the
engine starting procedure in the Index.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.

6-54
Other Service Items

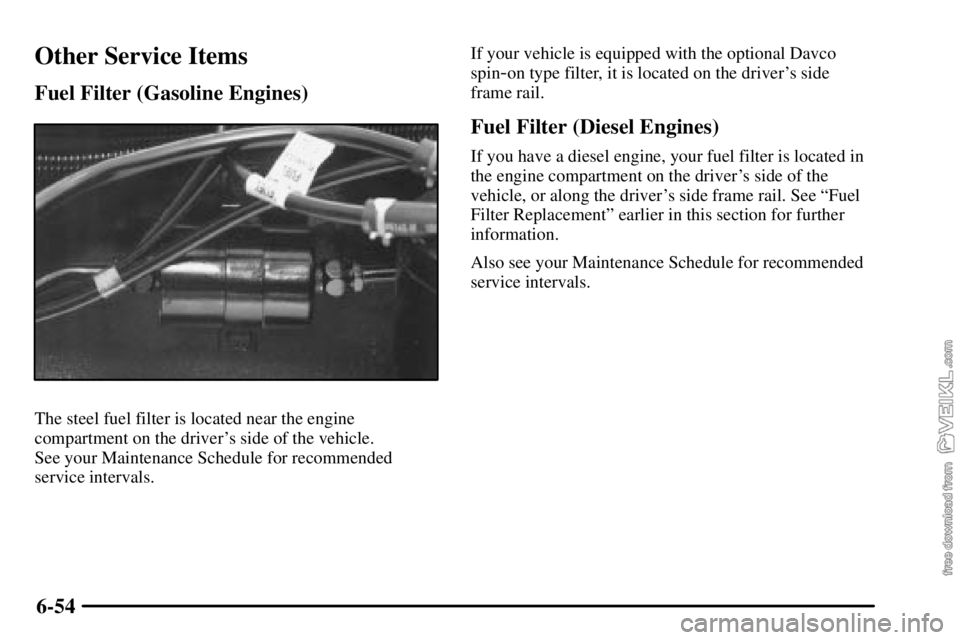

Fuel Filter (Gasoline Engines)
The steel fuel filter is located near the engine
compartment on the driver's side of the vehicle.
See your Maintenance Schedule for recommended
service intervals.If your vehicle is equipped with the optional Davco
spin
-on type filter, it is located on the driver's side
frame rail.
Fuel Filter (Diesel Engines)
If you have a diesel engine, your fuel filter is located in
the engine compartment on the driver's side of the
vehicle, or along the driver's side frame rail. See ªFuel
Filter Replacementº earlier in this section for further
information.
Also see your Maintenance Schedule for recommended
service intervals.

6-55 Primary Fuel Filter and Water Separator
(If Equipped)
If you have a diesel engine,
you may have this spin
-on
filter. It is located on the
driver's side frame rail.
It has a clear plastic drain bowl at the bottom. Check the
drain bowl occasionally for any water or particles.
To drain the bowl, do the following:
1. Shut off the engine.
2. Partially open the drain valve at the bottom of
the filter.
See ªEngine Oilº in the Index for proper disposal
procedures.
Secondary Fuel Filter and Water
Separator/Heater (If Equipped)
If you have a Caterpillar

diesel engine, you may also
have this spin
-on filter and
fuel separator/heater. It will
be mounted in the engine
compartment on the driver's
side of the vehicle.
It has a metal drain bowl at the bottom. Occasionally,
check the bowl for any water or particles.
To check or drain the bowl, do the following:

Shut off the engine.

Push up on the spring loaded drain valve until clear
fuel is flowing from the valve.
The particles or water will drain out first. See ªEngine
Oilº in the Index for proper disposal procedures.

6-56 Automatic Ether Injection System
(If Equipped)
If you have a Caterpillar
diesel engine, you may have
this feature. The ether
cylinder is located in the
engine compartment on the
driver's side of the vehicle.To change an empty ether cylinder, follow these steps.
1. Loosen the screw head on the cylinder
-to-bracket
clamp.
2. Spread the clamp apart.
3. Clean any dirt from the neck of the cylinder and the
top of the valve before you take out the cylinder.
4. Check the inside of the valve for any foreign matter.
Clean the valve as necessary.
5. Cover the valve to protect it from dirt and take out
the cylinder.
6. Install a new gasket whenever you take out the
cylinder. Use only one gasket and spread a light film
of clean oil on it before installation.
7. Put in the new cylinder. Turn it clockwise until it just
starts to contact the gasket.
8. Tighten the cylinder another half turn (180 degrees).
Don't over
-tighten.
9. Retighten the cylinder clamp.
