CHEVROLET C/K 2003 Repair Manual

1-54
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.

1-55
5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you're using a forward
-facing child
restraint, you may find it helpful to use your knee
to push down on the child restraint as you tighten
the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.

1-56 Securing a Child Restraint in the Center
Rear Seat Position (Crew Cab Models) and
Securing a Child Restraint in the Center
Front Position (Bench Seat Models without
Air Bags)
You'll be using the lap belt.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say. But don't use the
center front passenger position if your vehicle has
air bags, or if the child restraint interferes with
shifting gears.

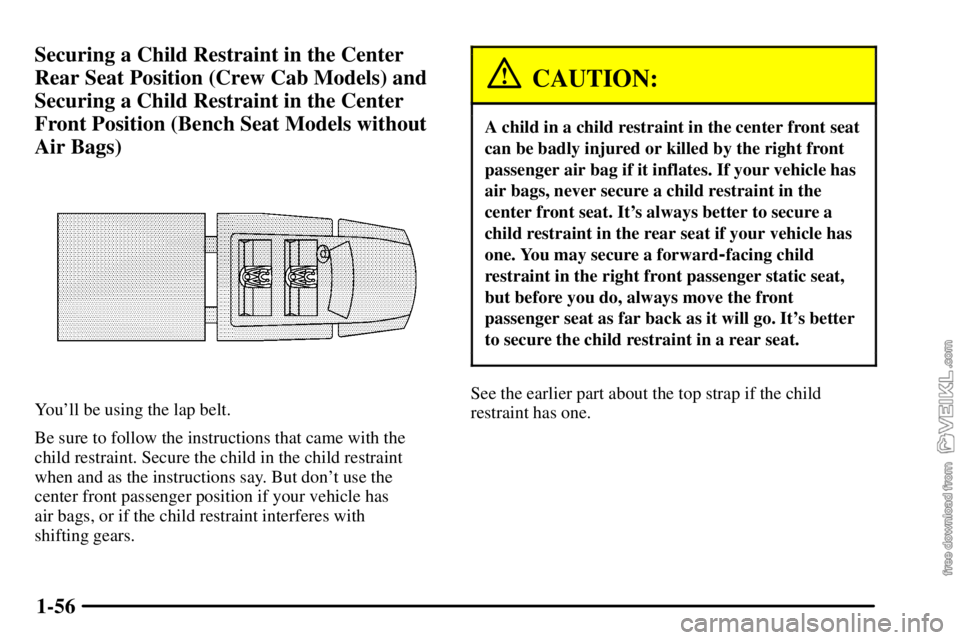

CAUTION:
A child in a child restraint in the center front seat
can be badly injured or killed by the right front
passenger air bag if it inflates. If your vehicle has
air bags, never secure a child restraint in the
center front seat. It's always better to secure a
child restraint in the rear seat if your vehicle has
one. You may secure a forward
-facing child
restraint in the right front passenger static seat,
but before you do, always move the front
passenger seat as far back as it will go. It's better
to secure the child restraint in a rear seat.
See the earlier part about the top strap if the child
restraint has one.

1-57

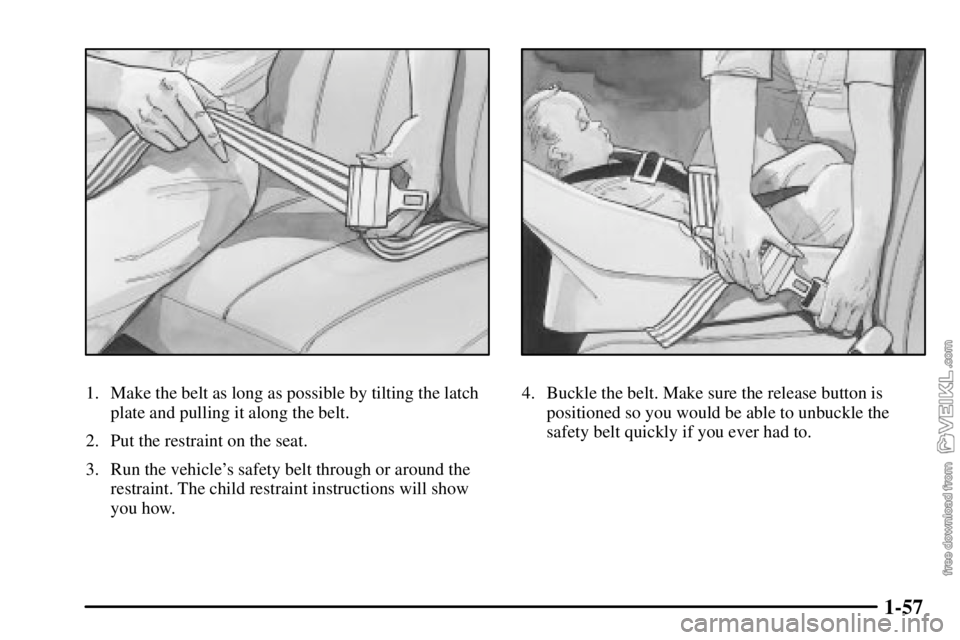

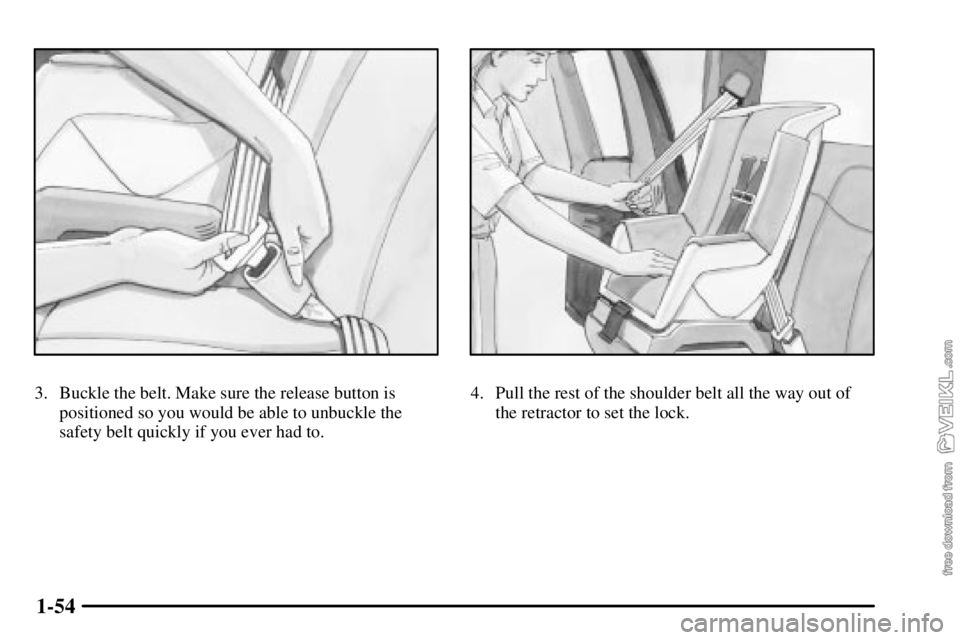

1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.

1-58

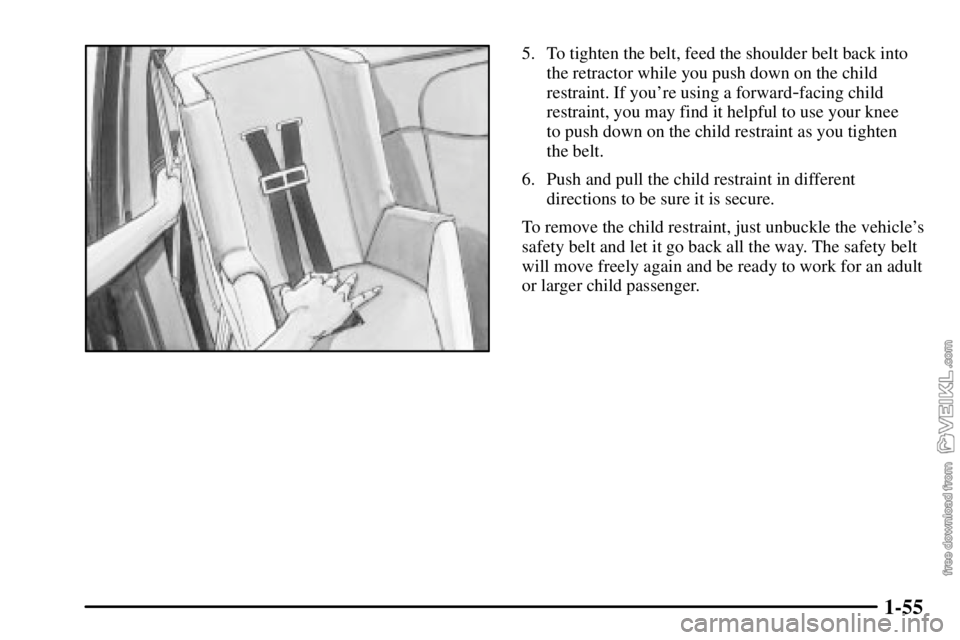

5. To tighten the belt, pull its free end while you push
down on the child restraint. If you're using a
forward
-facing child restraint, you may find it
helpful to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt. It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front Seat Position
Although a rear seat is a safer place, you can secure a
forward
-facing child restraint in the right front seat, if it
is not an air suspension seat. Do not use a child restraint
with an air suspension seat.

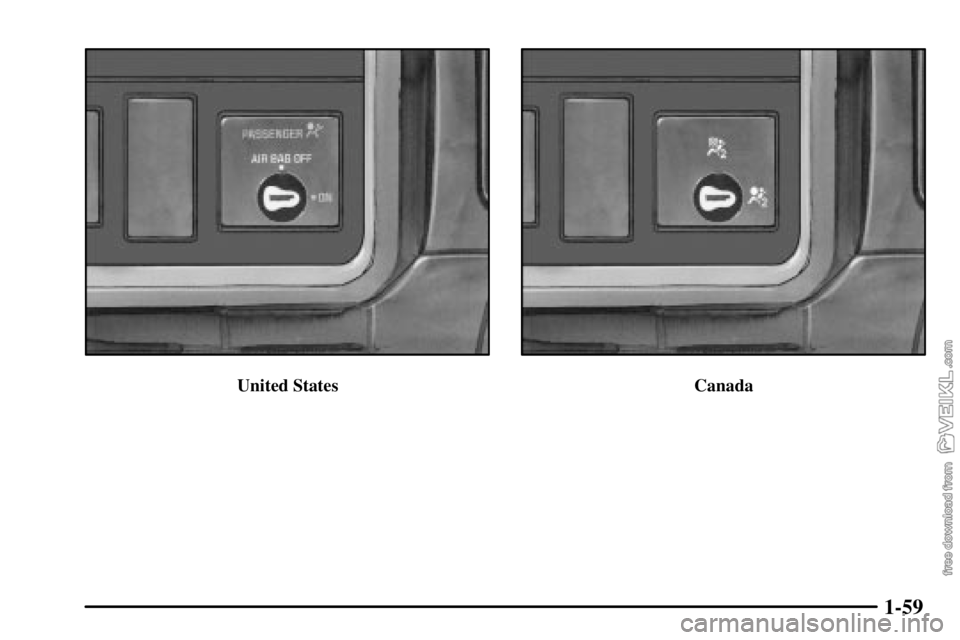

If your vehicle has a right front passenger air bag,
there's a switch on the instrument panel that you can use
to turn off the right front passenger's air bag when you
want to secure a rear
-facing child restraint at the right
front passenger's position. See ªAir Bag Off Switchº in
the Index for more on this, including important safety
information.

1-59
United StatesCanada

1-60

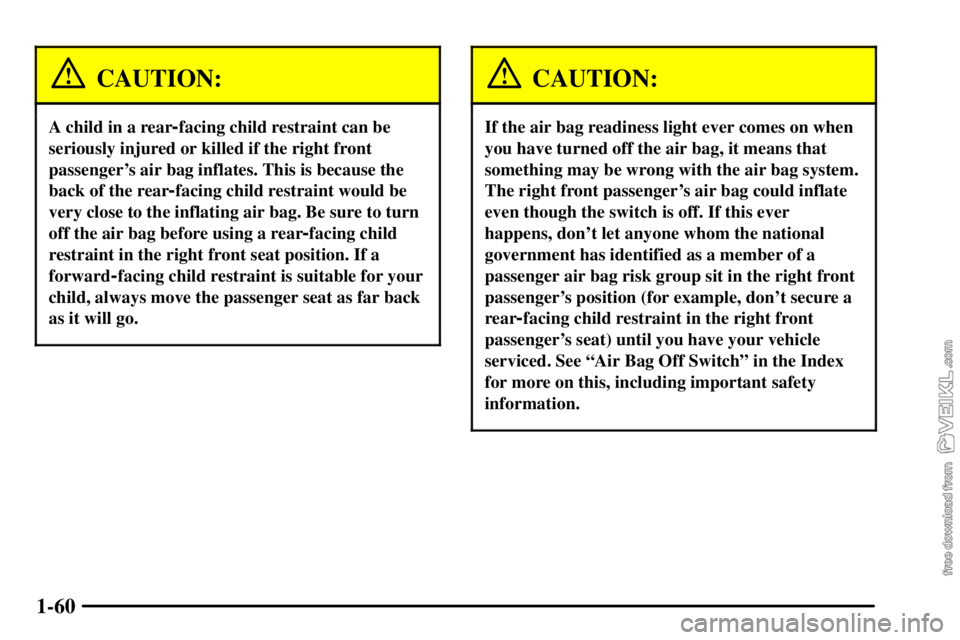

CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger's air bag inflates. This is because the
back of the rear
-facing child restraint would be
very close to the inflating air bag. Be sure to turn
off the air bag before using a rear
-facing child
restraint in the right front seat position. If a
forward
-facing child restraint is suitable for your
child, always move the passenger seat as far back
as it will go.
CAUTION:
If the air bag readiness light ever comes on when
you have turned off the air bag, it means that
something may be wrong with the air bag system.
The right front passenger's air bag could inflate
even though the switch is off. If this ever
happens, don't let anyone whom the national
government has identified as a member of a
passenger air bag risk group sit in the right front
passenger's position (for example, don't secure a
rear
-facing child restraint in the right front
passenger's seat) until you have your vehicle
serviced. See ªAir Bag Off Switchº in the Index
for more on this, including important safety
information.

1-61
You'll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. If your vehicle has a right front passenger's air bag
and you are using a rear
-facing child restraint in this
seat, make sure the air bag is turned off. See ªAir
Bag Off Switchº in the Index. If your vehicle has a
right front passenger's air bag and your child
restraint is forward
-facing, always move the seat as
far back as it will go before securing it in this seat.
See ªSeatsº in the Index.

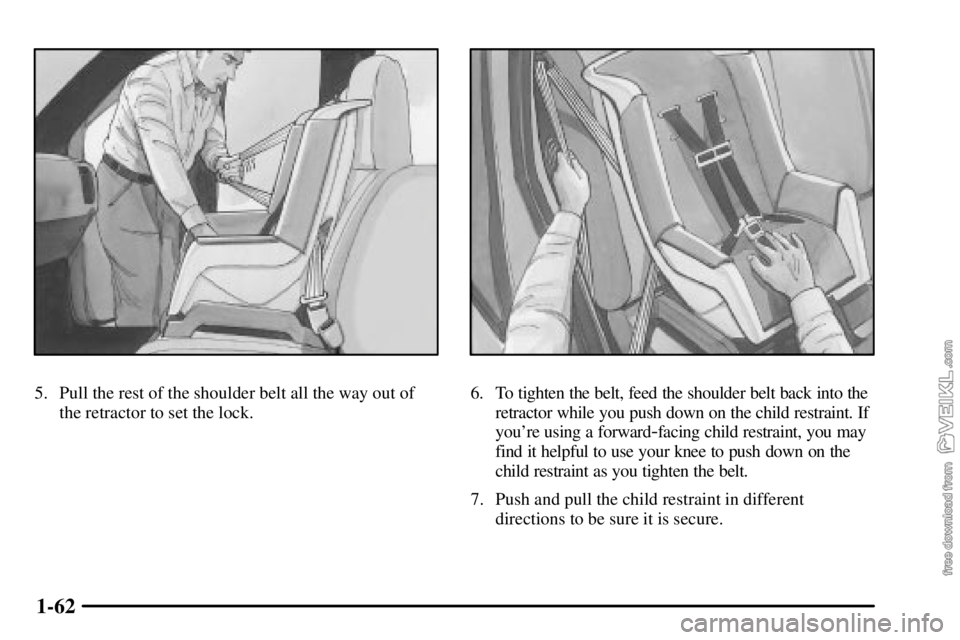

2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child's face or
neck, put it behind the child restraint.

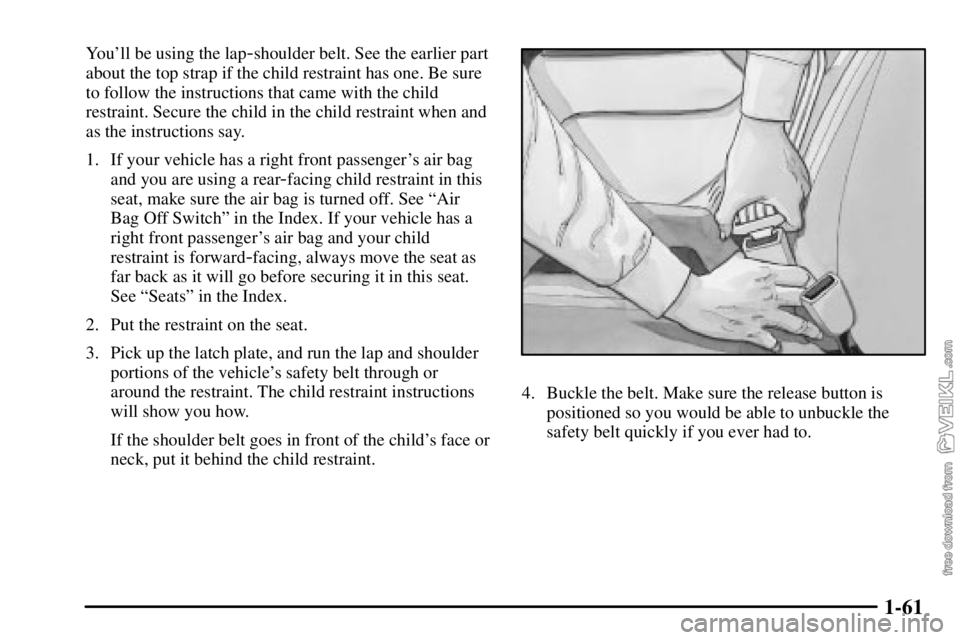

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.

1-62
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint. If
you're using a forward
-facing child restraint, you may
find it helpful to use your knee to push down on the
child restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.

1-63
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
If you were using a rear
-facing child restraint in a
vehicle equipped with a right front passenger's air bag,
turn on the right front passenger's air bag when you
remove the rear
-facing child restraint from the vehicle
unless the person who will be sitting there is a member
of a passenger air bag risk group. See ªAir Bag Off
Switchº in the Index.

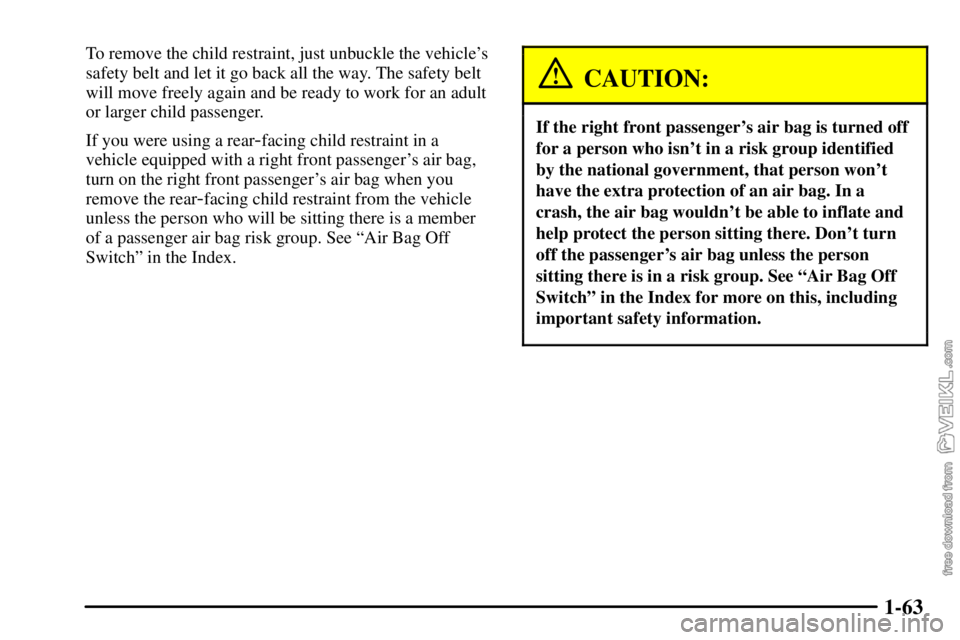

CAUTION:
If the right front passenger's air bag is turned off
for a person who isn't in a risk group identified
by the national government, that person won't
have the extra protection of an air bag. In a
crash, the air bag wouldn't be able to inflate and
help protect the person sitting there. Don't turn
off the passenger's air bag unless the person
sitting there is in a risk group. See ªAir Bag Off
Switchº in the Index for more on this, including
important safety information.
