key CHEVROLET C/K 2003 Owners Manual

1-22
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's more
likely that the fetus won't be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's
safety belt properly, see ªDriver Positionº earlier
in this section.
The right front passenger's safety belt works the same
way as the driver's safety belt. If your vehicle has a
static seat in this position and if you ever pull the
shoulder portion of the belt out all the way, you will
engage the child restraint locking feature. If this
happens, just let the belt go back all the way and
start again.
Air Bag System
This part explains the air bag system.

1-32
United StatesCanada

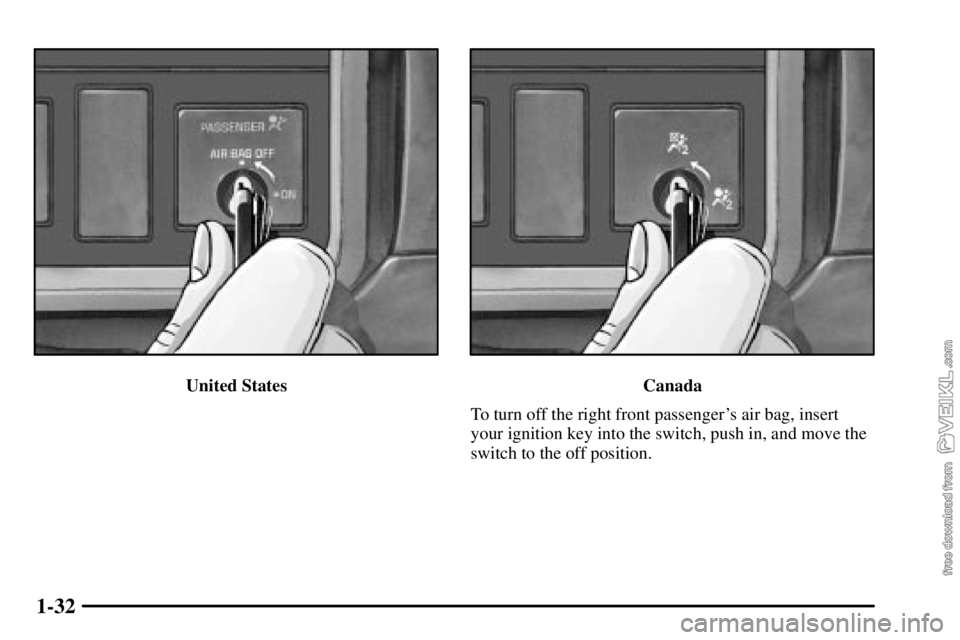

To turn off the right front passenger's air bag, insert
your ignition key into the switch, push in, and move the
switch to the off position.

1-34
Canada

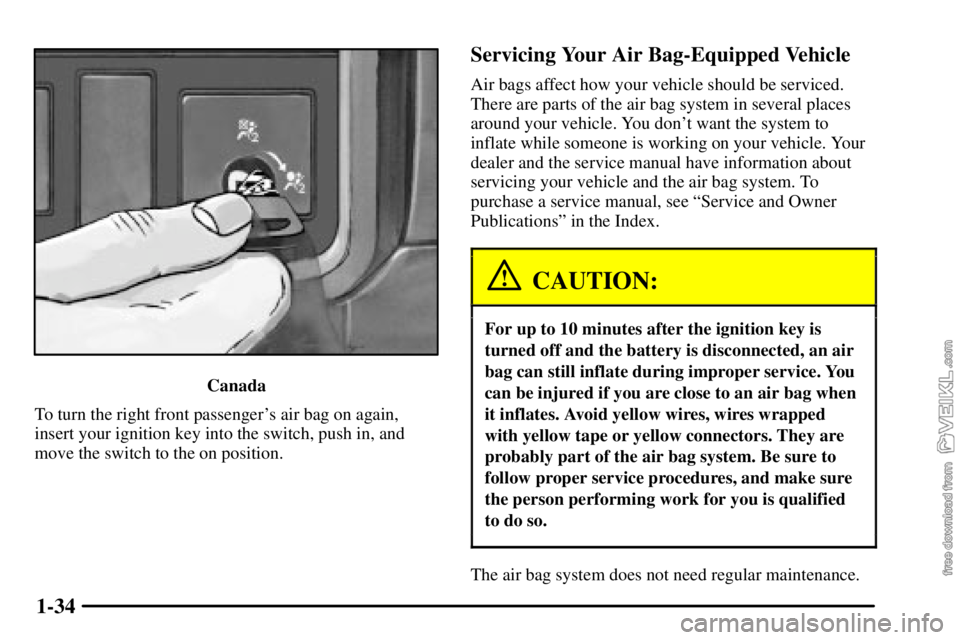

To turn the right front passenger's air bag on again,
insert your ignition key into the switch, push in, and
move the switch to the on position.
Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag system in several places
around your vehicle. You don't want the system to
inflate while someone is working on your vehicle. Your
dealer and the service manual have information about
servicing your vehicle and the air bag system. To
purchase a service manual, see ªService and Owner
Publicationsº in the Index.
CAUTION:
For up to 10 minutes after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid yellow wires, wires wrapped
with yellow tape or yellow connectors. They are
probably part of the air bag system. Be sure to
follow proper service procedures, and make sure
the person performing work for you is qualified
to do so.
The air bag system does not need regular maintenance.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2-5 Keys
2-7 Door Locks
2-8 Keyless Entry System (If Equipped)
2-12 Switchbanks
2-13 Theft
2-14 New Vehicle ªBreak-Inº
2-15 Ignition Positions
2-16 Starting Your Gasoline Engine
2-19 Starting the Diesel Engine
2-24 Starting Your DURAMAX
Diesel Engine
2-27 Engine Checks Before Operating
2-28 Engine Coolant Heater (If Equipped)
2-30 Diesel Engine Exhaust Brake (If Equipped)
2-31 Two-Speed Rear Axle Electric Shift Control
(If Equipped)
2
-34 Automatic Transmission Operation
2-36 Manual Transmission Operation
2-40 Parking
2-45 Parking Over Things That Burn
2-45 Engine Exhaust2
-46 Running Your Engine While You're Parked
(Automatic Transmission)
2
-47 Horn
2-48 Tilt Wheel (If Equipped)
2-48 Turn Signal/Multifunction Lever
2-55 Inter-Axle Differential Lock Control
(If Equipped)
2
-56 Rear Axle Differential Lock Control
(If Equipped)
2
-57 Exterior Lamps
2-60 Interior Lamps
2-61 Mirrors
2-63 Storage Compartments
2-65 Accessory Power Outlets
2-66 Trailer Connections (C4/C5 Models Only)
(If Equipped)
2
-67 Trailer Connections (C6/C7/C8 Models Only)
(If Equipped)
2
-68 The Instrument Panel-Your
Information System
2
-70 Instrument Panel Cluster
2-73 Warning Lights, Gages and Indicators

2-5
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

2-6

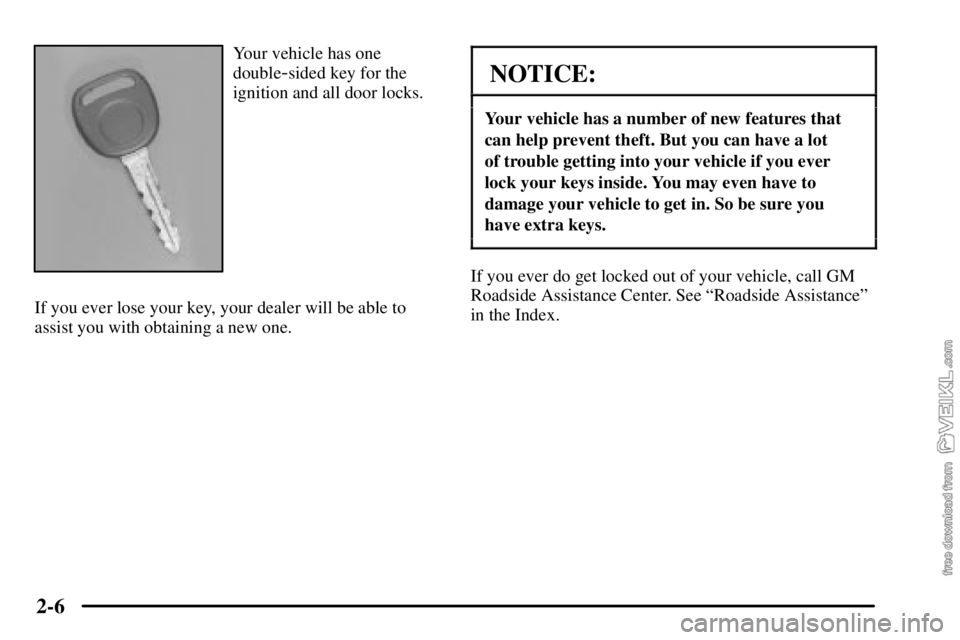

Your vehicle has one
double
-sided key for the
ignition and all door locks.
If you ever lose your key, your dealer will be able to
assist you with obtaining a new one.NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.
If you ever do get locked out of your vehicle, call GM
Roadside Assistance Center. See ªRoadside Assistanceº
in the Index.

2-7
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
If your vehicle is equipped with keyless entry, you can
use your transmitter to lock or unlock your vehicle.
See ªKeyless Entry Systemº later in this section for
more information.
To lock or unlock your door from the outside, use
your key.
To lock your door from the
inside, slide the manual
lever on your door down.
To unlock the door, slide the
manual lever up.

2-8 Power Door Locks (If Equipped)
If your vehicle has power
door locks, press the bottom
side of the power door lock
switch to lock all the doors
at once. To unlock all the
doors at once, press the
top side of the power door
lock switch.
When a door is locked, the inside door handle will
not work.
Keyless Entry System (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-9
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
To unlock the driver's door, press the UNLOCK
button one time. If you press the button again within
five seconds, all of the doors will unlock. When the
UNLOCK button is pressed, the interior dome lamps
are turned on for about 40 seconds or until the ignition
switch is activated. Press the LOCK button to lock
all doors.

2-10 Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
1. Insert a thin object, such as a coin, into the slot
between the covers of the transmitter housing near
the key ring hole. Remove the bottom by twisting
the object.
