resistant
EP chassis lubricant
which meets
GM Specification
6031M.
Chalill
Front SUlpenllon

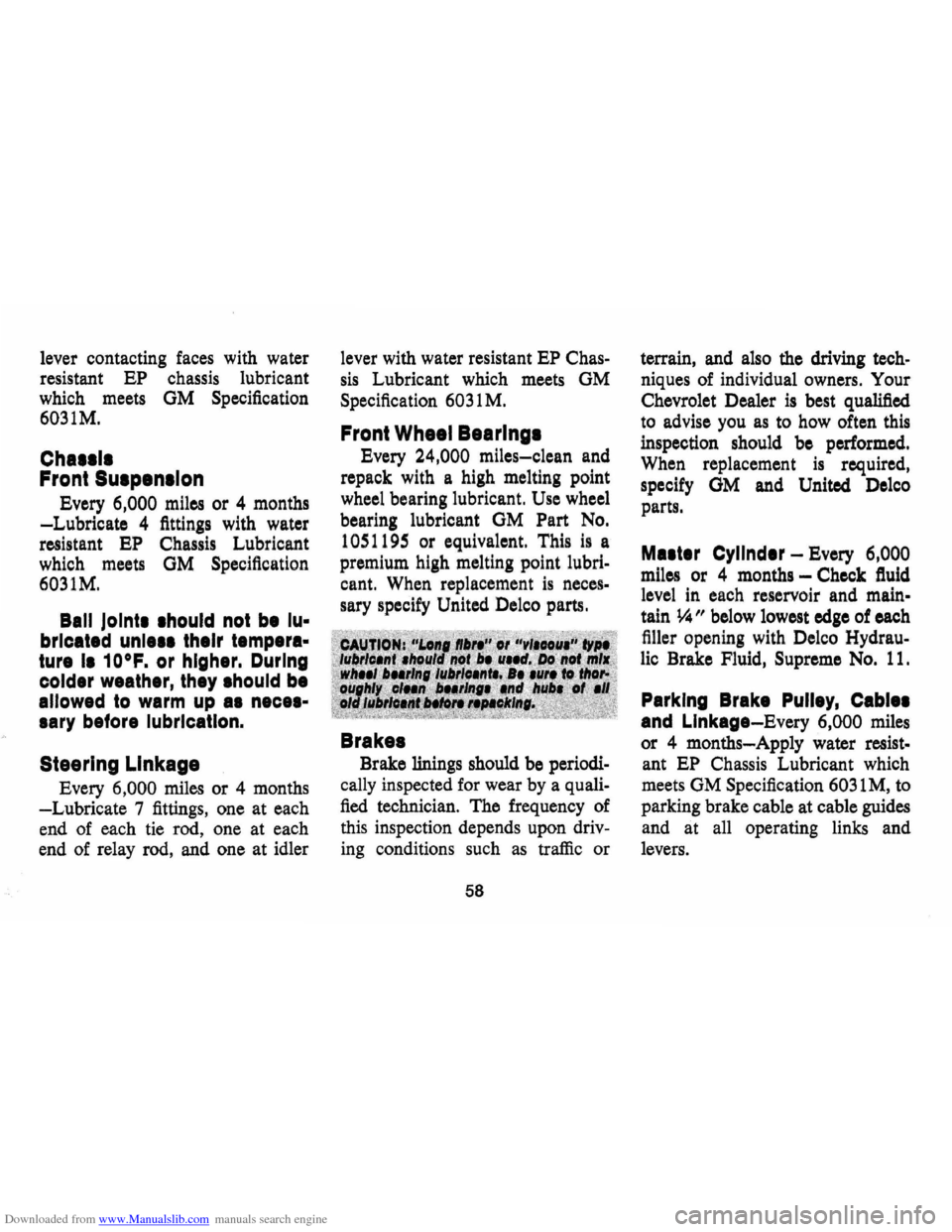

Every 6,000 miles or 4 months
-Lubricate 4 fittings with water
resistant
EP Chassis Lubricant
which meets
GM Specification
6031M.
Ball Joint •• hould not b. lu­
bricated un Ie •• their temp.ra­
ture I. 10°F. or higher. During
colder weather, they .hould be
allowed to warm up a. nece.­
lary before lubrication.
Steering Linkage
Every 6,000 miles or 4 months
-Lubricate 7 fittings, one at each
end of each tie rod, one at each
end of relay rod, and one at idler lever
with water resistant
EP Chas­
sis Lubricant which meets GM
Specification 6031 M.
Front Wheel Bearlngl
Every 24,000 miles-clean and
repack with a high melting point
wheel bearing lubricant.
Use wheel
bearing lubricant
GM Part No.
1051195 or equivalent. This is a
premium high melting point
lubri­
cant. When replacement is neces­
sary specify United Delco parts.
Brakes
Brake linings should be periodi­
cally inspected for wear by a quali­
fied technician. The frequency of
this inspection depends upon
driv­
ing conditions such as traffic or
58
terrain, and also the driving tech­
niques of individual owners. Your
Chevrolet Dealer
is best qualified
to advise you as to how often this
inspection should be performed.
When replacement
is required,
specify
OM and United Delco
parts.
Ma.t.r Cyllnd.r - Every 6,000
miles
or 4 months -Check ftuid
level in each reservoir and main­
tain ~" below lowest edge of each
filler opening with Delco
Hydrau­
lic Brake Fluid, Supreme No. 11.
Parking Brake Pulley, Cabl ••
and Linkage-Every 6,000 miles
or 4 months-Apply water resist­
ant EP Chassis Lubricant which
meets GM Specification
6031 M, to
parking brake cable at cable guides
and at all operating links and
levers .

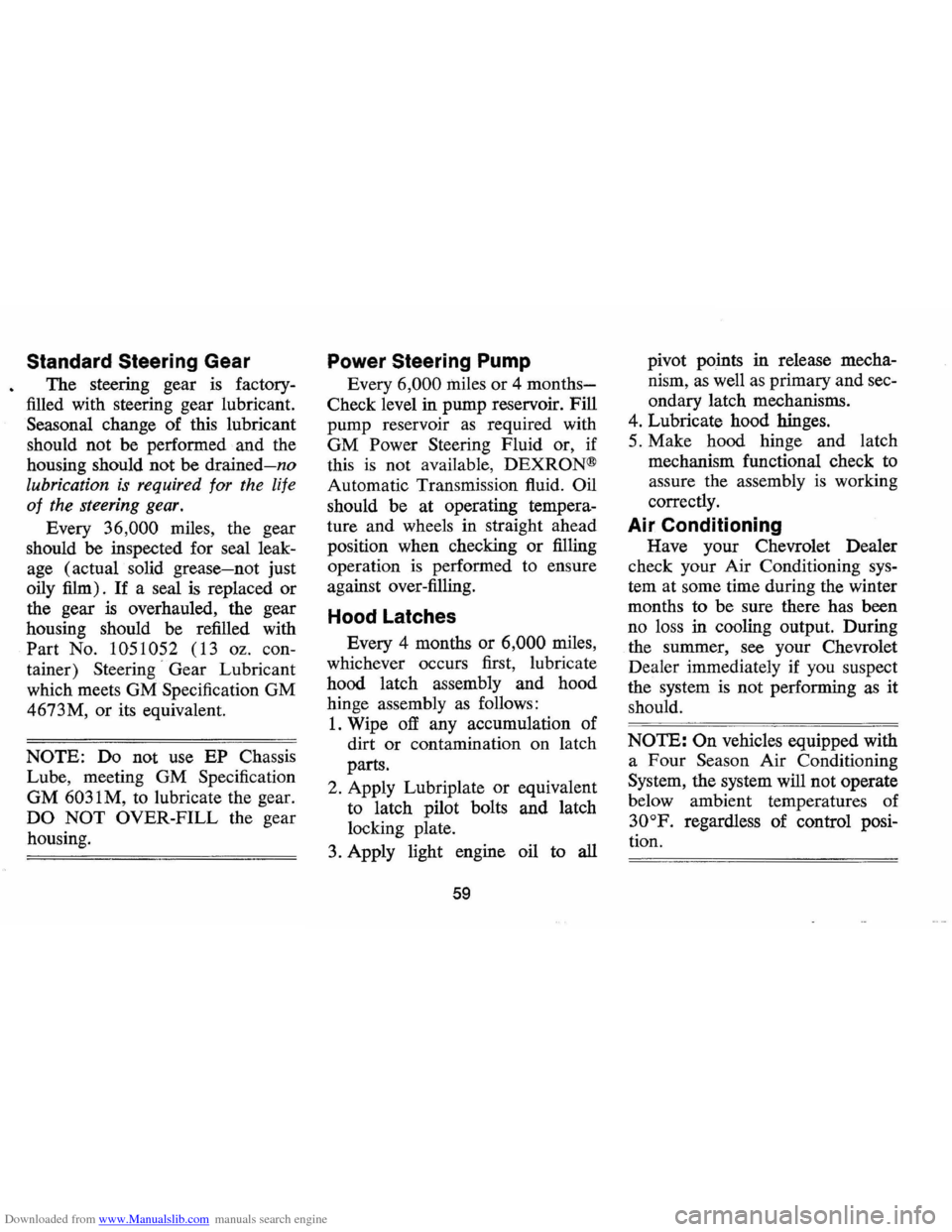

Downloaded from www.Manualslib.com manuals search engine Standard Steering Gear
The steering gear is factory­
filled with steering gear lubricant.
Seasonal change of this lubricant
should not be performed
and the
housing should
not be drained-no
lubrication
is required for the life
of the steering gear.
Every 36,000 miles, the gear
should be inspected for seal leak­
age (actual solid
grease-not just
oily film).
If a seal is replaced or
the gear is overhauled, the gear
housing should be refilled with
Part No. 1051052 (13 oz. con­
tainer)
Steering ' Gear Lubricant
which meets
GM Specification GM
4673M, or its equivalent.
NOTE: Do not use EP Chassis
Lube, meeting
GM Specification
GM 6031 M, to lubricate the gear.
DO NOT OVER-FILL the gear
housing.
Power Steering Pump
Every 6,000 miles or 4 months­
Check level in pump reservoir. Fill
pump reservoir
as required with
GM Power Steering Fluid or, if
this
is not available, DEXRON®
Automatic Transmission fluid.
Oil
should be at operating tempera­
ture
and wheels in straight ahead
position when checking
or filling
operation is performed to ensure
against over-filling.
Hood Latches
Every 4 months or 6,000 miles,
whichever occurs first, lubricate
hood latch assembly
and hood
hinge assembly as follows:
1. Wipe off any accumulation of
dirt
or contamination on latch
parts.
2. Apply Lubriplate
or equivalent
to latch pilot bolts
and latch
locking plate.
3. Apply light engine oil to
all
59
pivot points in release mecha­
nism, as well as primary
and sec­
ondary latch mechanisms.
4. Lubricate hood hinges.
5. Make hood hinge
and latch
mechanism functional check to
assure the assembly is working
correctly.
Air Conditioning
Have your Chevrolet Dealer
check your Air Conditioning sys­
tem at some time during the winter
months to
be sure there has been
no loss in cooling output. During
the summer, see your Chevrolet
Dealer immediately if you suspect
the system is
not performing as it
should.
NOTE: On vehicles equipped with
a
Four Season Air Conditioning
System, the system will not operate
below ambient temperatures of
30oP. regardless of control posi­
tion.

Downloaded from www.Manualslib.com manuals search engine Cooling System Care

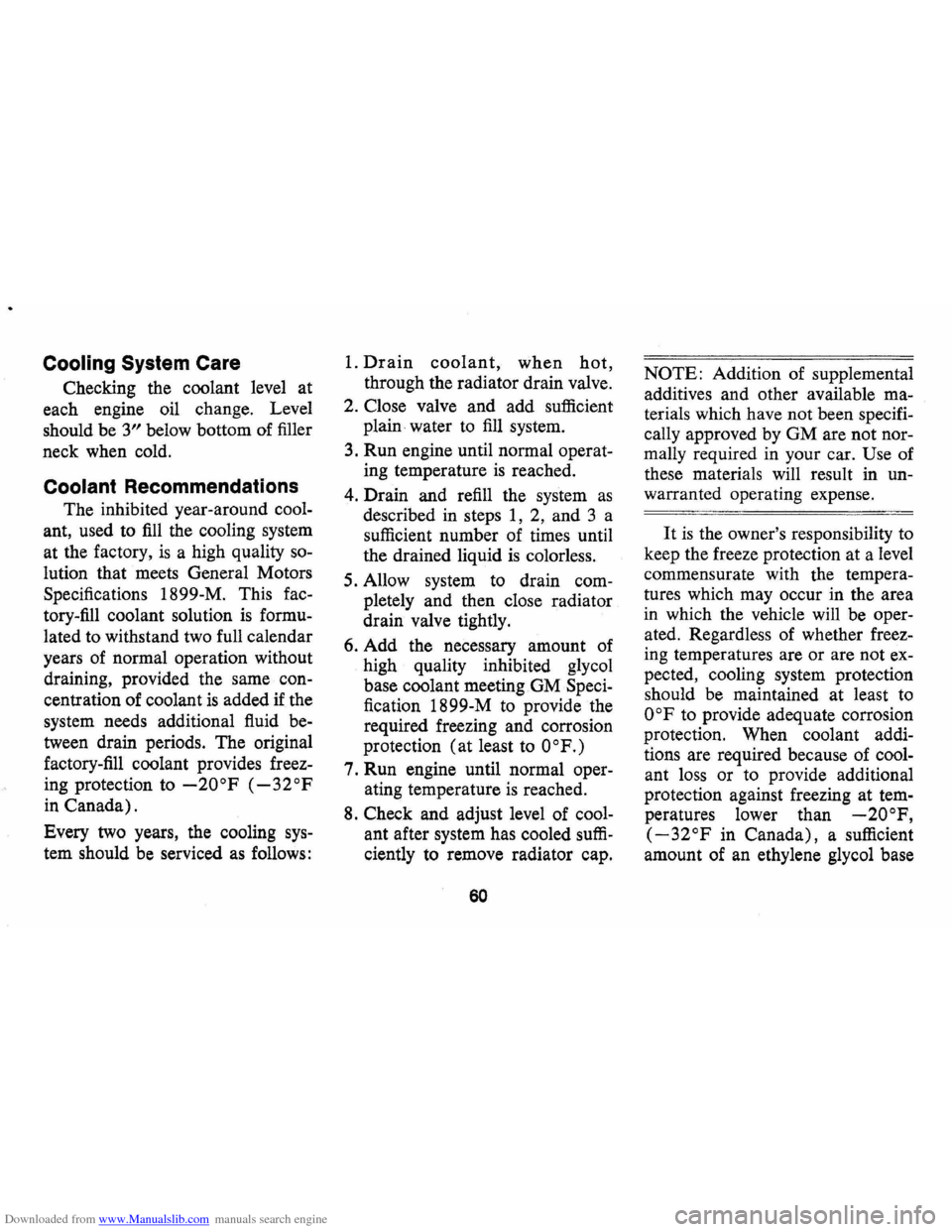

Checking the coolant level at
each engine oil change. Level
should be
3" below bottom of filler
neck when cold.
Coolant Recommendations
The inhibited year-around cool­
ant, used to
fill the cooling system
at the factory,
is a high quality so­
lution that meets General Motors
Specifications 1899-M. This fac­
tory-fill coolant solution
is formu­
lated to withstand two full calendar
years of normal operation without
draining, provided the same con­
centration of coolant
is added if the
system needs additional fluid be­
tween drain periods. The original
factory-fill coolant provides freez­
ing protection to
-20°F (-32°F
in Canada).
Every two years, the cooling sys­
tem should be serviced as follows:
1. Drain coolant, when hot,
through the radiator drain valve.
2. Close valve and add sufficient
plain· water to
fill system.
3. Run engine until normal operat­
ing temperature
is reached.
4. Drain and refill the system as
described in steps 1, 2, and 3 a
sufficient number of times until
the drained liquid
is colorless.
5. Allow system to drain com­
pletely and then close radiator
drain valve tightly.
6.
Add the necessary amount of
high quality inhibited glycol
base coolant meeting GM
Speci­
fication 1899-M to provide the
required freezing and corrosion
protection
(at least to O°F.)
7. Run engine until normal oper­
ating temperature
is reached.
8. Check and adjust level of cool­
ant after system has cooled
suffi­
ciently to remove radiator cap.
60
NOTE: Addition of supplemental
additives and other available ma­
terials which have not been specifi­
cally approved by GM are not nor­
mally required in your car. Use of
these materials will result in un­
warranted operating expense.
It is the owner's responsibility to
keep the freeze protection at a level
commensurate with the tempera­
tures which may occur in the area
in which the vehicle will be oper­
ated. Regardless of whether freez­
ing temperatures are
or are not ex­
pected, cooling system protection
should be maintained at least to
OaF to provide adequate corrosion
protection. When coolant addi­
tions are required because of cool­
ant loss or to provide additional
protection against freezing at tem­
peratures lower than
-20°F,
(-32°F in Canada), a sufficient
amount of an ethylene glycol base

Downloaded from www.Manualslib.com manuals search engine • coolant meeting GM Specification
1899 M should be used.
NOTE: Alcohol or methanol base
coolants or plain water are not rec­
ommended for your Camaro at
any time.

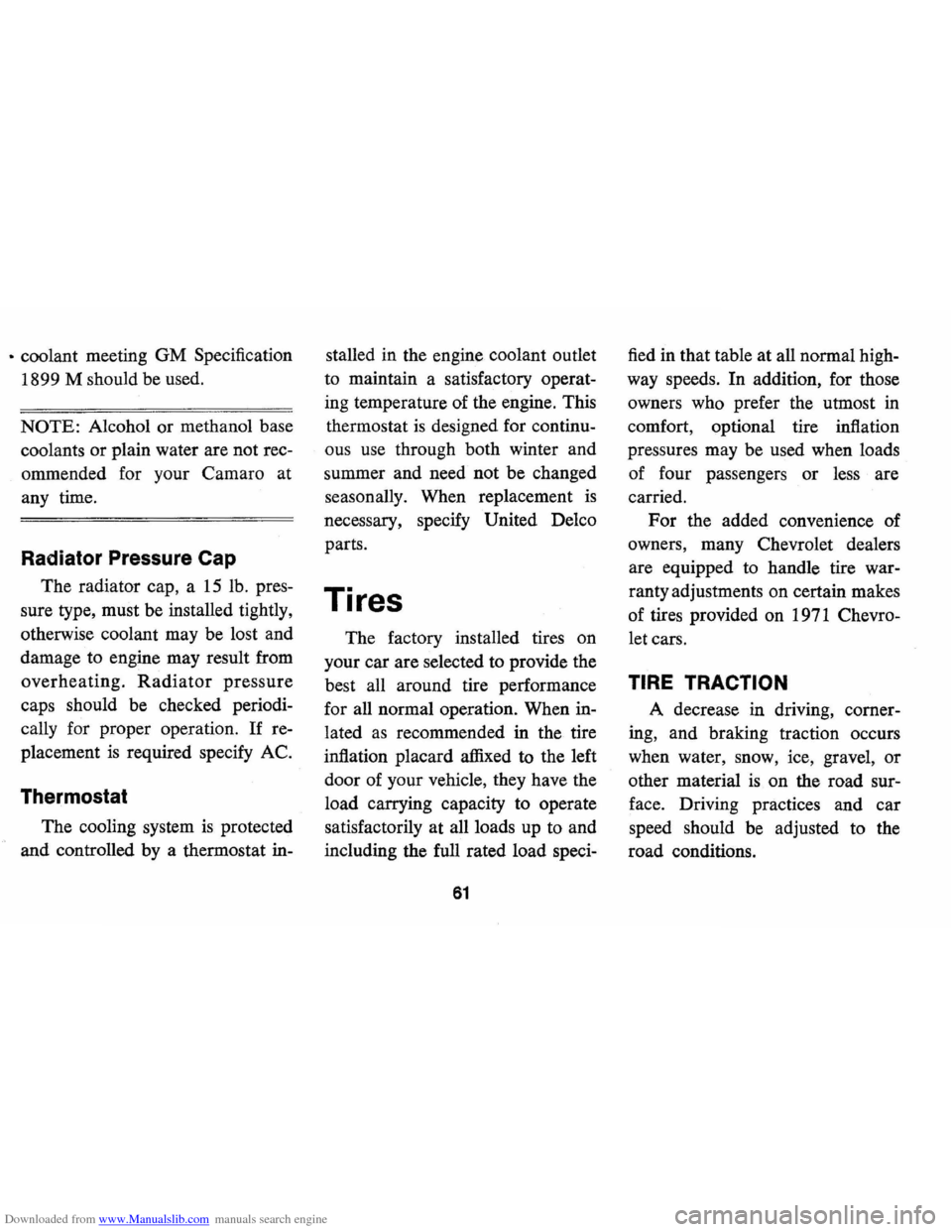

Radiator Pressure Cap
The radiator cap, a 15 lb. pres­
sure type, must be installed tightly,
otherwise coolant may be lost and
damage to engine may result from
overheating.
Radiator pressure
caps should be checked periodi­
cally for proper operation.
If re­
placement
is required specify AC.
Thermostat
The cooling system is protected
and controlled by a thermostat in-stalled
in the engine coolant outlet
to maintain a satisfactory operat­
ing temperature of the engine. This
thermostat
is designed for continu­
ous use through both winter and
summer and need not be changed
seasonally. When replacement
is
necessary, specify United Delco
parts.
Tires
The factory installed tires on
your car are selected to provide the
best all around tire performance
for all normal operation. When in­
lated
as recommended in the tire
inflation placard affixed to the left
door of your vehicle, they have the
load carrying capacity to operate
satisfactorily at all loads up to and
including the full rated load speci-
61
fied in that table at all normal high­
way speeds. In addition, for those
owners who prefer the utmost in
comfort, optional tire inflation
pressures may be used when loads
of four passengers or less are
carried.
For the added convenience of
owners, many Chevrolet dealers
are equipped to handle tire war­
rantyadjustments on certain makes
of tires provided on 1971 Chevro­
let cars.
TIRE TRACTION
A decrease in driving, corner­
ing, and braking traction occurs
when water, snow, ice, gravel, or
other material
is on the road sur­
face. Driving practices and car
speed should be adjusted to the
road conditions.

Downloaded from www.Manualslib.com manuals search engine When driving on wet or slushy
roads, it
is possible for a wedge of
water to build up between the tire
and road surface. This phenome­
non, known as hydroplaning, may
cause partial or complete loss of
traction, which adversely affects
vehicle control and stopping abil­
ity.
To reduce the possibility of
traction loss, the following pre­
cautions should be observed:
1. Slow down during rainstorms or
when roads are slushy.
ENGINE AND BODY

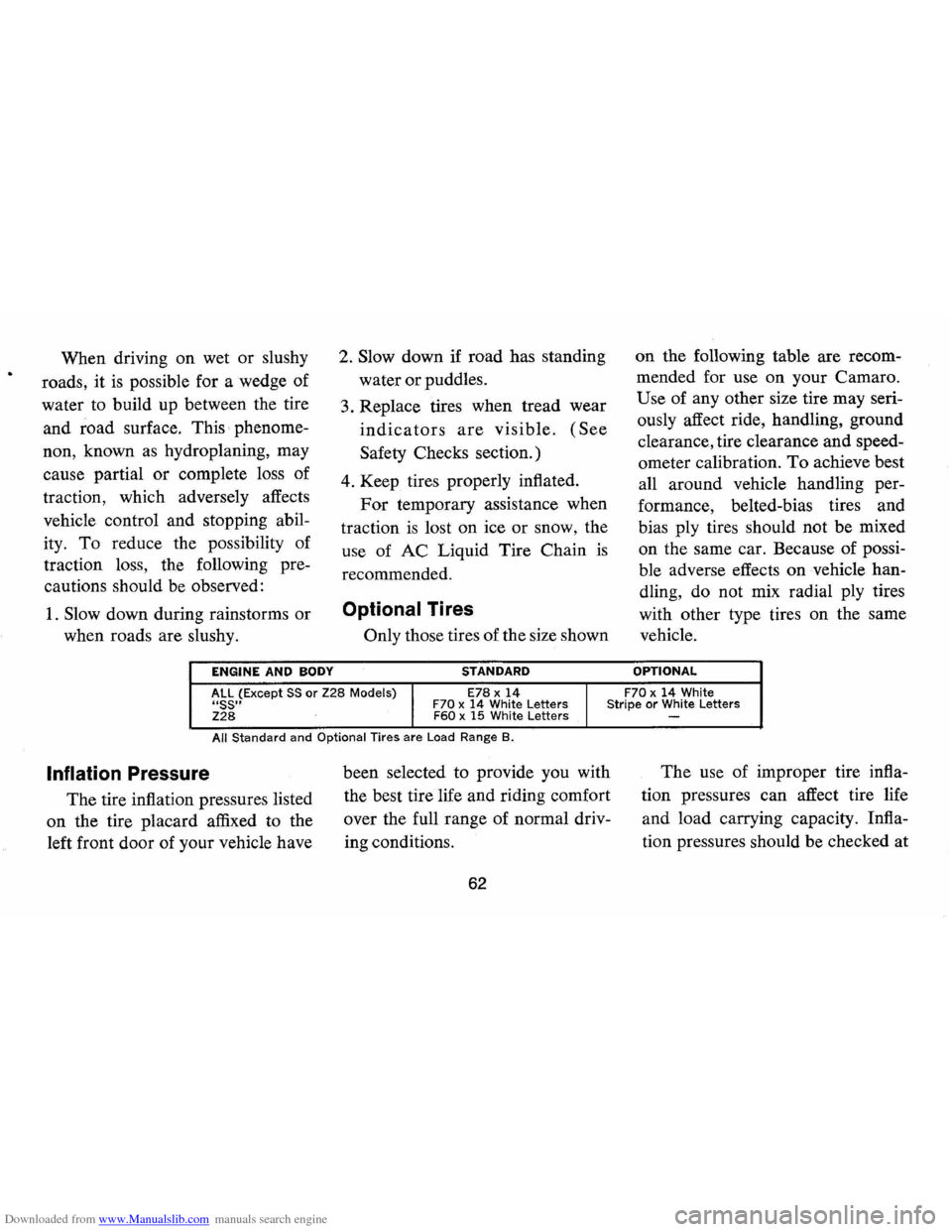

2. Slow down if road has standing
water or puddles.
3. Replace tires when tread wear
indicators are visible. (See
Safety Checks section.)
4. Keep tires properly inflated.
For temporary assistance when
traction
is lost on ice or snow, the
use of
AC Liquid Tire Chain is
recommended.
Optional Tires
Only those tires of the size shown
STANDARD
on the following table are recom­
mended for use on your Camaro.
Use of any other size tire may seri­
ously affect ride, handling, ground
clearance, tire clearance and speed­
ometer calibration.
To achieve best
all around vehicle handling per­
formance, belted-bias tires and
bias ply tires should not be mixed
on the same car. Because of possi­
ble adverse effects
on vehicle han­
dling, do not mix radial ply tires
with other type tires on the same
vehicle.
OPTIONAL
ALL (Except SS or Z28 Models) I "ss" Z28
E78 x 14 F70 x 14 White Letters F60 x 15 White Letters Stripe or White Letters
I
F70 x 14 White
All
Standard and Optional Tires are Load Range B.
Inflation Pressure
The tire inflation pressures listed
on the tire placard affixed to the
left front door of your vehicle have been
selected to provide you with
the best tire life and riding comfort
over the full range of normal driv­
ing conditions.
62

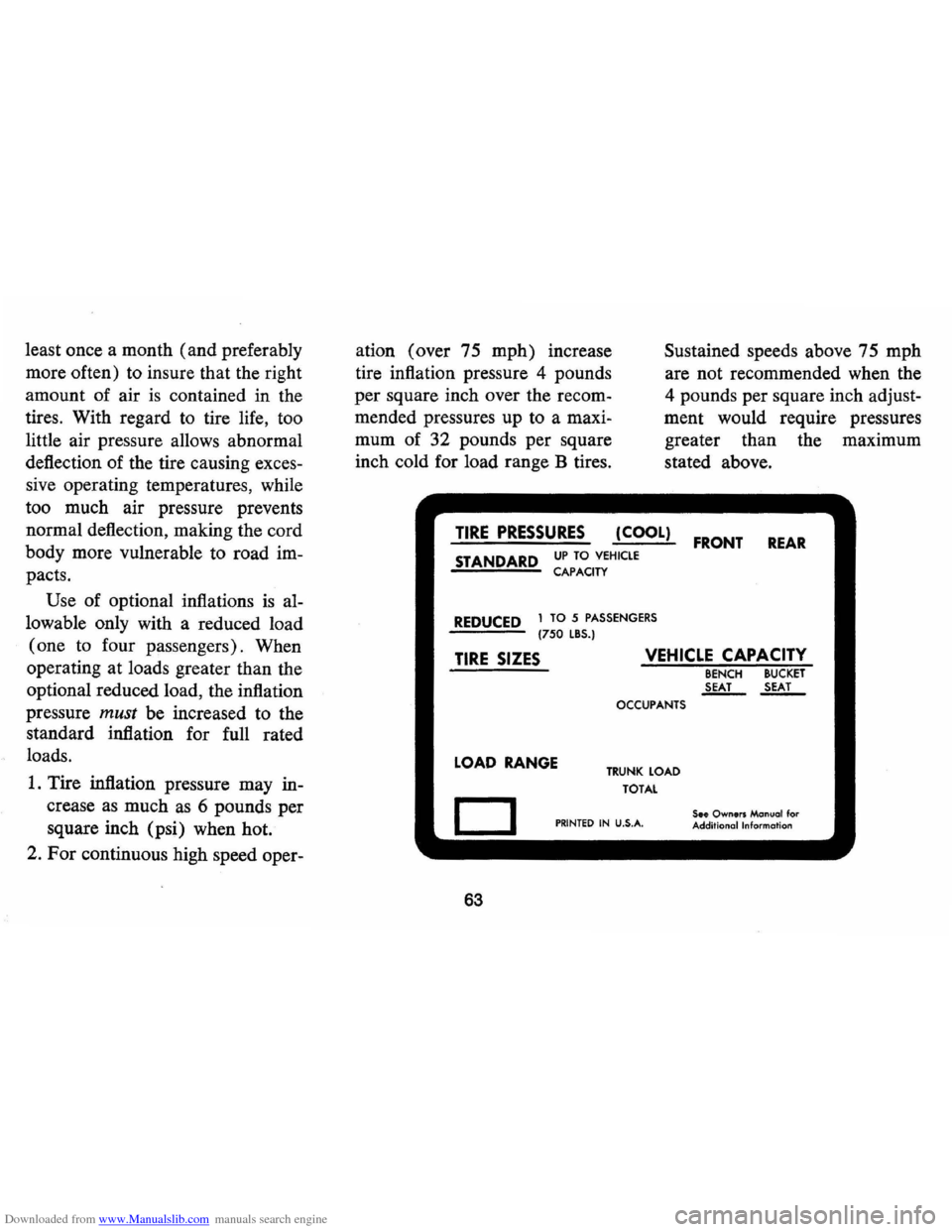

The use of improper tire infla­
tion pressures can affect tire life
and load carrying capacity. Infla­
tion pressures should be checked at

Downloaded from www.Manualslib.com manuals search engine least once a month (and preferably
more often) to insure that the right
amount of air
is contained in the
tires. With regard to tire life, too
little air pressure allows abnormal
deflection of the tire causing exces­
sive operating temperatures, while
too much air pressure prevents
normal deflection, making the cord
body more vulnerable to road im­
pacts.
Use of optional inflations
is al­
lowable only with a reduced load
(one to four passengers). When
operating at loads greater than the
optional reduced load, the inflation
pressure
must be increased to the
standard inflation for full rated
loads.
1. Tire inflation pressure may in­
crease
as much as 6 pounds per
square inch (psi) when hot.
2.
For continuous high speed oper- ation
(over 75 mph) increase
tire inflation pressure 4 pounds
per square inch over the recom­
mended pressures up to a maxi­
mum of 32 pounds per square
inch cold for load range B tires. Sustained
speeds above 75 mph
are not recommended when the
4 pounds per square inch adjust­
ment would require pressures
greater than the maximum
stated above.
TIRE PRESSURES (COOL) FRONT REAR STANDARD UP TO VEHICLE CAPACITY
REDUCED 1 TO 5 PASSENGERS (750 LBS.)
TIRE SIZES VEHICLE CAPACITY BENCH BUCKET
LOAD RANGE
63
OCCUPANTS
TRUNK LOAD
TOTAL
.&L~

Downloaded from www.Manualslib.com manuals search engine 3. Cold tire inflation pressure:
after vehicle has been inopera­
tive for 3 hours
or more, or
driven less than 1 mile. Hot tire
inflation pressure:
after vehicle
has been driven
10 miles or at
speeds of more than
60 miles
per hour.
4. Vehicles with luggage racks do
not have a vehicle load limit
greater than specified.
5. When towing trailers, the allow­
able passenger and cargo load
must be reduced by
an amount
equal to the trailer tongue load
on the trailer hitch.
Tire Rotation
To equalize wear It IS recom­
mended that the tires be rotated
every
6,000 miles. Upon rotation, tire
pressure must be adjusted
(front
and rear) in accordance
tire inflation placard.
1IIII1 1IIII1
/
IIIIII IIIIIJ
1IIII1 111111
IXl
1IIII1 111111
5 WHEELS 4 WHEELS
Battery Care (Energizer)
Check fluid level monthly utiliz­
ing the level indicator cap marked
"Delco Eye". If the transparent eye
within the cap glows, fluid level
is
64
low. Add only colorless, odorless
drinking water
or distilled water to
bring level to split ring in filler
opening.
Battery-Gas Warning-Since nor­
mal battery
or Energizer chemical
action generates hydrogen gas
which
is explosive when mixed
with air, never expose the battery
to an open flame
or electric spark.
Also, avoid getting battery fluid,
which
is a sulfuric acid solution, on
skin, on clothing
or other fabric,
or on painted surfaces. Eye pro­
tection should be worn while
working on the battery for any rea­
son.
For maximum wattage re­
quirements, specify a Delco Ener­
gizer at replacement time.

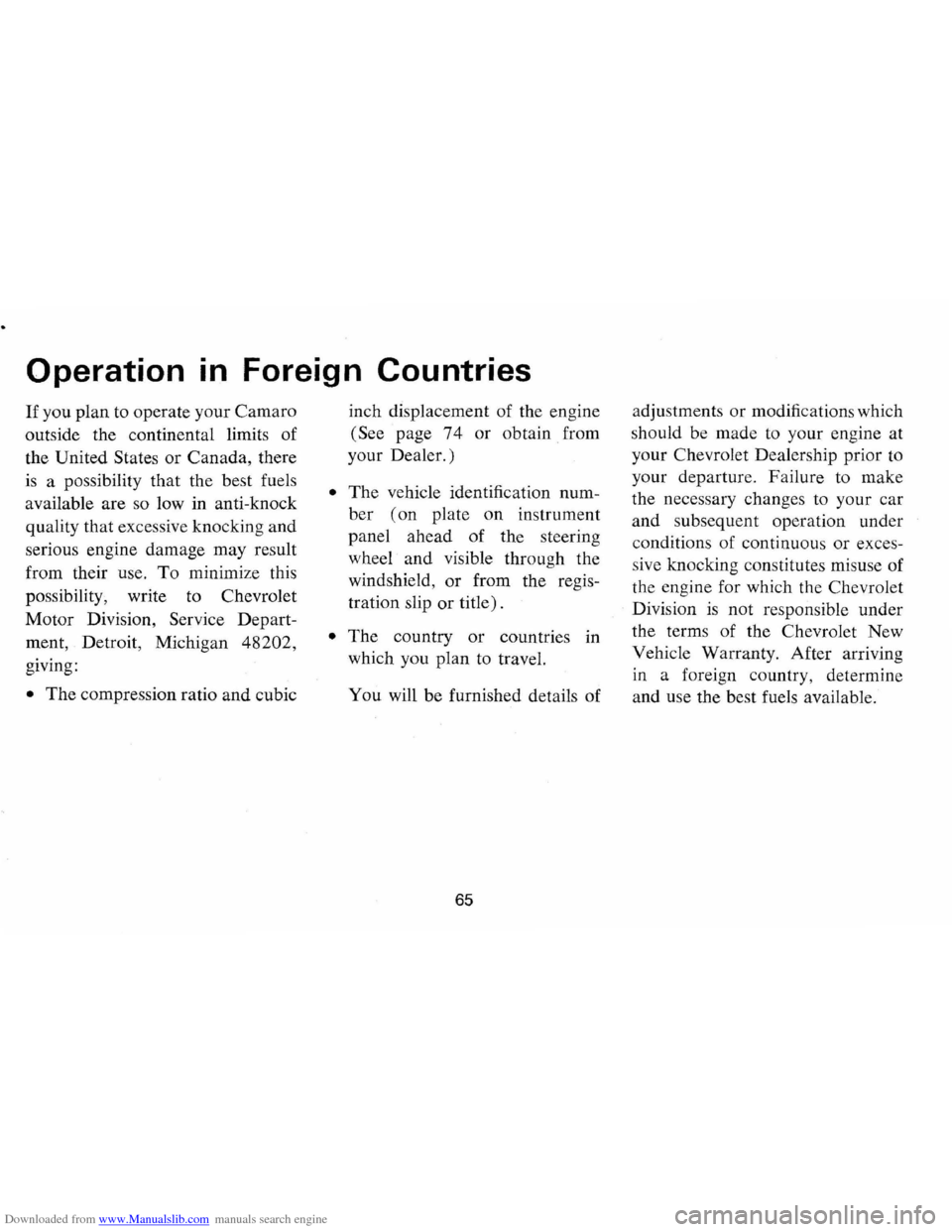

Downloaded from www.Manualslib.com manuals search engine Operation in Foreign Countries
If you plan to operate your Camaro
outside the continental limits of
the United States or Canada, there
is a possibility
that the best fuels
available
are so low in anti-knock
quality
that excessive knocking and
serious engine damage may result
from their use.
To minimize this
possibility, write to Chevrolet
Motor Division, Service Depart­
ment, Detroit, Michigan 48202,
giving:
• The compression ratio and cubic inch
displacement of the engine
(See page 74 or obtain from
your
Dealer.)
• The vehicle identification num­
ber (on plate on instrument
panel
ahead of the steering
wheel
and visible through the
windshield ,
or from the regis­
tration slip
or title) .
• The country or countries in
which you
plan to travel.
You will be furnished details of
65 adjustments
or modifi
cations which
should be
made to your engine at
your Chevrolet Dealership prior to
your departure.
Failure to make
the necessary changes to your car
and subsequent operation under
conditions of continuous
or exces­
s ive knocking constitutes misuse of
the engine for which the Chevrolet
Division is
not responsible under
the terms of the Chevrolet New
Vehicle Warranty.
After arriving
in a foreign country, determine
and use the best fuels available.

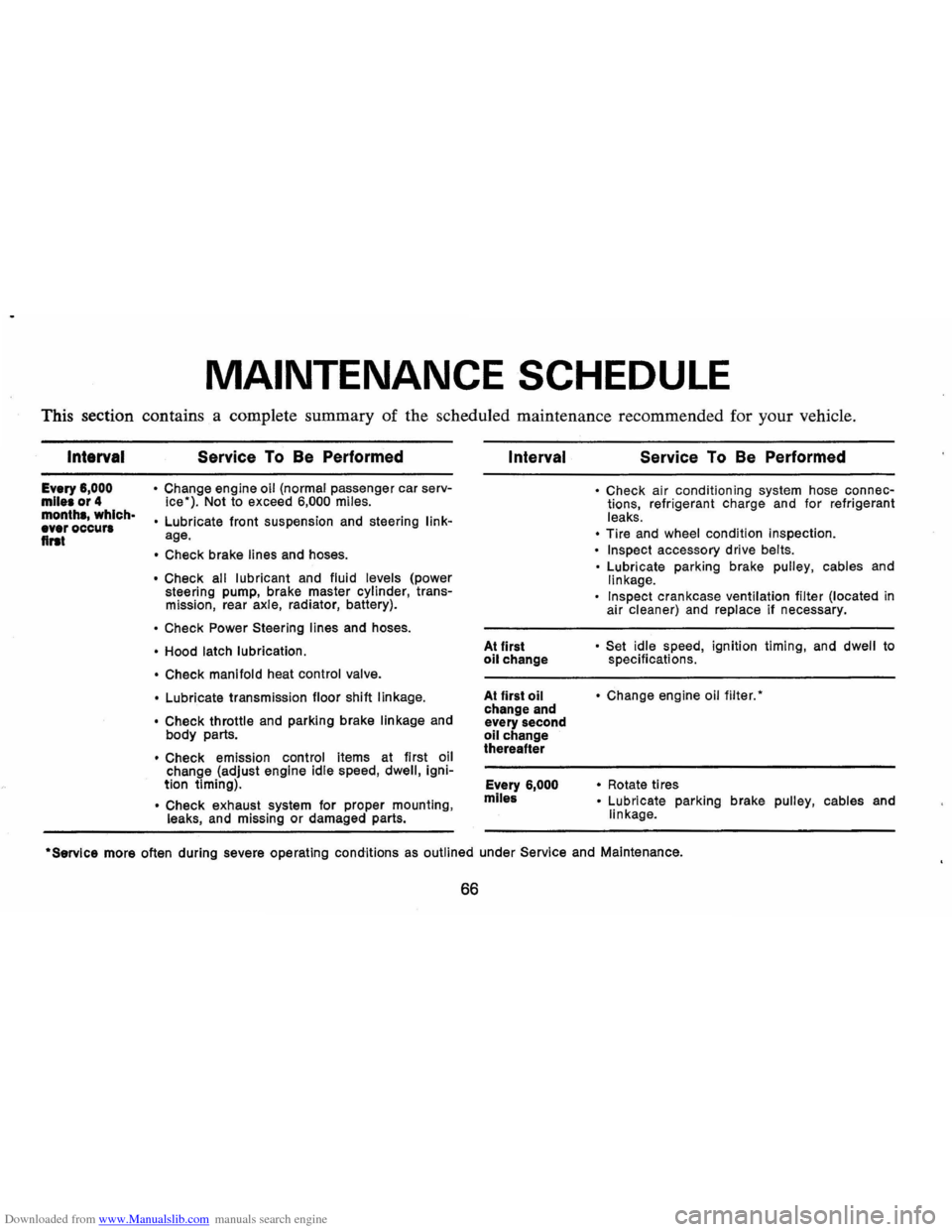

Downloaded from www.Manualslib.com manuals search engine MAINTENANCE SCHEDULE
This section contains a complete summary of the scheduled maintenance recommended for your vehicle.
Intarval
Every 6,000 mile. or 4 month., which· ever occur. flrat
Service To Be Performed
• Change engine oil (normal passenger car serv­
ice"). Not to exceed 6,000 miles.
•
Lubricate front suspension and steering link­age.
• Check brake lines and hoses.
• Check all lubricant and fluid levels (power
steering pump, brake master cylinder, trans­mission, rear axle, radiator, battery).
• Check Power Steering lines and hoses.
• Hood latch lubrication.
• Check manifold
heat control valve.
•
Lubricate transmission floor shift linkage.
• Check
throttle and parking brake linkage and
body parts.
• Check emission control items at first oil
change (adjust engine idle speed, dwell, igni­tion timing) .
• Check exhaust system for proper mounting , leaks, and missing or damaged parts.
Interval
At first oil change
At first
oil change and
every second
oil change
thereafter
Every
6,000
mlle&
Service To Be Performed
• Check air conditioning system hose connec­tions, refrigerant charge and for refrigerant
leaks.
• Tire and wheel condition inspection.
• Inspect accessory drive belts.
•
Lubricate parking brake pulley, cables and linkage.
Inspect crankcase ventilation filter (located in
air cleaner) and replace if necessary.
• Set idle speed , ignition timing, and dwell to
specifications.
• Change engine oil filter."
•
Rotate ti res • Lubricate parking brake pulley, cables and
linkage .
·Servlce more often during severe operating conditions as outlined under Service and Maintenance.
66

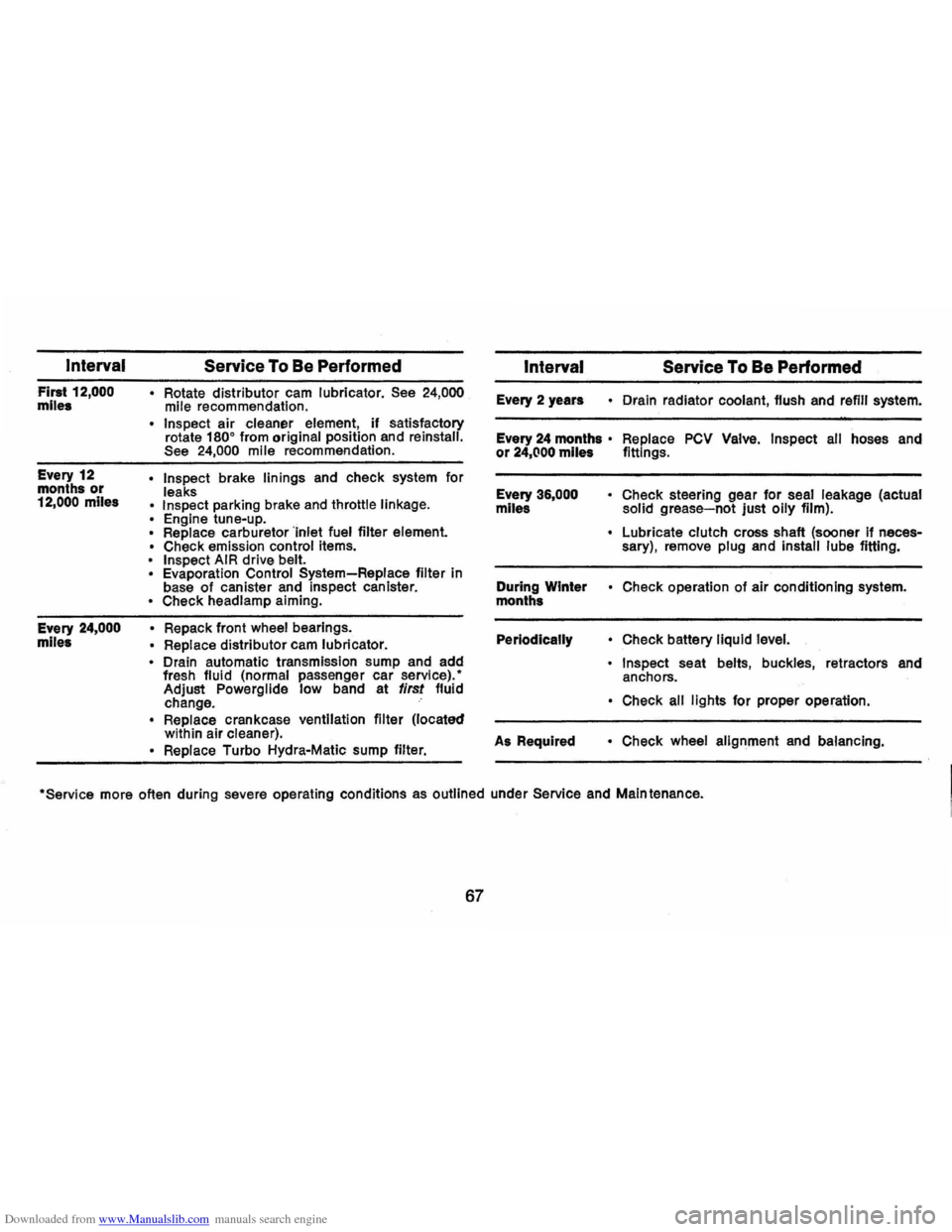

Downloaded from www.Manualslib.com manuals search engine Interval
First 12,000 miles Every 12
months
or 12,000 miles
Every
24,000 miles
Service To Be Performed
• Rotate distributor cam lubricator. See 24,000 mile recommendation.
• Insp .ect air cleaner element, if satisfactory
rotate 1800 from original position and reinstall. See 24,000 mile recommendation.
• Inspect brake linings and check system for
leaks
• Inspect parking brake and throttle linkage. • Engine tune-up.
Replace carburetor 'Inlet fuel filter element. • Check emission control items. • Inspect AIR drive belt.
Evaporation Control System-Replace filter in
base of canister and inspect canister. • Check headlamp aiming.
• Repack front wheel bearings.
• Replace distributor cam lubricator. • Drain automatic transmission sump and add
fresh fluid (normal passenger car service).' Adjust Powerglide low band at first fluid
change.
• Replace crankcase ventilation filter (located
within air cleaner).
• Replace Turbo Hydra-Matic sump filter.
Interval Service To Be Performed
Every 2 years • Drain radiator coolant, flush and refill system.
Every
24 months· Replace PCV Valve. Inspect all hoses and or 24,(100 miles fittings.
Every
36,000 • Check steering gear for seal leakage (actual
miles solid grease-not just oily film).
• Lubricate clutch cross shaft (sooner if neces­sary), remove plug and install lube fittIng.
During Winter
• Check operation of air conditioning system.
months
Periodically • Check battery liquid leve/.
• Inspect seat belts, buckles, retractors and
anchors.
• Check all lights for proper operation.
As Required
• Check wheel alignment and balancing.
'Service more often during severe operating conditions as outlined under Service and Maintenance.
67
