CHEVROLET CAMARO 1993 Owners Manual

, Open the hoods and locate the
batteries.
CAUTION:
A
An electric fan can start up
even when the engine
is not
running and can injure you. Keep
hands, clothing and tools away from
any underhood electric fan.
Find the positive
(+) and negative (-)
terminals on each battery.
A
Using a match near a battery
can cause battery gas to
explode. People have been hurt
doing
this, and some have been
blinded.
Use a flashlight if you need
more light.
Be sure the battery has enough
water,
You don’t need to add water
to the Delco Freedom@ battery
installed
in every new GM vehicle.
But if a battery has filler caps, be
sure the right amount of fluid is
there. If it is low, add water to take
care
of that first. If you don’t,
explosive
gas could be present.
Battery fluid contains acid that can
burn you. Don’t get it on you. If
you accidentally get it in your eyes
or
on your skin, flush the place
with water and get medical help
immediately. Check that the
jumper cables don’t
have
loose or missing insulation. If
they do, you could get a shock. The
vehicles could
be damaged, too.
Before you connect the cables, here
are some basic things you should
know. Positive
(+) will go to positive
(+) and negative (-) will go to
negative
(-) or a metal engine part.
Don’t connect
(+) to (-) or you’ll get a
short that would damage the battery
and maybe other parts, too.
18799.
ProCarManuals.com

Problems an the Road
Fans or other moving engine
eep your hands away from moving
-u-ts once the engines are running.
L parts can injure you badly.

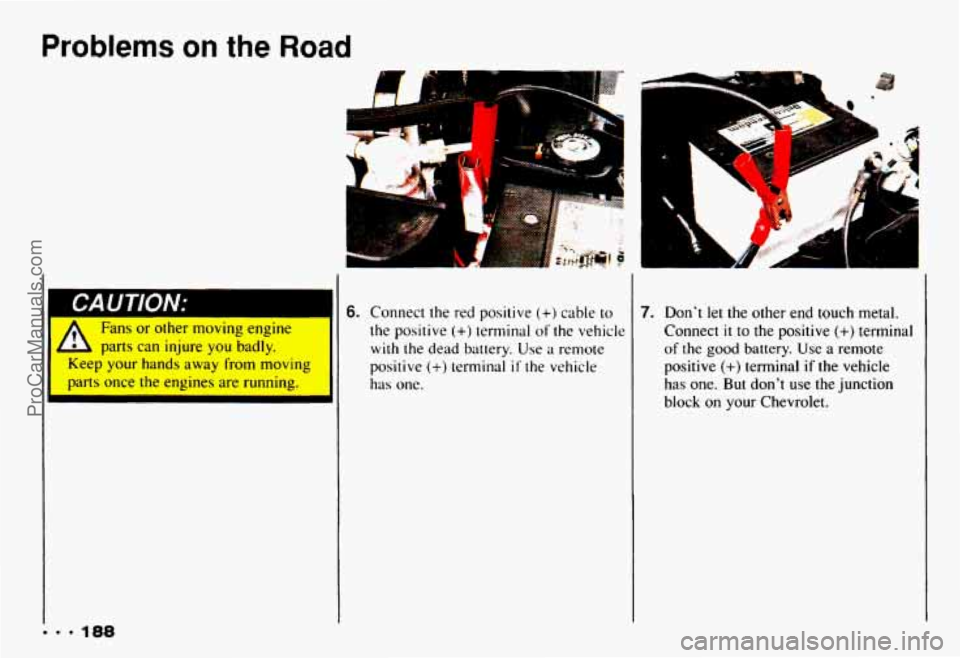

6. Connect the red positive (+) cable to
the positive
(+) terminal of the vehicle
with the dead battery. Use a remote
positive
(+) terminal if the vehicle
has one,
I
7. Don't let the other end touch metal.
Connect
it to the positive (+) terminal
of the good battery. Use a remote
positive
(+) terminal if the vehicle
has one.
But don't use the junction
block on your Chevrolet.
ProCarManuals.com

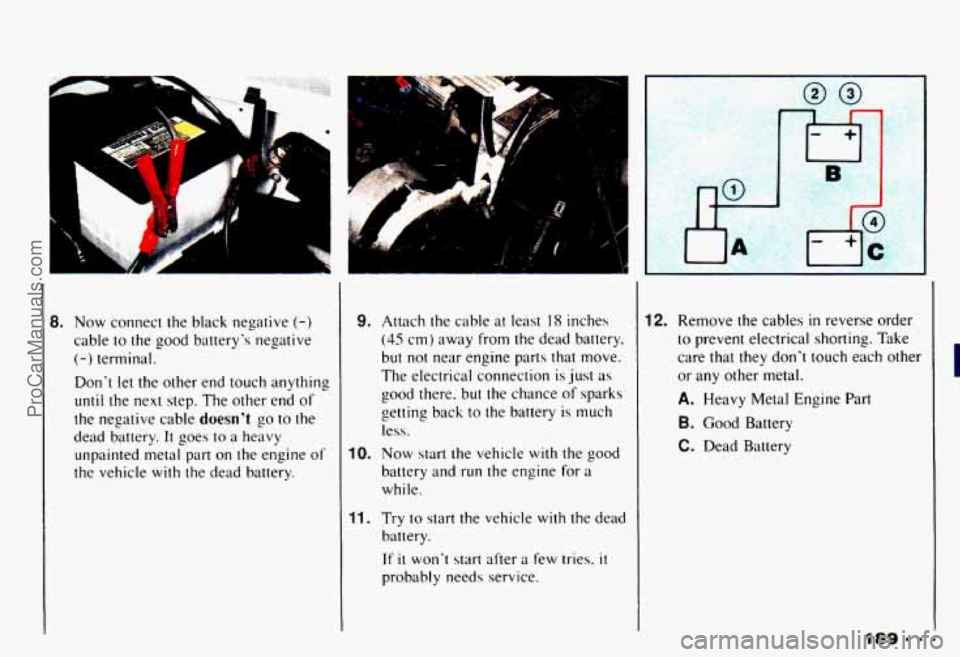

8. Now connect the black negative (-)
cable to the good battery's negative
(-) terminal.
Don't
let the other end touch anything
until the next step. The other end of
the negative cable doesn't go to the
dead battery. It goes to a heavy
unpainted metal part
on the engine of
the vehicle with the dead battery.
9.
10.
11.
Attach the cable at least 18 inches
(45 cm) away from the dead battery.
but
not near engine parts that move.
The electrical connection is just as
good there, but the chance of sparks
getting back to the battery is much
less.
Now start the vehicle with the good
battery and run the engine for a
while.
Try
to start the vehicle with the dead
battery.
If it won't start after a few tries, it
Probably needs service.
12. Remove the cables in reverse order
to prevent electrical shorting. Take
care that they don't touch each other
or any other metal.
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
ProCarManuals.com

Problems on the Road
A
le

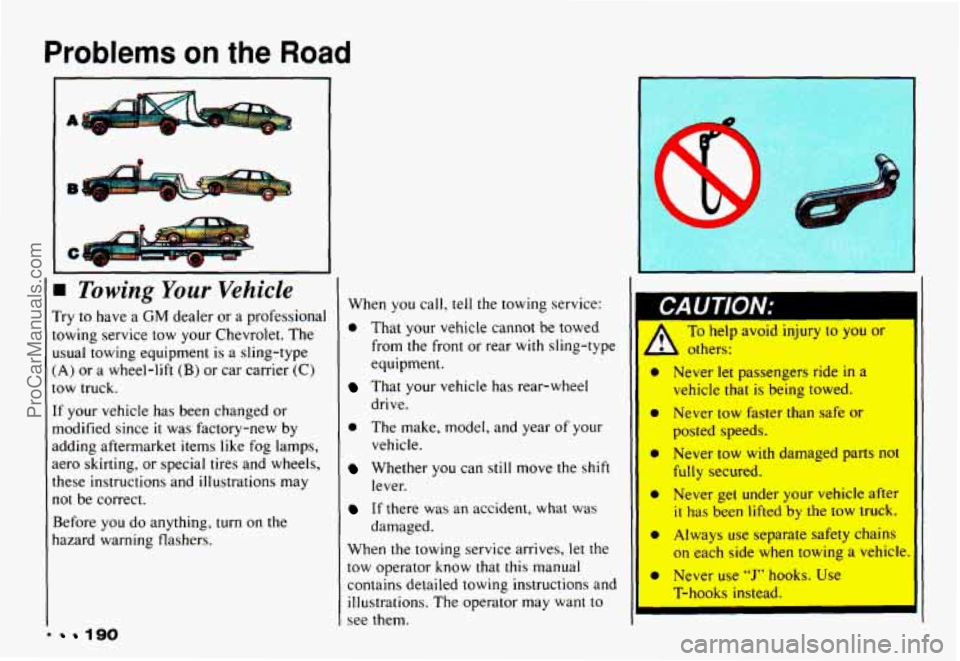

=Towing Your Vehicle
Try to have a CM dealer or a professional
towing service tow your Chevrolet. The
usual towing equipment is a sling-type
(A) or a wheel-lift (B) or car carrier (C)
tow truck.
If your vehicle has been changed or
modified since
it was factory-new by
adding aftermarket items like fog lamps,
aero skirting, or special tires and wheels,
these instructions and illustrations may
not be correct.
Before you do anything,
turn on the
hazard warning flashers.
190
When you call, tell the towing service:
0 That your vehicle cannot be towed
from the front or rear
with sling-type
equipment.
drive.
That your vehicle has rear-wheel
0 The make, model, and year of your
Whether you can still move the shift
If there was an accident, what was
When the towing service arrives, let the
tow operator know
that this manual
contains detailed towing instructions and
illustrations. The operator may want
to
see them.
vehicle.
lever.
damaged.
1
TO help avoid injury to you or
0
0
0
e
a
0
b others:
Never let passengers ride in a
vehicle that is being towed.
Never tow faster than safe
or
posted speeds.
Never
tow with damaged parts not
fully secured.
Never
get under your vehicle after
it has been lifted by the tow truck.
Always use separate safety chains
on each side when towing a vehicle,
Never use “J” hooks. Use
T-hooks instead.
ProCarManuals.com

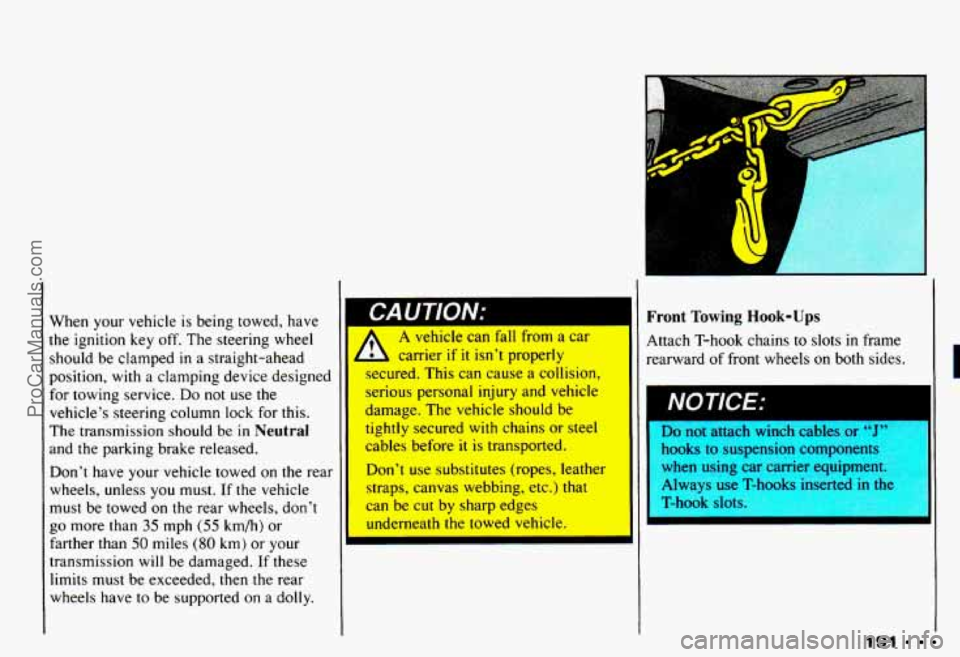

When your vehicle is being towed, have
the ignition
key off. The steering wheel
should be clamped
in a straight-ahead
position,
with a clamping device designed
for towing service.
Do not use the
vehicle’s steering column lock for this.
The transmission should be in Neutral
and the parking brake released.
Don’t have your vehicle towed on the rear
wheels, unless you must.
If the vehicle
must be towed on the rear wheels, don’t
EO more than 35 mDh (55 kmh) or I
CAUTION:
RA
I Front Towing Hook-Ups
A vehicle can fall from a car
Attach T-hook chains to slots in frame
carrier if
it isn’t properly rearward of front wheels on both sides.
secured. This can cause a collision,
tightly secured with chains or steel
cables before
it is transported.
Don’t
use substitutes (ropes, leather
straps, canvas webbing, etc.) that
can be cut by sharp edges
underneath the towed vehicle.
Farther than
50 miles (80 km j or your
transmission
will be damaged. If these
limits must be exceeded, then
the rear
wheels have to be supported on
a dolly.
I.
I
Do not attach winch cables or
1 hooks to suspension components
en using car carrier equipment
I Always use T-hooks inserted in the
I I
I T-hook slots. II
191 ProCarManuals.com

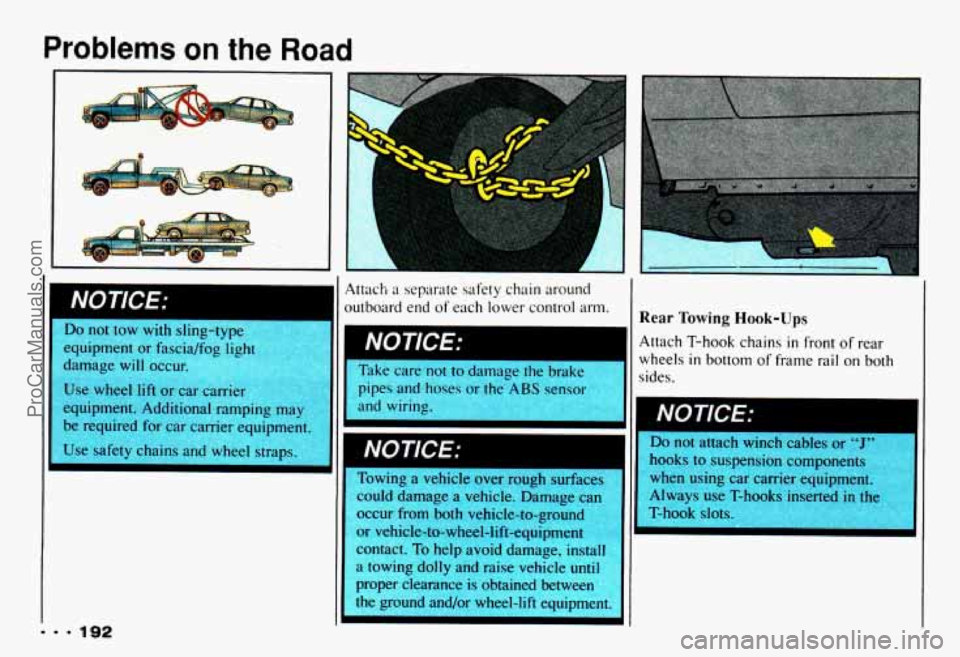

Problems on the Road
I.. 192
not tow with sling-typc
equipment or fascia/fog light
damage will occu
Use wheel lift or car carrier
equipment. Additional ramping may
be required for car carrier equipment.
Use safety chains and wheel straps. Attach
a separate safety chain around
outboard end
of each lower control arm.
I
contact. To help avoid damage, install
a towing
dolly and raise vehicle until
proper clearance
is obtained between *
the ground and/or wheel-lift equipment.
Rear Towing Hook-Ups
Attach T-hook chains in front of rear
wheels in bottom of frame rail on both
sides.
/I
I ~ to suspension compontllLa
using car carrier equipment.
ProCarManuals.com

I
c

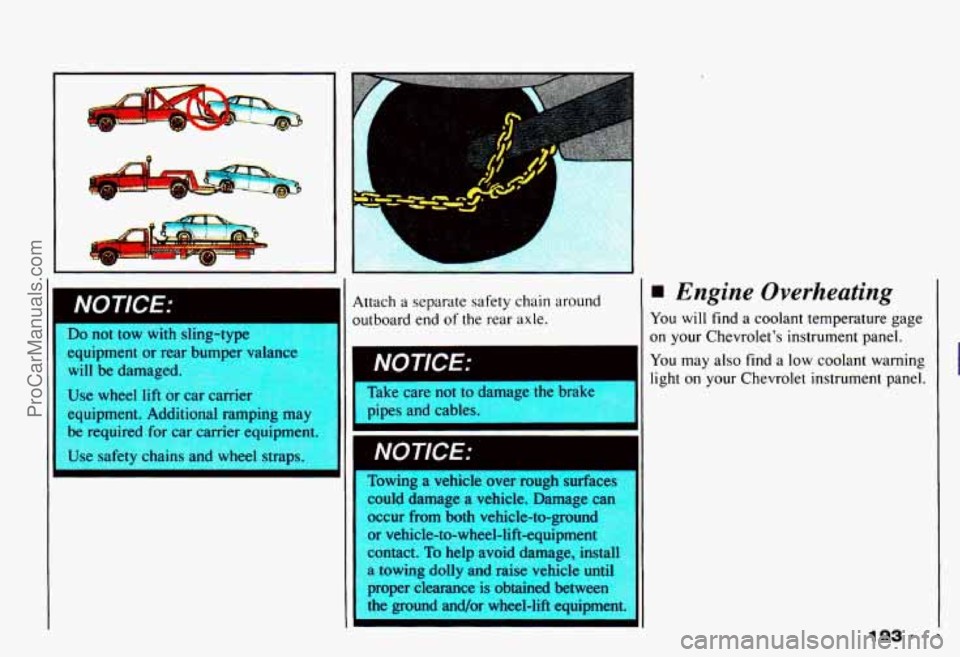

Do not tow with sling-type
eauipment or rear bumDer valance
equipment. Additional ramping may
be required for car carrier equipment.
Use safety chains and wheel straps. Attach
a separate
safety chain around
outboard end
of the rear axle.
NOTICE: I
could damage a vehicle. Damage can
occur from both vehicle-to-ground
or vehicle-to-wheel-lift-equipment
To help avoid damage, install
g dolly and raise vehicle until
er clearance is obtained between
the ground and/or wheel-lift equipment.
Engine Overheating
You will find a coolant temperature gage
on your Chevrolet's instrument panel.
You may also find a low coolant warning
light on your Chevrolet instrument panel.
193 9
ProCarManuals.com

Problems on the Road

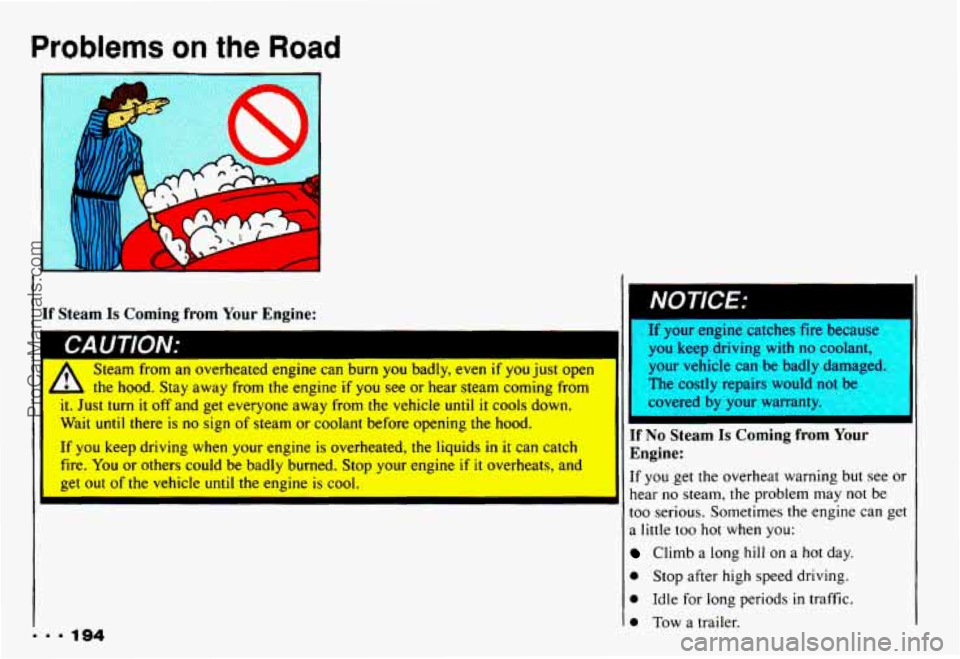

If Steam Is Coming from Your Engine:
W1Ldr-W II LUU I ILJN.'
Steam from an overheated engine can bum you badly, even if you just open
k the hood. Stay away from the engine if you see or hear steam coming from
x. Just turn it off and get everyone away from the vehicle until it cools down.
Wait
until there is no sign of steam or coolant before opening the hood.
If you keep driving when your engine is overheated, the liquids in it can catch
fire. You or others could be badly burned. Stop your engine if it overheats, and
get out of the vehicle until the engine is cool,
... 194
11 your engine catches fire because
I you keep driving with no coolant,
I1
E
I1
h
tC
a
0
a
a
your vehicle can be badly damaged
The
costly repairs would not be
covered by your warranty.
F No Steam Is Coming from Your
hgine:
'you get the overheat warning but see or
ear
no steam, the problem may not be
)o serious. Sometimes the engine can get
little too
hot when you:
Climb a long hill on a hot day.
Stop after high speed driving.
1 Idle for long periods in traffic.
1 Tow a trailer.
ProCarManuals.com

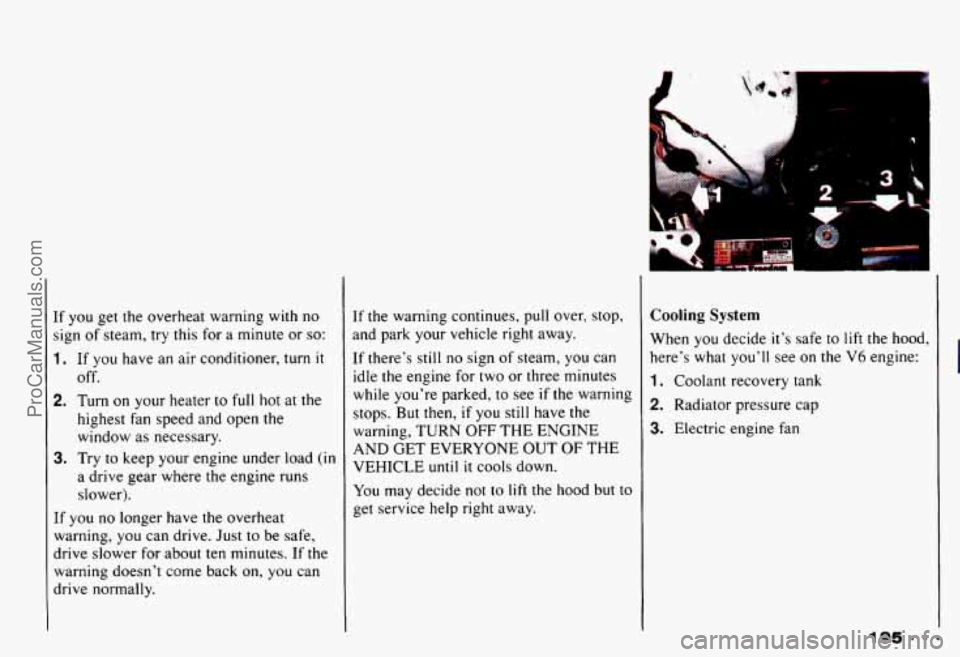

If you get the overheat warning with no
sign of steam,
try this for a minute or so:
1. If you have an air conditioner, turn it
2. Turn on your heater to full hot at the
off.
highest fan speed and open
the
window
as necessary.
3. Try to keep your engine under load (in
a drive gear where the engine runs
slower).
If you no longer have the overheat
warning, you can drive. Just
to be safe,
drive slower for about
ten minutes. If the
warning doesn’t come back on,
you can
drive normally. If
the warning
continues, pull over, stop,
and park your vehicle right away.
If there’s
still no sign of steam, you can
idle
the engine for two or three minutes
while you’re parked, to see
if the warning
stops.
But then, if you still have the
warning, TURN
OFF THE ENGINE
AND GET EVERYONE OUT
OF THE
VEHICLE
until it cools down.
You may decide not to
lift the hood but to
get service help right away.
Cooling System
When you decide it’s safe to lift the hood,
here’s what you’ll see on the V6 engine:
1.
2.
3.
Coolant recovery tank
Radiator pressure cap
Electric engine
fan
ProCarManuals.com

Problems on the Road
I. -
.. .

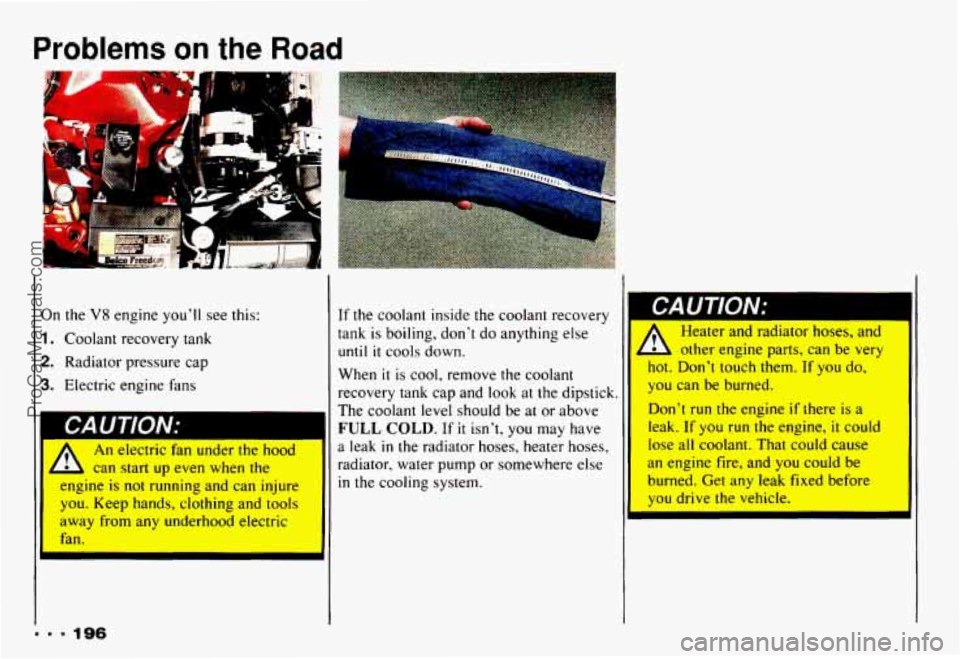

On the V8 engine you’ll see this:
1. Coolant recovery tank
2. Radiator pressure cap
3. Electric engine fans
An electric fan under the hood
L can start up even when the
engine
is not running and can injure
you. Keep hands, clbthing and tools
away from any underhood electric
fan.
... 196
I I
If the coolant inside the coolant recovery
tank
is boiling, don’t do anything else
until it cools down.
When
it is cool, remove the coolant
recovery tank cap and
look at the dipstick. I I
The coolant level should be at or above
FULL COLD. If it isn’t, you may have
a leak
in the radiator hoses, heater hoses,
radiator, water pump or somewhere else
in the cooling system. II
A Heater and radiator hoses, and
L other engine parts, can be very
hot. Don’t touch them.
If you do,
you can be burned. ~
Don’t run the engine if there is a
leak. If
you run the engine, it could
lose
all coolant. That could cause
an engine fire, and you could be
burned. Get any leak fixed before
you drive the vehicle.
