CHEVROLET CAMARO 1994 4.G Owners Manual

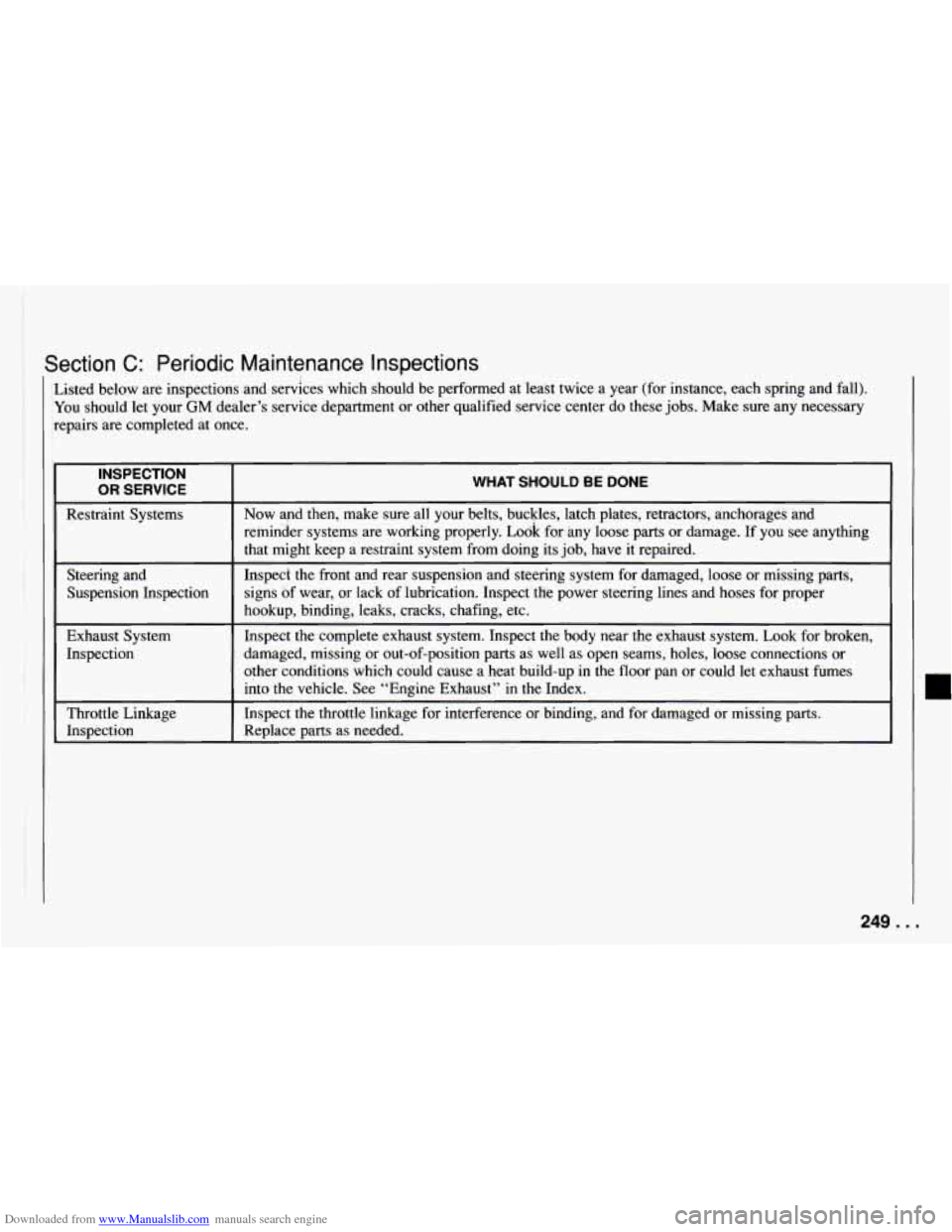

Downloaded from www.Manualslib.com manuals search engine ~ Section C: Periodic Maintenance Inspections
Listed below
are inspections and services which should be performed at least twice a year (for instance, each spring and fall).
You should let your
GM dealer’s service department or other qualified service center do these jobs. Make sure any necessary
repairs are completed at once.
INSPECTION
1 OR SERVICE WHAT
SHOULD BE DONE
Restraint Systems Now and then, make sure all your belts, buckles, latch plates, retractors, anchorages and
reininder systems are working properly. Lodk for any loose parts or damage.
If you see anything
that might keep a restraint system from doing its job, have it repaired.
Steering and Insped the front and rear suspension and steering system for damaged, loose or missing parts,
Suspension Inspection signs of wear, or lack of lubrication. Inspect the power steering lines and hoses for proper
Exhaust System Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
Inspection damaged, missing or out-of-position parts as well as open seams, holes, loose connections or
hookup, binding, leaks,
cracks, chafing, etc.
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See “Engine Exhaust” in the Index.
Throttle Linkage Inspect the throttle linkage for interference or binding, and for damaged
or missing parts.
Inspection Replace parts as needed.
L
249.. .

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

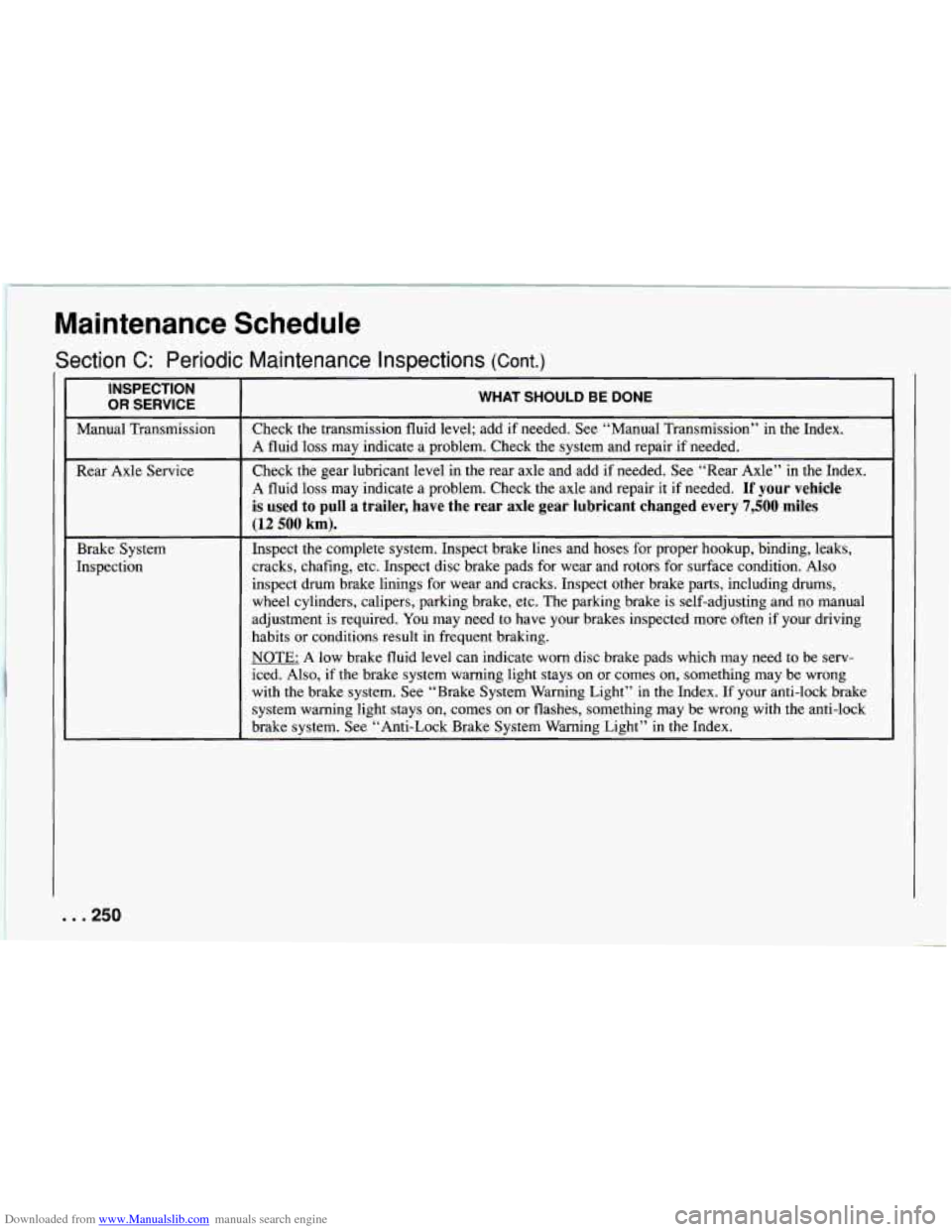

Section C: Periodic Maintenance Inspections (Cont.)
INSPECTION
OR SERVICE
Rear Axle Service
Brake System
Inspection
-
WHAT SHOULD BE DONE
Check the transmission fluid level; add if needed. See “Manual Transmission” in the Index.
A fluid loss may indicate a problem. Check the system and repair if needed.
Check the gear lubricant level in the rear axle and add if needed. See “Rear Axle” in the Index.
A fluid loss may indicate a problem. Check the axle and repair it
if needed. If your vehicle
is used to pull a trailer, have the rear axle gear lubricant changed every
7,500 miles
(12 500 km).
Inspect the complete system. Inspect brake lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. The parking brake is self-adjusting and
no manual
adjustment is required. You may need to have your brakes inspected more often if your driving
habits or conditions result in frequent braking.
NOTE: A low brake fluid level can indicate worn disc brake pads which may need to be serv-
iced. Also, if the brake system warning light stays on or comes on, something may be wrong
with the brake system. See “Brake System Warning Light” in the Index.
If your anti-lock brake
system warning light stays on, comes on or flashes, something may be wrong with the anti-lock
brake system. See “Anti-Lock Brake System Warning Light” in the Index.
. . .250

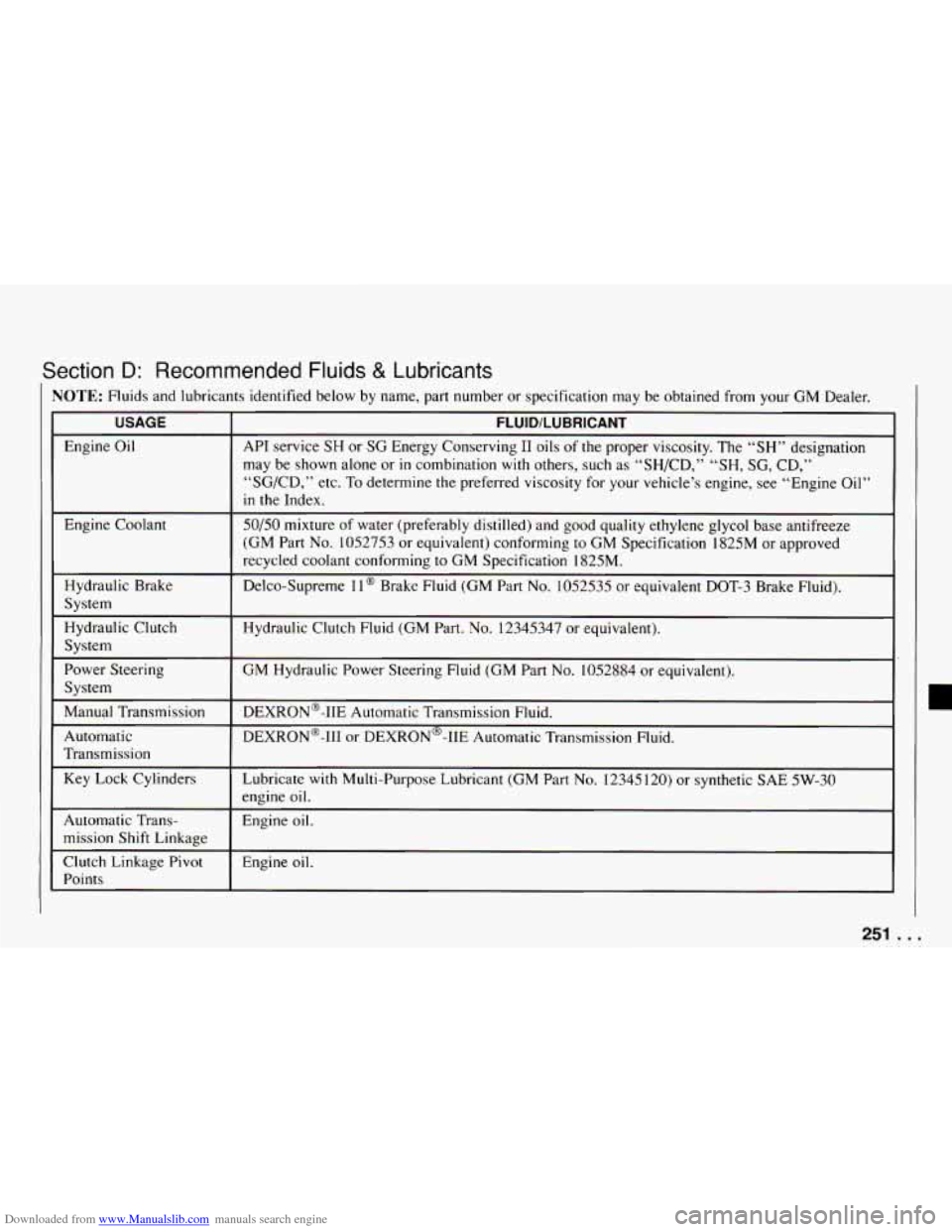

Downloaded from www.Manualslib.com manuals search engine Section D: Recommended Fluids & Lubricants
I NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM Dealer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
Hydraulic Clutch
System
Power Steering
System
Manual Transmission
Automatic
Transmission
Key Lock Cylinders
Automatic Trans-
mission Shift Linkage
Clutch Linkage Pivot
Points
FLUID/LUBRICANT
API service SH or SG Energy Conserving I1 oils of the proper viscosity. The “SH” designation
may be shown alone
or in combination with others, such as “SH/CD,” “SH, SG, CD,”
“SG/CD,” etc.
To determine the preferred viscosity for your vehicle’s engine, see “Engine Oil”
in the Index.
50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part No. 1052753 or equivalent) conforming to GM Specification 1825M or approved
recycled coolant conforming to GM Specification 1825M.
Delco-Supreme
11 @ Brake Fluid (GM Part No. 1052535 or equivalent DOT-3 Brake Fluid).
Hydraulic Clutch Fluid (GM Part.
No. 12345347 or equivalent).
- ~- -~~ --
~ M Hydraulic Power Steering Fluid (GM Part No. 1052884 or equivalent).
DEXRON@-IIE Automatic Transmission Fluid.
DEXRON@-111 or DEXRON@-IIE Automatic Transmission Fluid.
Lubricate with Multi-Purpose Lubricant (GM Part No. 12345
120) or synthetic SAE 5W-30
engine oil.
Engine oil.
Engine
oil.
251 . . .

Downloaded from www.Manualslib.com manuals search engine USAGE FLUID/LUBRICANT
Floor
Shift Linkage
Chassis lubricant (GM Part
No. 1052497 or equivalent) or lubricant meeting requirements of
Chassis Lubrication Engine oil.
NLGI Grade 2, Category LB or GC-LB.
Rear Axle
(Standard Differential)
I
Axle Lubricant (GM Part No. 1052271) or SAE SOW-90 GL-5 Gear Lubricant.
I
Rear Axle (Limited- I Axle Lubricant (GM Part No. 12345977) or SAE 80W-90 GL-5 Gear Lubricant, and Limited-
Slip Differential) Slip Differential.Lubricant
Additive (GM Part
No. 1052358 or equivalent) where required. See
“Rear Axle”
in the Index. I
Maintenance Schedule

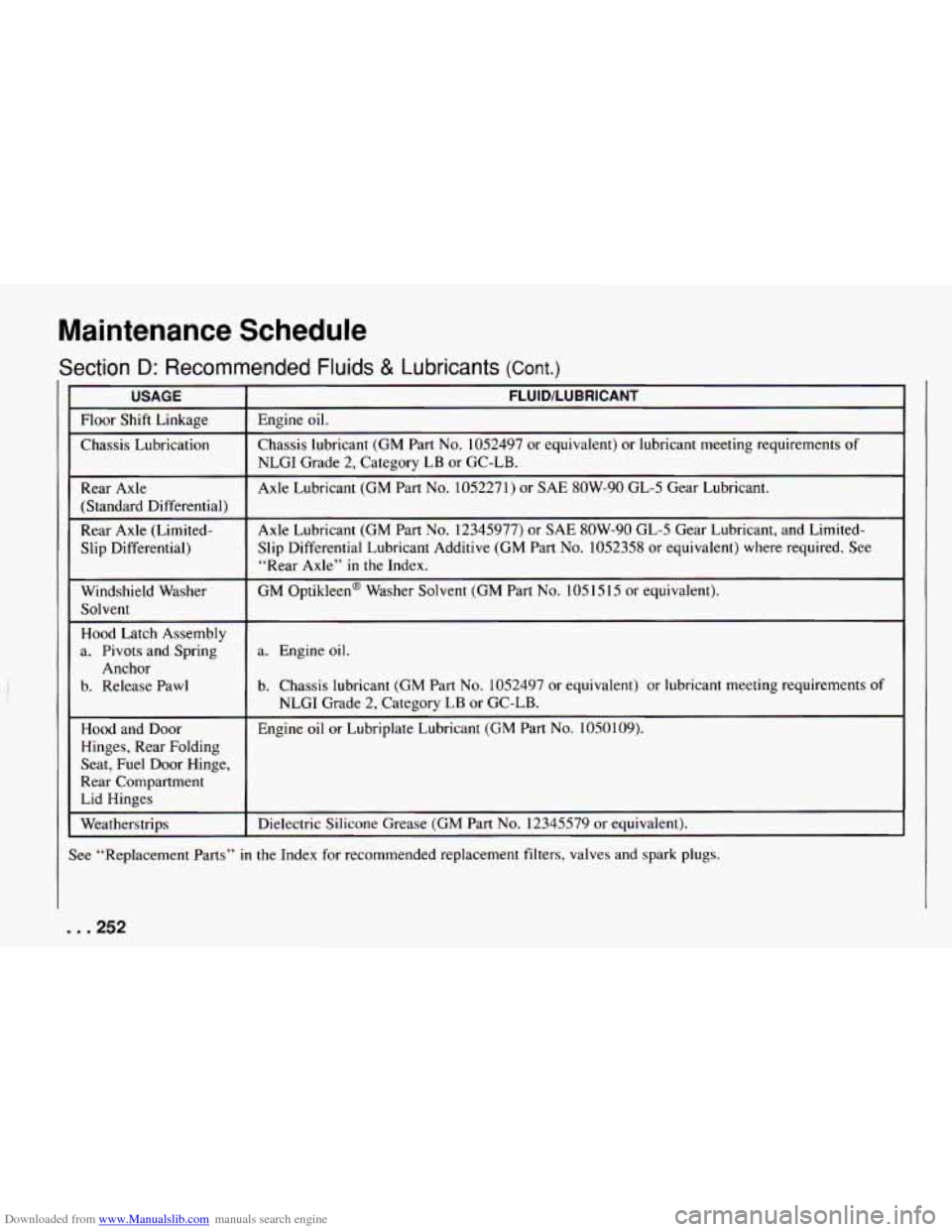

Section D: Recommended Fluids & Lubricants (Cont.)
Windshield Washer GM Optikleen’ Washer Solvent
(GM Part No. 1051515 or equivalent).
Solvent
I
Hood Latch Assembly
a. Pivots and Spring
b. Release Pawl
Anchor
1
~~
a.
Engine oil.
b. Chassis lubricant (GM Part
No. 1052497 or equivalent) or lubricant meeting requirements of
Hood and Door
Hinges, Rear Folding
Seat, Fuel Door Hinge,
Rear Compartment
Lid Hinges NLGI
Grade
2, Category LB or GC-LB.
Engine oil
or Lubriplate Lubricant (GM Part No. 1050109).
~
Weatherstrips I Dielectric Silicone Grease (GM Part No. 12345579 or equivalent).
See “Replacement Parts”
in the Index for recomme’nded replacement filters, valves and spark plugs.
. . .252

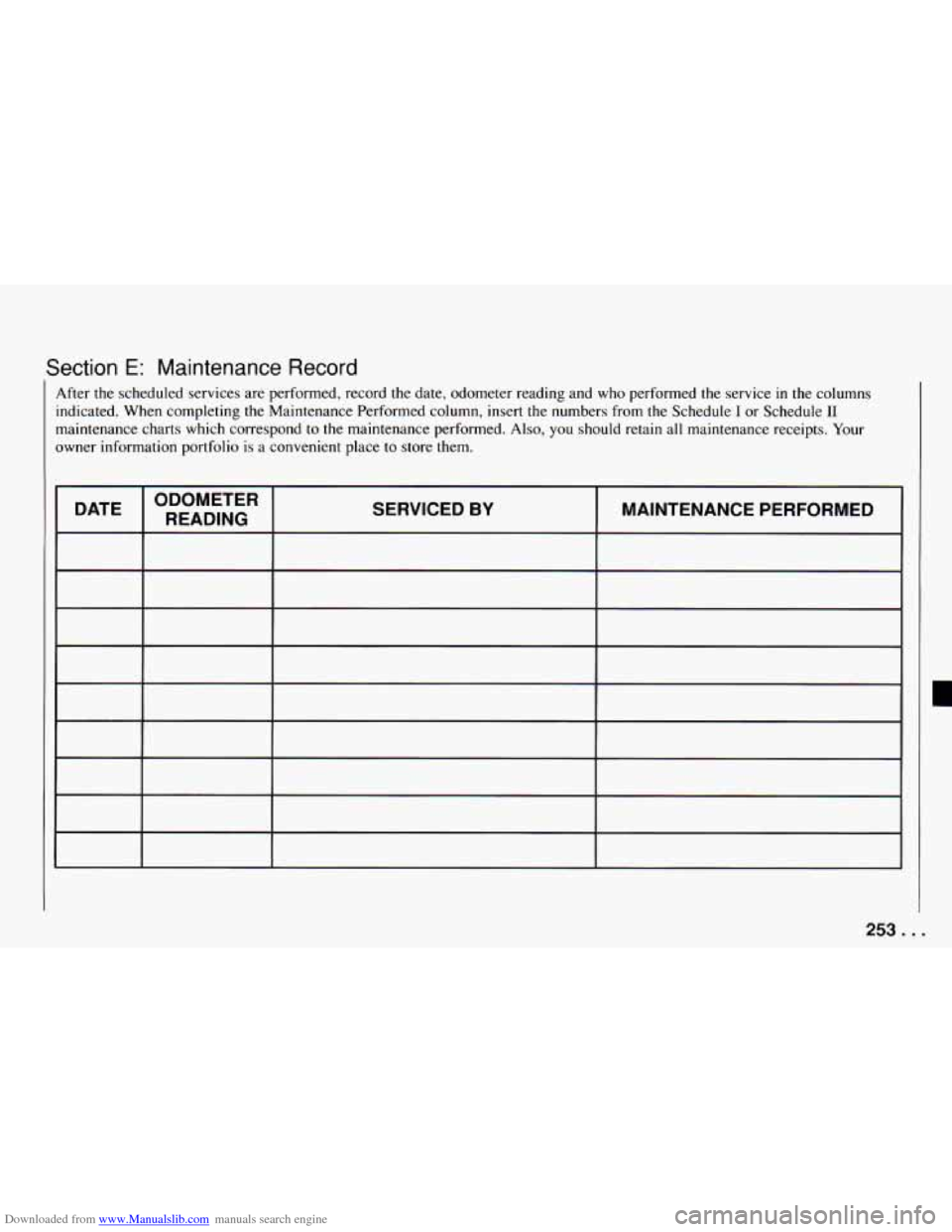

Downloaded from www.Manualslib.com manuals search engine Section E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service in the columns
indicated. When completing the Maintenance Performed column, insert the numbers from the Schedule
I or Schedule I1
maintenance charts which correspond to the maintenance performed. Also, you should retain all maintenance receipts, Your
owner information portfolio is a convenient place to store them.
DATE I ODOMETER I
READING SERVICED BY I MAINTENANCE PERFORMED
253. . .

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

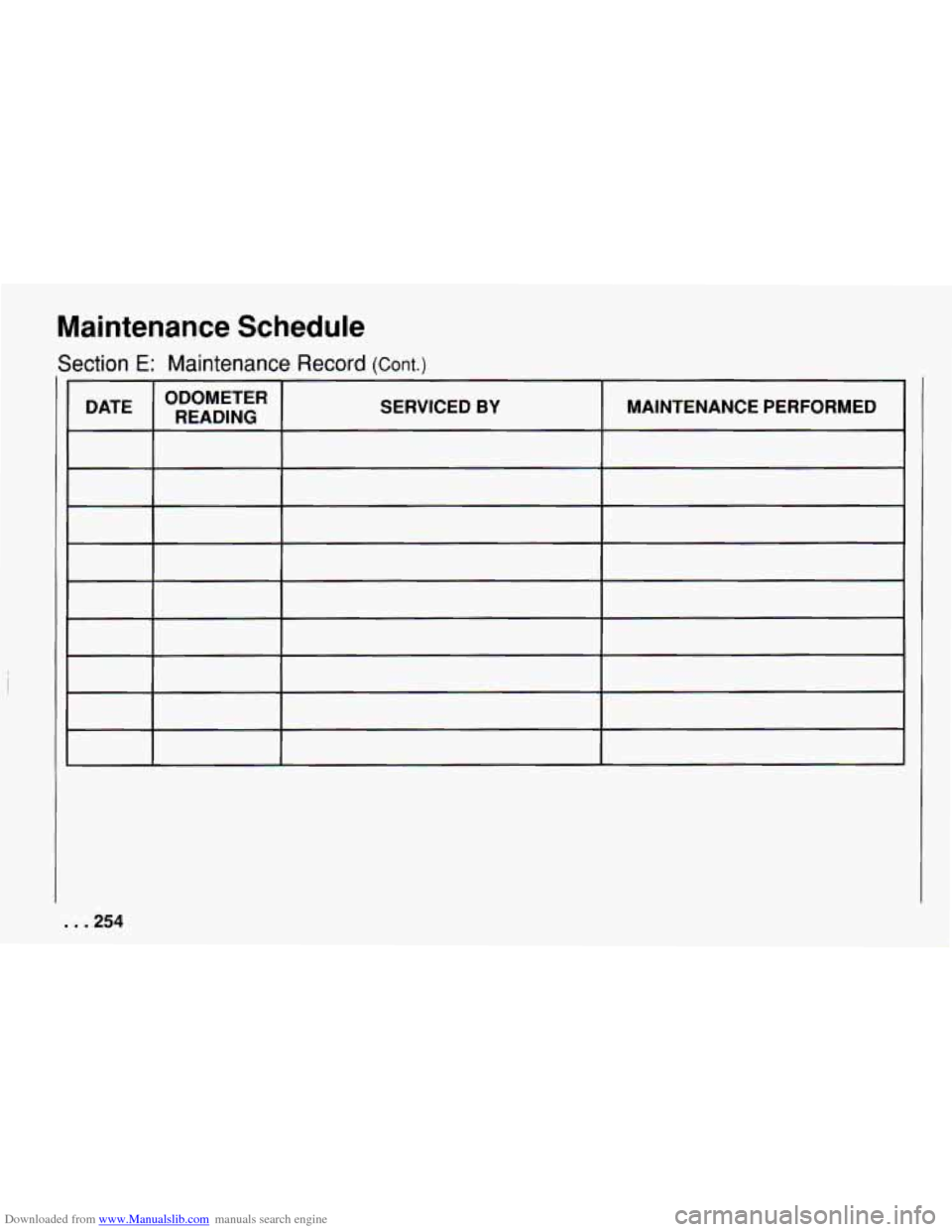

Section E: Maintenance Record (Cont.)
ODOMETER DATE READING SERVICED BY MAINTENANCE PERFORMED
. . ,254

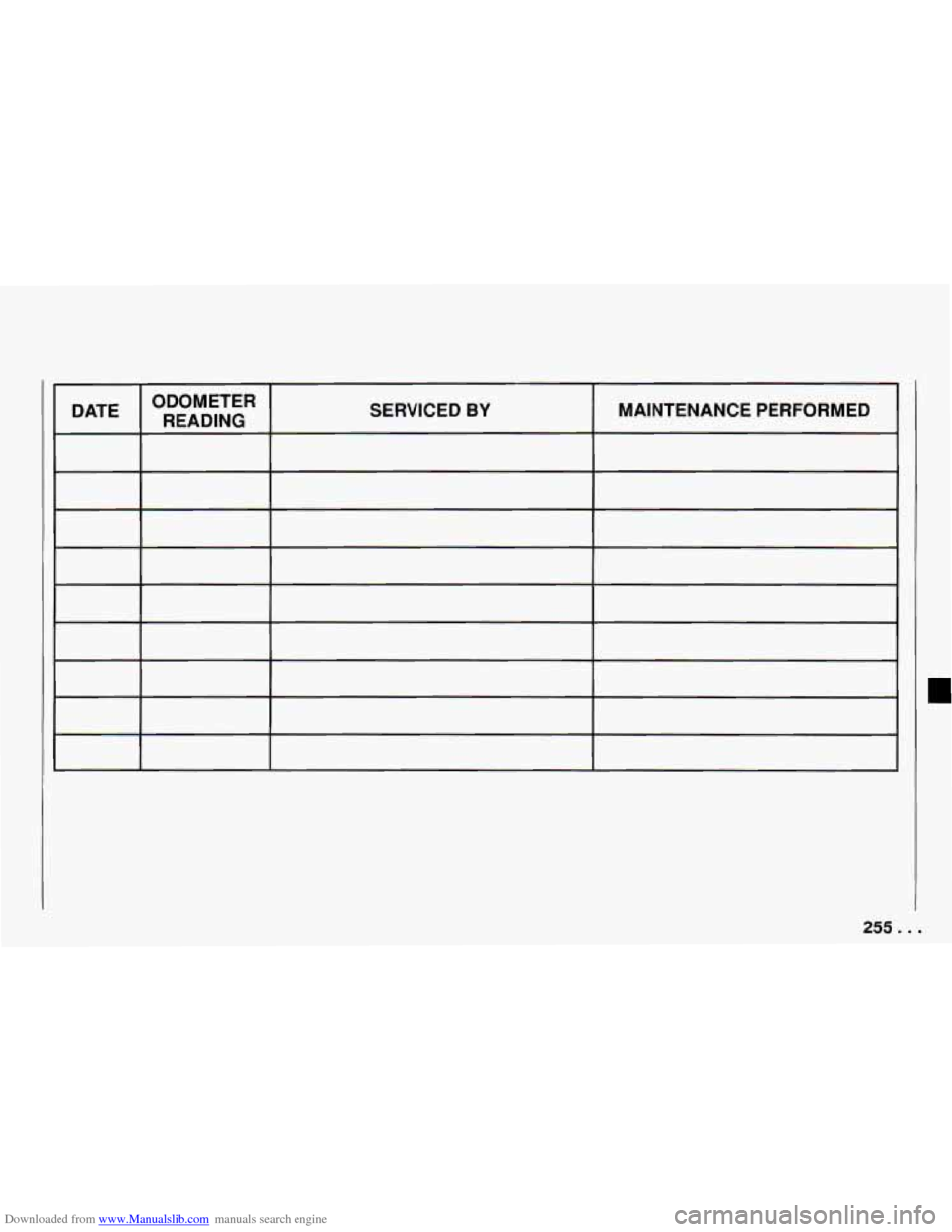

Downloaded from www.Manualslib.com manuals search engine I ~~ I I I
DATE I ODOMETER I
READING SERVICED BY I MAINTENANCE PERFORMED I
255. .

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

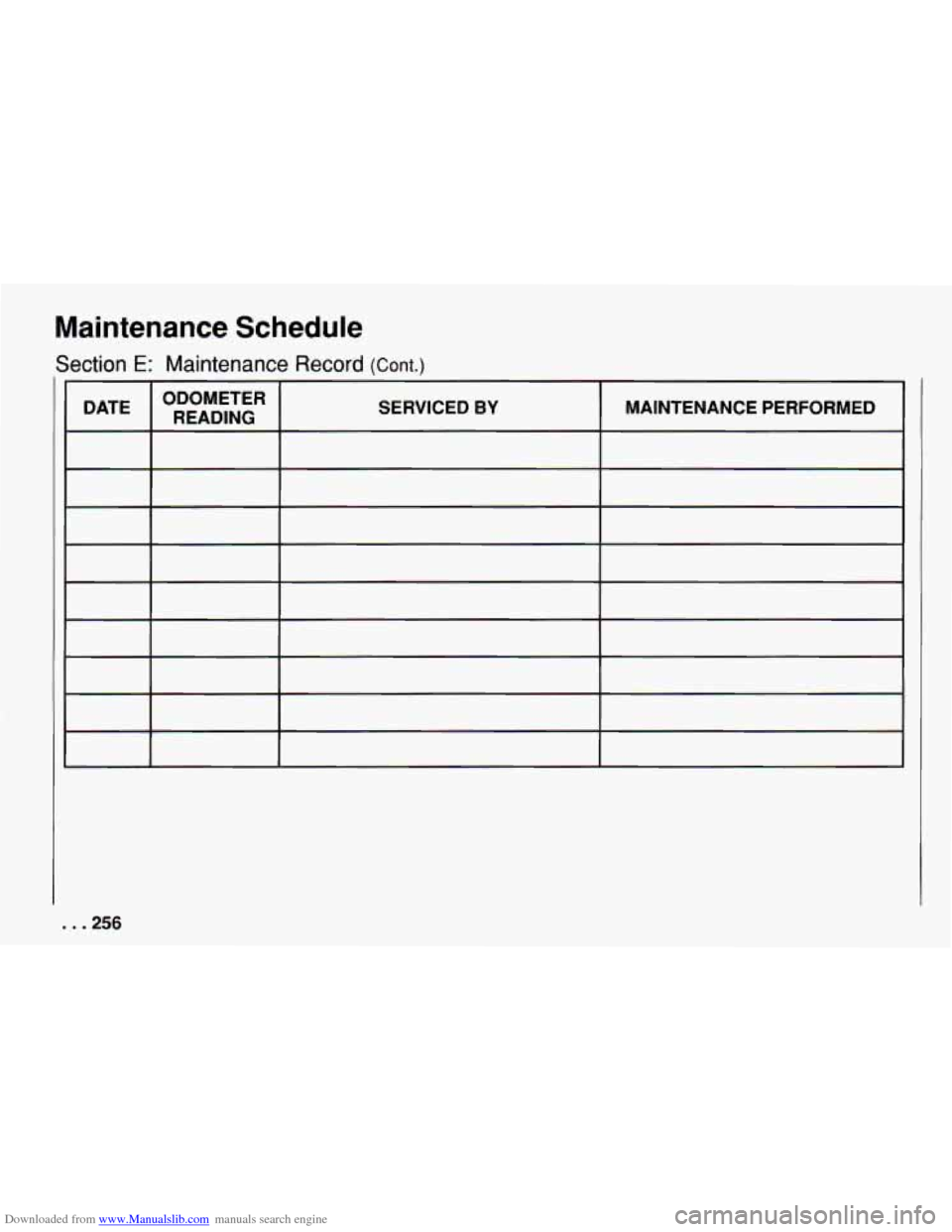

Section E: Maintenance Record (Cont.) ~~ ~ ~ ~
ODOMETER DATE READING SERVICED BY MAINTENANCE PERFORMED
. . .256

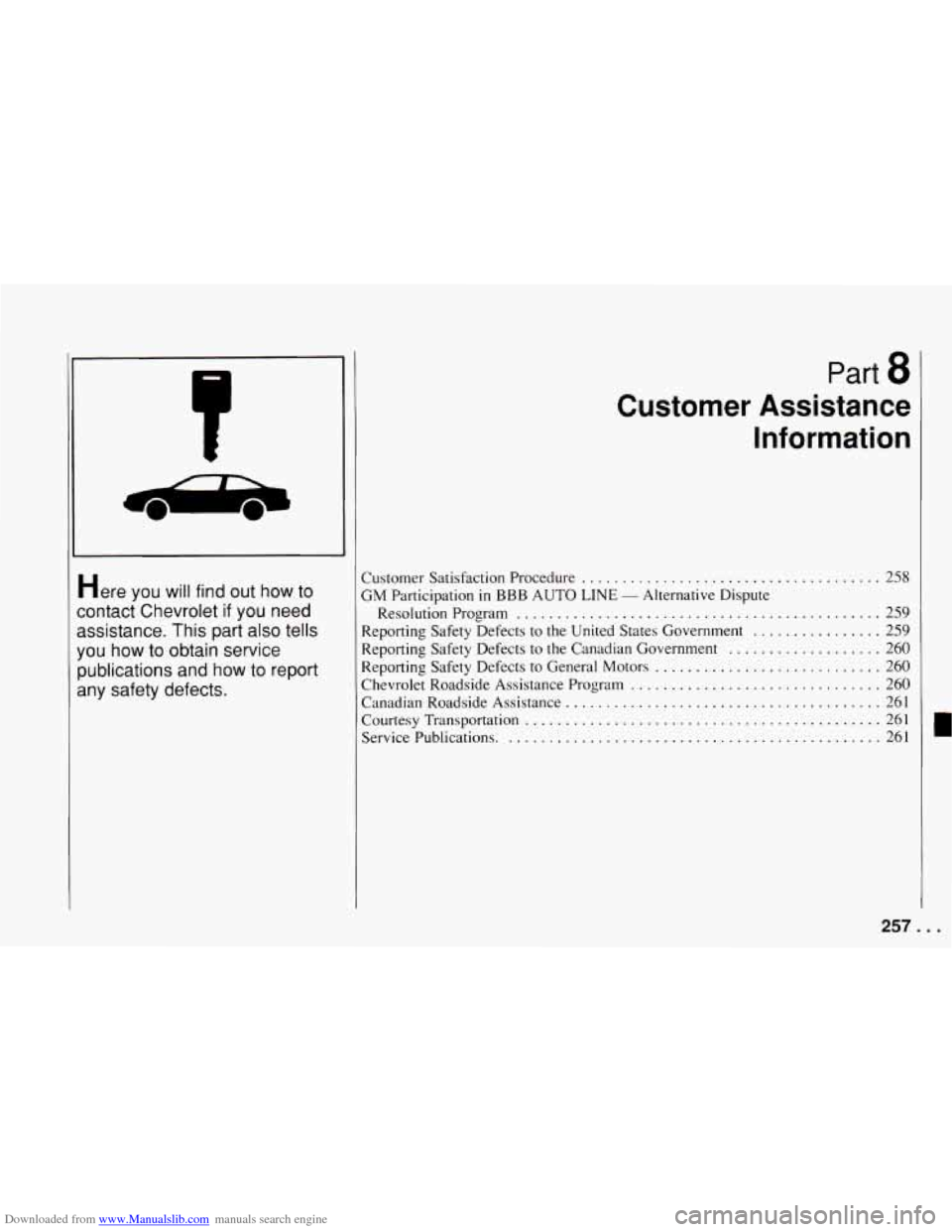

Downloaded from www.Manualslib.com manuals search engine Here you will find out how to
contact Chevrolet
if you need
assistance. This part
also tells
you how to obtain service
publications and how to report
any safety defects.
Part 8
Customer Assistance
Information
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
GM Participation in BBB AUTO LINE - Alternative Dispute
Resolution Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Reporting Safety Defects to the United States Government . . . . . . . . . . . . . . . . 259
Reporting Safety Defects to the Canadian Government . . . . . . . . . . . . . . . . . . . 260
Reporting Safety Defects to General Motors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Chevrolet Roadside Assistance Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Canadian Roadside Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 1
Courtesy Transportation . . . . . .
Service Publications. . . . . . . . I
.................................... 261
.................................... 261
257 .I

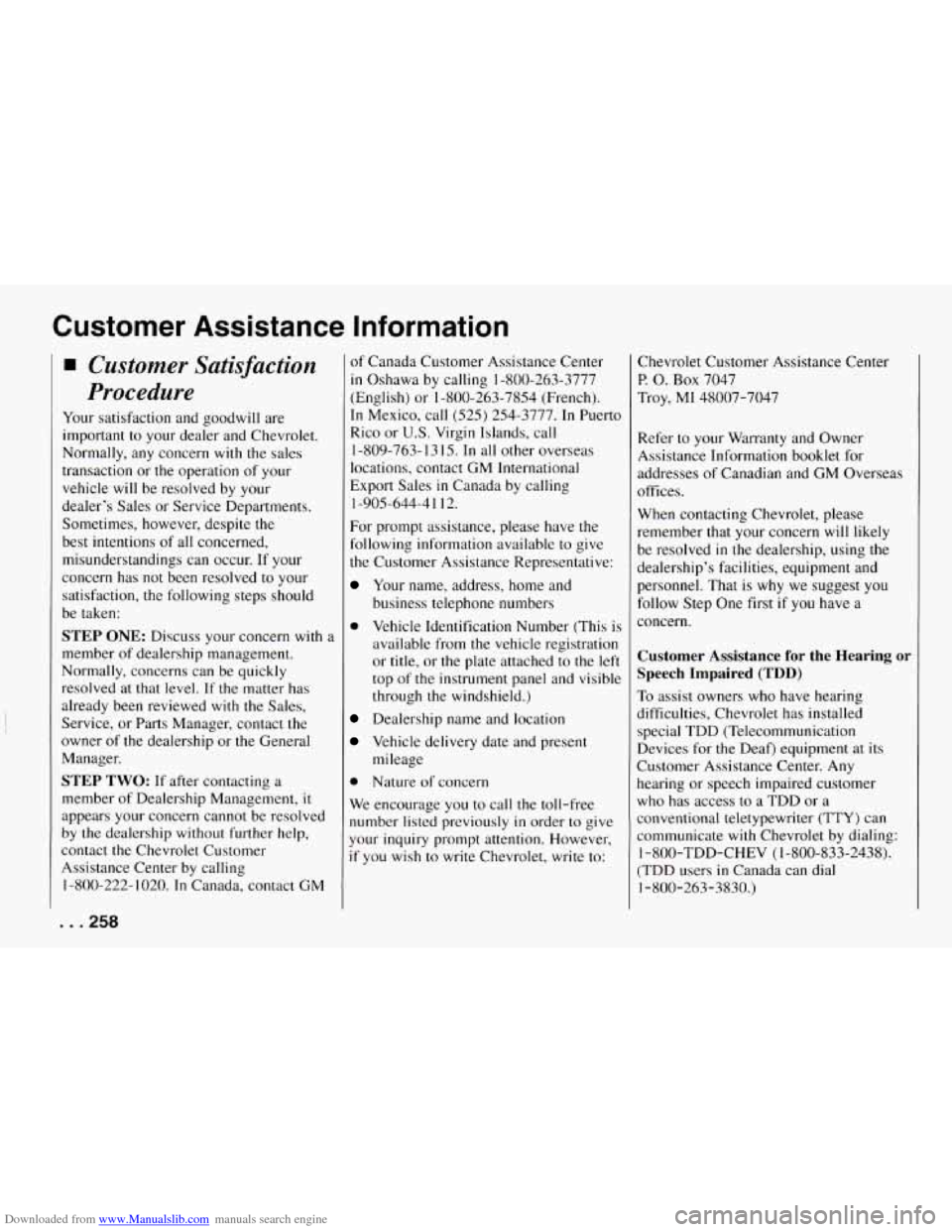

Downloaded from www.Manualslib.com manuals search engine Customer Assistance Information
Custumer satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and Chevrolet.
Normally, any concern with the sales
transaction or the operation of your
vehicle will be resolved by your
dealer’s Sales or Service Departments.
Sometimes, however, despite
the
best intentions of all concerned,
misunderstandings can occur. If your
concern has not been resolved to your satisfaction, the following steps should
be taken:
STEP ONE: Discuss your concern with a
member of dealership management.
Normally, concerns can be quickly
resolved at that level. If the matter has
already been reviewed
with the Sales,
Service, or Parts Manager, contact the
owner of the dealership
or the General
Manager.
STEP TWO: If after contacting a
member of Dealership Management,
it
appears your concern cannot be resolved
by the dealership without further help,
contact the Chevrolet Customer
Assistance Center by calling
1-800-222-1020.
In Canada, contact GM
of Canada Customer Assistance Center
in Oshawa by calling 1-800-263-3777
(English) or 1-800-263-7854 (French).
In Mexico, call (525) 254-3777. In Puerto
Rico or
U.S. Virgin Islands, call
1-809-763-
13 15. In all other overseas
locations, contact
GM lnternational
Export Sales
in Canada by calling
For prompt assistance, please have the
following information available to give
the Customer Assistance Representative:
Your name, address, home and
business telephone numbers
0 Vehicle Identification Number (This is
available from the vehicle registration
or title, or the plate attached to the left
top of the instrument panel and visible
through the windshield.)
1-905-644-4
I 12.
Dealership name and location
Vehicle delivery
date and present
0 Nature of concern
We encourage you to call the toll-free
number listed previously
in order to give
your inquiry prompt attention. However,
if you wish to write Chevrolet, write to:
mileage Chevrolet
Customer Assistance Center
P.
0. Box 7047
Troy,
MI 48097-7047
Refer to your Warranty and Owner
Assistance Information booklet for
addresses of Canadian and GM Overseas
offices.
When contacting Chevrolet, please
remember that your concern
will likely
be resolved
in the dealership, using the
dealership’s facilities, equipment and
personnel. That
is why we suggest you
follow Step One first if you have a
concern.
Customer Assistance for the Hearing or
Speech Impaired
(TDD)
To assist owners who have hearing
difficulties, Chevrolet
has installed
special TDD (Telecommunication
Devices for the Deaf) equipment at its
Customer Assistance Center. Any
hearing or speech impaired customer
who has access to a TDD or a
conventional teletypewriter
(TTY) can
communicate with Chevrolet by dialing:
(TDD users
in Canada can dial
I -800-TDD-CHEV (1 -800-833-2438).
1-800-263-3830.)
. . ,258
