CHEVROLET CAMARO 1994 4.G Owners Manual

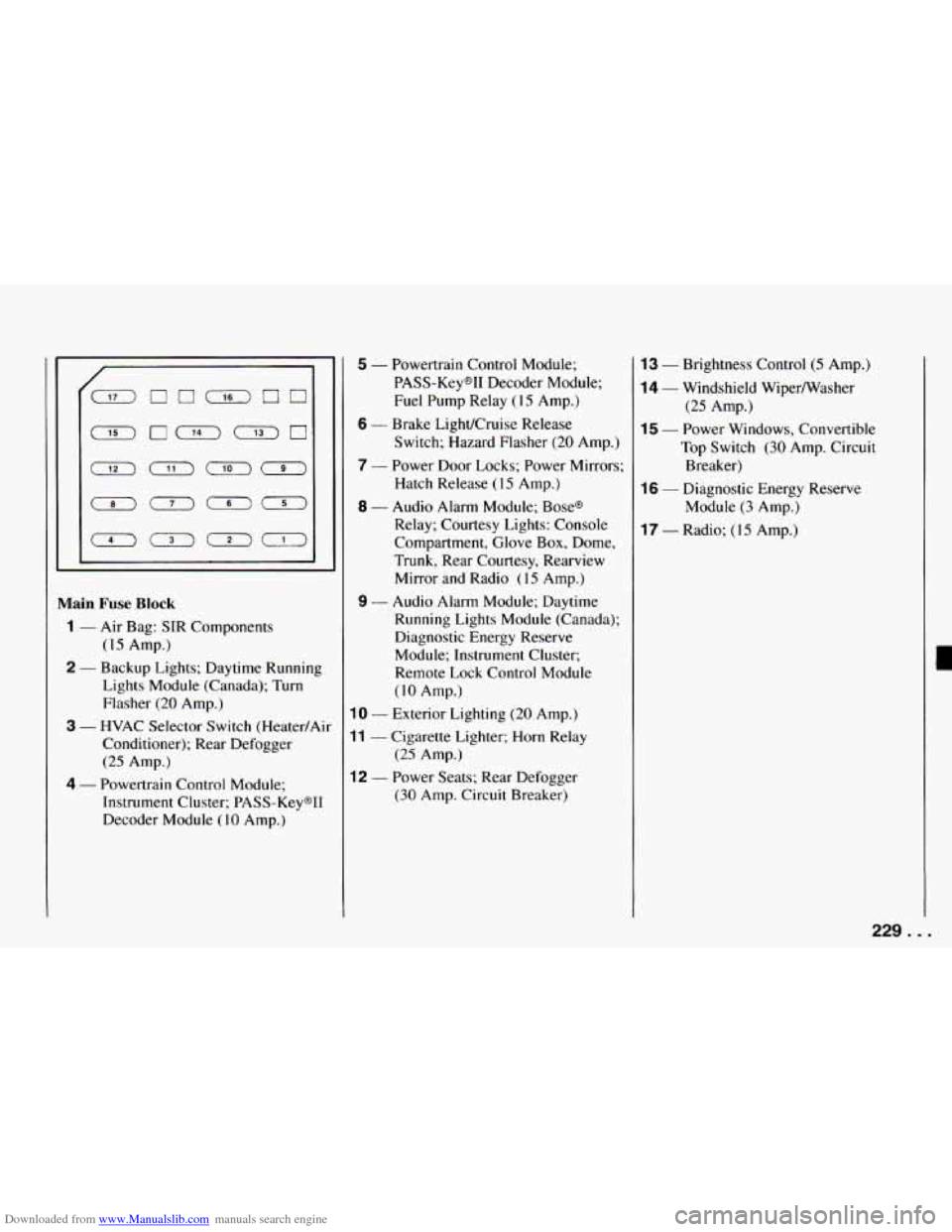

Downloaded from www.Manualslib.com manuals search engine Main Fuse Block
1 - Air Bag: SIR Components
2 - Backup Lights; Daytime Running
(15 Amp.)
Lights Module (Canada); Turn
Flasher
(20 Amp.)
3 - HVAC Selector Switch (Heater/Air
Conditioner); Rear Defogger
(25 Amp.)
4 - Powertrain Control Module;
Instrument Cluster; PASS-Keys11
Decoder Module
(10 Amp.)
5 - Powertrain Control Module;
PASS-Keys11 Decoder Module;
Fuel Pump Relay
(1 5 Amp.)
6 - Brake LighVCruise Release
Switch; Hazard Flasher
(20 Amp.)
7 - Power Door Locks; Power Mirrors;
Hatch Release
(15 Amp.)
8 - Audio Alarm Module; Bases
Relay; Courtesy Lights: Console
Compartment, Glove Box, Dome,
Trunk, Rear Courtesy, Rearview
Mirror and Radio
(1 5 Amp.)
9 - Audio Alarm Module; Daytime
Running Lights Module (Canada);
Diagnostic Energy Reserve
Module; Instrument Cluster;
Remote Lock Control Module
(IO Amp.)
10 - Exterior Lighting (20 Amp.)
11 - Cigarette Lighter; Horn Relay
12 - Power Seats: Rear Defogger
(25 Amp.)
(30 Amp. Circuit Breaker)
13 - Brightness Control (5 Amp.)
14 - Windshield Wipermasher
(25 Amp.)
15 - Power Windows, Convertible
Top Switch
(30 Amp. Circuit
Breaker)
16 - Diagnostic Energy Reserve
Module
(3 Amp.)
17 - Radio; ( 15 Amp.)
229. . .

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
E
F
D C B
G H J

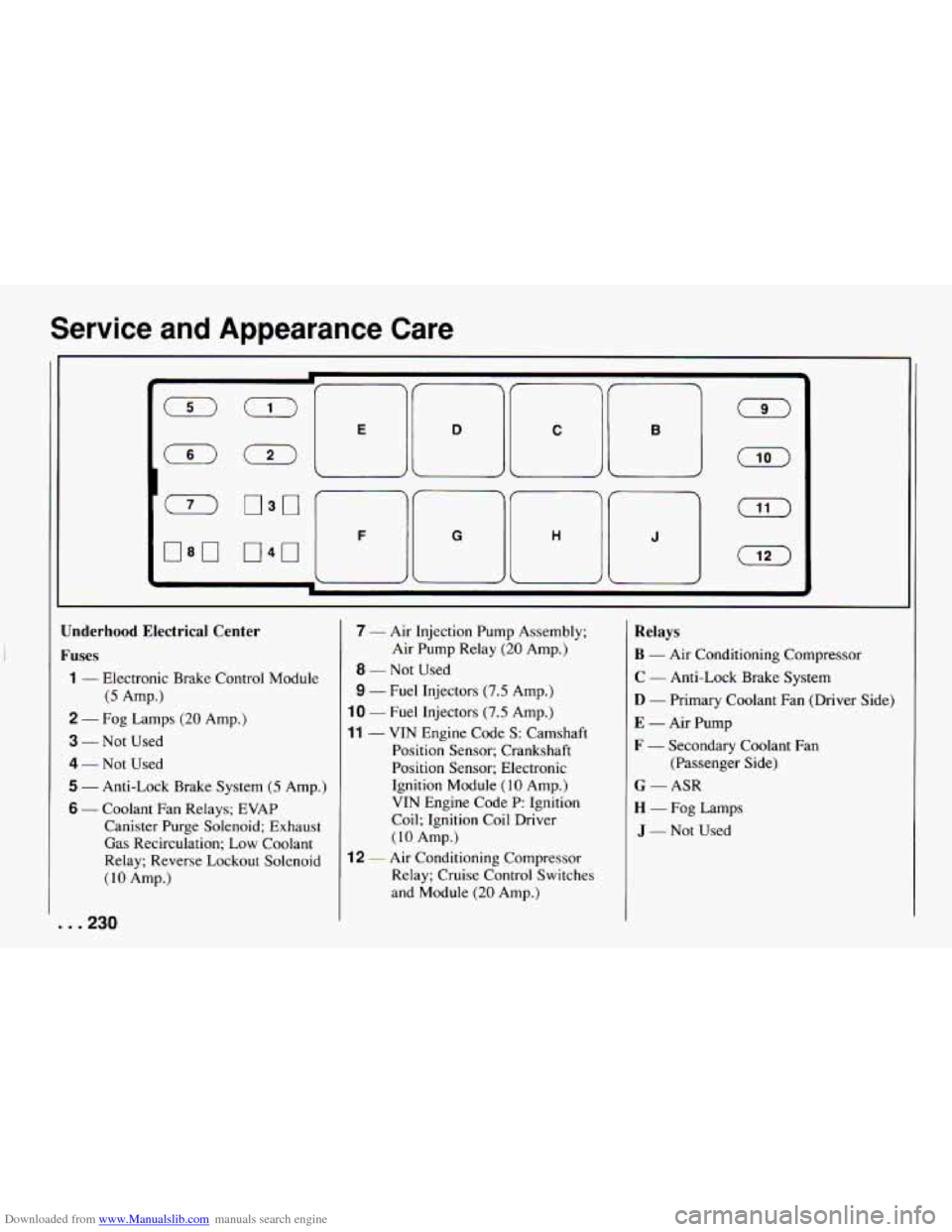

Jnderhood Electrical Center
'uses
1 - Electronic Brake Control Module
2 - Fog Lamps (20 Amp.)
3 - Not Used
4 - Not Used
5 - Anti-Lock Brake System (5 Amp.)
6 - Coolant Fan Relays; EVAP
(5 Amp.)
Canister Purge Solenoid; Exhaust
Gas Recirculation; Low Coolant
Relay; Reverse Lockout Solenoid
( 10 Amp.)
. .230
7 - Air Injection Pump Assembly;
8 - Not Used
9 - Fuel Injectors (7.5 Amp.)
lo - Fuel Injectors (7.5 Amp.)
11 - VIN Engine Code S: Camshaft
Air Pump Relay
(20 Amp.)
Position Sensor; Crankshaft
Position Sensor; Electronic
Ignition Module
(10 Amp.)
VIN Engine Code P: Ignition
Coil; Ignition Coil Driver
(10 Amp.)
12 - Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
(20 Amp.)
Relays
B - Air Conditioning Compressor
C - Anti-Lock Brake System
D - Primary Coolant Fan (Driver Side)
E - Air Pump
F - Secondary Coolant Fan
(Passenger Side)
G - ASR
H - Fog Lamps
J - Not Used

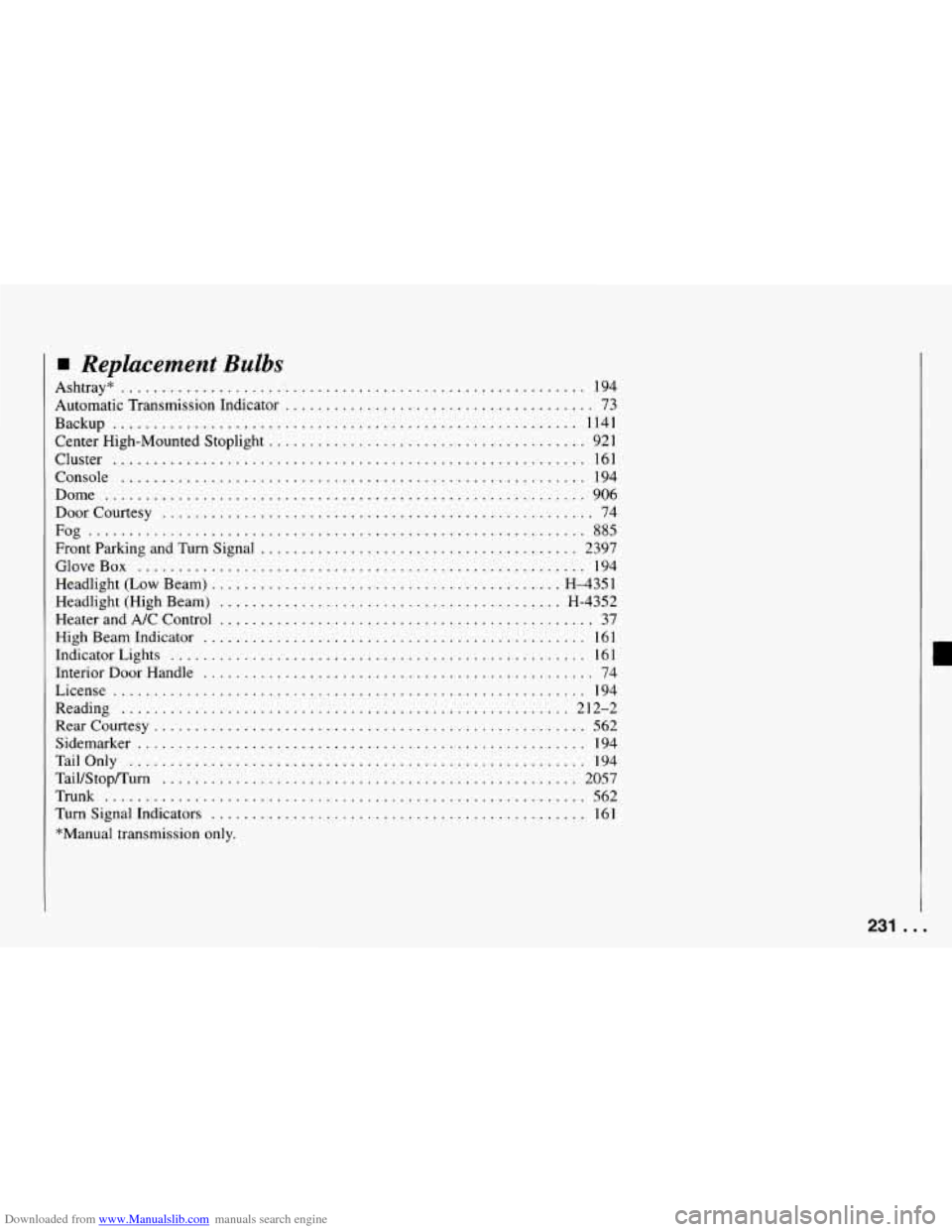

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Ashtray* ......................................................... 194
Automatic Transmission Indicator
...................................... 73
Backup ......................................................... 1141
Center High-Mounted Stoplight
....................................... 921
Cluster
.......................................................... 161
Console ......................................................... 194
Dome
........................................................... 906
DoorCourtesy
..................................................... 74
Fog
............................................................. 885
GloveBox ....................................................... 194
Front
Parking and Turn Signal
....................................... 2397
Headlight (Low Beam)
........................................... H-435 1
Headlight (High Beam) .......................................... H-4352
High Beam Indicator
............................................... 161
Heater and
A/C Control
.............................................. 37
IndicatorLights
................................................... 161
Interior Door Handle
................................................ 74
License .......................................................... 194
Reading
....................................................... 212-2
Rearcourtesy
..................................................... 562
Sidemarker ....................................................... 194
TailOnly
........................................................ 194
Tail/Stop/Turn
................................................... 2057
Trunk
........................................................... 562
Turn Signal Indicators .............................................. 161
"Manual transmission only .
231 ...

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care

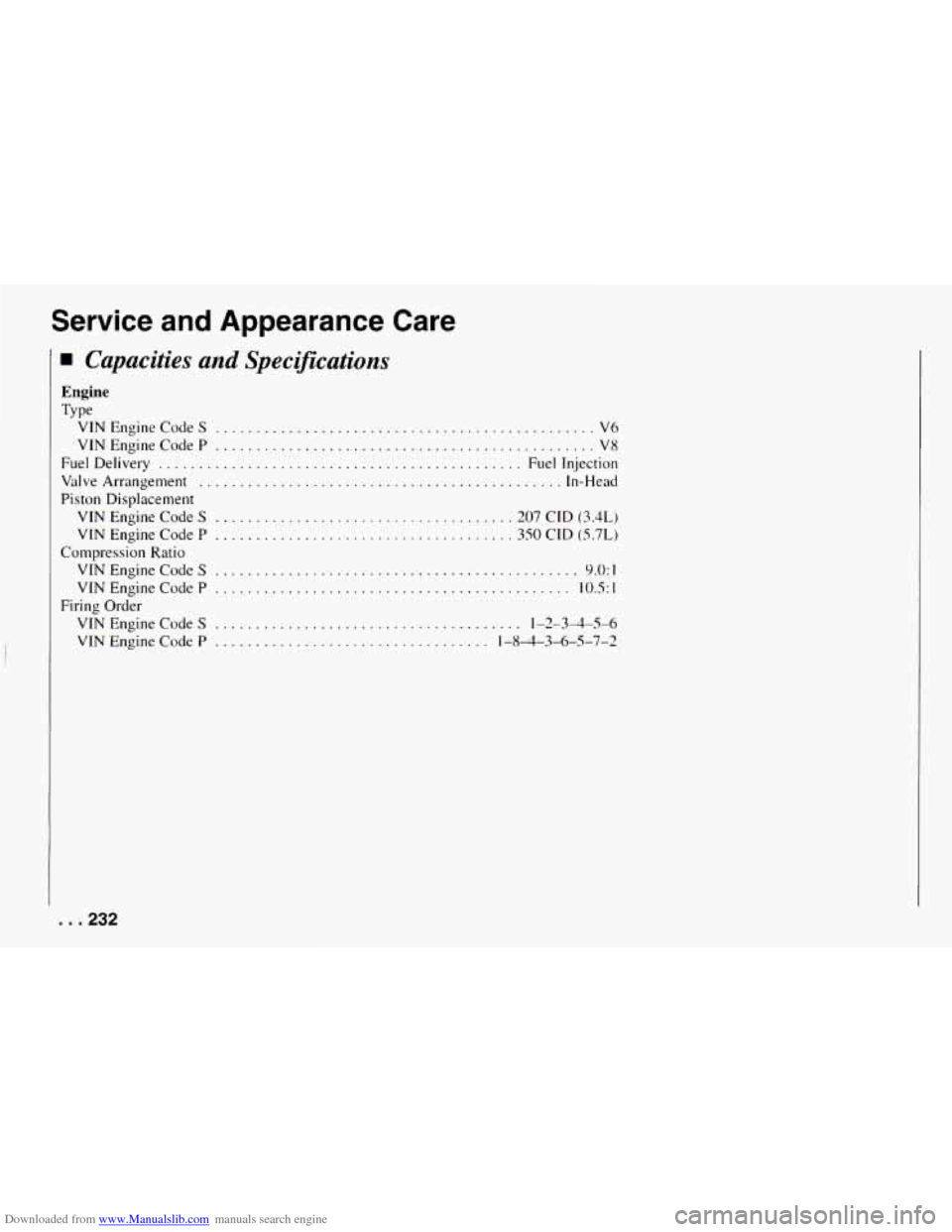

I 4 Capacities and Specifications
Engine
TY Pe
VINEngineCodeS
............................................... V6
VINEngineCodeP
............................................... V8
Fuel Delivery ............................................. Fuel Injection
Valve Arrangement
............................................. In-Head
VIN Engine Code S ..................................... 207 CID (3.4L)
Piston
Displacement
VIN Engine Code P ..................................... 350 CID (5.7L)
Compression Ratio VIN Engine Code
S ............................................. 9.0: I
VIN Engine Code P ............................................ 10.5: I
Firing Order
VINEngineCodeS
...................................... 1-2-3-4-5-6
VIN Engine Code P .................................. 1-84-3-6-5-7-2
.. .232

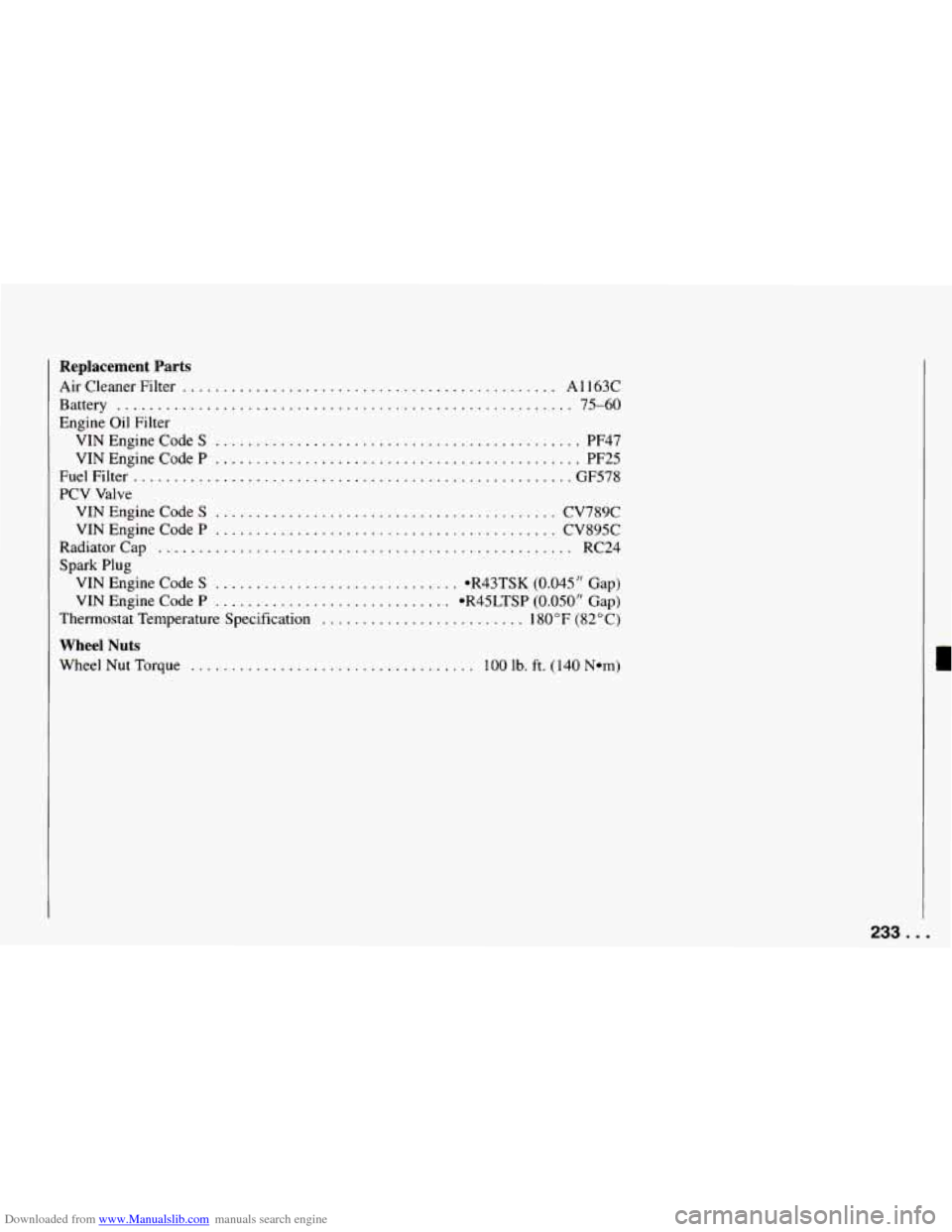

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
AirCleanerFilter .............................................. A1163C
Battery
........................................................ 75-60
Engine Oil Filter
VINEngineCodeS
............................................. PF47
VIN Engine Code
P ............................................. PF25
FuelFilter
...................................................... GF578
PCV Valve VIN Engine Code
S .......................................... CV789C
VIN Engine Code
P .......................................... CV895C
VIN Engine Code S .............................. oR43TSK (0.045" Gap)
VIN Engine Code P
............................. oR45LTSP (0.050" Gap)
Thermostat Temperature Specification
......................... 180" F (82" C)
Wheel
Nut Torque ................................... 100 Ib. ft. (140 Nom)
Radiatorcap ................................................... RC24
Spark Plug
Wheel Nuts
233. ..

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care

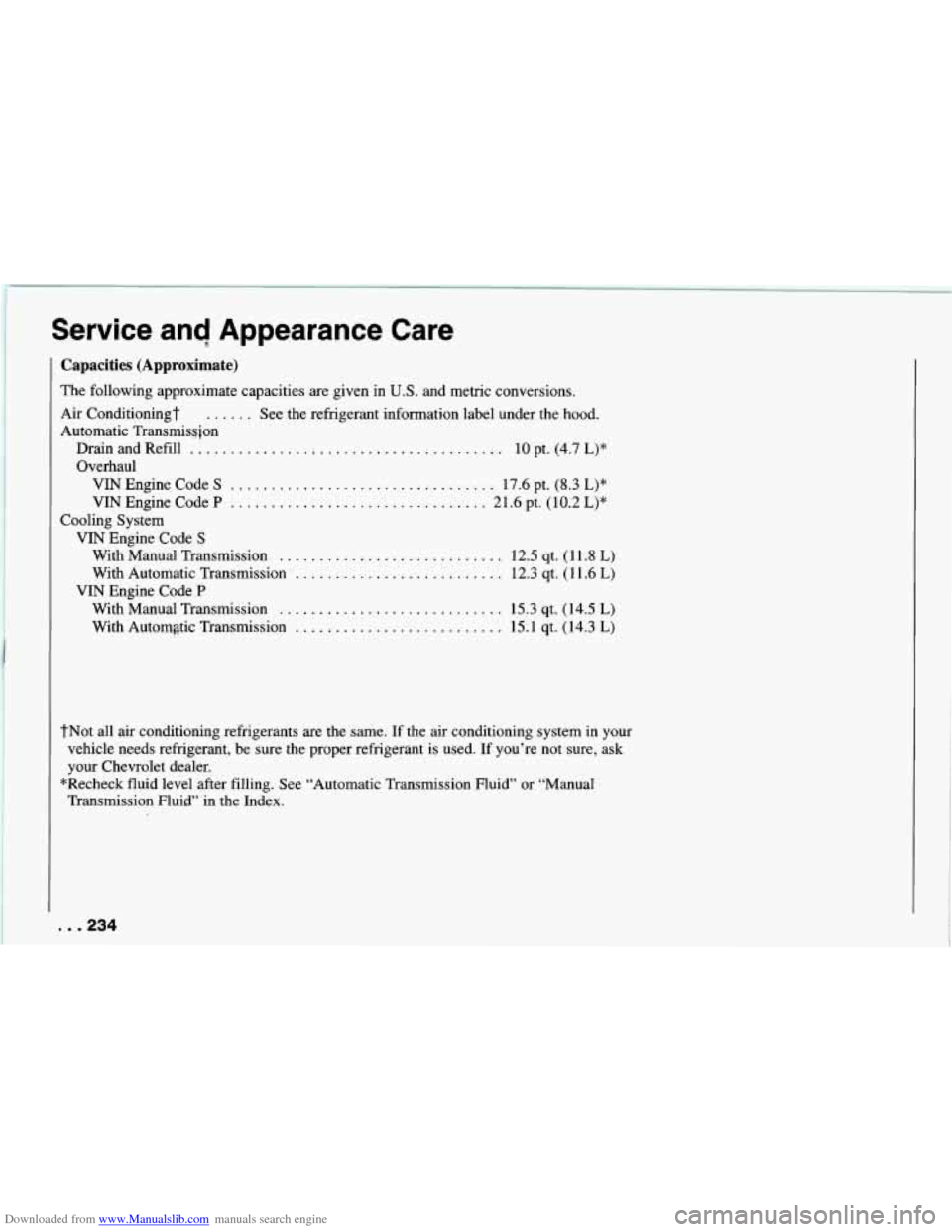

Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Air Conditioningt
...... See the refrigerant information label under the hood.
Automatic Transmissjon Drain and Refill
....................................... 10 pt. (4.7 L)*
VIN Engine Code S ................................. 17.6 pt. (8.3 L)*
VIN Engine Code P ................................ 21.6 pt. (10.2 L)*
With Manual Transmission
............................ 12.5 qt. (1 1.8 L)
With Automatic Transmission .......................... 12.3 qt. (1 1.6 L)
With Manual Transmission ............................ 15.3 qt. (14.5 L)
With Autoqtic Transmission .......................... 15.1 qt. (14.3 L)
Overhaul
Cooling System VIN Engine Code
S
VIN Engine Code P
tNot all air conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask
your Chevrolet dealer.
Transmission Fluid” in the Index.
*Recheck
fluid level after filling. See “Automatic Transmission Fluid” or “Manual
.. .234

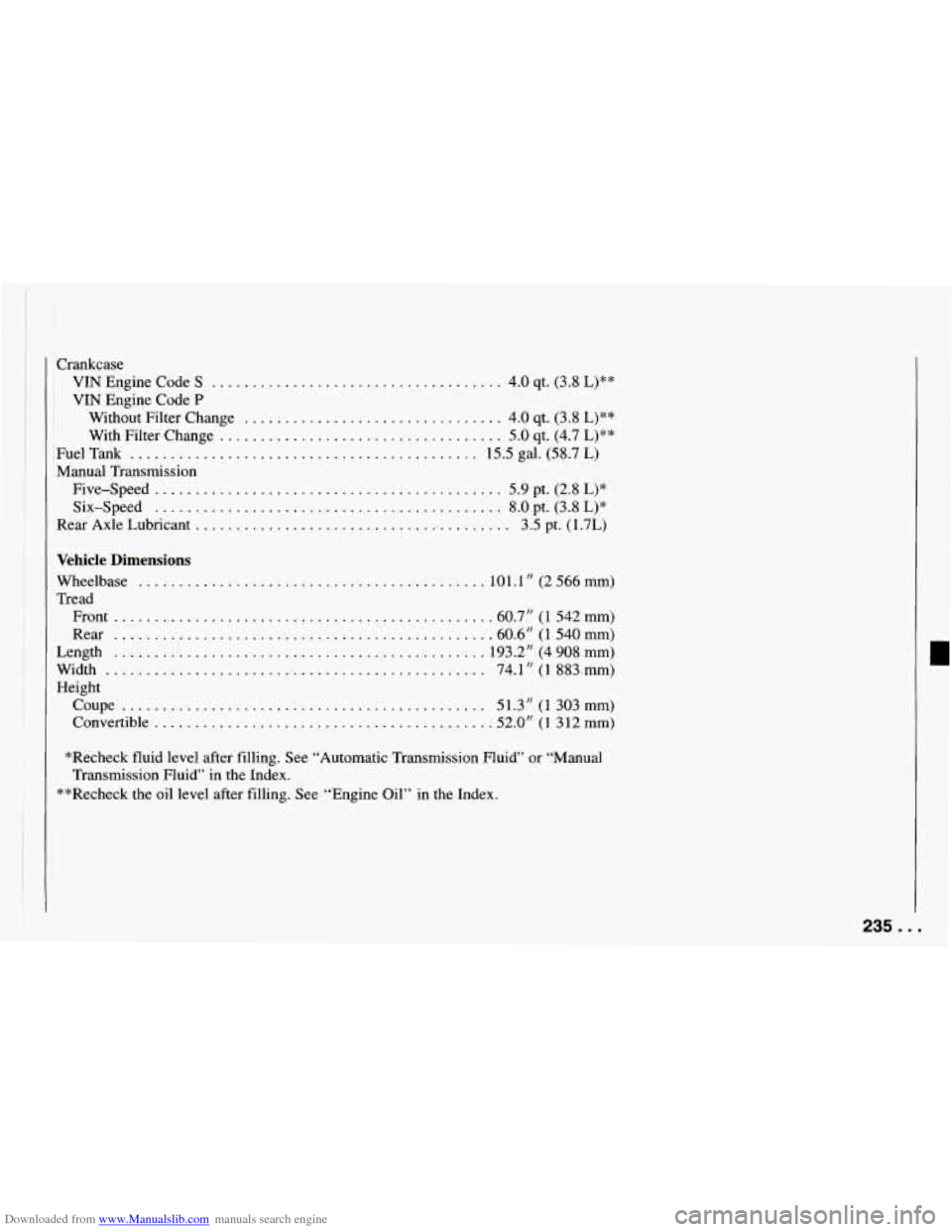

Downloaded from www.Manualslib.com manuals search engine Crankcase
VIN Engine Code S .................................... 4.0 qt. (3.8 L)**
Without Filter Change
................................ 4.0 qt. (3.8 L)**
With Filter Change
................................... 5.0 qt. (4.7 L)**
Fuel Tank ........................................... 15.5 gal. (58.7 L)
Five-Speed
........................................... 5.9 pt. (2.8 L)*
Six-Speed
........................................... 8.0 pt. (3.8 L)*
Rear Axle Lubricant
........................................ 3.5 pt. (1.7L)
VIN Engine Code P
Manual Transmission
Vehicle Dimensions
Tread Wheelbase
........................................... 101.1 ‘I (2 566 mm)
Front
.............................................. .60.7 ‘I (1 542 mm)
Length
.............................................. 193.2” (4 908 mm)
Coupe
............................................. 5 1.3“ (1 303 mm)
Convertible
......................................... .52.0” (1 3 12 mm)
Rear ............................................... .60.6“ (1 540 mm)
Width
............................................... 74.1 ‘I (1 883.mm)
Height
*Recheck fluid level after filling. See “Automatic Transmission Fluid” or “Manual Transmission Fluid” in the Index.
**Recheck the oil level after filling. See “Engine Oil” in the Index.
235. ..

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
L

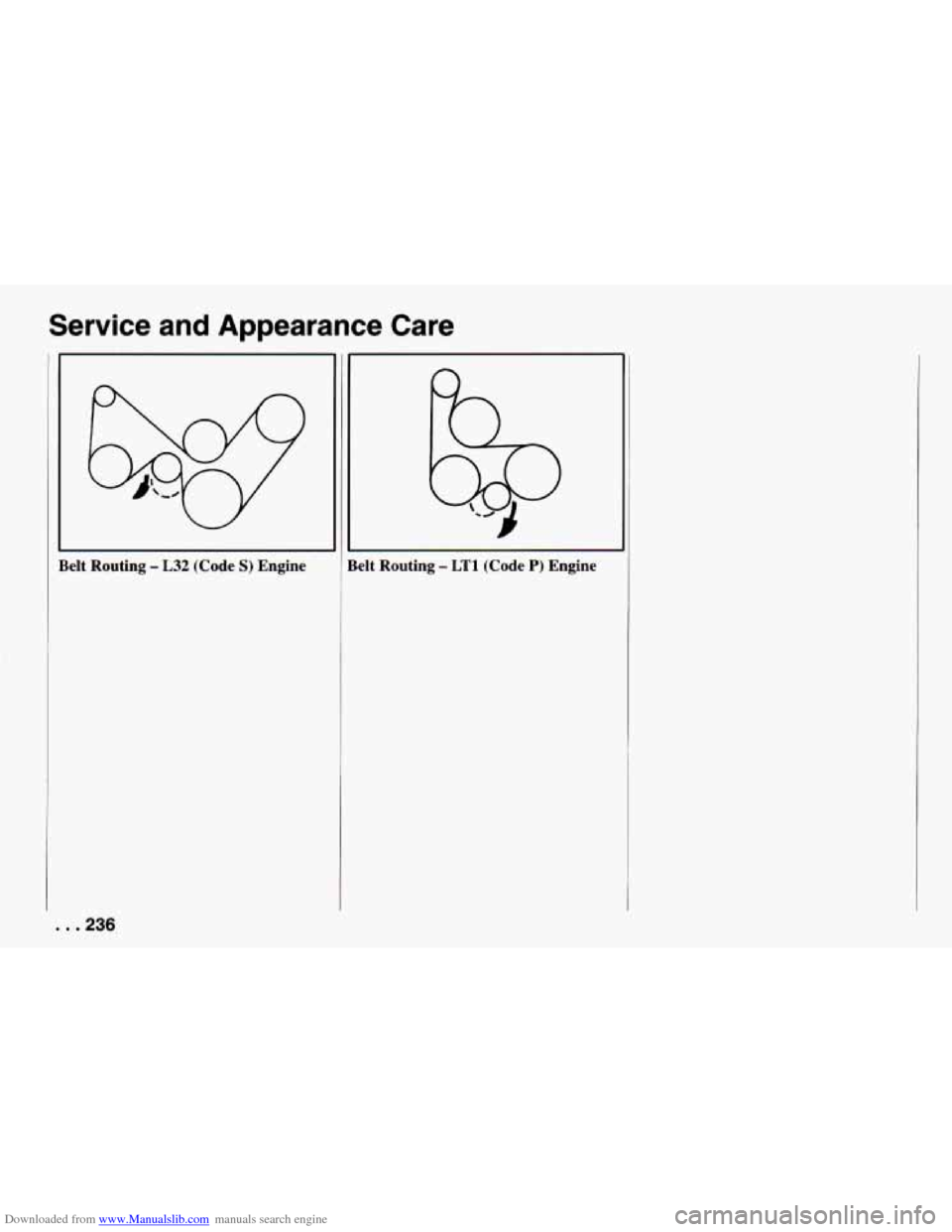

Belt Routing - L32 (Code S) Engine IB
I
Ielt Routing - LT1 (Code P) Engine
. . .236

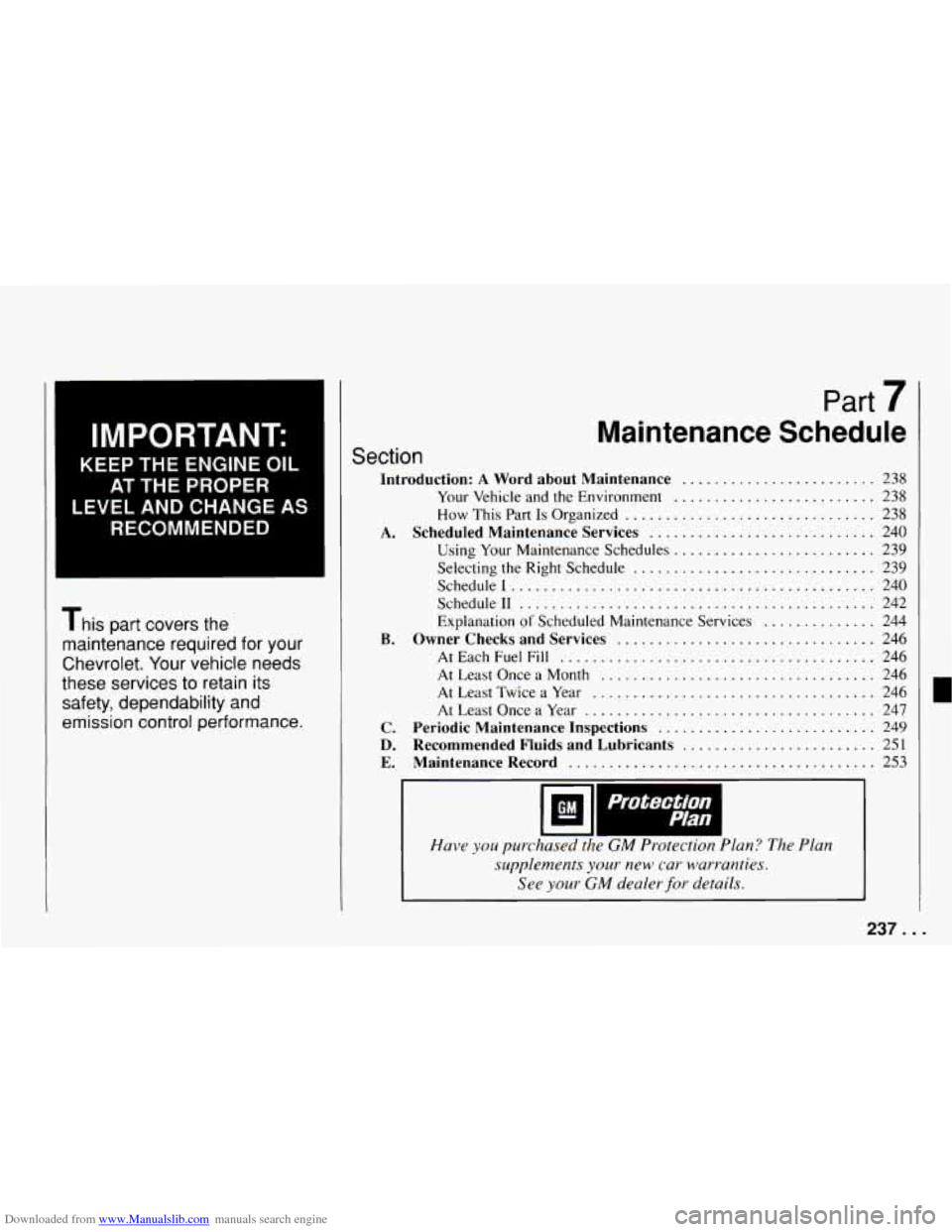

Downloaded from www.Manualslib.com manuals search engine IMPORTANT: I
KEEP THE ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
I
This part covers the
maintenance required for your
Chevrolet
. Your vehicle needs
these services
to retain its
safety. dependability and
emission control performance
.
Part l
Maintenance Schedule
Section
Introduction: A Word about Maintenance ........................ 238
A .
B .
C .
D .
E .
Your Vehicle and the Environment ......................... 238
How This Part Is Organized
............................... 238
Scheduled Maintenance Services ............................ 240
Using Your Maintenance Schedules ......................... 239
Selecting the Right Schedule
.............................. 239
Schedule1
............................................. 240
Schedule11
............................................ 242
Explanation
of Scheduled Maintenance Services .............. 244
Owner Checks and Services ................................ 246
AtEachFuelFill
....................................... 246
At Least Once a Month .................................. 246
AtLeastTwiceaYear
................................... 246
AtLeastOnceaYear
.................................... 247
Periodic Maintenance Inspections ........................... 249
Recommended Fluids and Lubricants ........................ 251
Maintenance Record ...................................... 253
lqq I
Have you purchased the GM Protection Plan? The Plan
supplements
your. new car warranties .
See your GM dealer for details .
237 ...

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

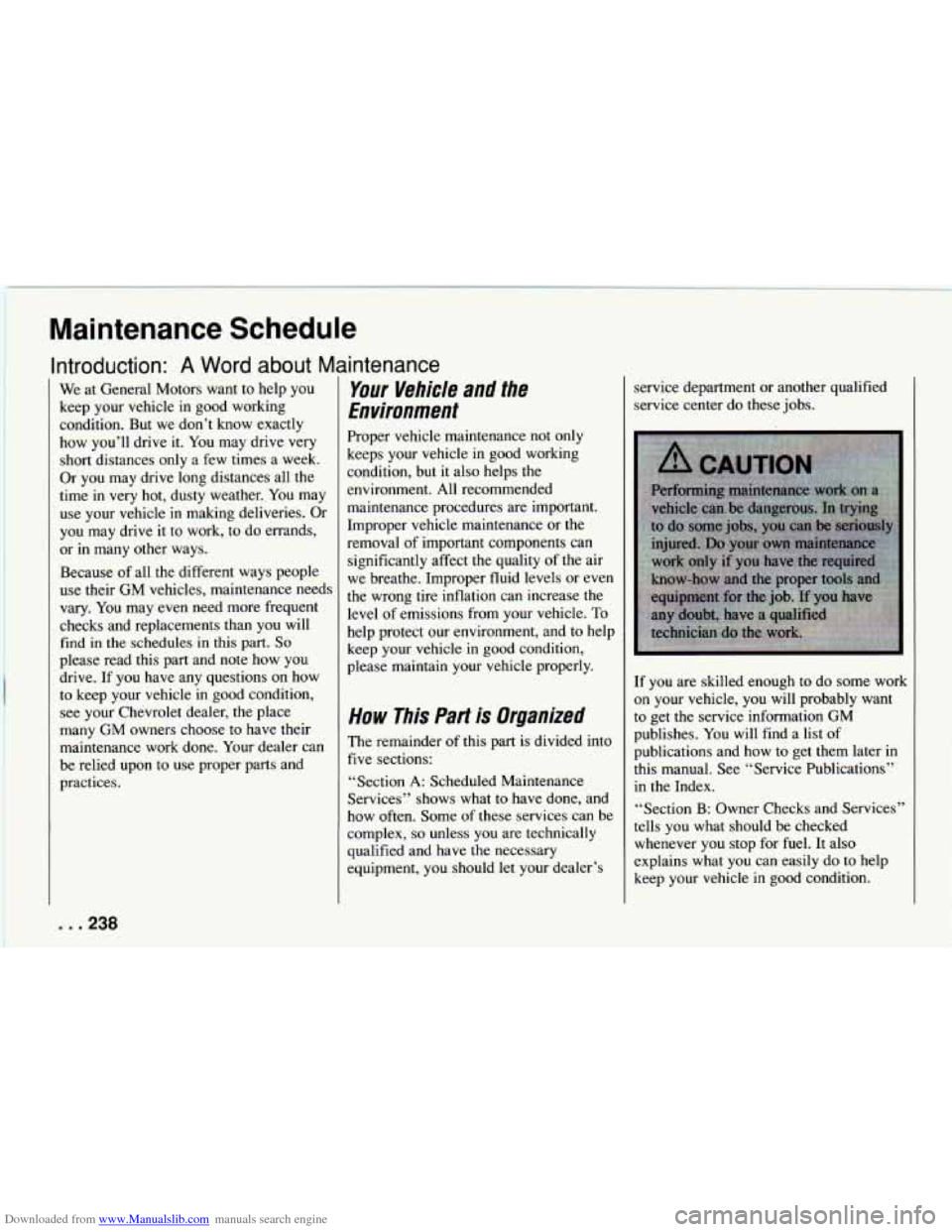

Introduction: A Word about Maintenance
We at General Motors want to help you
keep your vehicle in good working
Condition,
But we don’t how exactly
how you’ll drive it.
You may drive very
short distances only a few times a week.
Or you may drive long distances all the
time in very hot, dusty
weather. You may
use your vehicle in making deliveries. Or
you may drive it to work, to do errands,
or in many other ways.
Because of all the different ways people
use their GM vehicles, maintenance needs
vary. You may even need more frequent
checks
and replacements than you will
find in the schedules in this part. So
please read this part and note how you
drive.
If you have any questions on how
to keep your vehicle in
good condition,
see your Ghevrolet dealer, the place
many GM owners choose to have their
maintenance
work done. Your dealer can
be relied upon to use proper parts and
practices.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
keeps your vehicle in good working
condition,
but it also helps the
environment. All recommended
maintenance procedures are important.
hproper vehicle maintenance or
the
removal of important components can
significantly affect the quality of the air
we breathe. Improper fluid levels or even
the wrong tire inflation can increase the
level of emissions from your vehicle. To
help protect our environment, and to help
keep your vehicle
in good condition,
please maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided into
five sections:
“Section
A: Scheduled Maintenance
Services” shows
what to have done, and
how often. Some of these services can
be
complex, so unless you are technically
qualified and have the necessary
equipment,
you should let your dealer’s service department
or another qualified
service center
do these jobs.
If you are skilled enough to do some work
on
your vehicle, you will probably want
to get the service information GM
publishes, You will find a list of
publications and how to get them later in
this manual. See “Service Publications”
in the
Index.
“Section B: Owner Checks and Services”
tells you what should be checked
whenever
you stop for fuel. It also
explains what you can easily
do to help
keep
your vehicle in good condition.
. . .238
