wipers CHEVROLET CAMARO 1994 4.G Owners Manual

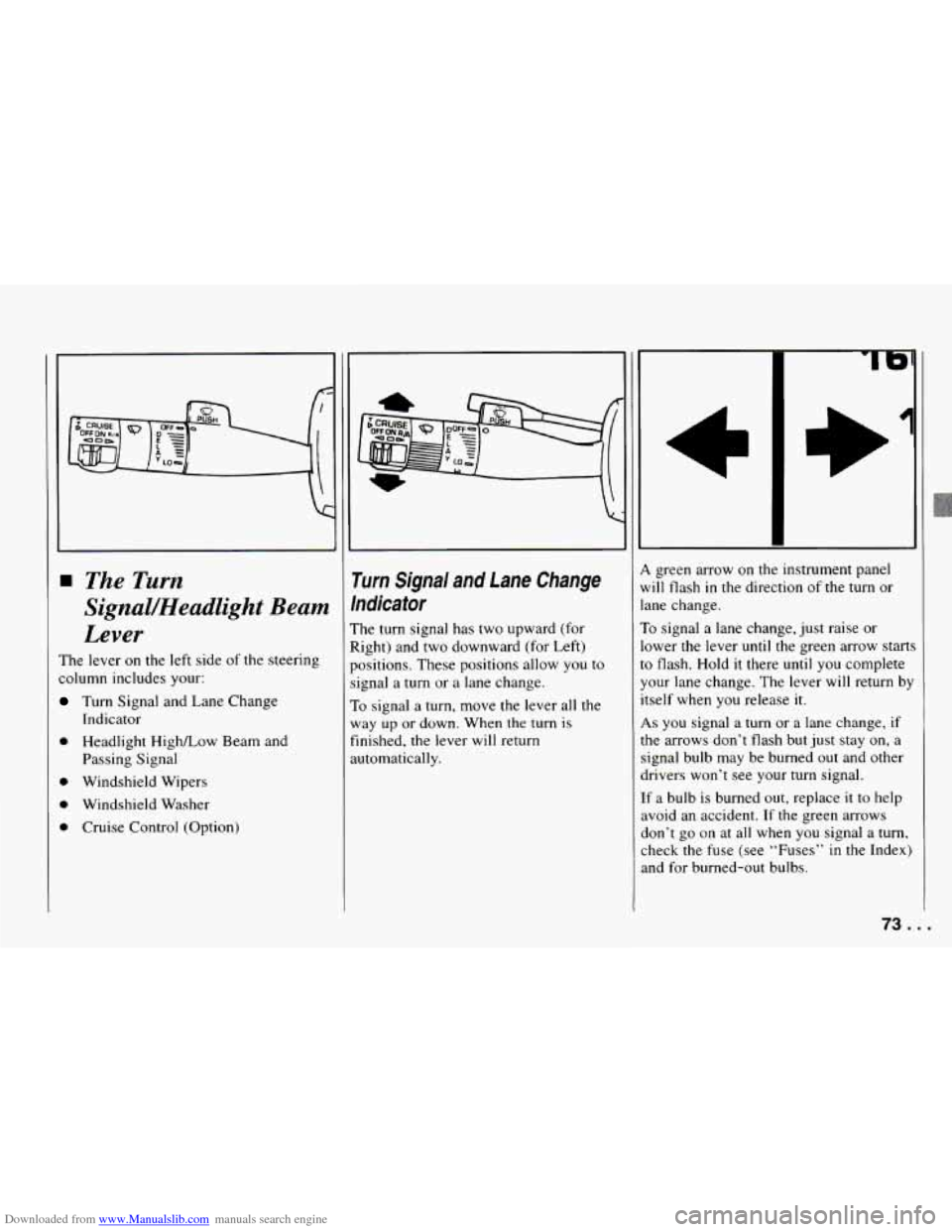

Downloaded from www.Manualslib.com manuals search engine The Turn
Signal’Headlight Beam
Lever
The lever on the left side of the steering
column includes your:
Turn Signal and Lane Change
0 Headlight HighLow Beam and
Passing Signal
0 Windshield Wipers
0 Windshield Washer
0 Cruise Control (Option)
Indicator
rurn Signal and Lane Change
hdicator
:he turn signal has two upward (for
tight) and two downward (for Left)
Iositions. These positions allow you to
ignal
a turn or a lane change.
To signal a turn, move the lever all the
vay
up or down. When the turn is
inished, the lever will return
utomatically.
L green arrow on the instrument panel
dl flash in the direction of the turn or
me change.
’0 signal a lane change, just raise or
3wer the lever
until the green arrow starts
3 flash. Hold it there until you complete
our lane change. The lever will return by
self when you release it.
LS you signal a turn or a lane change, if
le arrows don’t flash but just stay on, a
ignal bulb may be burned out and other
.rivers won’t see your turn signal.
fa bulb is burned out, replace
it to help
void an accident.
If the green arrows
lon’t go
on at all when you signal a turn,
heck
the fuse (see “Fuses” in the Index)
nd for burned-out bulbs.
/3...

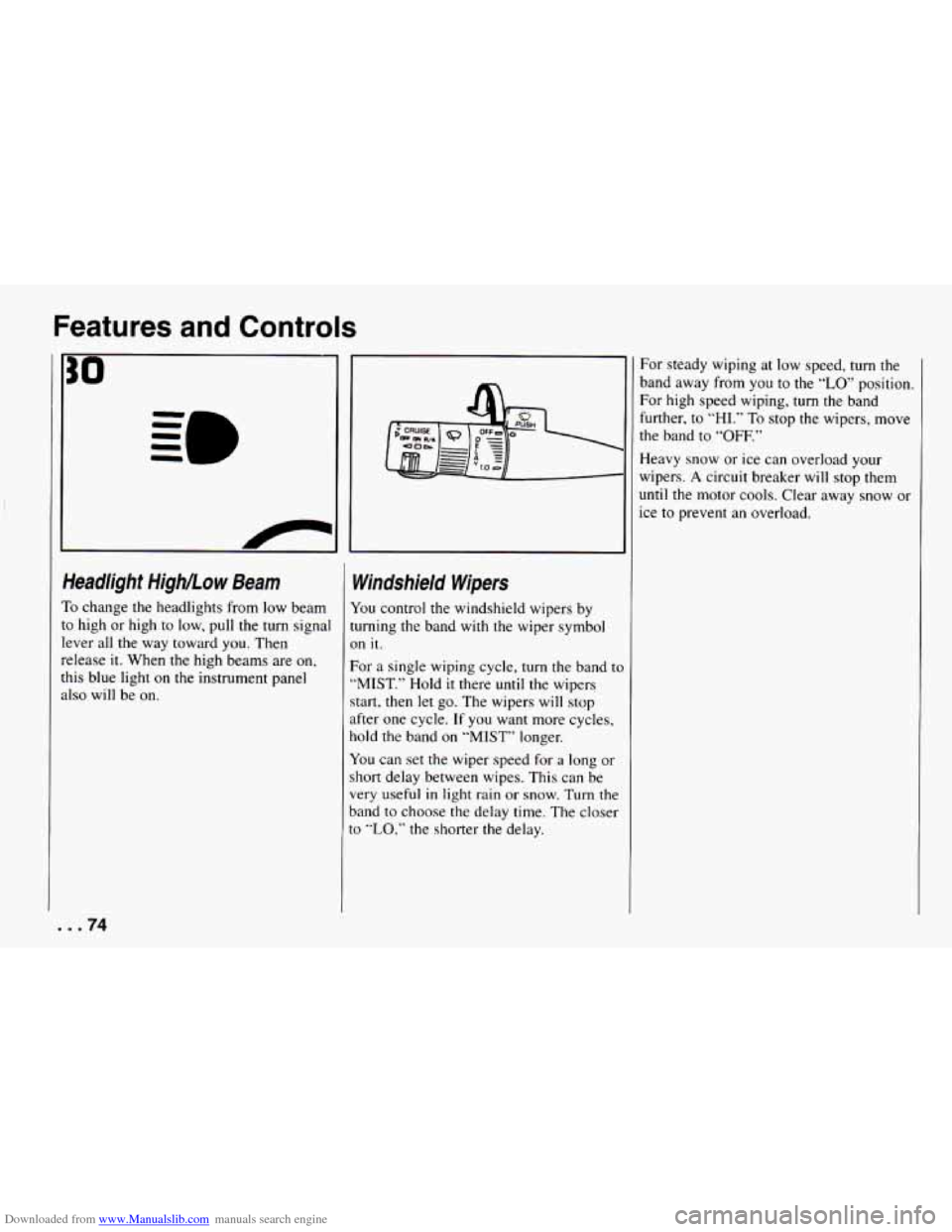

Downloaded from www.Manualslib.com manuals search engine Features and Controls
-- a
feadlight HighLow Beam
’0 change the headlights from low beam
3 high or high to low, pull the turn signal
:ver all the way toward you.
Then
:lease it. When the high beams are on,
lis blue light on the instrument panel
Is0 will be on.
. .74
Windshield Wipers
You control the windshield wipers by
turning the band with the wiper symbol
on it.
For a single wiping cycle,
turn the band tc
“MIST.” Hold it there until the wipers
start, then let go. The wipers will stop
after one cycle. If you want more cycles,
hold the band on “MIST” longer.
You can set the wiper speed for a long or
short delay between wipes. This can be
very useful
in light rain or snow. Turn the
band to choose the delay time. The closer
to
“LO,” the shorter the delay. For
steady wiping at low speed, turn the
band away from you
to the “LO’ position.
For high speed wiping, turn the band
further, to
“HI.” To stop the wipers, move
the band to “OFF.”
Heavy snow or ice can overload your
wipers.
A circuit breaker will stop them
until the motor cools. Clear away snow
or
ice to prevent an overload.

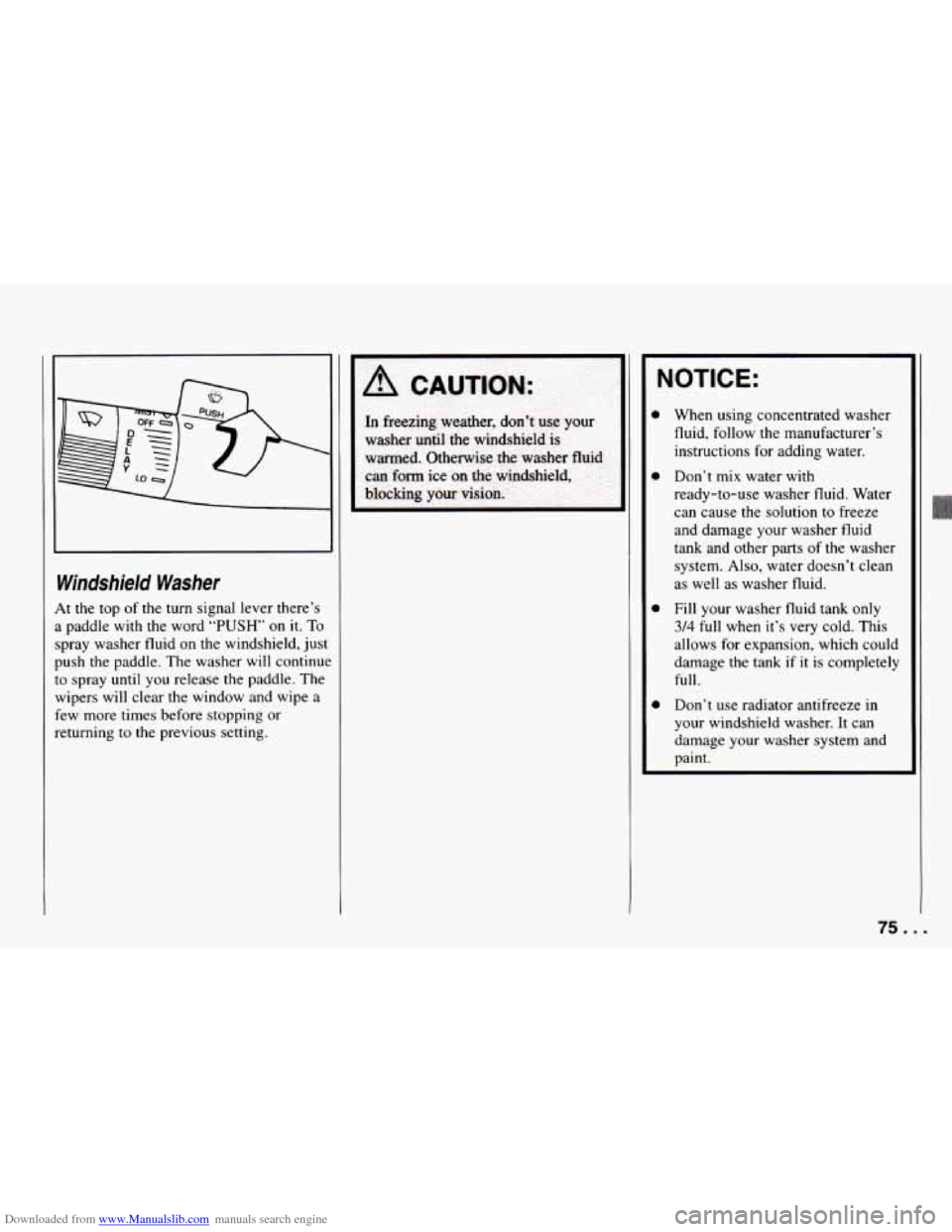

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the turn signal lever there’s
a paddle with the word
“PUSH” on it. To
spray washer fluid on the windshield, just
push the paddle. The washer will continue
to spray until you release the paddle. The
wipers will clear the window and wipe a
few more times before stopping
or
returning to the previous setting.
In freezing weather, don’t use your
washer until the windshield is
warmed. Otherwise the washer fluid
can form ice on the windshield,
blocking your vision.
NOTICE:
e
e
0
e
When using concentrated washer
fluid, follow the manufacturer’s
instructions for adding water.
Don’t mix water with
ready-to-use washer fluid. Water
can cause the solution to freeze
and damage your washer fluid
tank and other parts of the washer
system. Also, water doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only
314 full when it’s very cold. This
allows for expansion, which could
damage the tank
if it is completely
full.
Don’t use radiator antifreeze in
your windshield washer. It can
damage your washer system and
paint.
75. .

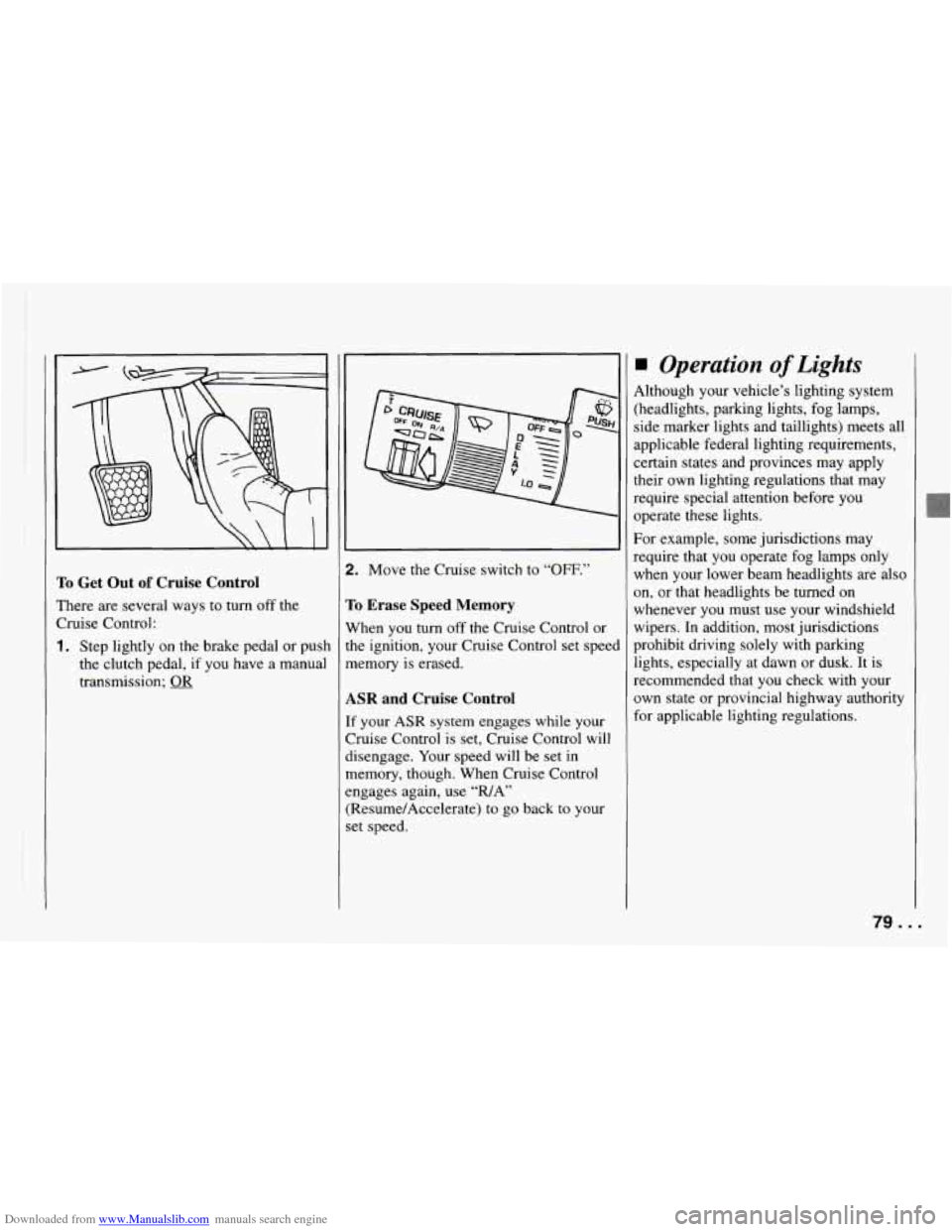

Downloaded from www.Manualslib.com manuals search engine To Get Out of Cruise Control
There are several ways to turn off the
Cruise Control:
1. Step lightly on the brake pedal or push
the clutch pedal, if you have a manual
transmission;
2. Move the Cruise switch to “OFF.”
To Erase Speed Memory
When you turn off the Cruise Control or
the ignition, your Cruise Control set speel
memory is erased.
ASR and Cruise Control
If your ASR system engages while your
Cruise Control is set, Cruise Control will
disengage. Your speed will be set in
memory, though. When Cruise Control
engages again, use “WAY’
(Resume/Accelerate) to
go back to your
set speed.
Operation of Lights
4lthough your vehicle’s lighting system
:headlights, parking lights, fog lamps,
side marker lights and taillights) meets all
ipplicable federal lighting requirements,
Zertain states and provinces may apply
:heir own lighting regulations that may
require special attention before you
>perate these lights.
For example, some jurisdictions may
require that you operate fog lamps only
when your lower beam headlights are also
m, or that headlights be turned on
whenever you must use your windshield
wipers. In addition, most jurisdictions
prohibit driving solely with parkmg
lights, especially at dawn or dusk. It is
recommended that you check with your
own state or provincial highway authority
for applicable lighting regulations.
/Y...

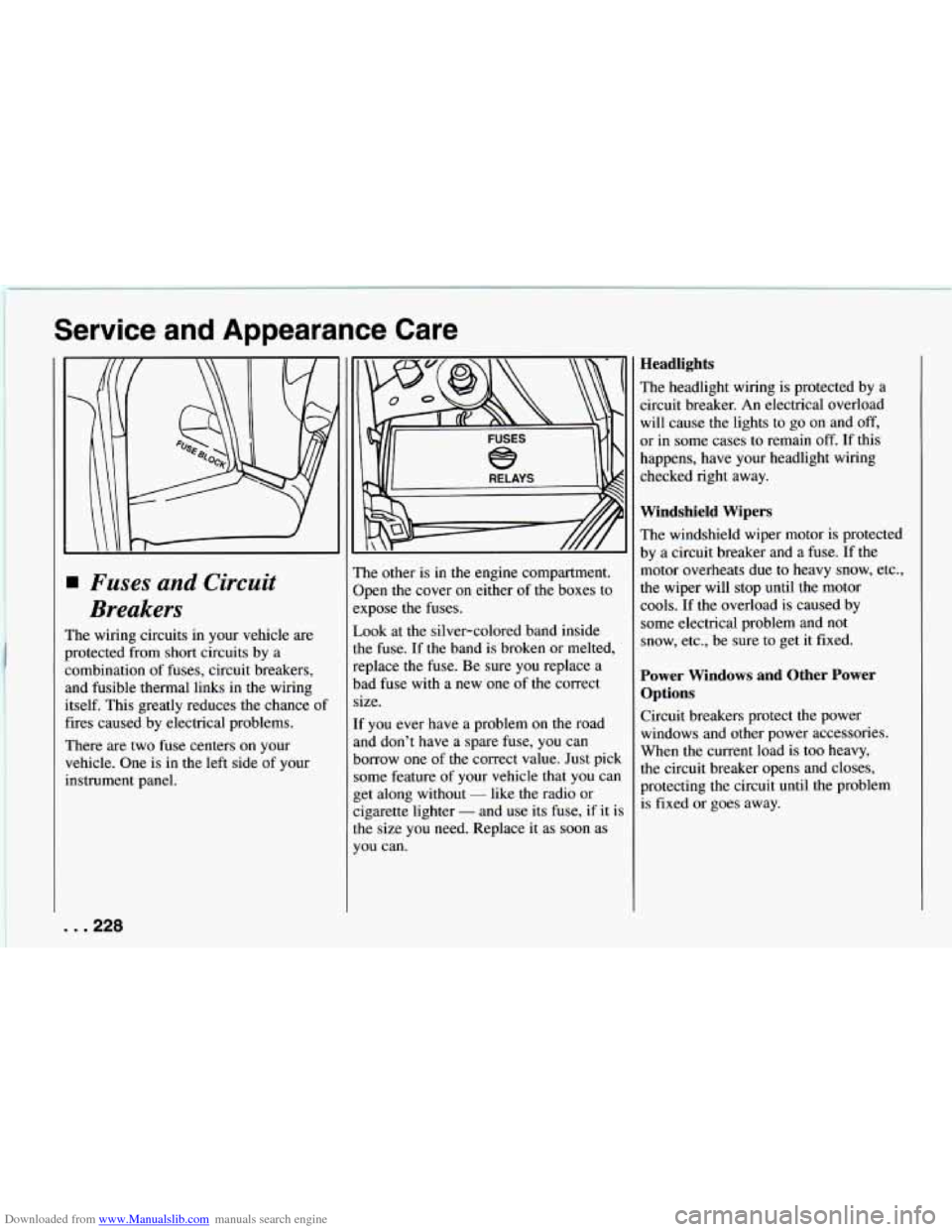

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
Fuses and Circuit
Breakers
The wiring circuits in your vehicle are
protected from short circuits by a
combination of fuses, circuit breakers,
and fusible thermal links in the wiring
itself. This greatly reduces the chance of
fires caused by electrical problems.
There are two fuse centers on your
vehicle. One is in the left side of your
instrument panel. The other
is in the engine compartment.
Open the cover on either of the boxes to
expose
the fuses.
Look at the silver-colored band inside
the fuse.
If the band is broken or melted,
replace the fuse. Be sure you replace a
bad fuse
with a new one of the correct
size.
If you ever have a problem on the road
and don’t have a spare fuse, you can
borrow one of the correct value. Just pick
some feature of your vehicle that you car
get along without
- like the radio or
cigarette lighter
- and use its fuse, if it i
the size you need. Replace it as soon as
you can.
Headlights
The headlight wiring is protected by a
circuit breaker. An electrical overload
will cause the lights to go on and off,
or
in some cases to remain off. If this
happens, have your headlight wiring
checked right away.
Windshield Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse. If the
motor overheats due to heavy snow, etc.,
the wiper will stop until the motor
cools. If the overload is caused by
some electrical problem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power
Options
Circuit breakers protect the power
windows and other power accessories.
When the current load is too heavy,
the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed or goes away.
. . .228

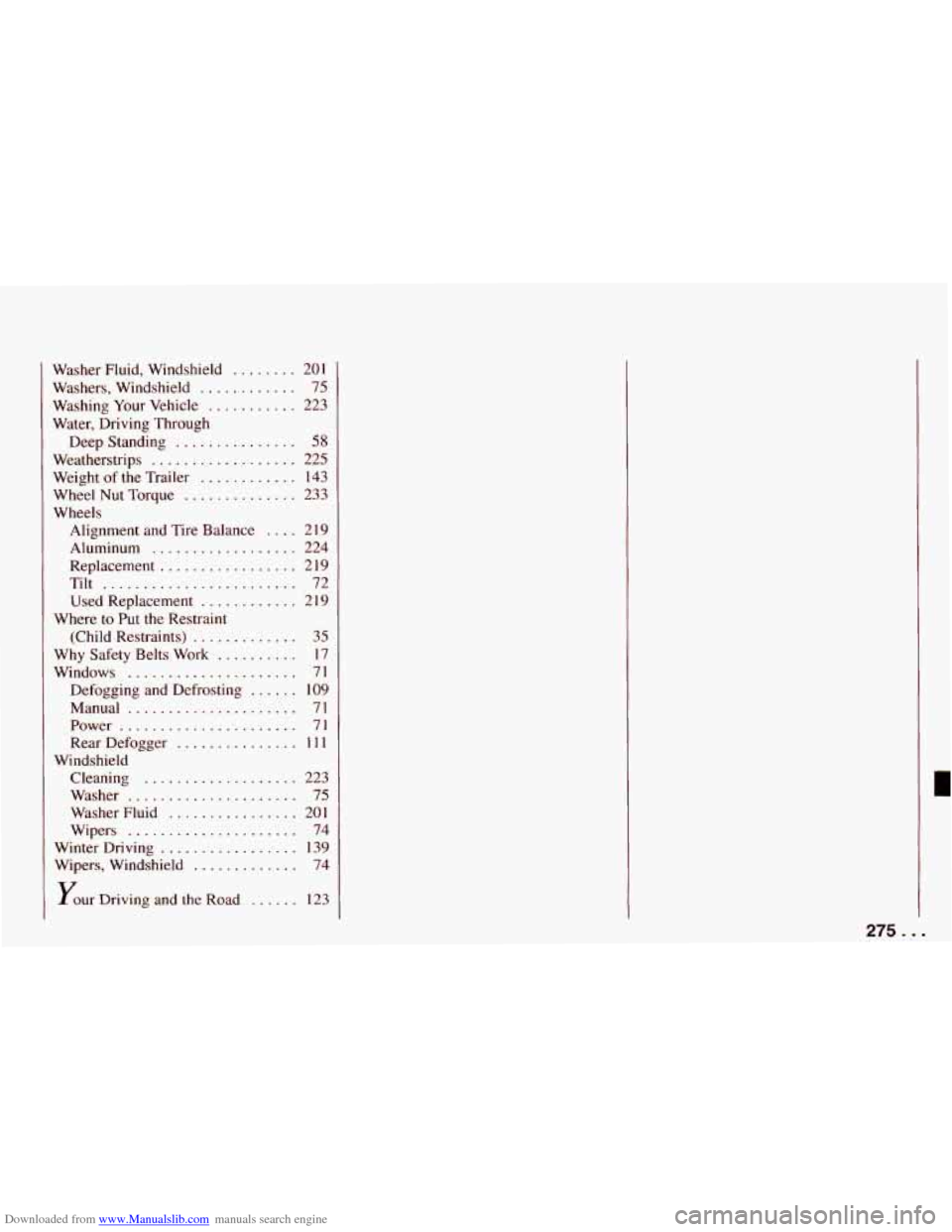

Downloaded from www.Manualslib.com manuals search engine Washer Fluid. Windshield ........ 201
Washers. Windshield
............ 75
Washing Your Vehicle
........... 223
Water. Driving Through
Deep Standing
............... 58
Weatherstrips .................. 225
Weight of the Trailer
............ 143
Wheel
Nut Torque .............. 233
Wheel
s
Alignment and Tire Balance .... 219
Aluminum
.................. 224
Replacement
................. 219
Tilt
........................ 72
Used Replacement
............ 219
Where to
Put the Restraint
(Child Restraints)
............. 35
Why Safety Belts Work
.......... 17
Windows
..................... 71
Defogging and Defrosting
...... 109
Manual
..................... 71
Power
...................... 71
Rear Defogger
............... 111
Cleaning ................... 223
Washer
..................... 75
Washer Fluid ................ 201
Wipers
..................... 74
Winter Driving
................. 139
Wipers. Windshield
............. 74
xur Driving and the Road
...... 123
Windshield
275 ...
