CHEVROLET CAMARO 1995 4.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 1995, Model line: CAMARO, Model: CHEVROLET CAMARO 1995 4.GPages: 388, PDF Size: 19.69 MB
Page 301 of 388

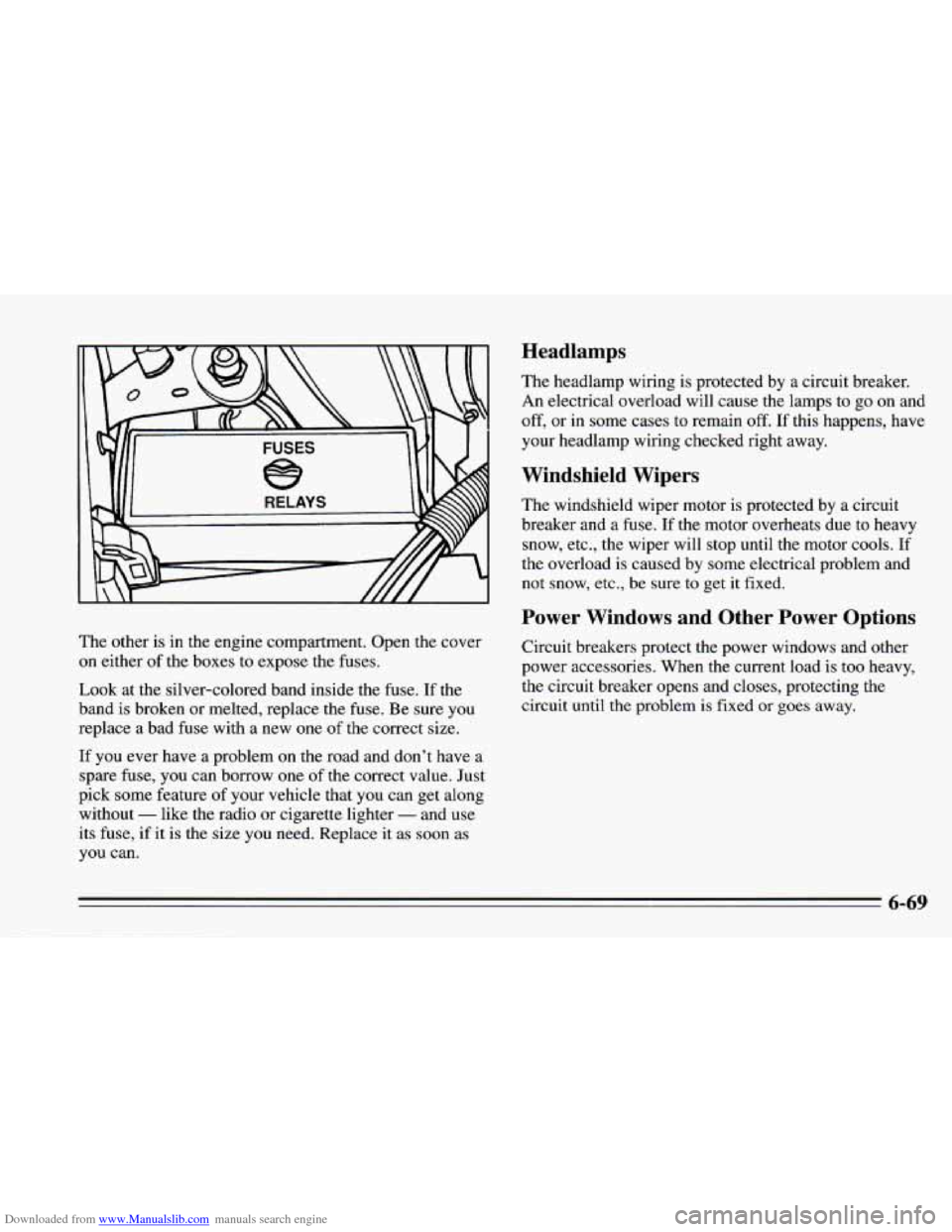

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the lamps to go on
and
off, or in some cases to remain off. If this happens, have
your headlamp wiring checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper
will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
The other is in the engine compartment. Open
the cover
on either of the boxes to expose the fuses.
Look at the silver-colored band inside the fuse. If the
band
is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one of the correct value. Just
pick some feature
of your vehicle that you can get along
without
- like the radio or cigarette lighter - and use
its fuse,
if it is the size you need. Replace it as soon as
you can.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem
is fixed or goes away.
Page 302 of 388

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center Fuses
czb ABS IGN
FANSIACTR
PCM F G
INJECTOR
INJECTOR
IGNITION
A/C-
CRUISE I
I I I I I I I I
6-70
Page 303 of 388

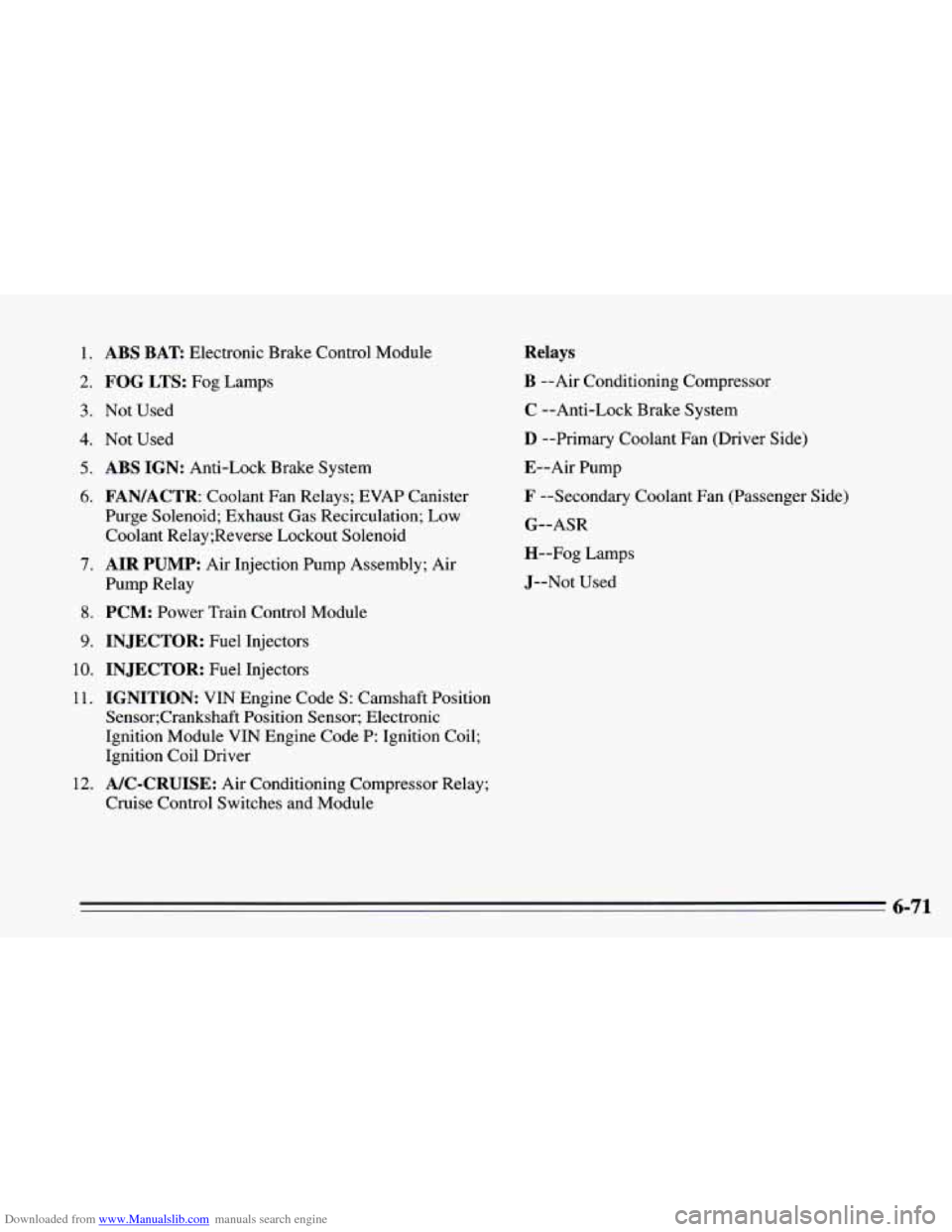

Downloaded from www.Manualslib.com manuals search engine 1. ABS BAT Electronic Brake Control Module
2. FOG LTS: Fog Lamps
3. Not Used
4. Not Used
5. ABS IGN: Anti-Lock Brake System
6. FAN/ACTR: Coolant Fan Relays; EVAP Canister
Purge Solenoid; Exhaust Gas Recirculation; Low
Coolant Re1ay;Reverse Lockout Solenoid
7. AIR PUMP: Air Injection Pump Assembly; Air
8. PCM: Power Train Control Module
Pump
Relay
9. INJECTOR: Fuel Injectors
10. INJECTOR: Fuel Injectors
11. IGNITION: VIN Engine Code S: Camshaft Position
Sensor;Crankshaft Position Sensor; Electronic
Ignition Module VIN Engine Code P: Ignition Coil; Ignition Coil Driver
Cruise Control Switches and Module
12. A/C-CRUISE: Air Conditioning Compressor Relay;
Relays
B --Air Conditioning Compressor
C --Anti-Lock Brake System
D --Primary Coolant Fan (Driver Side)
E--Air Pump
F --Secondary Coolant Fan (Passenger Side)
G--ASR
H--Fog Lamps
J--Not Used
6-71
Page 304 of 388

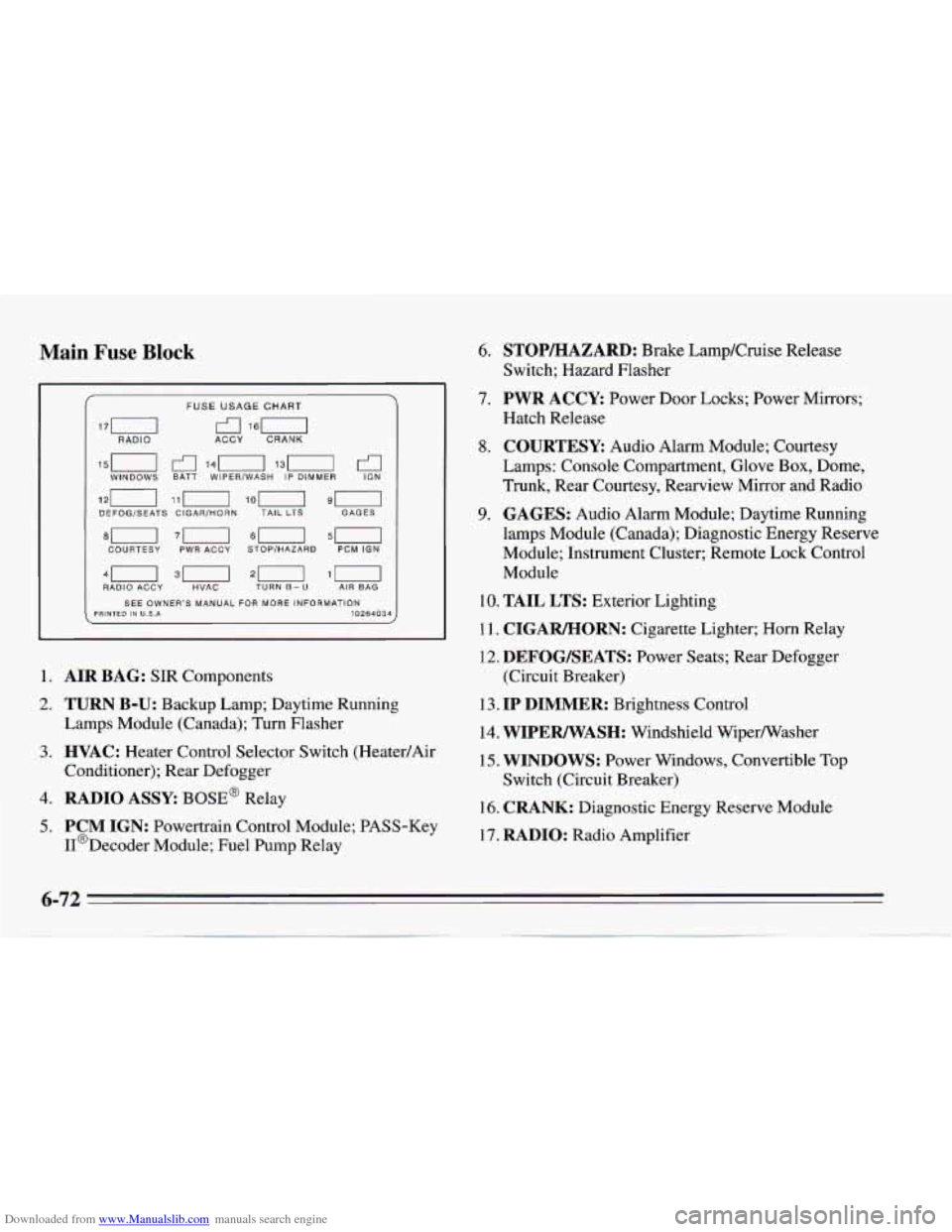

Downloaded from www.Manualslib.com manuals search engine Main Fuse Block
FUSE USAGECHART I I
I ”- RADIO
€I 160 ACCY CRANK
WINDOWS BATT WIPER/WASH IP DIMMER IGN
12[--1 11- gn
80 70 60 50
DEFOG/SEATS CIGAR/HORN TAIL LTS GAGES
COURTESY PWR
ACCY STOPIHAZARD PCM ION
RADIO ACCY TURN B- U AIR BAG
SEE OWNER’S MANUAL FOR MORE INFORMATION
PRINTED IN U.S.A 10264034
1. AIR BAG: SIR Components
2. TURN B-U: Backup Lamp; Daytime Running
Lamps Module (Canada); Turn Flasher
3. HVAC: Heater Control Selector Switch (Heater/Air
Conditioner); Rear Defogger
4. RADIO ASSY: BOSE’ Relay
5. PCM IGN: Powertrain Control Module; PASS-Key
II@Decoder Module; Fuel Pump Relay
6.
7.
8.
9.
STOPEIAZARD: Brake Lamp/Cruise Release
Switch; Hazard Flasher
PWR ACCY Power Door Locks; Power Mirrors;
Hatch Release
COURTESY: Audio Alarm Module; Courtesy
Lamps: Console Compartment, Glove
Box, Dome,
Trunk, Rear Courtesy, Rearview Mirror and Radio
GAGES: Audio Alarm Module; Daytime Running
lamps Module (Canada); Diagnostic Energy Reserve
Module; Instrument Cluster; Remote Lock Control
Module
10. TAIL LTS: Exterior Lighting
11. CIGAWORN: Cigarette Lighter; Horn Relay
12. DEFOG/SEATS: Power Seats; Rear Defogger
13. IP DIMMER: Brightness Control
14. WIPEIUWASH: Windshield WiperNasher
15. WINDOWS: Power Windows, Convertible Top
(Circuit Breaker)
Switch (Circuit Breaker)
16. CRANK: Diagnostic Energy Reserve Module
17. RADIO: Radio Amplifier
Page 305 of 388

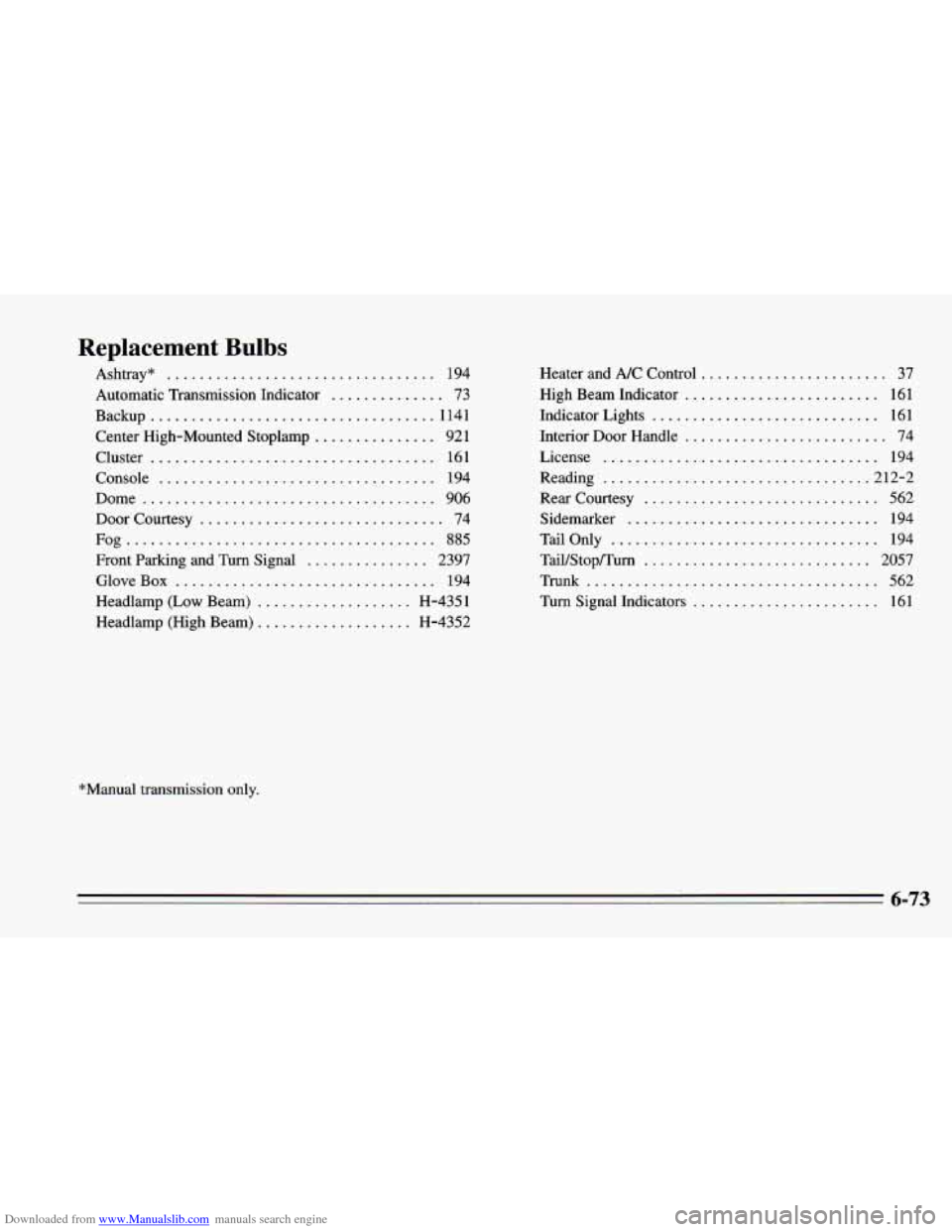

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Ashtray* ................................. 194
Automatic Transmission Indicator
.............. 73
Backup
................................... 1141
Center High-Mounted Stoplamp ............... 921
Cluster
................................... 161
Console .................................. 194
Dome .................................... 906
Fog ...................................... 885
Front Parking and Turn Signal
............... 2397
GloveBox ................................ 194
Headlamp
(Low Beam) ................... H-4351
Headlamp (High Beam)
................... H-4352
Door Courtesy
.............................. 74
*Manual transmission
only .
Heater and A/C Control ....................... 37
High Beam Indicator ........................ 161
Indicator Lights
............................ 161
Interior Door Handle
......................... 74
License .................................. 194
Reading
................................. 212-2
Rear Courtesy
............................. 562
Sidemarker
............................... 194
TailOnly
................................. 194
Tail/Stop/Turn
............................ 2057
Trunk
.................................... 562
Turn Signal Indicators
....................... 161
6-73
Page 306 of 388

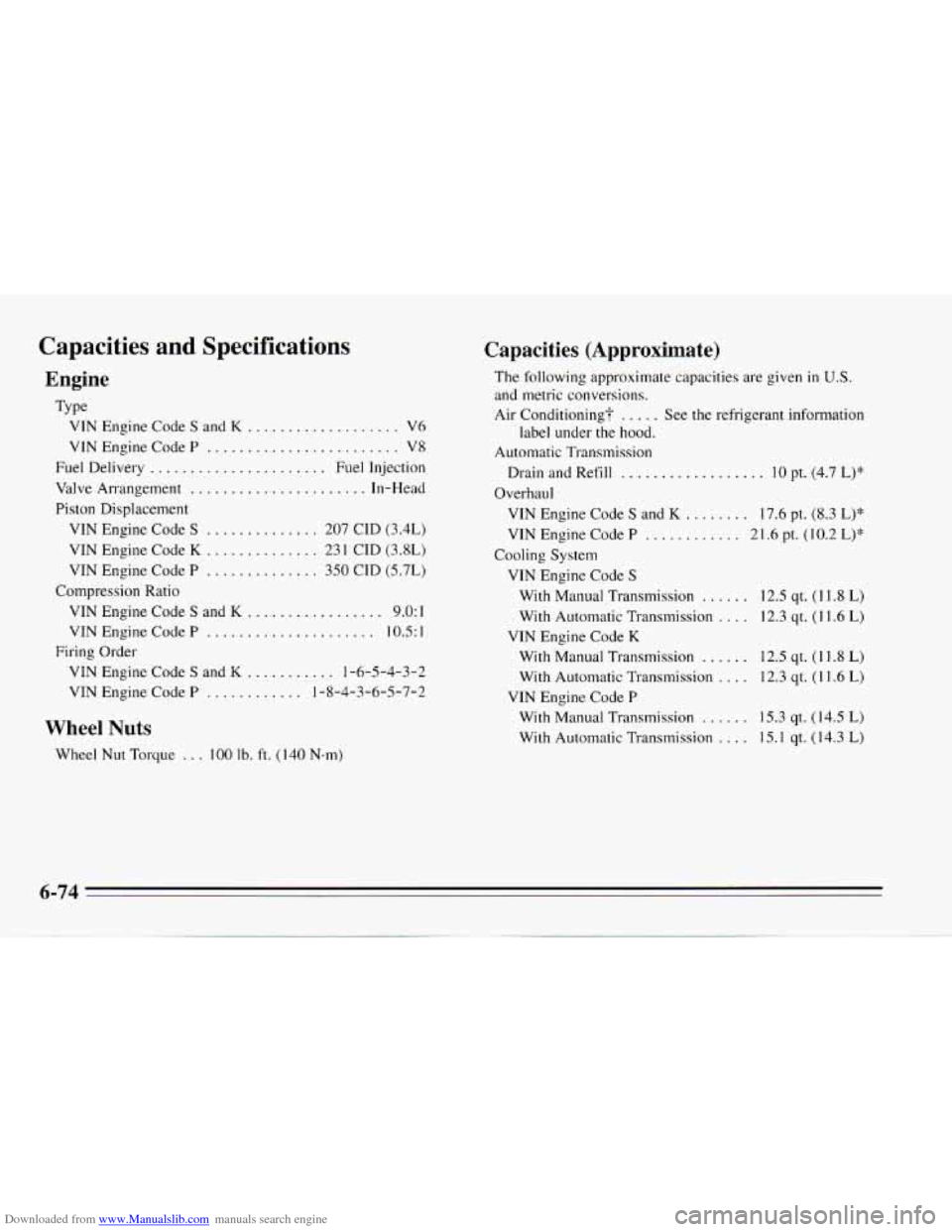

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine
Type VIN Engine Code
S and K ................... V6
VIN Engine Code
P ........................ V8
Fuel Delivery
...................... Fuel Injection
Valve Arrangement
...................... In-Head
Piston Displacement
VIN Engine Code
S .............. 207 CID (3.4L)
VIN Engine Code
K .............. 23 1 CID (3.8L)
VIN Engine Code
P .............. 350 CID (5.7L)
VIN Engine Code
S and K ................. 9.0: I
VIN Engine Code P ..................... 10.5: 1
VIN Engine Code S and K ........... 1-6-5-4-3-2
VIN Engine Code
P ............ 1-8-4-3-6-5-7-2
Compression Ratio
Firing Order
Wheel Nuts
Wheel Nut Torque ... 100
Ib. ft. (I 40 N-m)
Capacities (Approximate)
The following approximate capacities are given in U.S.
and metric conversions.
Air Conditioning?
..... See the refrigerant information
label under the hood.
Automatic Transmission
Drain and Refill
.................. IO pt. (4.7 L)*
VIN Engine Code S and K . . , . . , . . 17.6 pt. (8.3 L)*
VIN Engine Code P ............ 2 1.6 pt. (1 0.2 L)*
VIN Engine Code S
Overhaul
Cooling System
With Manual Transmission
...... 12.5 qt. (1 1.8 L)
With Automatic Transmission
, . . , 12.3 qt. (1 1.6 L)
With Manual Transmission
...... 12.5 qt. (1 1.8 L)
With Automatic Transmission .... 12.3 qt. (1 I .6 L)
With Manual Transmission ...... 15.3 qt. (14.5 L)
With Automatic Transmission
.... 15.1 qt. (14.3 L)
VIN
Engine Code
K
VIN Engine Code P
6-74
Page 307 of 388

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate) Continued
Crankcase With Filter Change
.............. 4.5 qt. (4.3 L)*“:
Fuel Tank ...................... 15.5 gal. (58.7 L)
Manual Transmission
Five-Speed
..................... 5.9 pt. (2.8 L)*
Six-Speed ...................... 8.0 pt. (3.8 L):k
Rear Axle Lubricant ................. 3.5 pt. (1.7L)
?Not all air conditioning refrigerants are the same. If the air
conditioning system
in your vehicle needs refrigerant, be sure
the proper refrigerant is used. If you’re not sure, ask your
Chevrolet dealer.
“Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid”
in the
Index.
Vehicle Dimensions
Wheelbase ...................... 101.1 “ (2 566 mm)
Front Tread ........................ 60.7” ( 1542 mm)
Rear Tread
........................ 60.6“ (1 540 mm)
Length
........................ 193.2“ (4 908 mm)
Width
........................... 74.1 “ (1 883 mm)
Height
............................ 5 1.3“ (1 303 mm)
Height (Convertible)
................ 52.0” (1322 mm)
*Recheck fluid level after filling. See “Automatic
Transmission Fluid’ or “Manual Transmission Fluid”
in the
Index.
**Recheck the
oil level after filling. See “Engine Oil” in the
Index.
6-75
Page 308 of 388

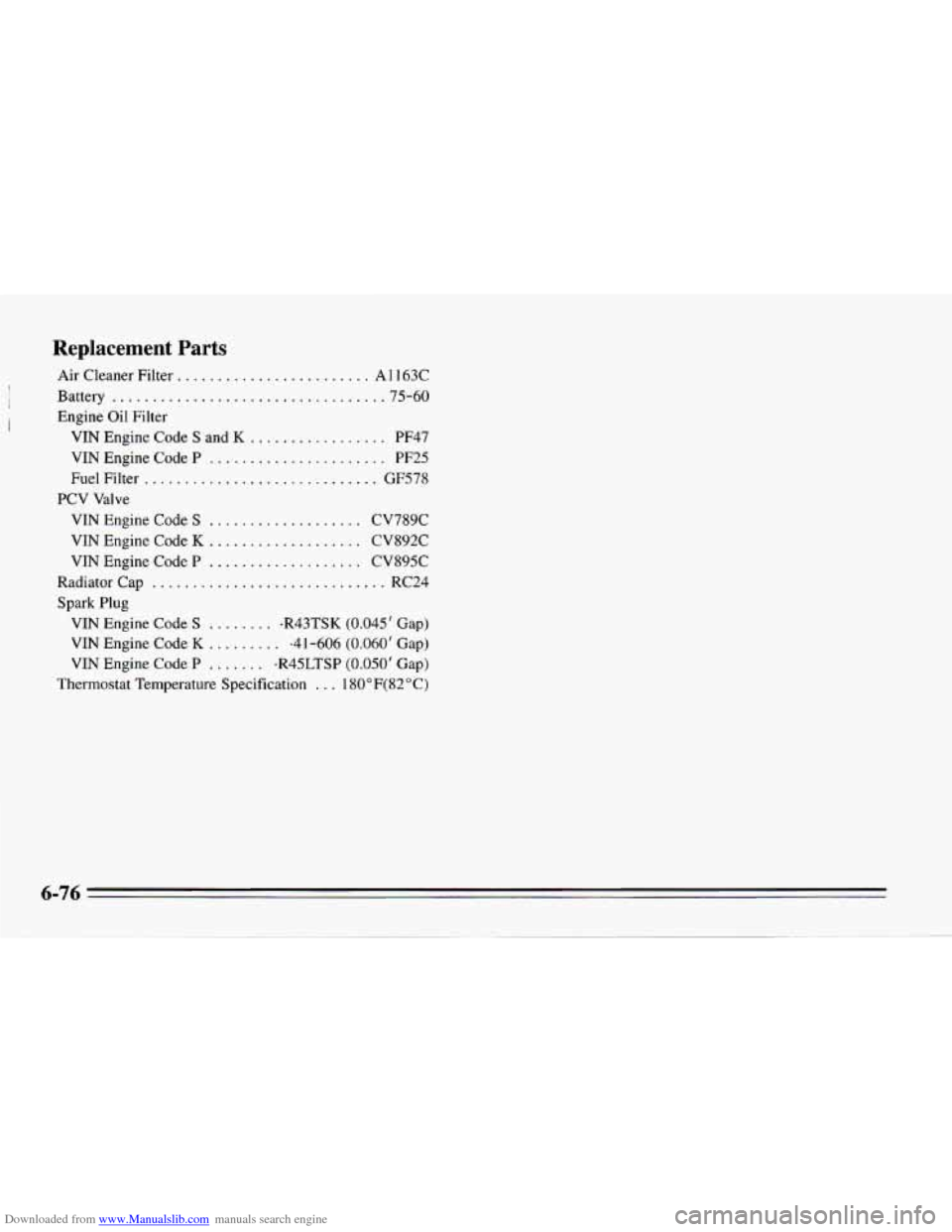

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ........................ A 1 I63C
Battery
.................................. 75-60
Engine Oil Filter
VIN Engine Code
S and K ................. PF47
VIN Engine Code P
...................... PF25
Fuel Filter ............................. GF578
PCV Valve
VIN Engine Code
S ................... CV789C
VIN Engine Code
K ................... CV892C
VIN Engine Code
P ................... CV895C
Radiator Cap
............................. RC24
Spark Plug VIN Engine Code
S ........ -R43TSK (0.045' Gap)
VIN Engine Code
K ......... a41 -606 (0.060' Gap)
VIN Engine Code
P ....... -R45LTSP (0.050' Gap)
Thermostat Temperature Specification
... 1 80°F(82 O C)
6-76
Page 309 of 388

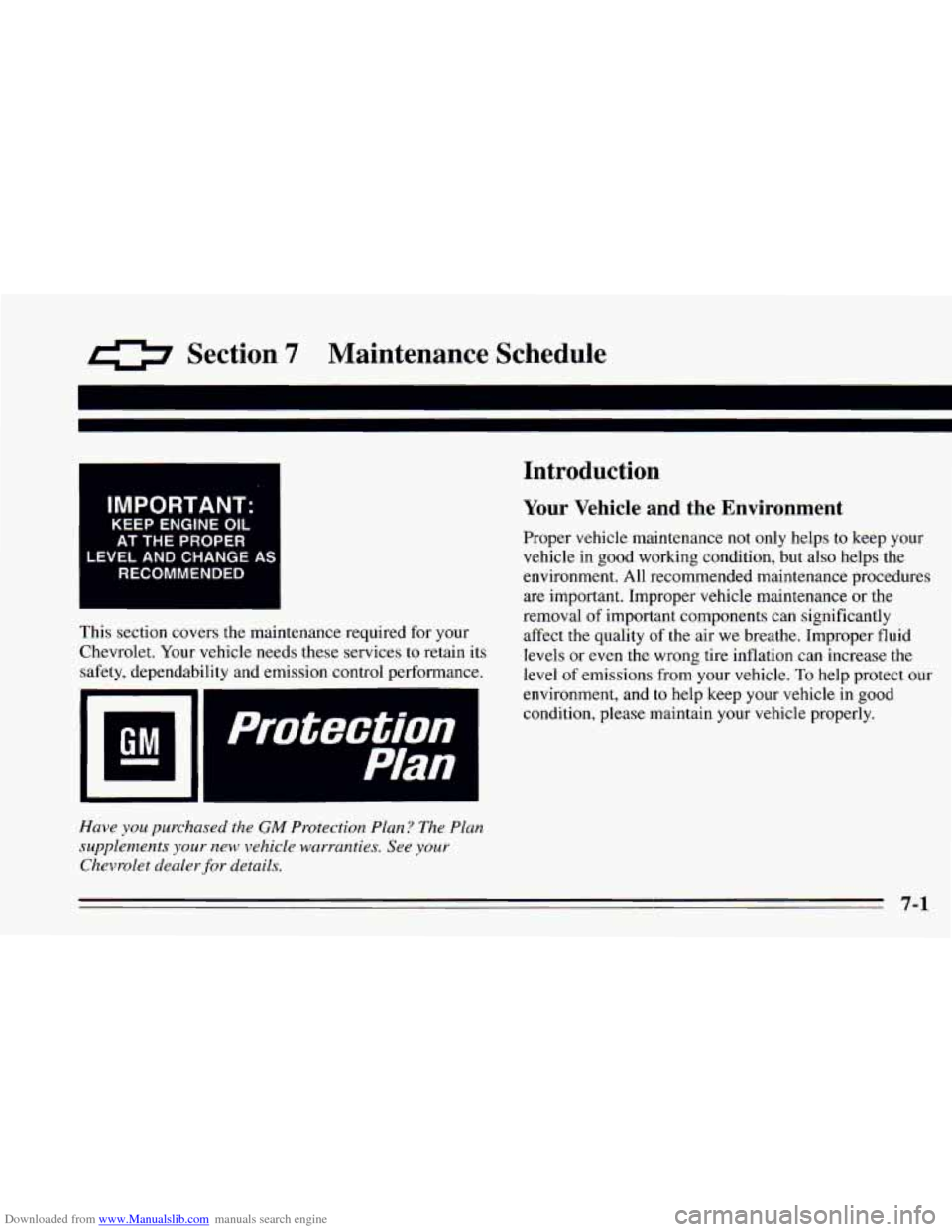

Downloaded from www.Manualslib.com manuals search engine 0 Section 7 Maintenance Schedule
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVELANDCHANGEAS
RECOMMENDED
This section covers the maintenance required for your
Chevrolet. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
Protection
Plan
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment.
All recommended maintenance procedures
are important. Improper vehicle maintenance or the
removal
of important components can significantly
affect the quality
of the air we breathe. Improper fluid
levels or even the wrong tire inflation can increase the
level
of emissions from your vehicle. To help protect our
environment, and to help keep your vehicle in good
condition, please maintain your vehicle properly.
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Chevrolet dealer for details.
7-1
Page 310 of 388

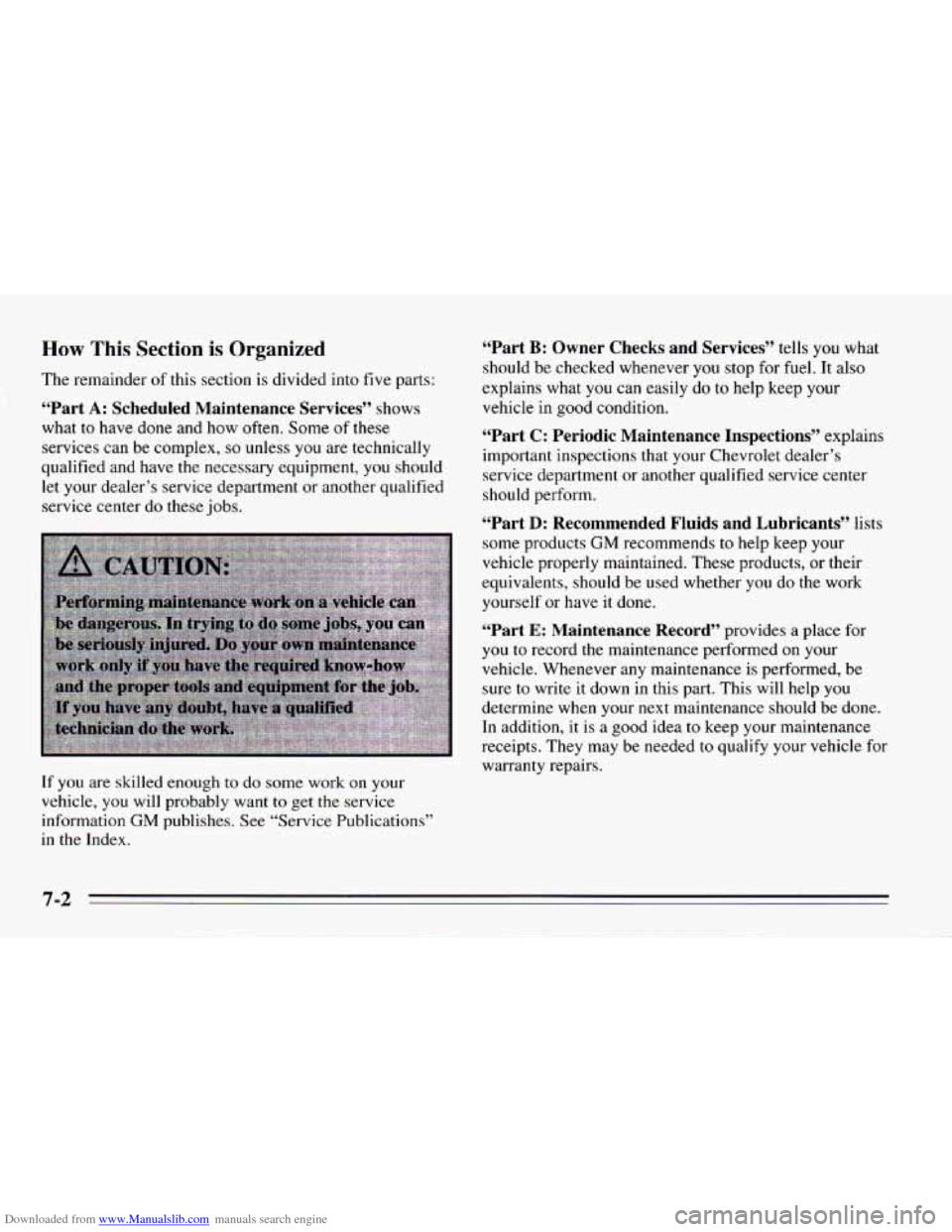

Downloaded from www.Manualslib.com manuals search engine How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some
of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment,
you should
let your dealer’s service department or another qualified
service center do these jobs.
If
you are skilled enough to do some work on your
vehicle,
you will probably want to get the service
information
GM publishes. See “Service Publications’’
in the Index.
“Part B: Owner Checks and Services” tells you what
should
be checked whenever you stop for fuel. It also
explains what
you can easily do to help keep your
vehicle in good condition.
“Part C: Periodic Maintenance Inspections” explains
important inspections that your Chevrolet dealer’s service department or another qualified service center
should perform.
“Part D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your
next maintenance should be done.
In addition, it
is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
